En Stock
64,39 €
Con la garantía de
Color
Especificaciones
Última actualización: 2026-01-29T23:44:52.285Z
Descripción

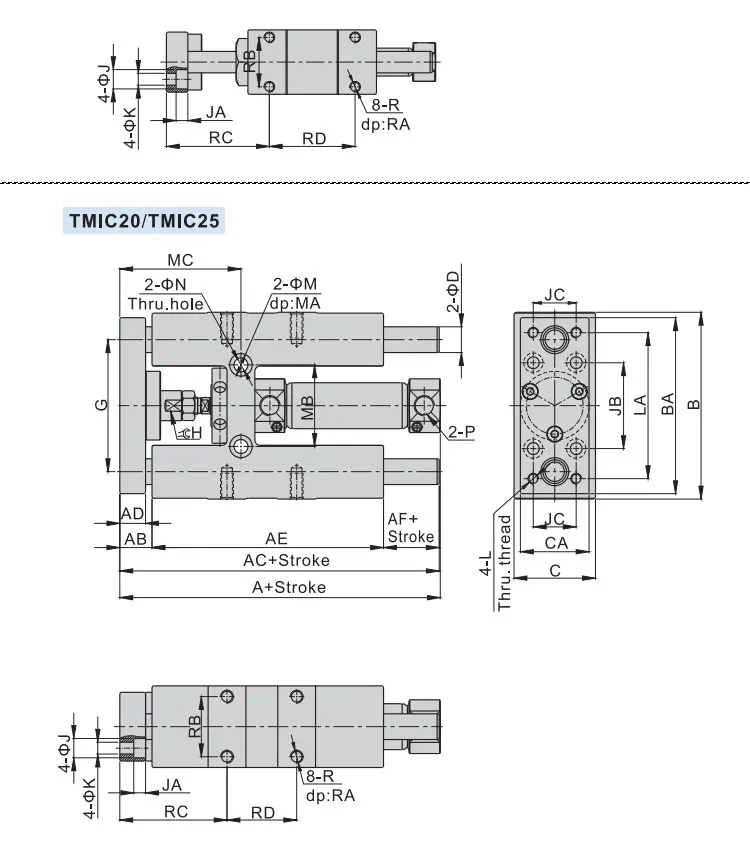

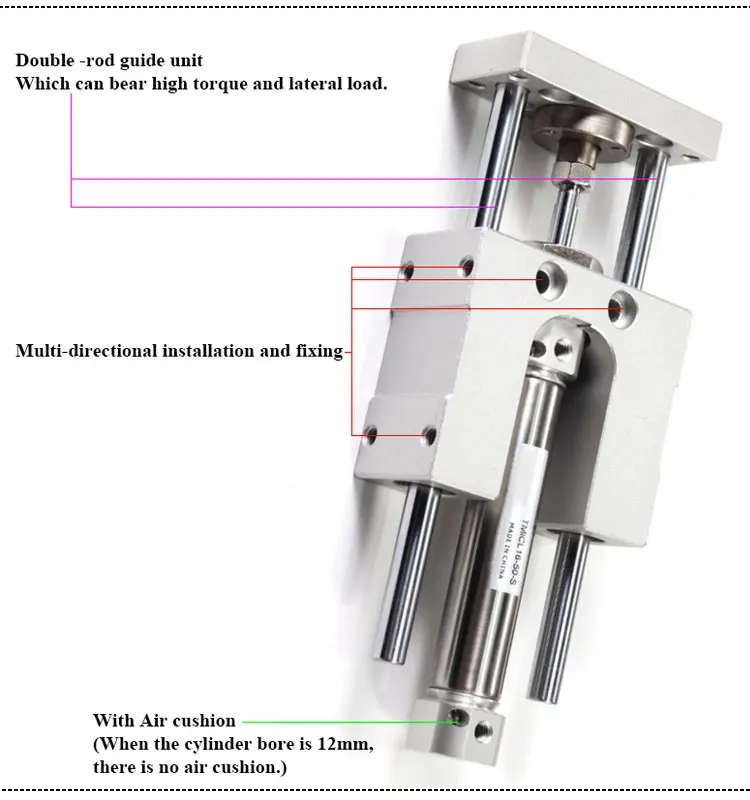

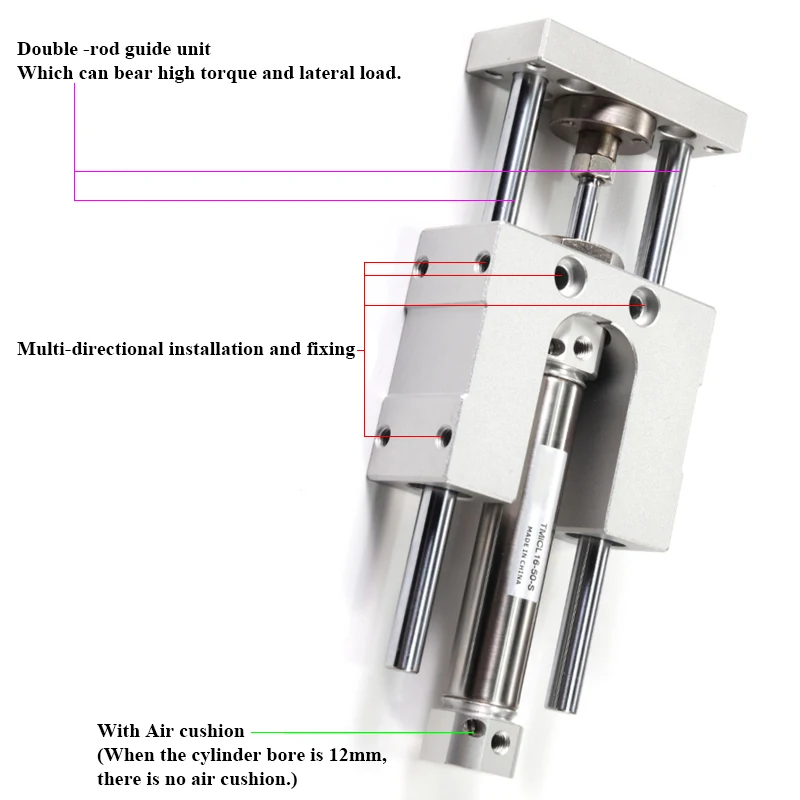

TMI TMIC Series with Guide Frame Cylinder

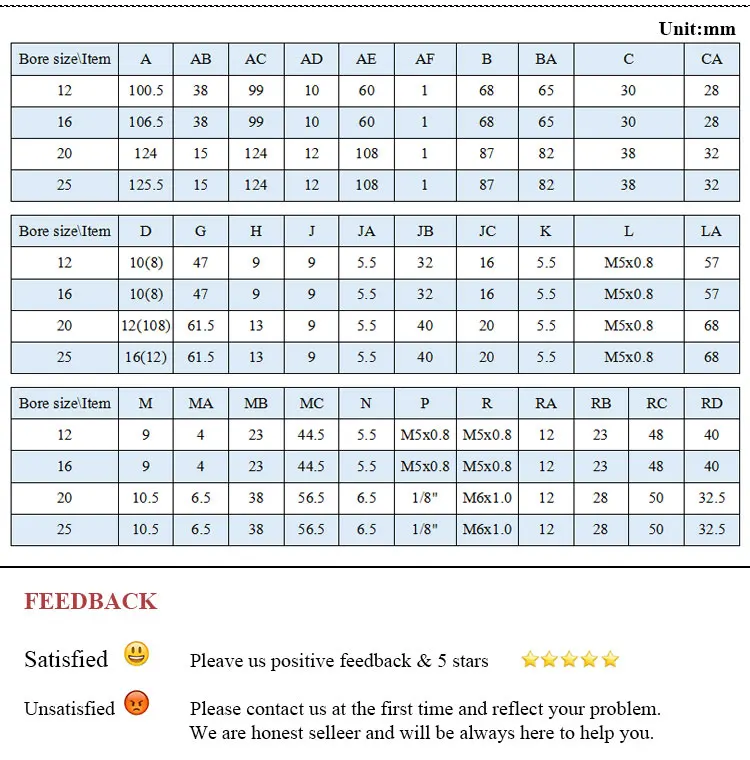

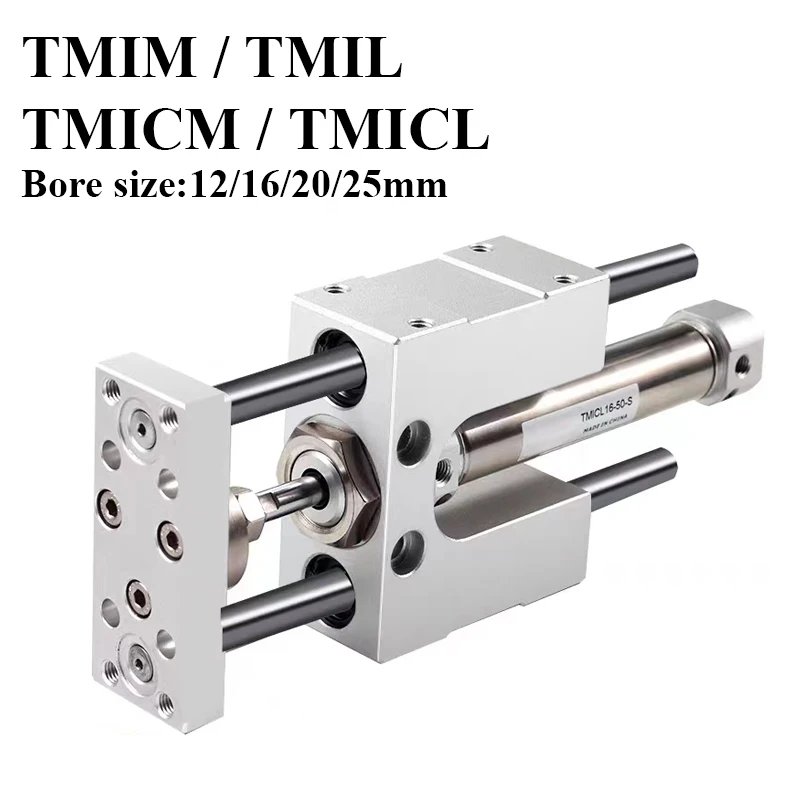

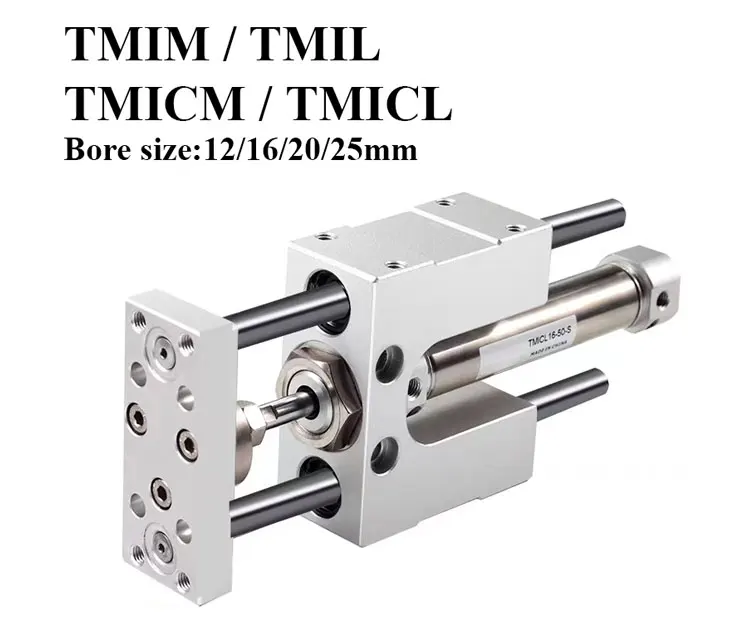

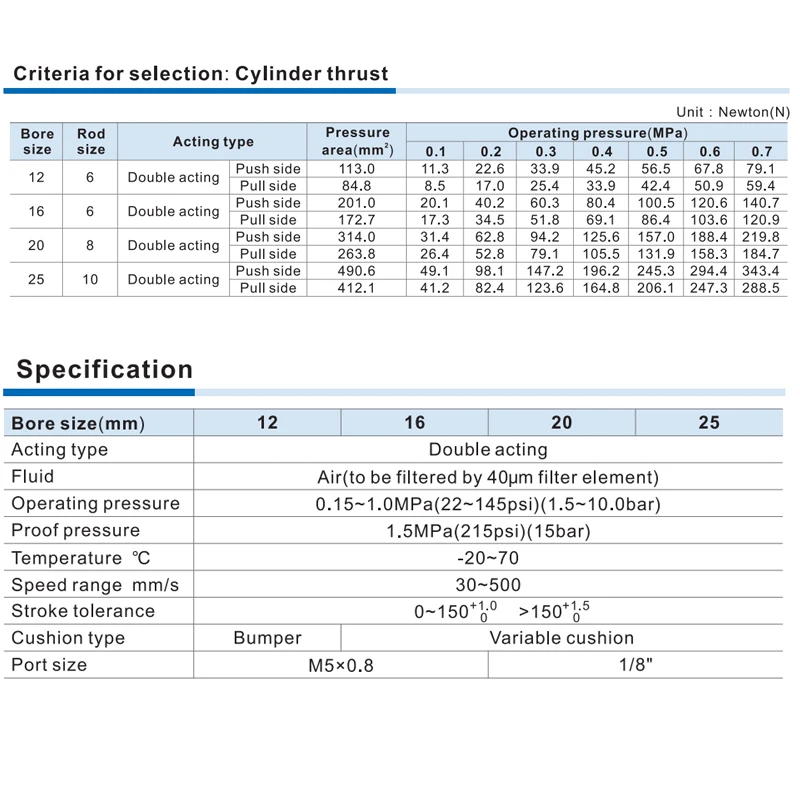

Model(optional): TMIM,TMIL,TMICM,TMICLBore(optional):10mm,16mm,20mm,25mm
Stroke(optional):25mm,50mm,75mm,100mm,125mm,150mm,175mm,200mm,250mm

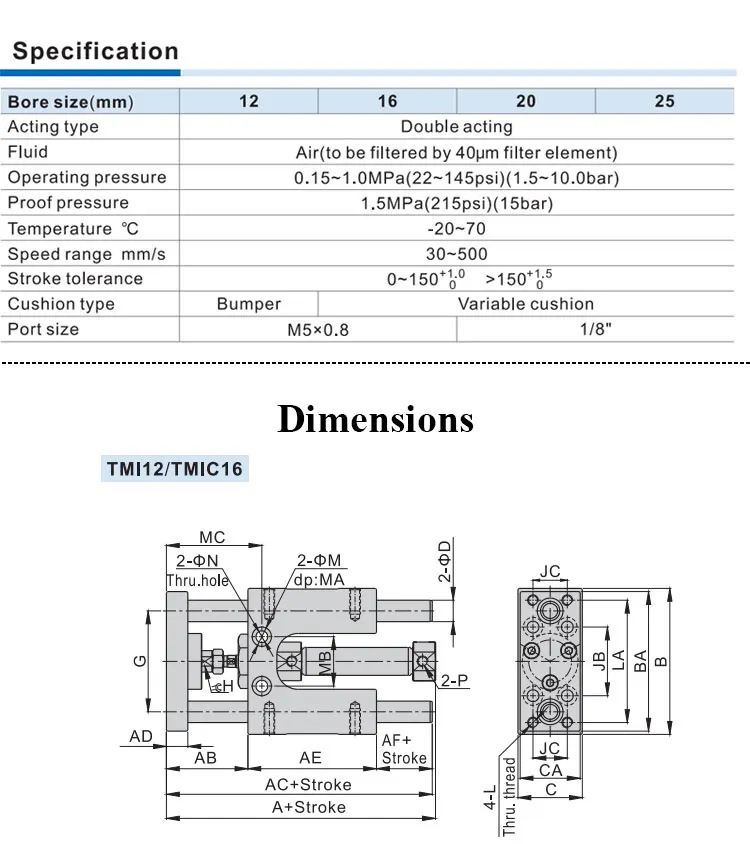

Acting: Double acting
Fluid: Air
Operating pressure:0.15-1.0MPa
Proof pressure:1.5MPa
Note:

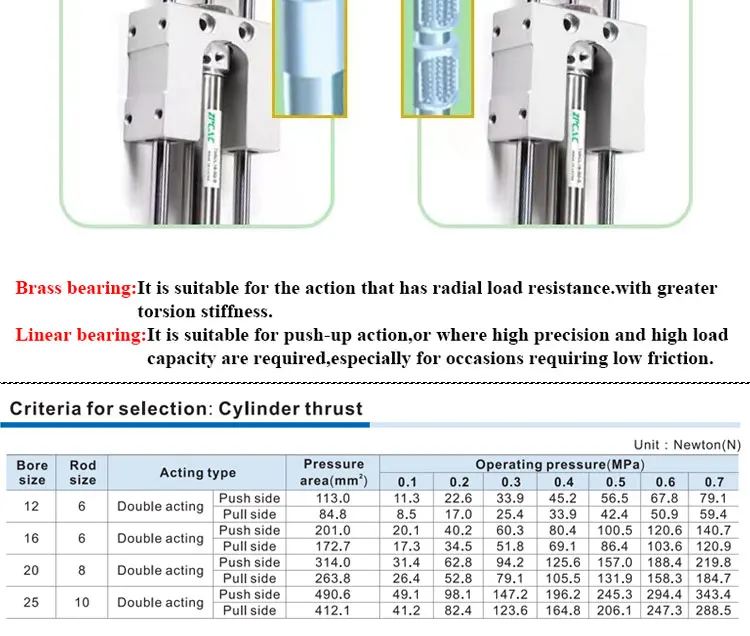

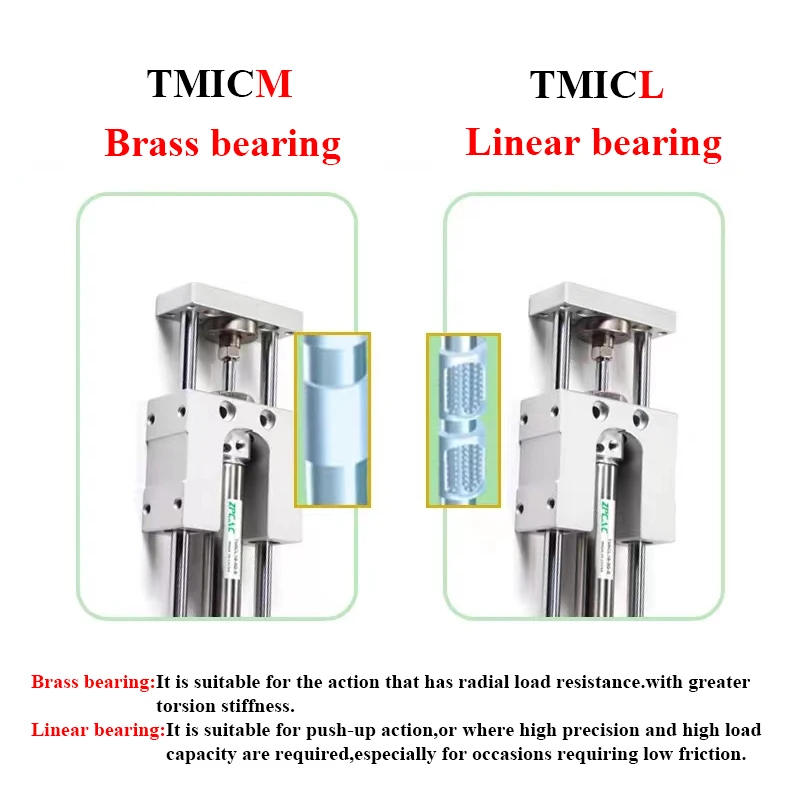

Brass bearing:It is suitable for the action that has radial load resistance.with greater
torsion stiffness.
torsion stiffness.
Linear bearing:It is suitable for push-up action,or where high precision and high load
capacity is required, especially for occasions requiring low friction.
capacity is required, especially for occasions requiring low friction.
Made in China (Mainland)
