ADT-Link USB 3,2 interno tipo C macho a tipo C macho Gen2x2 Cable plano de 20Gbps para dispositivo de carga USB y extensor de señal USB

ADT factory direct sales, excellent product performance, ex.cellent reputation, 100% full inspection, power-on test delivery company.

Brand:ADT-Link

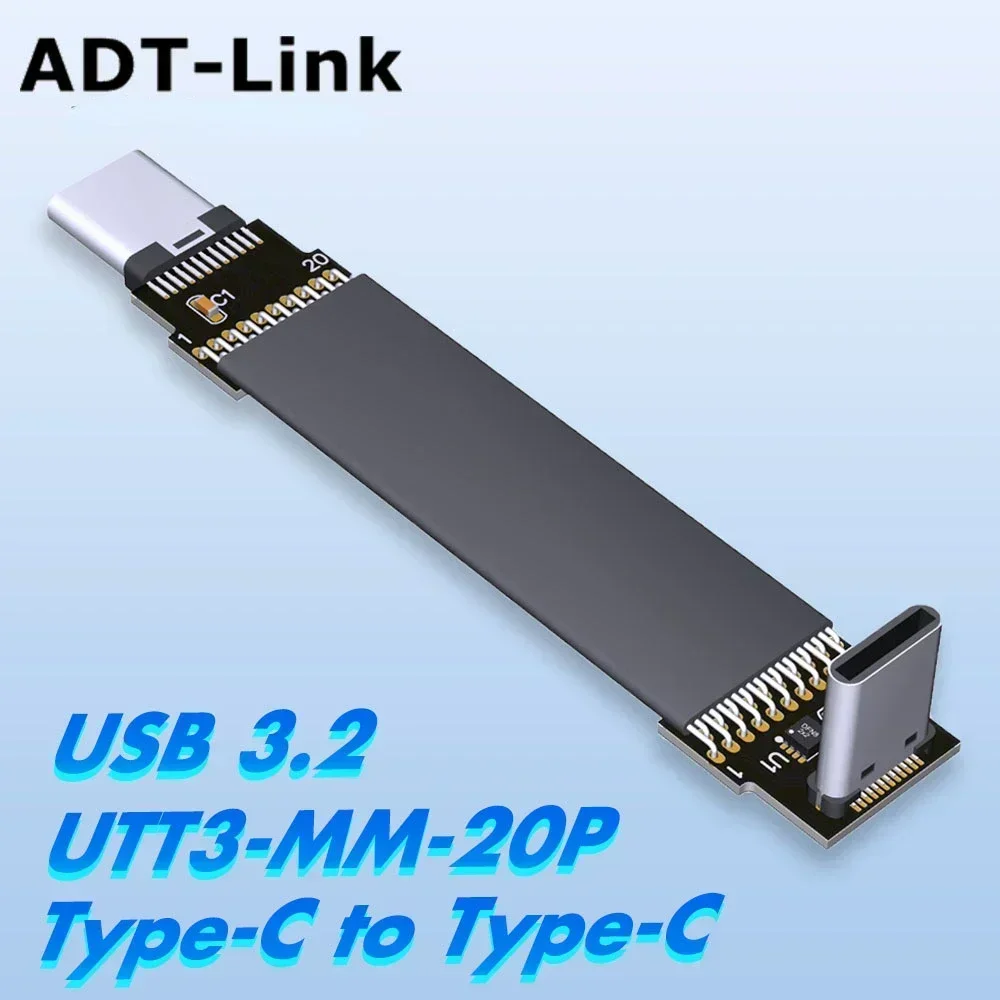

Product model:UTT3-MM-20P range

Product Name:USB3.2 Type C Adapter Extension Cable

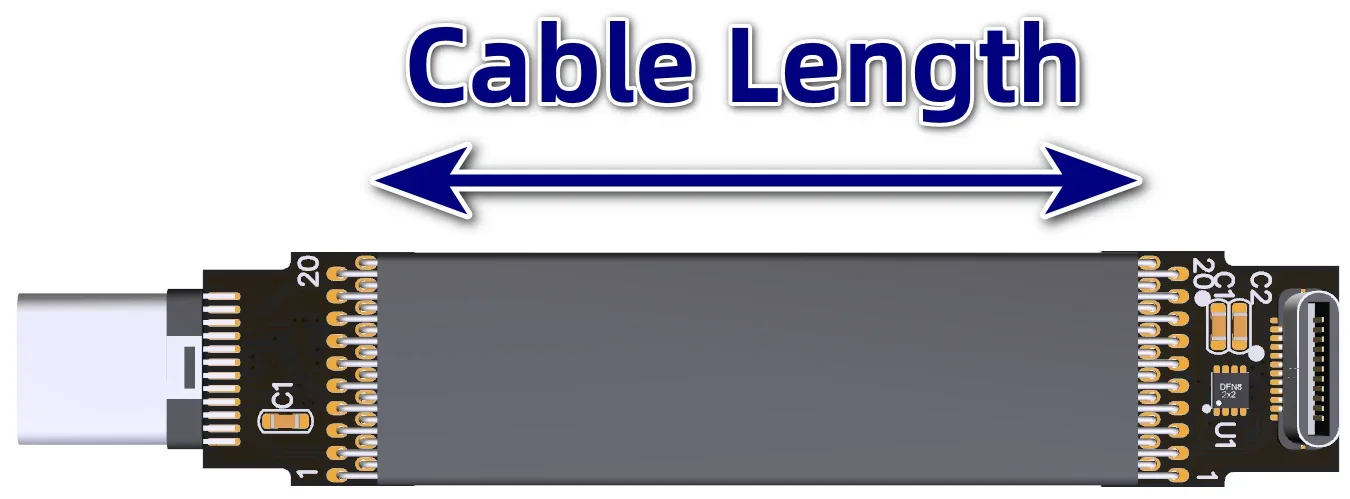

Wire Length:0.03m-3m(Support Custom)

Adaptive range:USB3.2 USB-C to USB-C

Bandwidth:USB 3.2 Gen2x2 20G/bps(0.5m support Gen2,3m support Gen1)

Current Capability:Supports 1. 5A within 0.5m, 0. 9A within 1m

Product Applications:Mobile phone,PC,GPS, Storage Device, ROCK Pi4 Development Board

NOTE:
NOTE: Buy one or two samples and then purchase them in batches.

NOTE

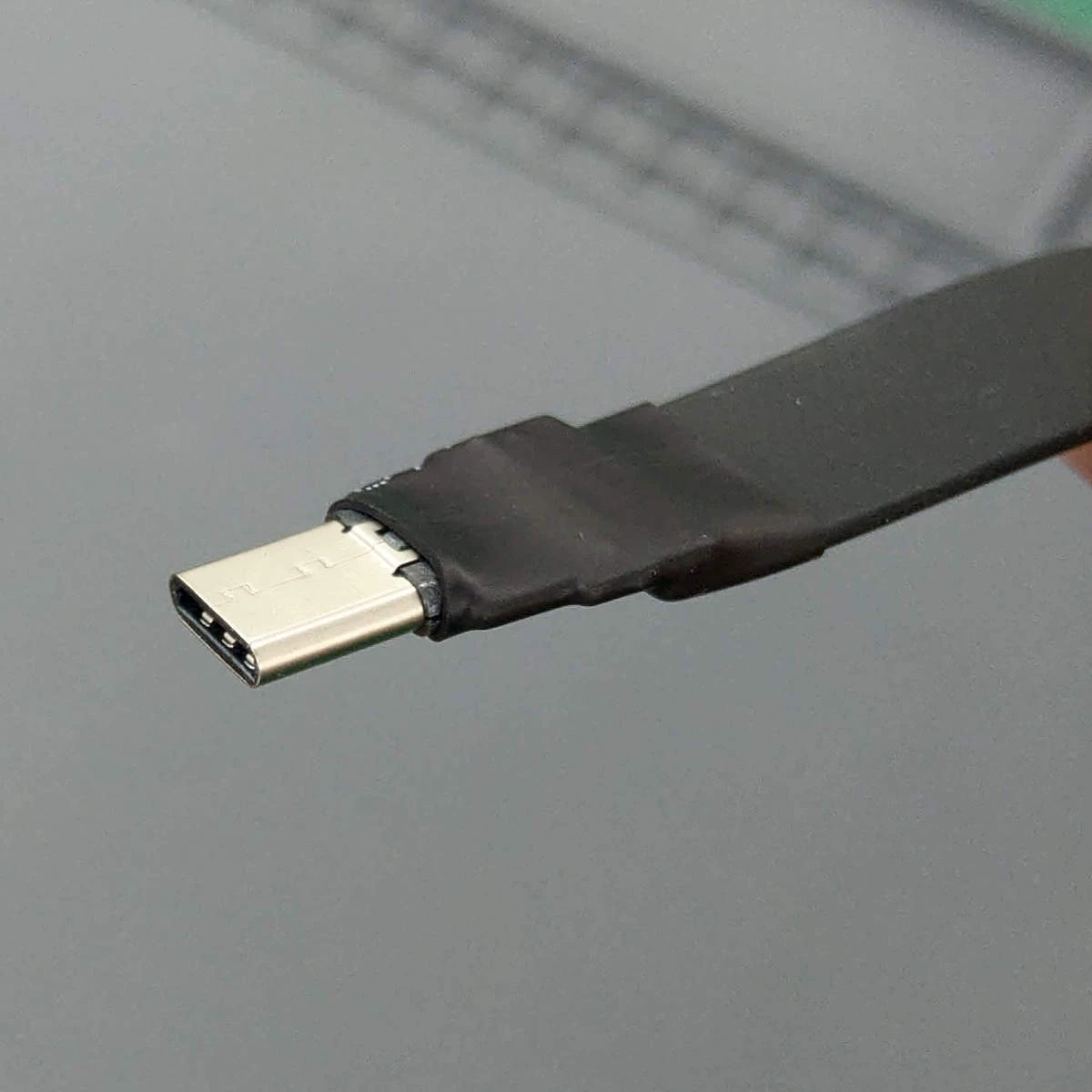

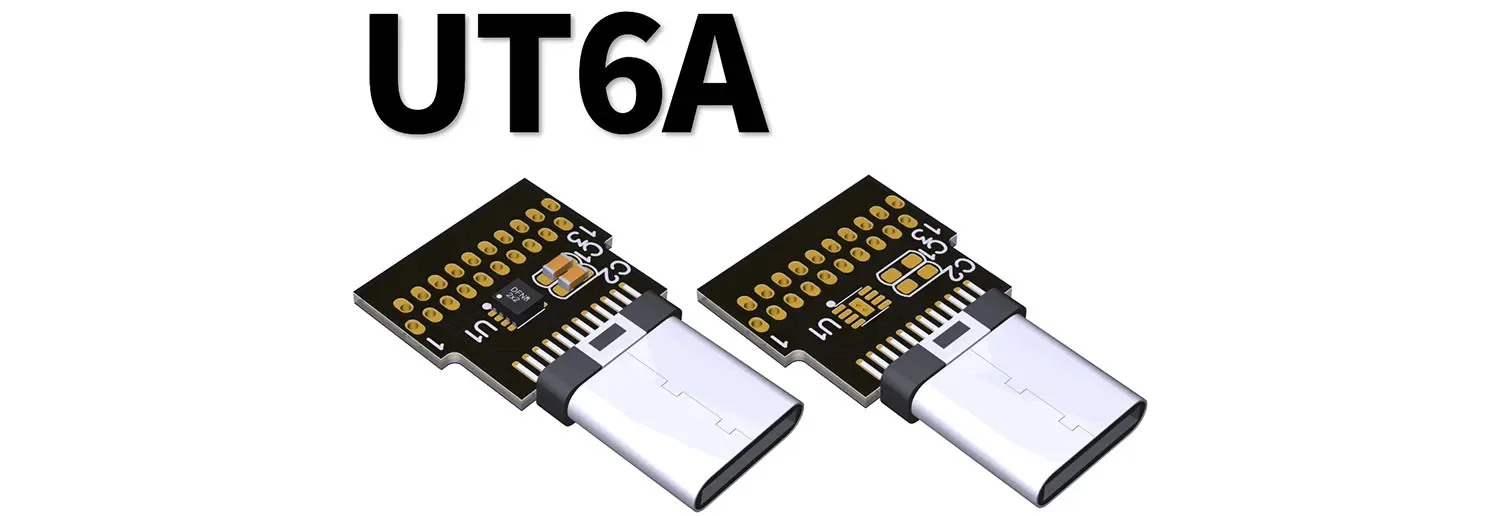

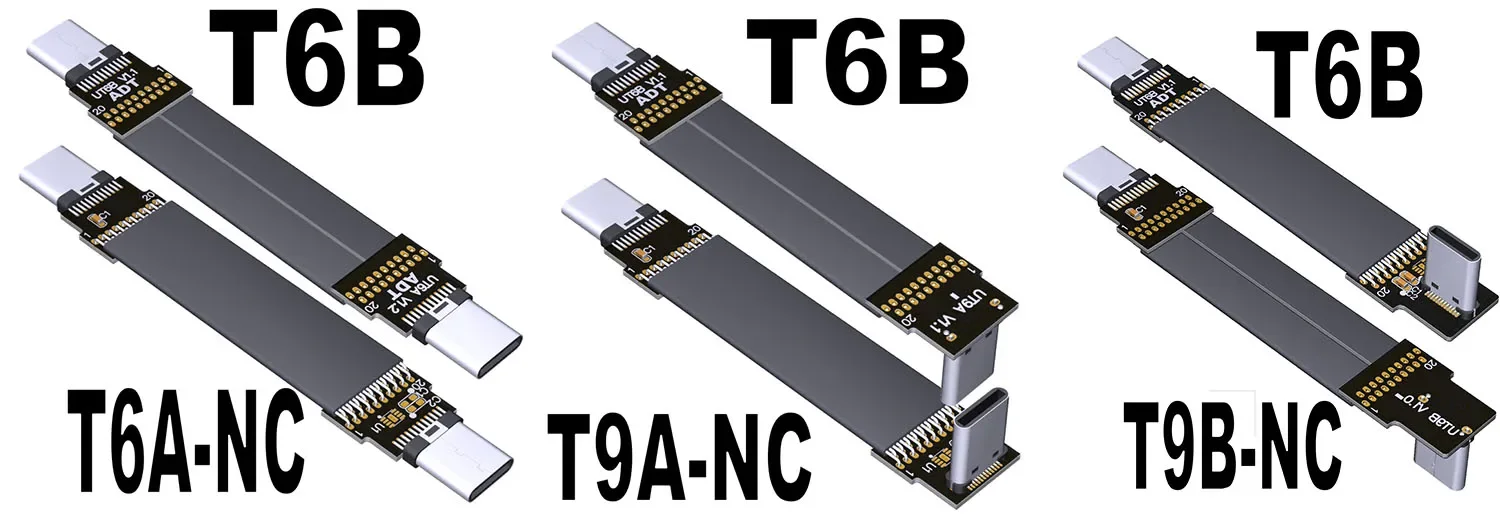

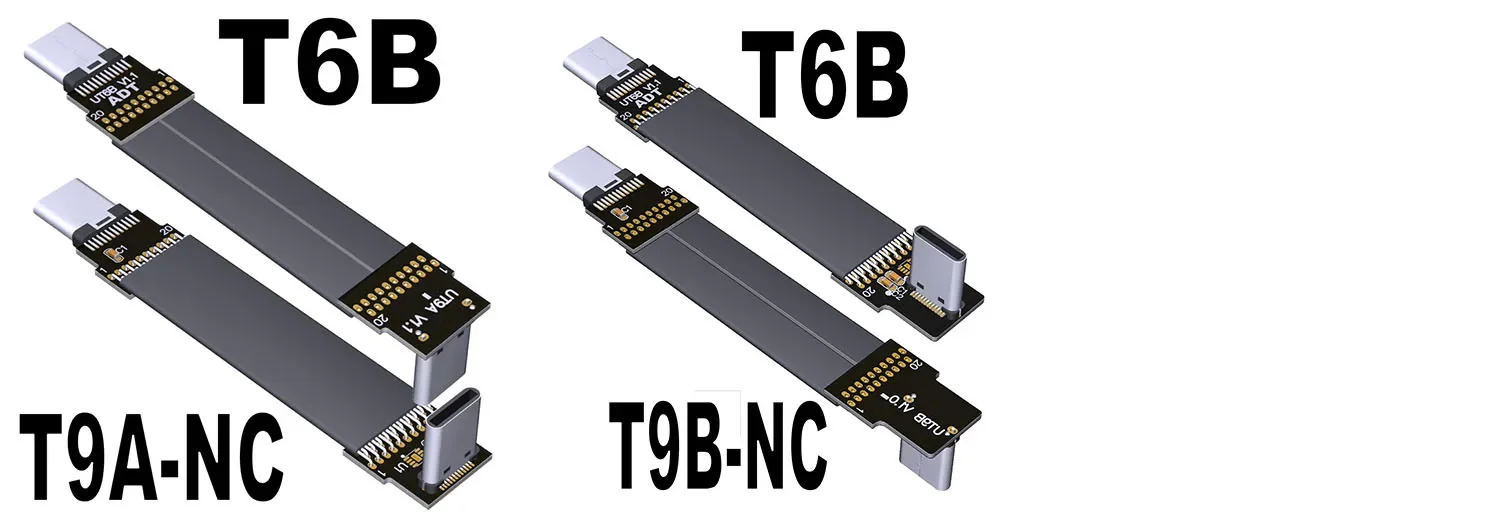

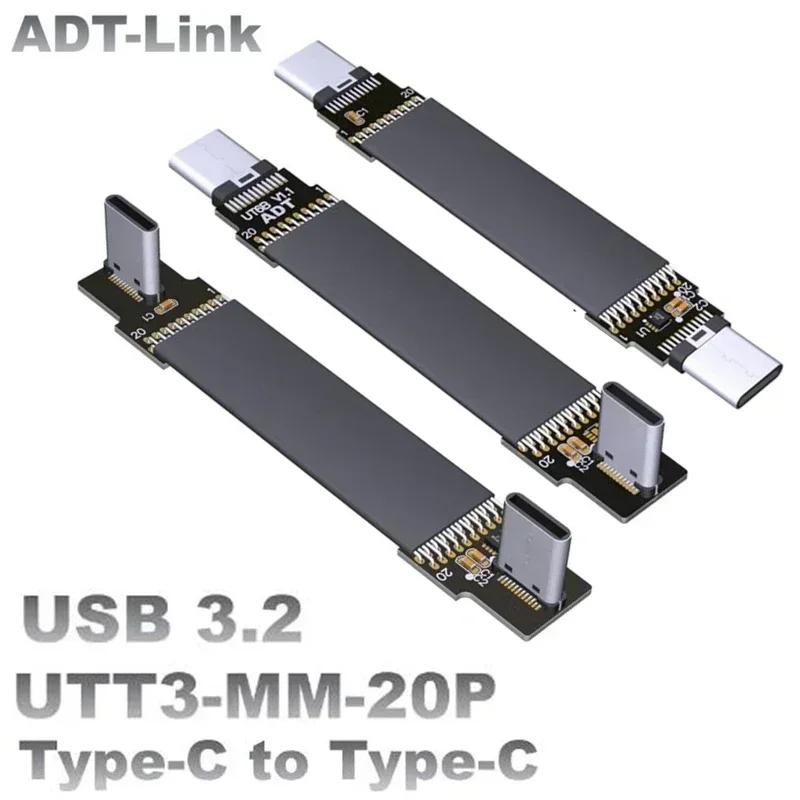

1.T6A/T6B is a flat type-C male connector.
2.T7B is a flat type-C female connector.
3.T8T is an angled type-C female connector with 2 locating holes.
4.T9A is an angled type-C male connector.
5.Model with NC means without e-mark chip, model with BK means with PCI baffle.

Product Model Specification:

offerings:

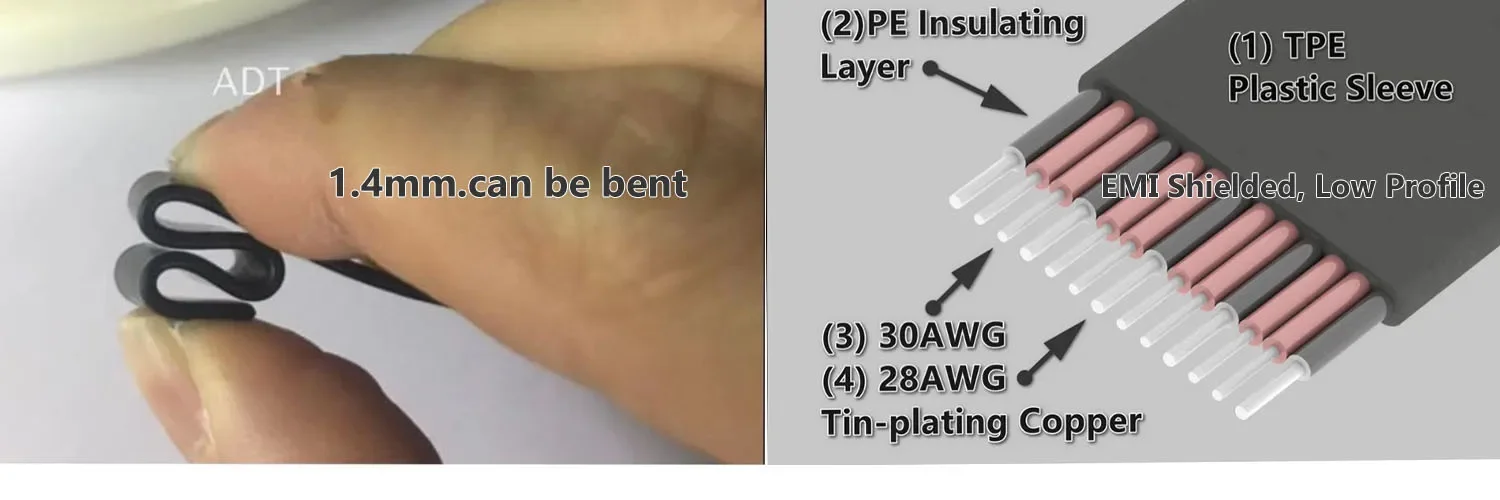

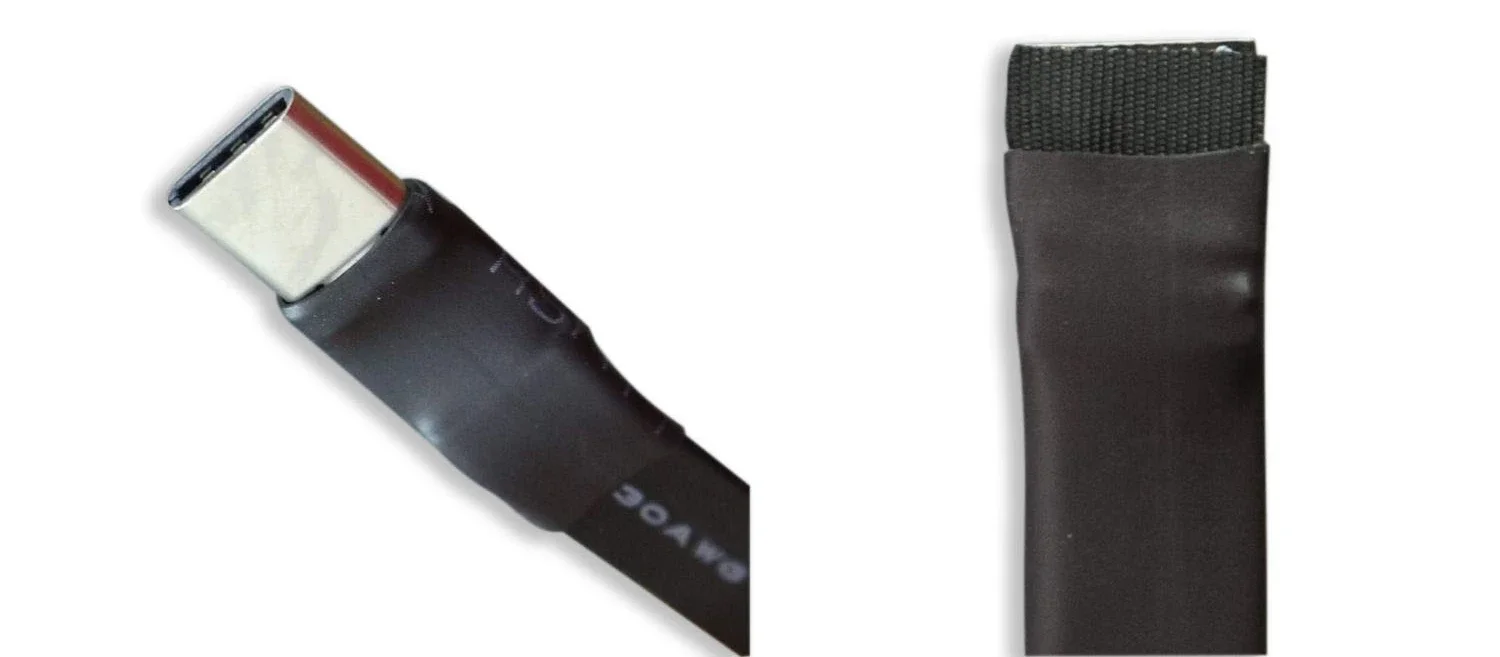

1.High quality wire, can be bent.
2.From 0.03m-3m can accept customisation.
3.Differential signal without over-hole design, there is no signal attenuation interference problems.
4.PCB high frequency and low resistance, using high TG plate, copper thickness 1oz, using two 5V power lines, support 3A.

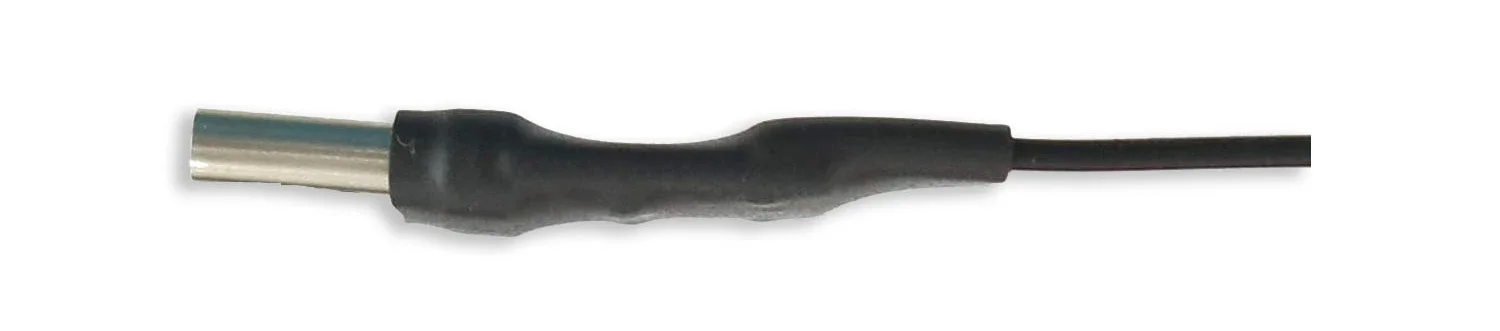

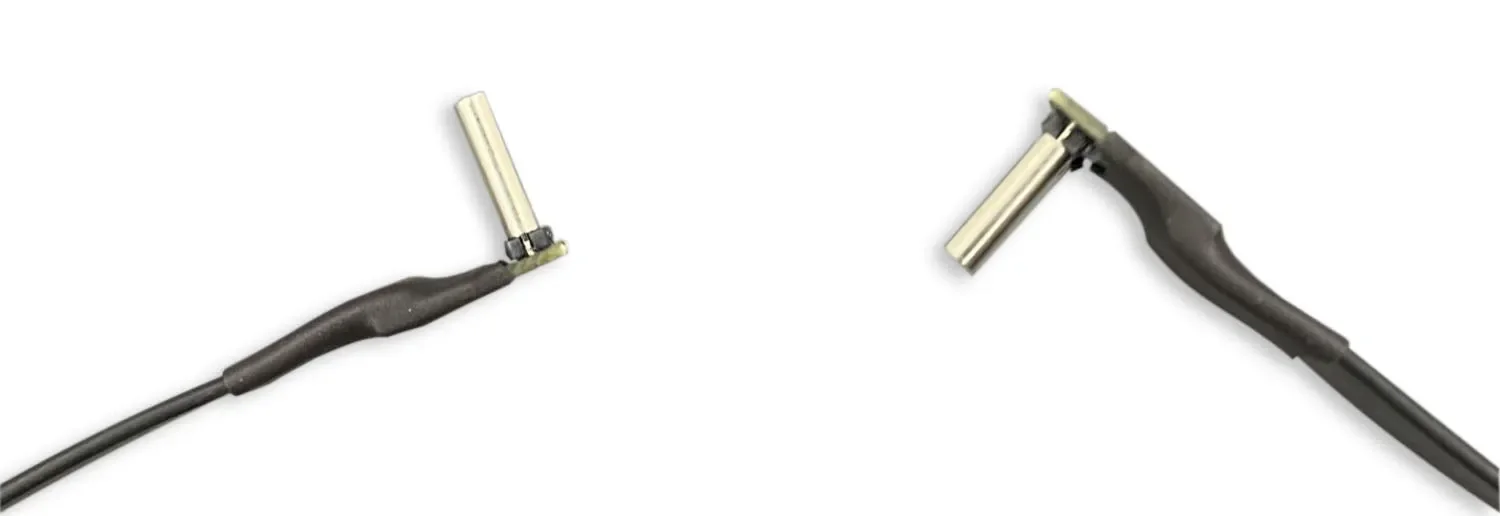

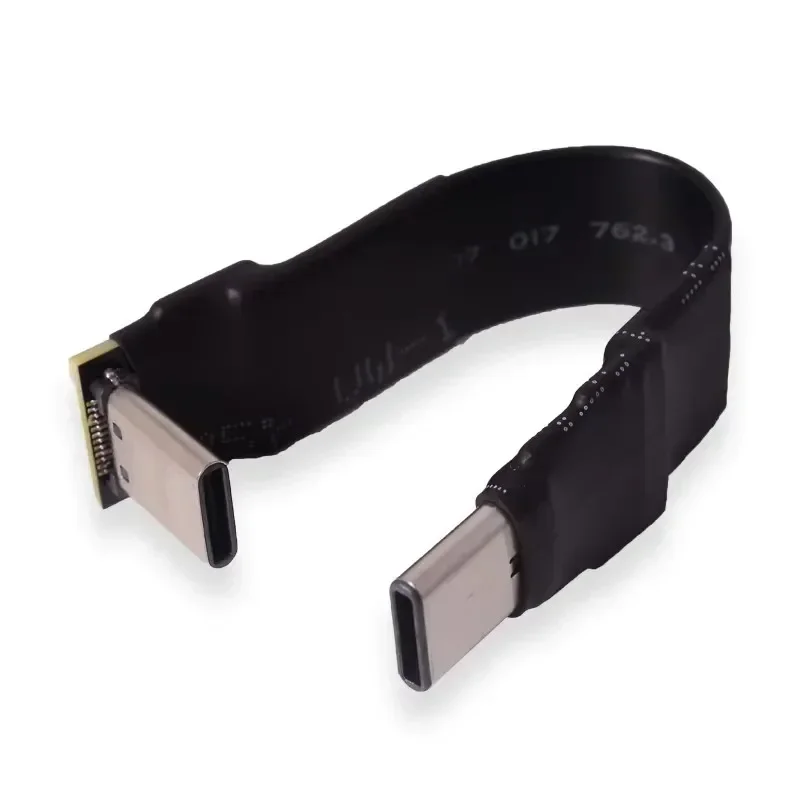

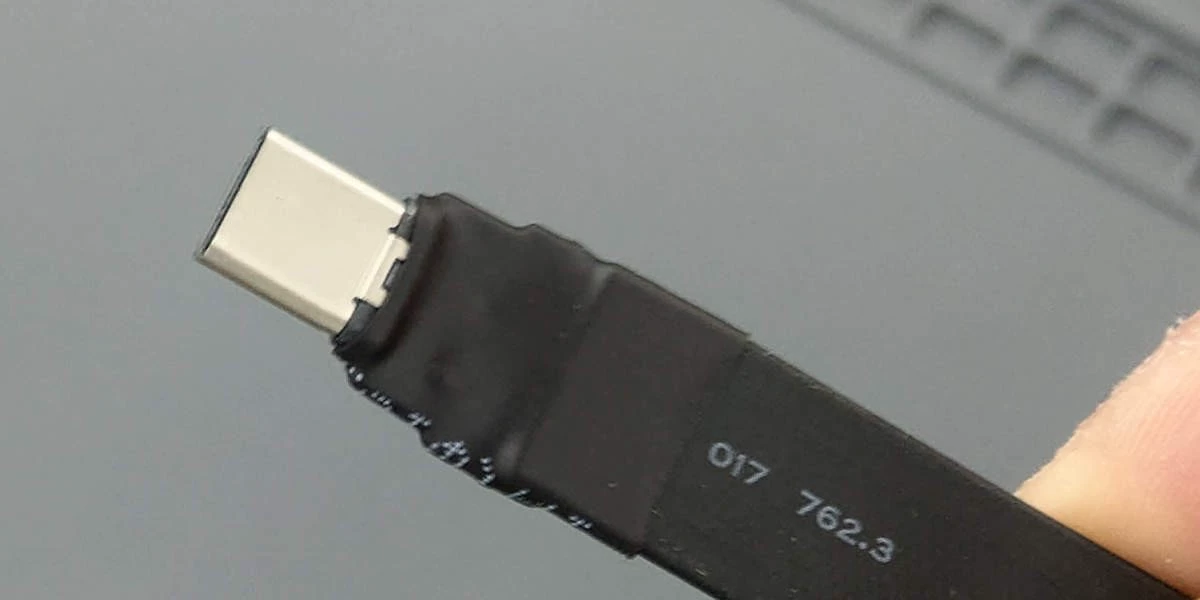

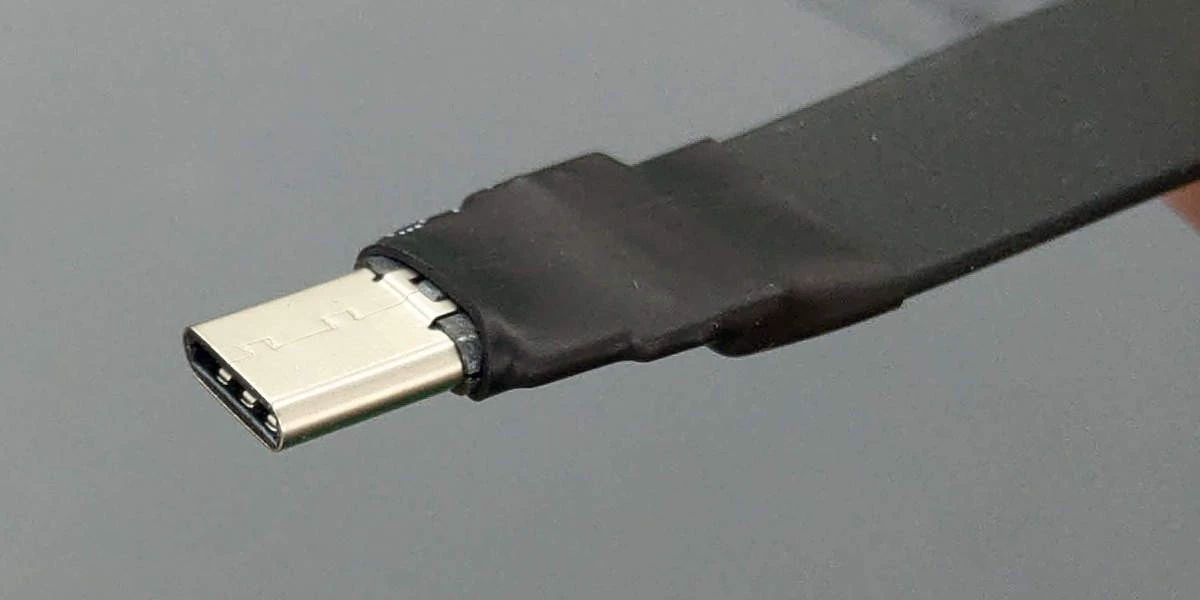

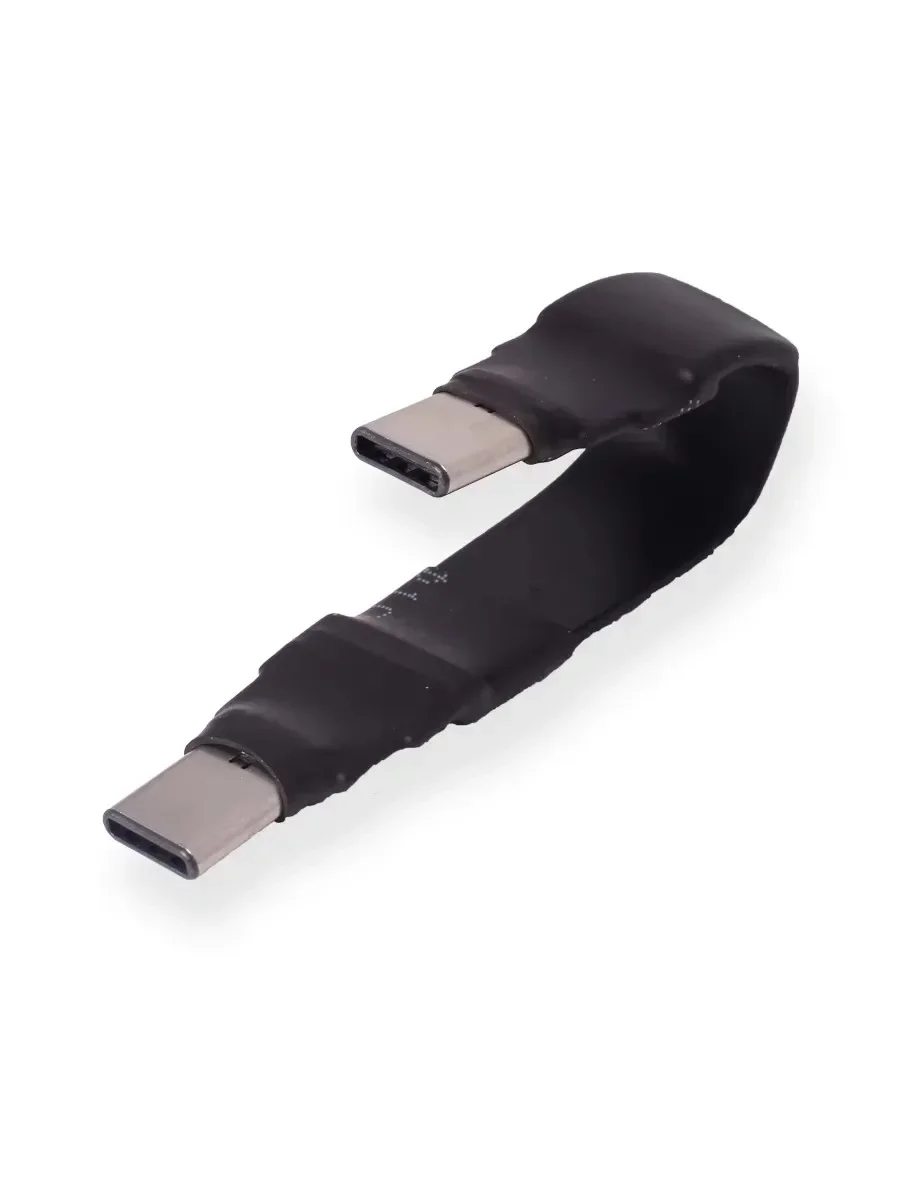

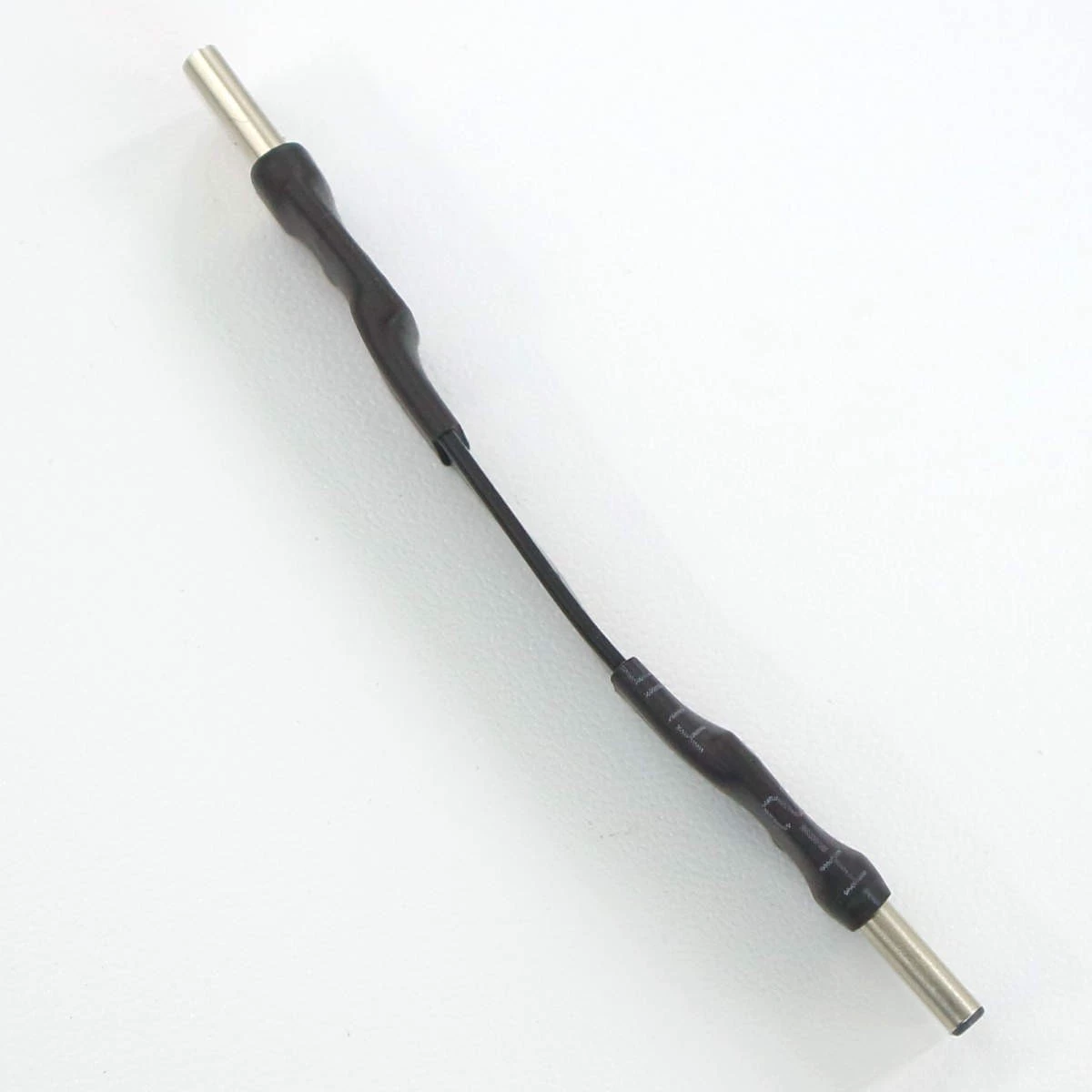

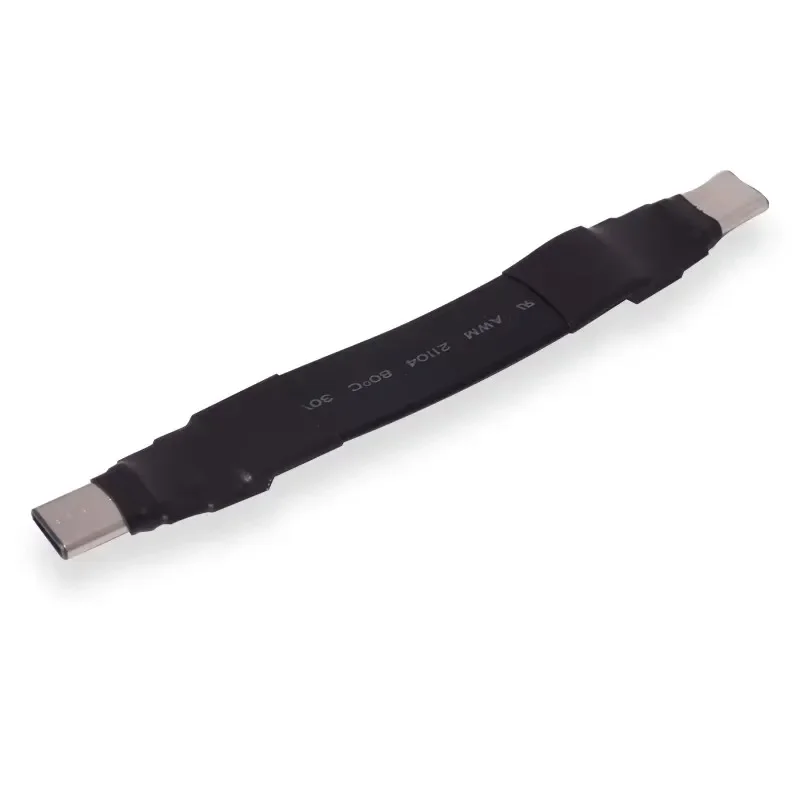

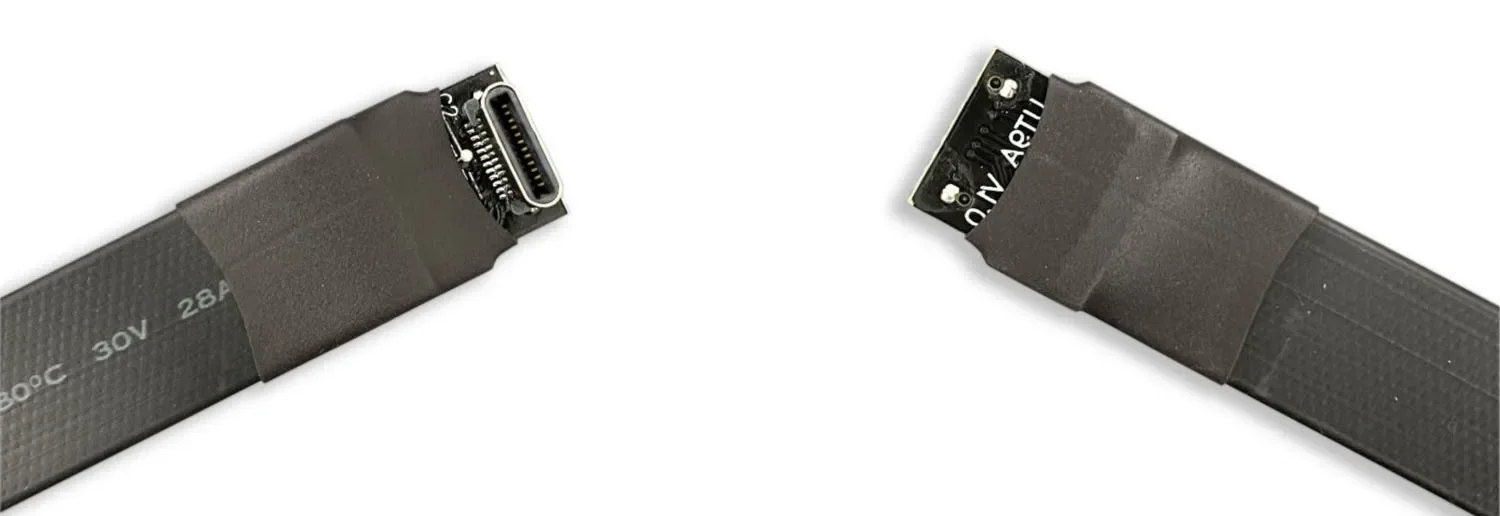

Product Picture:

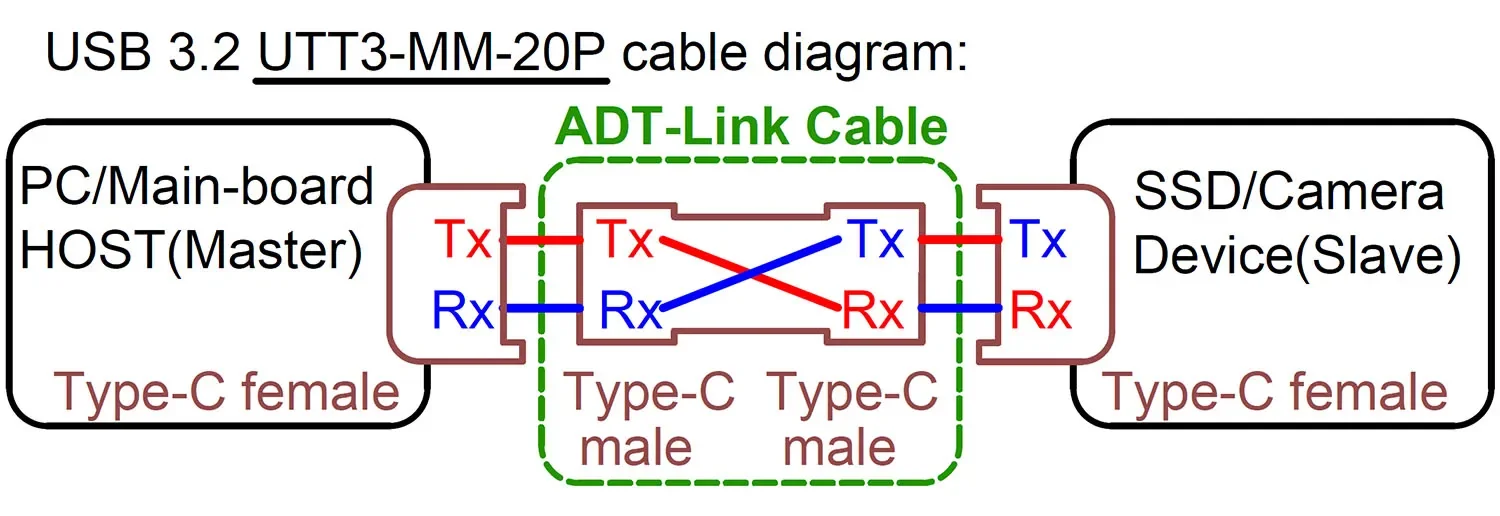

1.Pay attention to the direction when plugging in cables, don't plug in the opposite way or plug in the wrong way.

Download:

To open 3D PDF files. Please usesoftware.

FTP: Los Angeles

Schematic file download:

3D model STEP & PDF files download:

FTP: Hong Kong

Schematic file download:

3D model STEP & PDF filesdownload:
