Product features:

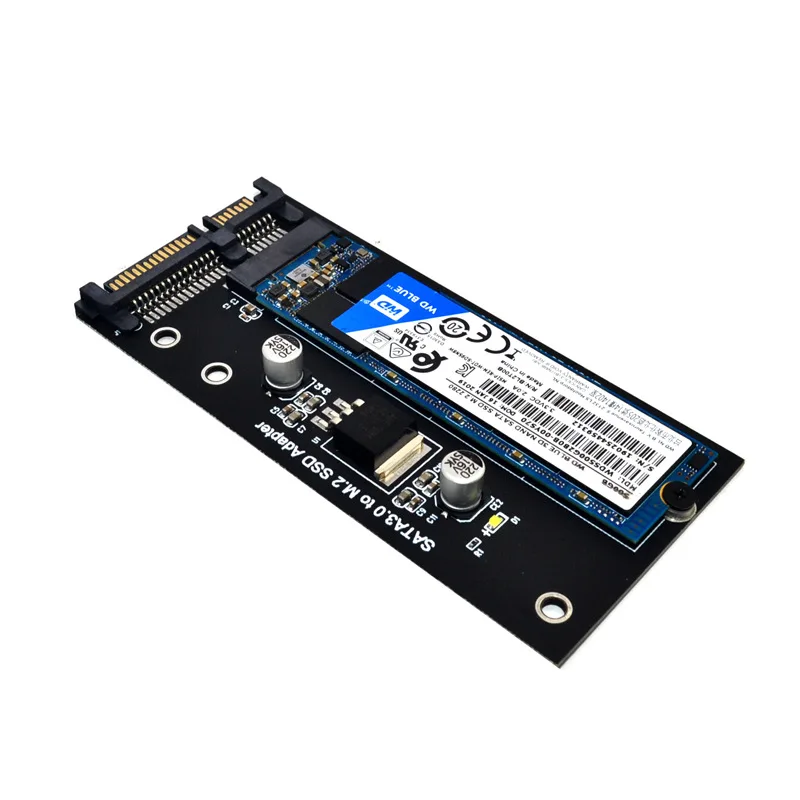

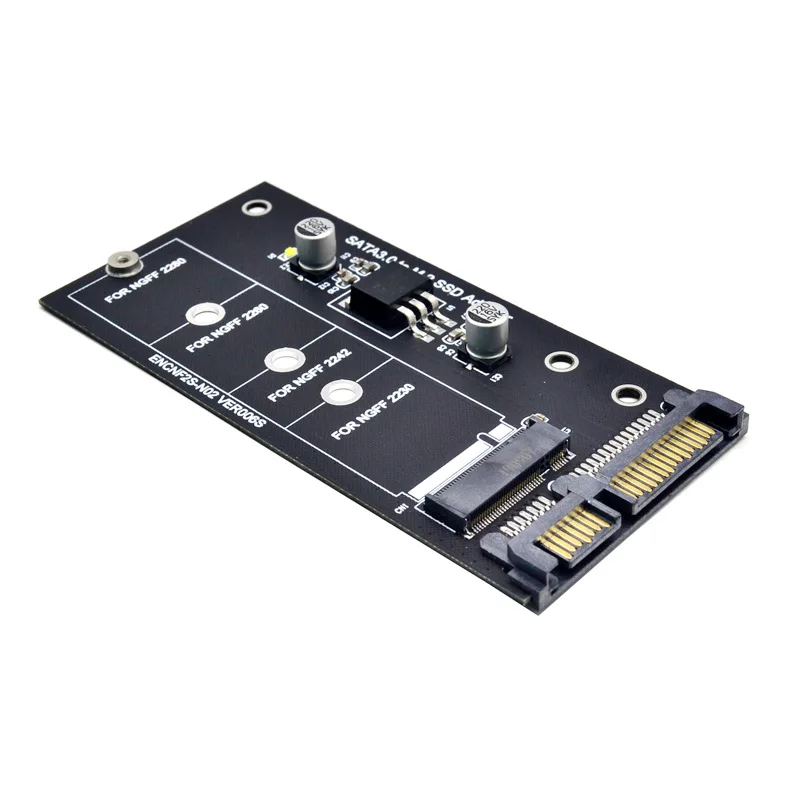

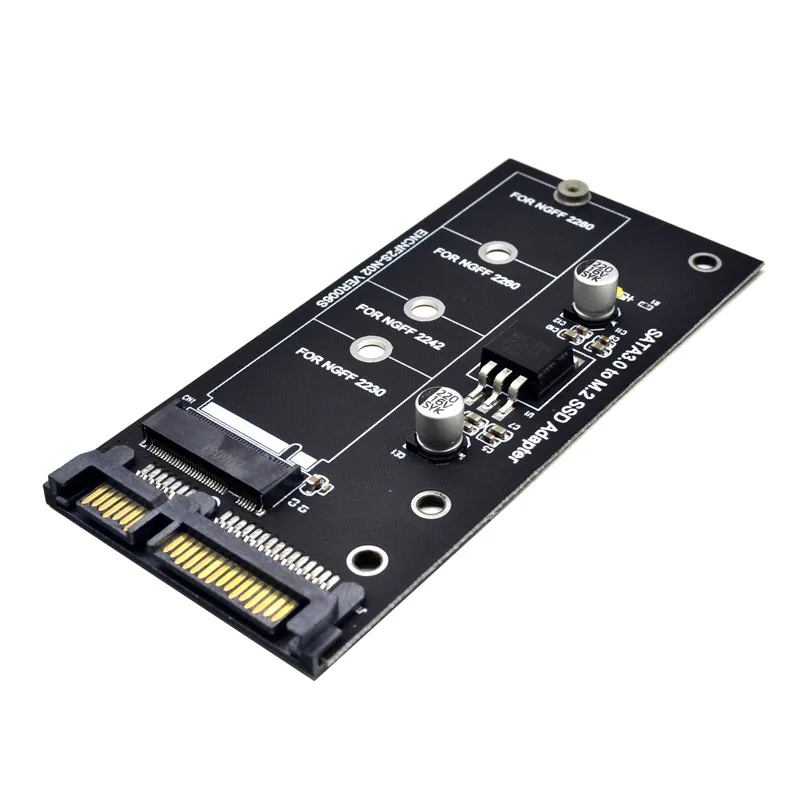

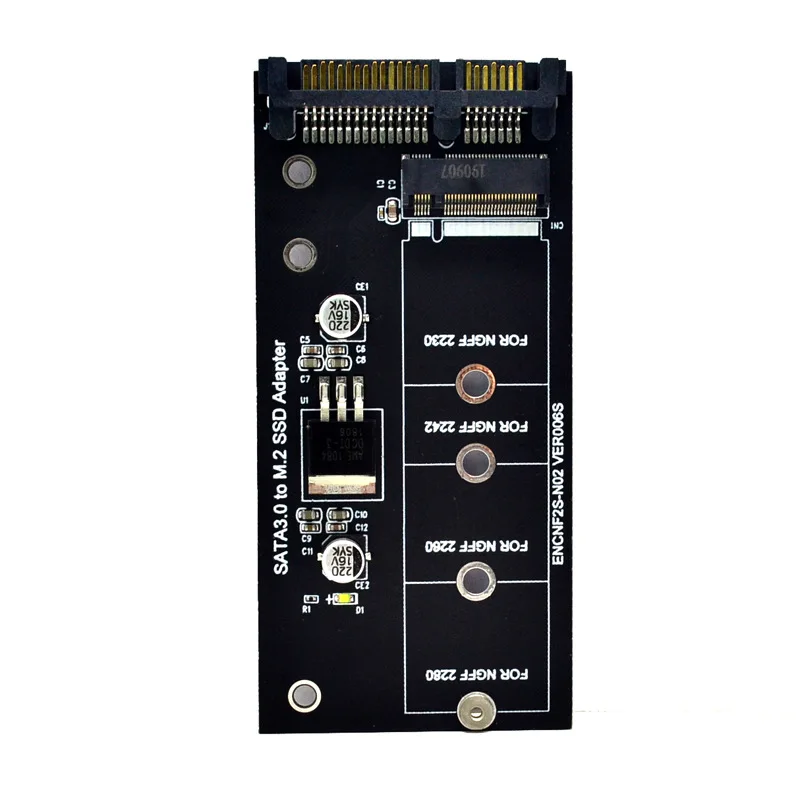

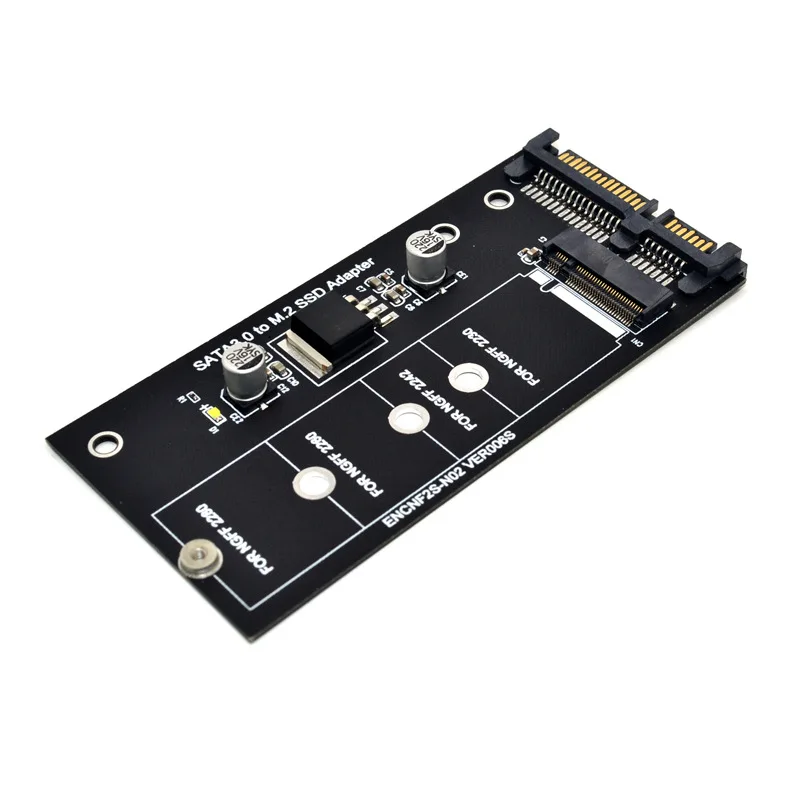

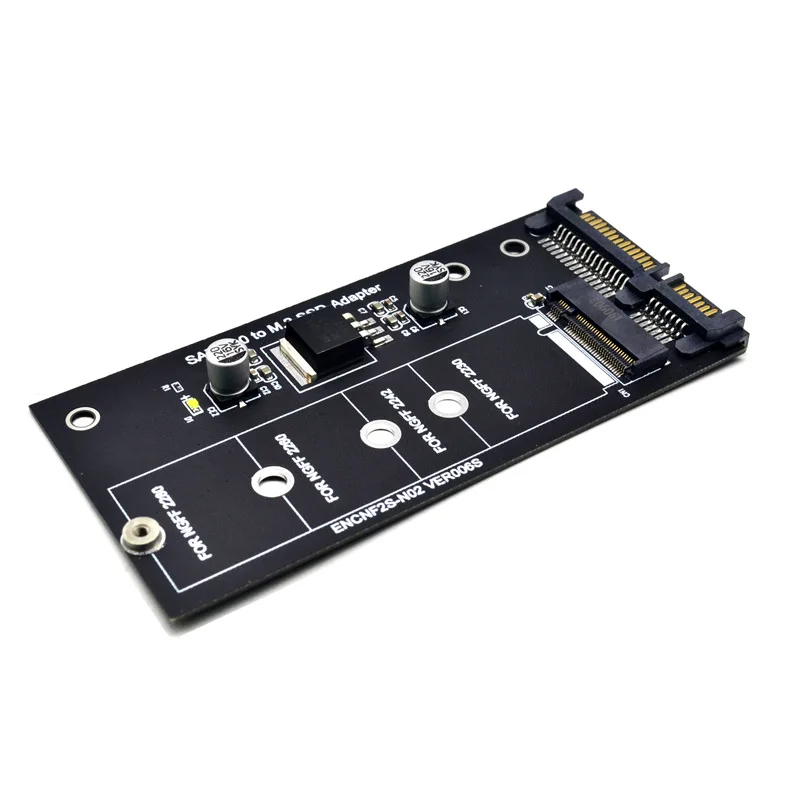

Transfer the m.2 hard disk defined by key-b-m SATA to the SATA 22pin interface. This adapter board only connects the signal from the m.2 hard disk to the SATA 22pin connector, so the adapter card does not need to be driven. If you can't recognize the hard disk, please check whether it is an m.2 interface. The card will basically have no fault. Please know.
Support all SATA standard m2.ssds, do not support old nvme m2.ssds, say important things three times, do not support PCI-E M2 SSDs, do not understand read it three times!!!

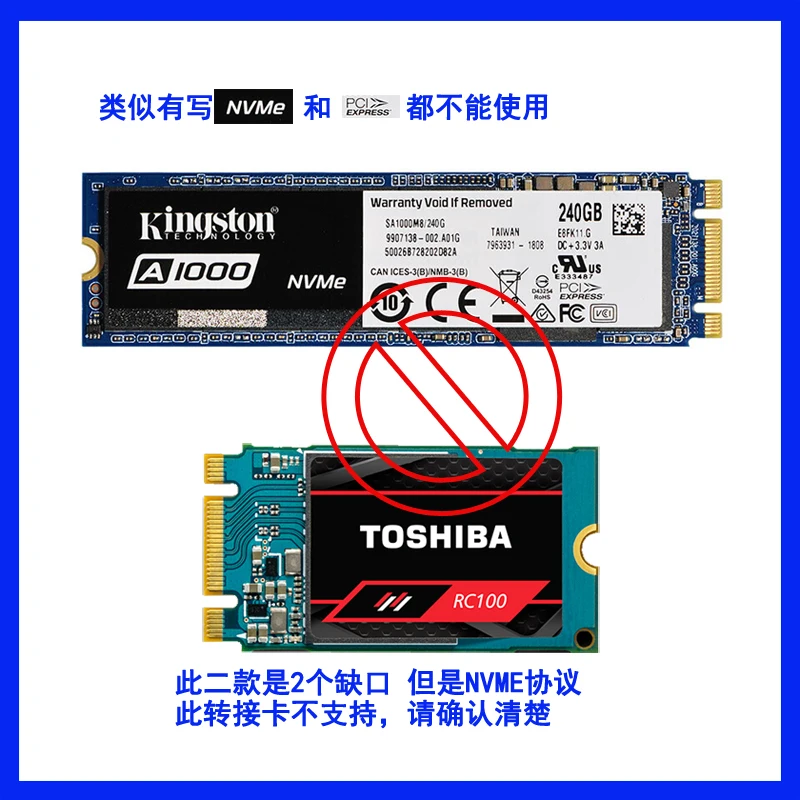

At present, many Trident SSDs on the market are nvme or PCI-E protocol, and can not be converted to SATA. There will be no such products in recent 2 years, and can only be converted to pci-e. if you are not clear, please consult the customer service to avoid unnecessary trouble.
At present, many Trident SSDs on the market are nvme or PCI-E protocol, and can not be converted to SATA. There will be no such products in recent 2 years, and can only be converted to pci-e. if you are not clear, please consult the customer service to avoid unnecessary trouble.
Product introduction:
1: This card is suitable for four different SSD hard disk lengths, and is suitable for different M2 (ngff) SSD hard disk lengths such as 3cm, 4.2cm, 6cm and 8cm. Using ceramic filter capacitor, high-power LDO voltage stabilizing control chip, stable performance! Our products are tested before shipment
The adapter card only changes the interface form of the solid-state drive and does not change any performance of your hard disk. What are your original hard disk parameters? With the adapter card, the performance of the output interface will not change.
About Description:
1. Convert an M.2 NGFF SSD into 2.5in SATA (6Gbps) interface
2. M.2 NGFF SSD to 2.5in SATA Adapter Converter supports SATA based B key and B+M Key M.2 SSDs
3. Maximize system speed by adding M.2 SSD performance
4. Reduce overall power consumption, with a high efficiency M.2 SSD
5. Support for SATA revision I/II/III (1.5/3.0/6.0 Gbps)
6. Supports full length M.2 NGFF (Next Generation Form Factor) SSD Solid State Drives (2230, 2242, 2260, 2280)
Note:

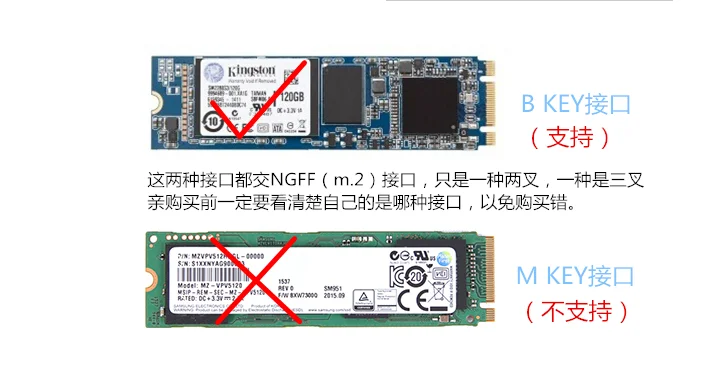

It does NOT support PCI-e Based "M key" or "M+B key" (NVME AHCI) SSD (eg. Samsung 950PRO / Samsung 960EVO / Samsung 961)
Type-1 - Compact design for laptop and desktop
You'll receive:
- Please check pictures for more details.
