Adaptador M.2 NVMe M Key 2280 A WiFi A/E Key 2230, tarjeta de red vertical inalámbrica INTEL AX210, PCIe 4,0x2 (WiFi), USB 2,0 (Bluetooth)
16,73 €
17,61 €
Enlace proporcionado por:
Color:
Nueva llegada, excelente rendimiento del producto, reputación de productos súper buenos, productos genuinos oficiales, entrega de prueba de potencia 100%
Marca: ADT-Link

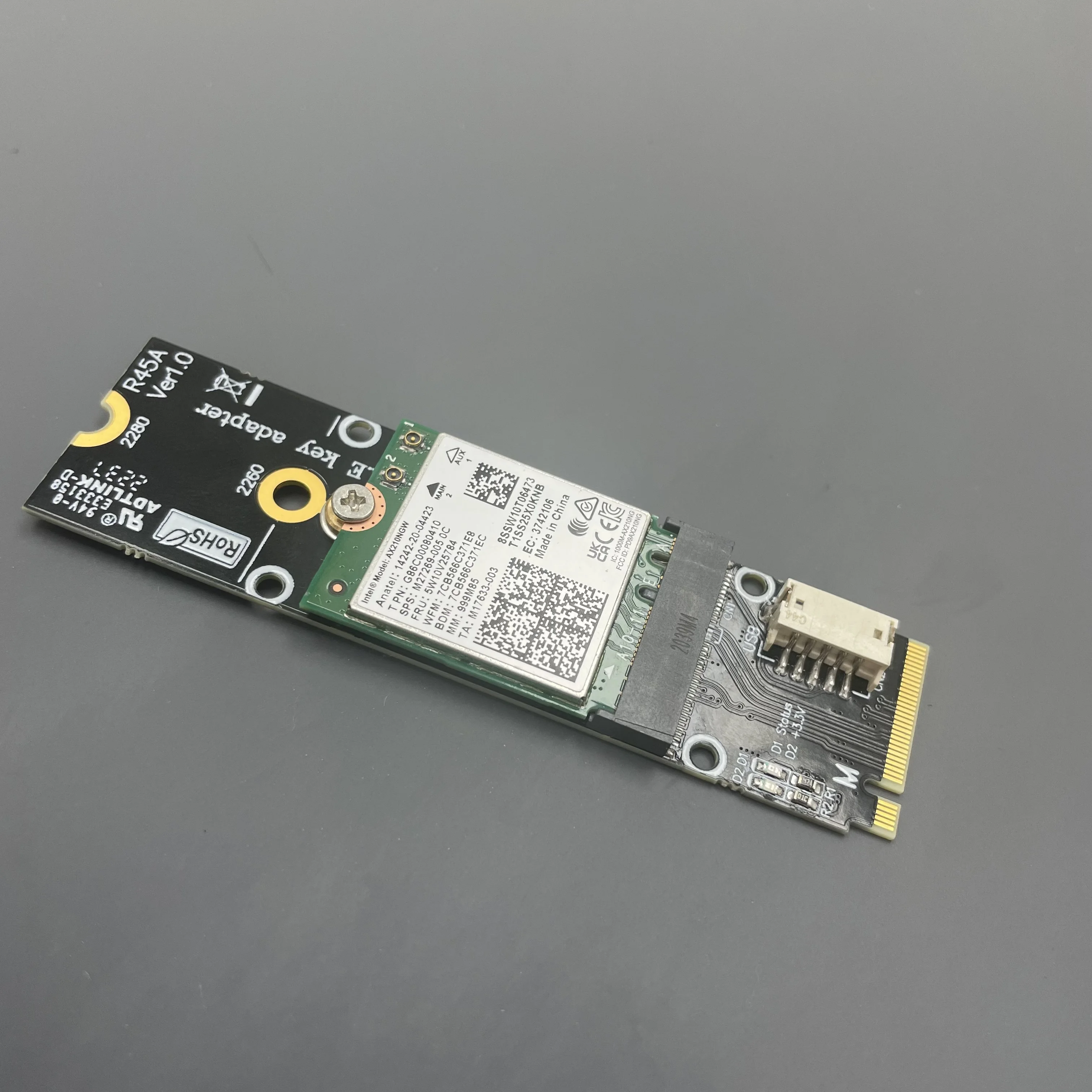

Modelo del producto: R45A
Nombre del producto: Interfaz NVMe de estado sólido M.2 a placa adaptadora inalámbrica Bluetooth WiFi
Especificaciones del adaptador: el adaptador admite PCIe 4,0x2 (WiFi); el adaptador admite USB 2,0 (Bluetooth)

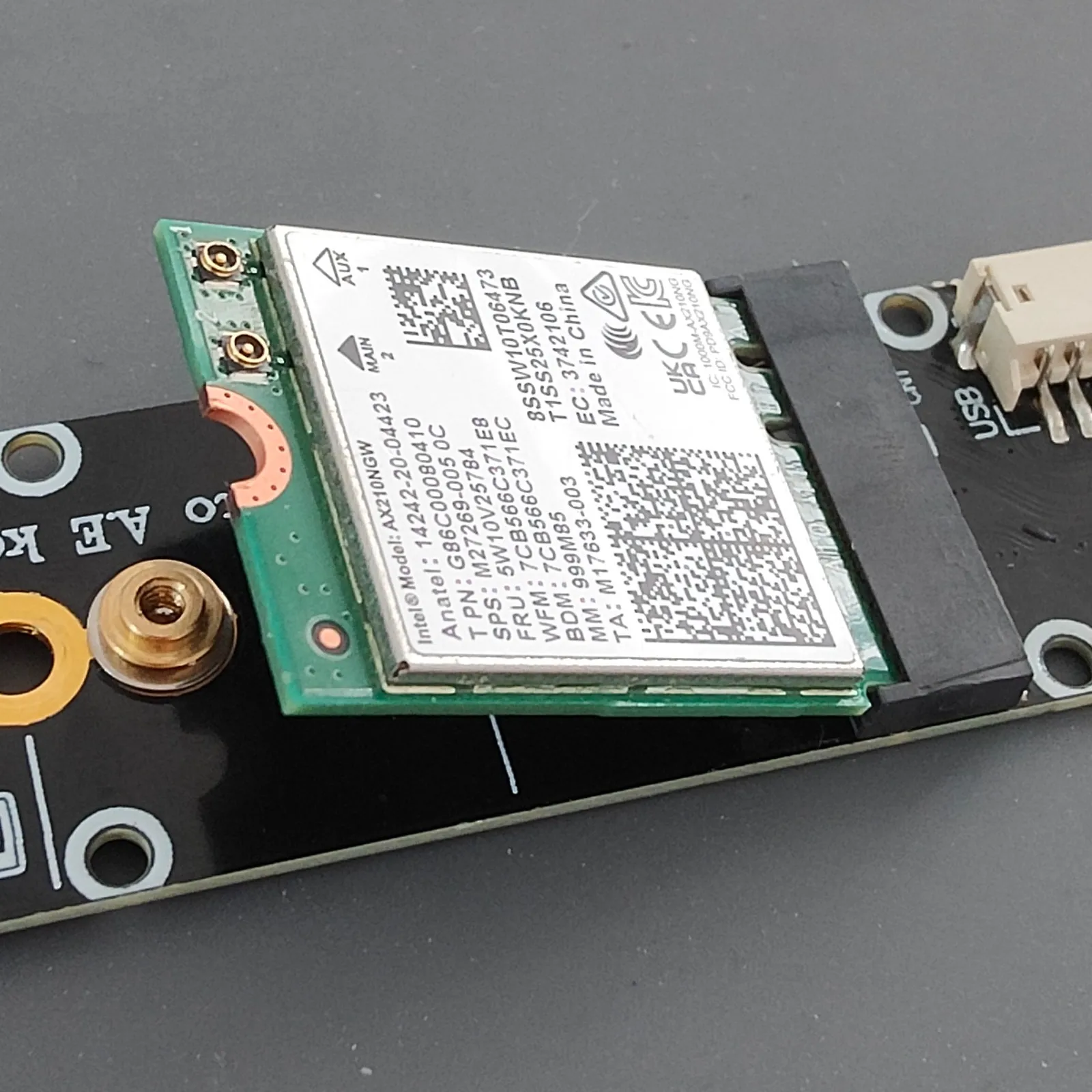

Especificaciones Nic: INTEL AX210NGW sixgen 802.11ax WiFi6, Bluetooth versión 5,2 (Lote 003)

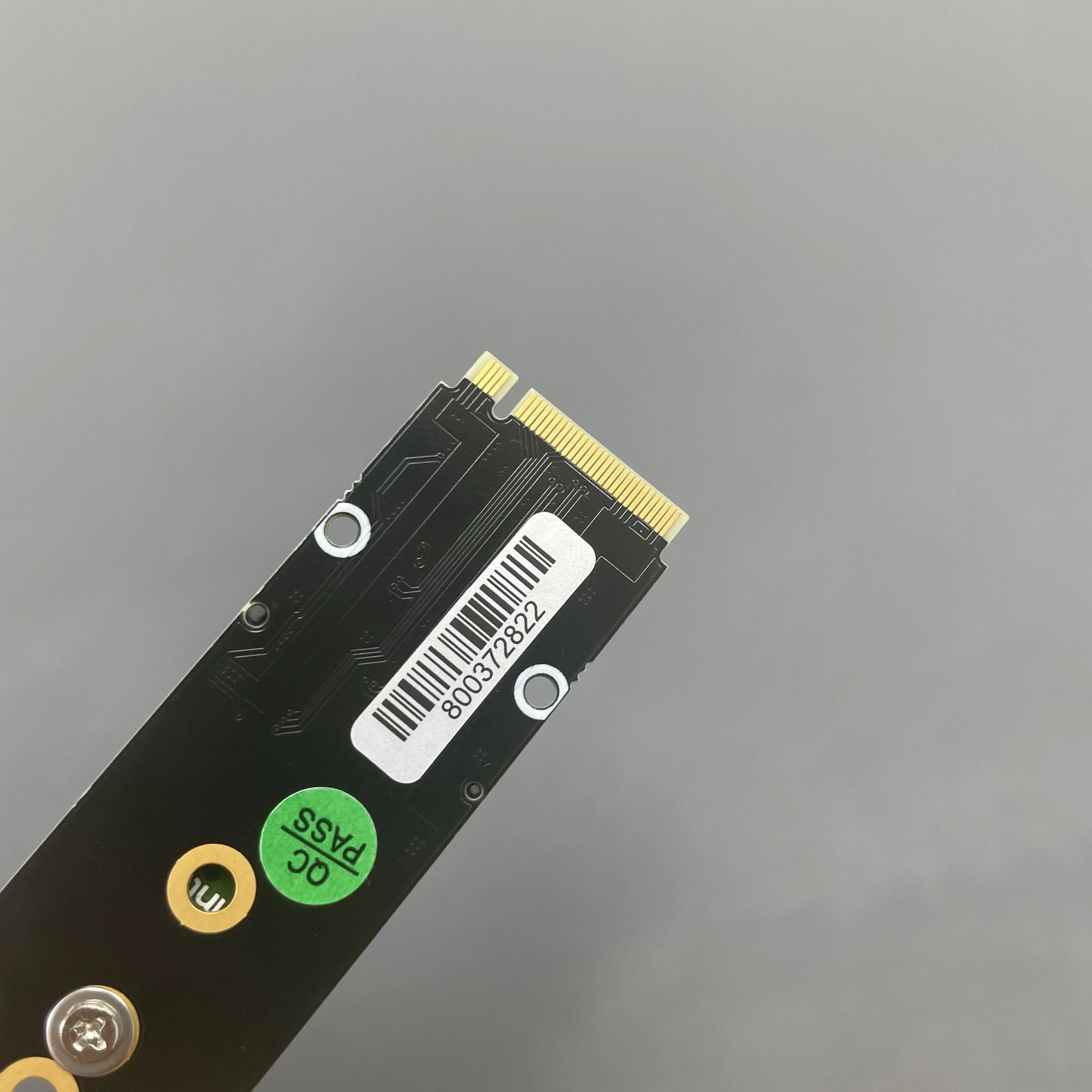

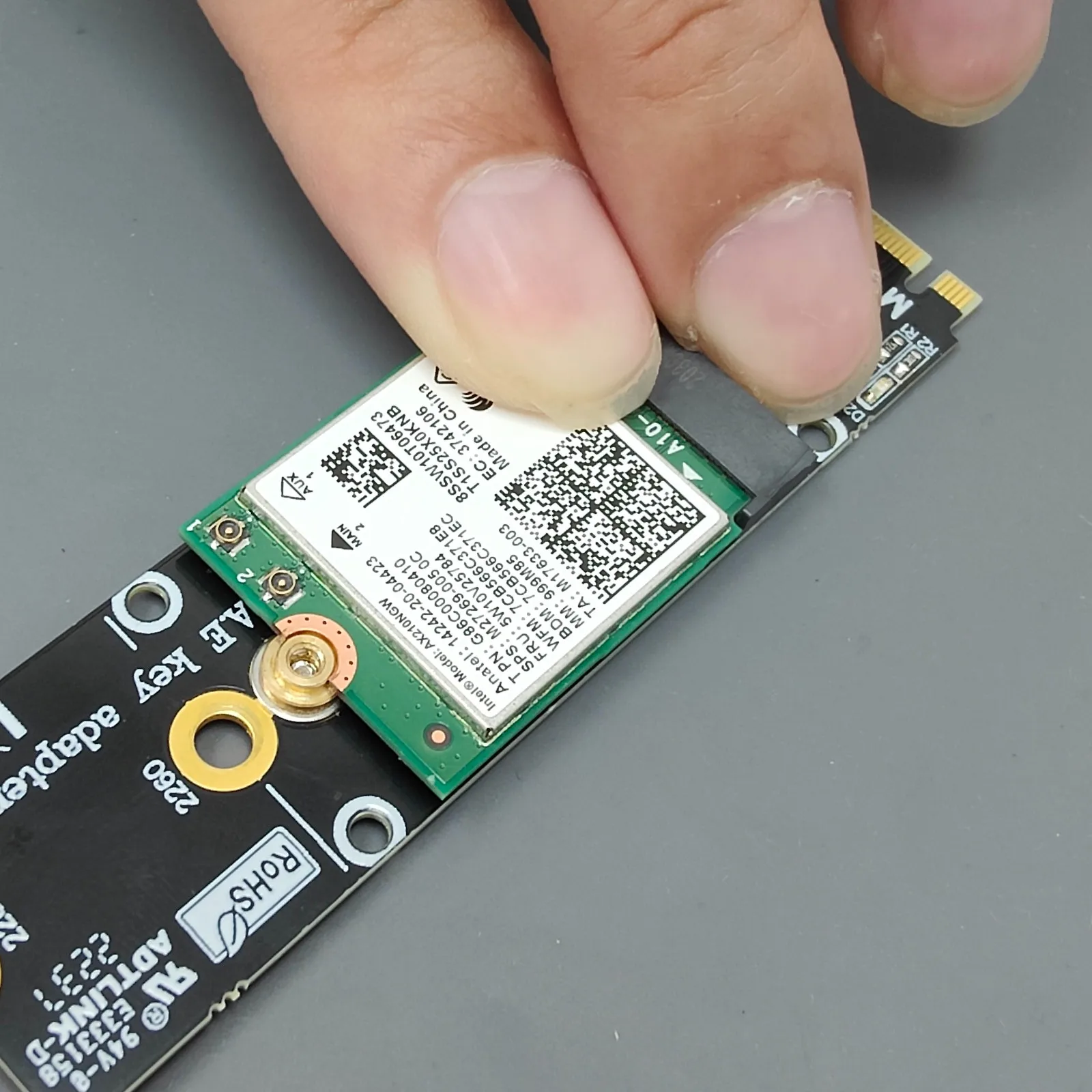

Descripción del producto: admite 2280 puertos de tecla M o 2260 puertos de tecla M en la ranura M.2 en la placa base, y admite 2230 puertos de tecla WiFi/Bluetooth A/E para conversión
RESTRICCIÓN DE COMPRA: Este producto es un diseño especial, el montaje es difícil, solo ingeniero profesional designa la compra. Confirme las especificaciones antes de realizar un pedido. Los NICs Intel solo admiten sistemas operativos Windows 10/ Windows 11
Consejos de compra: asegúrese de comprar 1 ~ 2 muestras después de la prueba y verificación antes de la compra al por mayor.

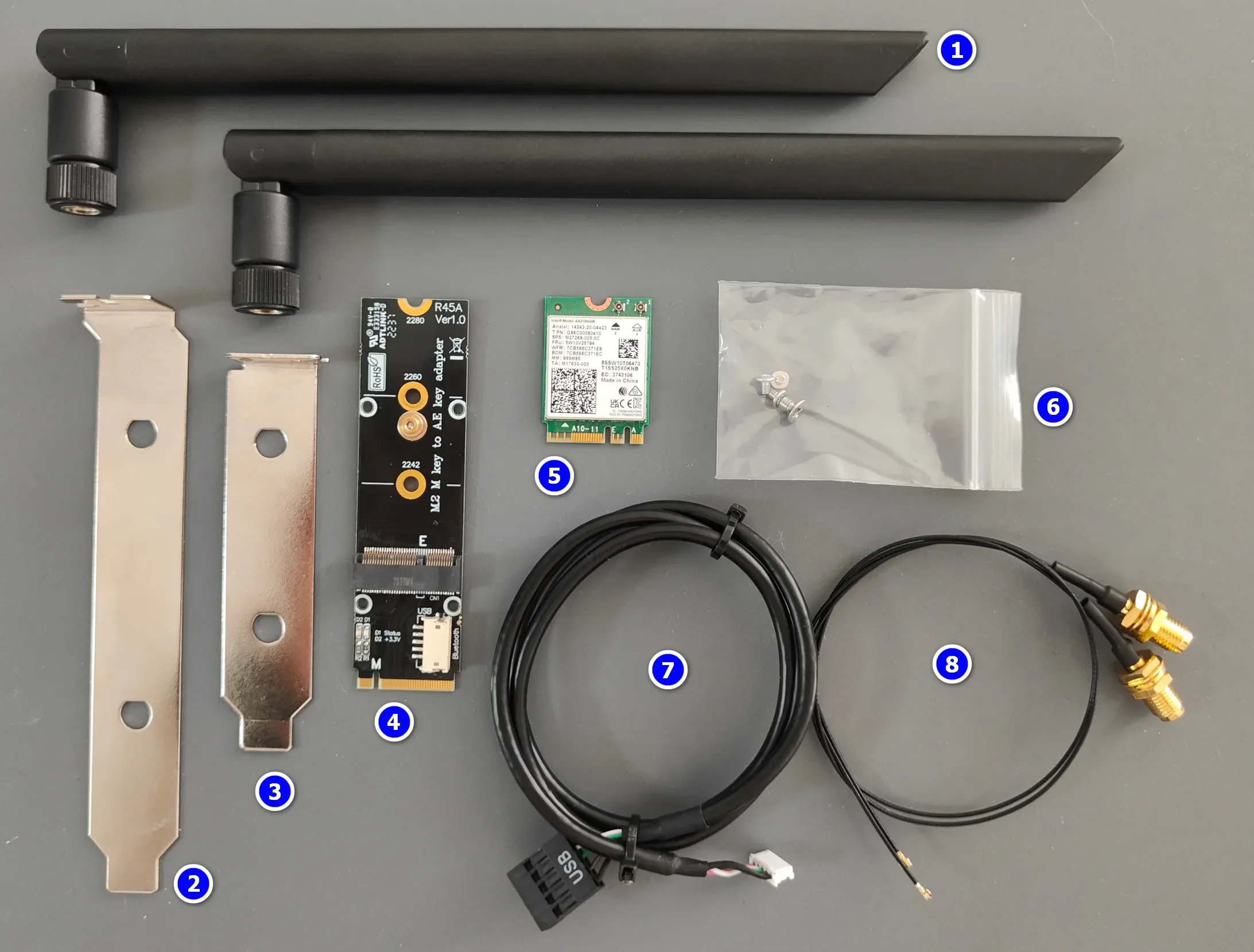

Accesorios del producto:

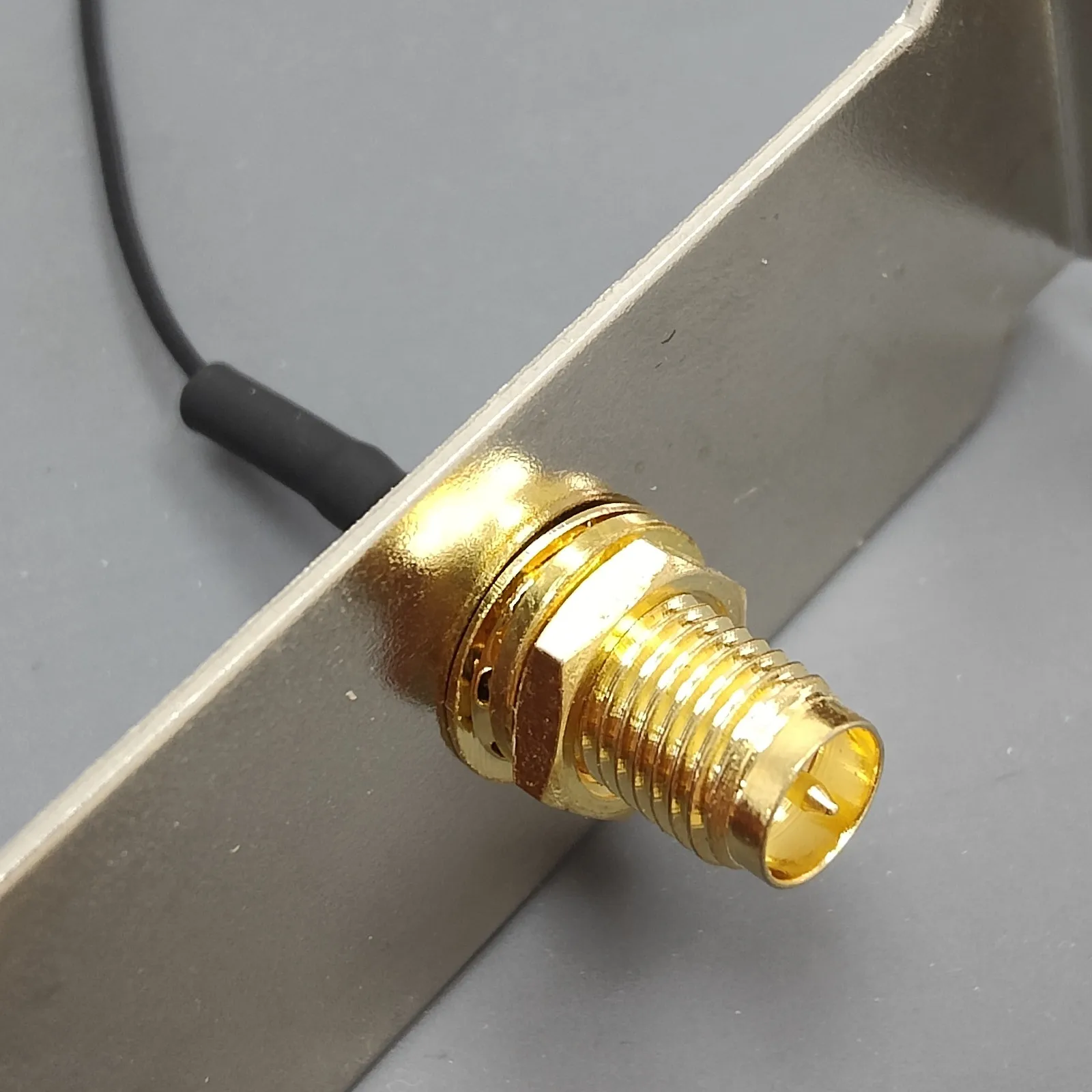

1. Two RPSMA 2.4G/5G dual-frequency antennas
2. PCIE Long baffle (full height)
3. PCIE short baffle (half height) (no short baffle, please contact customer service for purchase)

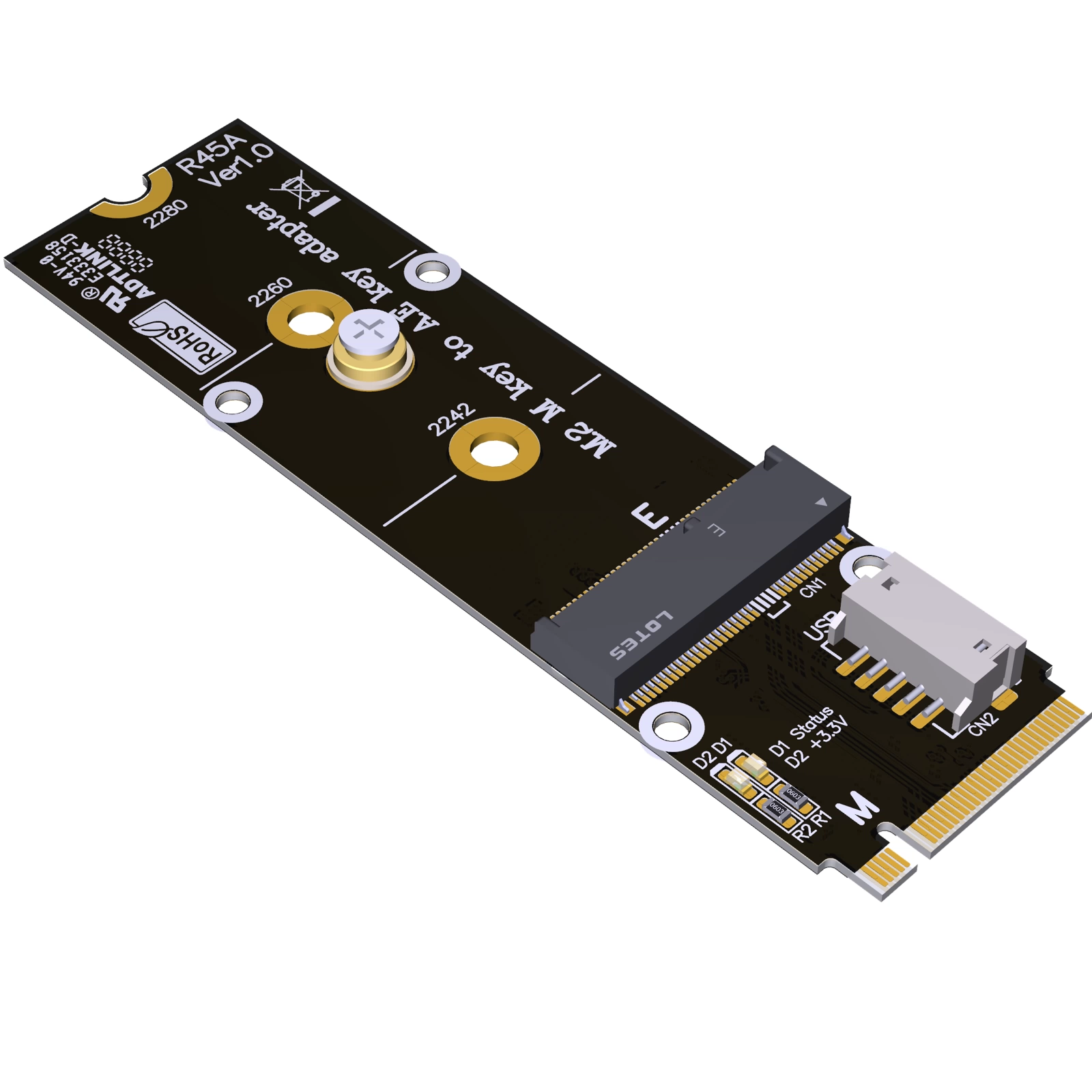

4. M.2 Adapter (Standard configuration)
5. INTEL AX210 6 generation ( network card )
6. Screw package: 3pcs M2 screws, 1pc M3 screws (standard)
7. USB with shielded Bluetooth data cable (standard configuration, length of 60cm)
8. Two RPSMA to MHF4 fourth-generation coaxial connection lines (30cm in length)

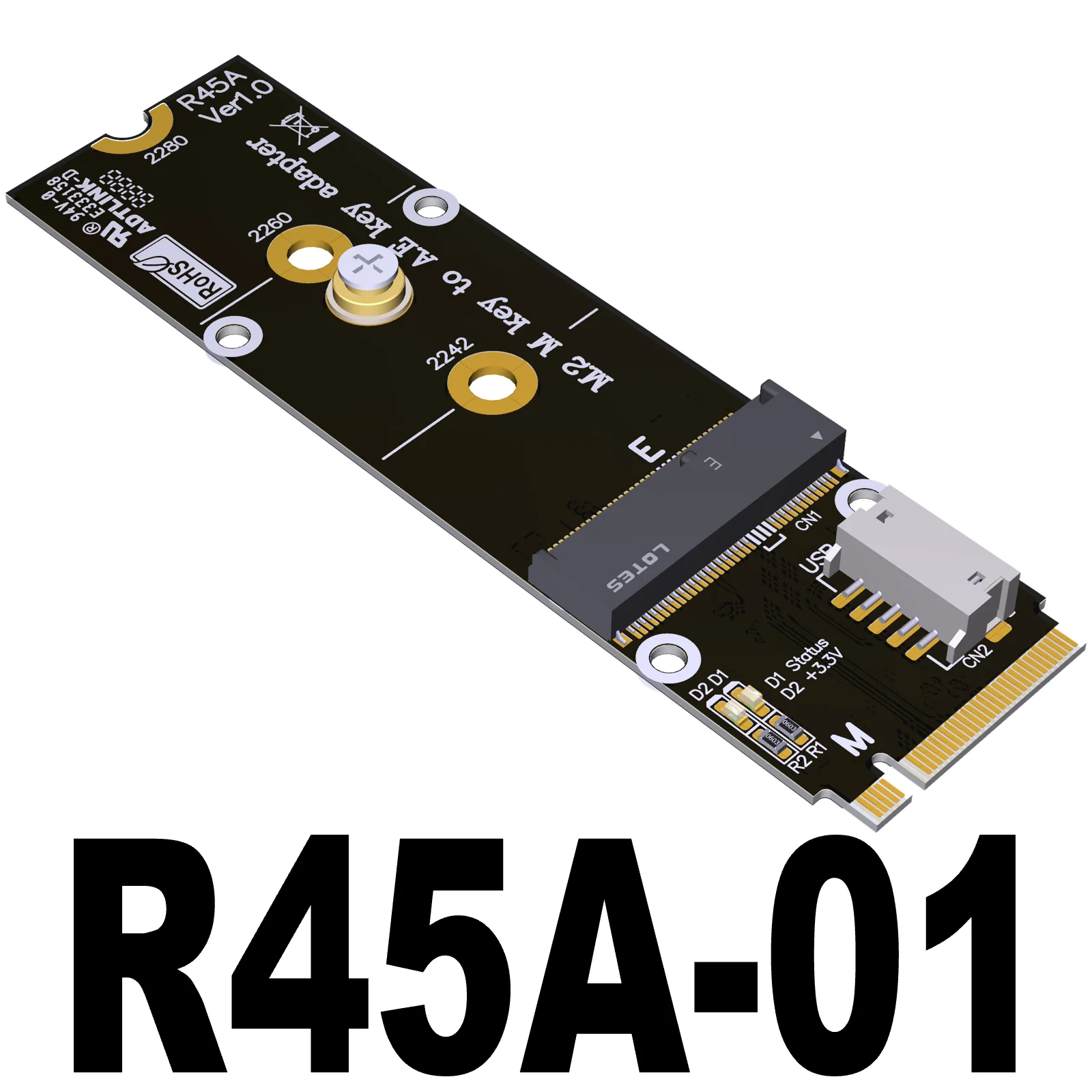

R45A-01 Model includes: 4. Adapter card 6. Screw pack 7. Bluetooth cable

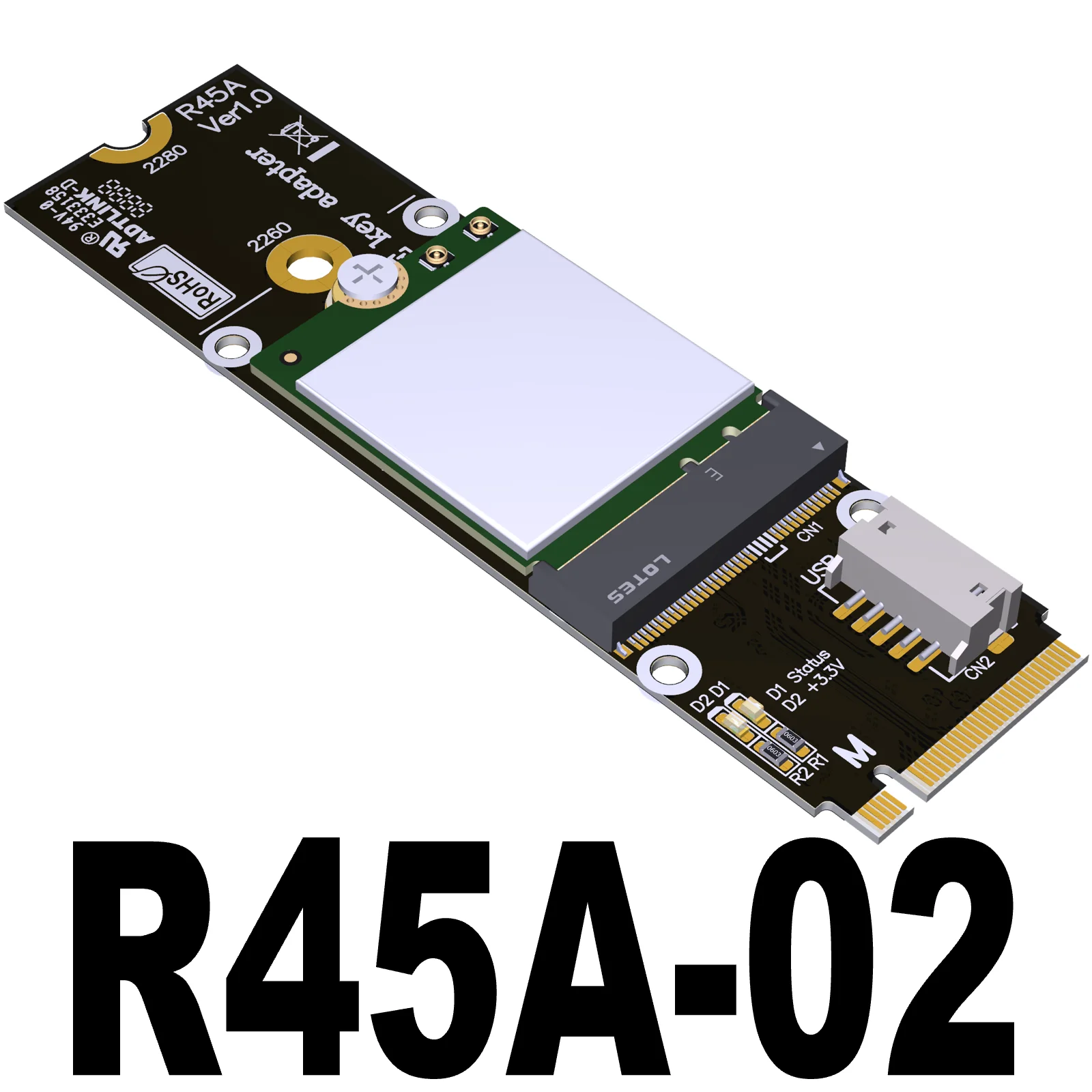

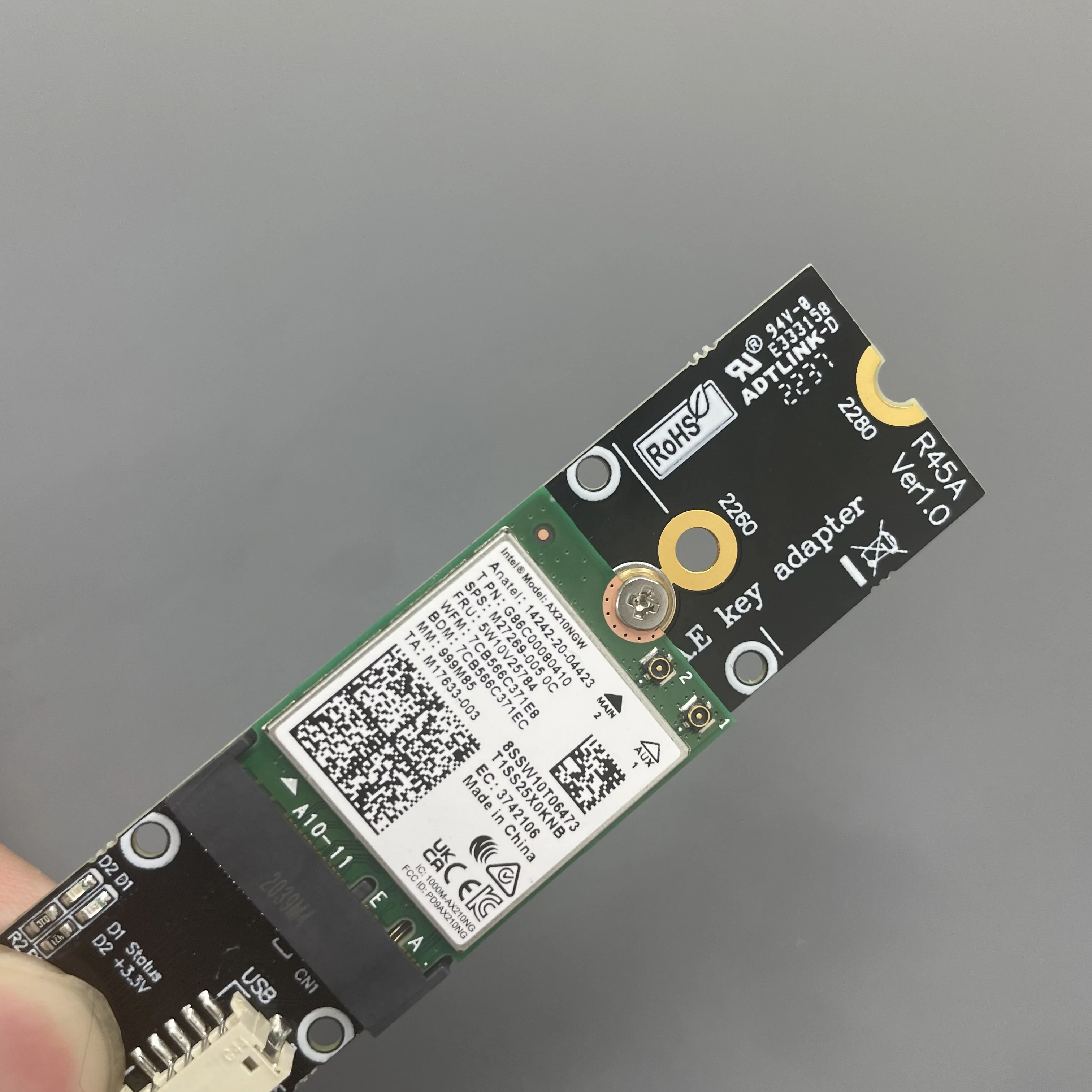

R45A-02 Model includes: 4. Adapter card 5.AX210 network card 6. Screw pack 7. Bluetooth cable

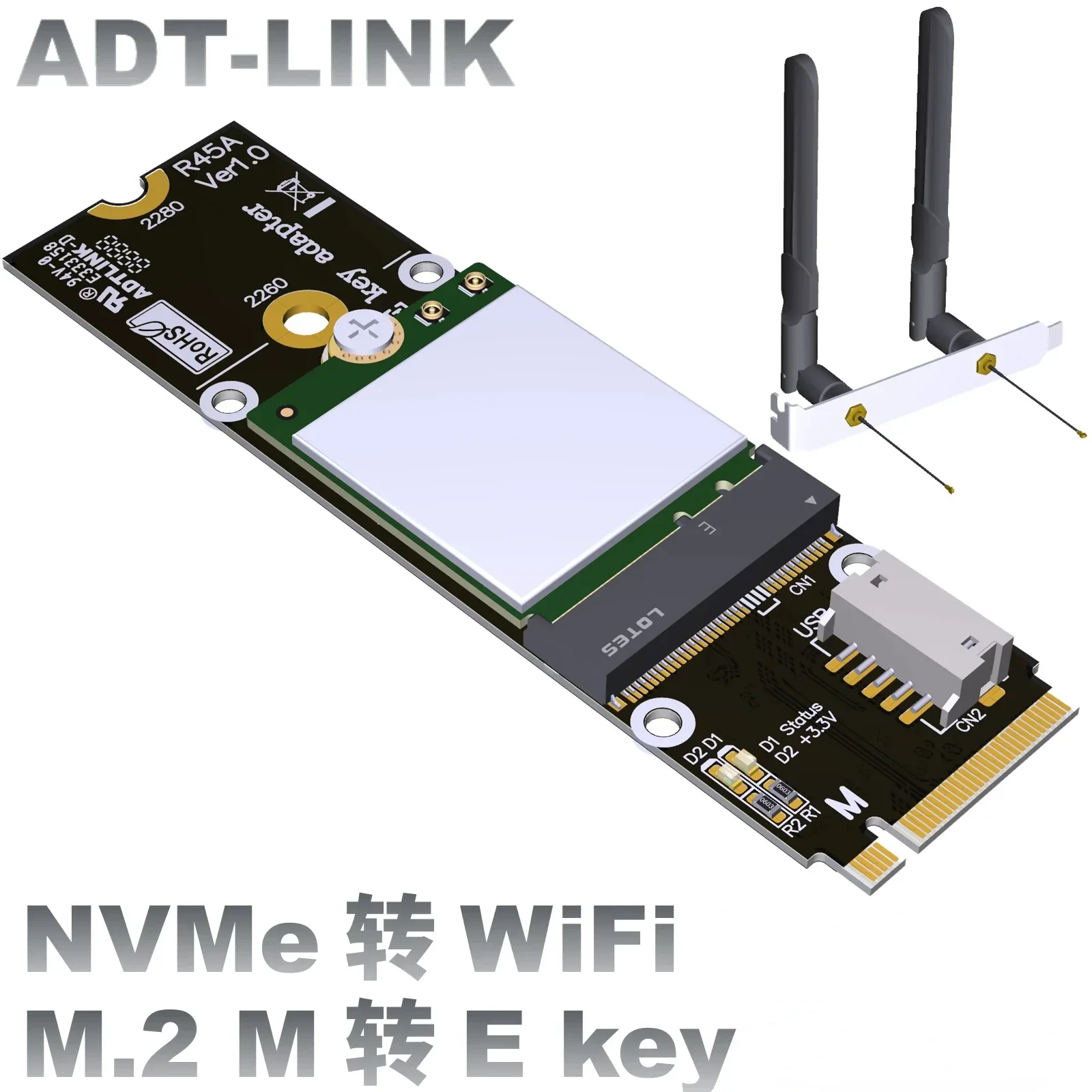

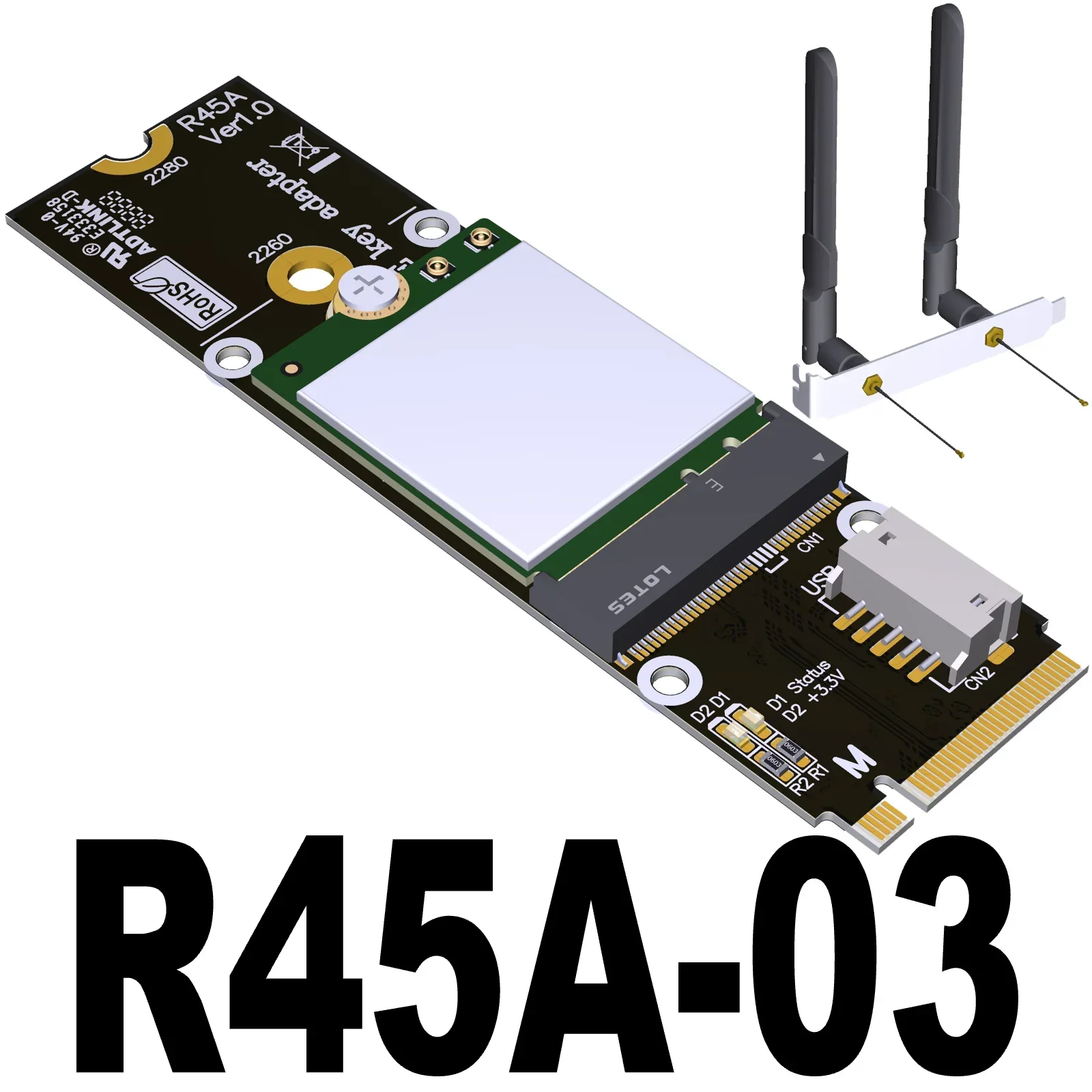

R45A-03 Model includes: 1. 2PCS antennas 2. Full height baffle 4. Adapter card 5.AX210 network card 6. Screw pack 7. Bluetooth cable 8. 2PCS four-generation coaxial lines

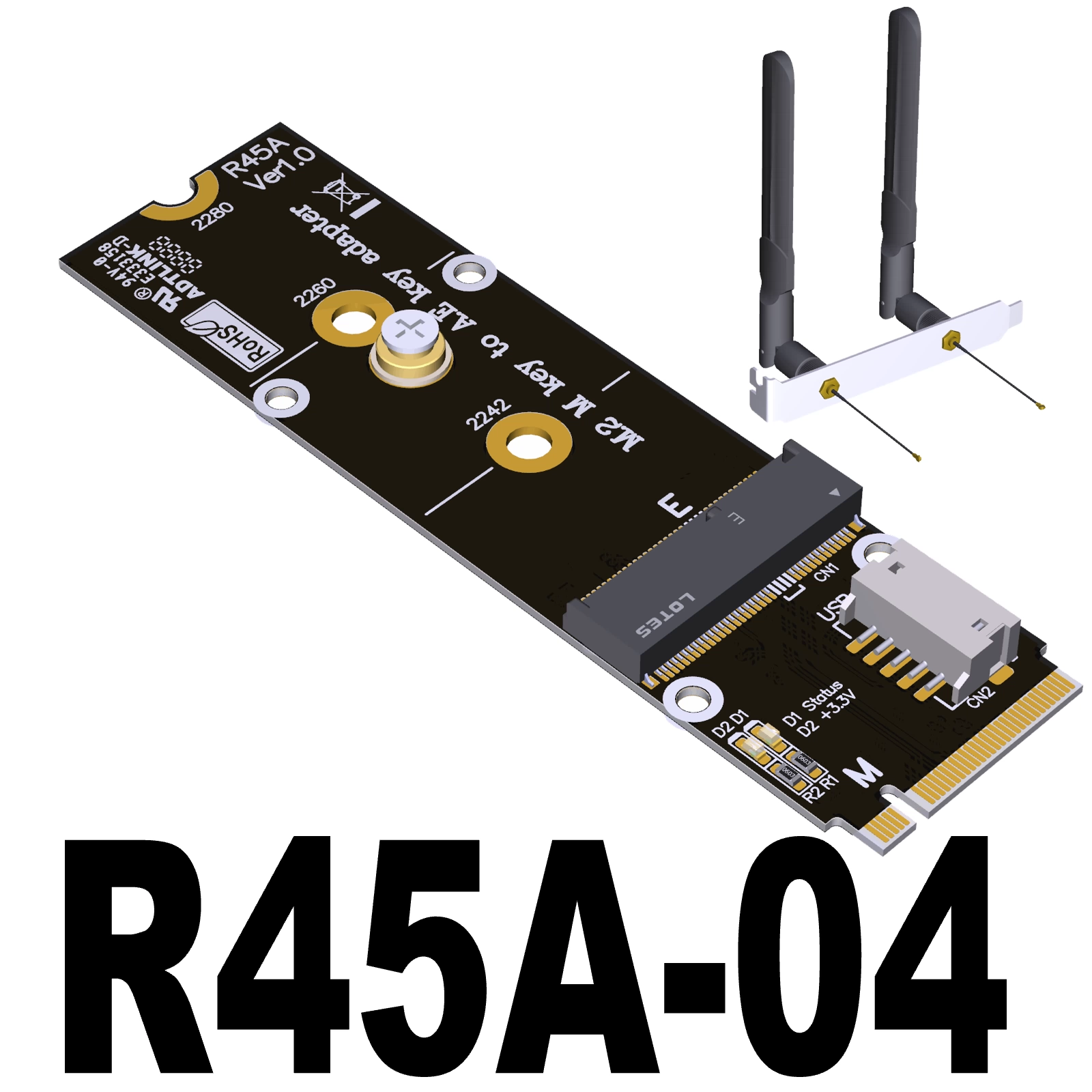

R45A-04 Model includes: 1. 2PCS antennas 2. Full height baffle 4. Adapter card 6. Screw pack 7. Bluetooth cable 8. 2PCS four-generation coaxial lines

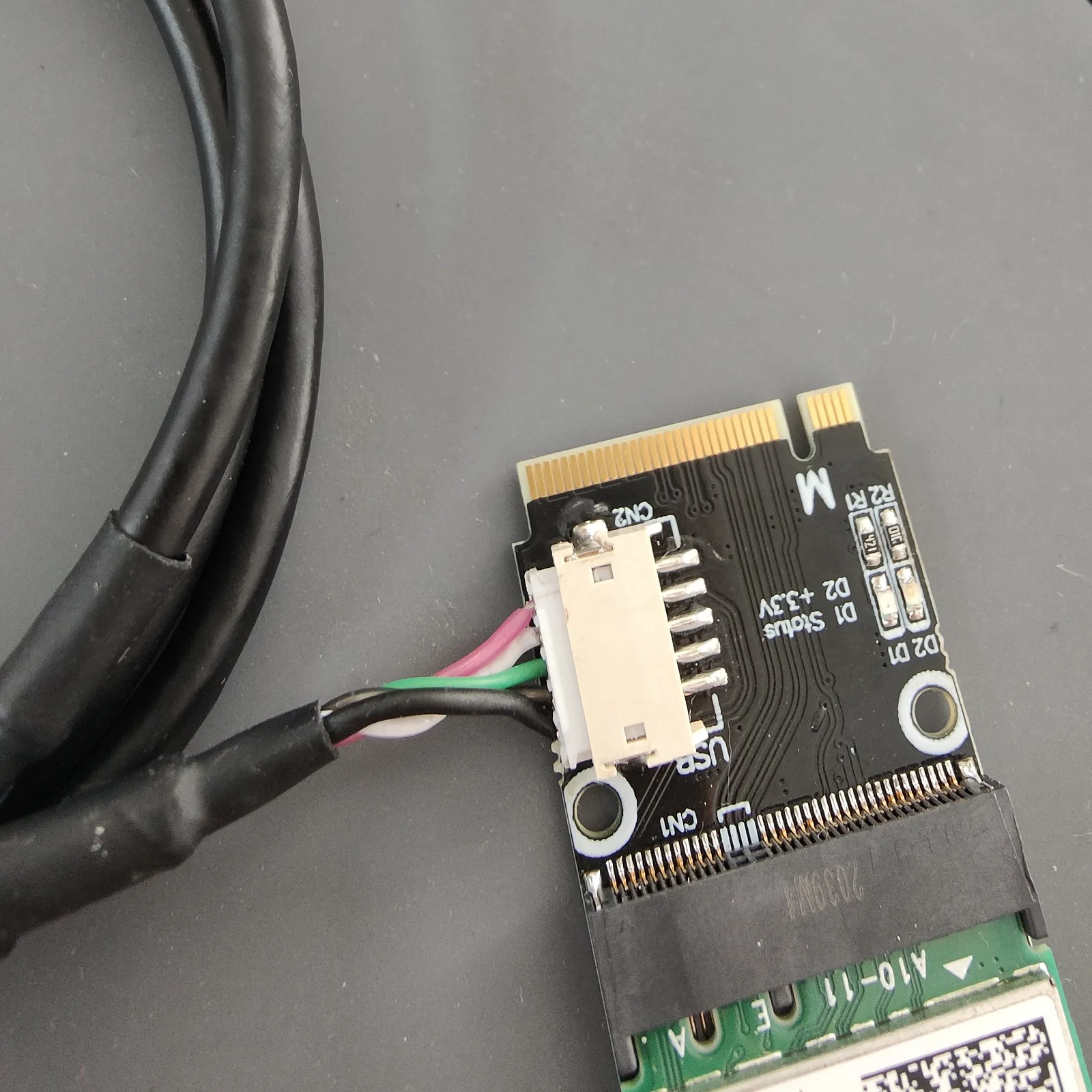

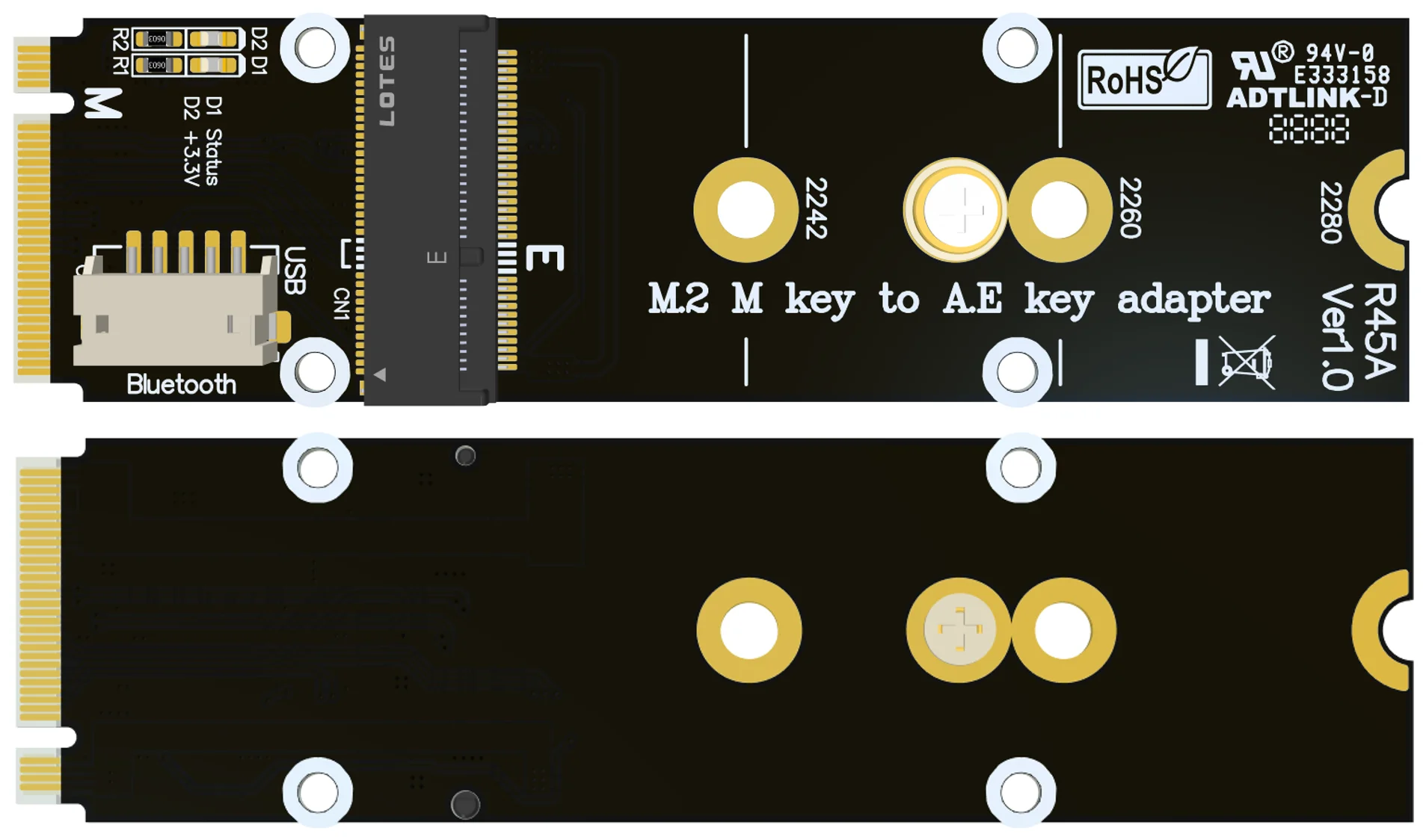

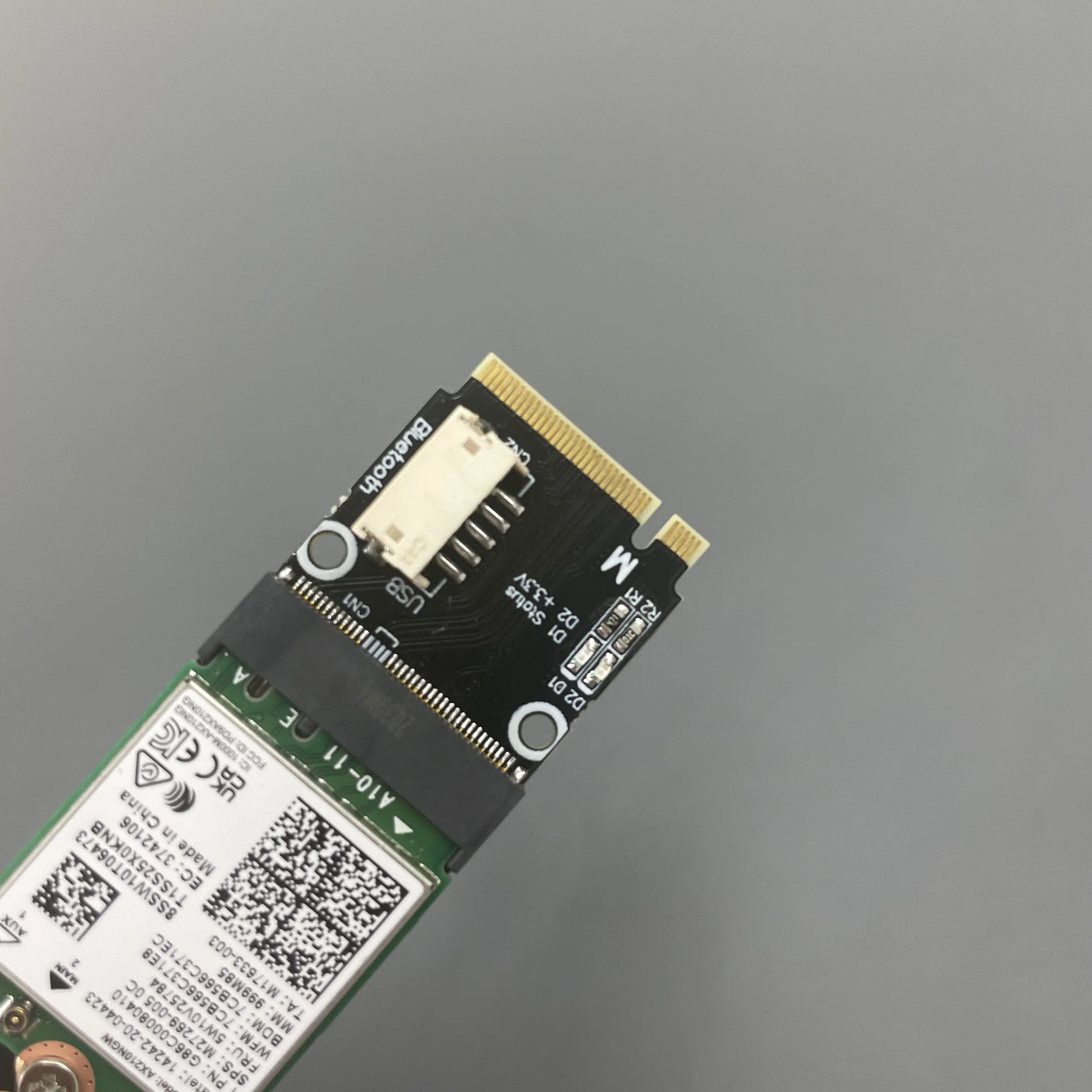

What is the role of the 2 LED indicators of model R45A?
D1 Status Yellow indicator: The NIC hardware self-check is normal and the software driver is normal
D2 +3.3V green light, on means that the power supply is normal (only when D1 and D2 are on can they be used normally)

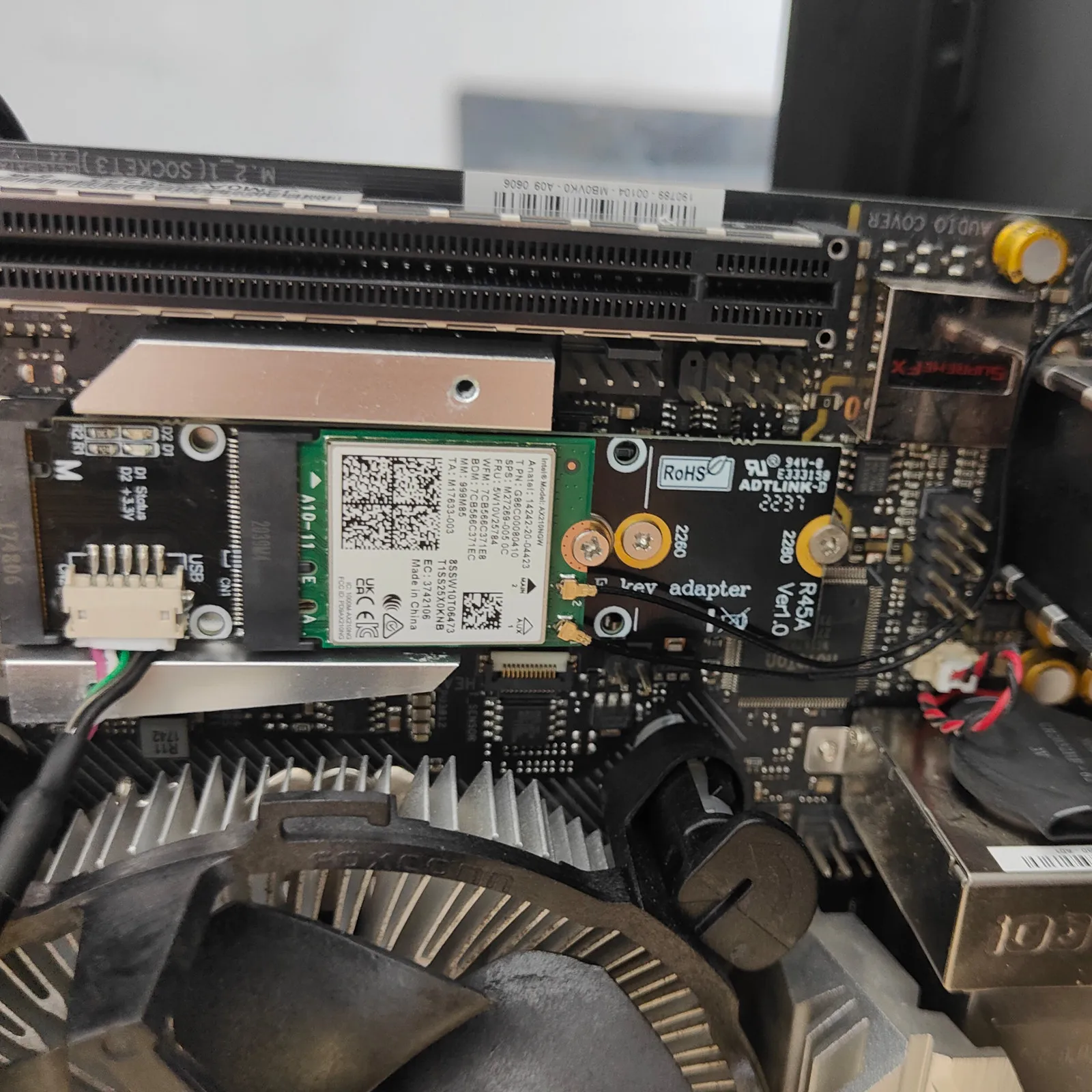

Model R45A Adapter Installation process?
How long is Model R45A accessory wire? What does it do?

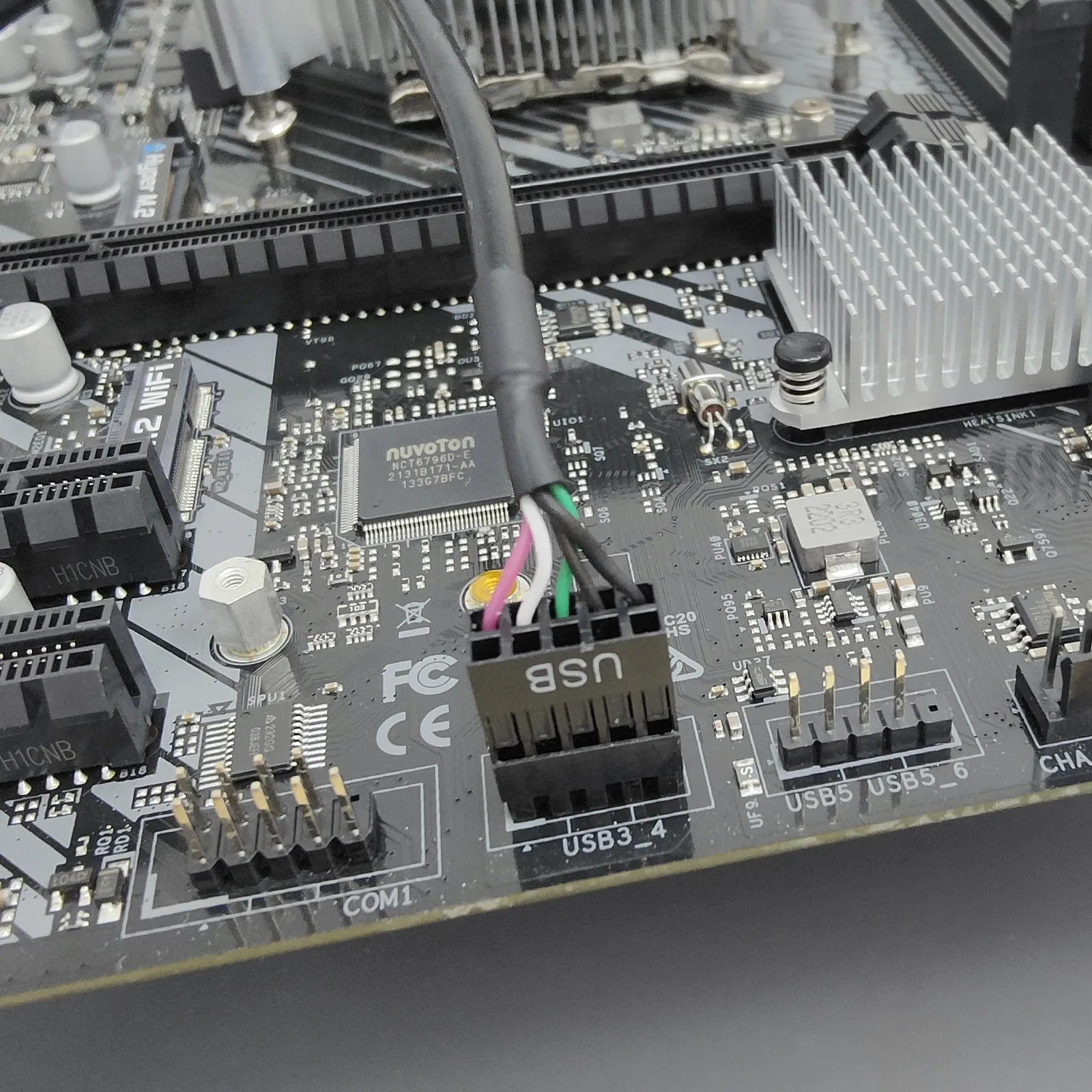

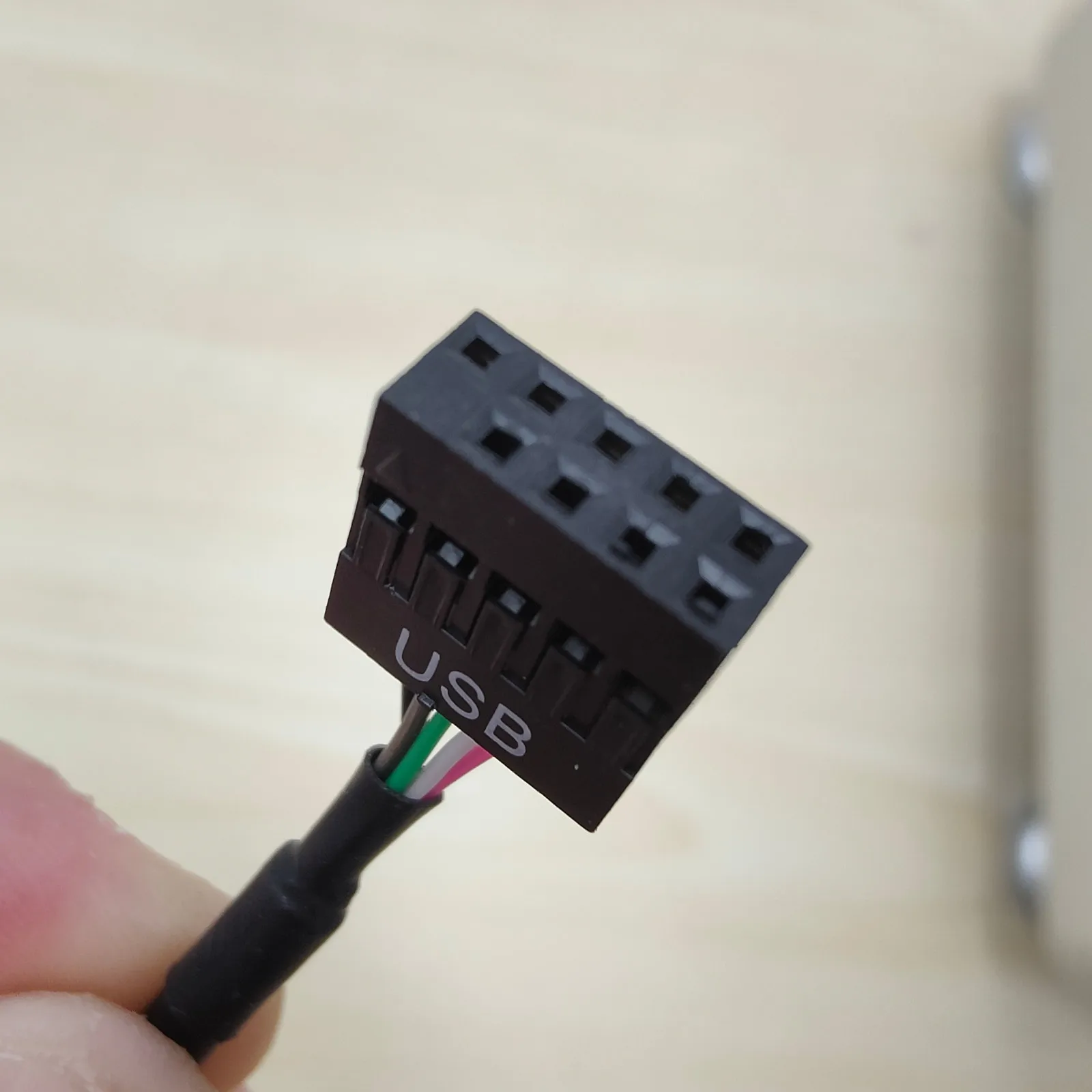

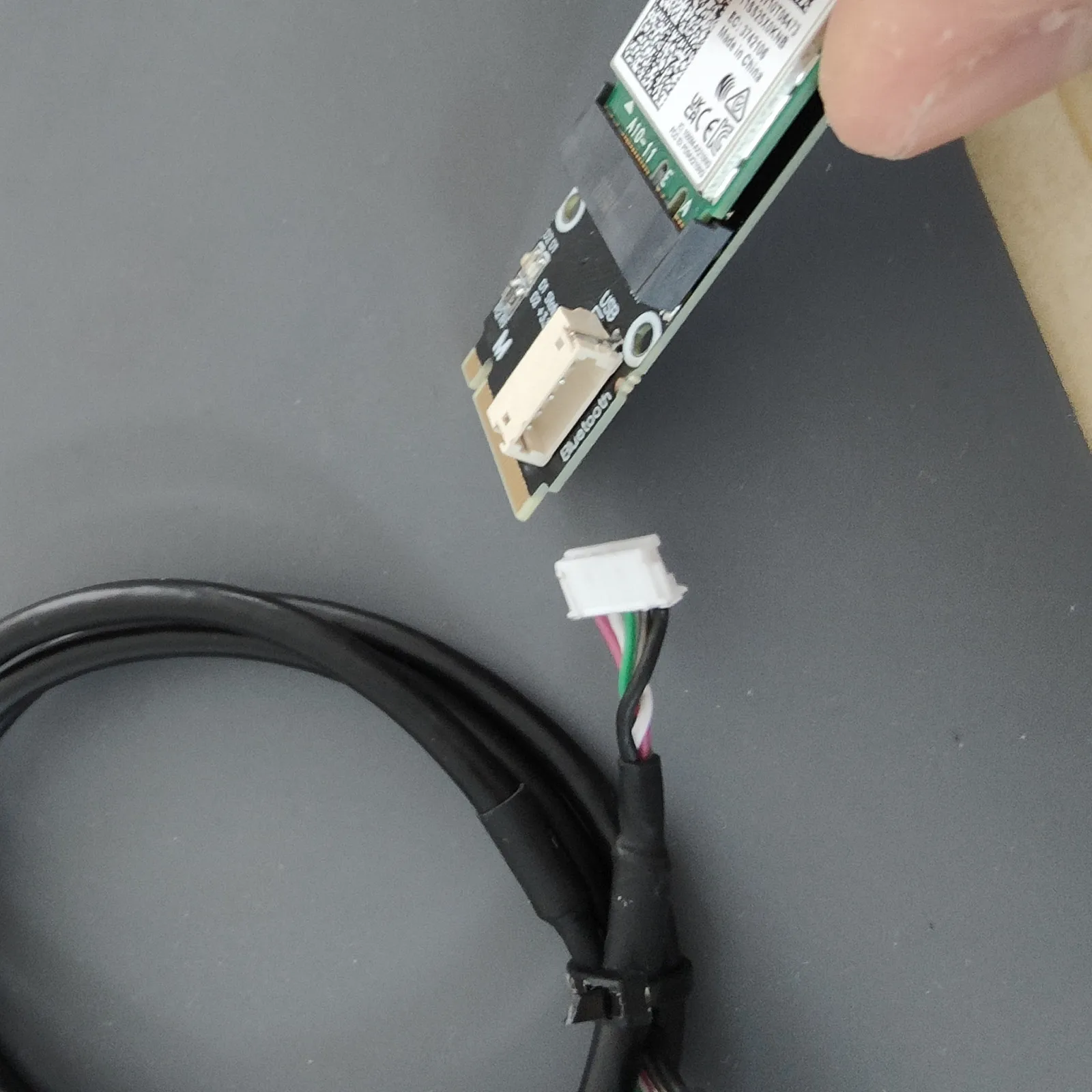

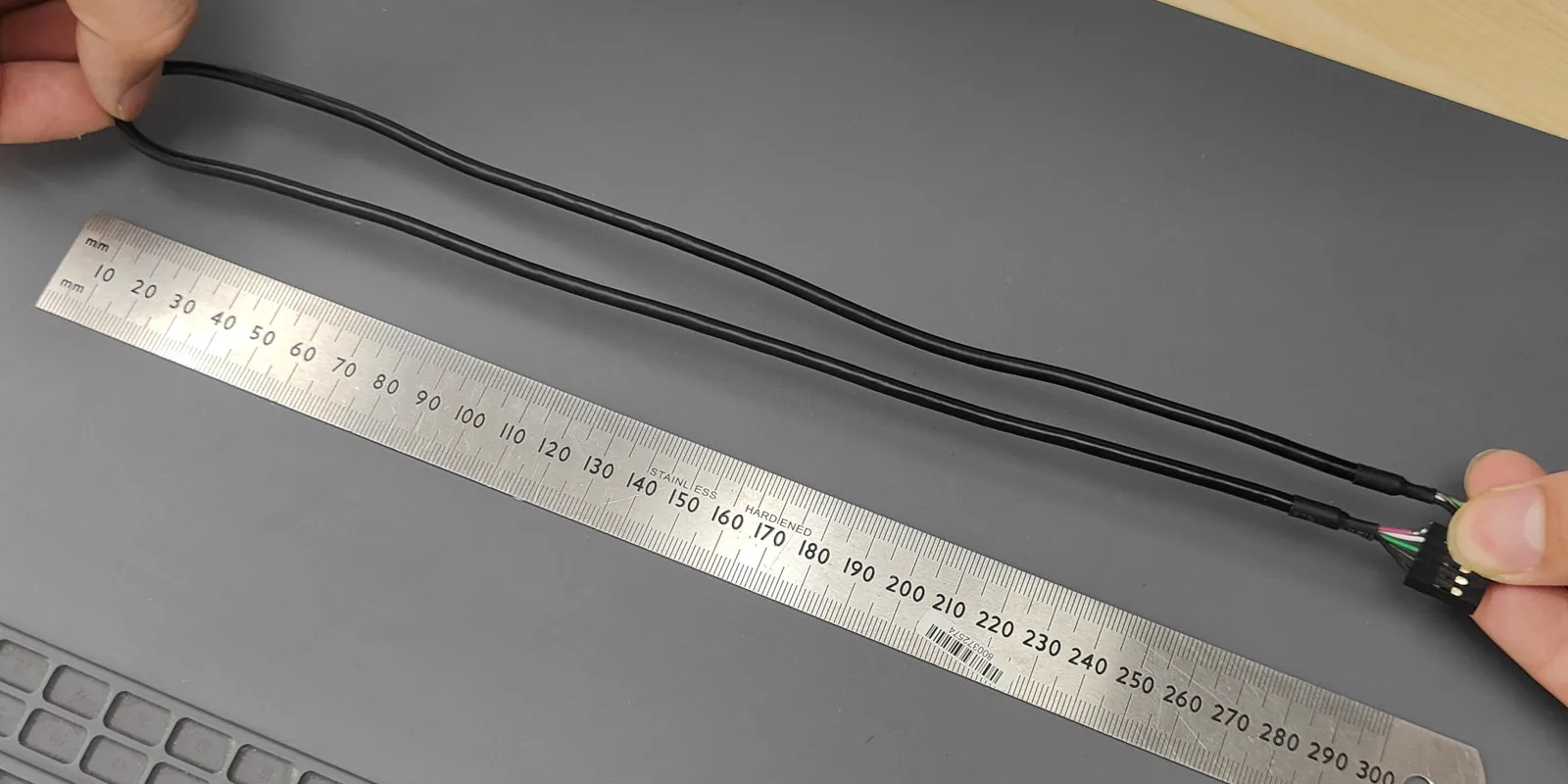

The blue bud cable is a USB2.0 data cable with a length of 60cm. It can receive and receive Bluetooth data only when connected.

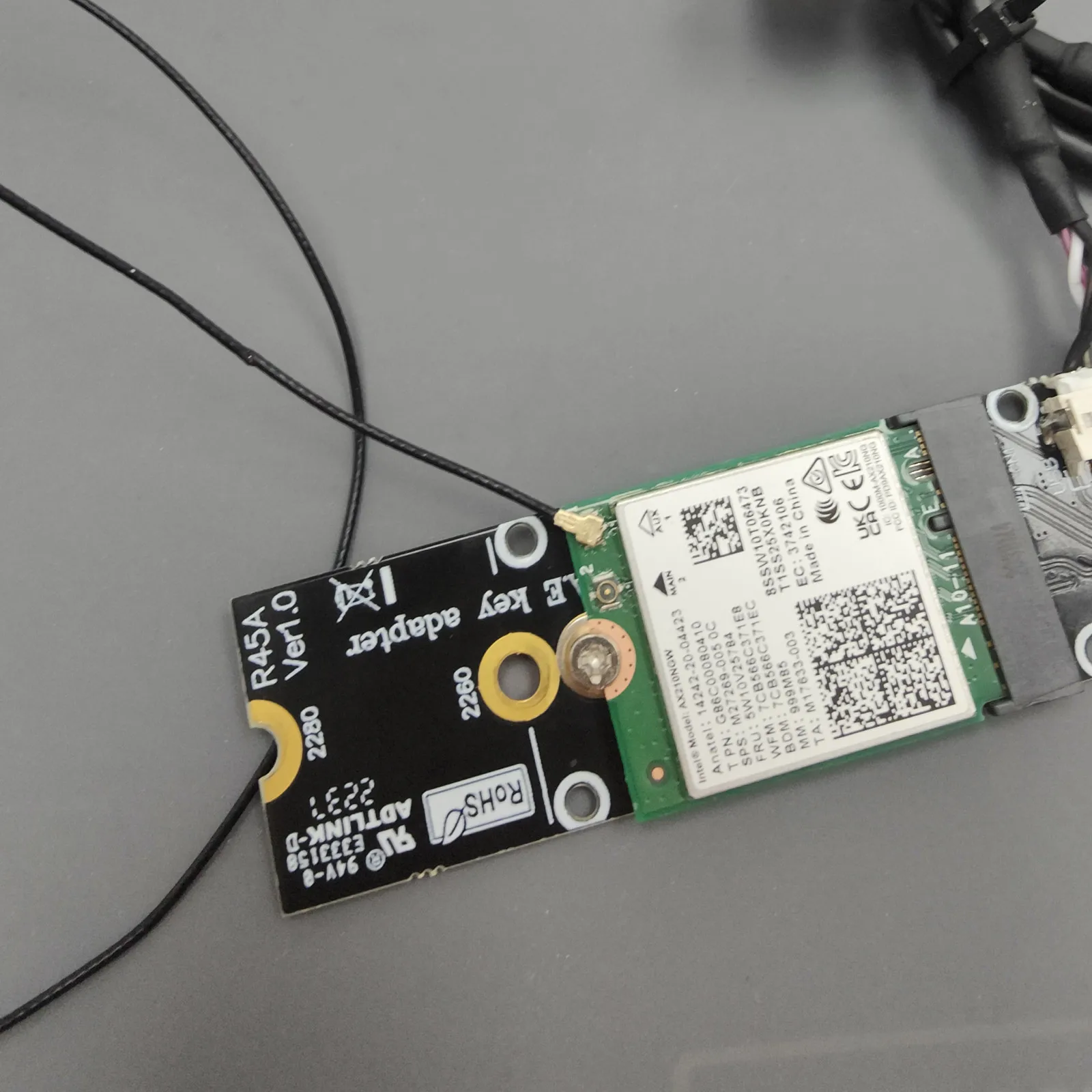

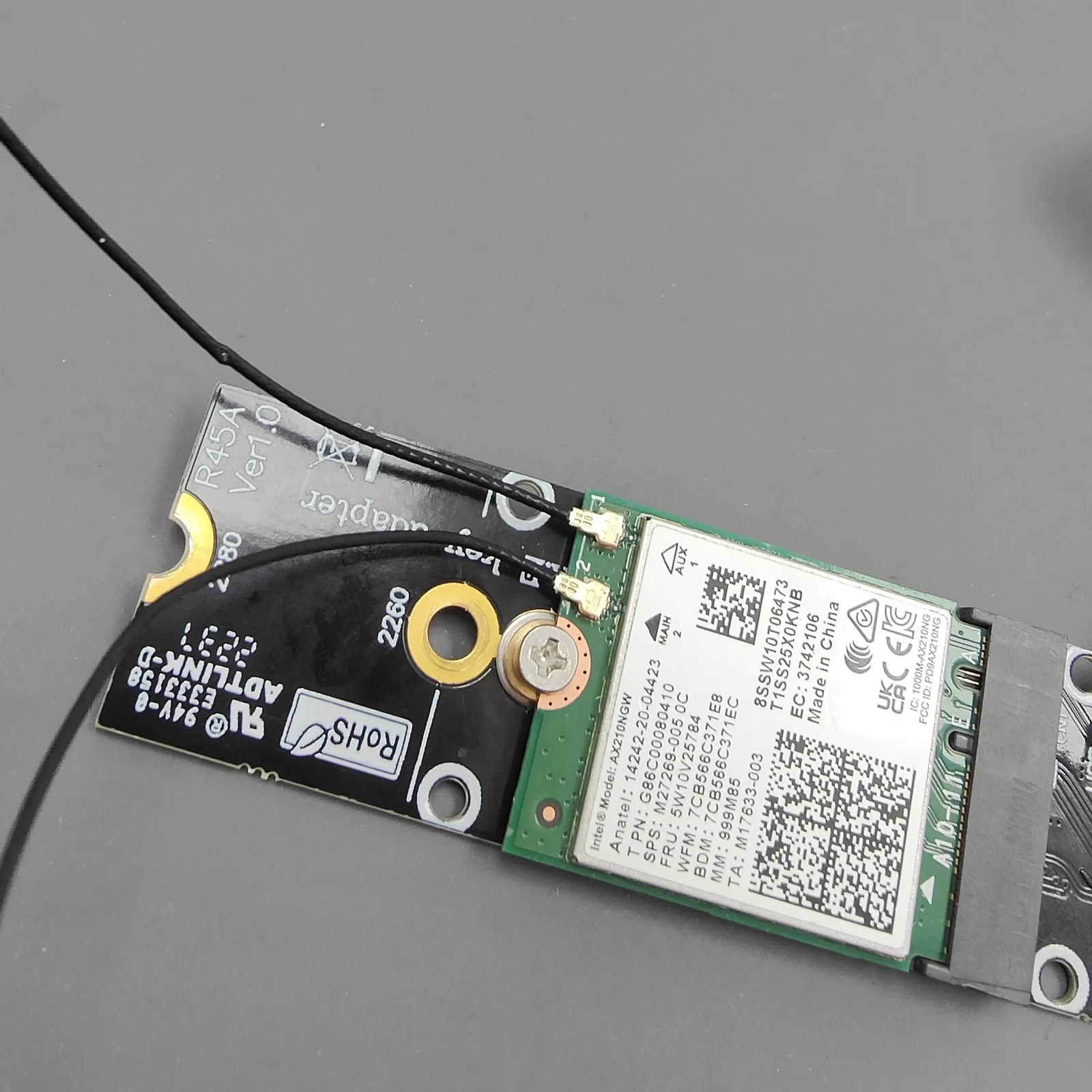

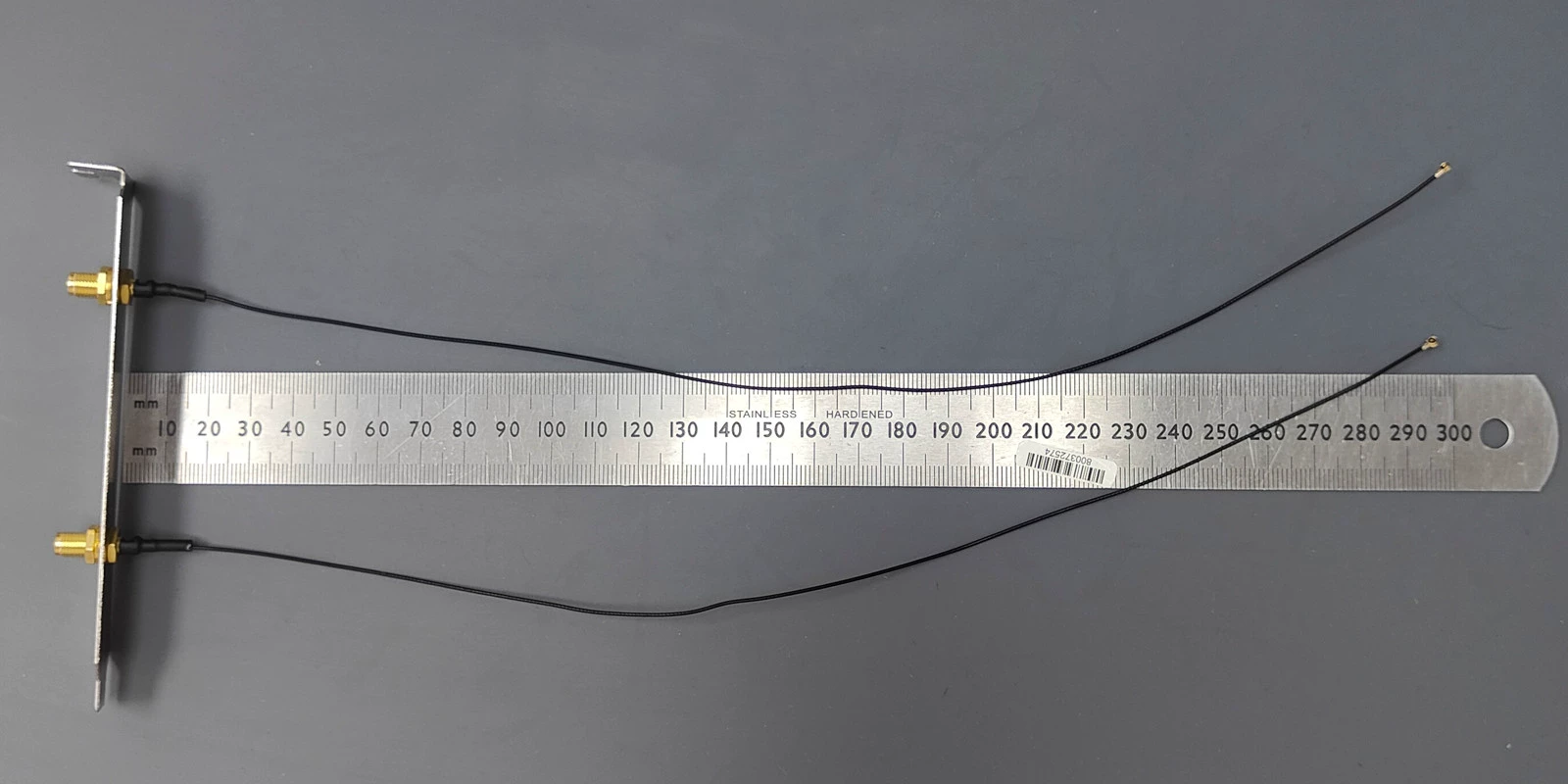

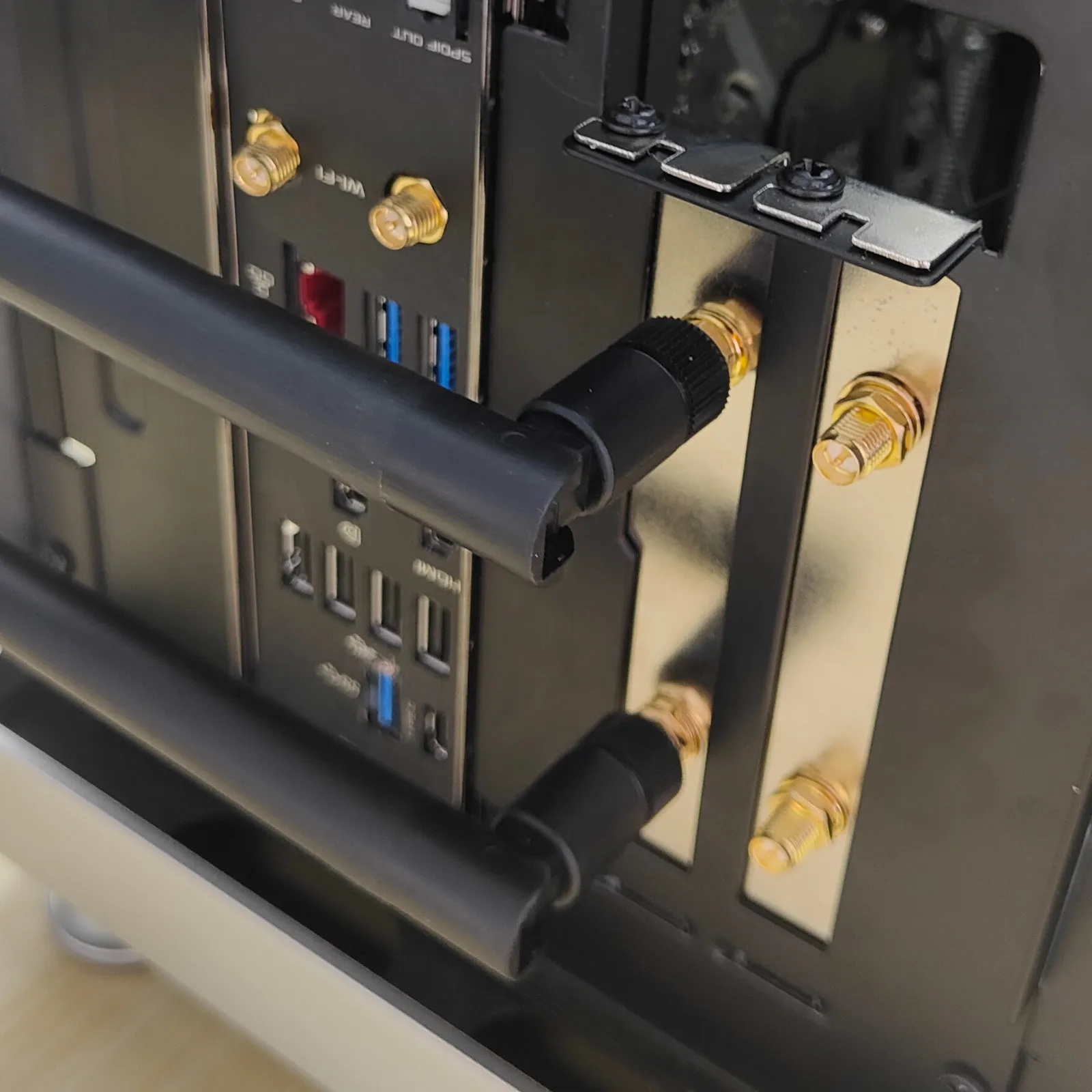

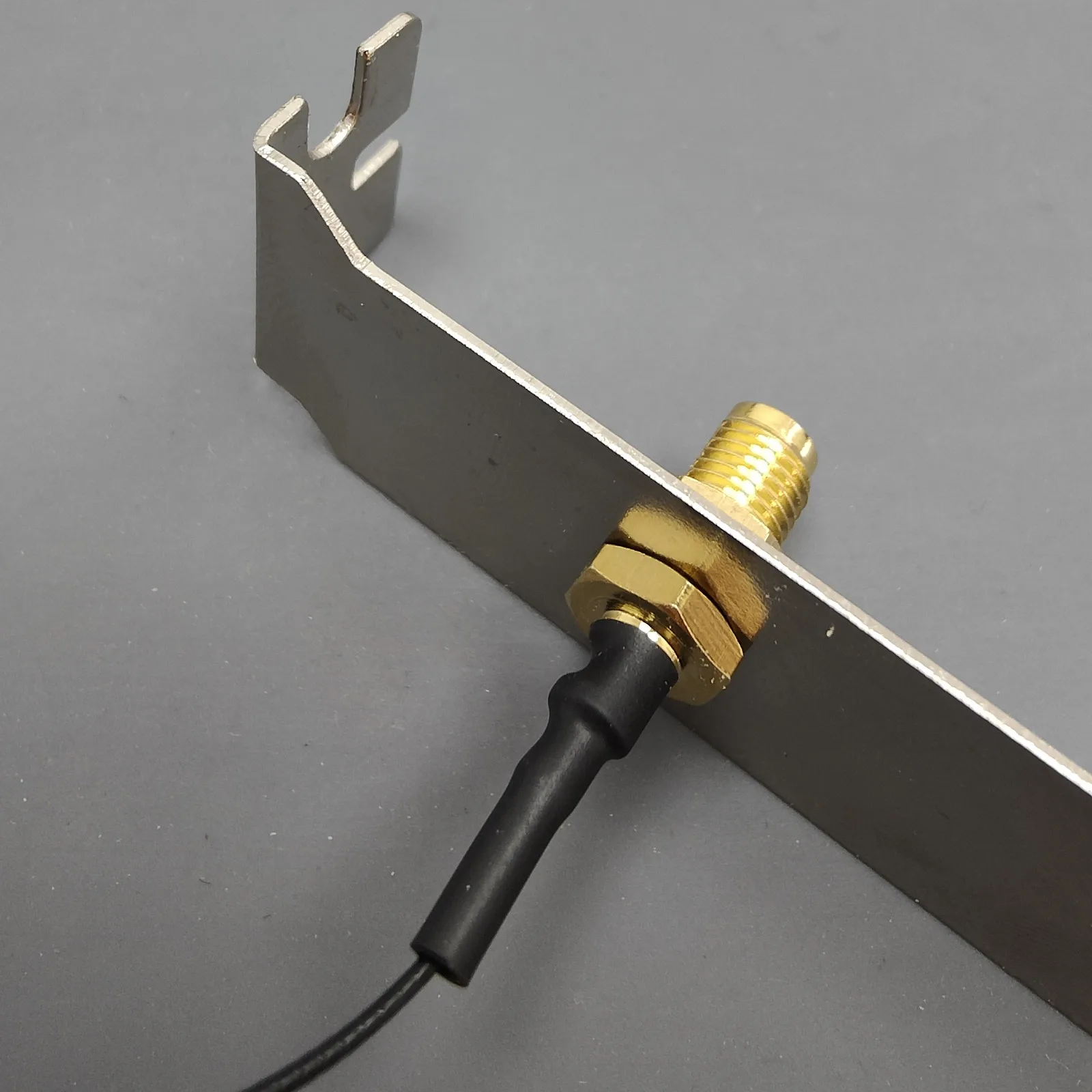

The coaxial line is the extended conversion wire of dual-frequency antenna, the length is 30cm, and it must be connected to have stable wireless transceiver function
