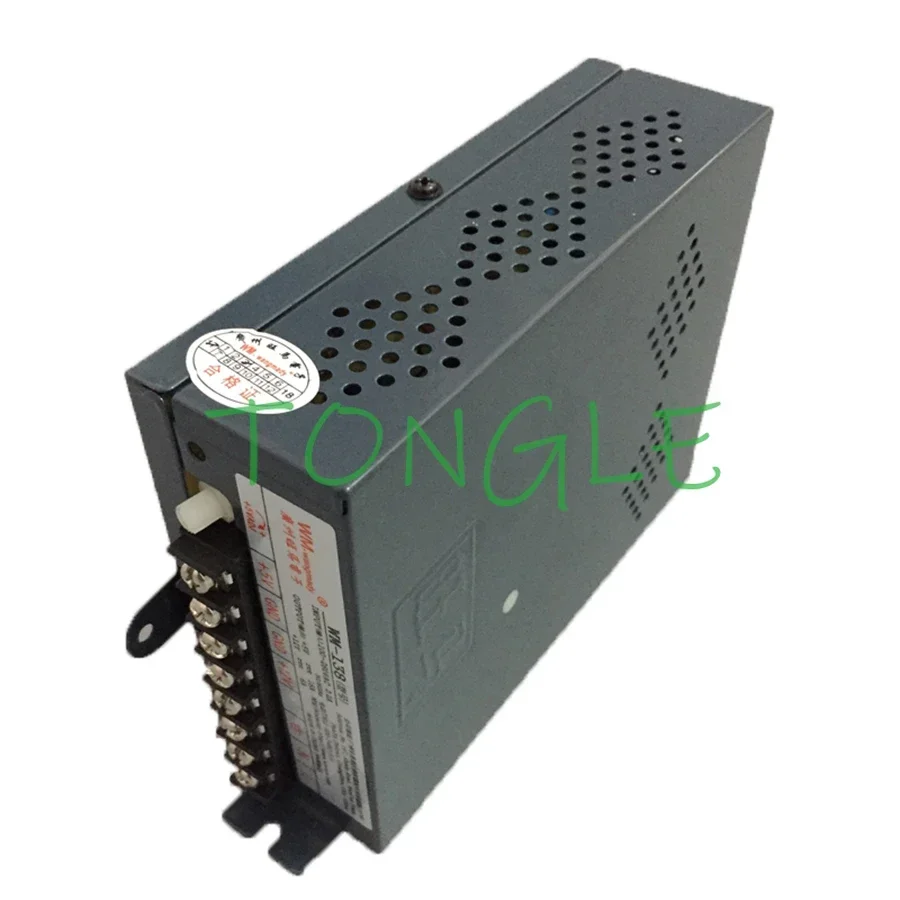

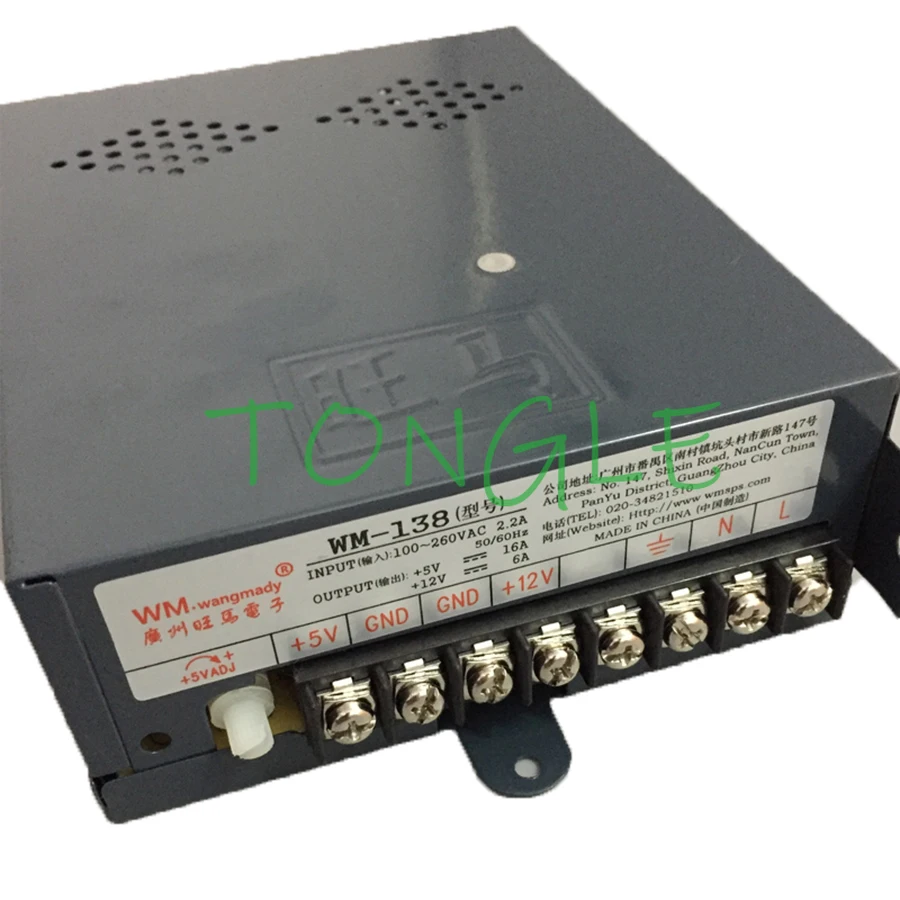

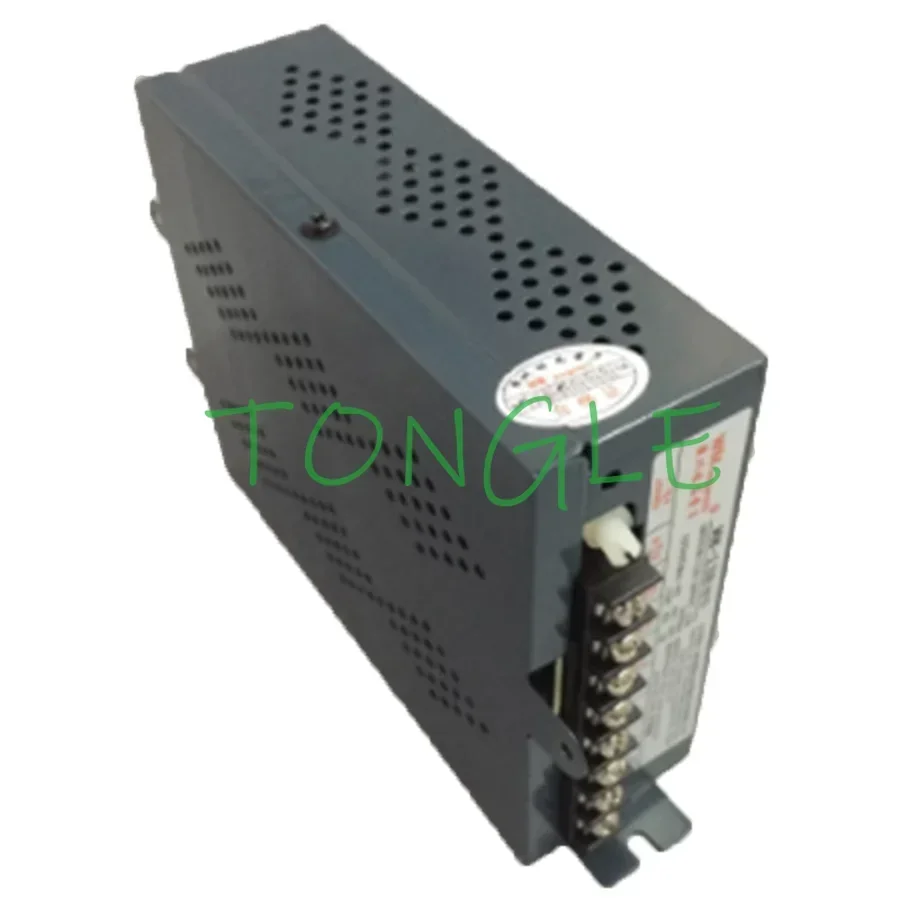

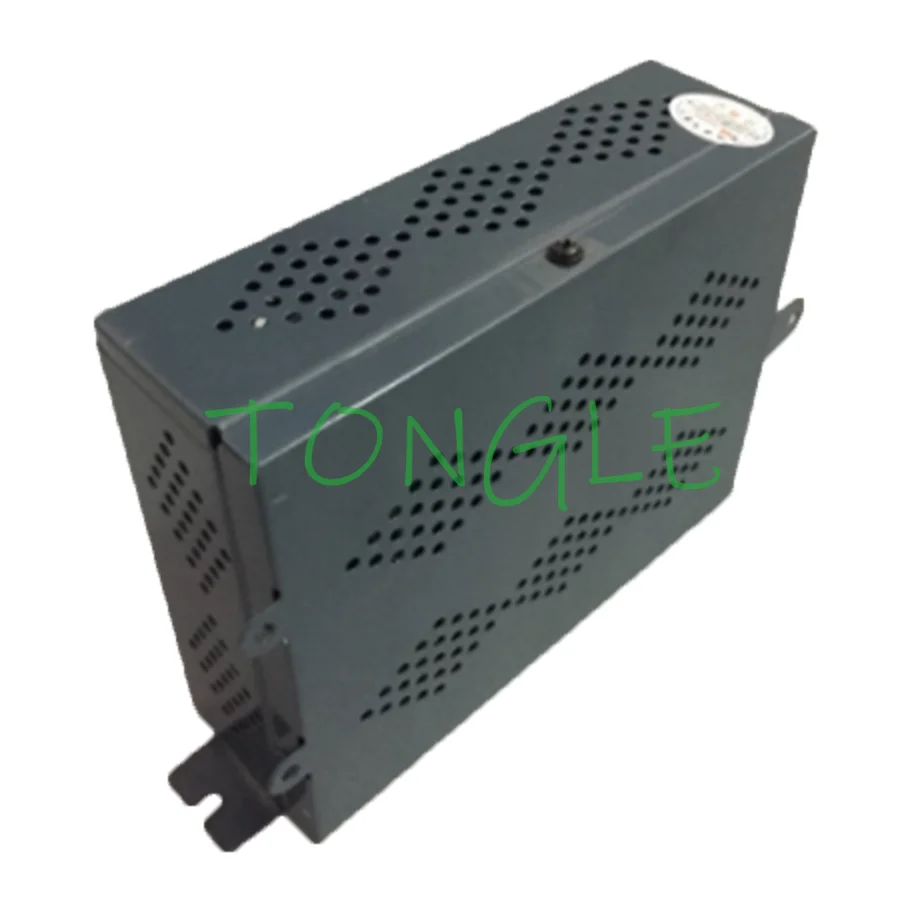

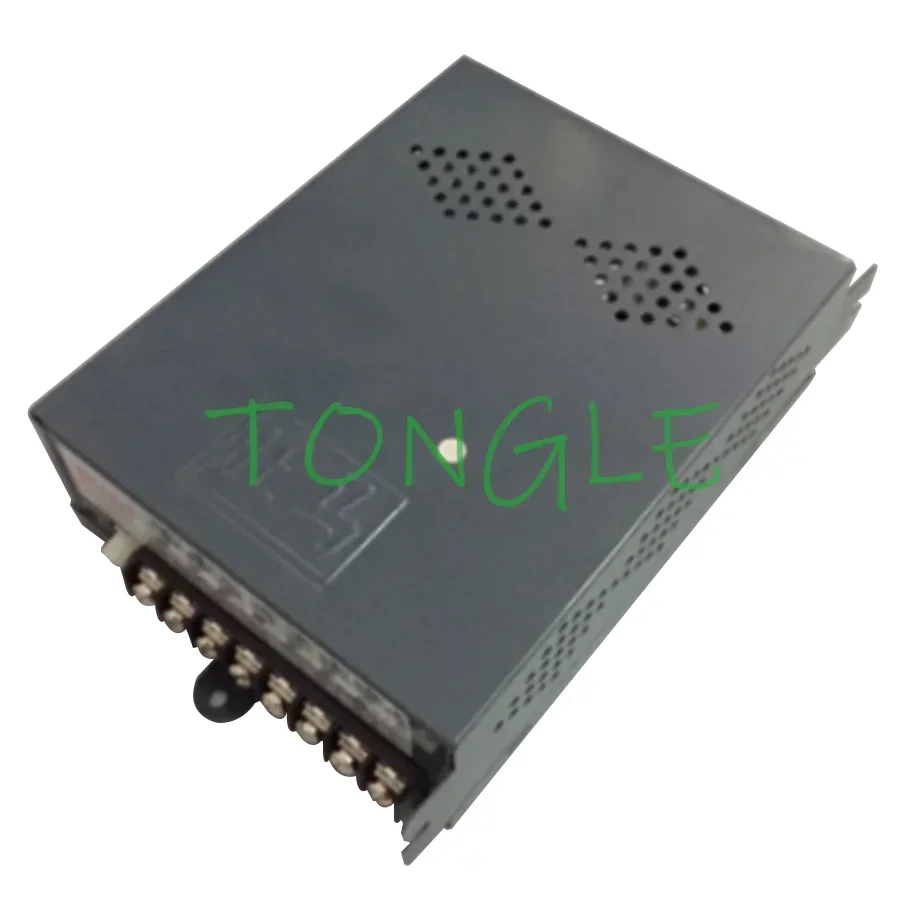

Brand New WM-138 16A Standard Arcade Switching Power Supply for your arcade cabinet! Provides a very clean/low-noise standard +5VDC, +12VDC outputs and a 110VAC/220VAC input.
Features:
Universal AC input/ Full range
Low cost, high reliability
High efficiency, low working temperature
Built-in EMI filter
100% full load burn-in test
Low ripple & noise
Protections: short circuit/overload/over voltage
Specification:
Input Voltage-----------------------100~260VAC
Input frequency--------------------50/60Hz
Inpush current----------------------cold start, 20A at 100V, 40A at 260V
Overload protection--------------105%--150% hiccup mode, auto-recovery
Over voltage protection---------115%---135% rated output voltage
Setup, rise, hold up time--------200ms, 50ms, 20ms
Withstand voltage-----------------I/P-O/P, I/P-FG: 1.5KV, 1 minute
Working temperature------------0-50 degree @ 100%, -10 Degree @ 80%, 60 degree @ 60% load
Safety standards------------------UL1950, EN60950, CB, CE
Connection-------------------------8P/9.5mm pitch terminal block with cover
