Fiber Optical Adapter Series(Female-Female)
Fiber optical adapter uses a sleeve to precisely connect two side optical fiber connectors to allow optical signals to be transmitted at sufficiently low insertion loss. fiber optical adapter include: SC, LC, FC, ST, MU, D4, DIN, E2000, SMA and other series.
Features:
Precision connection with sleeve
SM and MM connector can be used interchangeably
Low insertion loss，High return loss
High interchangeability,High reliability,
Compliance with IEC and ROHS standards
High precision of mechanical dimensions
Parameter
项目ITEM
单模(SM-9/125)
多模(MM-50/125)
多模(MM-62.5/125)
插入损耗Insertion Loss
≤0.2dB
≤0.2dB
回波损耗Retun Loss
PC≥45dB UPC≥50dB APC≥60dB
--
一致性Repeatability
0.1dB Max.
工作温度Temperature Range
-40℃~+75℃
使用次数Opertation Times
≥1000

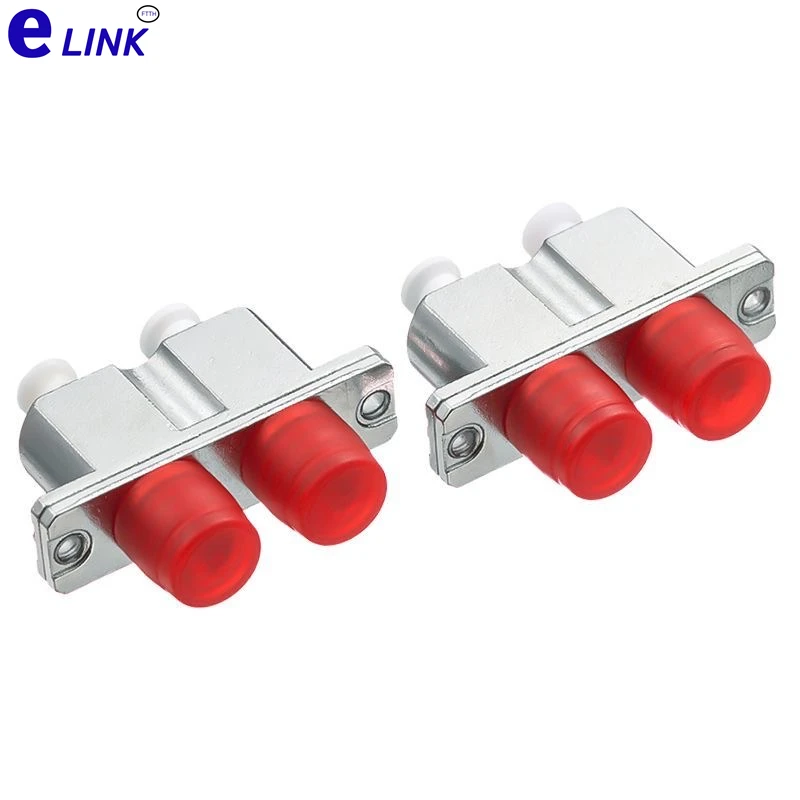

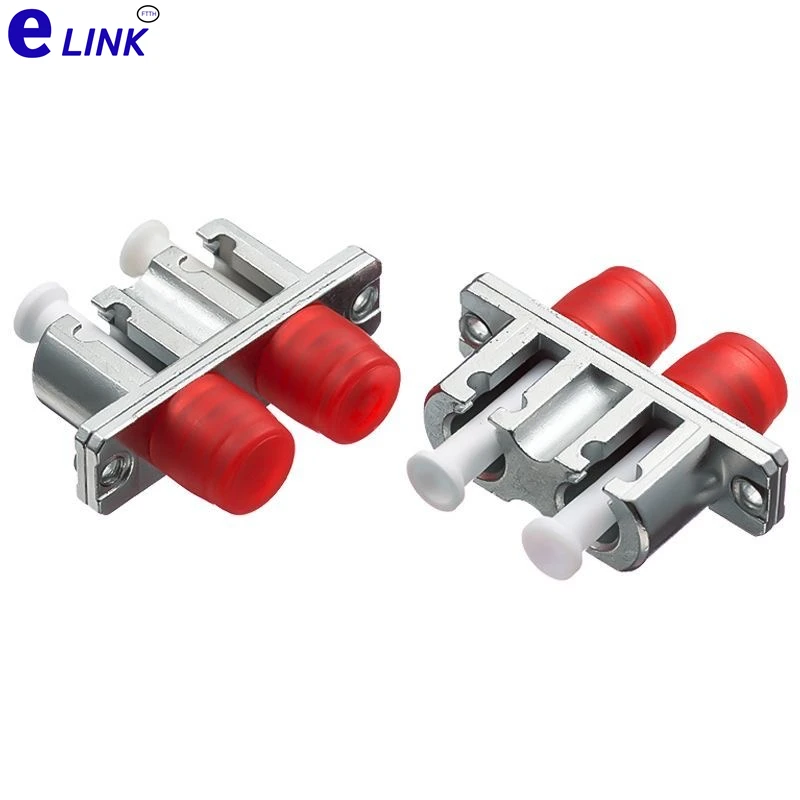

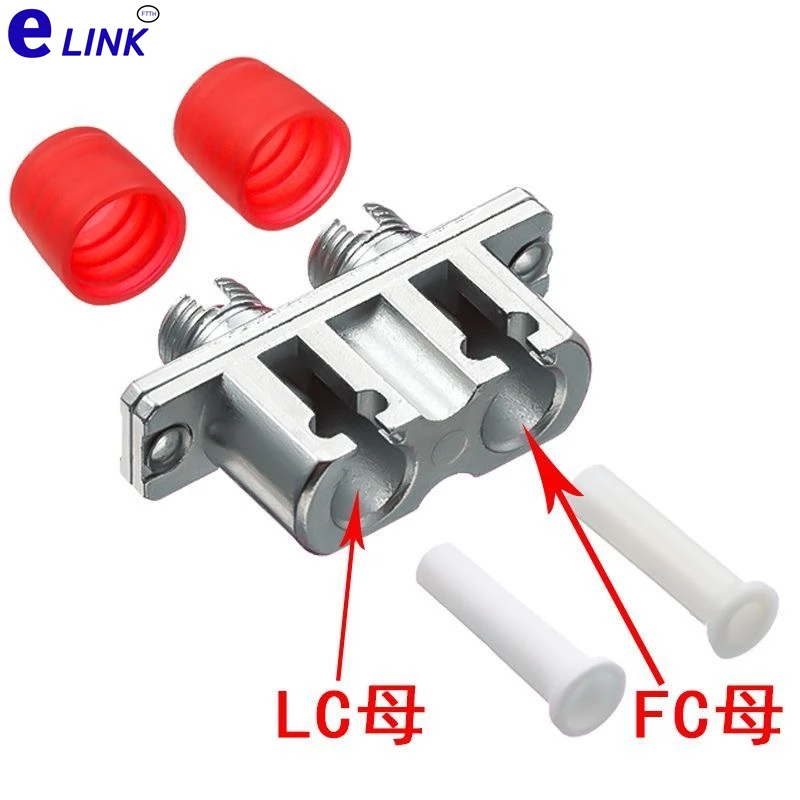

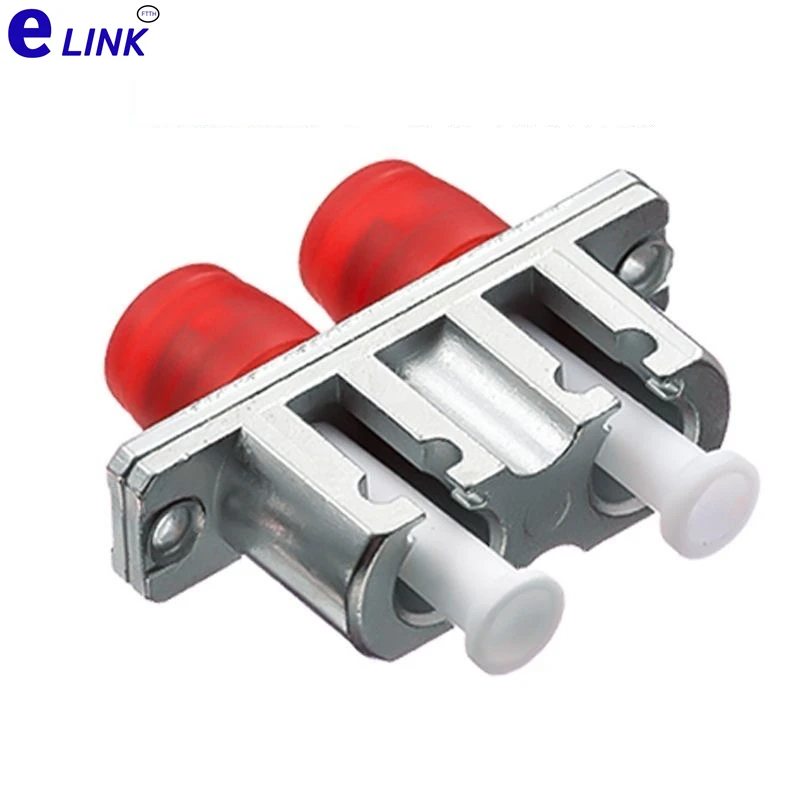

Product Show:
