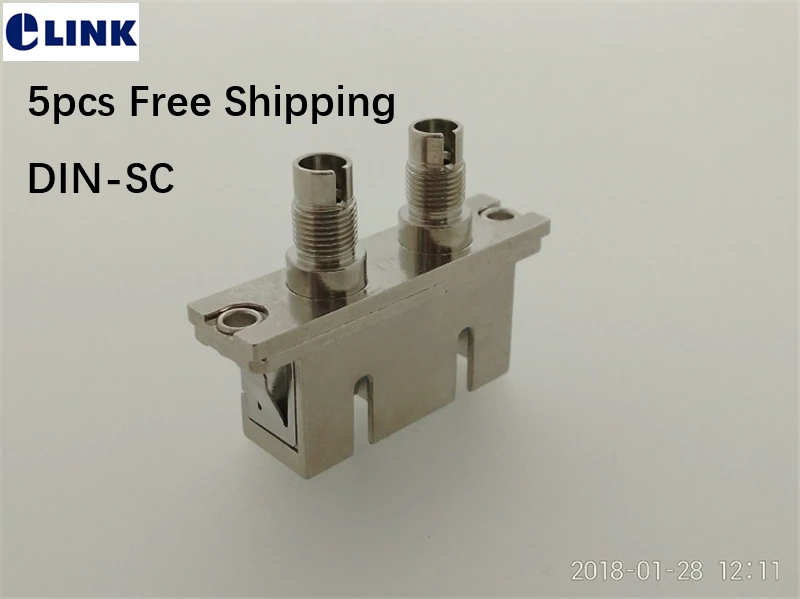

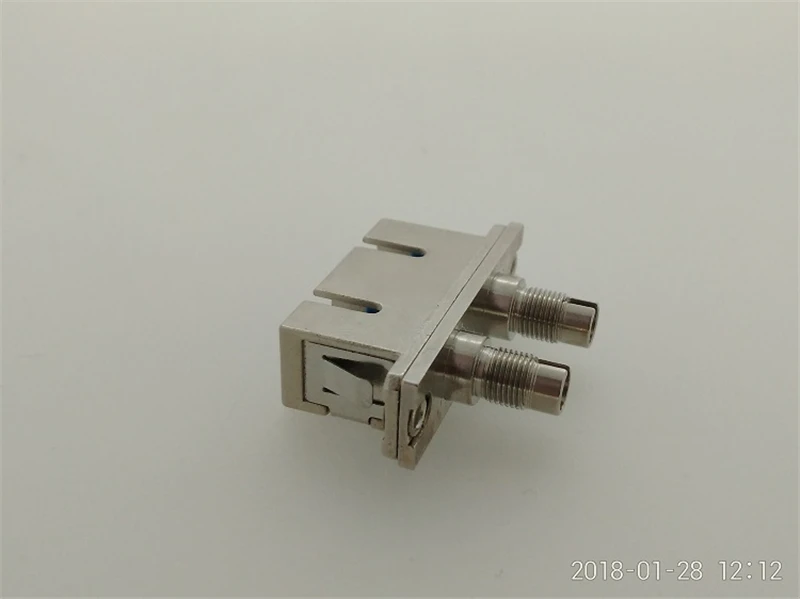

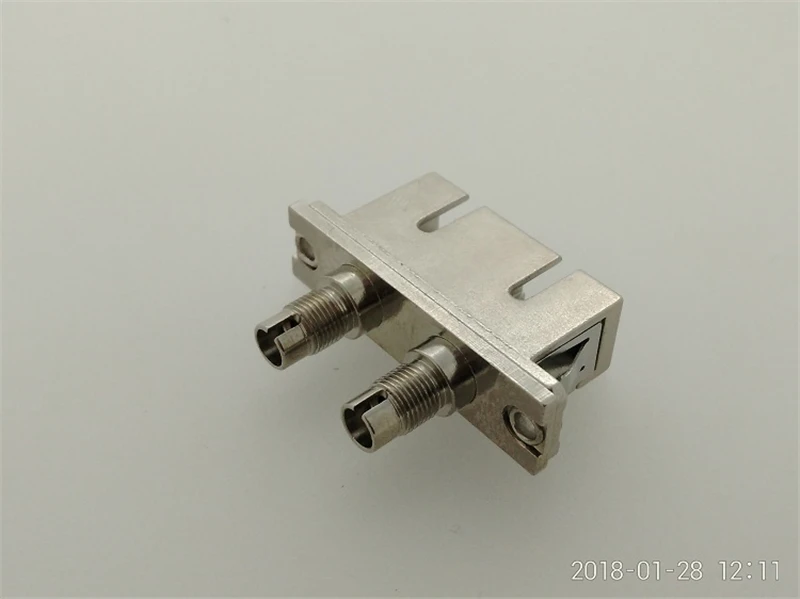

5pcs DIN-SC duplex fiber adpater female to female connector SM MM silver metal housing coupler ftth IL 0.2dB free shipping
Pic Show:
Fiber optical adapter uses a sleeve to precisely connect two side optical fiber connectors to allow optical signals to be transmitted at sufficiently low insertion loss. fiber optical adapter include: SC, LC, FC, ST, MU, D4, DIN, E2000, SMA and other series.
特点Features:
采用套管精密连接Precision connection with sleeve
单模与多模连接头均可互换使用SM and MM connector can be used interchangeably
低插入损耗，高回波损耗Low insertion loss，High return loss
良好的互换性与可靠性High interchangeability,High reliability,
符合IEC及ROHS标准要求Compliance with IEC and ROHS standards
机械尺寸精度高High precision of mechanical dimensions
技术参数Parameter
项目ITEM
单模(SM-9/125)
多模(MM-50/125)
多模(MM-62.5/125)
插入损耗Insertion Loss
≤0.2dB
≤0.2dB
回波损耗Retun Loss
PC≥45dB UPC≥50dB APC≥60dB
--
一致性Repeatability
0.1dB Max.
工作温度Temperature Range
-40℃~+75℃
使用次数Opertation Times
≥1000
Email:[email protected]
Skype:e_link60
Notice:
If you need other qty,such as 12,15,18...pcs,pls contact us to revise;
Pls choose DHL UPS Fedex TNT...if urgent.
10pcs DIN-ST fiber adpater female to female Rectangular type connector SM MM silver metal housing coupler ftth IL 0.2dB
