Adaptador de Cable plano para placa base ITX ATX A4, USB 3,2 Gen2, a 19 tipo C/20P, tipo E, macho, hembra, arriba y abajo, 20gbps
7,46 €
Enlace proporcionado por:
Color:
Longitud:
Brand name: ADT-LINK
Product name: USB 3.2 Type-C to Type-E flat cable
Product model: UTF3.2-MF/FM/MM-20P series
Transfer speed: USB3.2 Standard 20Gbps
Wire length: 3~300 cm, the length can be customized,
Current capacity: 3A within 50cm ; 1.5A within 1 meter
Product application: ITX/ATX motherboard built-in internal 20Pin USB connector or type-e connector, suitable for A4-ITX chassis customized side panel USB type-C port.
ADT USB series Part-Number Description:
S=USB-A ; C=USB-C ; W=USB-B ; F=USB-E
Cable length Description:
The length of the wire refers to the part of the visible wire. It does not include the PCB and the connector. For the wire length, please refer to the 5cm blue arrow in the figure below.
Product Model description:

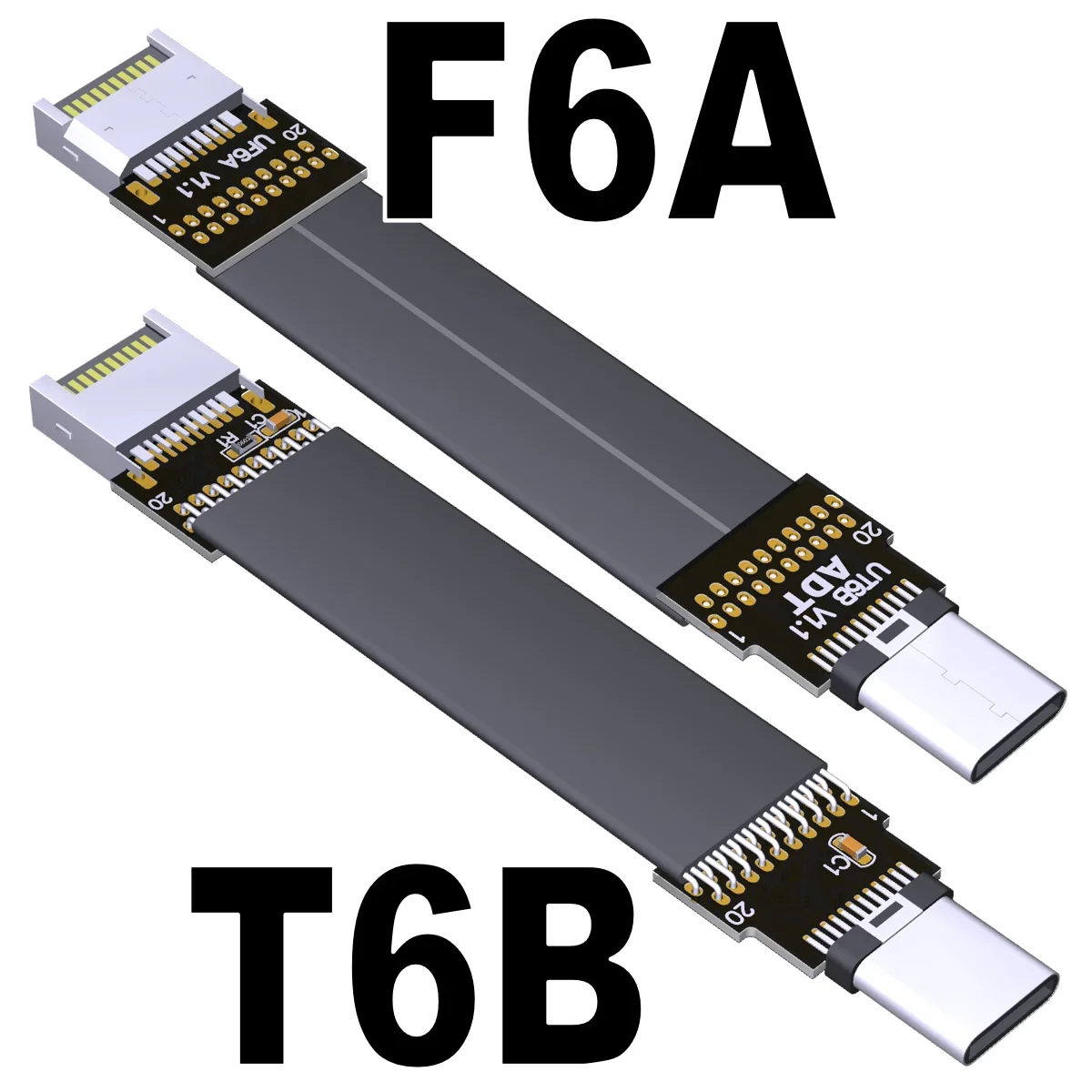

Note 1: T6B/T6A/T6A-NC is Type-C straight male;

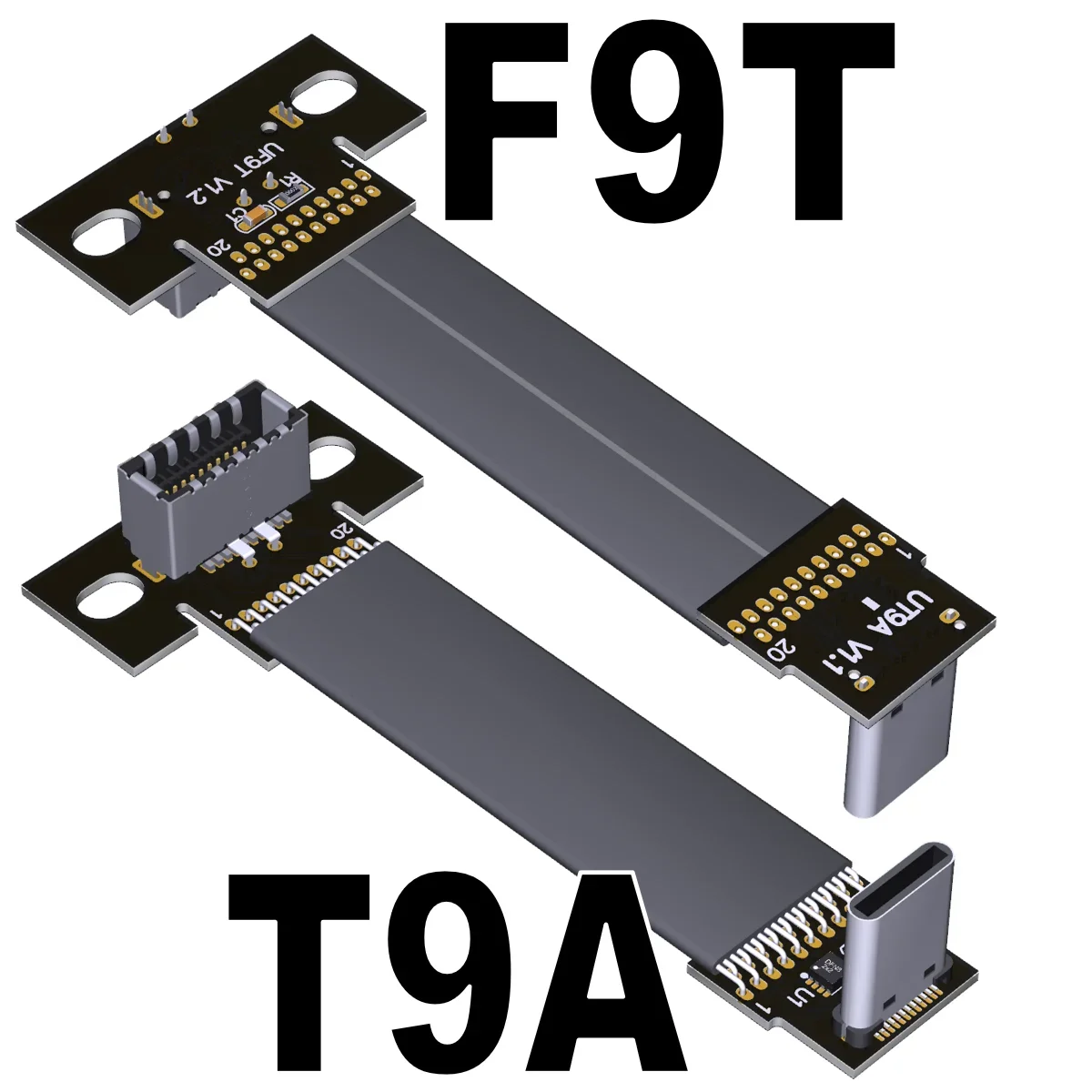

T9A/T9A-NC is Type-C Up angled male;
T7B is Type-C straight female;

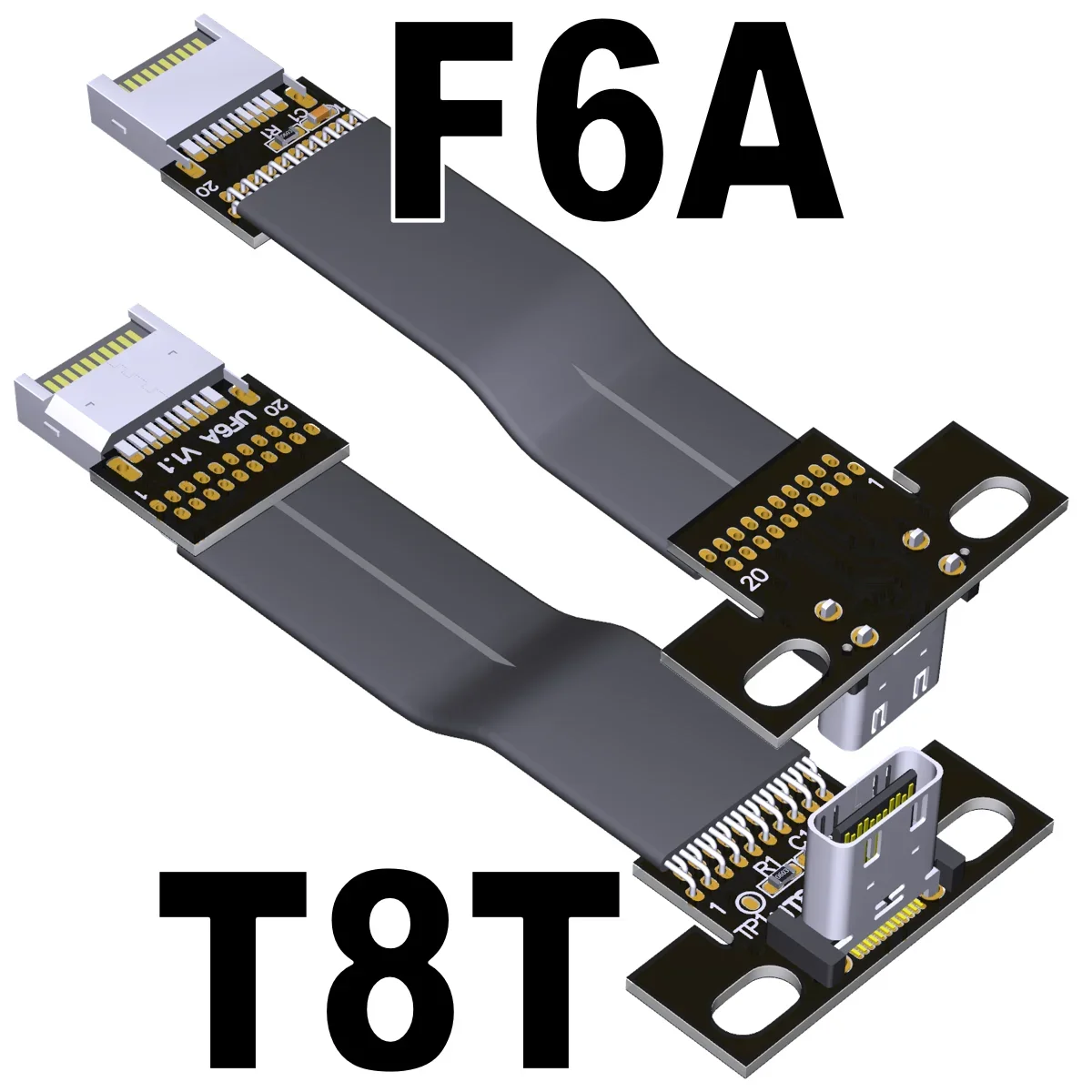

T8T is Type-C up angled female with slotted hole
T8T-BK is Type-C up angled female with slotted hole, Baffle;

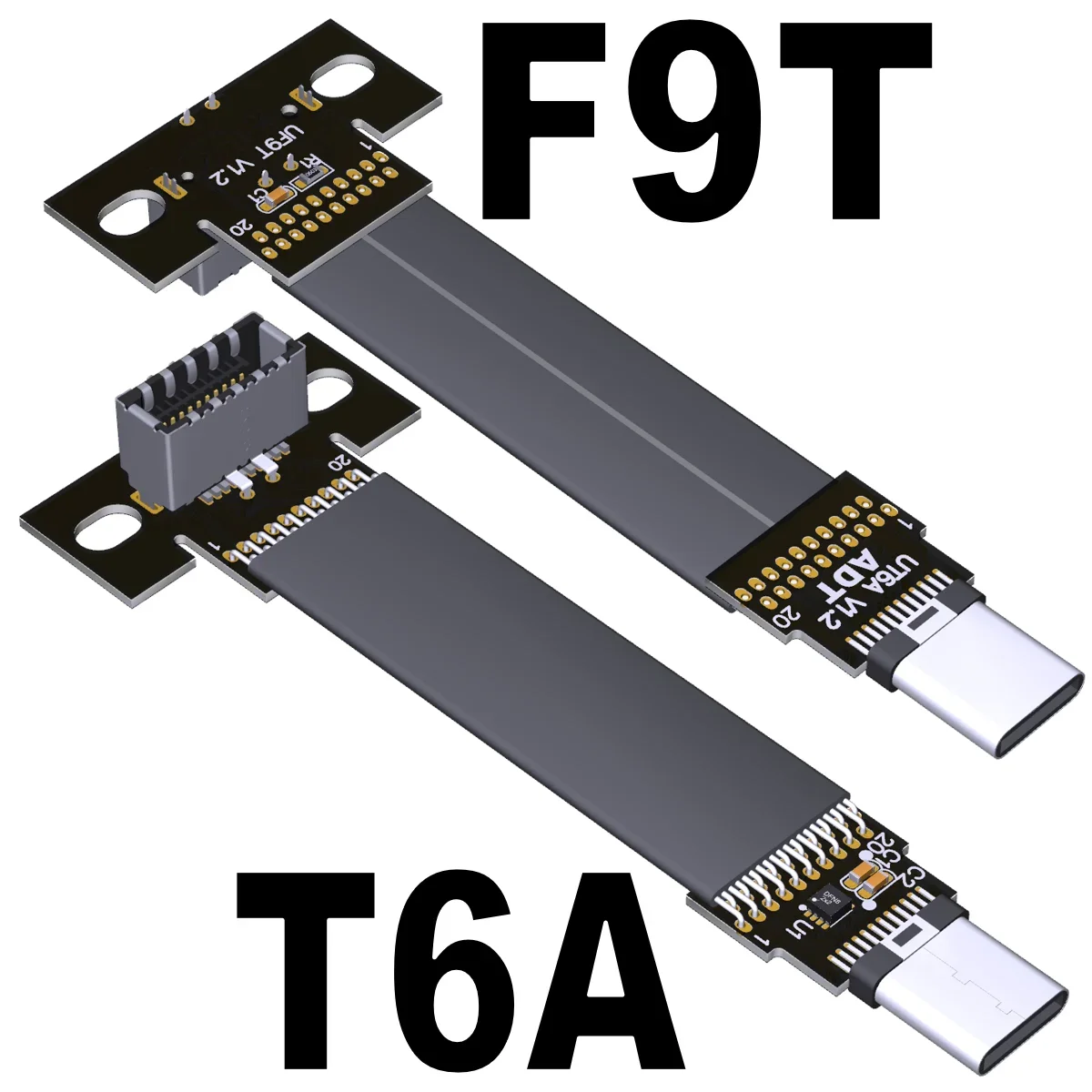

F6A is Type-E straight male connector;
F9T is Type-E up angled female connector with slotted hole.
Note 2: What is the difference between product model T6A with chip and without chip?
T6A with chip refers to the PCB with RT1710 e-mark chip from RichTek, which supports high current 3A, up to 5A. Compatibility, scalability, and security are relatively good. Support Alternate Mode, Vendor Defined Message (USB PD)
The T6A-NC version without a chip is only suitable for general use and does not support high current. The USB data transmission function can still be used normally.

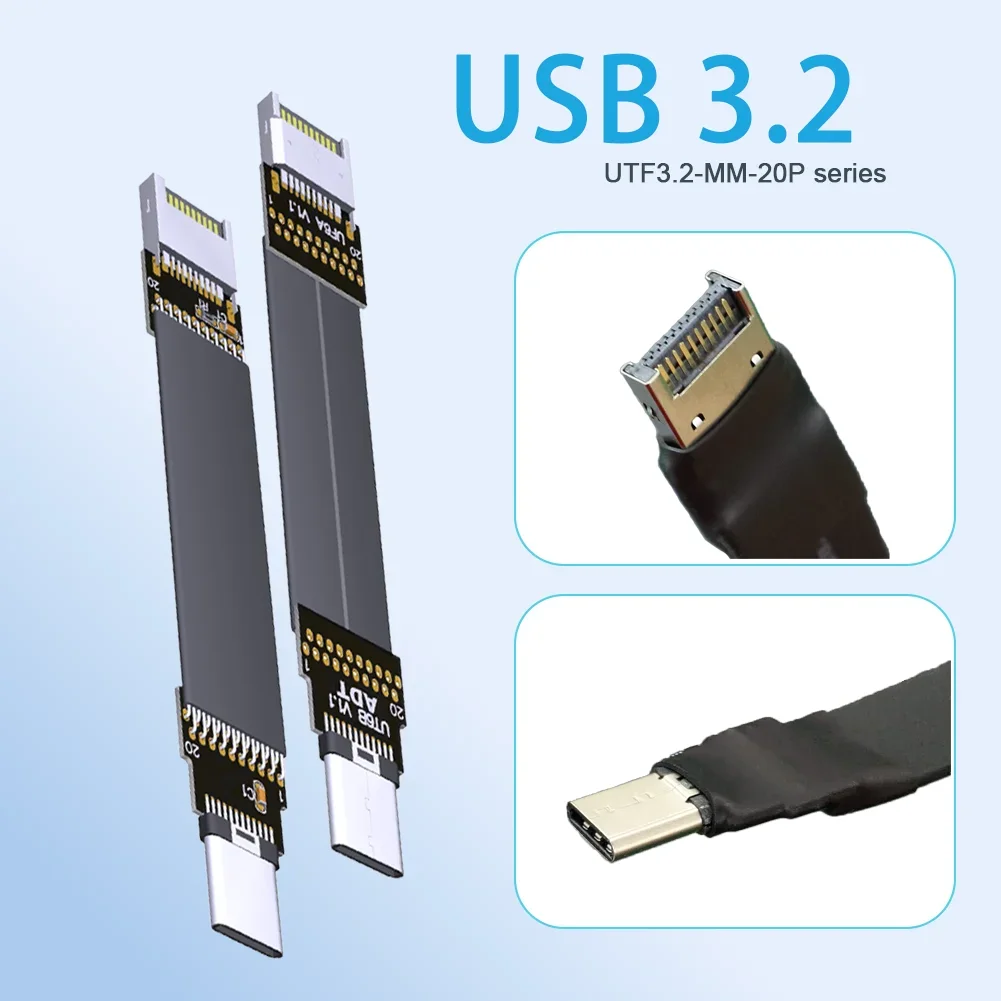

Product image:
Product real shot:
Summary of technical issues:
1. Can wires and PCB connectors be split?
No, in order to purify the signal transmission and avoid the accident of wire falling off, our wire and PCB connectors is soldering and protected by the heat shrinkable tube sleeve, so the product can not be separated.
2. Cable thickness? Can it be bent?
The thickness of the wire is 1.4mm, and it can be bent and folded without affecting the use.
3. Is there any EMI shielding for Cable?
No metal shield. The extender utilizes the latest materials for EMI shielding with five sole flat cables design. This technique allows each cable to be fully covered by electromagnetic interference shielding with conducting polymer to guard against incoming or outgoing emissions of electromagnetic frequencies, minimize disturbance and degradation on performance, and reduce the weight of the extender.
What is the difference between model UT8T/UT8Q?
Model UT8T has no chip, and the signal attenuation after the two USB cables are connected in series may not meet the requirements of USB high-speed signal transmission.
Model UT8Q with chip using Diodes/Pericom's Redriver Repeater IC, which regenerates the signal and enhances its signal quality. To reduce the incidence of signal transmission errors, refer to the following schematic:
