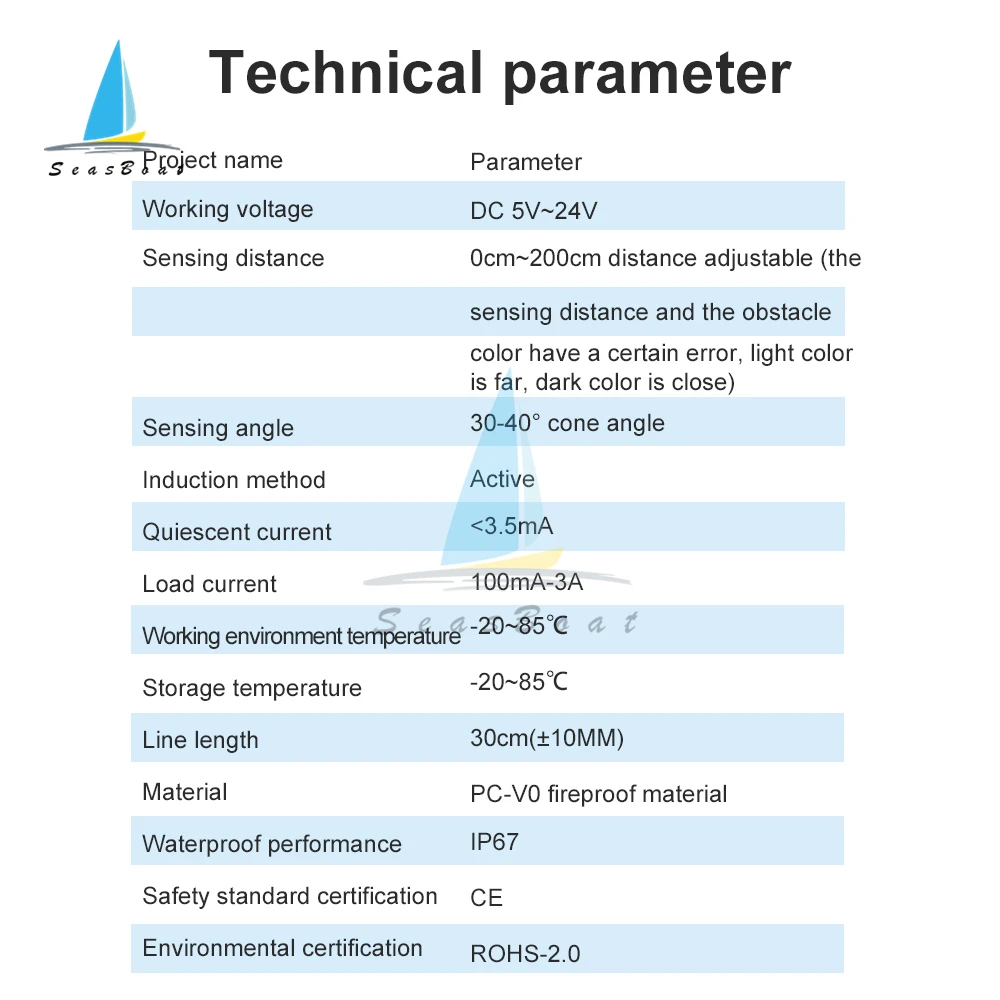

Description:
Working voltage: DC 5V~24V

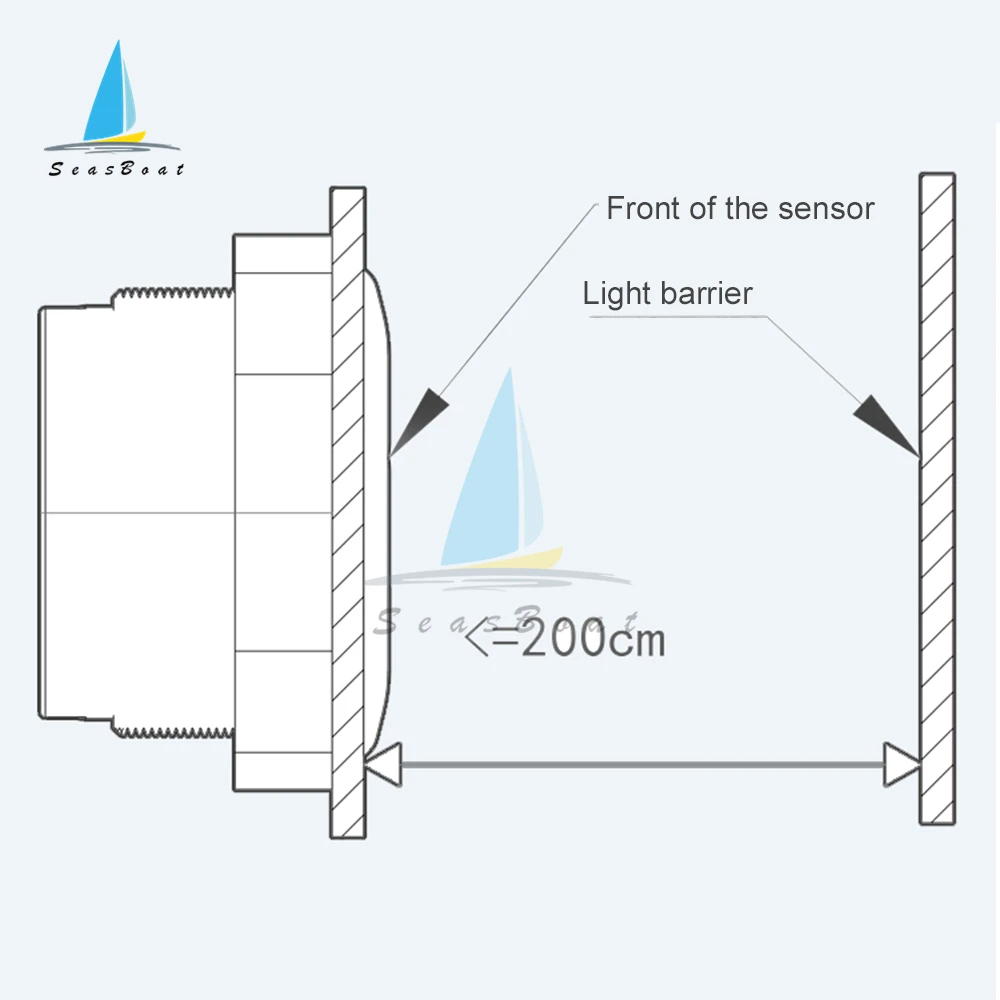

Sensing distance: 0cm~200cm, adjustable
distance (sensing distance and obstacle color have a certain error, light color is far, dark color is close)
Induction angle: 30-40° cone angle
Sensing method: active
Quiescent current: 3.5 mA
Load current: 100mA-3A
Working environment temperature: -20~85℃
Storage temperature: -20~85℃
Line length: 30cm (±10MM) (bulk can be customized)
Material: PC-VO fireproof material

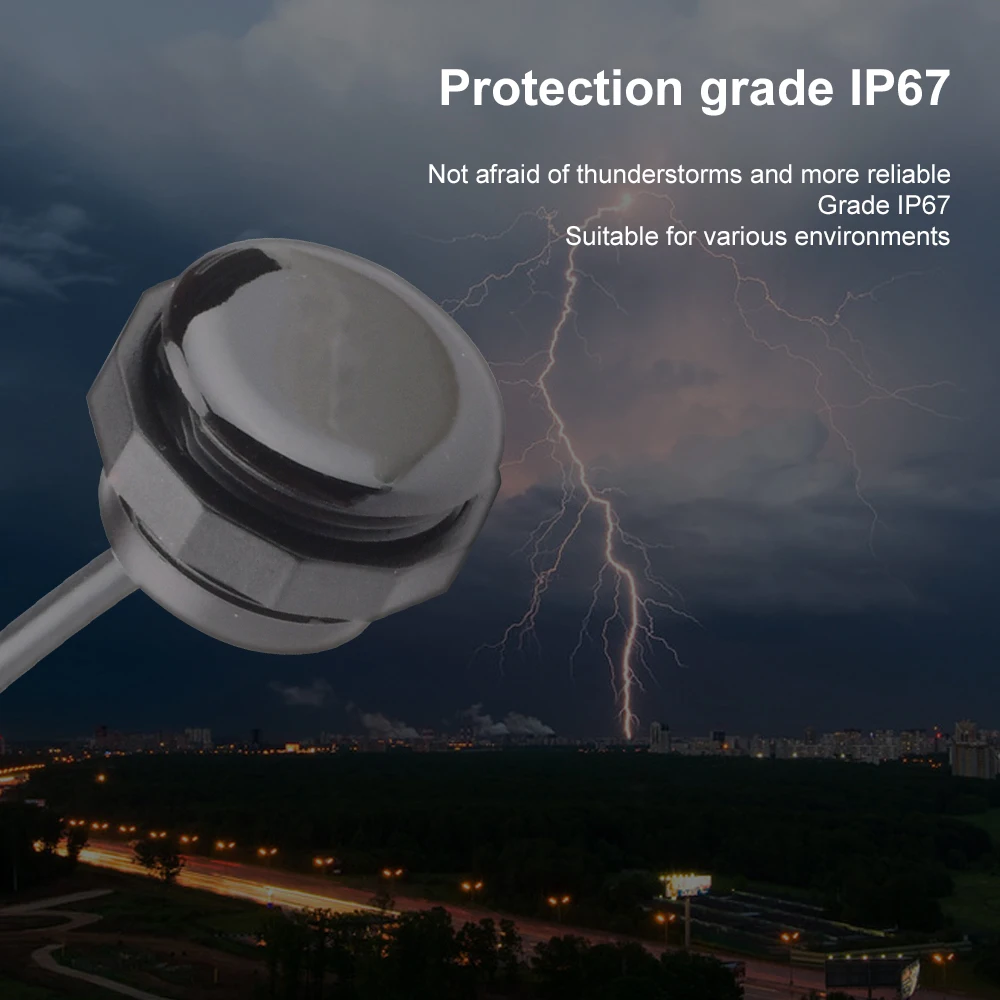

Waterproof performance: lP67
Safety standard certification CE environmental certification
ROHS-2.0
Feature:
1: Widely used

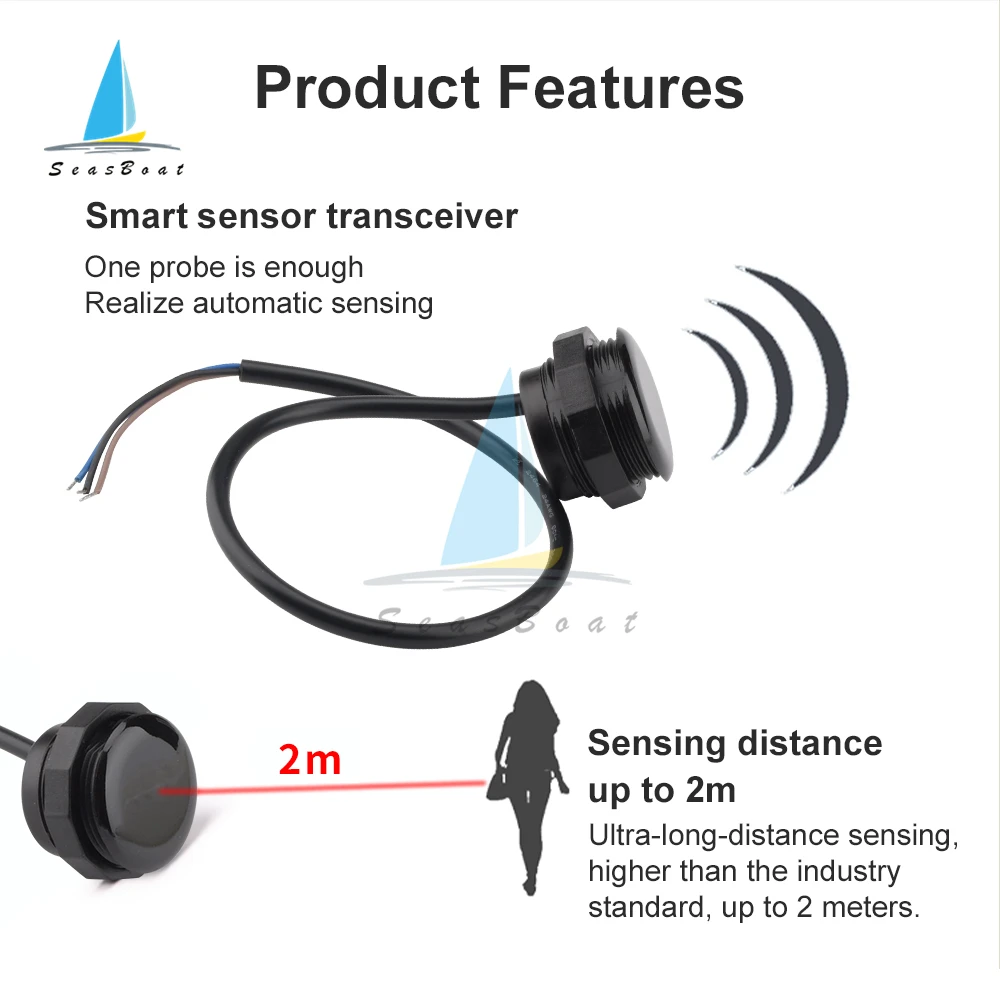

2: The sensing distance can reach 2m
3: Intelligent induction transceiver is integrated, and one probe can realize automatic induction.

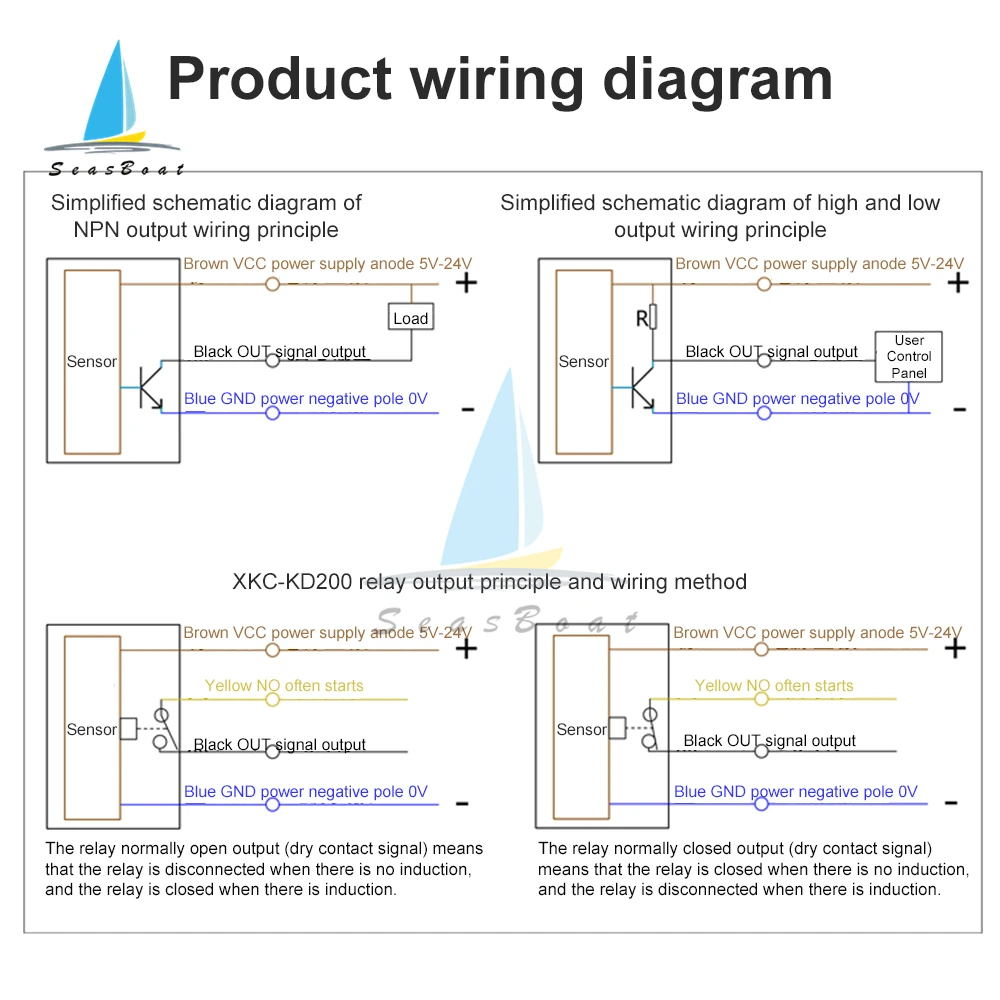

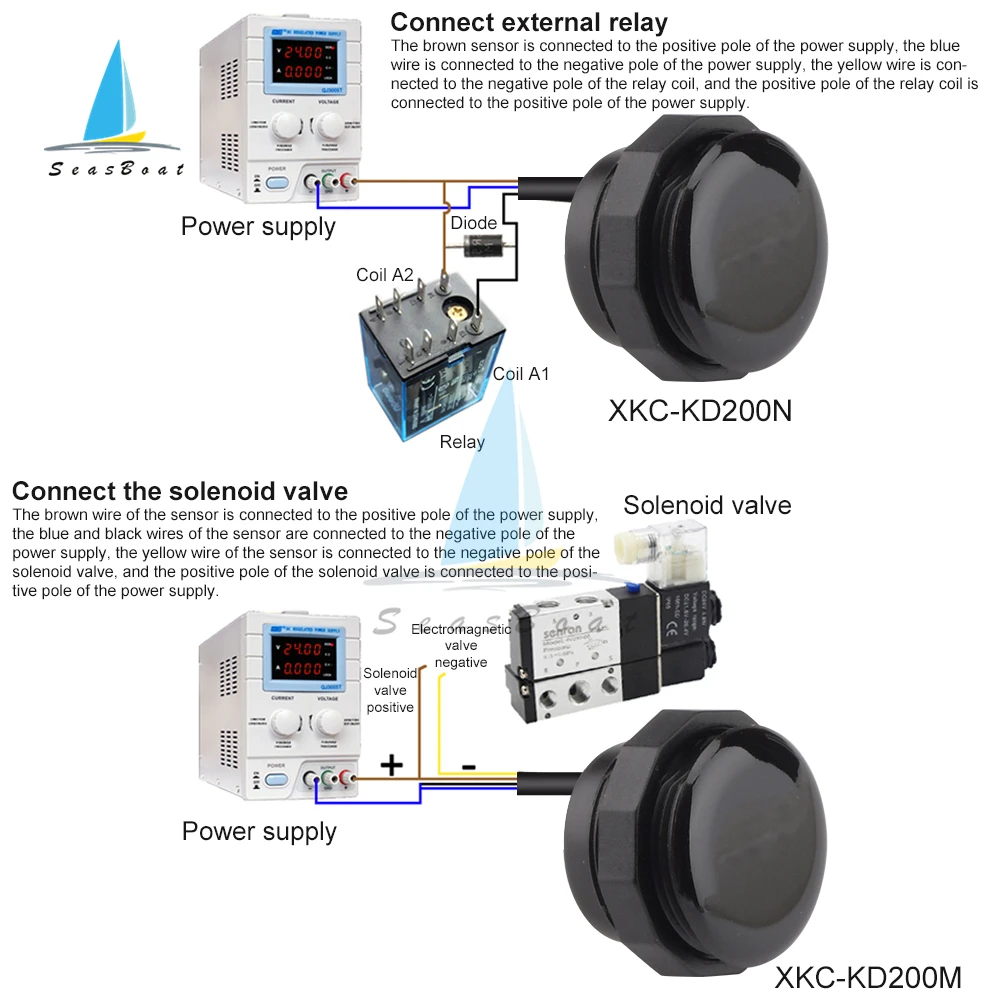

4: Simple to use, with wiring diagram
5: The distance can be adjusted independently, more accurate, and the sensing distance can be adjusted freely.
Package Included:

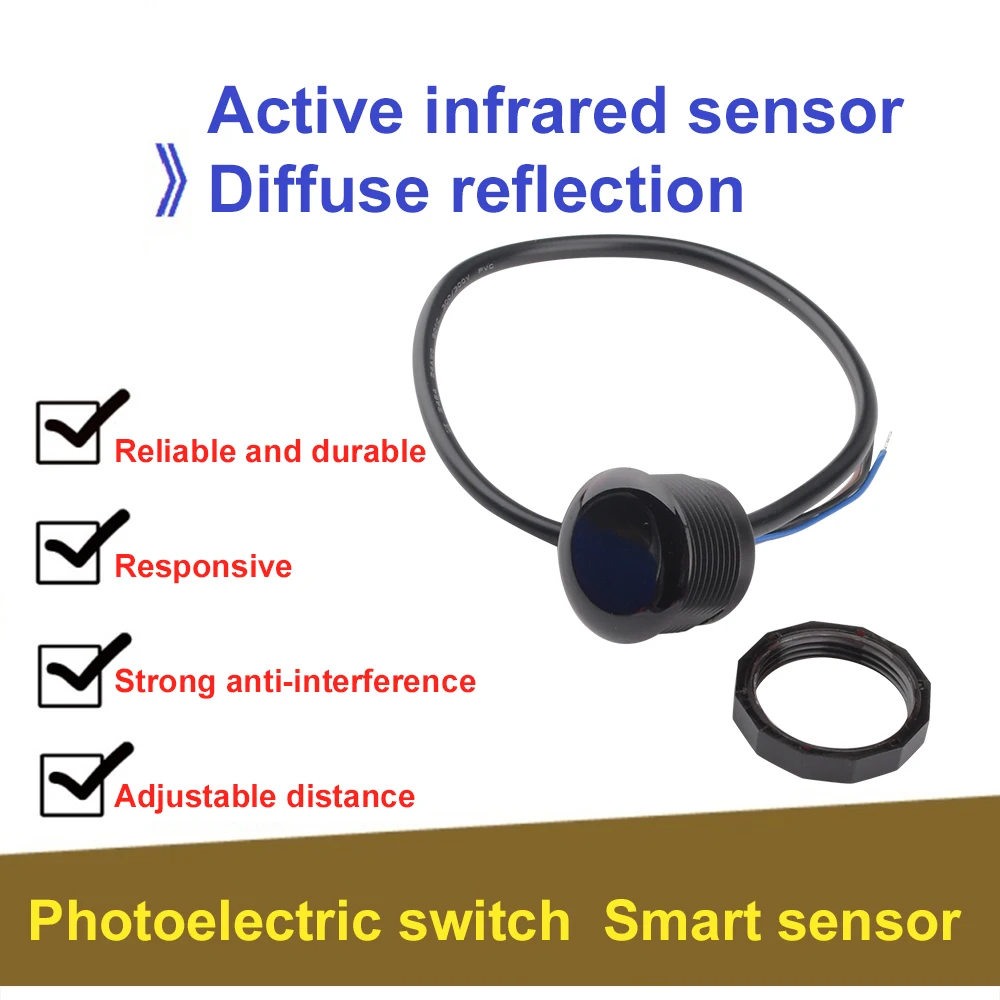

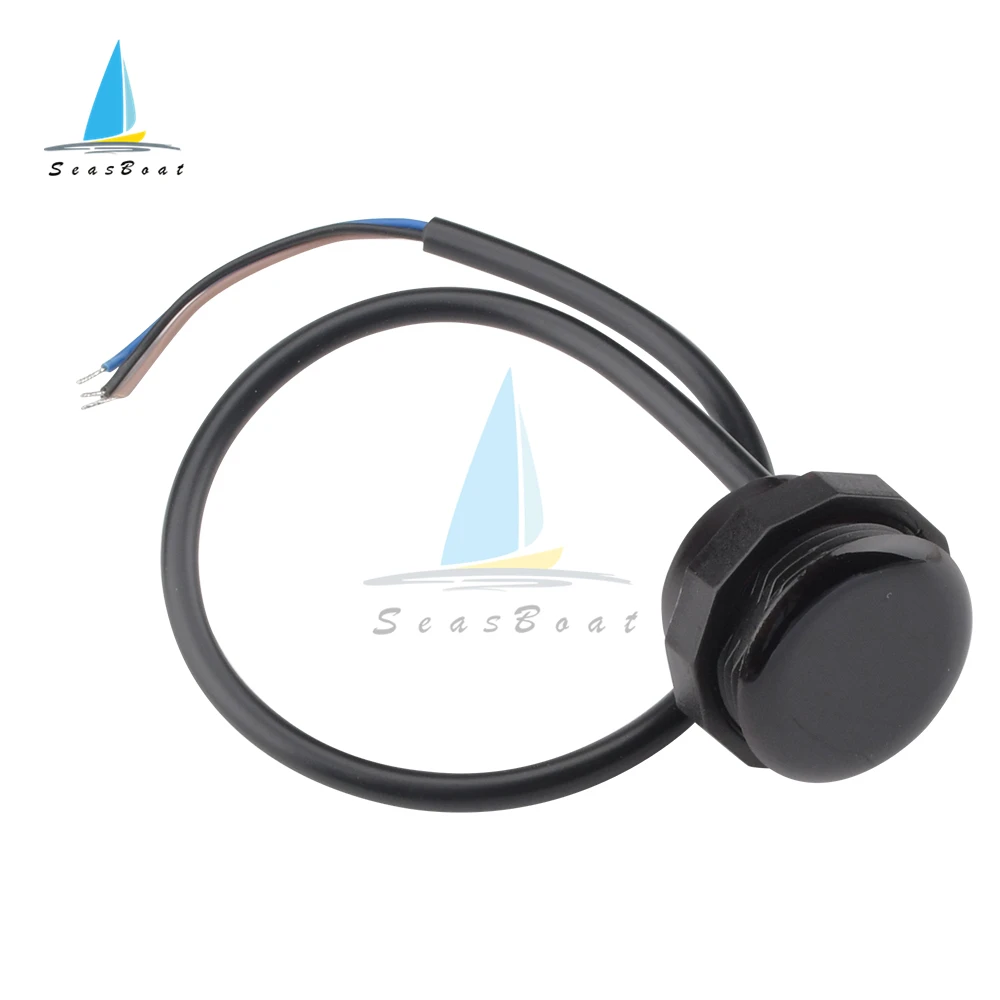

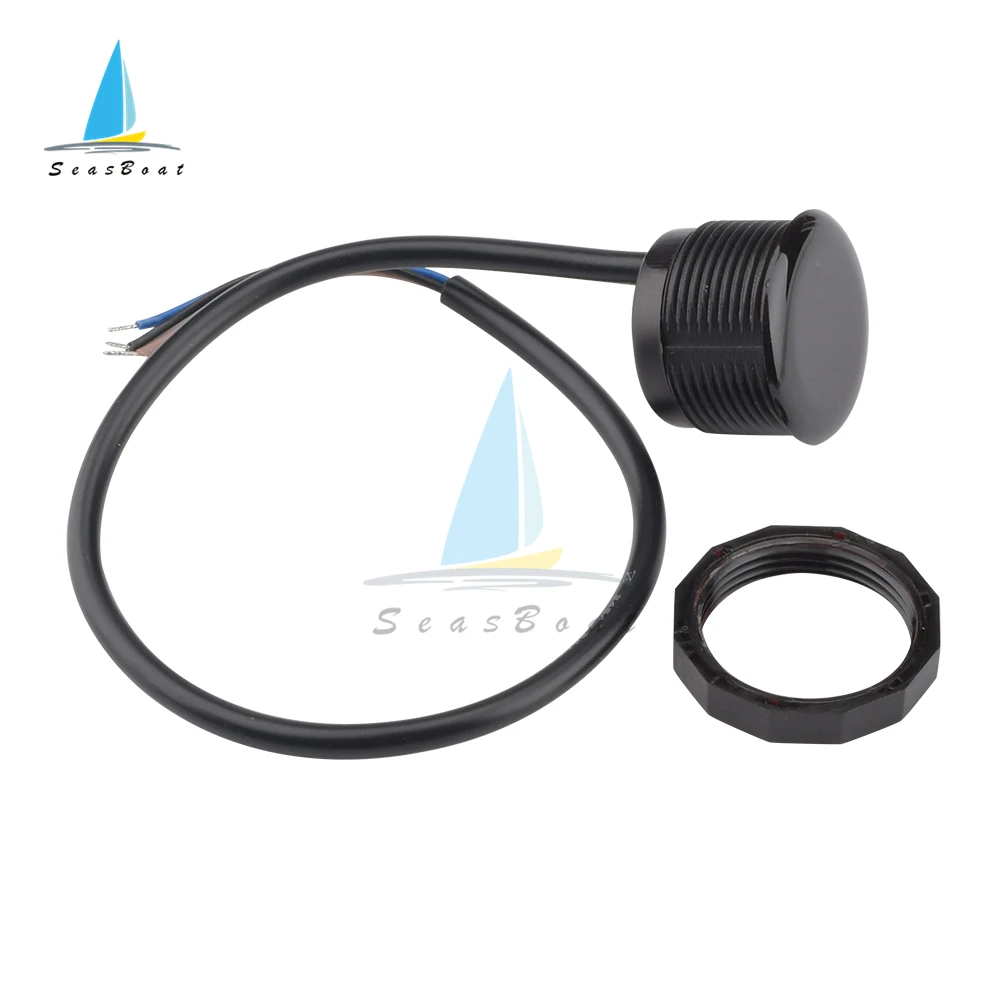

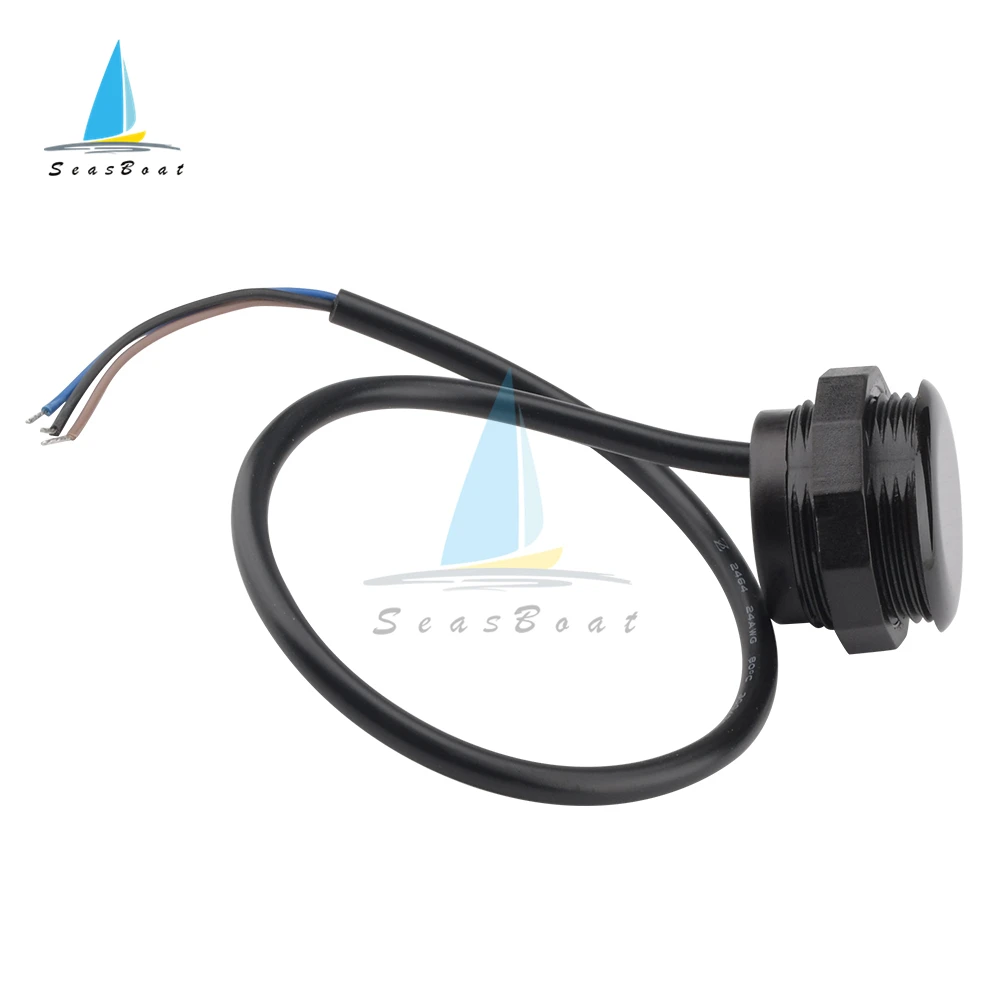

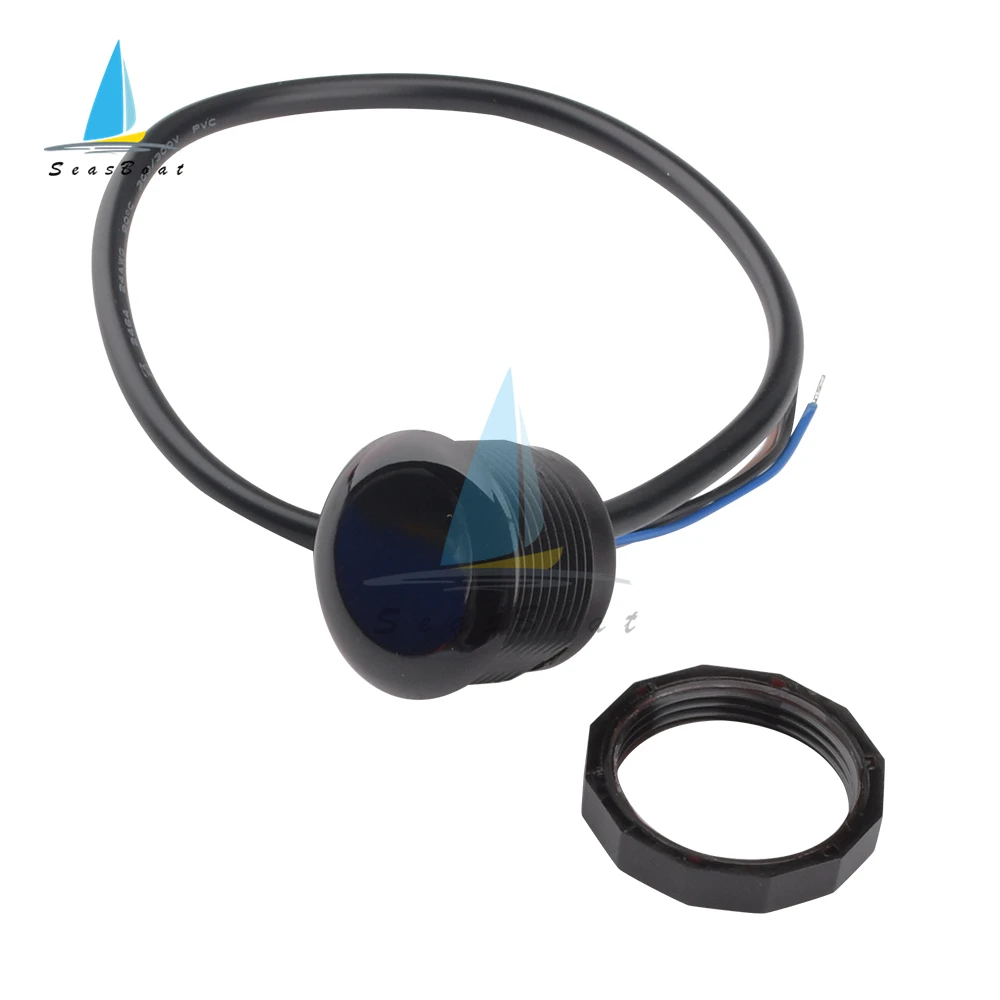

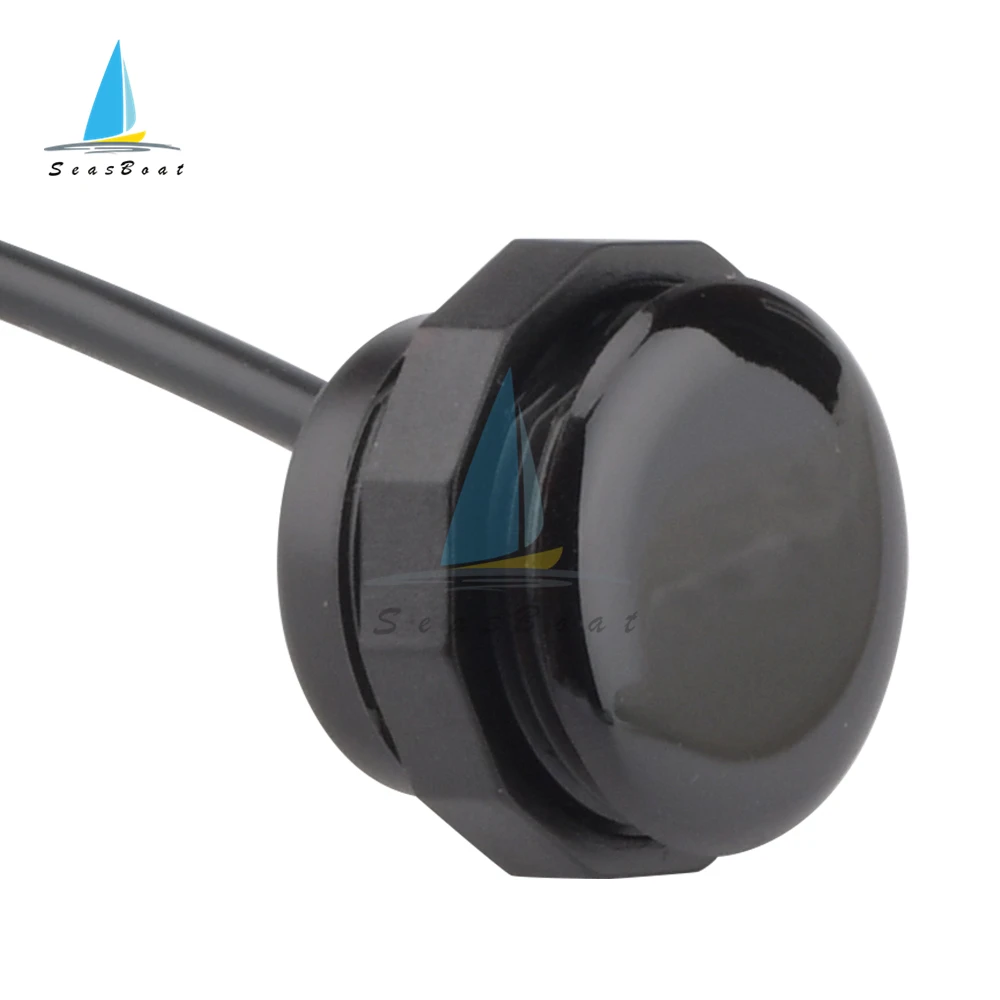

1x Infrared sensor
