Descripción

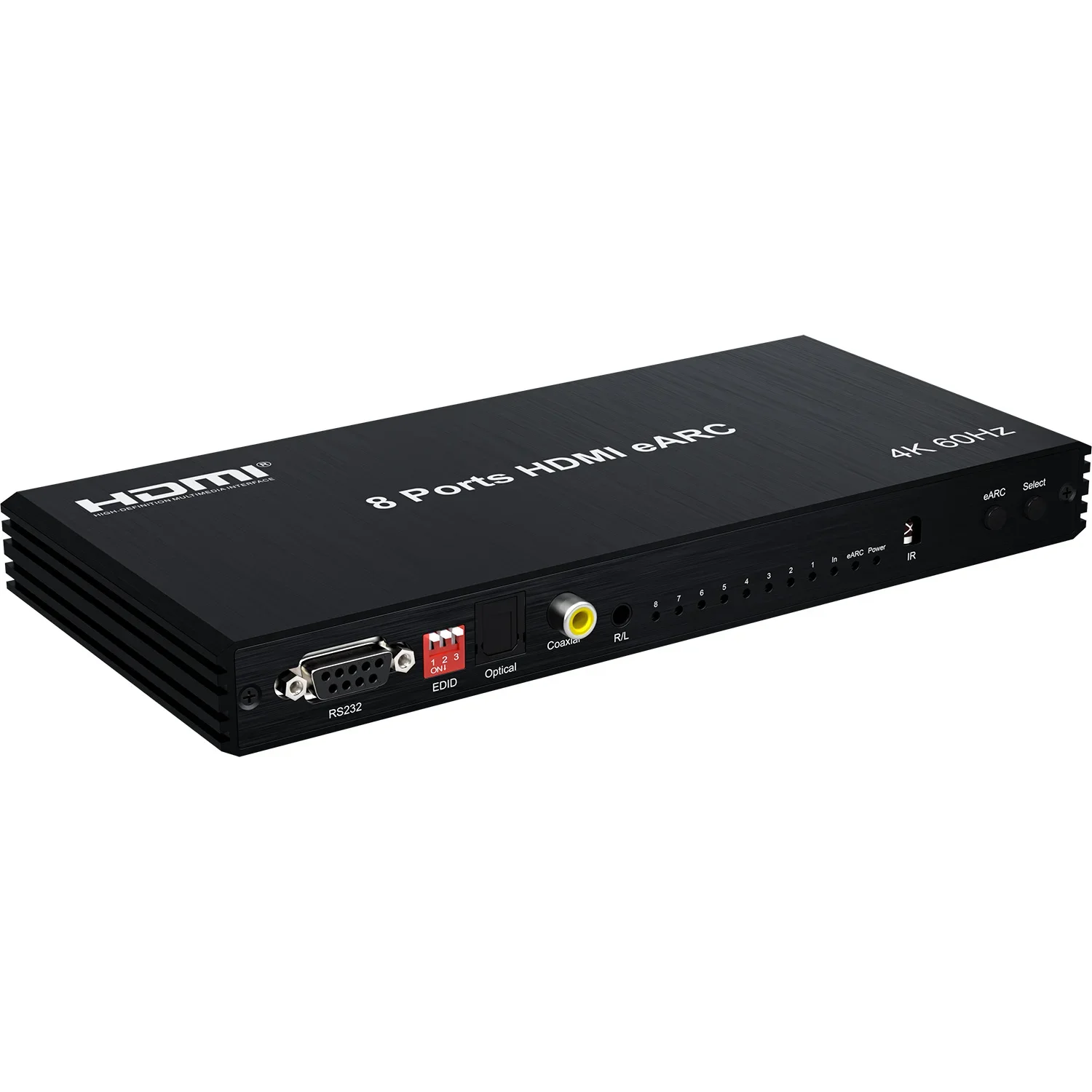

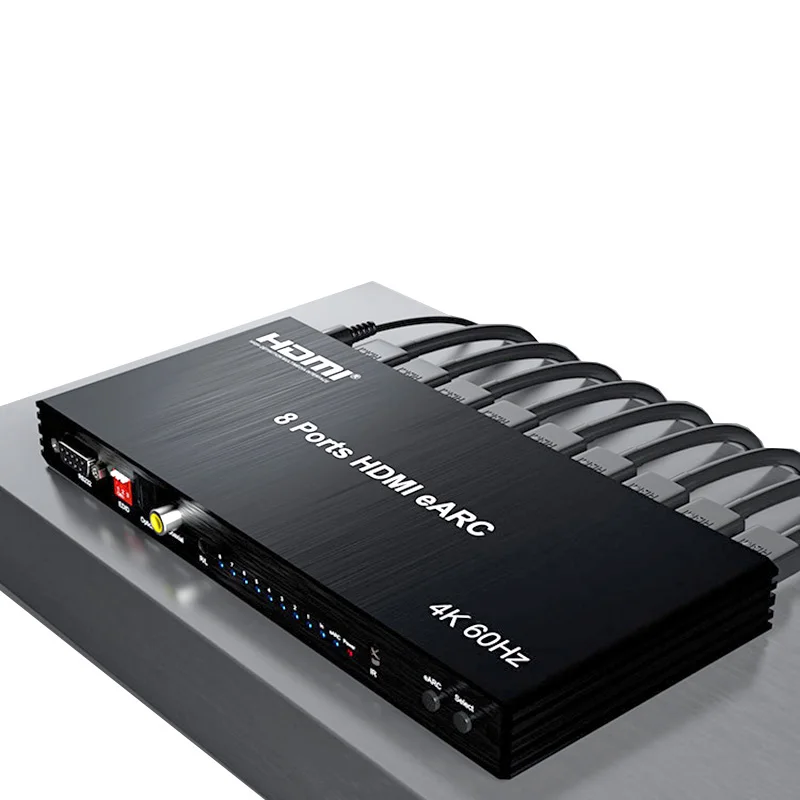

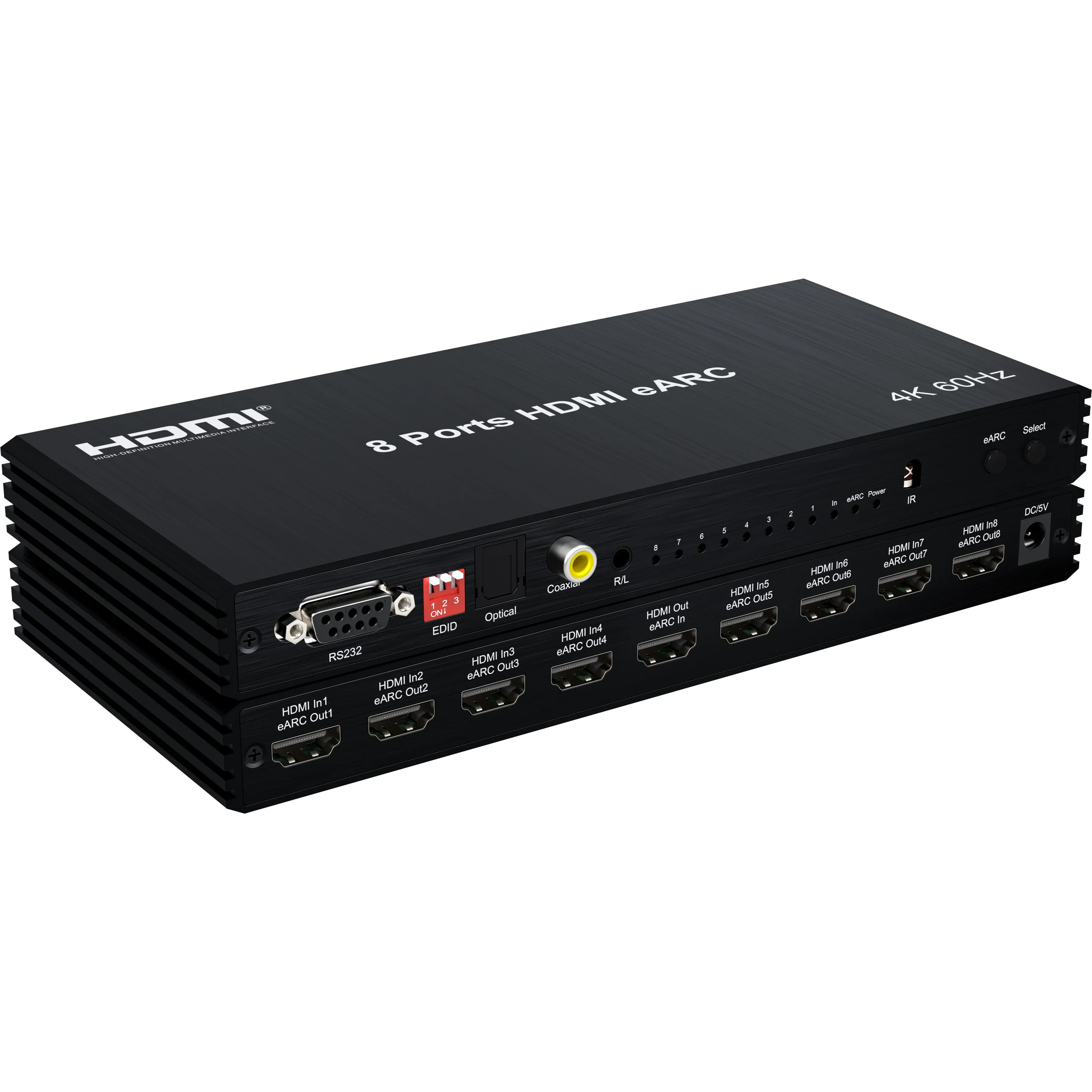

8 Ports HDMI eARC Splitter vs 8 Ports HDMI eARC Switcher
Attention PLS:
Product Introduction:
New arrival product!
Brand new and high quality,buy with confidence!
This product supports eARC splitter1x8 and HDMI switcher 8x1 two application scenarios optional.

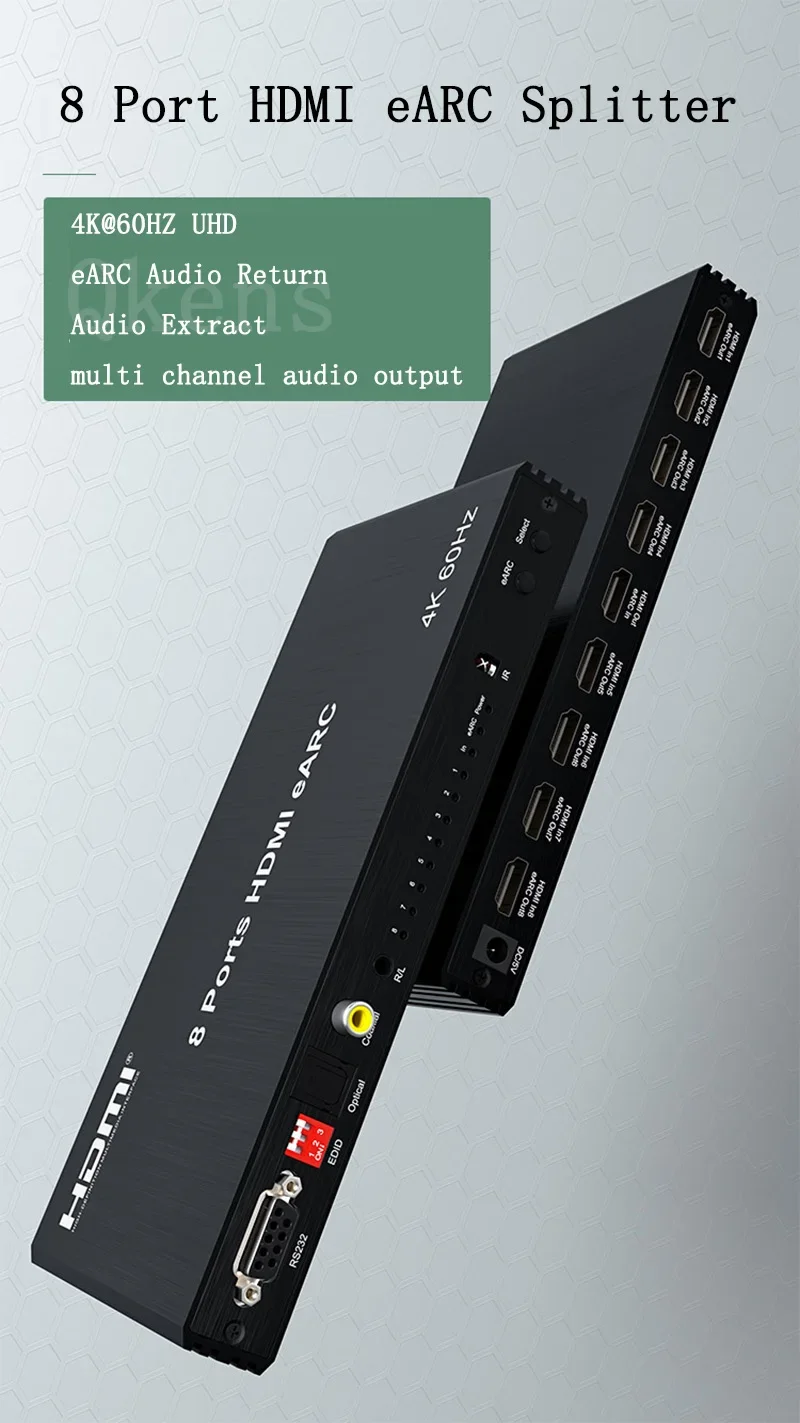

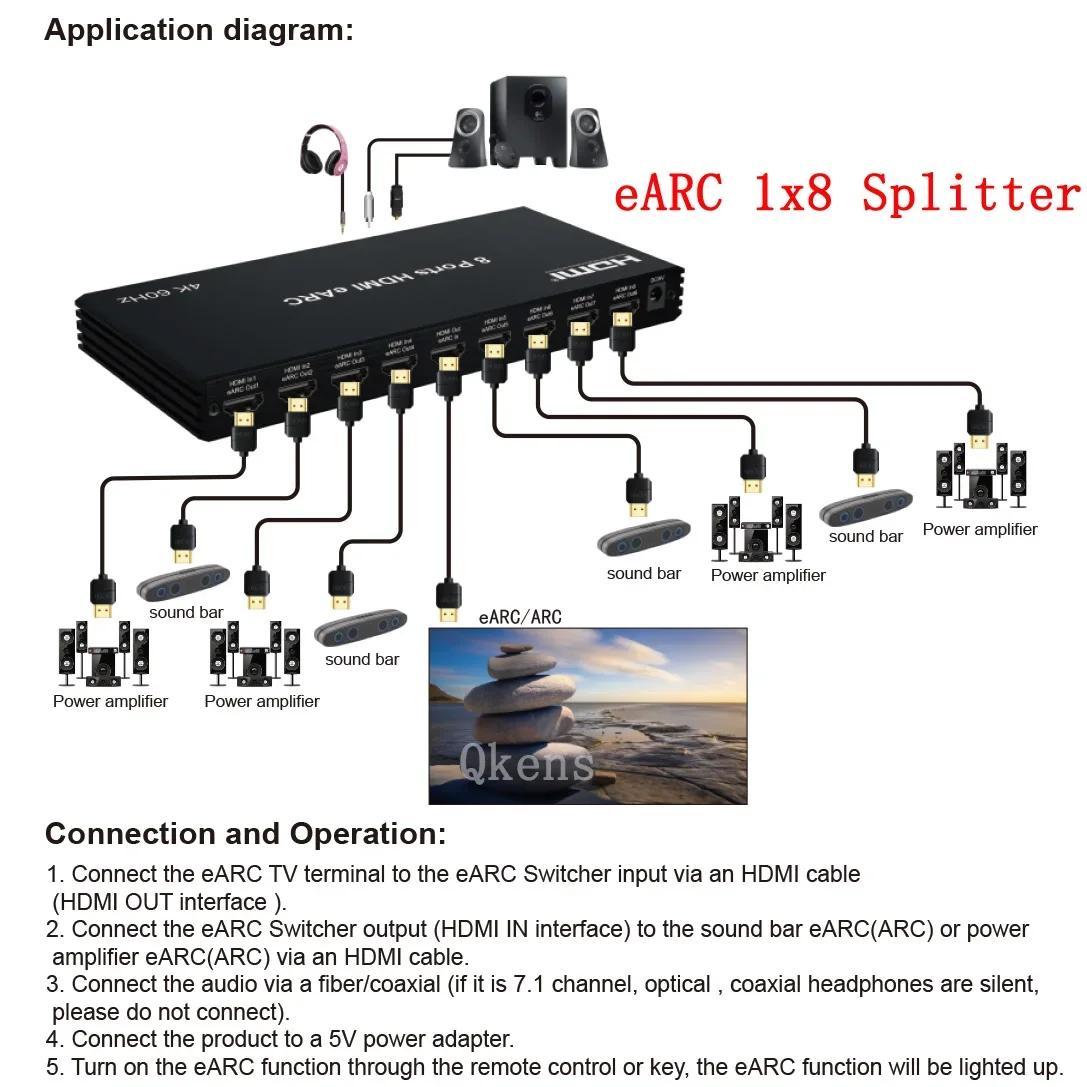

1) When you buy it as an eARC splitter 1x8, the eARC signal of the TV can be assigned to 8 amplifiers
or sound bars through this splitter, which can support 8 amplifiers or soundbars to sound at the same time.

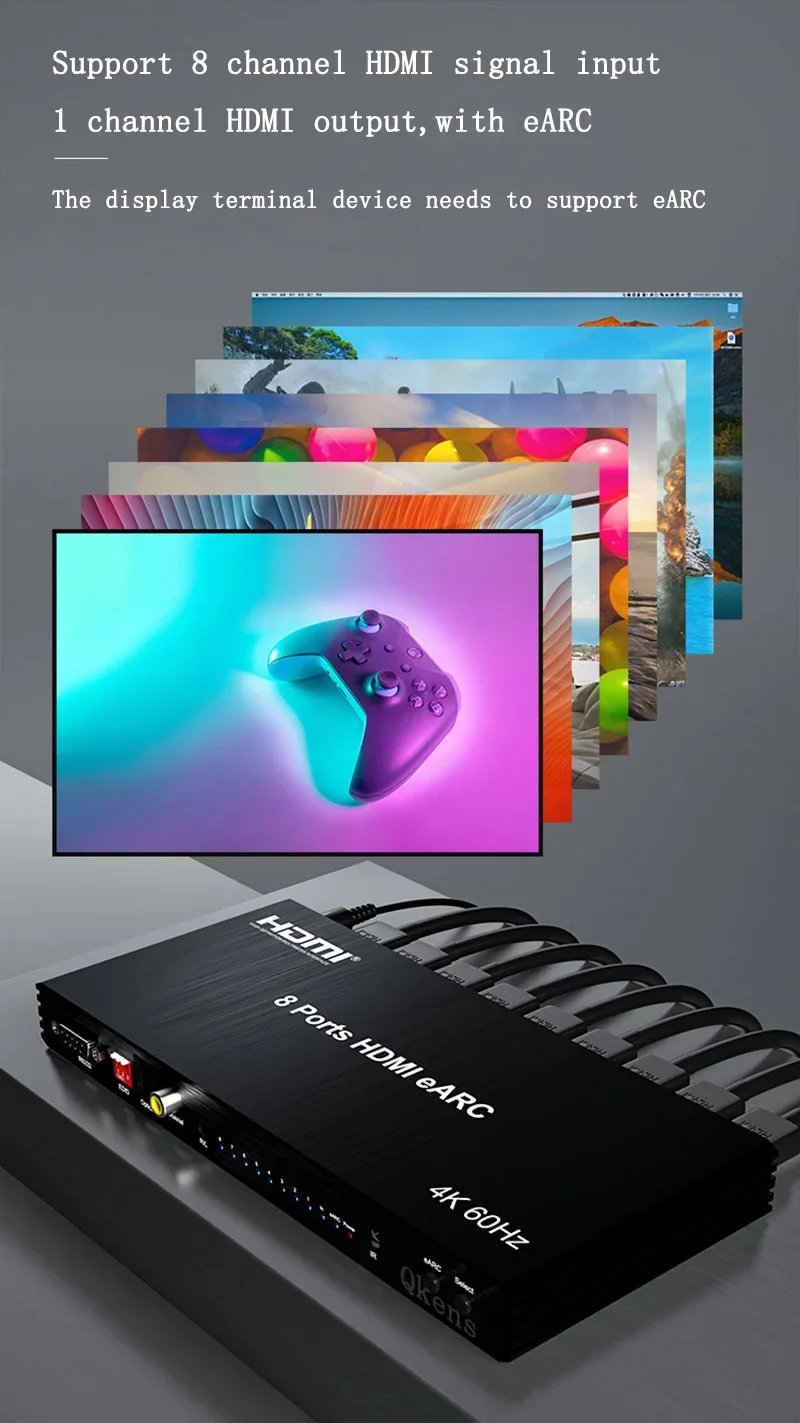

2) When you buy it as a HDMI switcher 8 x1, it can send any of the 8 HDMI signals to one display
terminal ,and the eARC signal can be assigned to the amplifier or sound bar
through the HDMI input port,sounds through the power amplifier or sound bar,it supports
hd formats including 4K/60Hz, 4K/30Hz, 1080P, 1080I, 720P.
Features:
* Support HDCP2.2,HDR10；
* Support 4K@60Hz；
* Support signal switching, audio return signal distribution;
* Support 3D video format;
* Support ARC/eARC function(power amplifier, sound bar etc.);
* Support eARC splitter function, can return eARC/ARC signal to 8 amplifiers or Sound bar；
* Support audio return only through HDMI signal source not through the display device;
* Support 3.5 stereo, coaxial, fiber audio output.
* Support for devices such as Blu-ray DVD input, HDMI audio conversion to ARC/eARC
output, HDMI video output through HDMI OUT output;
Specifications:
HDMI resolution .................................................. 4K@60Hz/4K@30Hz/1080P/1080I/720P
Support video format ……………..................................................... 24/30/36 bit deep color
Support audio format …………….................. DTS-HD/Dolby-trueHD/DTS/Dolby-AC3/DSD
Maximum bandwidth .............................................................................................. 600MHz
Max baud rate ……………….…….……..…………........….…...…………….…..…..... 6Gbps
Input cable distance ..…...…........................ ≤8m AWG26 HDMI standard cable(4K/30Hz);
≤3m 2.0 HDMI Standard cable(4K/60Hz)
Output cable distance …..................…......... ≤8m AWG26 HDMI standard cable(4K/30Hz);
≤5m 2.0 HDMI Standard cable(4K/60Hz)
Max working current ...……………………..................….…..…..………………..…….… 2.2A
Power adapter format .................... Input: AC (50HZ, 60HZ) 100V-240V; Output: DC5V/3A
Operating Temperature range .............……...........….…...……..…….………. (-15 to +55℃)
Operating Humidity range ……....…..................….......….. 5 to 90%RH (No Condensation)
Dimension (L x W x H) ...……………...…….....……....……..………….…Approx. 226x110x25 (mm)
Packing List:
1. 8 Ports HDMI eARC 4K 60Hz x1

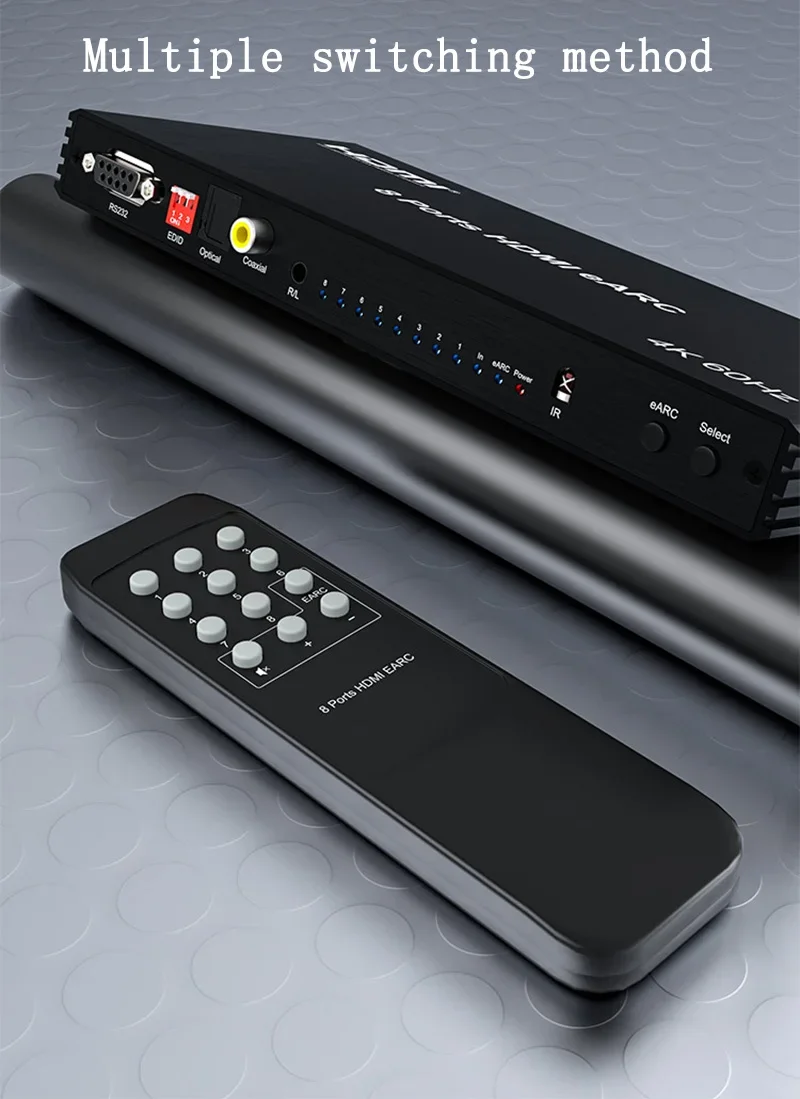

2. IR Remote Control (without battery) x1
3. 5V power adapter x1
4. User Manual x1
Without retail box and other accessories,if any need,pls contact us before purchase.
