5V 9V 12V 15V 20V ajustable 3A PD/QC señuelo multiprotocolo módulo de refuerzo de carga rápida interfaz USB TYPE-C

Features:
1.High quality materials with guaranteed quality
2.Product appearance is exquisite and compact
3.Support adjustable trigger voltages of 5V, 9V, 12V, 15V and 20V
4.It can cheat the fast charging protocol of the fast charging charger or power bank to charge the mobile phone, or it can be used as a DC power supply, for example, let the fast charging power bank output 9V and 12V to power routers, optical cats, etc
5.Wide application

Product parameters:
Support multiple fast charging protocols
Maximum support 3A
Power supply of TYPE-C port
Support multiple fast charging protocols: PD3.0/2.0, QC3.0/2.0, FCP, AFC
PD/QC multi protocol decoy 5V, 9V, 12V, 15V, 20V adjustable

Attention:
1. Mobile phone chargers/chargers must first support fast charging such as PD/QC to trap the fast charging voltage

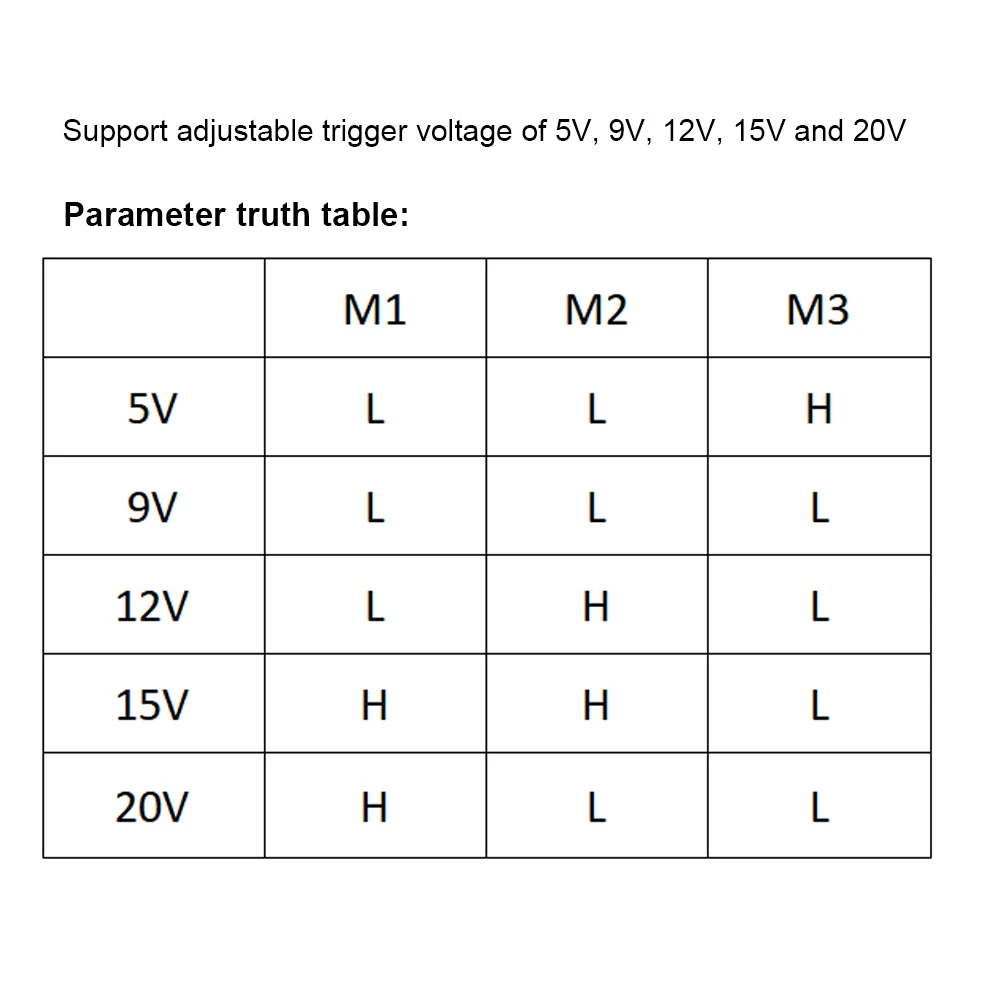

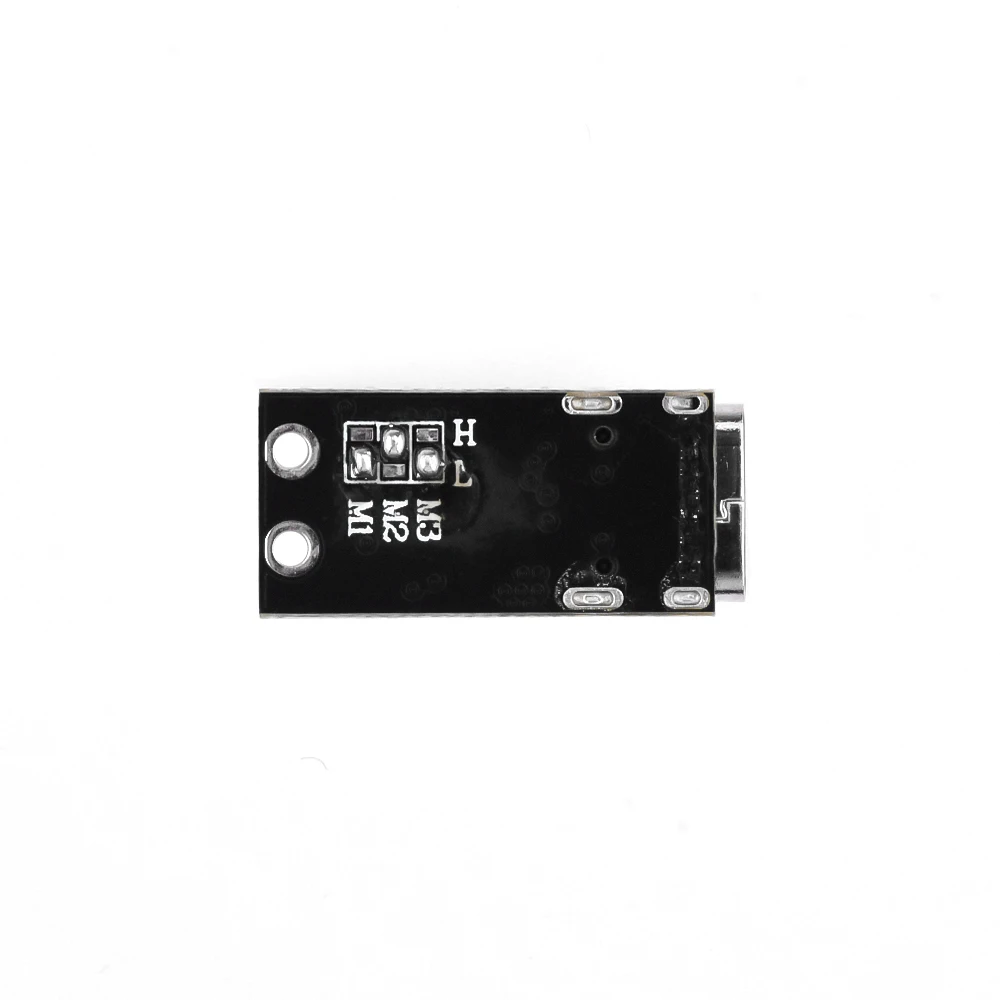

2. Fix the 4 gears of 9/12/15/20 V, and what voltage is required, just connect the corresponding pads in a short circuit
3. For example, if you set a decoy voltage of 20 volts, but your charger is only 9 volts at most, it will automatically downshift the decoy output to 9 volts
4. The maximum support is 3A, and the actual output current/power is determined by your fast charging charger and load

Package include:
Module X1
