Rated voltage: 300V (UL) 320V (IEC)
Rated current: 10A (UL) 15A (IEC)
Voltage endurance: AC2500V/1Min
Torque: 0 4Nm (3.5Lb. in)
Temperature range: -40℃~+105℃
Stripping length: 7.0-8.0mm
Spacing: 5.08mm
Polar number: 2P-12P
Plastic body: PA66 UL94V-0
Clip: Nickel plated phosphor copper
Block: Nickel plated brass
Screw: M2.5 galvanized iron

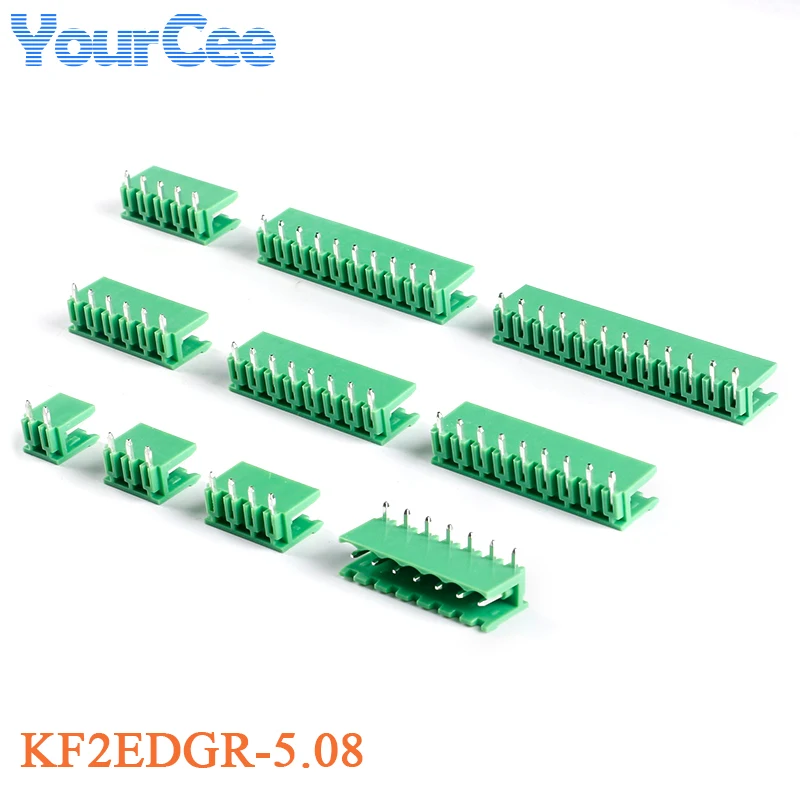

KF2EDGR-5.08Rated voltage: 300V (UL) 300V (IEC)
Rated current: 10A (UL) 15A (IEC)
Voltage endurance: AC2500V/1Min
Temperature range: -40 ℃~+105 ℃
Spacing: 5.08mm
Polar number: 2P-12P
Plastic body: PA66 UL94V-0
Welding needle: brass tin plated
KF2EDGR-5.08Rated voltage: 300V (UL) 300V (IEC)
Rated current: 10A (UL) 15A (IEC)
Voltage endurance: AC2500V/1Min
Temperature range: -40 ℃~+105 ℃
Spacing: 5.08mm
Polar number: 2P-12P
Plastic body: PA66 UL94V-0
Welding needle: brass tin plated
