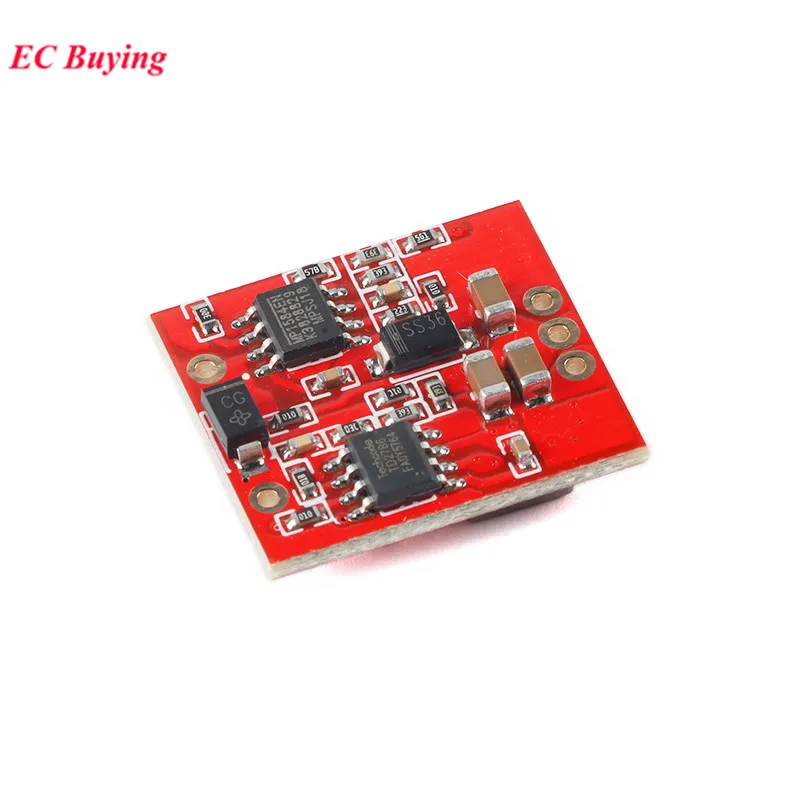

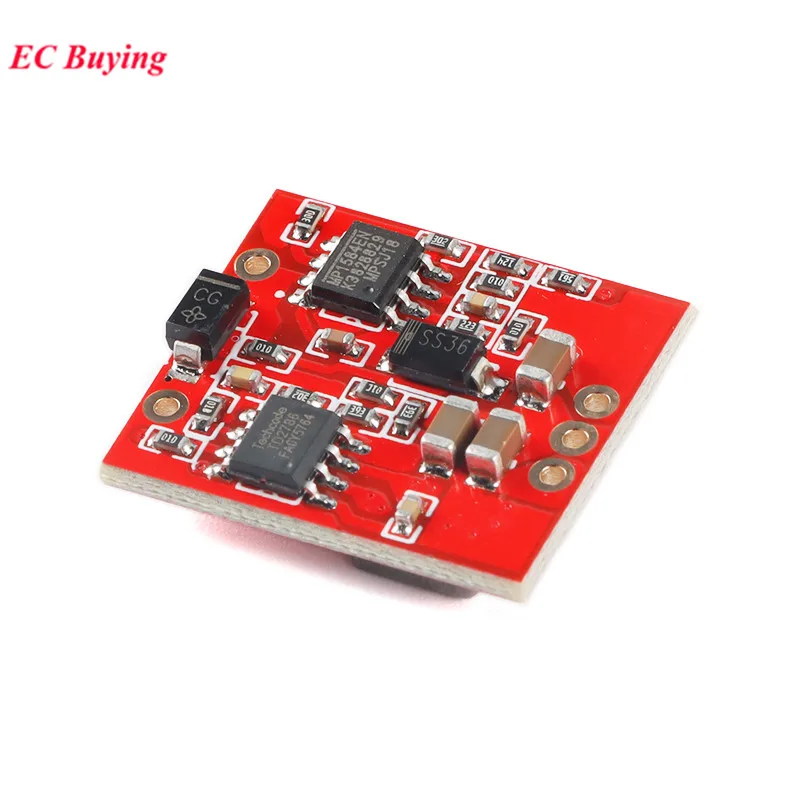

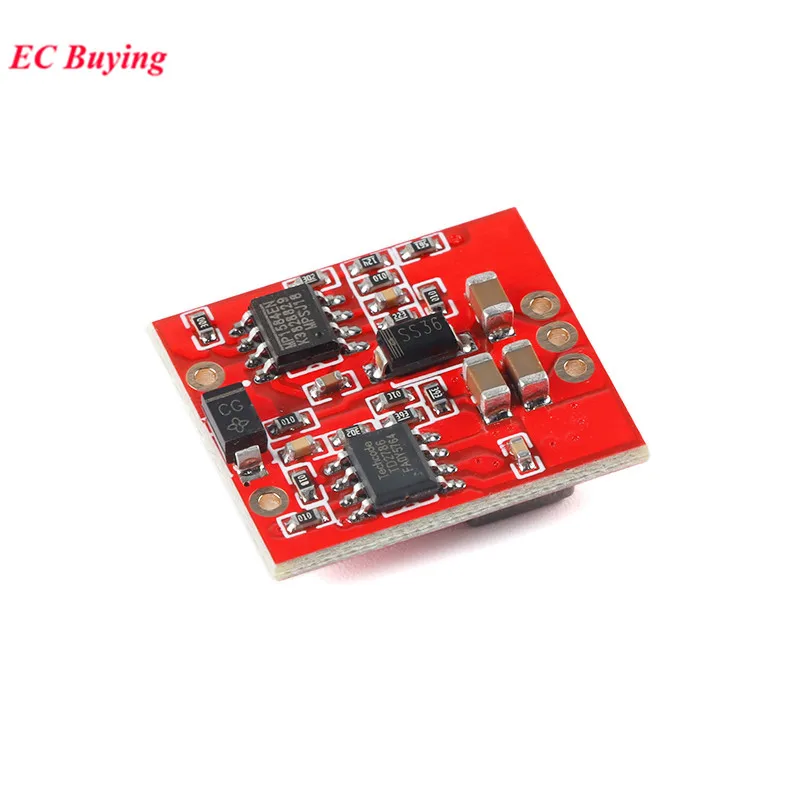

5 uds/1 unidad DC-DC convertidor reductor placa reguladora de voltaje Dual DC ± 5V 9V 12V 15V 18V a 7,5-28V 1A módulo de fuente de alimentación

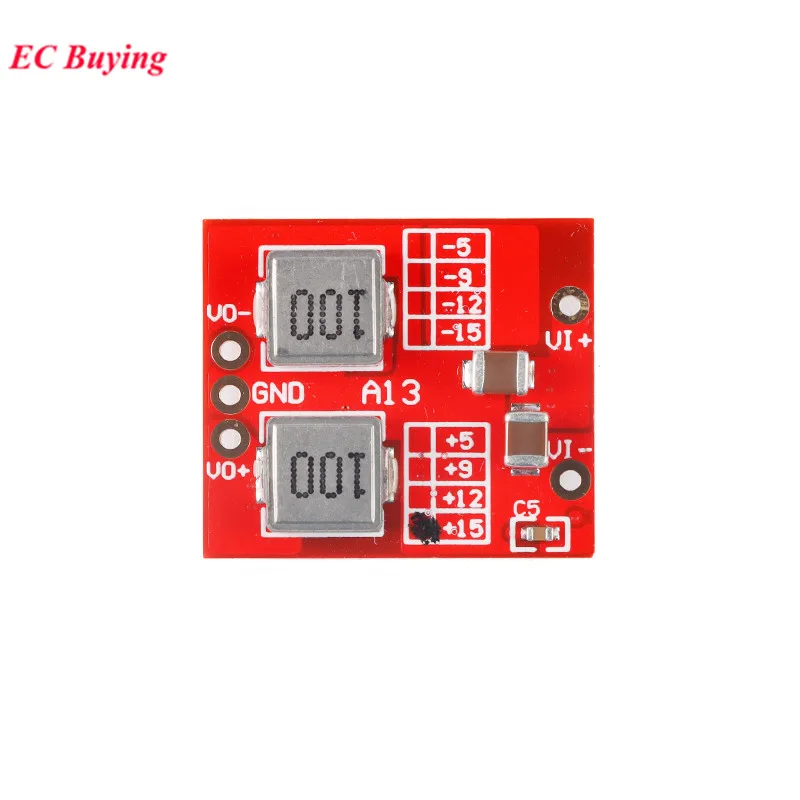

Pin description:

1)VI+ input positive pole

2)VI- input negative pole

3)VO+ output positive voltage

4)GND output positive and negative voltage common ground

5)VO- output negative voltage

01 input voltage=7.5-28V (must be higher than the output voltage)

02 output voltage=±5V, ±9V, ±12V, ±15V

03 output current=1A

04 conversion efficiency=90%

05 output ripple=50mv

06 output accuracy=±0.1V

07 no-load current=1mA

08 operating temperature=-20 °C ~ 85 °C

09Working humidity=20%~90%

11PCB layers=4 layers

12Shutdown function=not supported

13Cooling method=natural cooling

14Installation method=wiring

15Is it isolated=without isolation

Module performance

Output ±5V: Input roughly=7.5-28V, each channel has a maximum output of about 1A, and a deviation of about ±0.1V

Output ±9V: Input roughly=11.5-28V, each channel has a maximum output of about 1A, and a deviation of about ±0.1V

Output ±12V: Input roughly=13.5-28V, each channel has a maximum output of about 1A, and a deviation of about ±0.1V

Output ±15V: Input roughly=17.5-28V, each channel has a maximum output of about 1A, and a deviation of about ±0.1V
