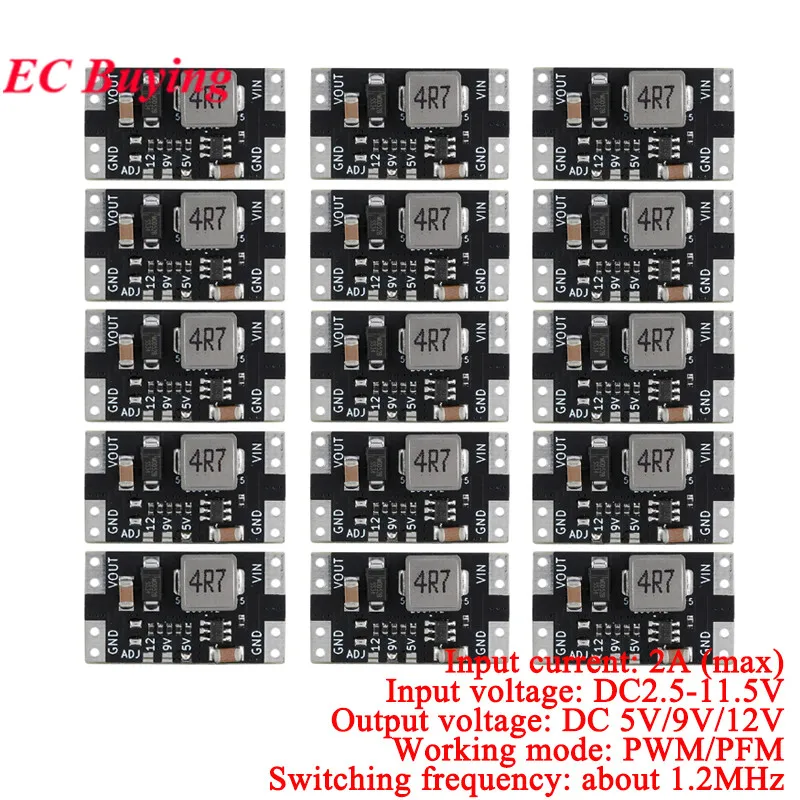

5 uds/1 ud XL3608 5V 9V 12V 2A Mini DC-DC elevador módulo de fuente de alimentación conmutada placa de interruptor 2,5 V-11,5 V voltaje de entrada

1、 Module Introduction

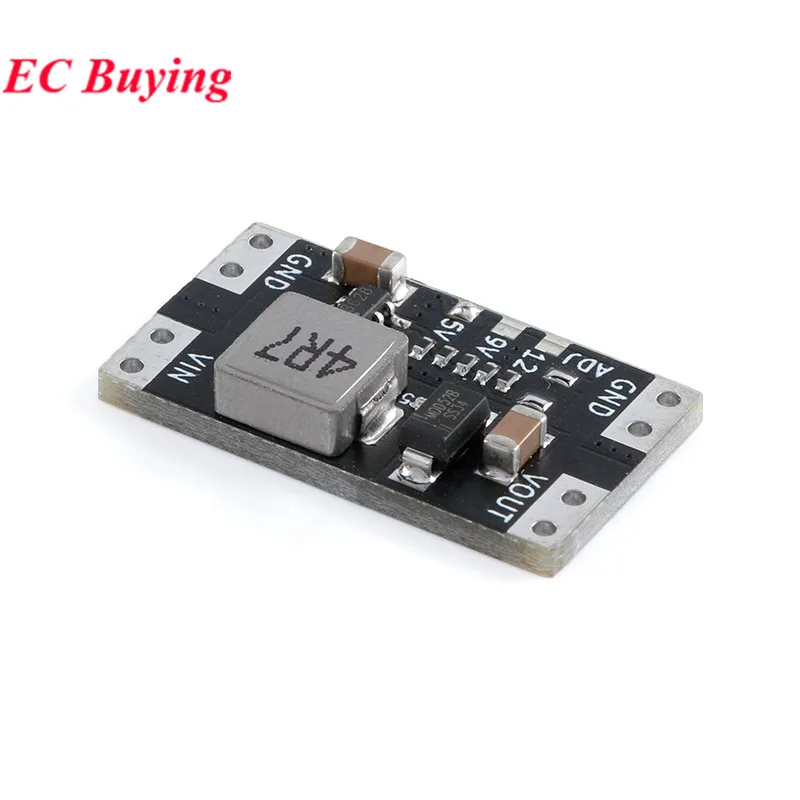

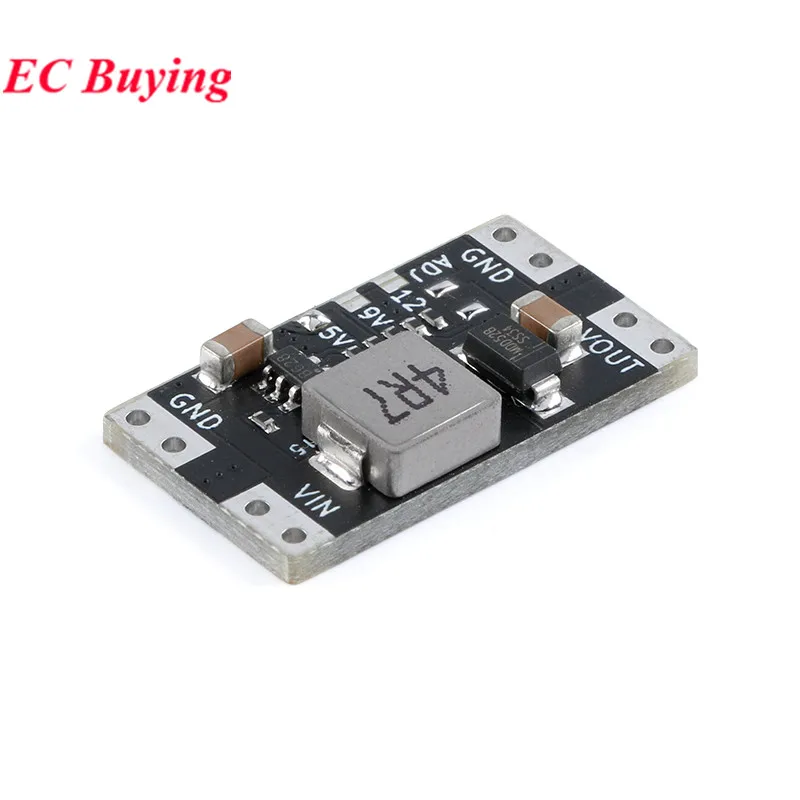

This module adopts a 4A switching current chip scheme, with a maximum input current of up to 2A, stable performance, and a switching frequency of about 1 2MHZ, the module operates in both PWM and PFM operating modes, while the empty cargo light load module operates in PFM mode to reduce static operation. When the load current increases, it automatically adjusts to PWM mode. The module uses a sufficient current inductor to avoid the problem of limiting the module output due to inductance. The module adopts a typical BOOST boost structure, so the output terminal is statically short circuited, and the output power completely depends on the input voltage and current. It is not possible to output 2A current at any voltage mentioned in the market (refer to the detailed explanation below). The module reserves a jumper pad for 5V9V12V output selection, which allows users to easily adjust between the three common voltages mentioned above. Additionally, an ADJ pad with a 0805 package is also reserved, Users can weld resistors here to set their desired output voltage.

2、 Parameter Introduction

Module type: Switching power supply, boost power supply

Input voltage: DC2.5-11.5V (lower than output voltage by 0.5V)

Input current: 2A (max)

Output current: determined by input, calculated according to subsequent instructions

Output voltage: DC 5/9/12V

Output power: User input voltage x1 5 (max)

Switching frequency: approximately 1.2MHz

Working mode: PWM/PFM

Quiescent current: 200ua-600ua (PFM mode)

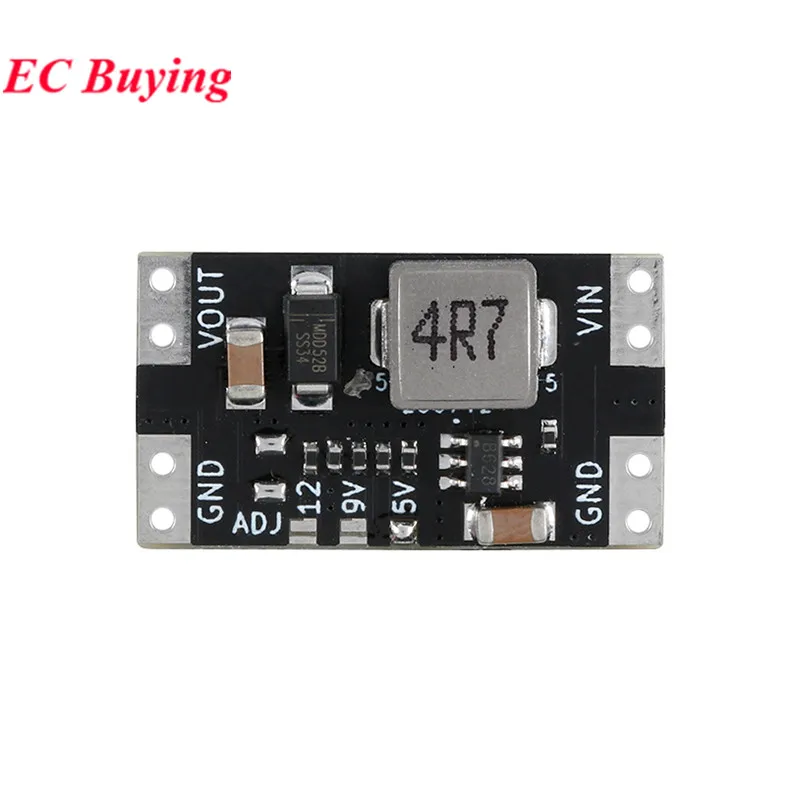

Adjustment method: Jumper pad selection, 5/9/12V, ADJ pad adjustable

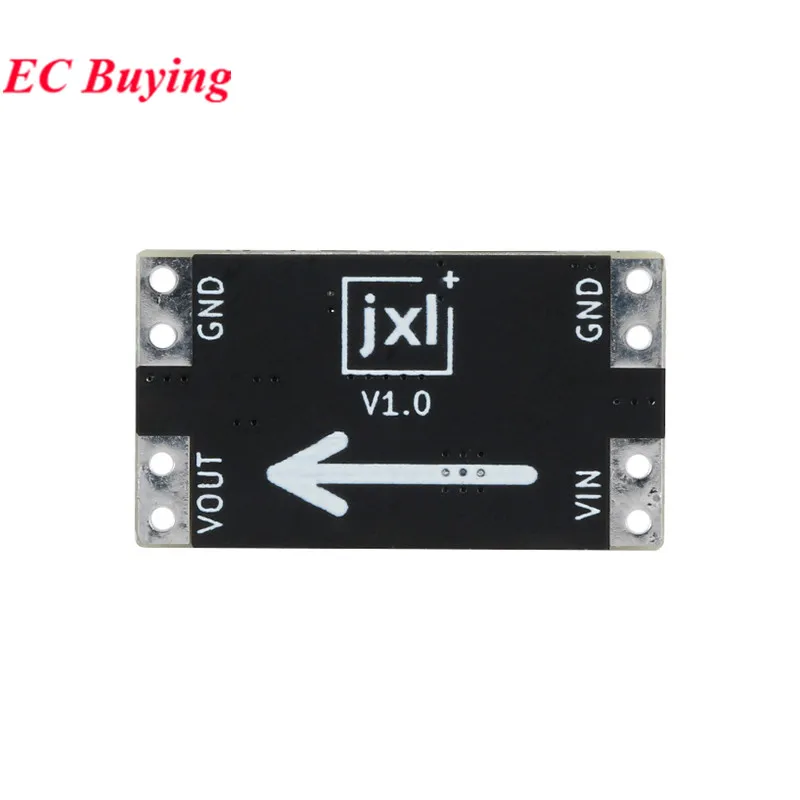

Module interface: solder pad (capable of connecting to 2. 54mm rows of pins)

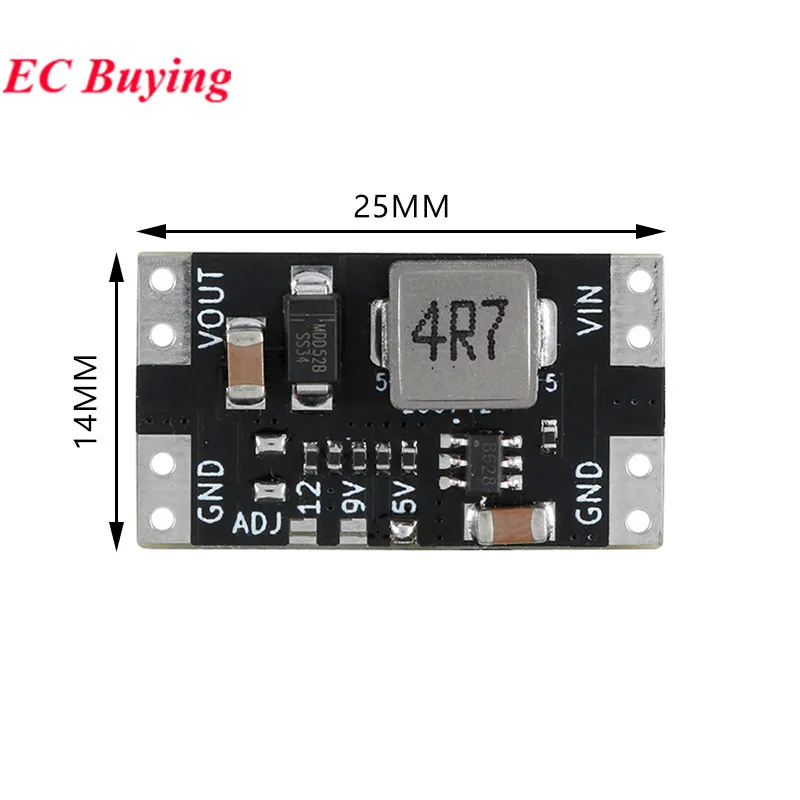

Module size: 24.4 x 13 7mm (manual measurement with deviation)
