Product Description:
Brand new and high quality
FEATURES:
One HDMI input converted to one HDMI+ Audio (SPDIF+3.5mm)output
Output audio support: SPDIF+3.5mm analog Audio Output
Input Resolution: up to 2160p60
HDMI to achieve the synchronization of audio signal separation. There are PASS /
2.0CH / 5.1CH three kinds of audio mode options
LED indication: when source or sink is working, LED relative to is light.
No loss of quality
Easy to use
Need DC5V power supply
Support ARC
NOTE:
1.When you use ARC Function, please make sure the spdif port light is red on,
that's means the converter get signal. And the TV need support ARC.
2.When you open the ARC, then the TV remote will can't control the volume,
you can only adjust the volume on your speaker/sounder/home theater.
3.Please do not plug HD TV to HDMI input of converter otherwise you could not get any signal.

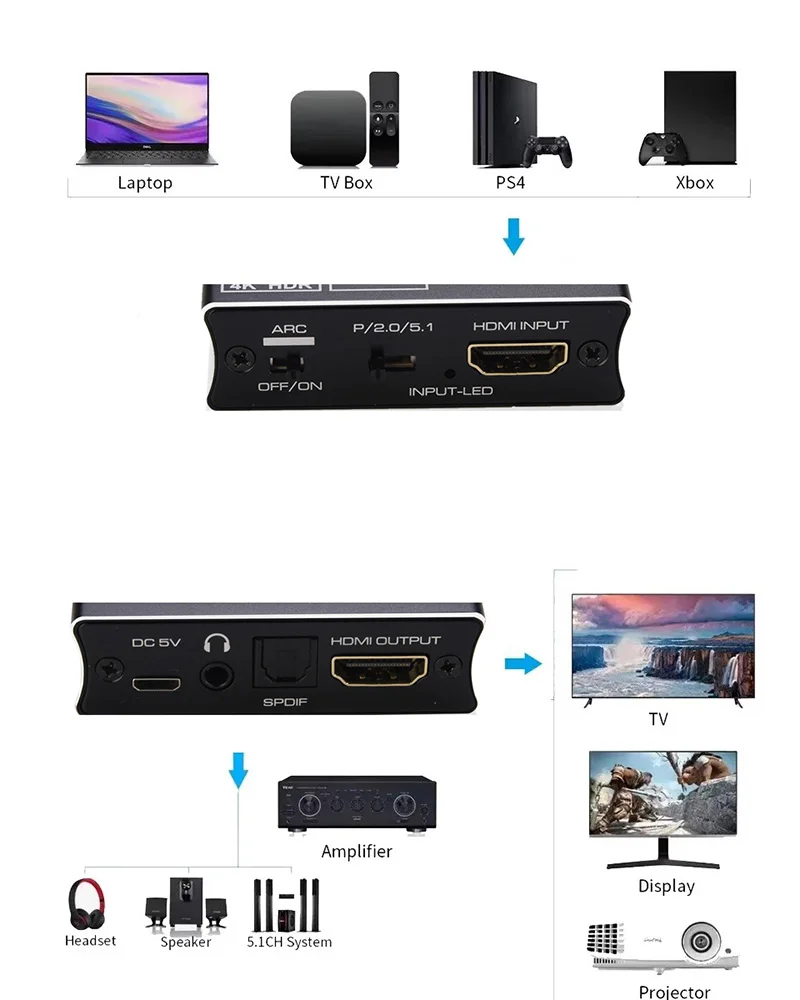

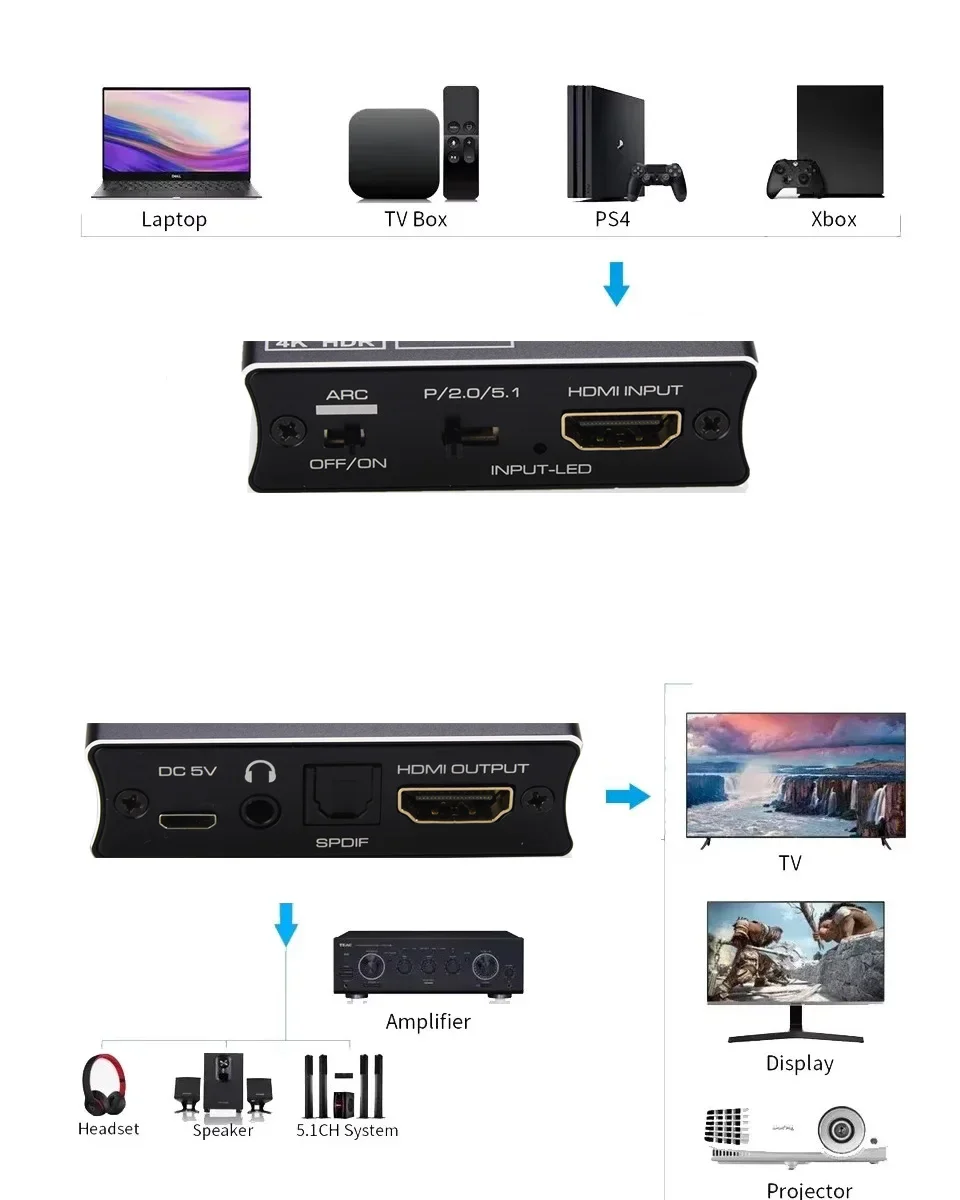

Operating and Connecting:

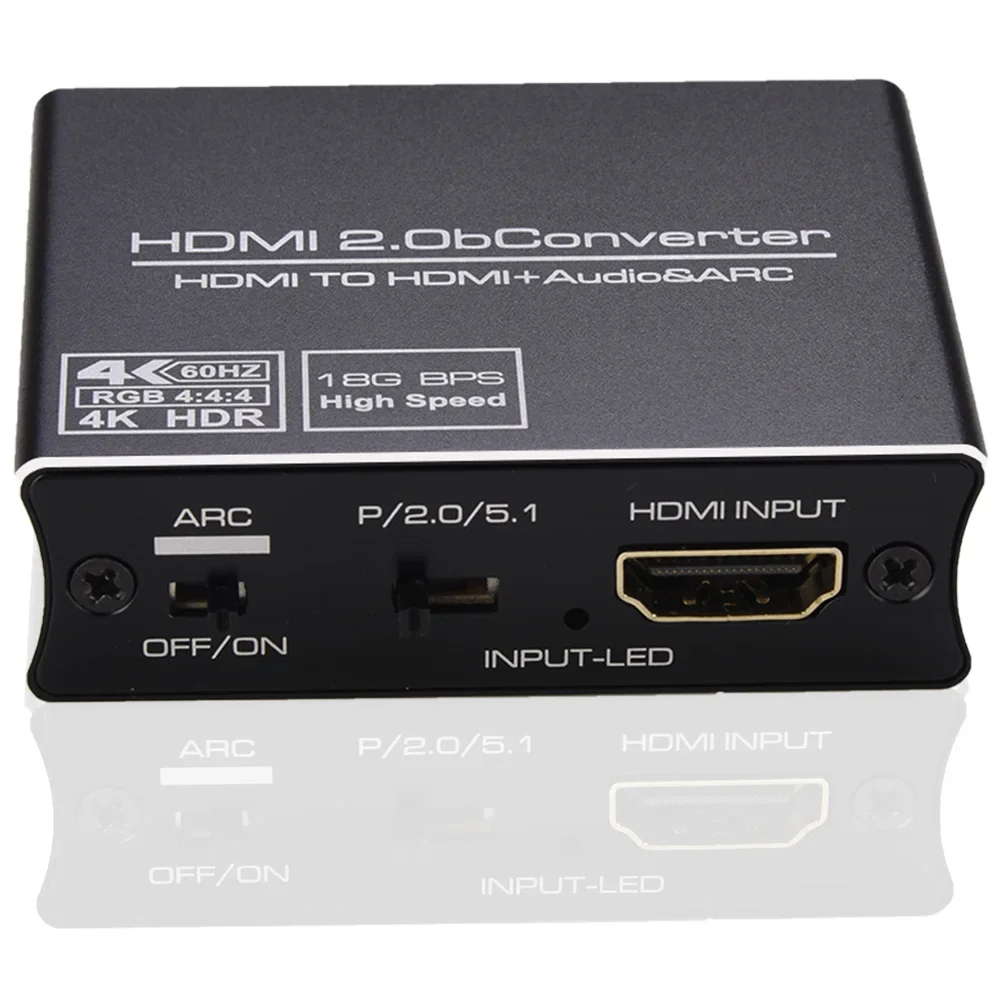

1. To use one hdmi cable to connect the HD Source with the input HDMI port.

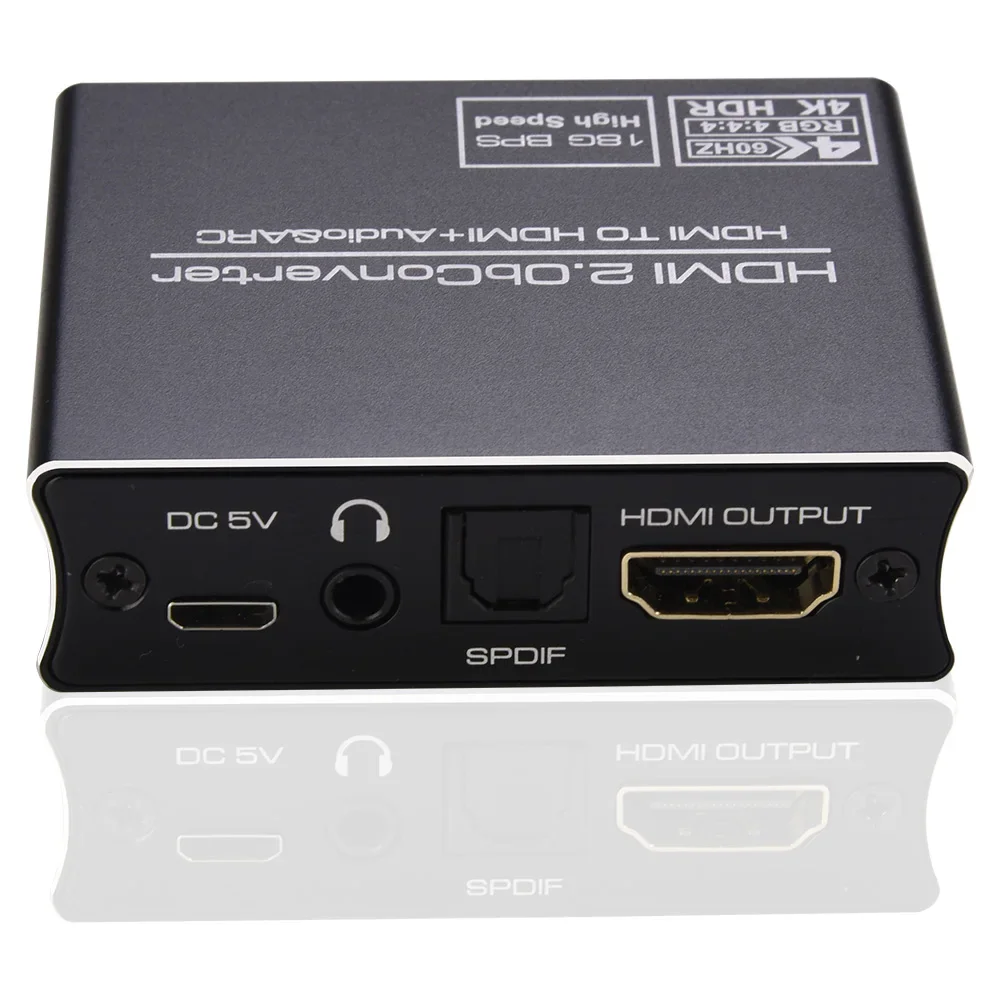

2. To connect the converter hdmi output port with the HD Display.
3. To use one audio cable to connect the converter R/L port with the audio equipment.
4. To use the optical cable to connect the SPDIF port with the audio equipment.
5. To connect the converter with 5V DC power adaptor.
SPECIFICATIONS:

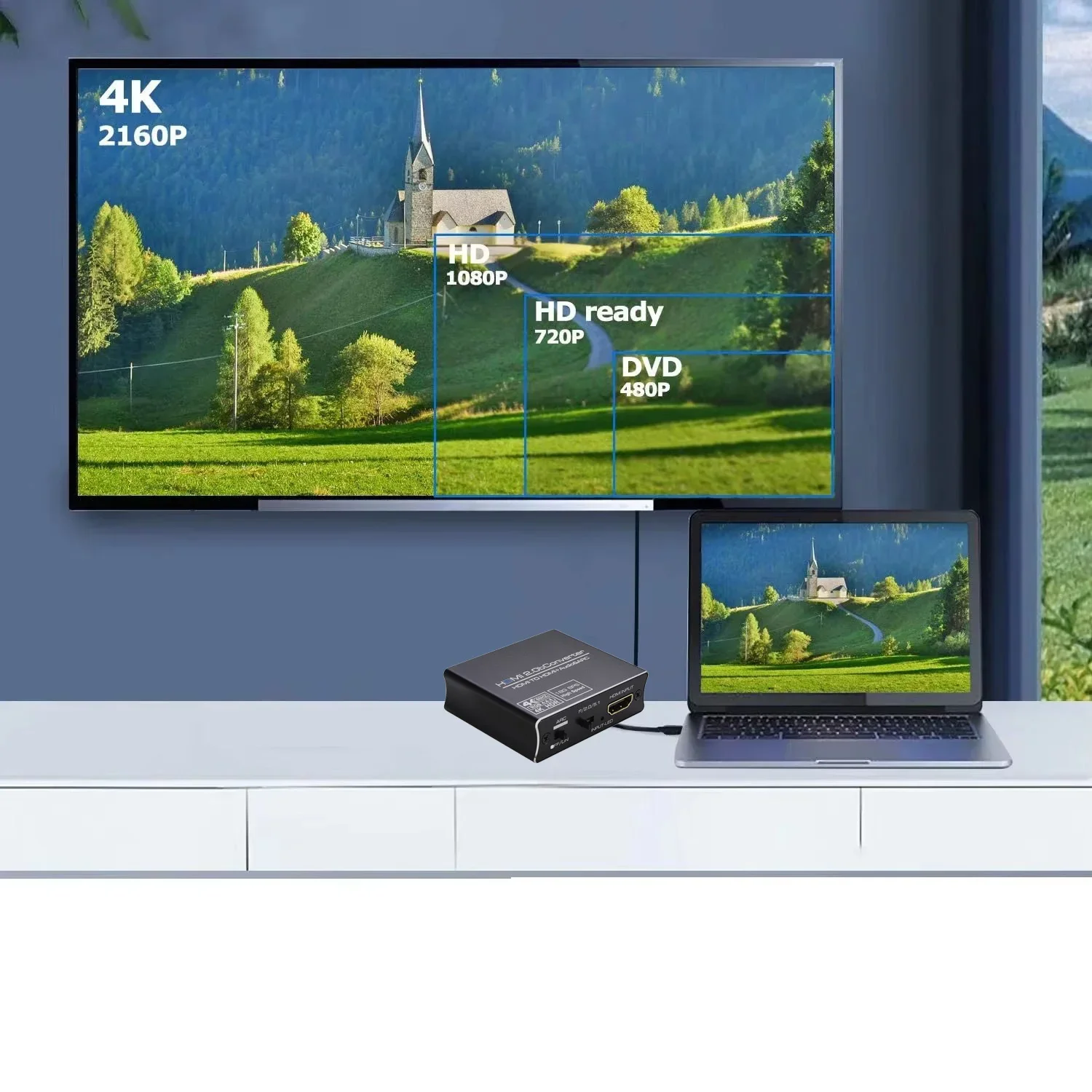

HDMI resolution .................................2160P/1080p/1080i/720p/576p/576i/480p
Audio output........................................................................................ L/R+SPDIF
Max baud rate.........................................................................................18Gbps
Input/Output TMDS signal ........................................................0.5~1.5Volts p-p(TTL)
Input/Output DDC signal ................................................................. 5Volts p-p (TTL)
Input cable distance........ ............................ .........≤15m AWG26 HDMI standard cable
Output cable distance...........................................≤20m AWG26 HDMI standard cable
Max working current....................................................................................500mA
Operating Temperature range............................................................... (-15 to +55℃)
Operating Humidity range.............................................5 to 90%RH (No Condensation)
Dimension (L x W x H) .......................................................Approx. 65x52x20(mm)
Package Content:

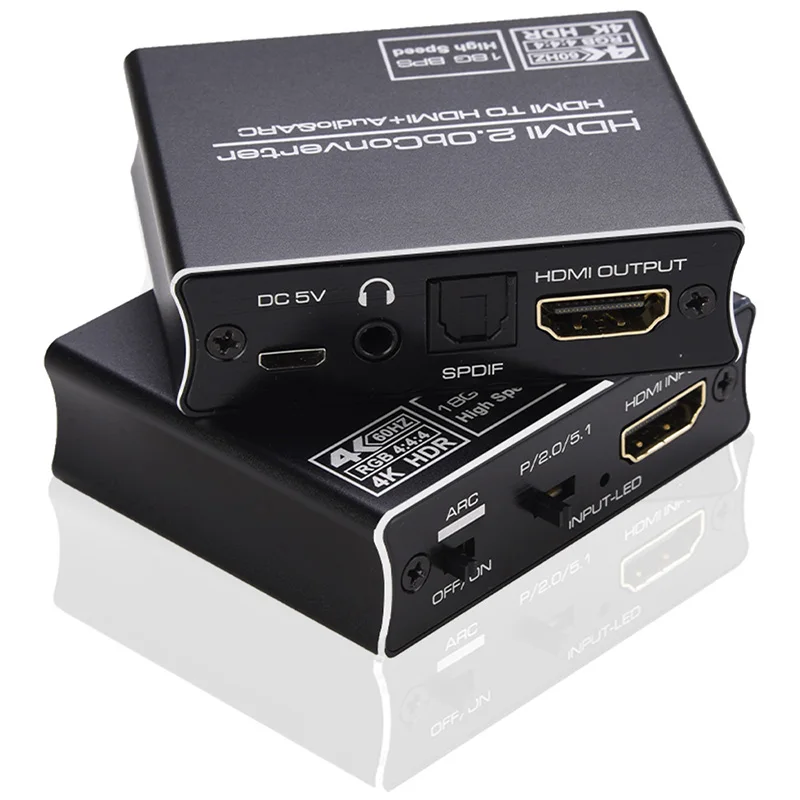

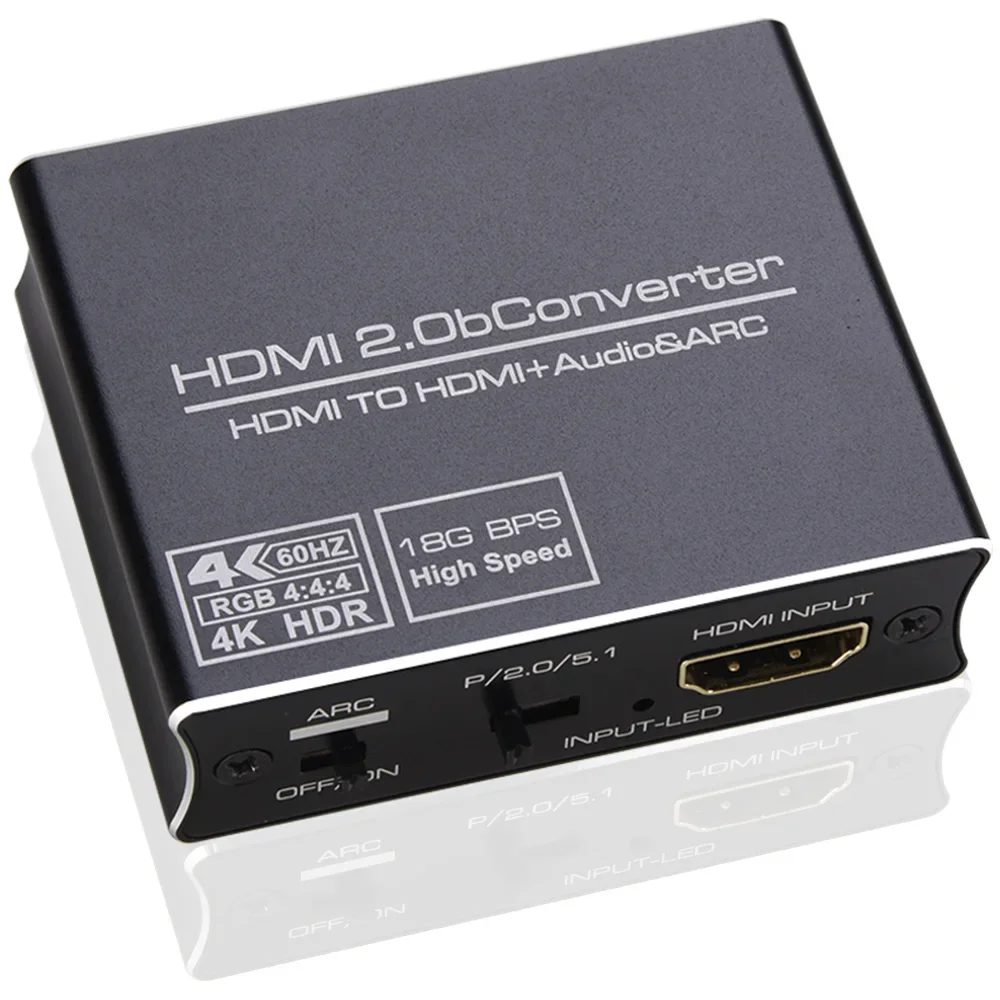

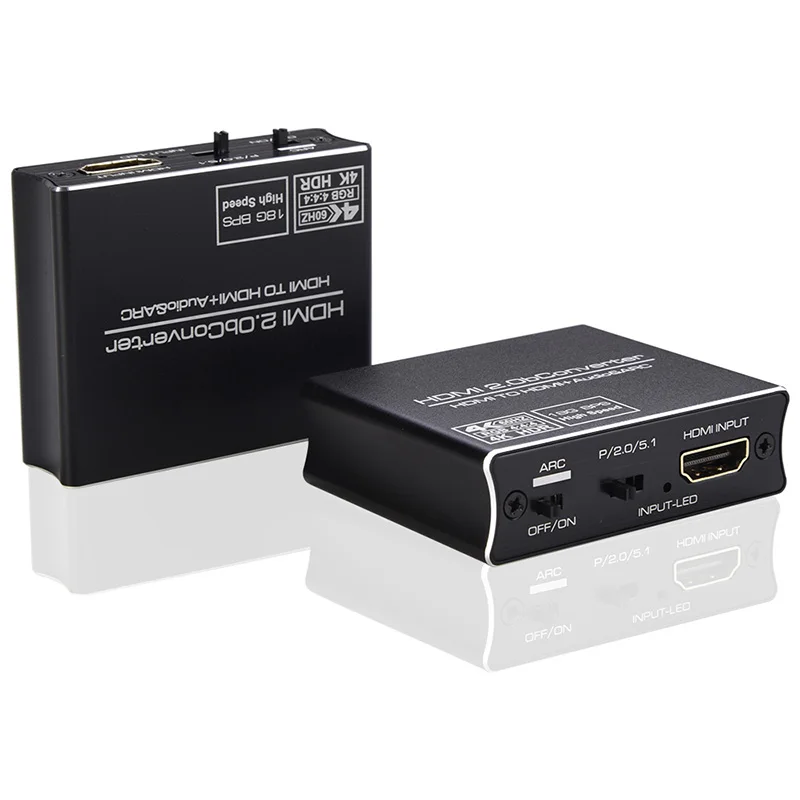

1x 4K60HZ HDMI Video converter + Audio/ARC
1x USB power supply cable
1x User guide
Without retail box,if any need,pls contact us before purchase
