HD 4K 120M KVM HDMI Extender 120M By Ethernet RJ45 CAT5e/6 Cable
Introduction:
Features:
* Support HDMI 1.4/HDCP1.4;
* Support local loop-out ;
* Support 120m long distance transmission.
* Low power consumption, low temperature and high safety;
* Both the TX and RX support 3.5MM left and right audio output;

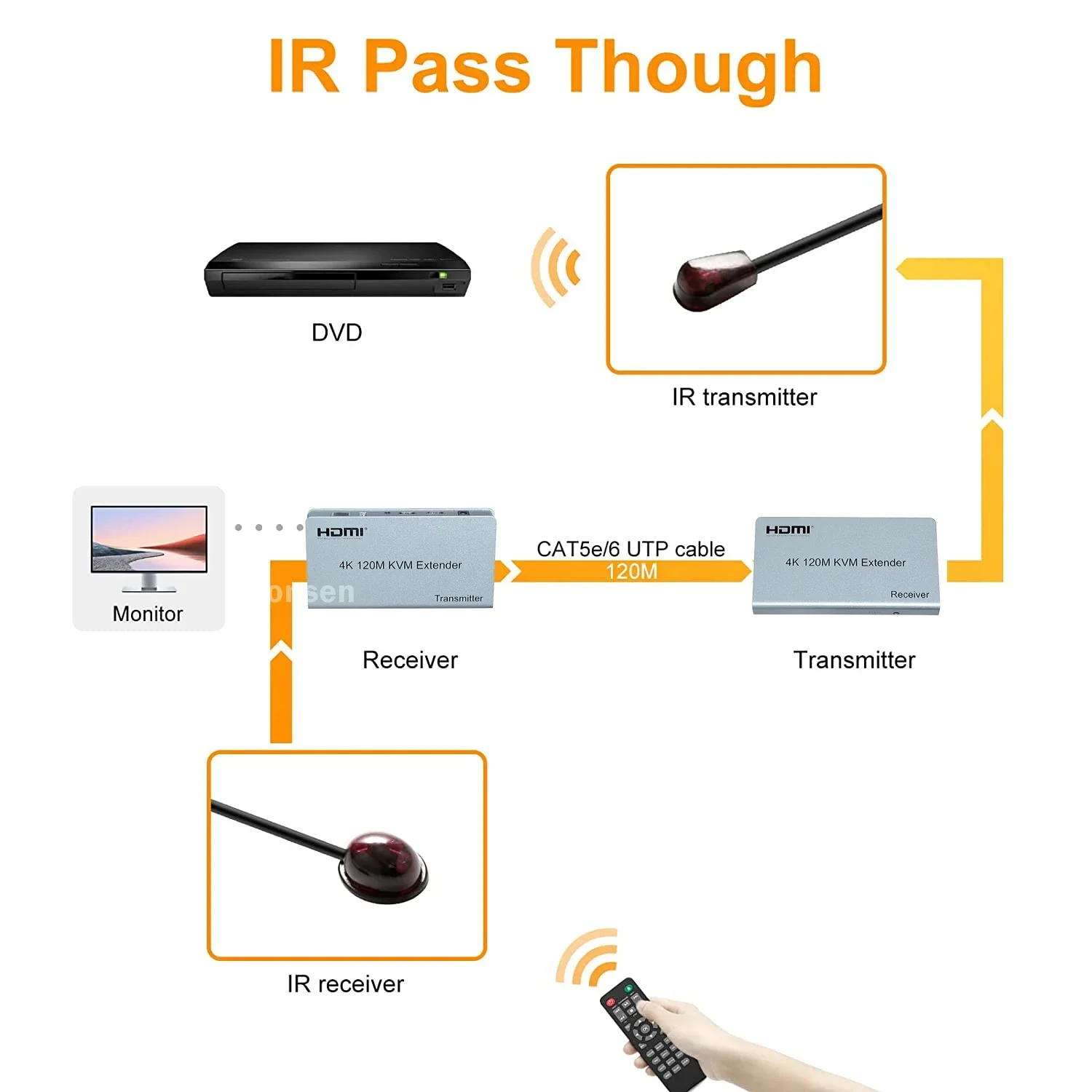

* Support IR control;
* Support USB mouse and keyboard;
* The Receiver's USB interface only supports connecting wired mice and keyboards.
Specifications:

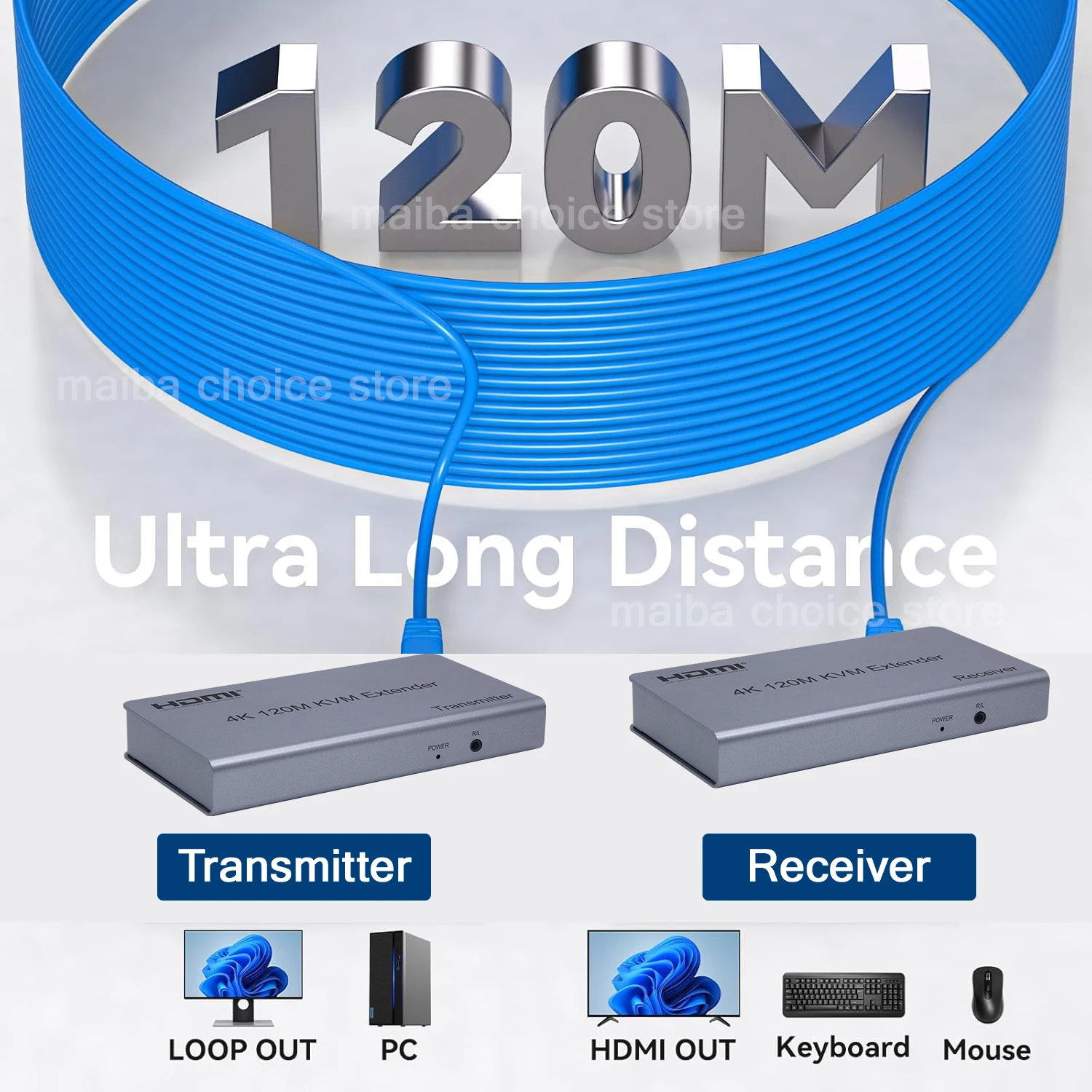

Length of CAT5e/CAT6 cable between Rx and TX .... 120 meters
HDMI Input .... 4k/1080p/720p/576p/576i/480p/480i
HDMI Output .... 4k 30Hz/1080p/720p/576p/576i/480p/480i
Max bandwidth ... 340MHz
Max baud rate .... 3x3.4Gbps
Input video signal .... 0.5~1.5Volts p-p
Output DDC signal ...... 5Volts p-p (TTL)
Input HDMI cable distance .... ≤5m AWG26 HDMI standard cable
Output HDMI cable distance ..... ≤5m AWG26 HDMI standard cable
TX Max working current ..... 350mA
RX Max working current ....... 200mA
Power adapter format ........ Input:AC (50HZ, 60HZ) 100V-240V; Output: DC5V/1A
Operating Temperature range ... (-15 to +55℃)
Operating Humidity range .... 5 to 90%RH (No Condensation)
Dimension (L x W x H) ..... 107x105x27.3 (mm)

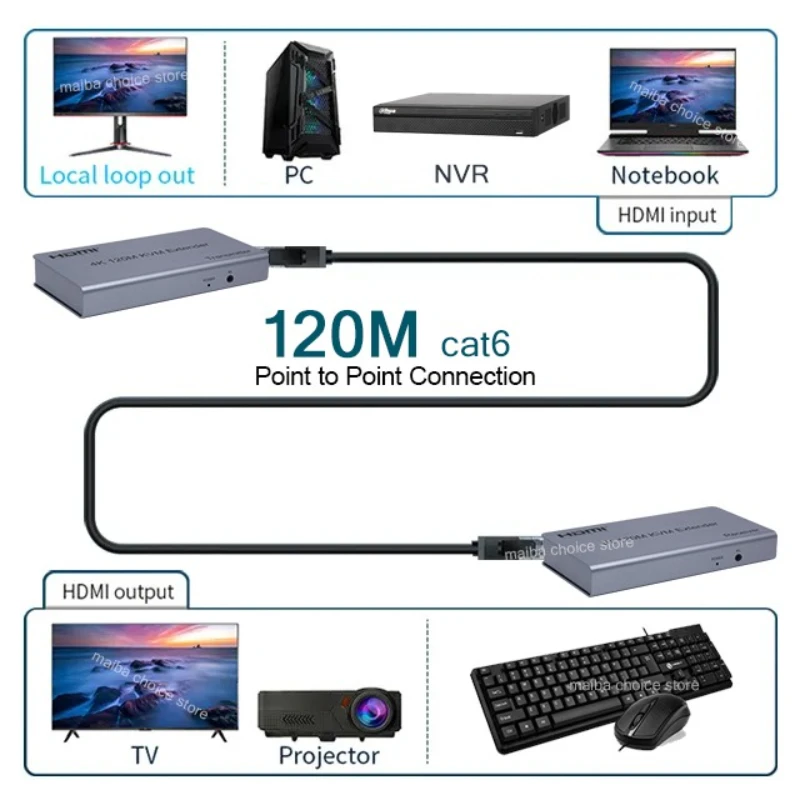

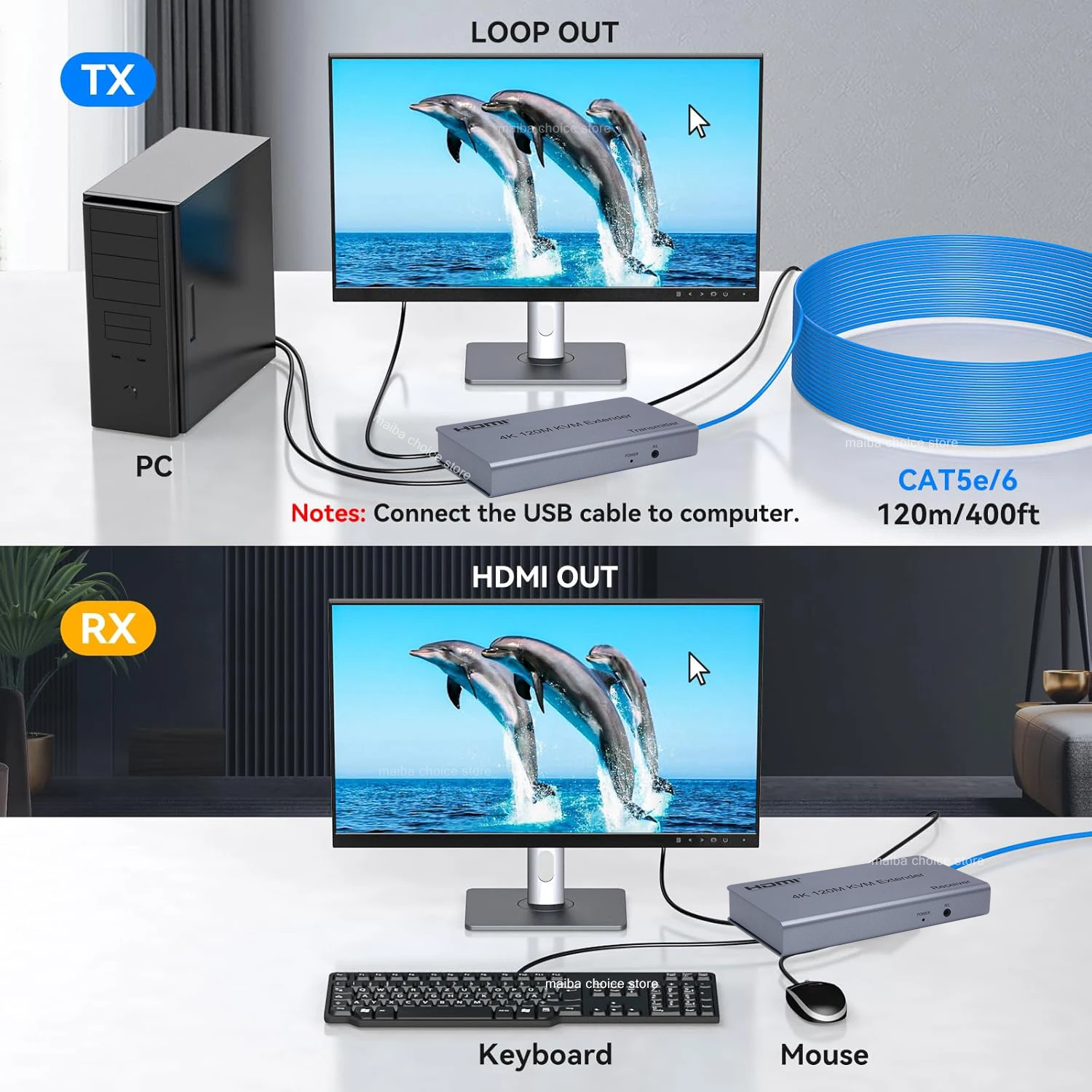

Critical Connection Rule:
Direct TX-to-RX link ONLY – never use network switches, routers, or extenders between units.
Note:
*MUST USE certified Cat5e/6 cable with pure copper conductors & T-568B termination.
*Strict 5-meter minimum cable length required between TX/RX units.
*Transmission range directly constrained by cable quality.
*Pro tip: Cheap copper-clad aluminum (CCA) cables WILL degrade HD signals!
KVM Feature Clarification:
(KVM=Keyboard, Video, Mouse functionality)
USB Port Limitation:
The "Receiver" unit's USB ports ONLY support wired USB mouse and standard 104-key keyboards.
All other USB devices (flash drives, webcams, etc.) are strictly incompatible and may cause system failures.
Package includes:

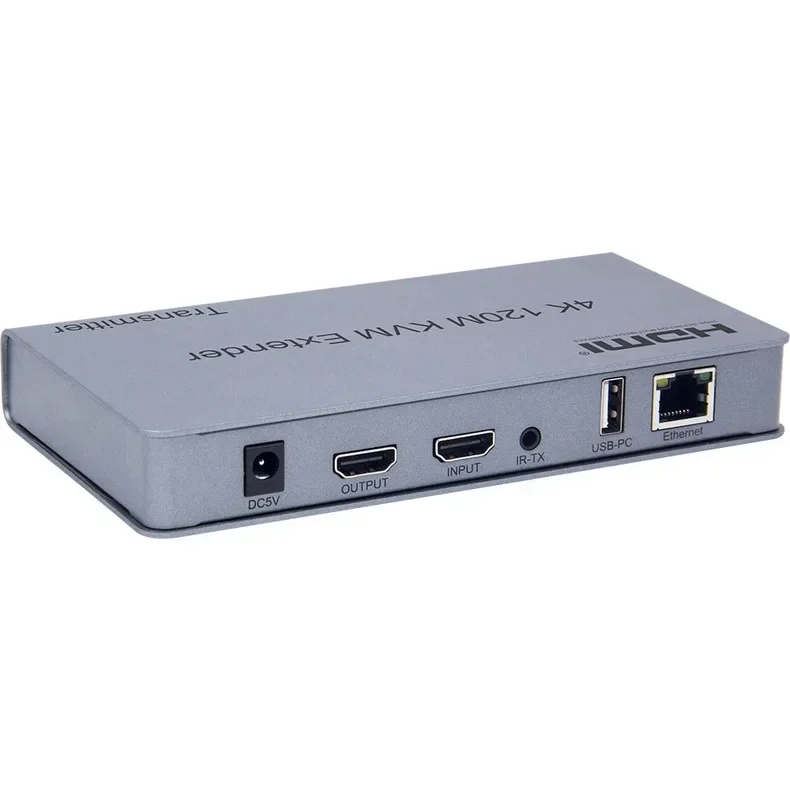

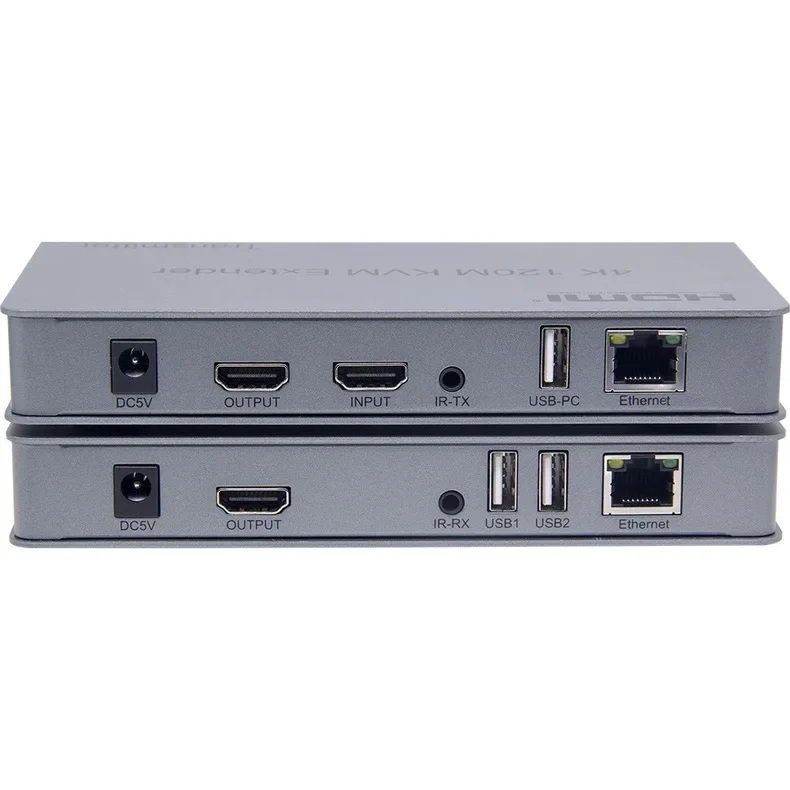

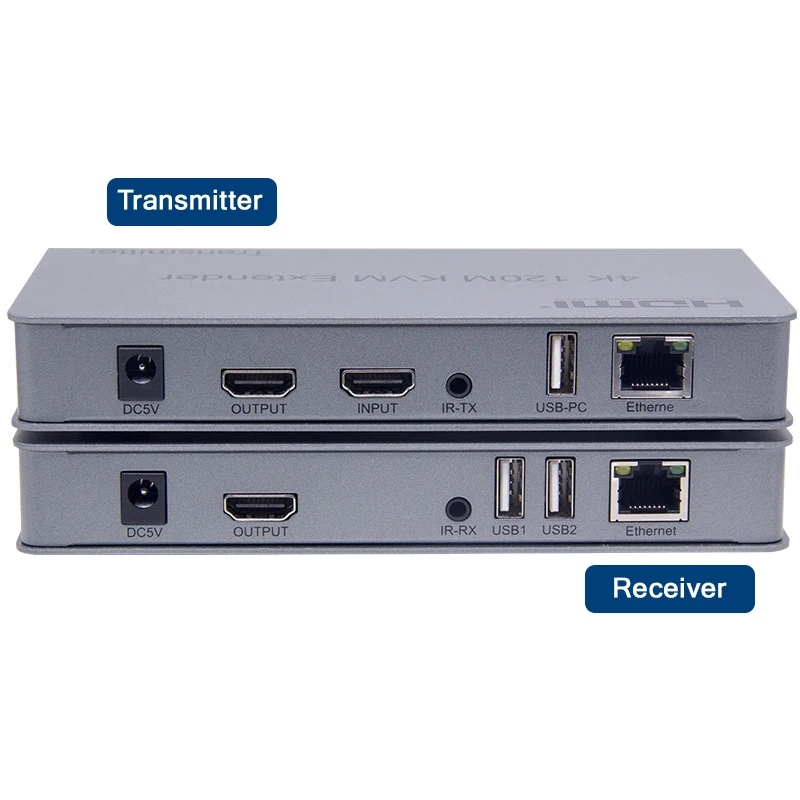

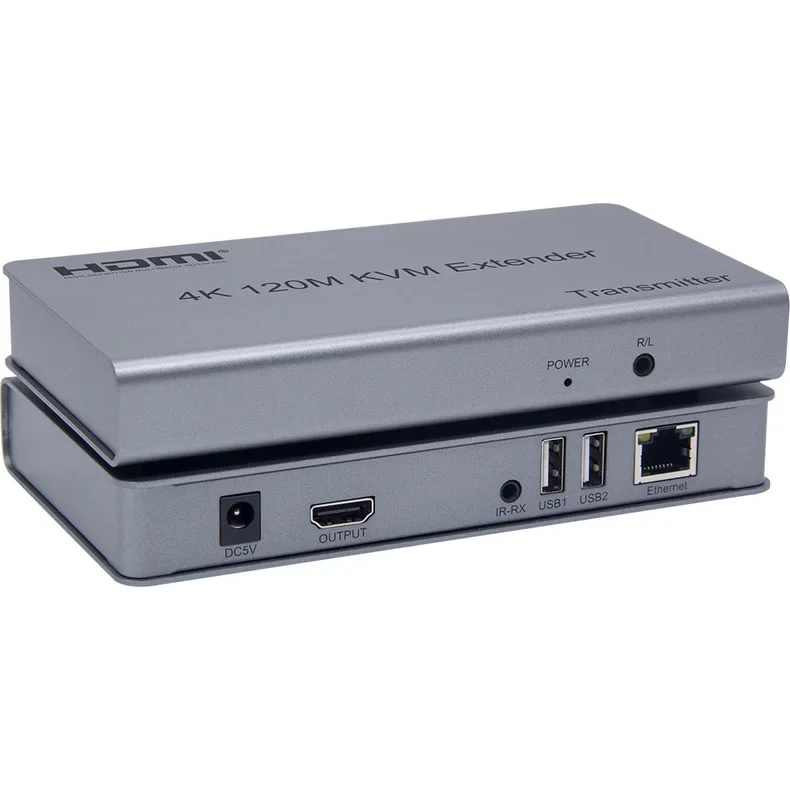

1 x Transmitter

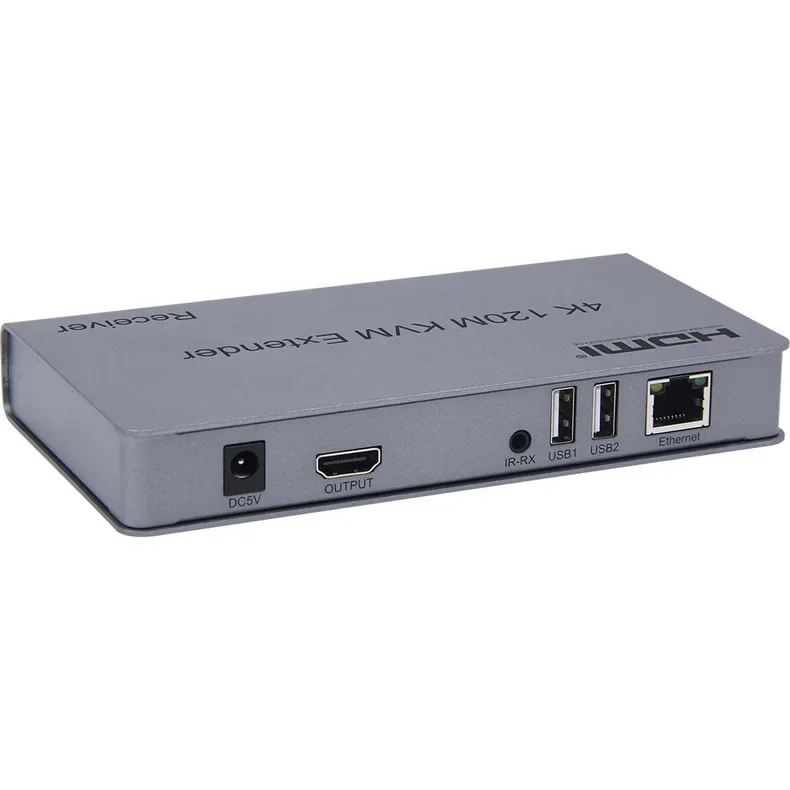

1 x Receiver
1 x USB Cable
2 x 5V/1A Power adapter
1 x User Manual
