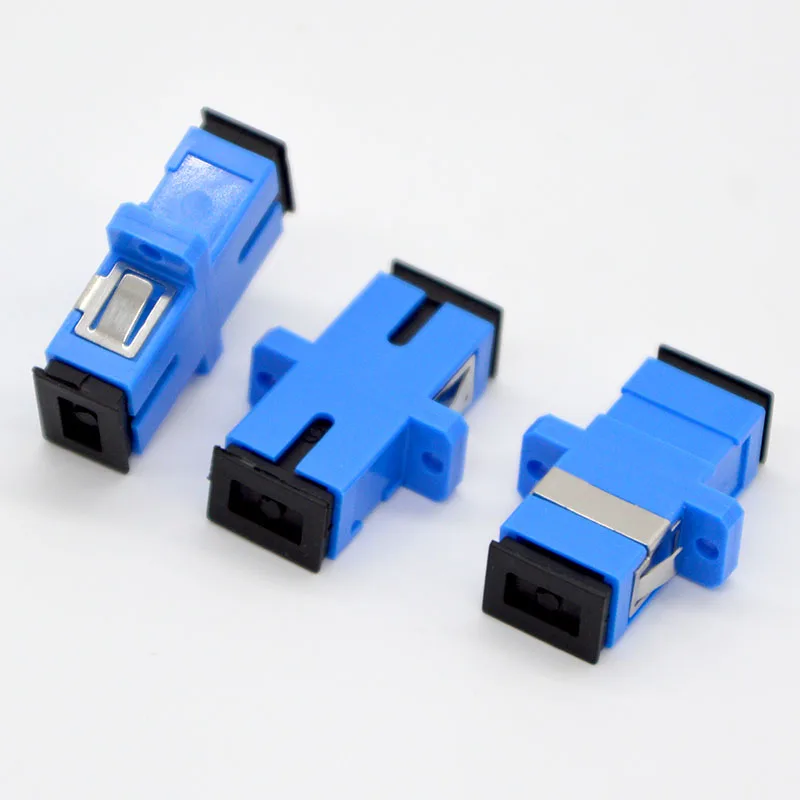

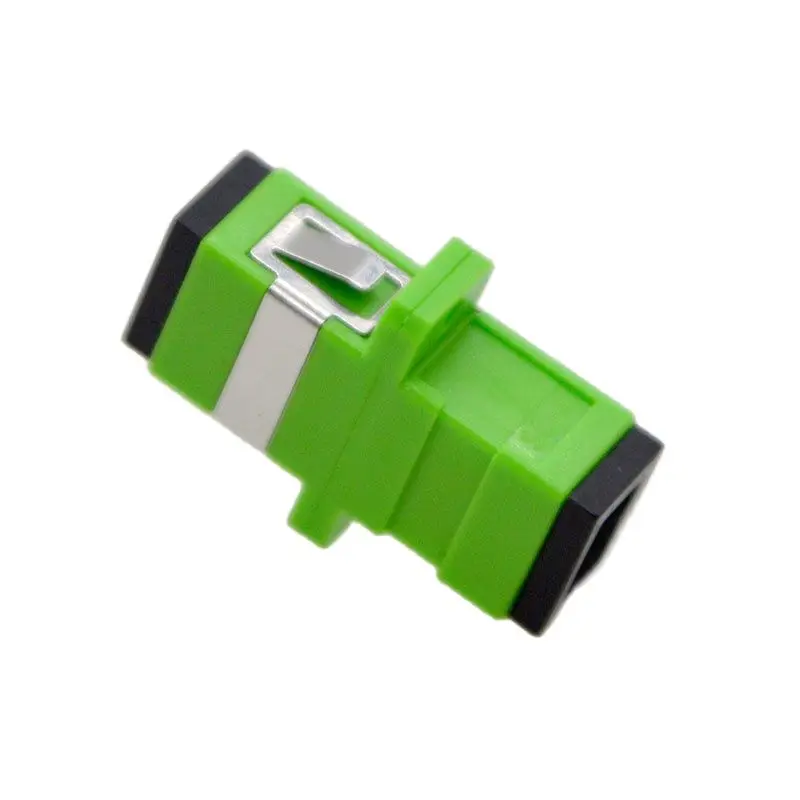

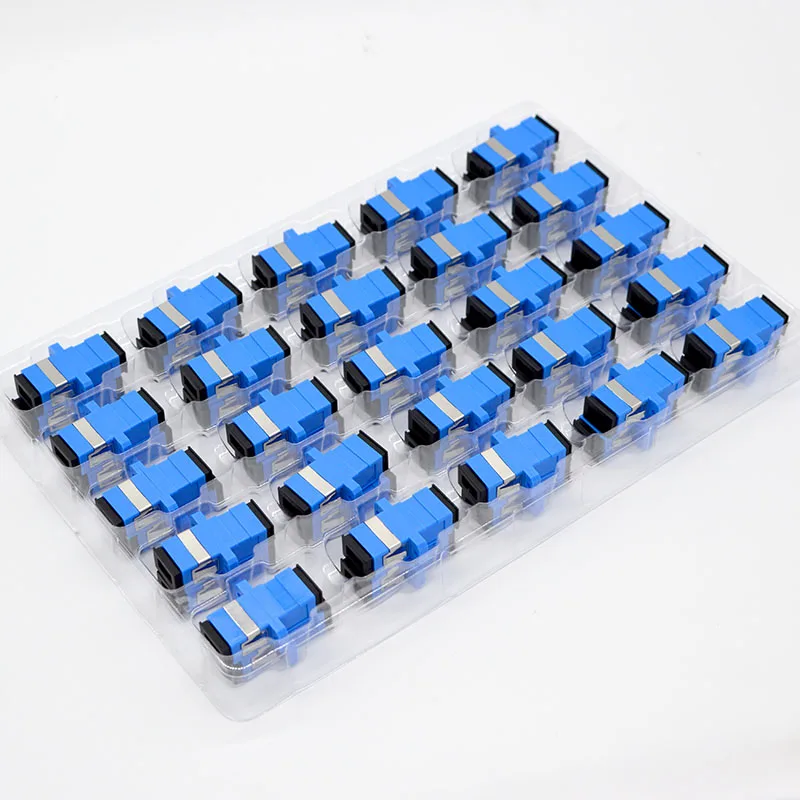

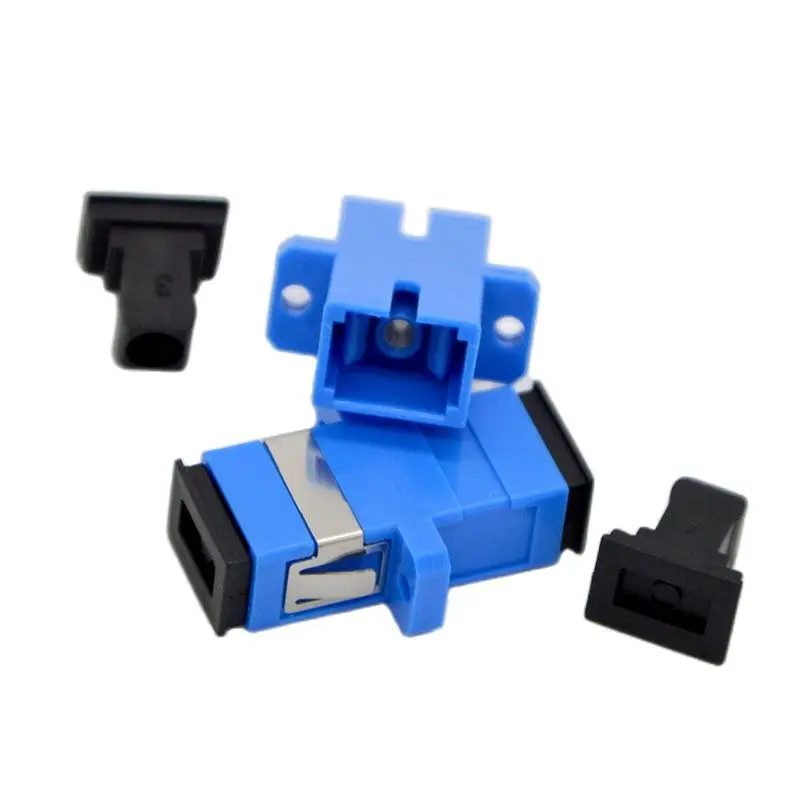

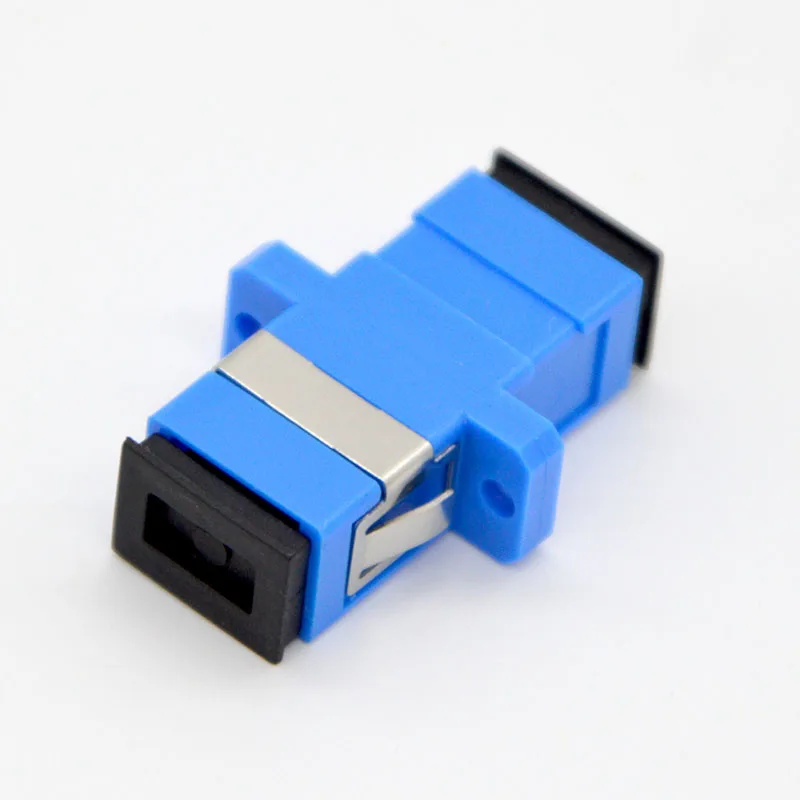

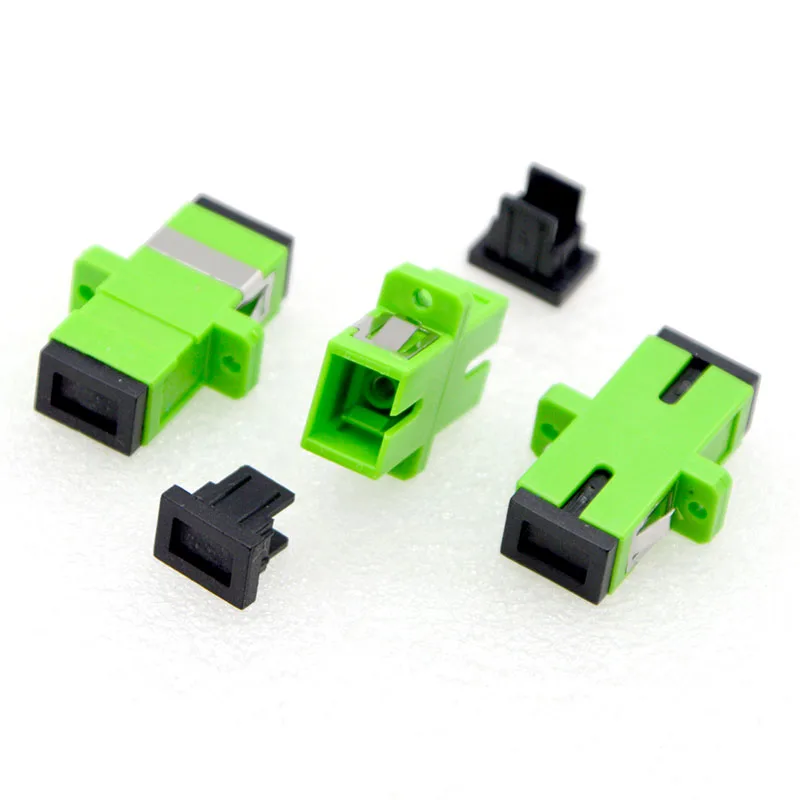

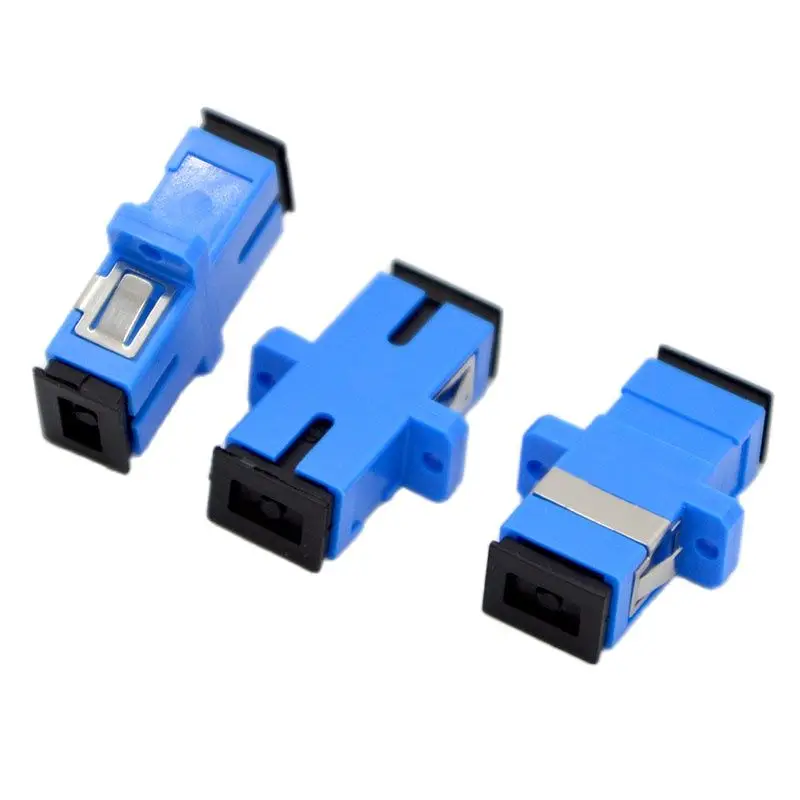

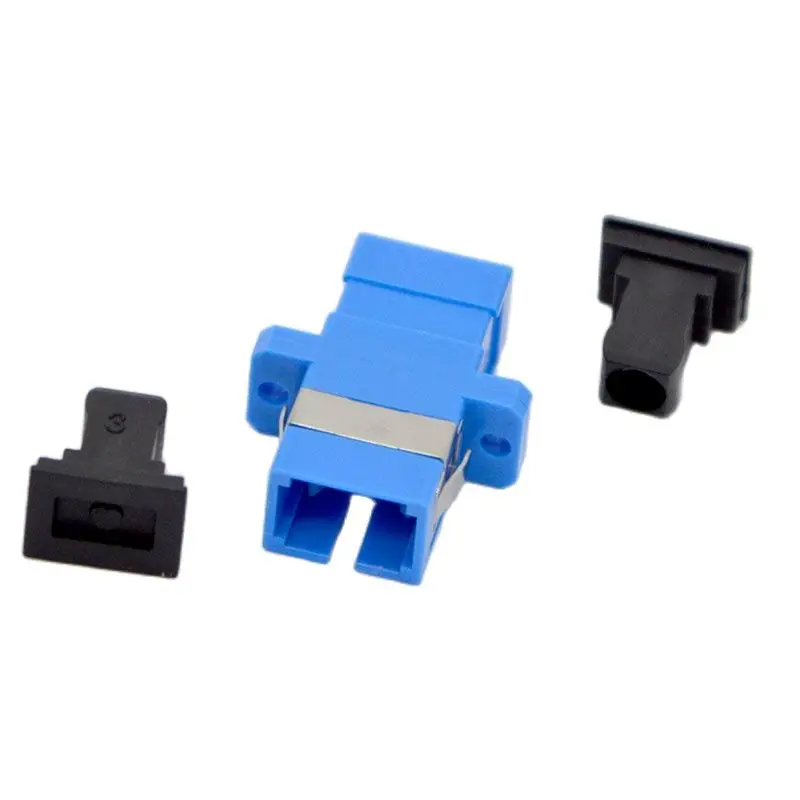

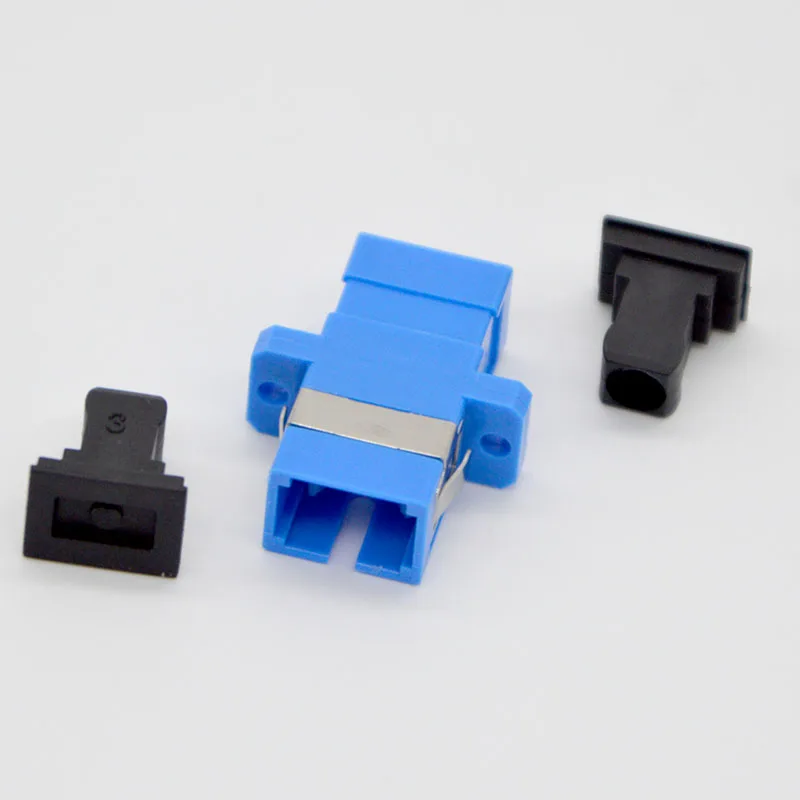

400PCS New SC/UPC Optical Fiber Adapter Connector Single Mode Flange Head Coupler Square joint Wholesale Free Shipping TO Brazil
Fiber Adapter (also known as flange), also known as fiber optic connectors, fiber optic coupler for connecting the coupling between the optical fiber connectors; it is one of the important devices to achieve optical fiber connector through an opening the size of precision casing inside the adapter connector to achieve a precise alignment of the optical fiber connector, the company used precision ceramic and metal casing, high-quality plastic parts, in order to ensure long-term stability of the mechanical and optical performance.
Between the optical fibers are connected by the adapter sleeve openings through its internal, in order to ensure maximum connectivity between fiber jumper. In order to fix the various panels, also designed a variety of fine fixed flange. Conversion adapter can be connected to different types of fiber optic jumper interface, and provides a connection between the APC surface, double or even improve mounting density.
Specifications Category:
Press the connector structure is divided into: FC, SC, ST, LC and other forms;
Press the fiber end face shape into PC, UPC, APC;
Divided by the number of fiber core as well as single-joint, double and quadruple;
Different transmission media can be divided into: single-mode, multimode;
By conversion into the flange FC-SC, ST-SC, ST-FC and the like.
Product Features:
Good compatibility, small fiber concentricity error
Precision machining size, high reliability, stability
Low insertion loss, high return loss, good interchangeability
Insertion loss: ≤0.2dB
Return Loss: ≥50dB
Working temperature: -30 - + 75
Storage temperature: -40 - + 85
Interchangeability: ≤0.2dB
Vibration test: ≤0.1dB (10-60Hz, 1.5mm amplitude)
Repeatability: ≥1000 times
Connection: FC, ST threaded locking type; LC, SC to snap
Material: SC and LC flame retardant ABS engineering clinker, ABS material, within the plug with polycarbonate, PBT high temperature materials, PEI environmentally friendly raw materials; FC and SC zinc alloy plating, electroplating, hat with PVC material; ST use zinc alloy electroplating, dust cap use PVC materials; casing first with high-precision zirconia ceramic ferrule, ceramic, zirconia ceramic sleeve
Applications
Fiber optic wire frame, fiber optic communication networks, fiber-optic broadband access network, fiber CATV, fiber optic inst
