2Pcs/1pc ME2-CO Carbon Monoxide Sensor Module Gas Sensor For Co Concentration Detector Smoke Alarm Probe Sensor ME2 CO 14x14mm

Name: 2Pcs/1pc ME2-CO Carbon Monoxide Sensor Module Gas Sensor For Co Concentration Detector Smoke Alarm Probe Sensor ME2 CO 14x14mm
Brand: Sin Marca
SKU: 355493
Price: 49038 EUR
Availability: InStock
Rating: 5.0 (5 reviews)

5 opiniones

En Stock

49038 €

Comprar ahora

Con la garantía de

Color

18 unidades vendidas

Última actualización: 2026-03-04T01:07:19.020Z

Descripción

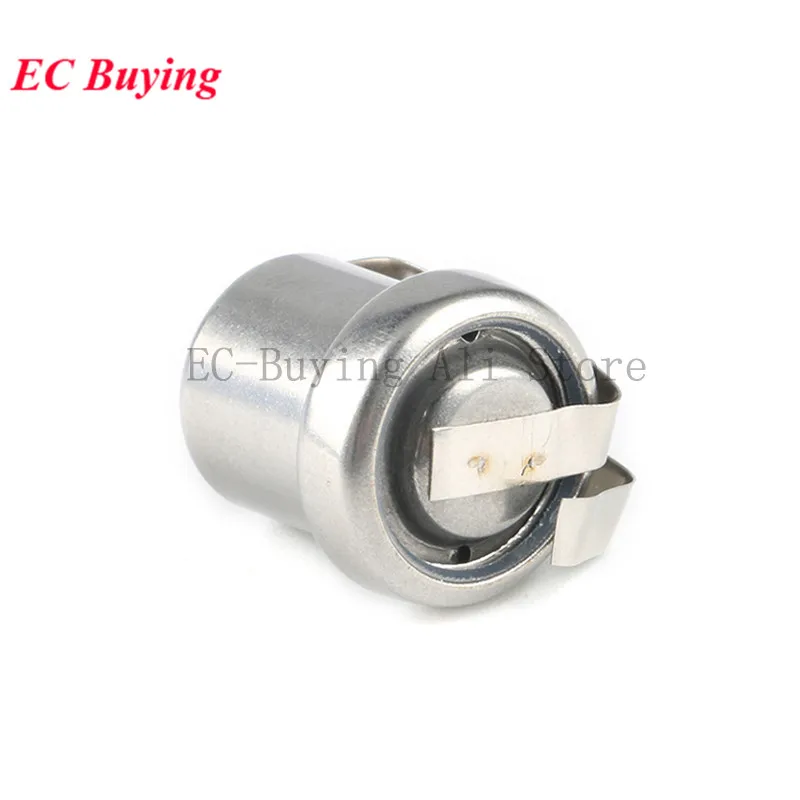

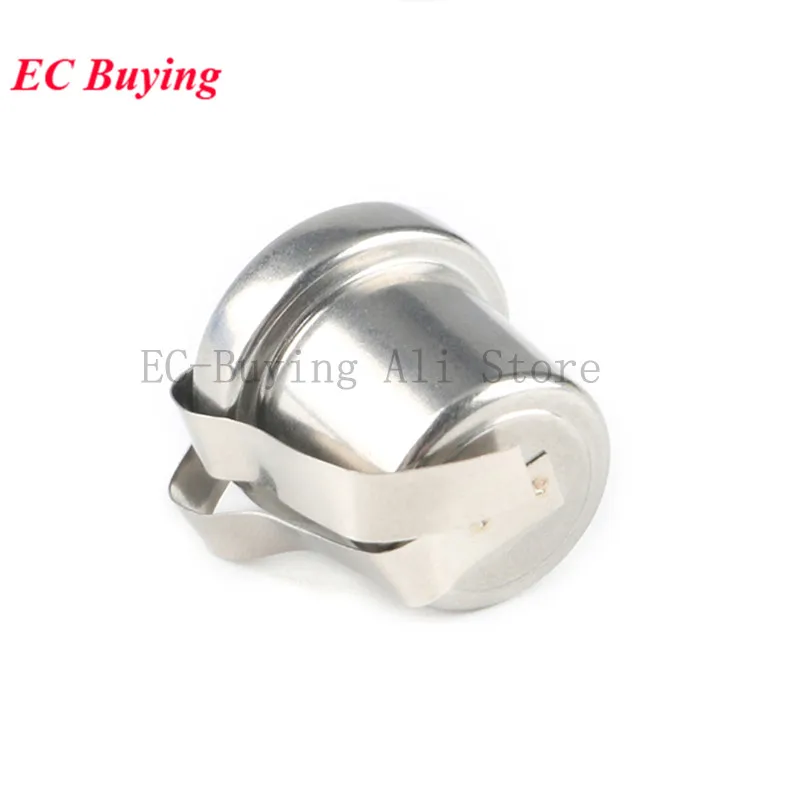

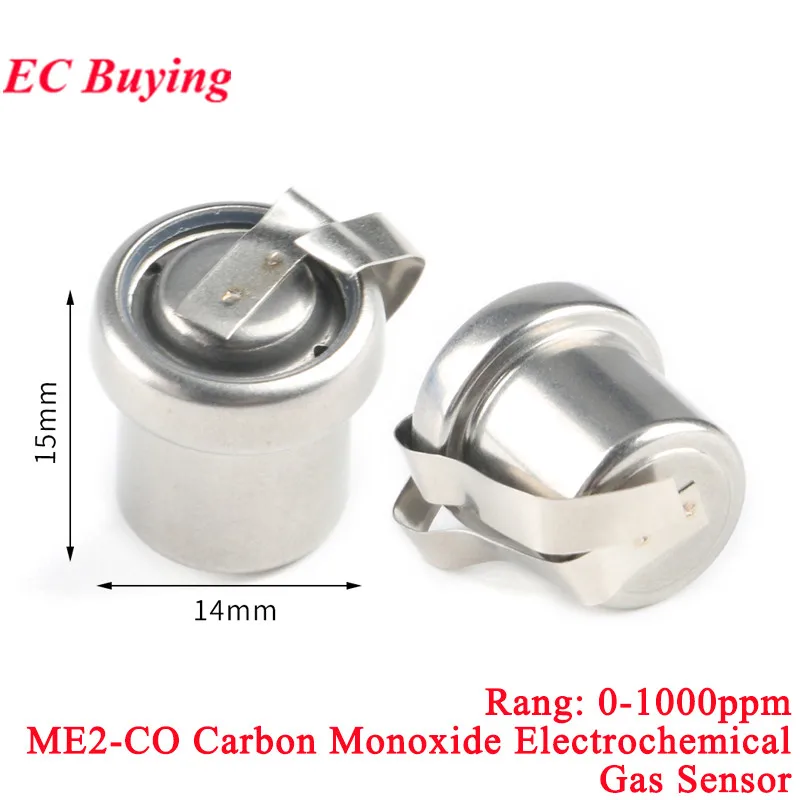

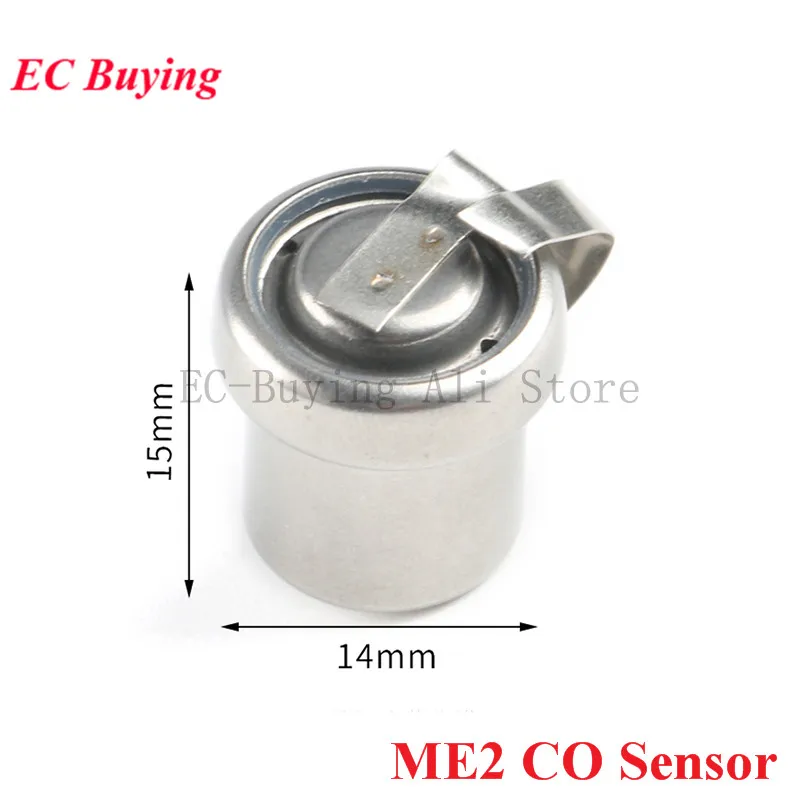

Product Details:The ME2-CO-Ф14*14 carbon monoxide sensor is a fuel cell sensor. Carbon monoxide and oxygen undergo corresponding redox reactions on the working electrode and counter electrode and release charge to form a current. The current generated is proportional to the concentration of carbon monoxide and follows Faraday's law By measuring the magnitude of the current, the carbon monoxide concentration can be determined.Features:Low power consumption, high precision, high sensitivity, wide linear range, strong anti-interference ability, excellent repeatability and stability.Application:It is widely suitable for the detection of carbon monoxide concentration in commercial, especially civil fields.Technical indexParameter:Detection gas: carbon monoxide (CO)Range: 0 ～ 1000ppmMaximum measurement limit: 2000ppmSensitivity: 0.8nA / ppmResolution: 1ppmResponse time (T90): 30SLoad resistance (recommended): (500 / 1k / 2k) ΩRepeatability: 3 ﹪ output valueZero drift (-20 ℃ ～ 40 ℃): ≤10ppmTemperature range: -20 ℃ ～ 50 ℃Humidity range: 15 ﹪ ～ 90 ﹪ RHPressure range: standard atmospheric pressure ± 10﹪
