Descripción

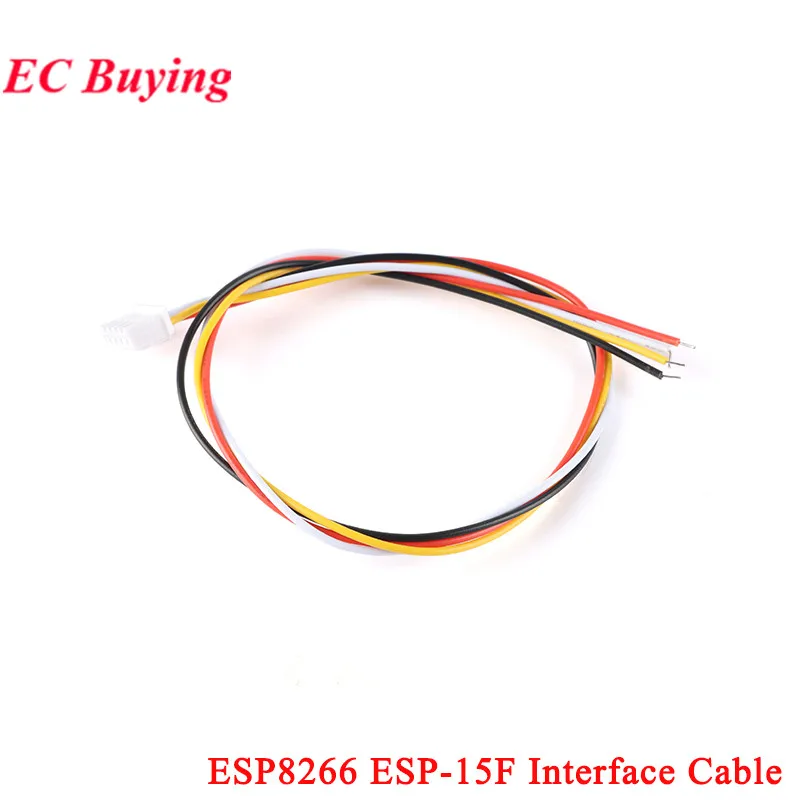

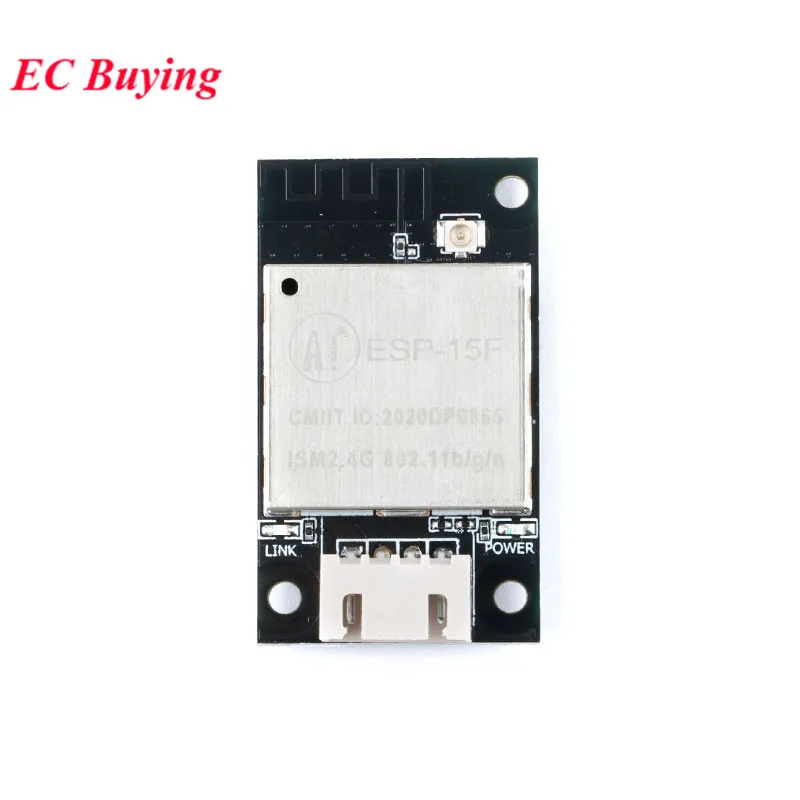

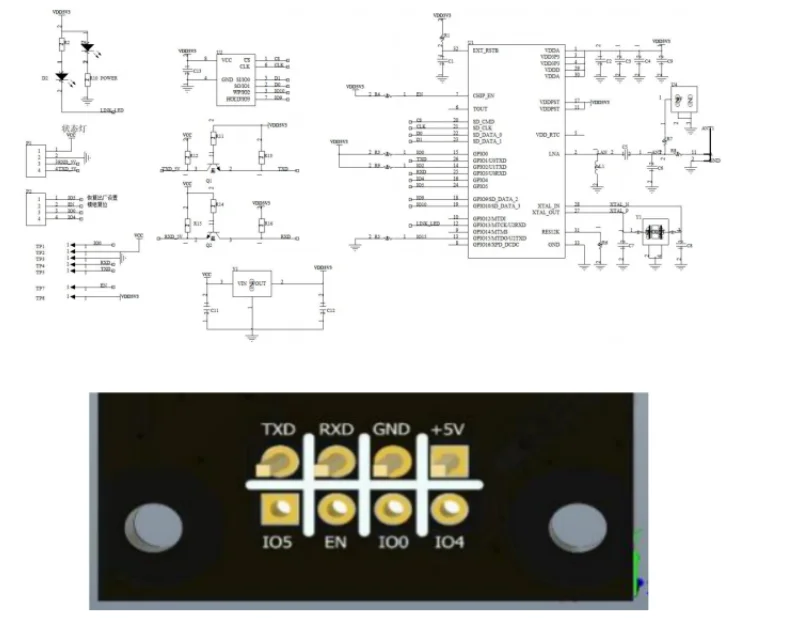

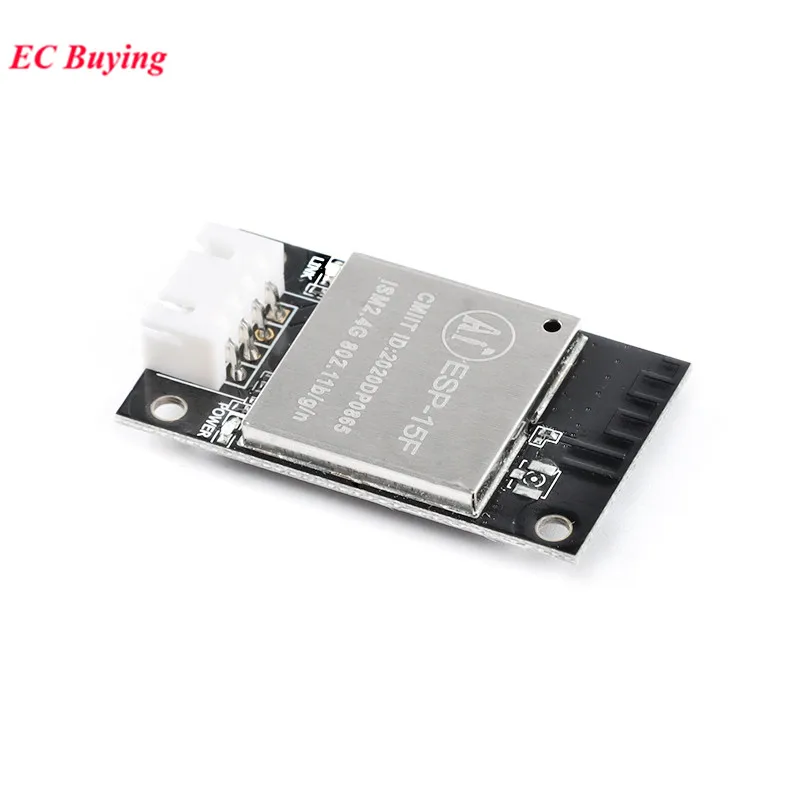

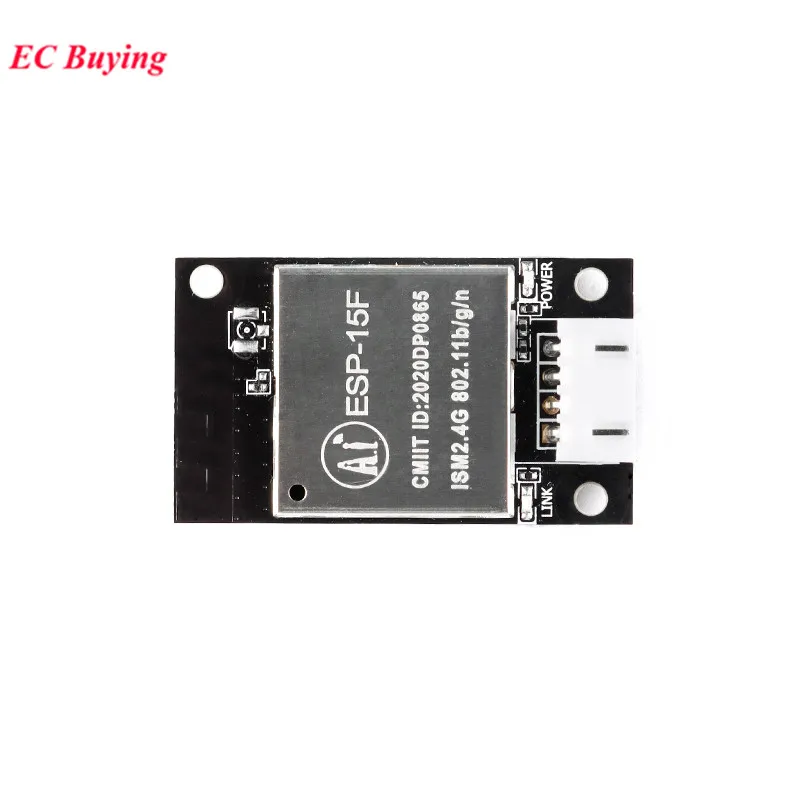

Product Introduction:ESP-15F is a powerful WiFi module. The core processor of the module, ESP8266, integrates the industry-leading Tensilica L106 ultra-low power consumption 32-bit micro MCU in a small size package with a 16-bit streamlined mode and main frequency Support 80MHz and 160MHz, support RTOS, integrated WiFi MAC/BB/RF/PA/LNA.ESP-15F WiFi module supports standard IEEE802.11b/g/n protocol, complete TCP/IP protocol line. Users can use this module to add Internet functions to existing equipment, or build an independent network controller.Product Parameters:Interface: PH2.54 connector / DIP-8 packageAntenna form: onboard PCB antenna / IPEX external antennaSpectrum range: 2400~2483.5MHzWorking temperature: -20°C~70°CStorage environment: -40°C~125°C, 90%RHPower supply range: power supply voltage 5V, power supply current 800mASupport interface: only support UART 10□ quantity 3 (reserved)Serial port rate: support 110~4608000 bps, the default is 115200 bpsSecurity: WEP / WPA-PSK / WPA2-PSKSPI Flash: default 32MbitProduct size: 41.3 * 24.1 * 6.6 (+0.2) MM (L * W * H, the height is subject to the needle seat).Pin Definition:

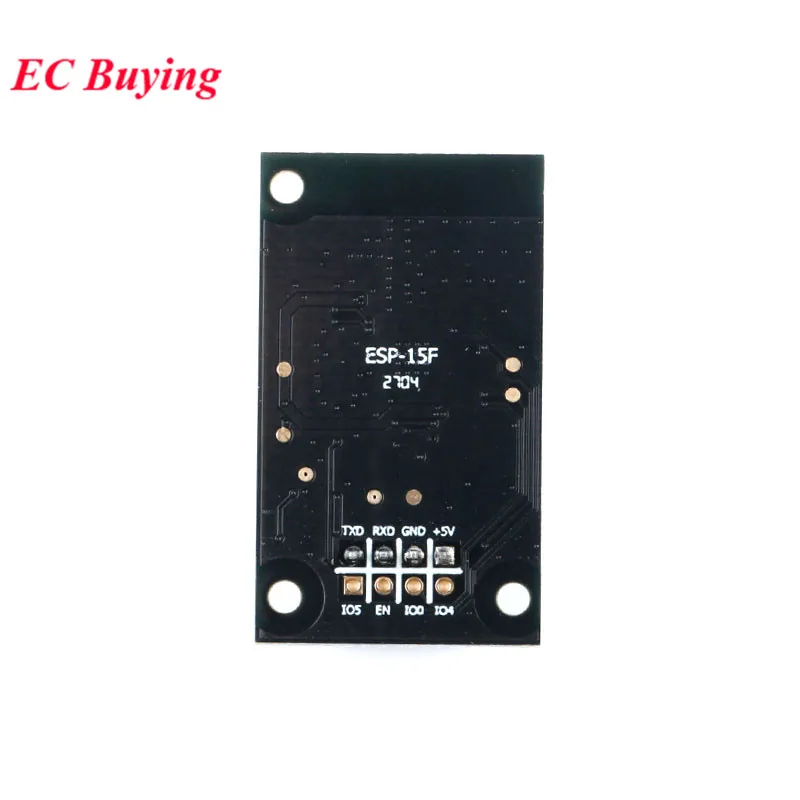

TXD: UARTO_ TXD (default 5V)RXD: UARTO_ RXD (default 5V)GND: GroundVCC: The output current of the external power supply is recommended to be above 800mAIO4: GPIO4 reserved interfaceIO0: GPIO0; Download mode: pull down externally, operating mode: float or pull up externally Reserved interfaceEN: chip enable terminal, active at high level, reserved interfaceIO5: GPIO5 reserved interface
