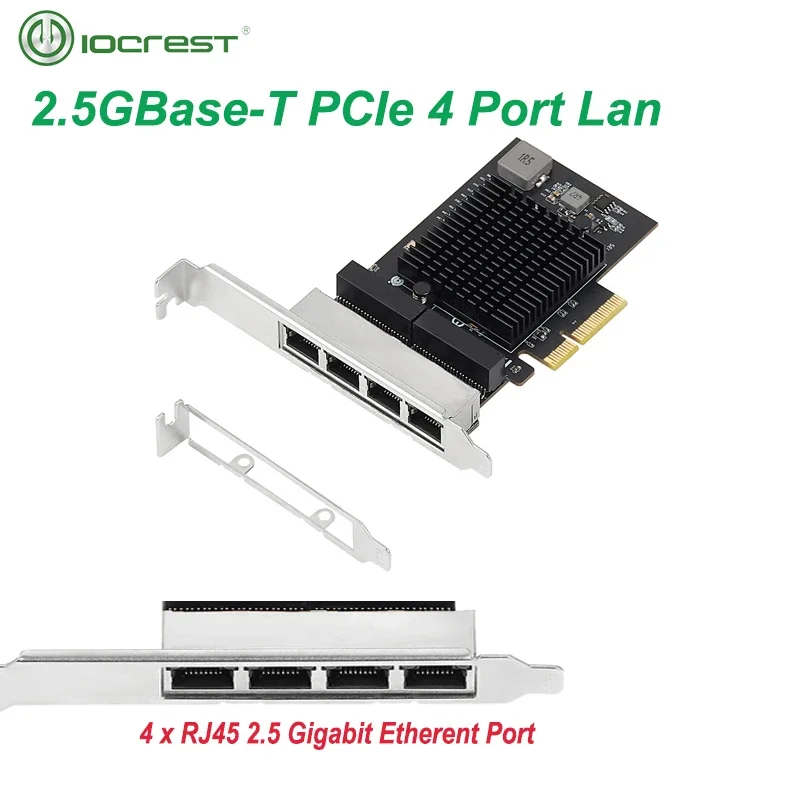

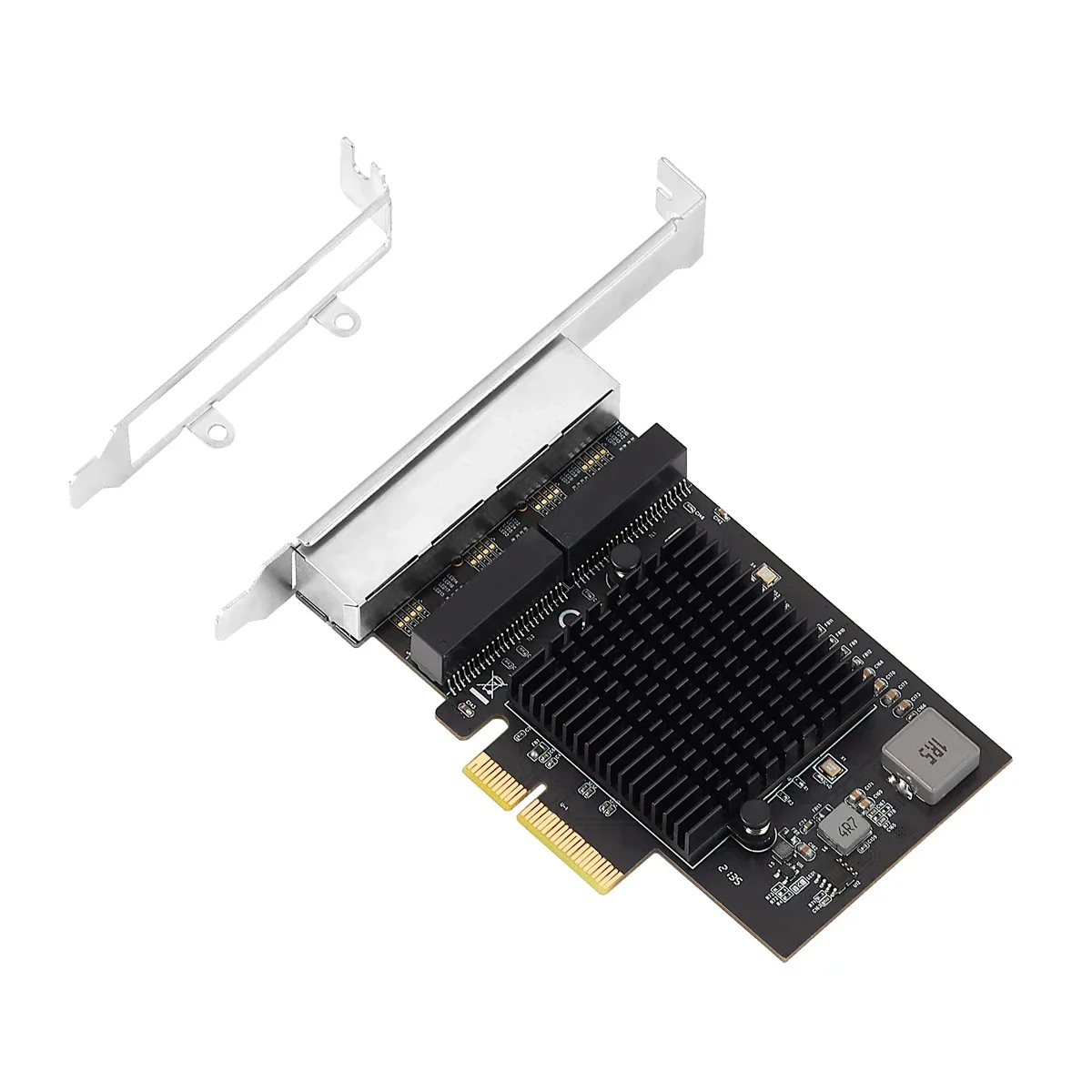

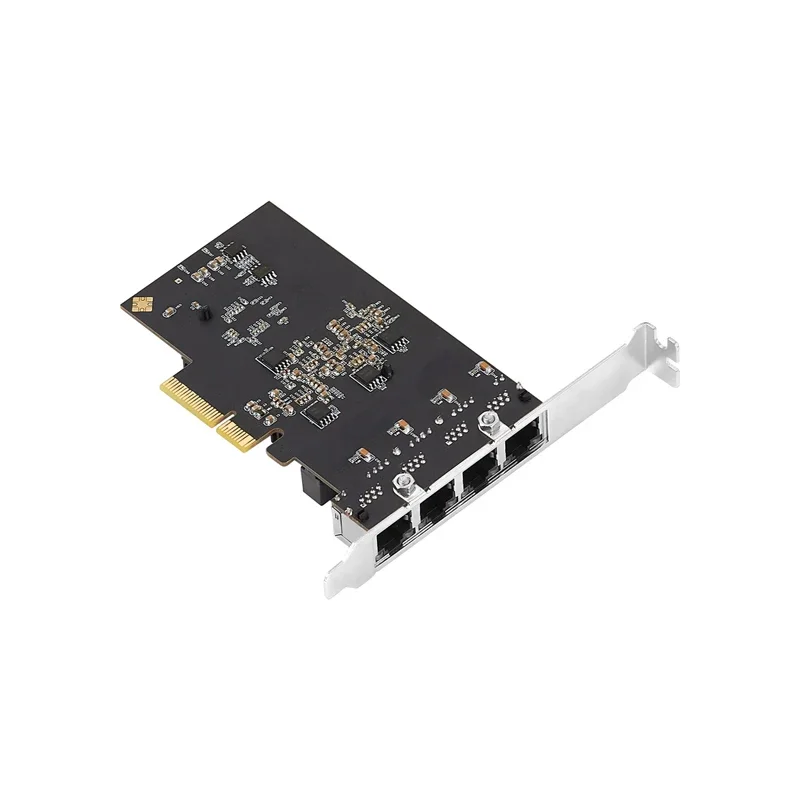

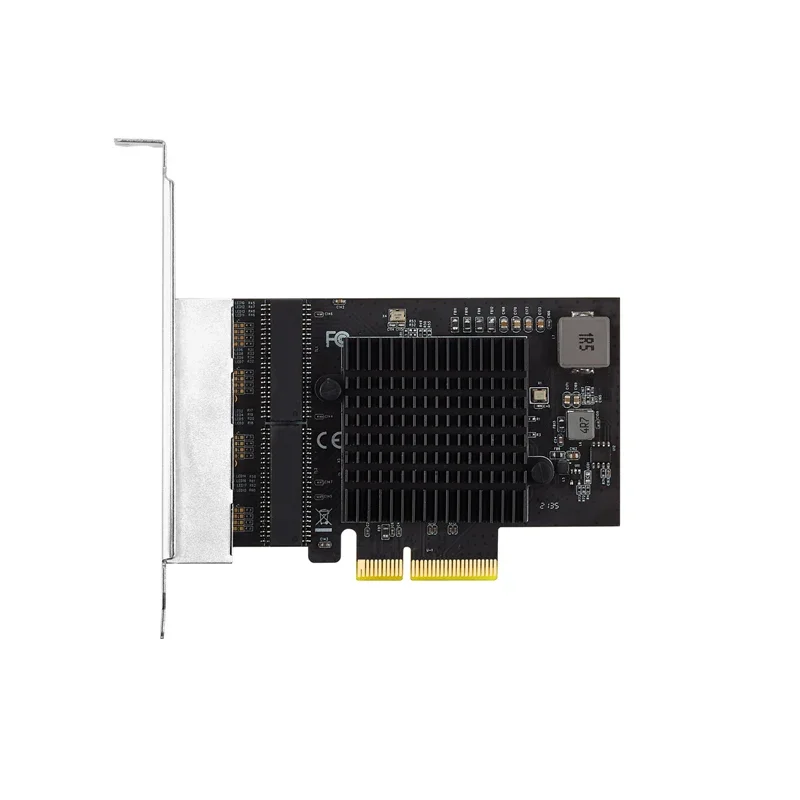

2.5G Network Card
•Supports 2.5G Lite (1G data rate) mode
•Supports PCI Express 2.1
•Supports 4 high performance 2.5-Gigabit LAN ports
•Auto-Negotiation with Extended Next Page capability (XNP)
•Compatible with NBASE-TTM Alliance PHY Specification
•Supports pair swap/polarity/skew correction
•Crossover Detection & Auto-Correction
•Supports hardware ECC (Error Correction Code) function
*Supports hardware CRC (Cyclic Redundancy Check) function
•Transmit/Receive on-chip buffer support
•Supports PCI MSI (Message Signaled Interrupt) and MSI-X
•Supports power down/link down power saving/PHY disable mode
•Supports ECMA-393 ProxZzzy Standard for sleeping hosts
•Supports LTR (Latency Tolerance Reporting)
•Supports 32-set 128-byte Wake-Up Frame pattern exact matching
•Supports Microsoft WPI (Wake Packet Indication)
•Supports PCIe L1 substate L1.1and L1.2
•Compatible with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
•Supports IEEE 1588v1, IEEE 1588v2, IEEE 802.1AS time synchronization
•Supports IEEE 802.1Qav credit-based shaper algorithm
•Supports IEEE 802.1P Layer 2 Priority Encoding
•Supports IEEE 802.1Q VLAN tagging
•Supports IEEE 802.1ad Double VLAN
•Supports IEEE 802.3az (Energy Efficient Ethernet)
•Supports IEEE 802.3bz (2.5GBase-T)
•Supports Full Duplex flow control (IEEE 802.3x)
•Supports jumbo frame to 16K byte
•Supports standard and low profile chassis

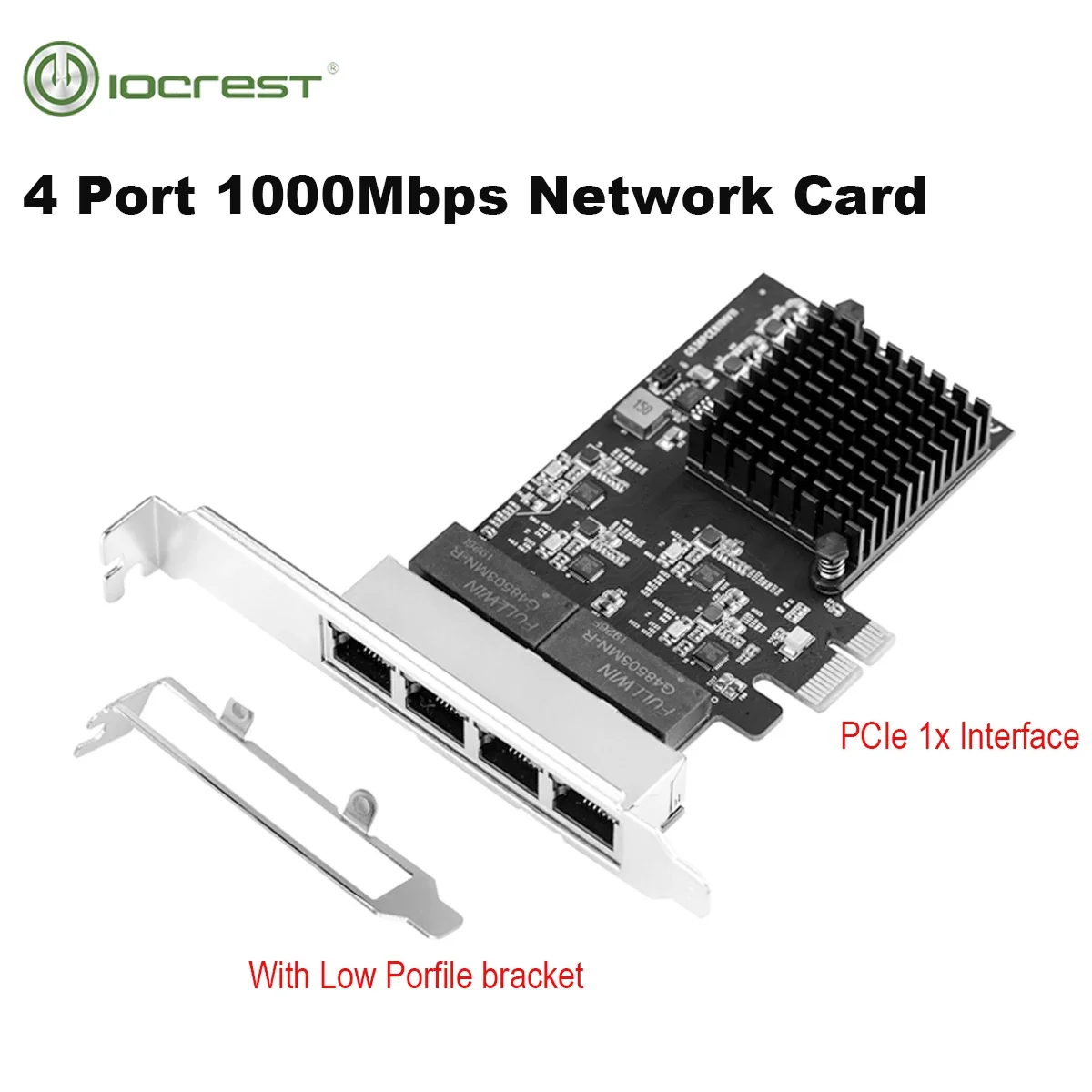

1G Network Card
•Integrated 10/100/1000M transceiver
•Supports Giga Lite (500M) mode
•Auto-Negotiation with Next Page capability
•Supports PCI Express 1.1
•Supports pair swap/polarity/skew correction
•Crossover Detection & Auto-Correction
•Supports 1-Lane 2.5Gbps PCI Express Bus
•Supports hardware ECC (Error Correction Code) function
•Supports hardware CRC (Cyclic Redundancy Check) function
•Transmit/Receive on-chip buffer support
•Supports PCI MSI (Message Signaled Interrupt) and MSI-X
•Fully compliant with IEEE802.3, 802.3u and 802.3ab
•Supports IEEE 802.1P layer 2 Priority Encoding
•Supports 802.1Q VLAN tagging
•Supports IEEE 802.3az-2010(EEE)
•Supports Full Duplex flow control (IEEE.802.3x)
•Supports jumbo frame to 9K bytes
•Supports quad core Receive-Side Scaling(RSS)
•Supports Protocol Offload(ARP&NS)
•Supports Microsoft WPI (Wake Packet Indication)
•Supports ECMA-393 ProxZzzy Standard for sleeping hosts
System Requirement
• Windows OS
• Linux, MAC OS and DOS
• PCI Express-enabled system with an available PCI Express slot
Accessories
1 x PCI-Express to 4 Ports 10 /100/1000M/2.5G Ethernet Card
1 x User Manual
1 x Low-profile bracket
