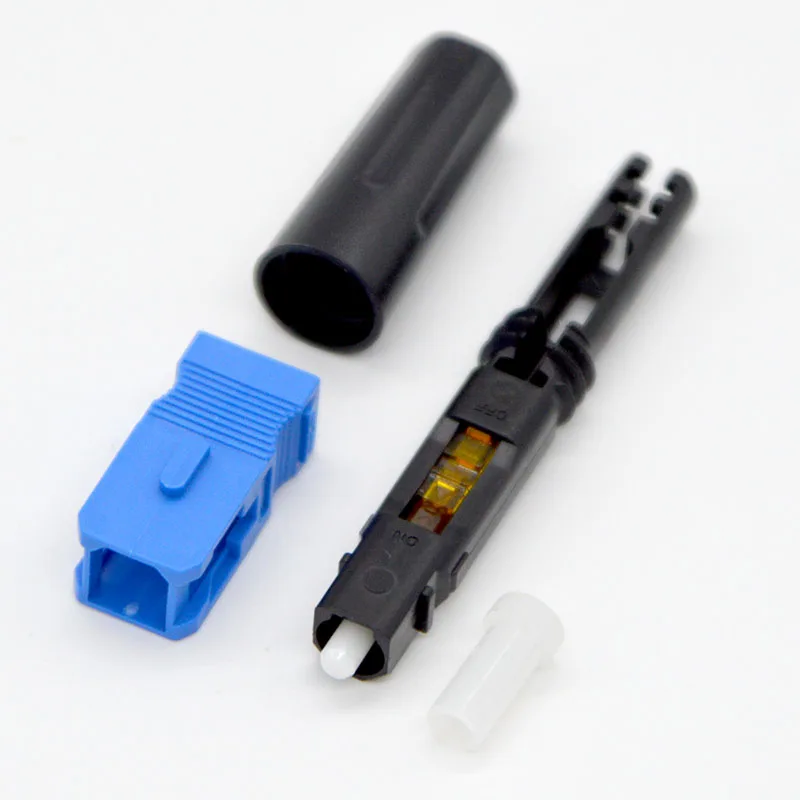

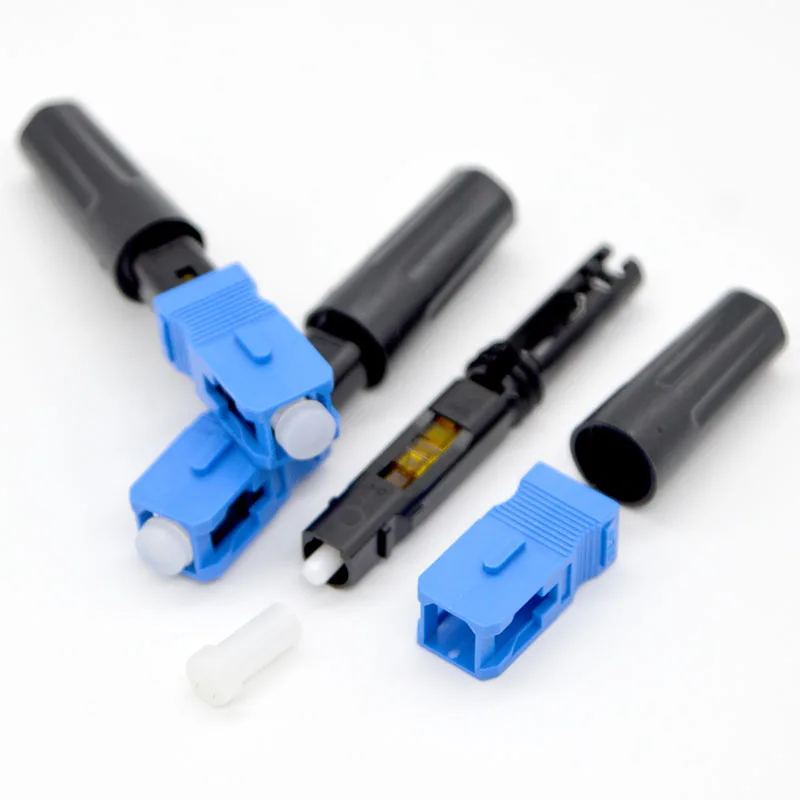

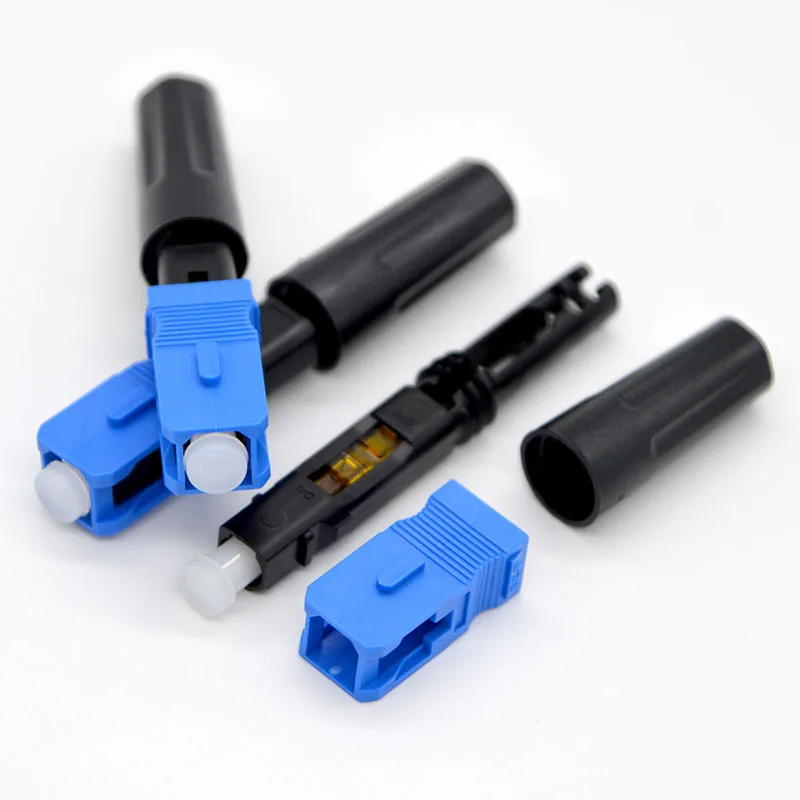

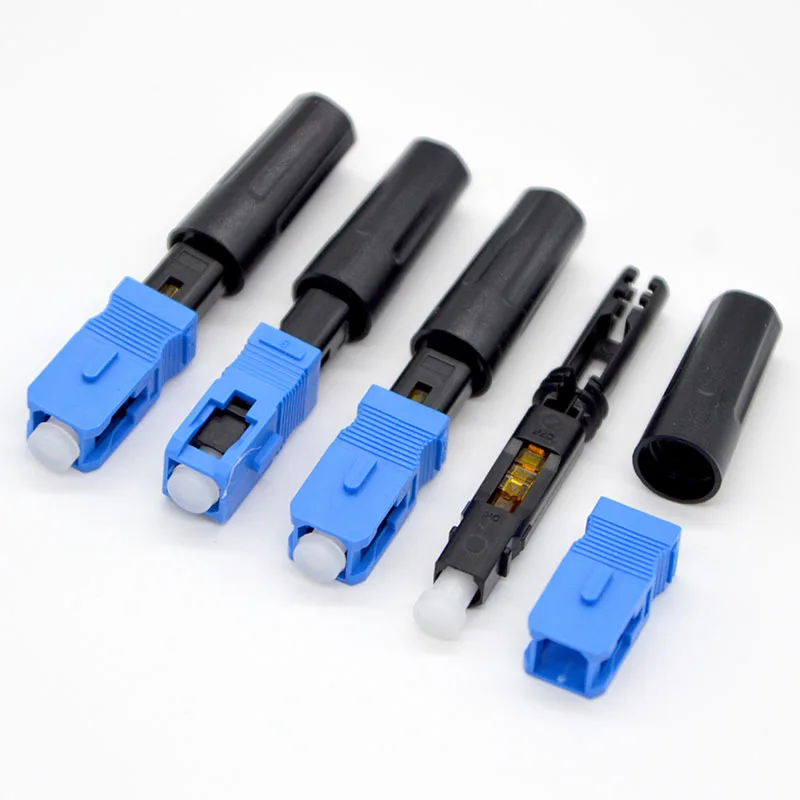

200PCS FTTH Single Mode Optic Fiber Fast Connector 50mm Embedded SC/UPC/APC Quick Connector Wholesale Free Shipping Brazil
Model SC/APC, radio and television dedicated. The reliability of the optical fiber clamping is very good, the stability is good, the insertion loss is small, the installation speed is very fast, and can be used again.

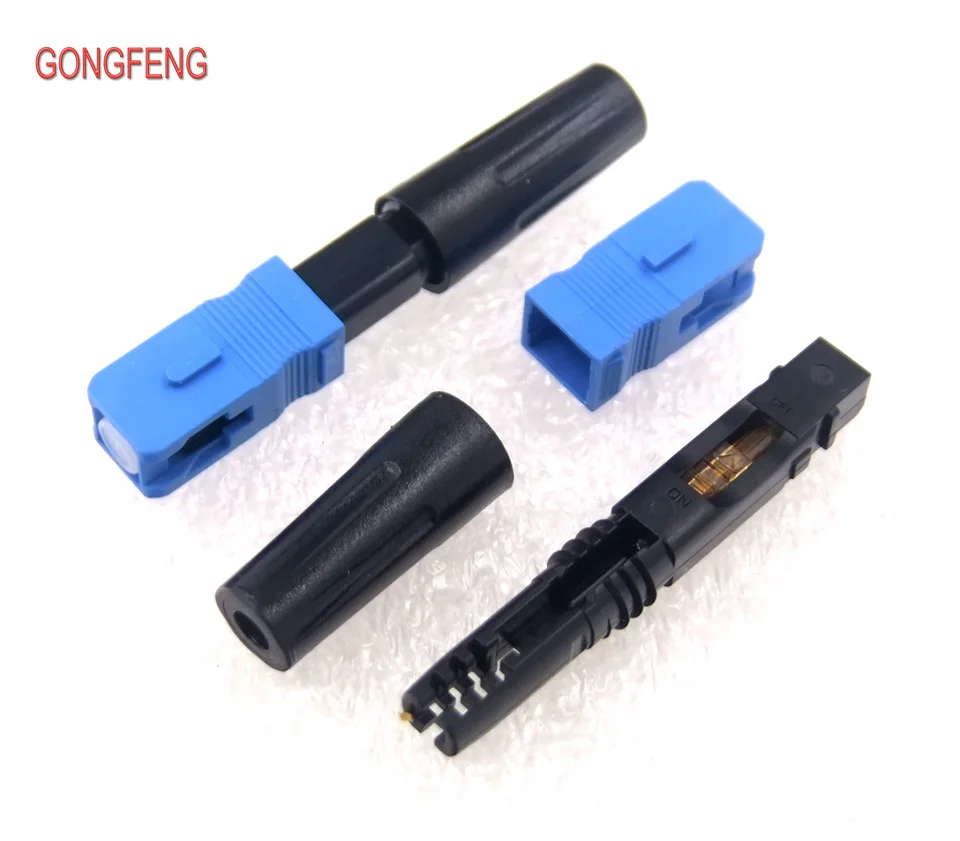

Product brand: GONGFENG

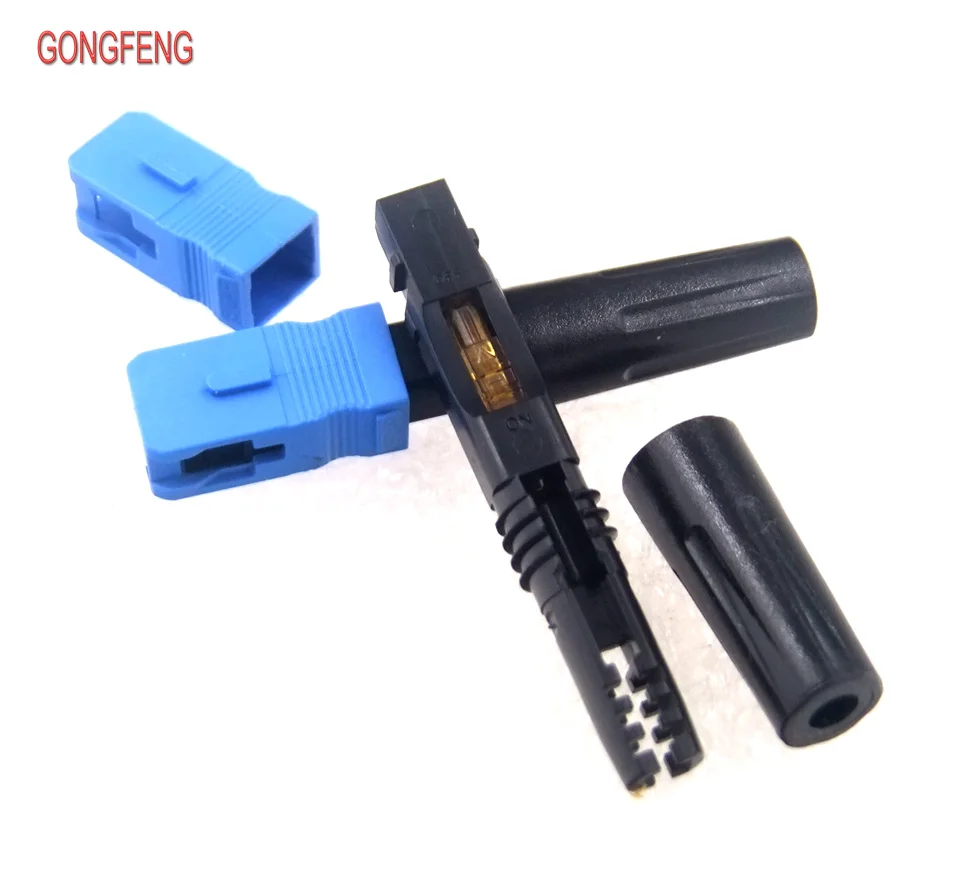

Product Name: embedded Single Mode fiber optic connector

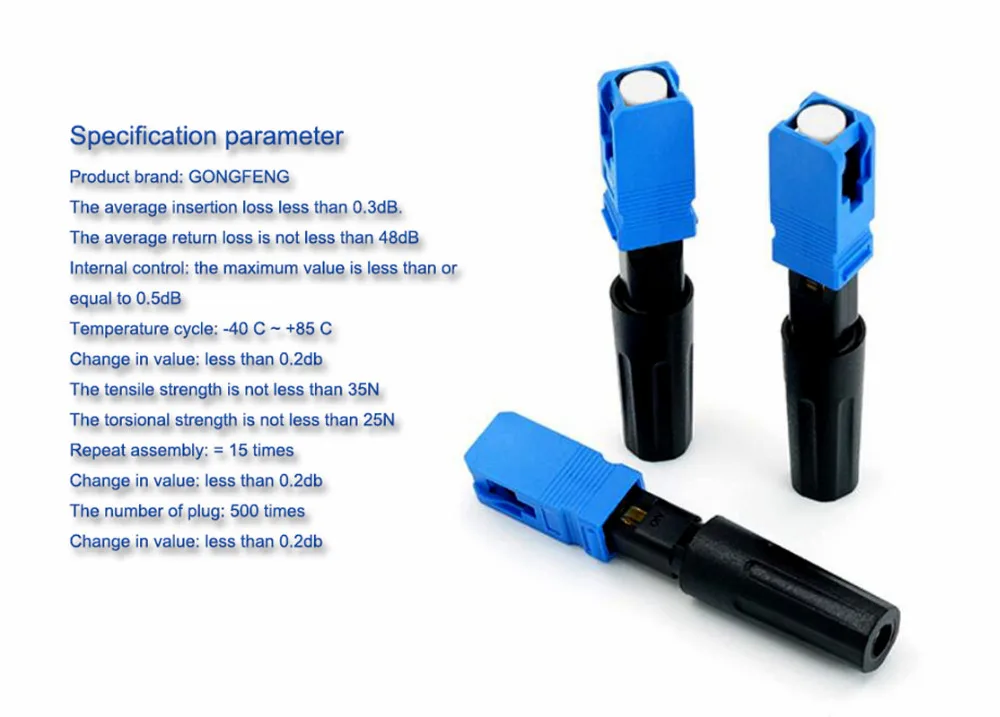

Product parameters

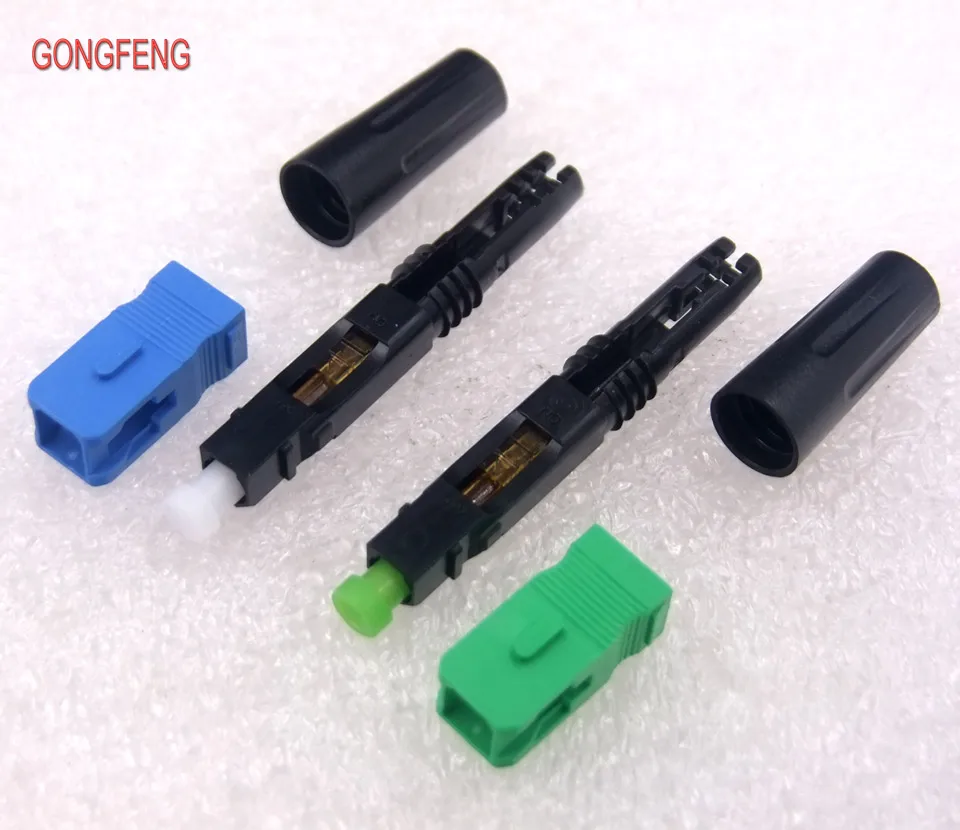

Item No: SC/APC /UPC
Product length: 50mm
Fiber cutting length: 28mm
Repeat assembly times: 15 times
The average insertion loss less than 0.3dB.
The average return loss is not less than 48dB
Internal control: the maximum value is less than or equal to 0.5dB
Temperature cycle: -40 C ~ +85 C
Change in value: less than 0.2db
The tensile strength is not less than 35N
The torsional strength is not less than 25N
Repeat assembly:=15 times
Change in value: less than 0.2db
The number of plug: 500 times
Change in value: less than 0.2db
Operating procedures: first screw nut, then lock switch
Two in one coating layer peeling device: the front side of the long open peeling coating layer, the negative length cutting.
Guide rail fixed length: fixed on the cutting knife, accurate length 28mm cutting length.
As long as the correct use, can further guarantee the success rate of 100%.
Two in one coating layer peeling device, the front stripping coating layer, the opposite side of the fixed length cutting.
Guide rail fixed length cutter.

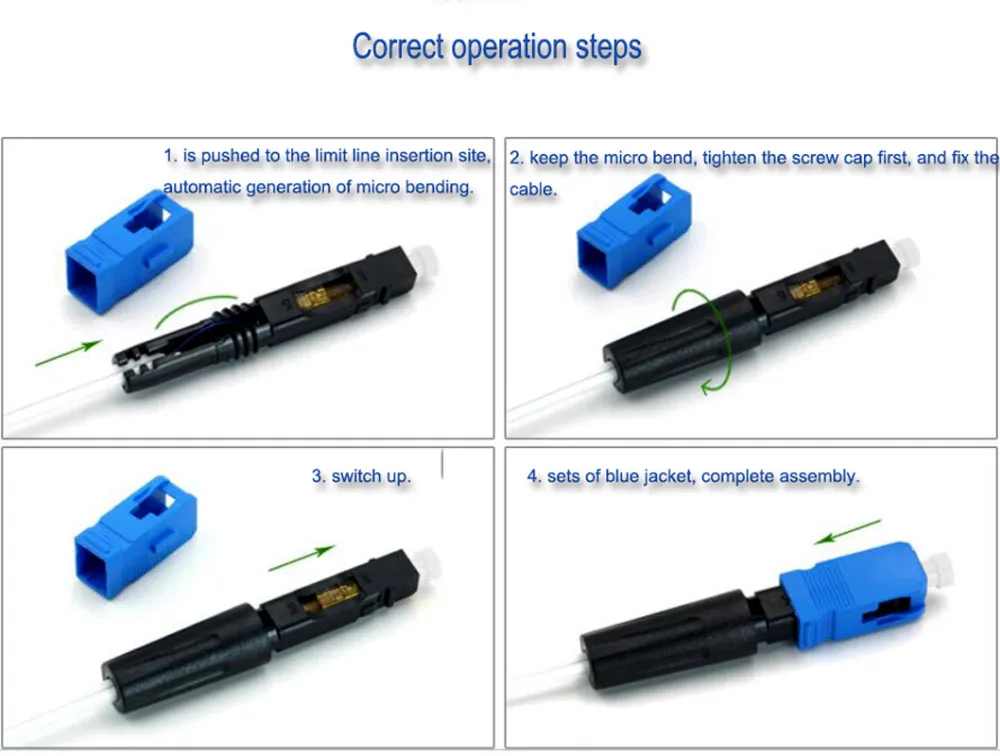

1 automatic micro bending

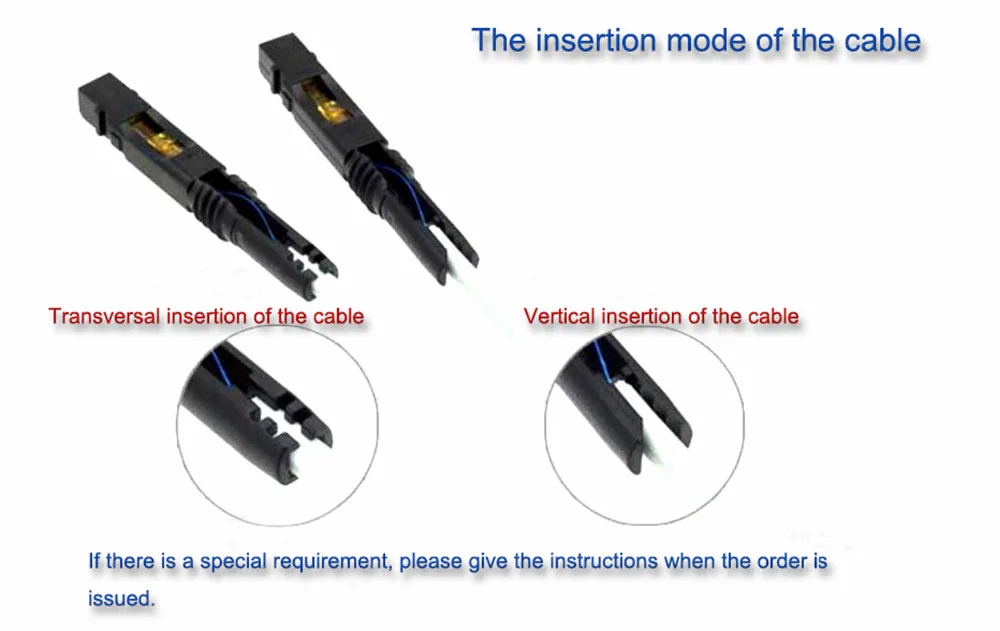

Insert the fiber, Flexer pushed to the limit point, automatic generation of micro bending.
2 tighten the nut,
To keep the fiber micro bend, tighten the nut
3, on the switch, and then lock the switch, correction of the end face, confined space
4, pay attention to the direction of the green jacket, sheathed on the sleeve, the assembly is completed.
gift
Epoxy resin coated layer stripping unit 1 PC + rail fixed length 1 PCS
