Color
Model Number
Descripción

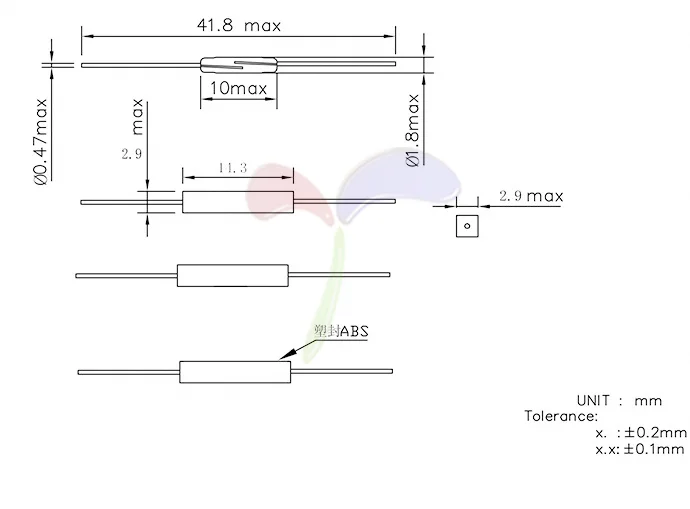

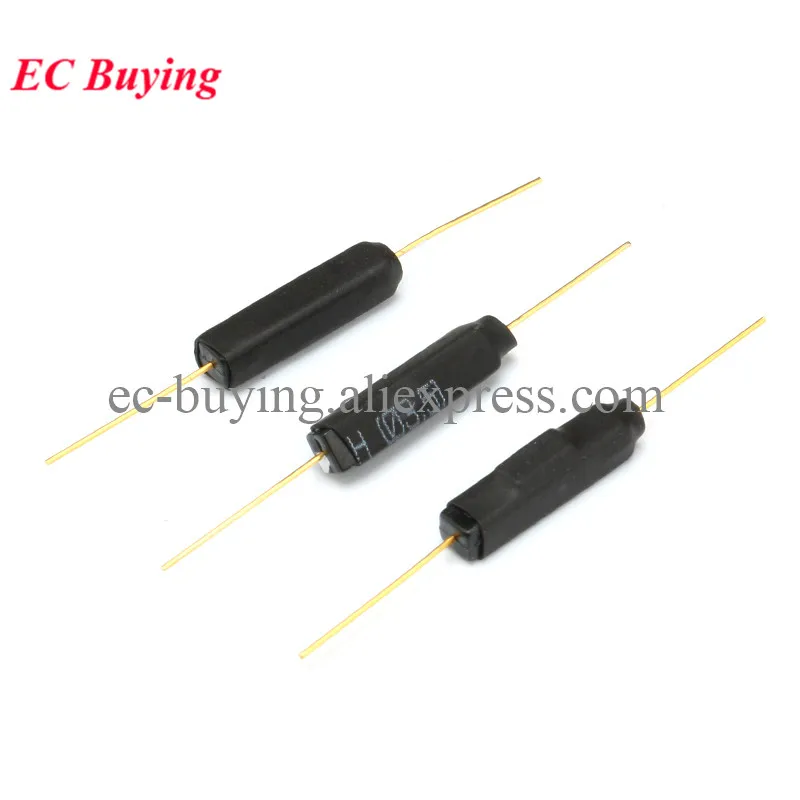

GPS-14A 14mm NO
Switching current: 0.5A
Switching voltage: 100V
Contact load: 10W
Start value: 10-35AT
Body: ABS black
Contact capacitance: 0.7PpF
Contact form: 1A (SPST-NO)
Insulation resistance: 10^10Ohms
Contact location: SYM
Resonance frequency: 4KHz
Contact material: Ru
Working temperature: -10~85℃
Contact resistance (initial): 100mOhms
Working frequency max: 100Hz
Insulation resistance min: 150Vdc
Release value: 5
High voltage resistance: 200VDC(AT 25)/250VDC(AT 25)
Action time: 1.0mSec.(Max)
Release time: 0.4mSec.(Max)
Electrical life: 10^8(5v,10mA)/10^5(24V,400mA)
Breakdown voltage min: 150V
Lead wire: Golden Horn/Silver Horn

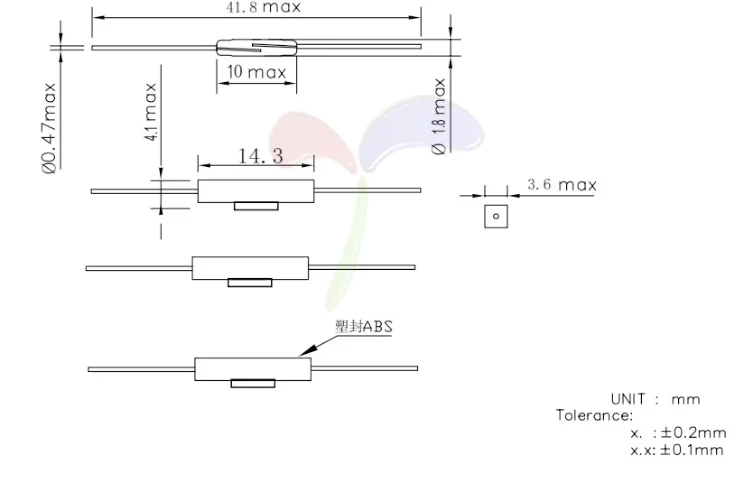

GPS-14B 14mm NC
Switching current: 0.5A
Switching voltage: 100V
Contact load: 10W
Start value: 10-35AT
Body: ABS black
Contact capacitance: 0.7PpF
Contact form: 1A (SPST-NO)
Insulation resistance: 10^10Ohms
Contact location: SYM
Resonance frequency: 4KHz
Contact material: Ru
Working temperature: -10~85℃
Contact resistance (initial): 100mOhms
Working frequency max: 100Hz
Insulation resistance min: 150Vdc
Release value: 5
High voltage resistance: 200VDC(AT 25)/250VDC(AT 25)
Action time: 1.0mSec.(Max)
Release time: 0.4mSec.(Max)
Electrical life: 10^8(5v,10mA)/10^5(24V,400mA)

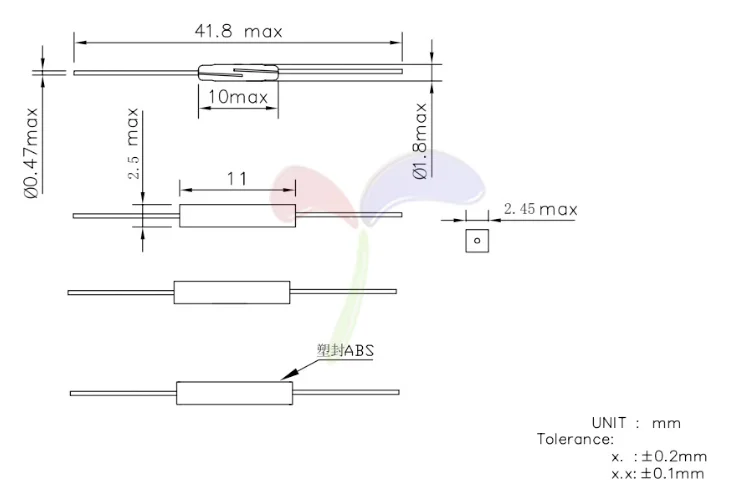

GPS-11A 3*11mm NO
Switching current: 0.5A
Switching voltage: 100V
Contact load: 10W
Start value: 10-35AT
Body: ABS black
Contact capacitance: 0.7PpF
Contact form: 1A (SPST-NO)
Insulation resistance: 10^10Ohms
Contact location: SYM
Resonance frequency: 4KHz
Contact material: Ru
Working temperature: -10~85℃
Contact resistance (initial): 100mOhms
Working frequency max: 100Hz
Insulation resistance min: 150Vdc
Release value: 5
High voltage resistance: 200VDC(AT 25)/250VDC(AT 25)
Action time: 1.0mSec.(Max)
Release time: 0.4mSec.(Max)
Electrical life: 10^8(5v,10mA)/10^5(24V,400mA)
Breakdown voltage min: 150V
Lead wire: Golden Horn/Silver Horn

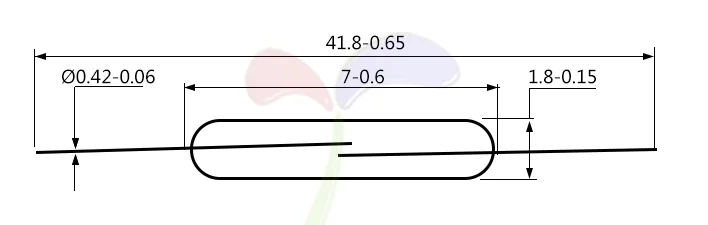

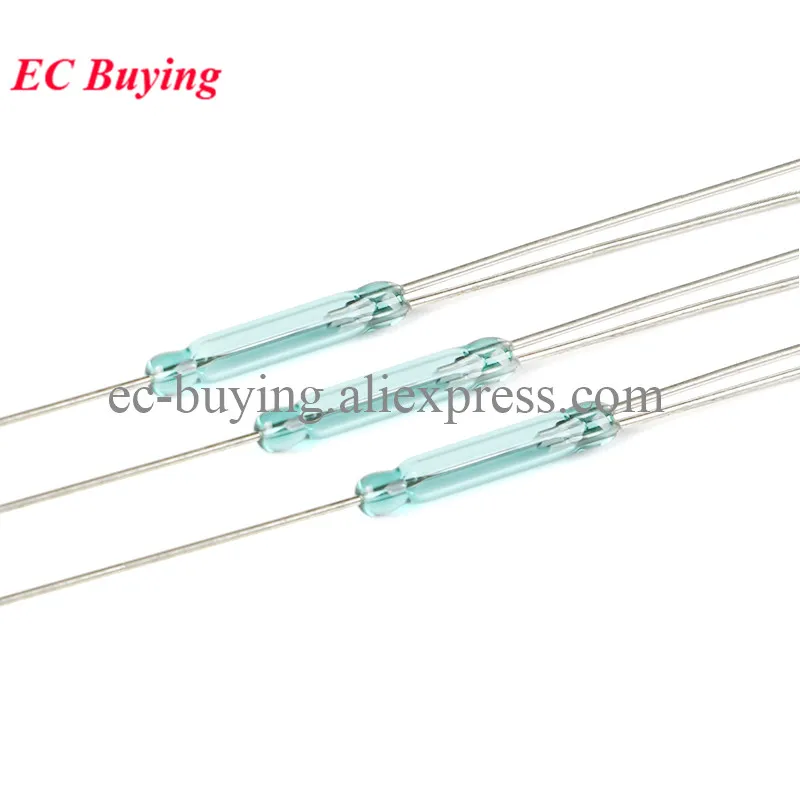

MKA-07101 1.8*7mm
Switching current: 0.1~0.2A
Switching voltage: 100~125V
Contact load: 10W
Start value: 10-35AT
Contact method: A
Working frequency max: 400Hz
Load: 24V-250mA-106
Release time: 0.4ms
Electrical life: 5v-10mA -2*106
Bounce time: 0.2ms
Contact capacitance: 0.3pF
Action time: 0.6ms
Reset sensitivity: 5AT
Insulation resistance min: 0.6ms
Contact resistance max: 200mΩ

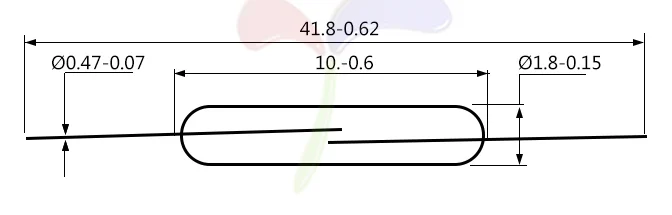

MKA-10110 NO
Switching current: 0.5A
Switching voltage: 100V
Contact load: 10W
Start value: 10-15AT
Contact form: IA SPST-NO
Contact resistance max: 100mΩ
Release value: 5
High voltage resistance: 220VDC (AT 5)
Contact capacitance: 0.7pF
Insulation resistance: 10^10Ω
Resonance frequency: 4KHz
Working temperature: -55℃~+120℃
Electrical life (resistive load): 10^8(5VDC,19mA,400mA)/10^5(12VDC,400mA)
MKA-14103 NO
Switching current: 0.5-1A
Switching voltage: 100-220V
Contact load: 10W
Start value: 7-35AT
Contact method: A
Resistance: 450Ω
Working frequency max: 100Hz
Response frequency: 4000HZ
Load: 24V-400mA-5X105
Release time: 0.4ms
Electrical life: 5v-10mA -1x108
Bounce time: 0.2ms
Contact capacitance: 0.3pF
Action time: 1.0ms
Reset sensitivity: 5AT
Insulation resistance min: 1010Ω
Contact resistance max: 100mΩ
