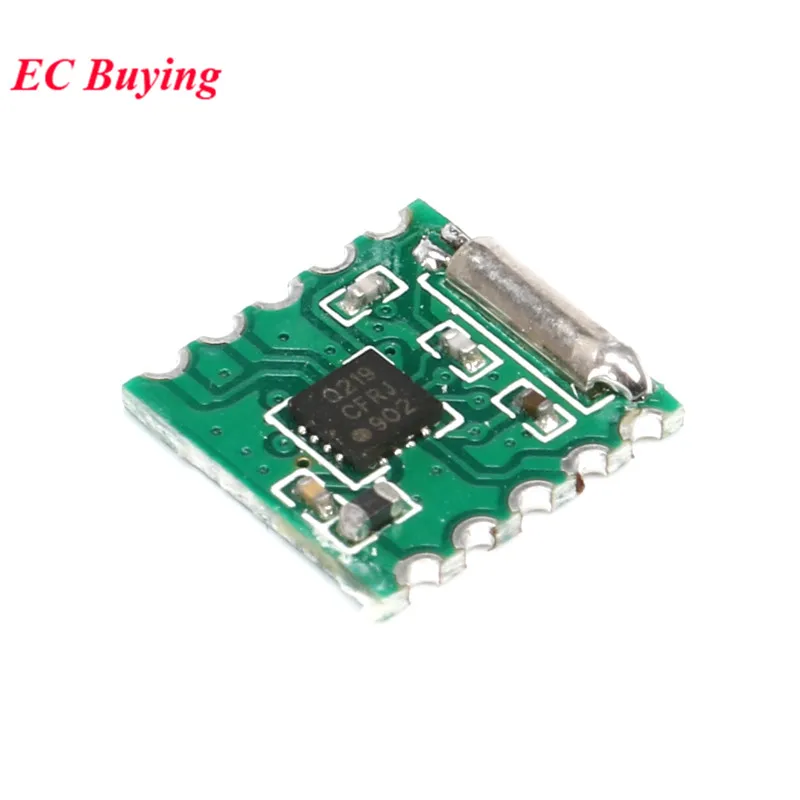

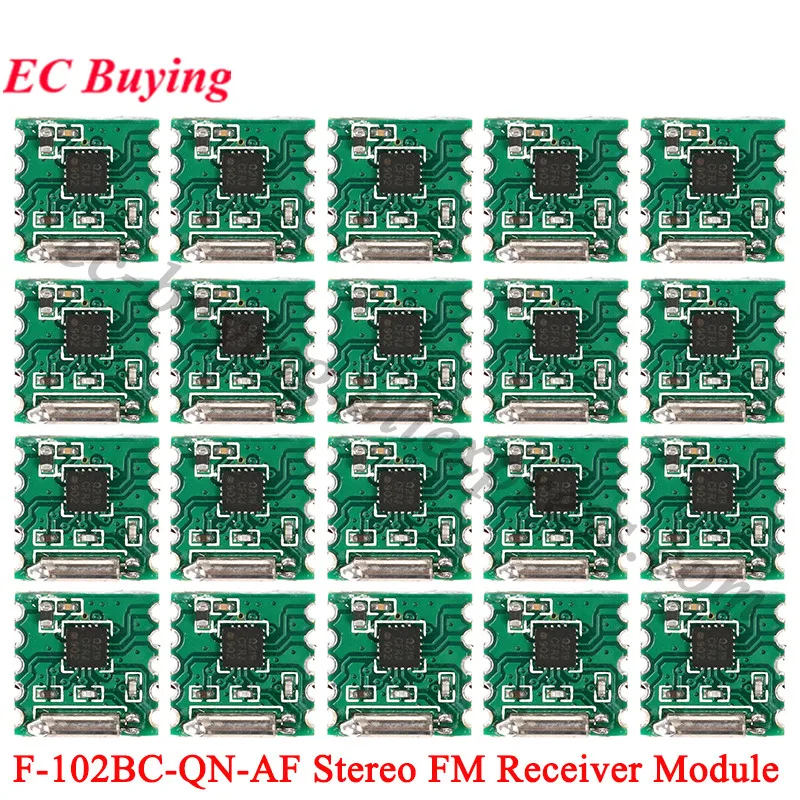

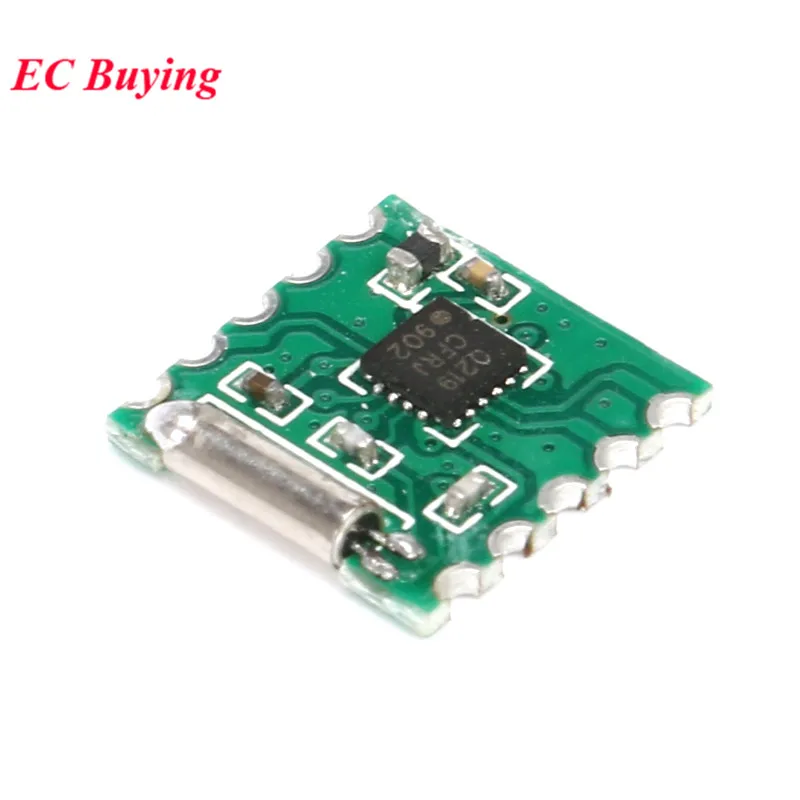

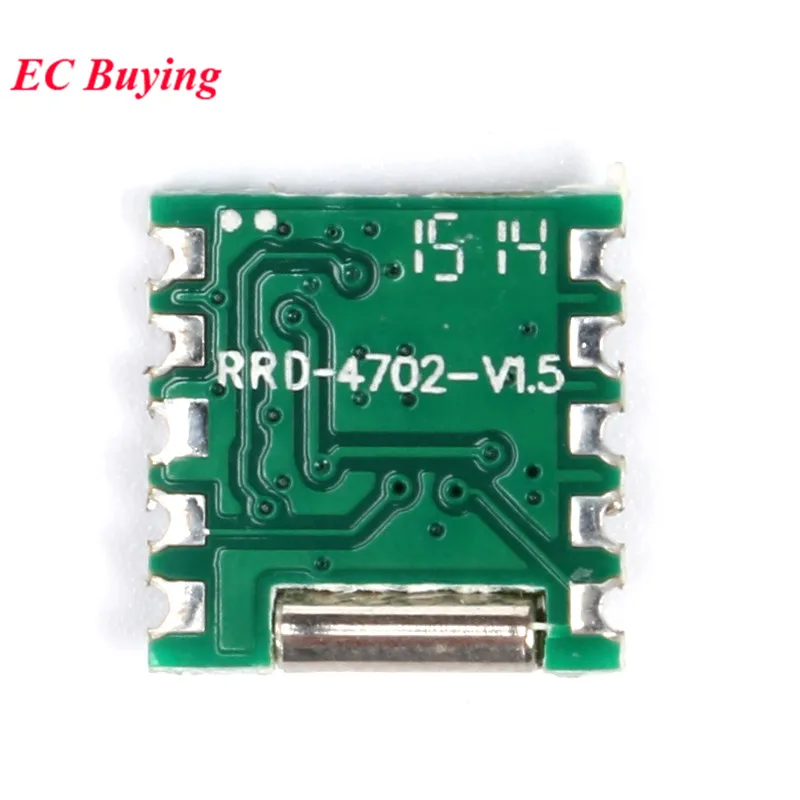

20 piezas/1 unidad F-102BC-QN-AF módulo receptor FM estéreo silicona SI4702 Chip TJ-FL102BC-V1.5 Placa de Radio MP3 MP4

FM Receiver Module Silicon SI4702 Chip TJ-FL102BC-V1.5 Radio Module MP3 MP4 FM Ontvanger MP3 MP4 Multimedia Speaker

Features

• Advanced COMS technology

• High sensitivity, low noise, high anti-interference ability

• SEEK channel search method

• I2C bus interface

• Built-in LDO, wide voltage range 2.7-5.0VDC

• Software control built-in amplify circuit, output 1000mV audio power

• Built-in noise abtement, soft mute circuit

• With FM stereo function

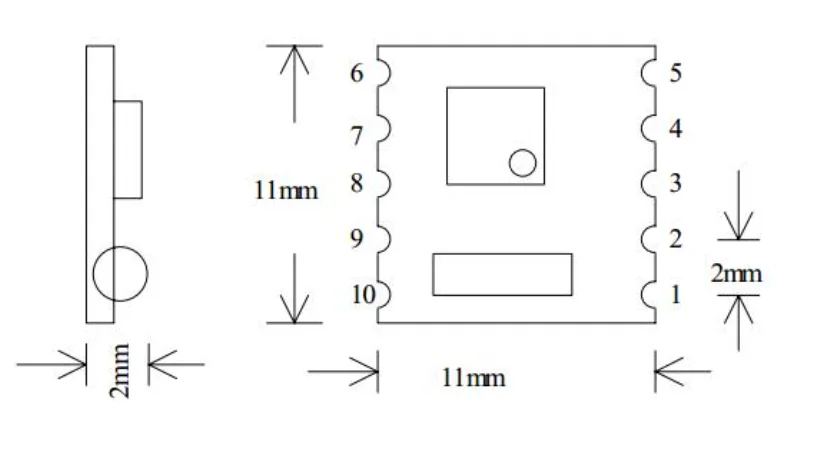

1. Power input terminal

2. Data I/O interface

3. Power supply ground

4. Right channel signal output

5. Left channel signal output

6. FM signal input

seven

eight

9. Set enabling end

10. Serial data clock
