Descripción
Our Advantage
1.CCC,CE&Rohs,ISO9001,FC,
2.Life span:more than 100000h
3.Excellent after-sales services with free repair whole life
4.MOQ: 1set
5.Prompt delivery: 3 working days
Specification
Module Back View
Resolution
64(H)×128(W)
Pitch
1.875mm
Density
284.444 pixels/m²
LED Arrangement
SMD1515
Driver Mode
32scan
Size
120(H)mm×240(W)mm
Mask
No mask
Electricity Parameter
Optical Ratings
Brightness
≥600cd/m²
View Angle
140 degree ( horizontal) 140degree(vertical)
View Distance
2m-100m
Gray Scale
8bits input, correction with 16bits
Display Color
16.7M
Brightness Adjustment
100 levels
Power Supply
Operation Power
AC100-240V 50-60HZ Switch-able
Maxim Power Consumption
200w
Average Power Consumption
50 w
Control System
Correction Scale Level
16bits
Frame Update Frequency
60Hz
Screen Refresh Frequency
960Hz
Gamma Correction
-5.0—5.0
Support Input
WIFI/RJ45/USB
Control Distance
Ethernet cable 100m, Wifi 20
Support VGA Mode
Not support
Color Temperature
5000-9300 adjustable
Brightness Correction
dot by dot, module by module
Reliability
Operating Temp.
-20℃- +60℃Celsius degree
Operating Humidity
10-65% RH
Operating Life
100,000 hours
MTBF
5000 hours
Continuous Working Time
≥72hours
Protection Level
IP20
Out of Control Pixel Rate
0.01%

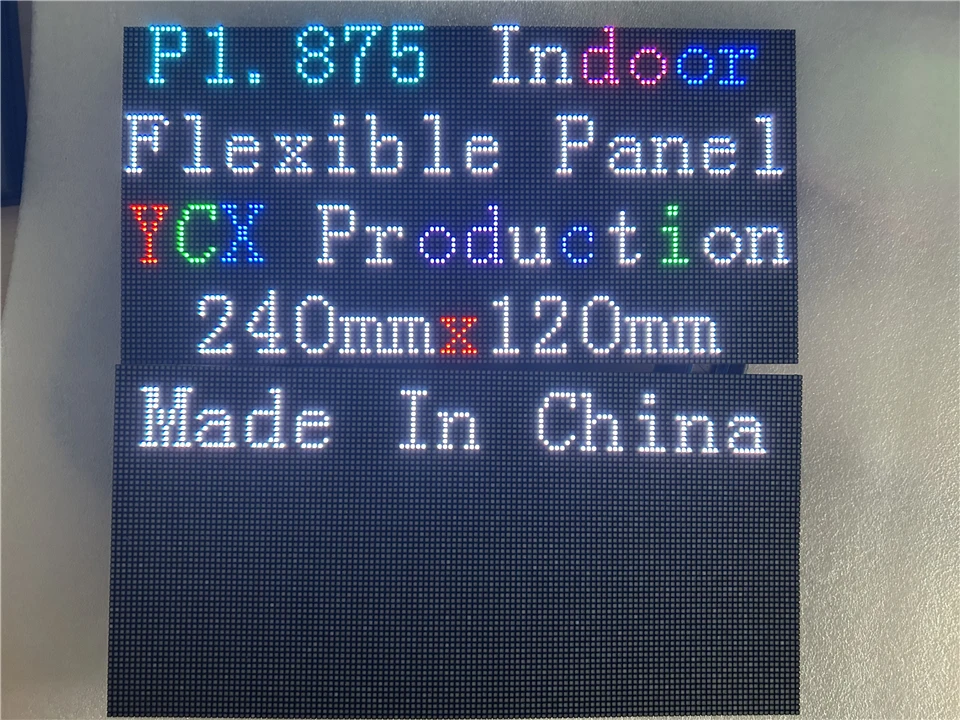

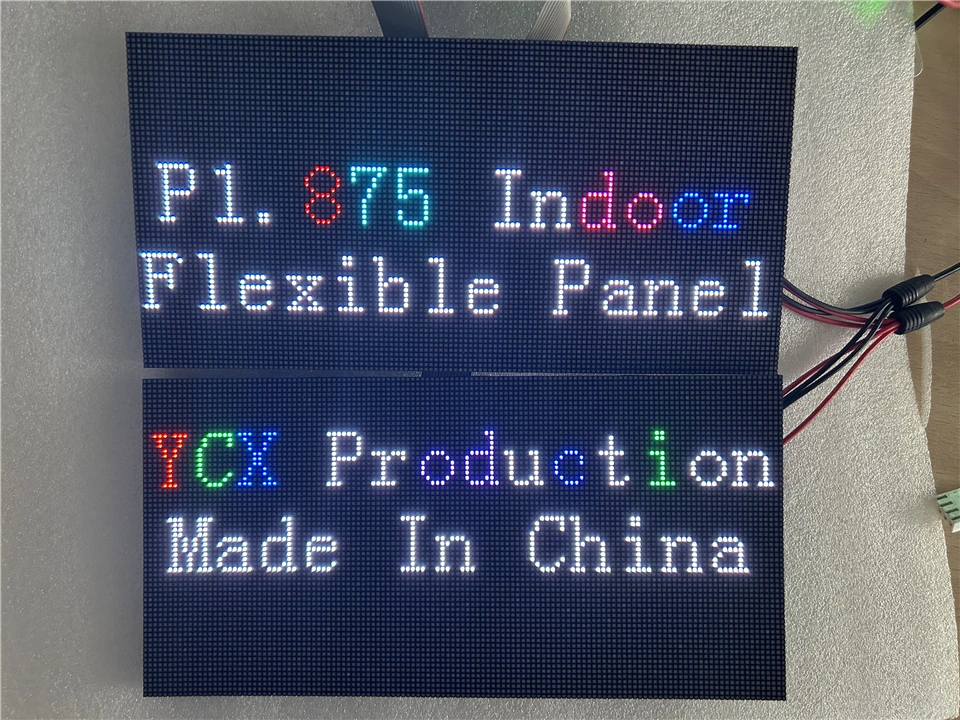

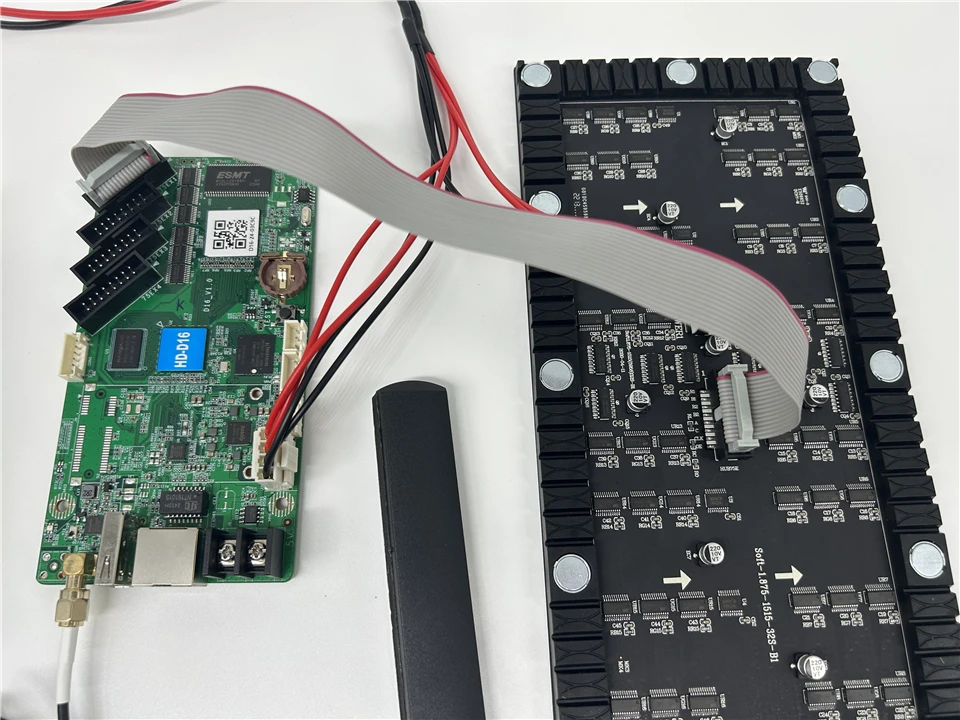

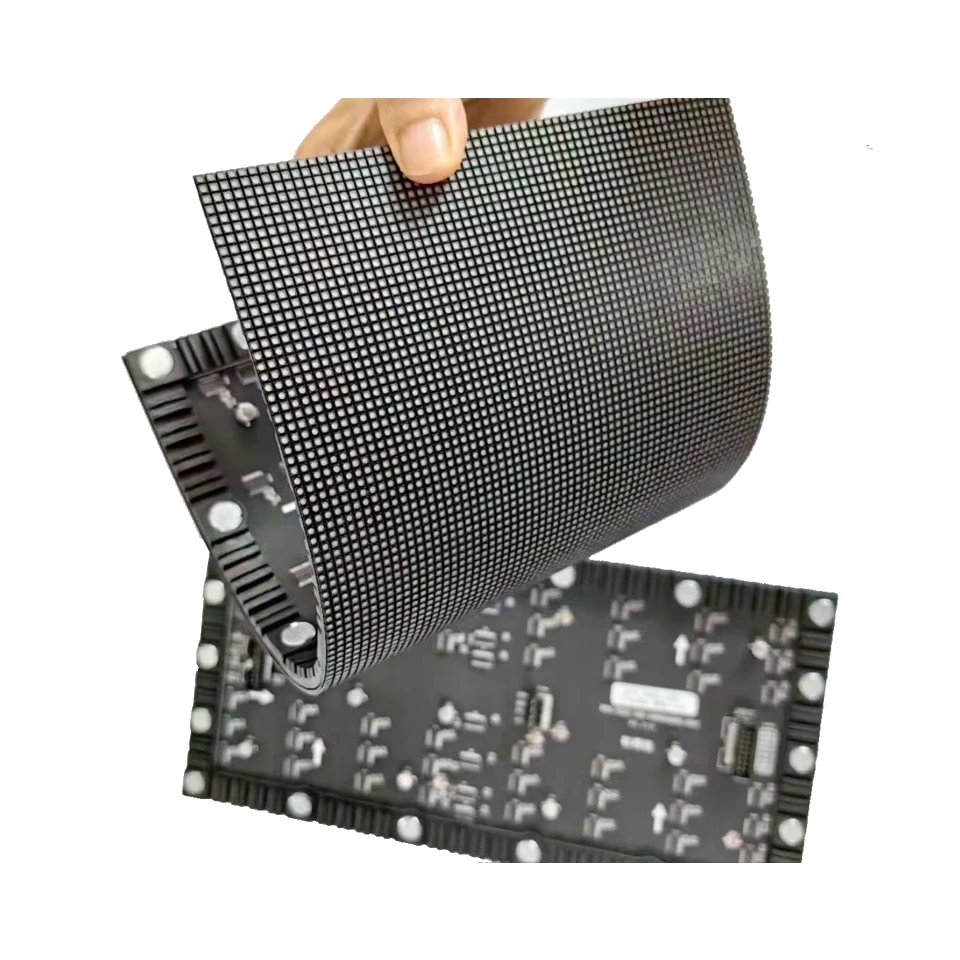

Pictures

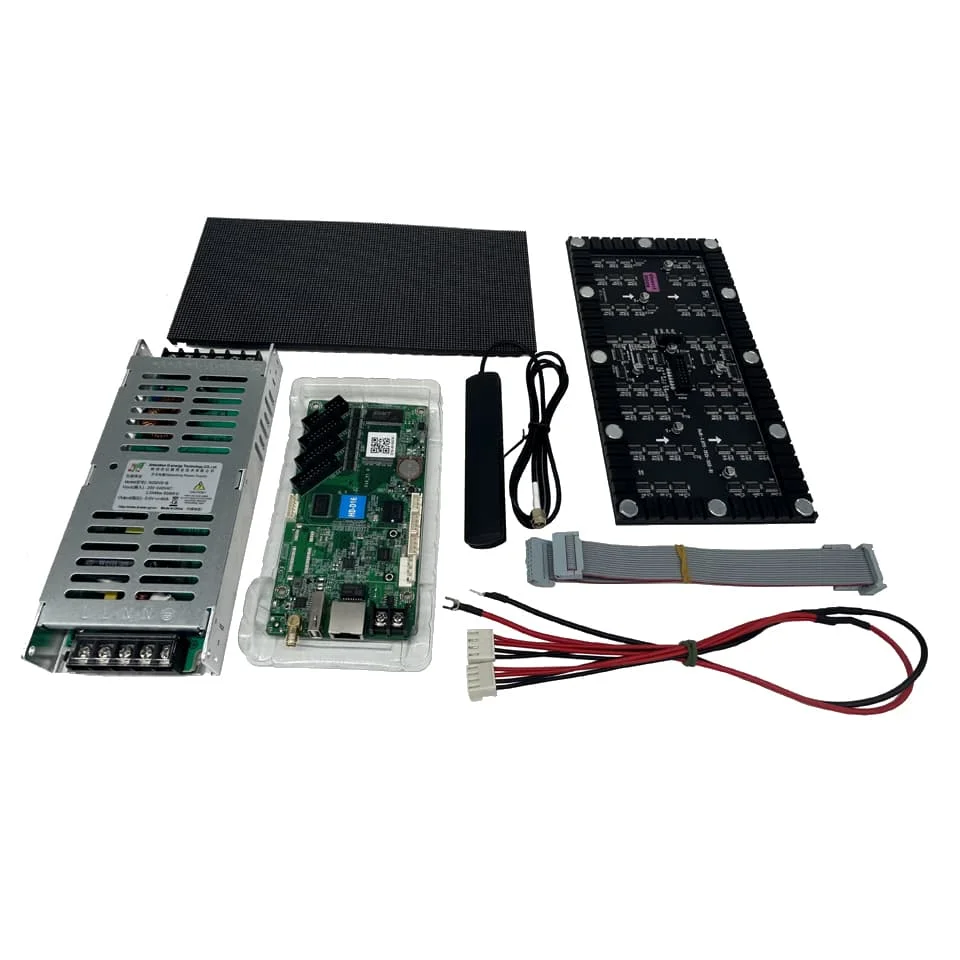

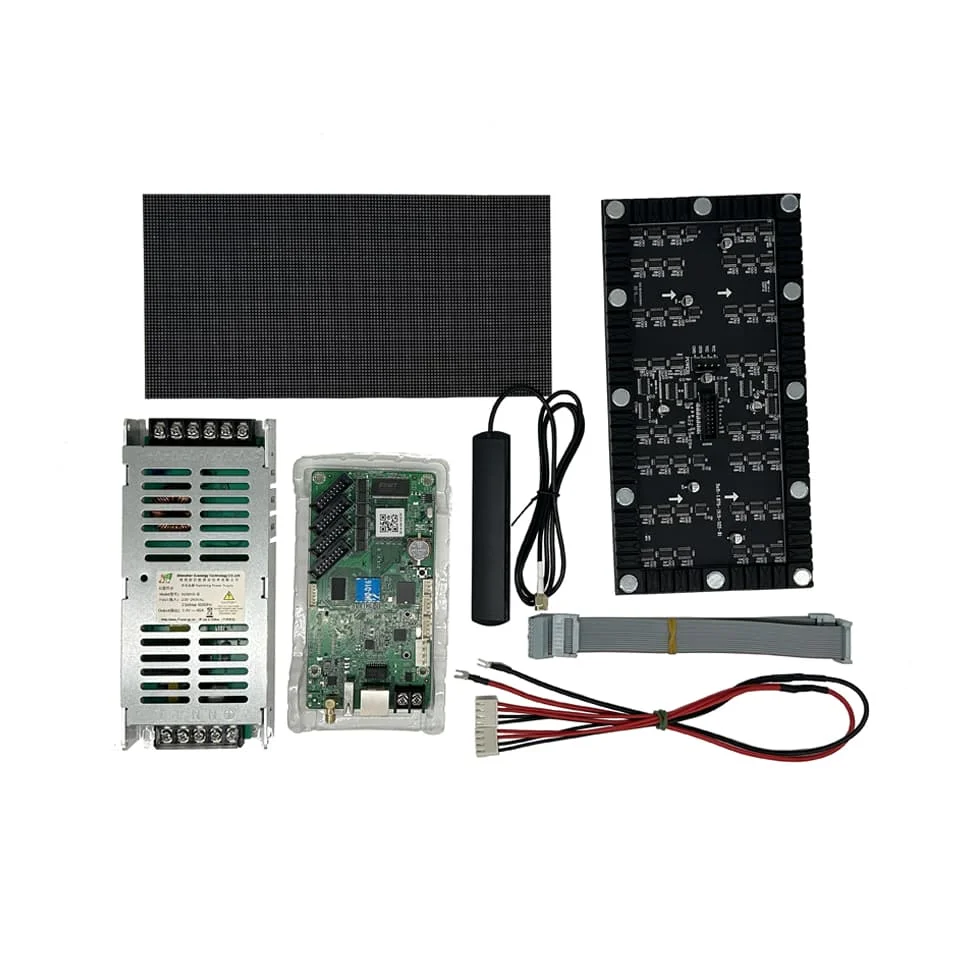

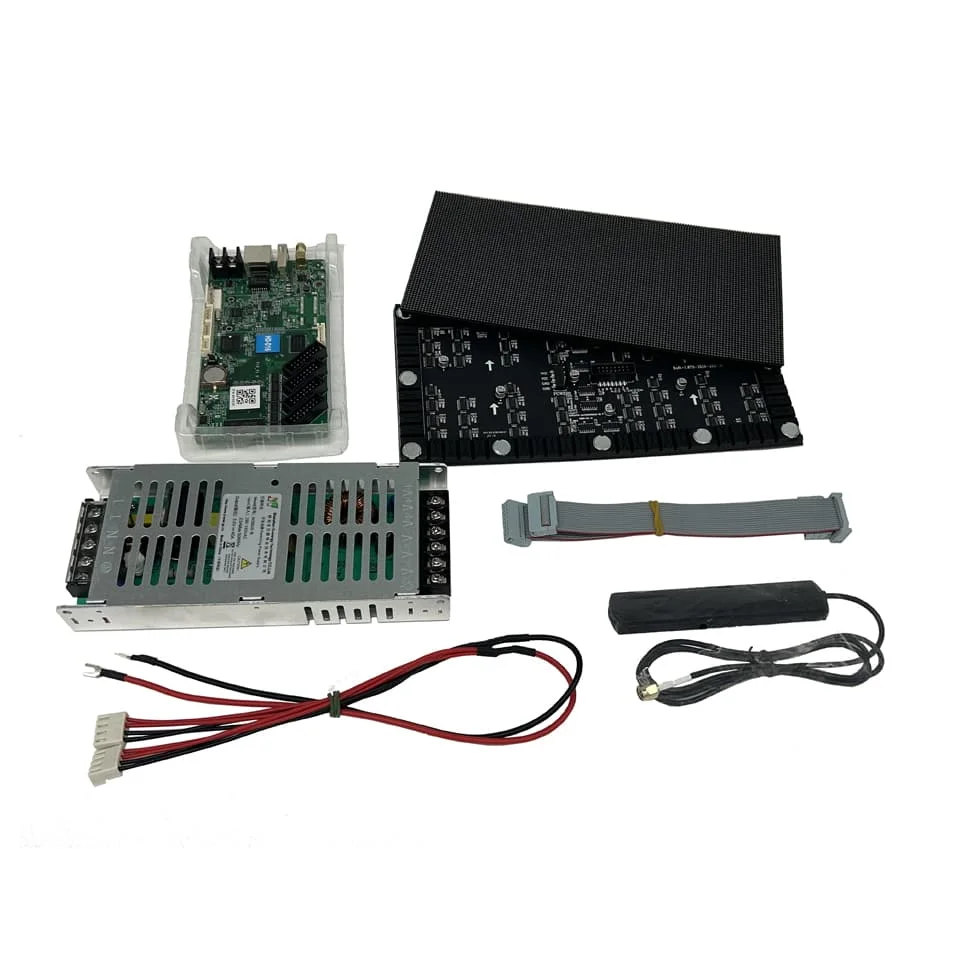

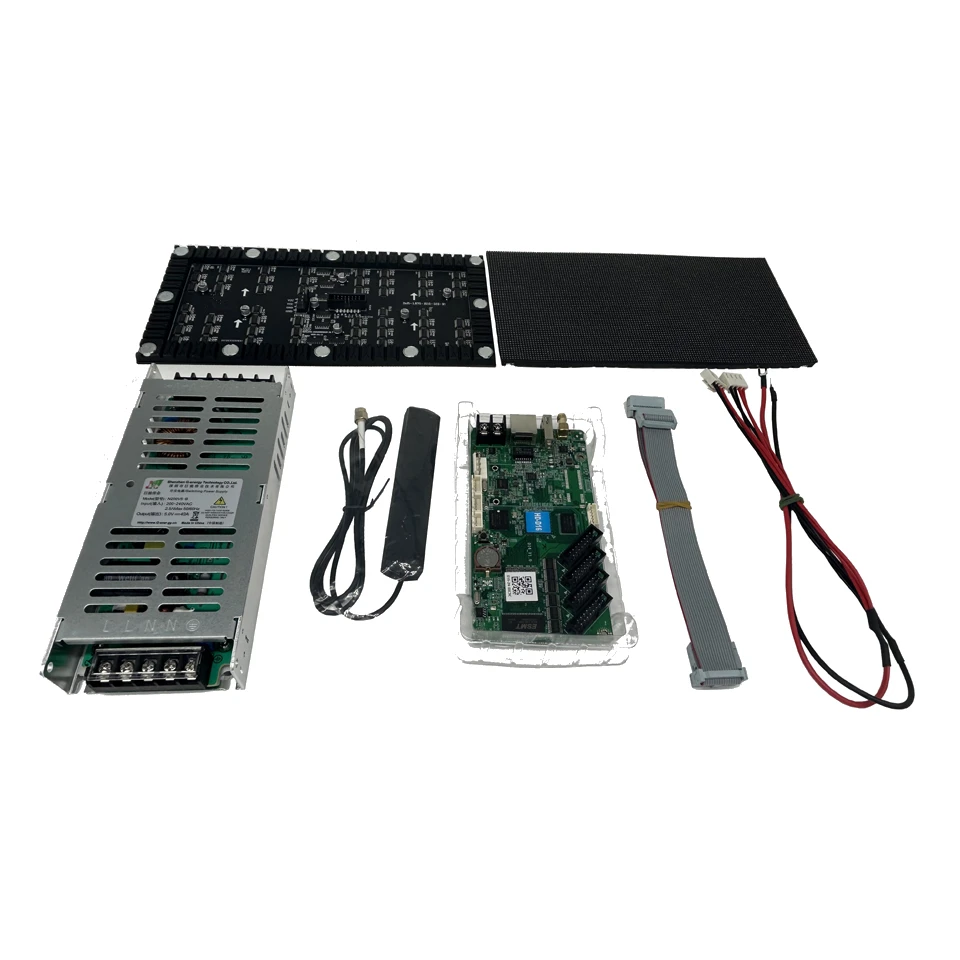

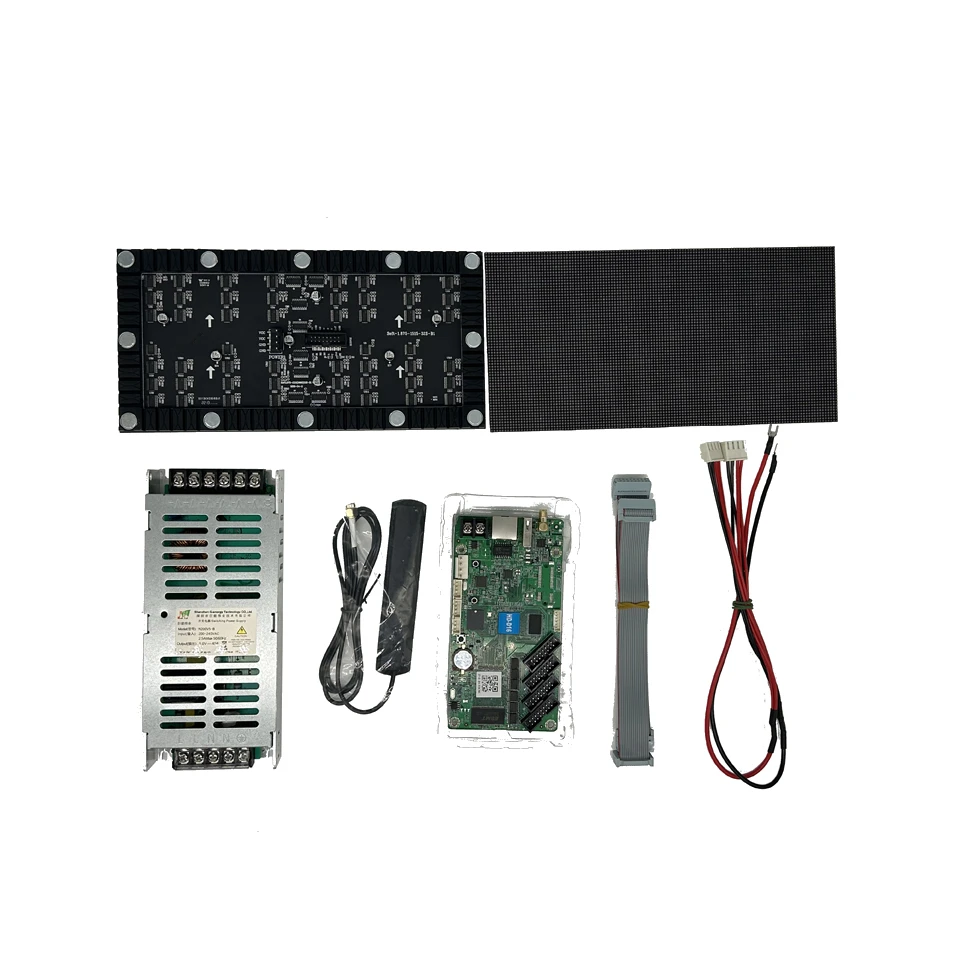

Products Include:
Good products without too much explain!
- Smaller pitch module without mask
- The data interface uses the conventional 75 interface
- SMD 1515 Black lamps
- The thickness of the PCB plate is two to three times that of the conventional module.
Hope you love and choose us ,thanks for your support
we'll try to do better and better in the future.
Have a nice day !!!
