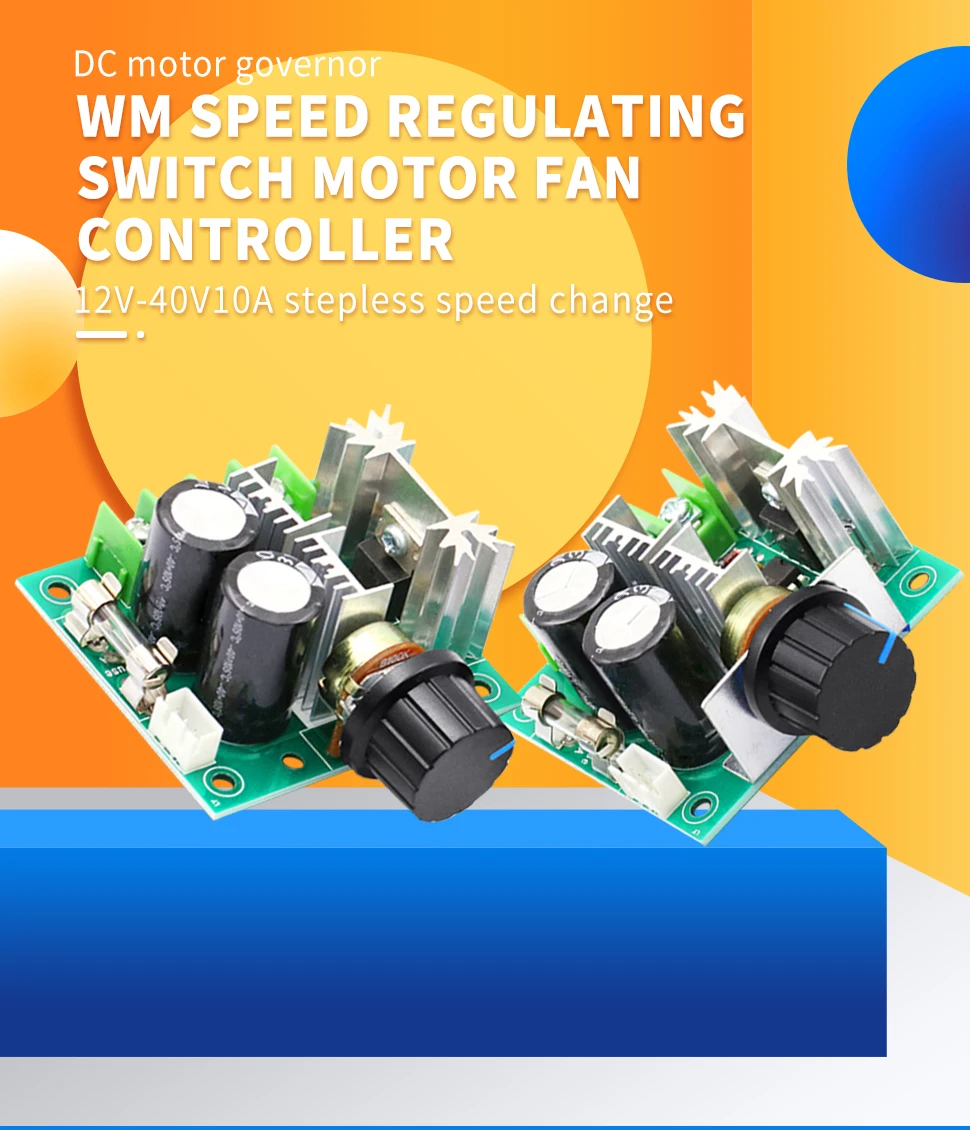

Product introduction
50v/1000uf large capacitance. Compared with other types of governors, the capacity of 100-220uf has obvious advantages.
The power tube uses ru7088, which is a big bull. You don't have to worry about moving your motor.
(parameter maximum drain current ID: 82a; maximum voltage VDS: 75V; open state resistance,
RDS (on):0.013ohm).
8500 high current terminal with the label of 300v20a is used for the terminal!
Product parameters
Input voltage: DC 12v-40v
Power: 0.01-400w
Current: rated current 8A
Maximum passing current 10A
Quiescent current 0.02A (standby state)
Frequency: 13khz
PWM pulse width speed regulation range: 10%-100%
Equipped with 10A fuse, with power reverse connection, control voltage overvoltage protection function and potentiometer
If the forward and reverse functions are required, the customer can connect the forward and reverse switches externally.

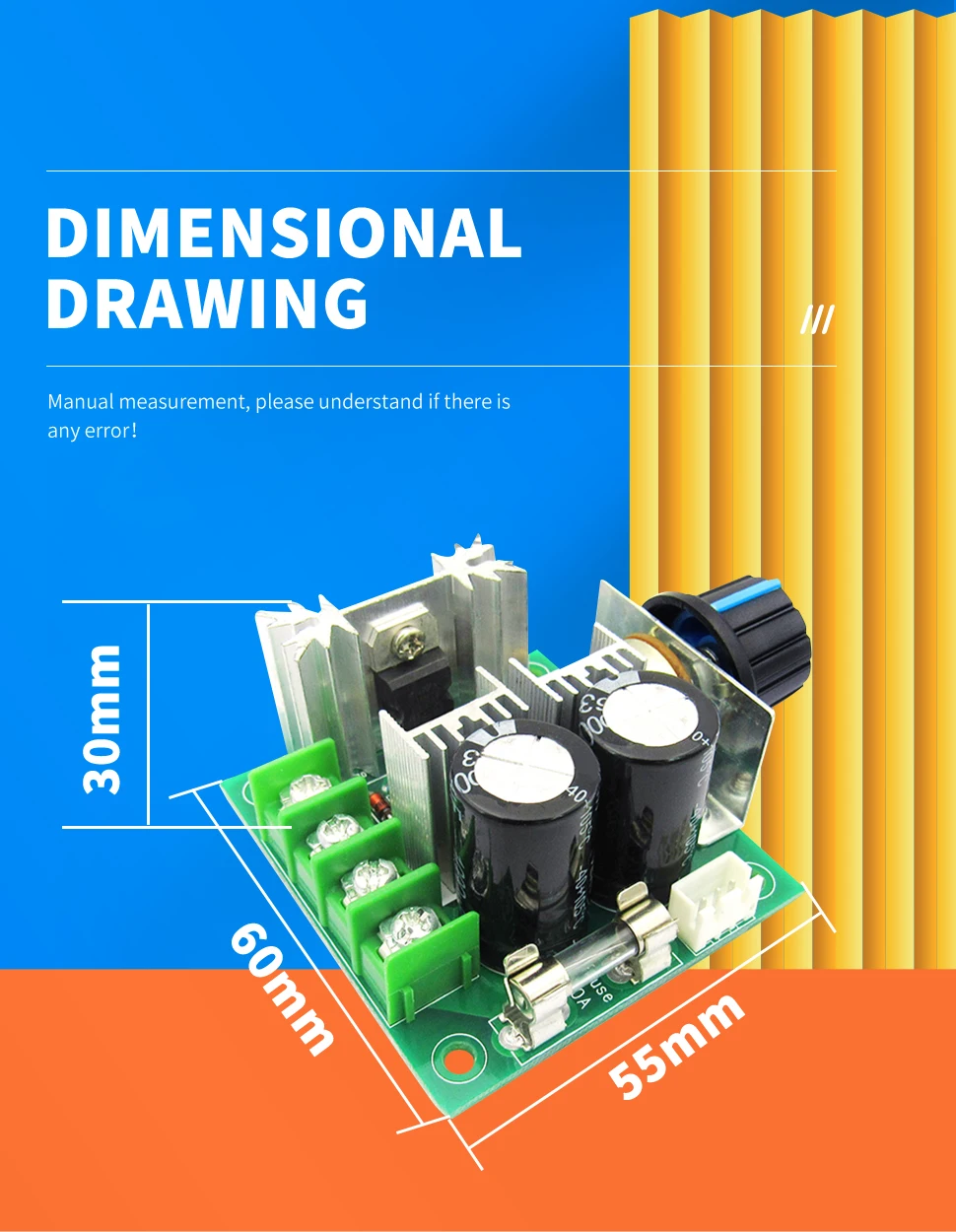

Size: 60*55*30mm
Four locating holes 5mm from the edge of the plate
The diameter of locating hole is 3.2mm.
Weight: 69g
On board 10A fuse with 5*20mm standard size

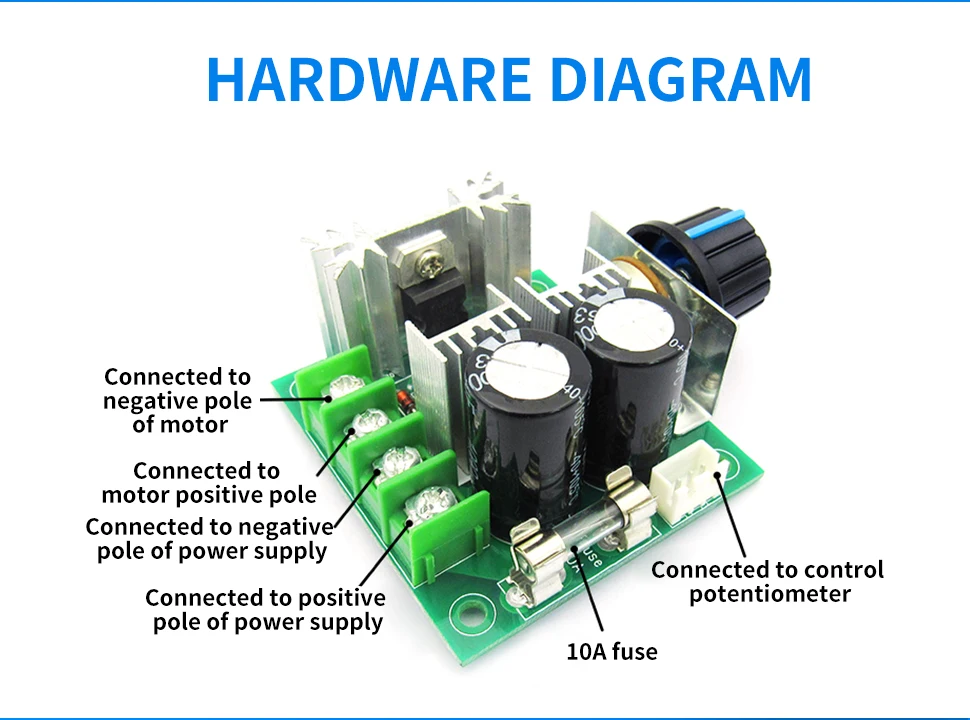

Wiring type: fence terminal block
Knob specification: 100K
matters needing attention
1. Do not reverse the positive and negative terminals of DC power supply, otherwise the governor may be damaged.
2. The motor can be positive or negative. When the running direction is inconsistent with the expectation, the direction can be changed by adjusting the line sequence.
3. Adjusting the potentiometer knob can change the governor output duty cycle and the motor speed.
