1pc / 2pcs DC3.5-6V 1A 3A Brushed Motor Speed Controller Motor Reducer Micro Motor Drive Module With Wire Brush Controller ESC

Features:

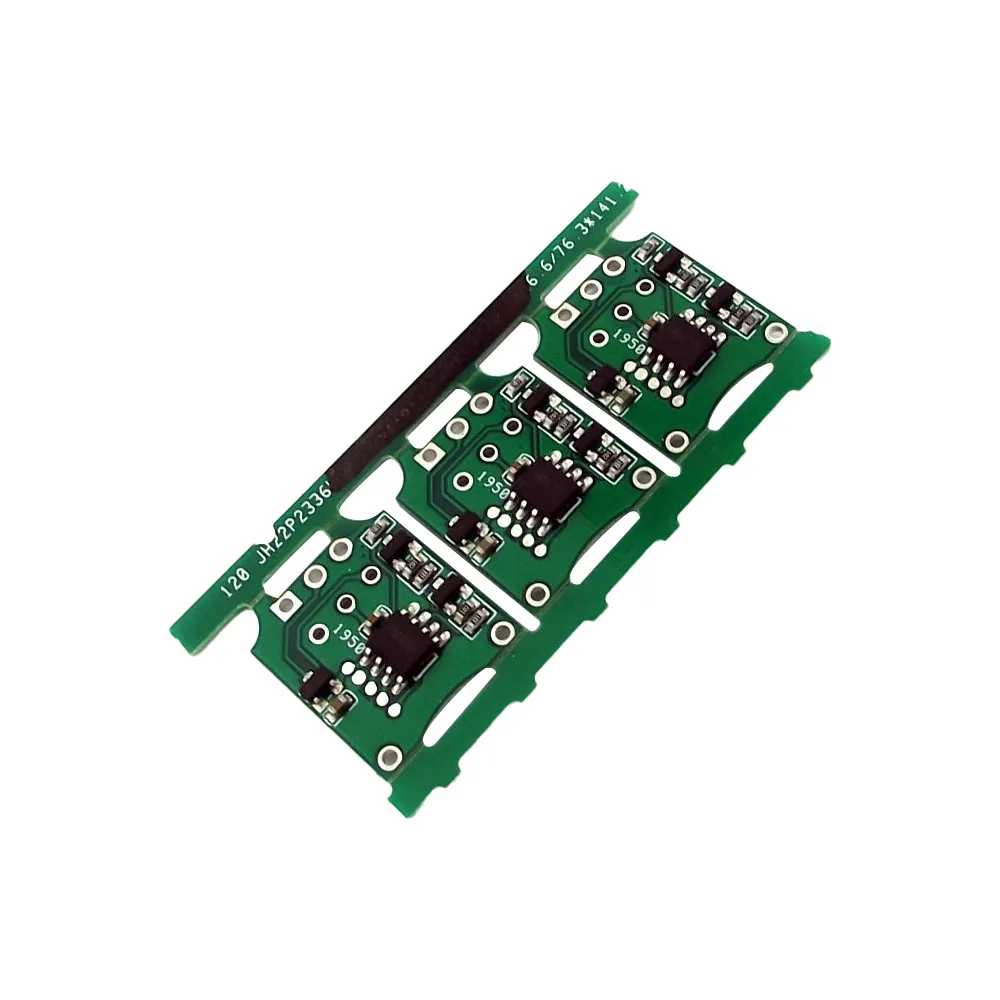

1.The product adopts high-quality PCB material with guaranteed quality
2.Compatible with various remote controls and receivers, with smooth and delicate speed control feel and good linearity
3.Easy ESC with brush, 1A and 3A current options
4.Stable product performance and long service life
5.Application scope: Mini cars, mini aircraft models, mini drones, mini multi rotor electric tuning, 360 degree continuous rotating servo, micro motors, 360 degree continuous rotating servo, digital circuits, no need for potentiometer adjustment, saving time and effort

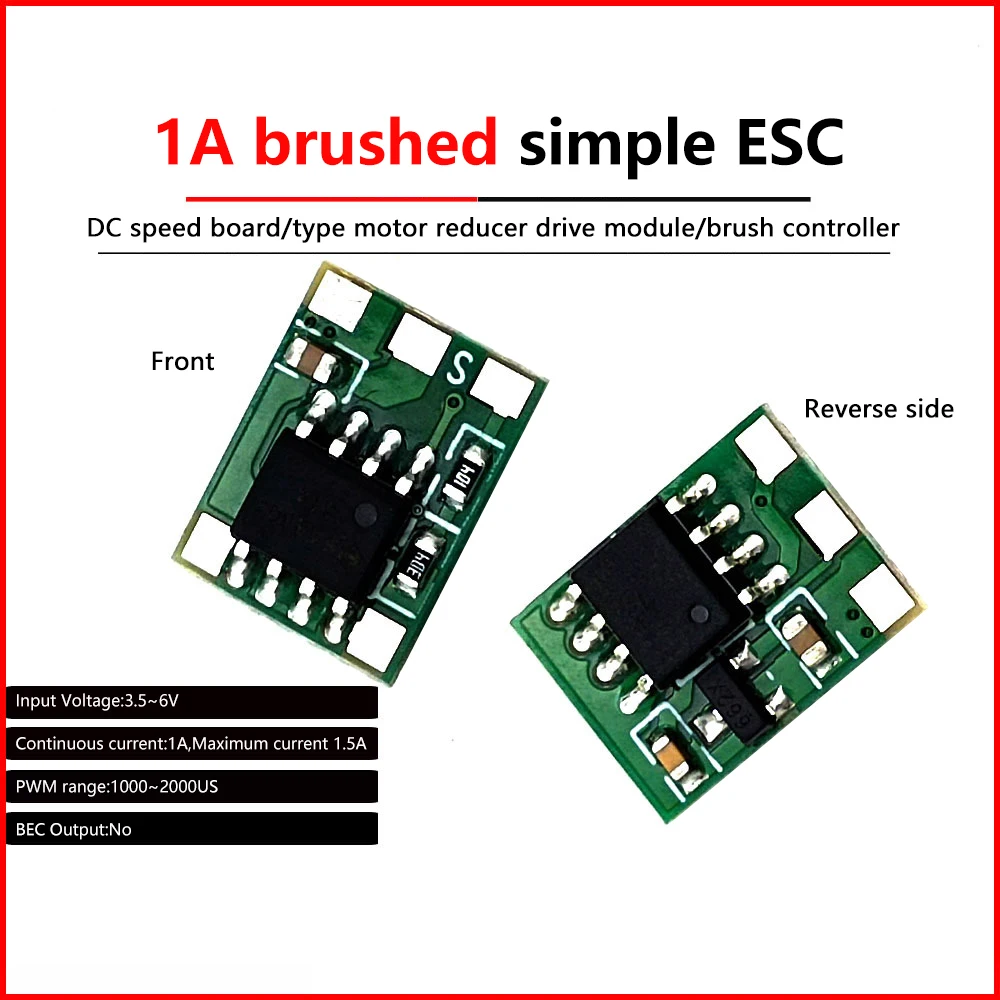

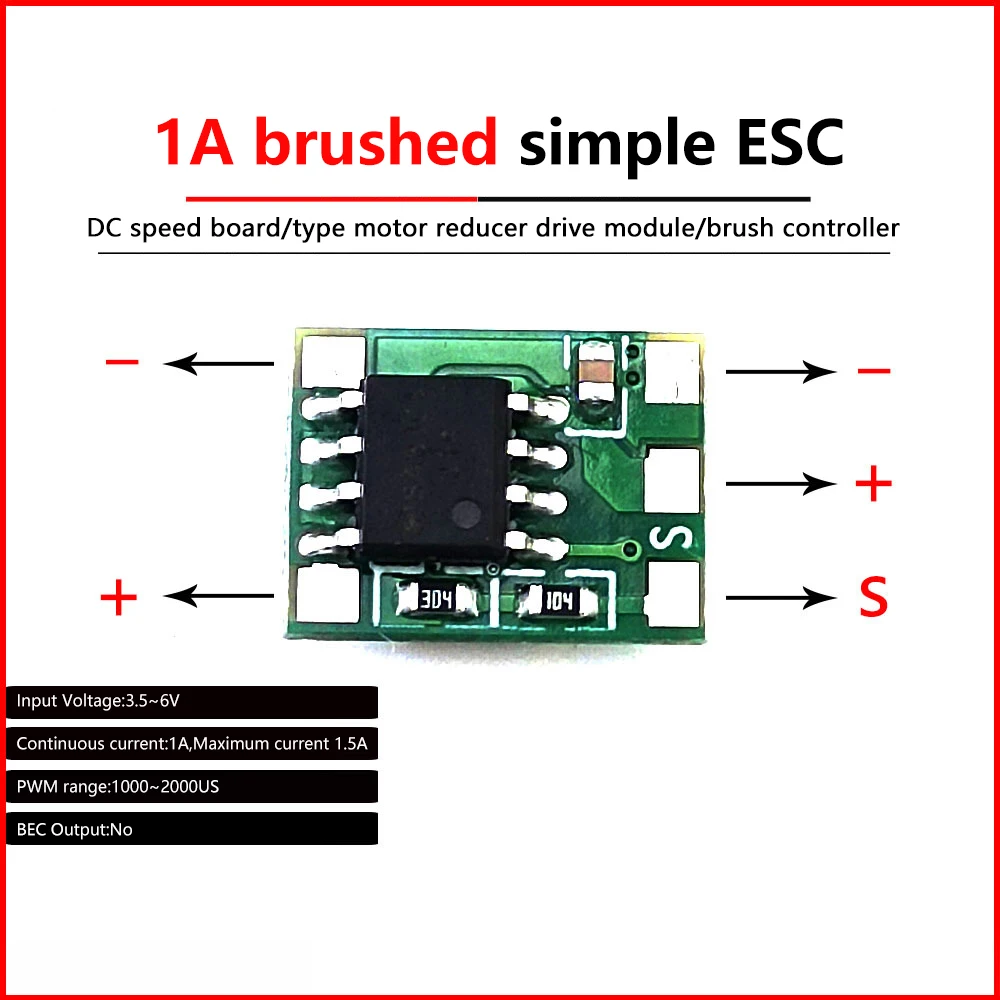

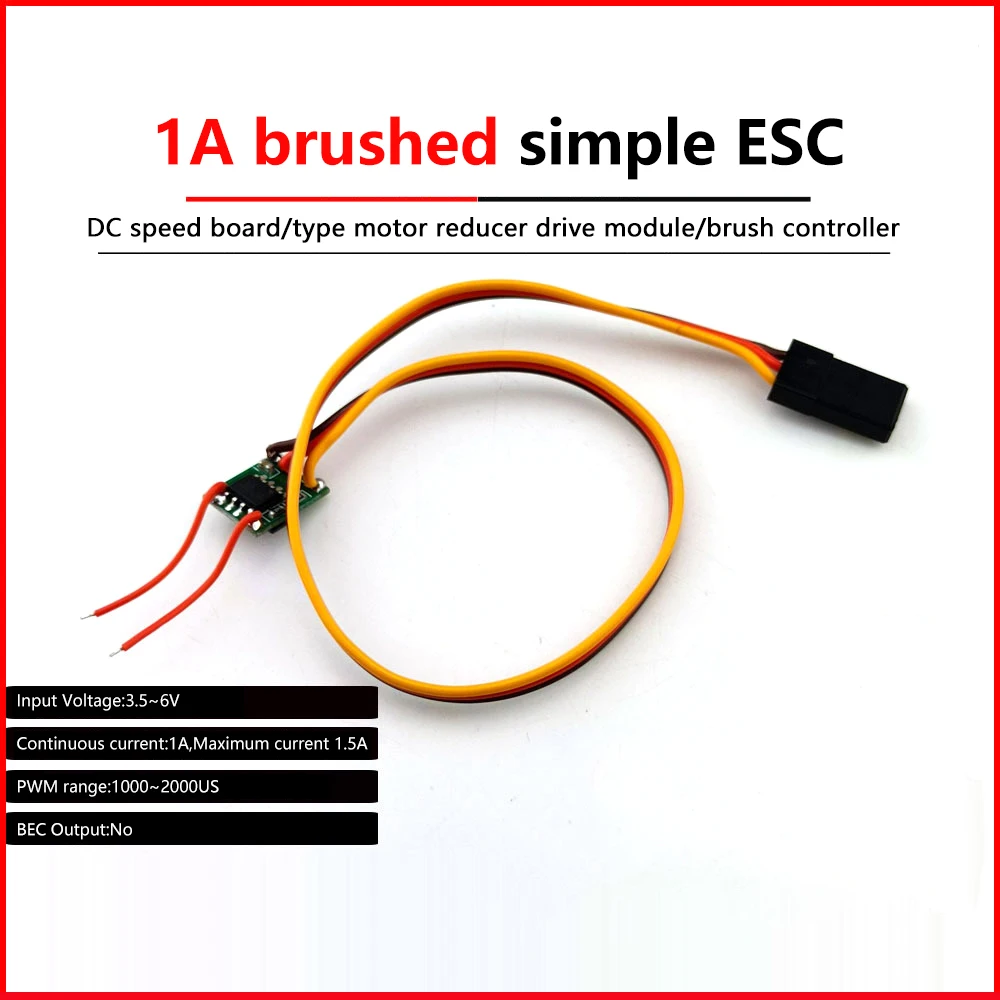

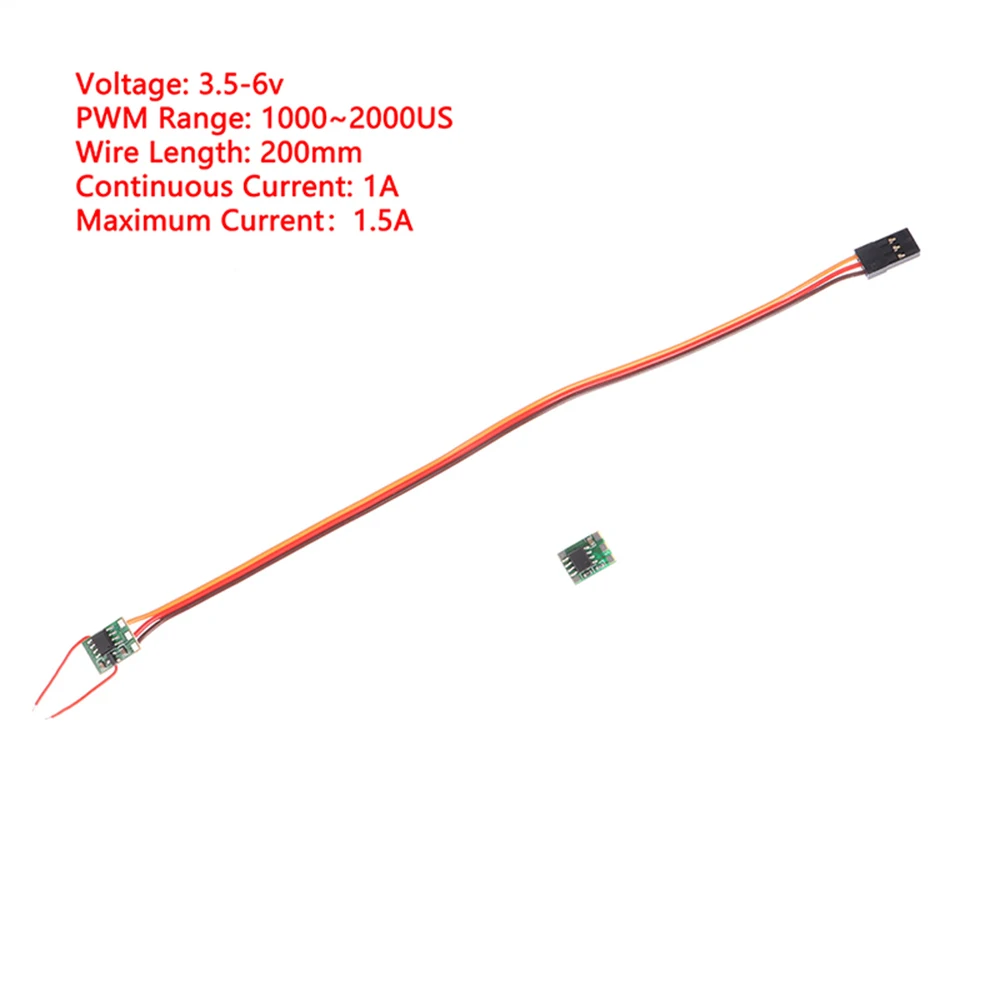

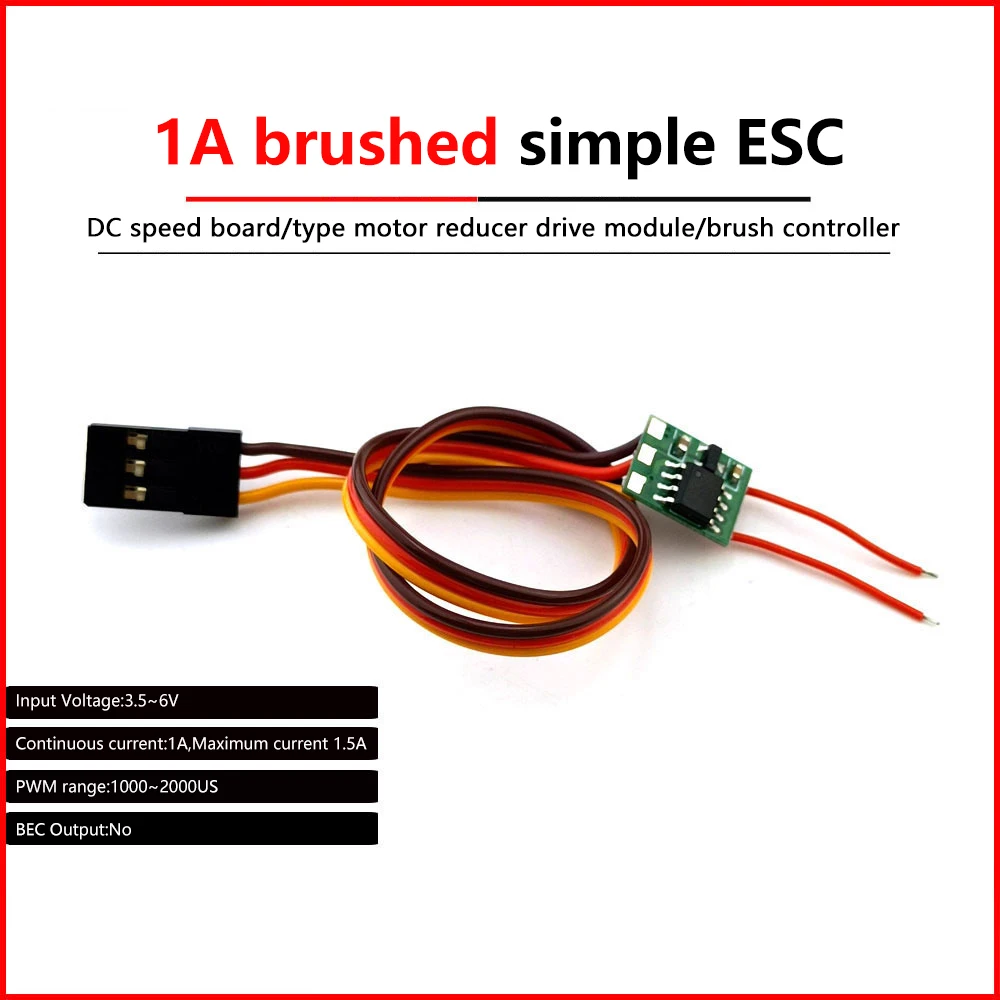

1A Product Parameters:

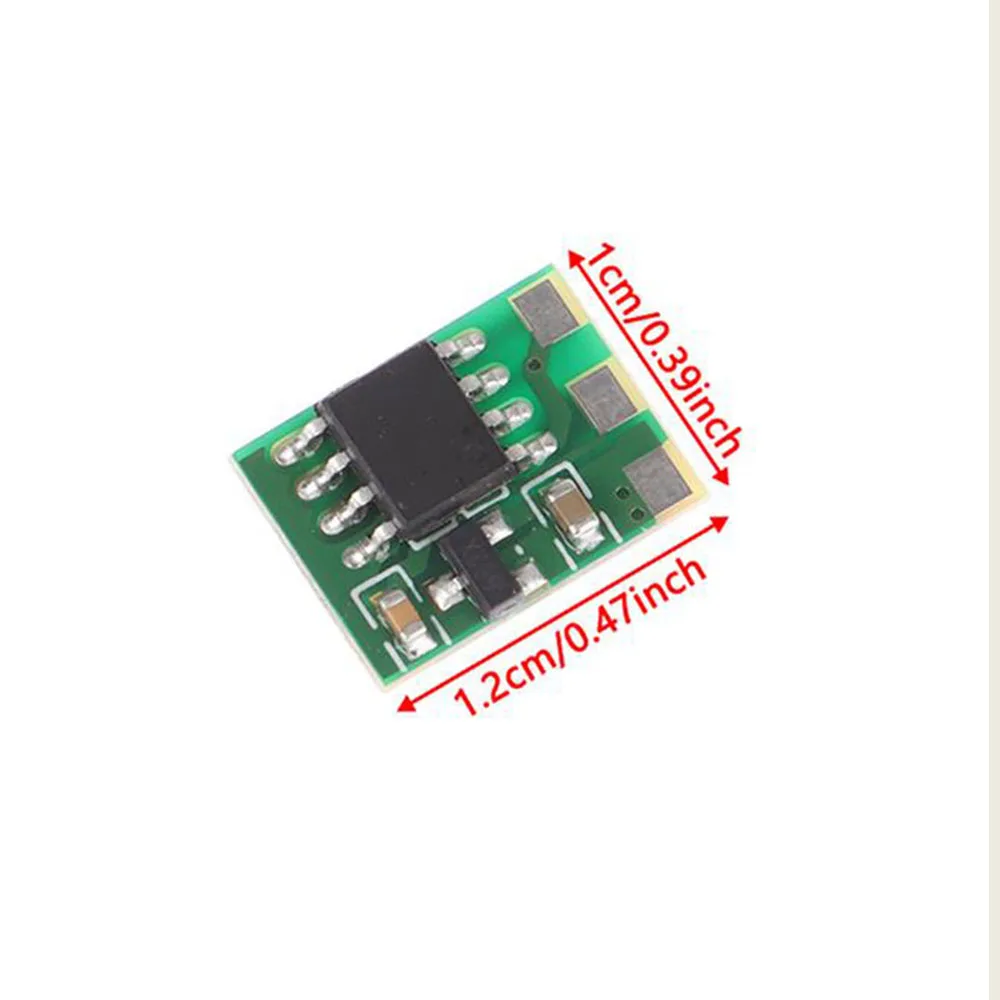

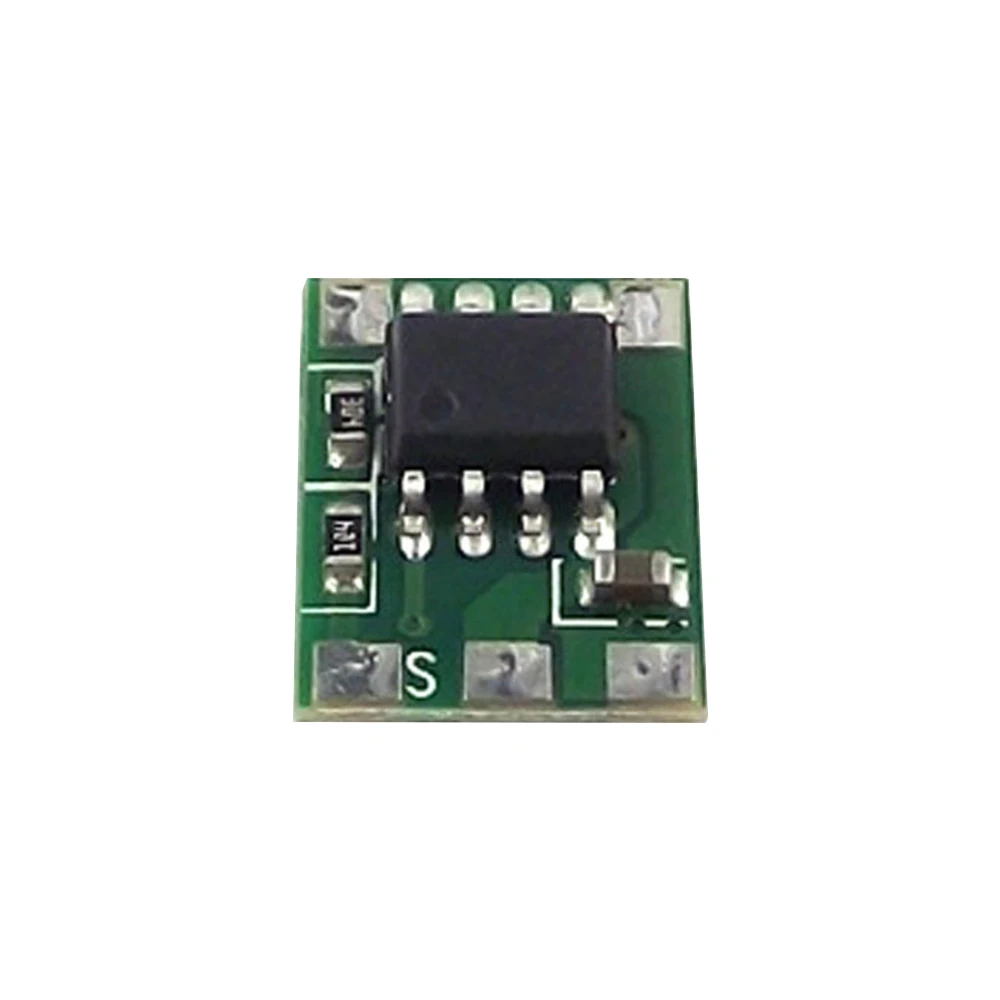

Size: 12x8.5mm
Voltage: DC3.5-6V
Continuous current: 1A, maximum current 1.5A
PWM range: 1000~2000US

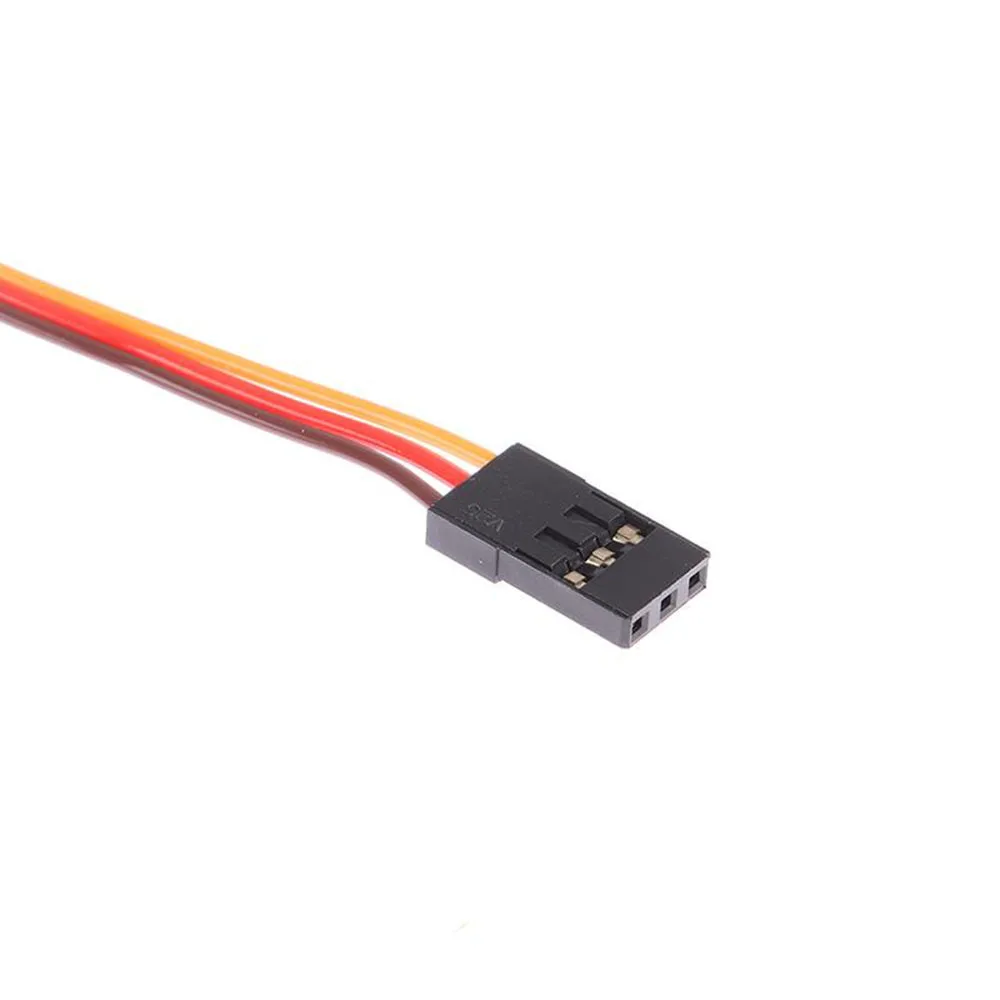

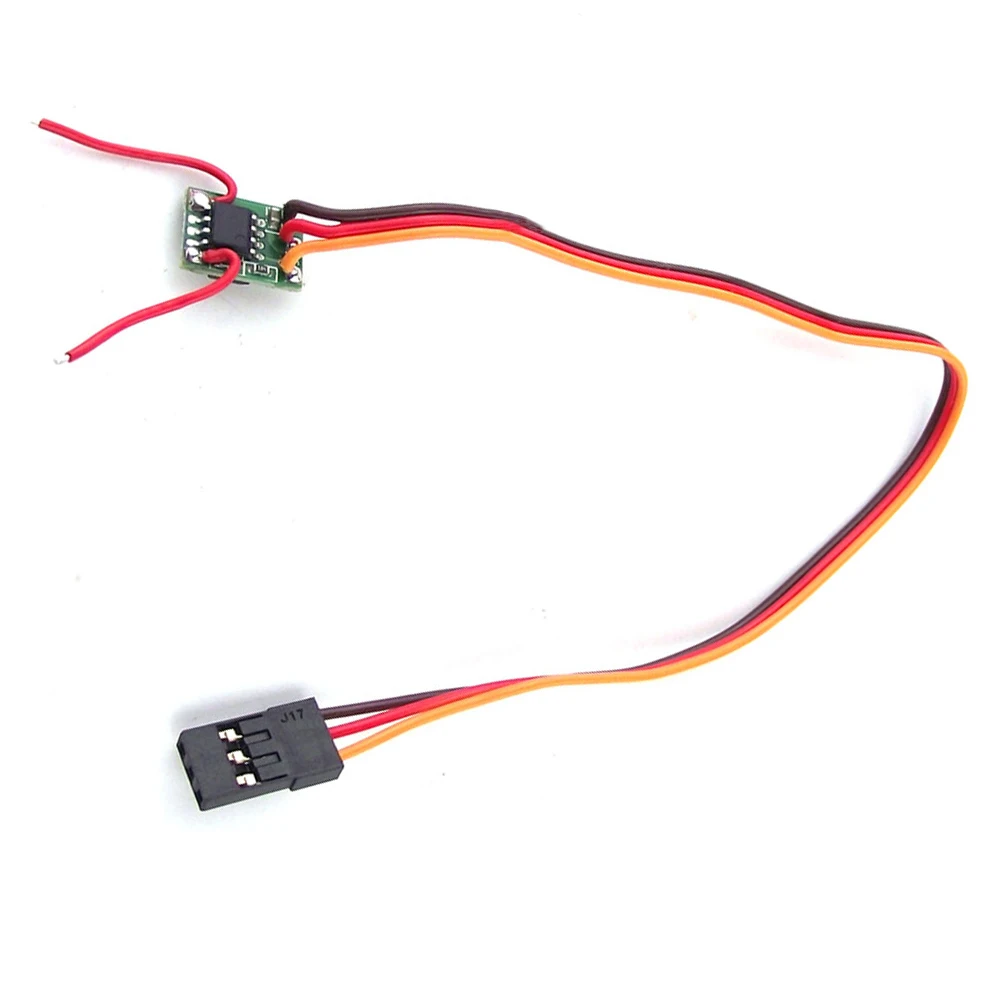

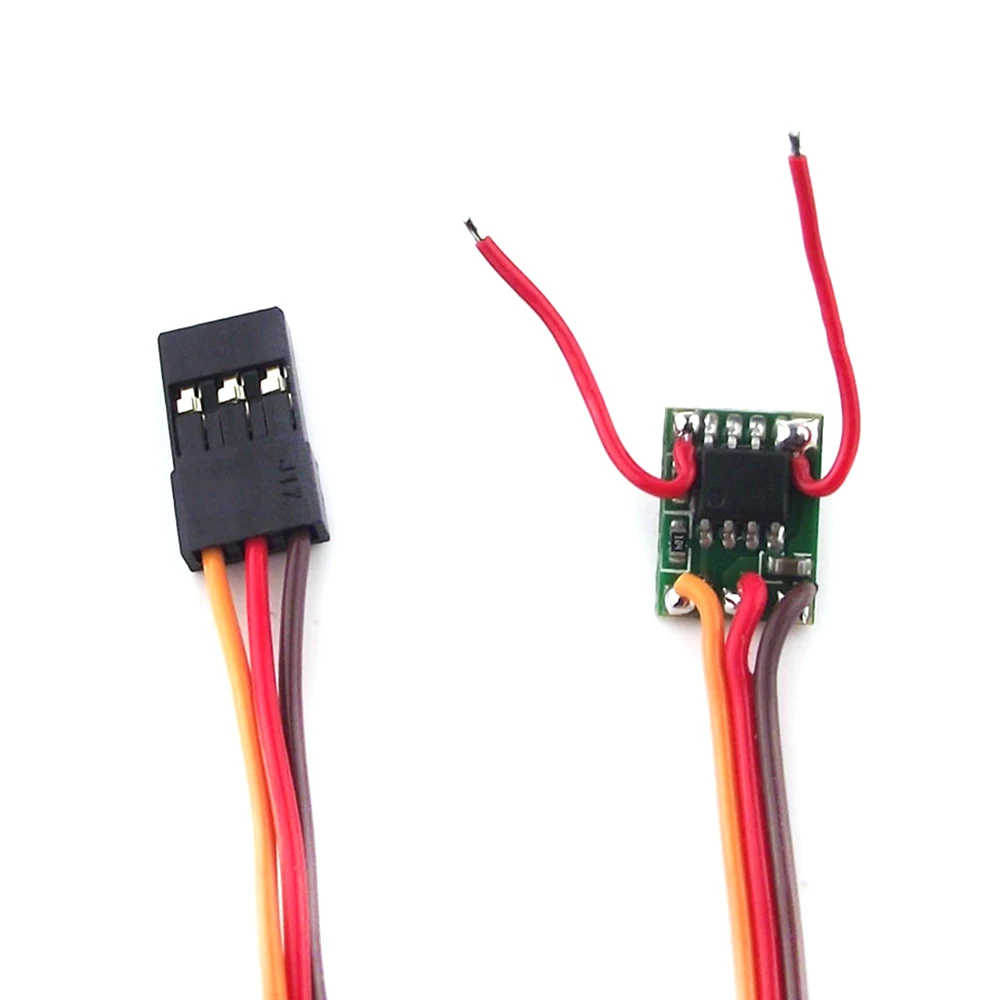

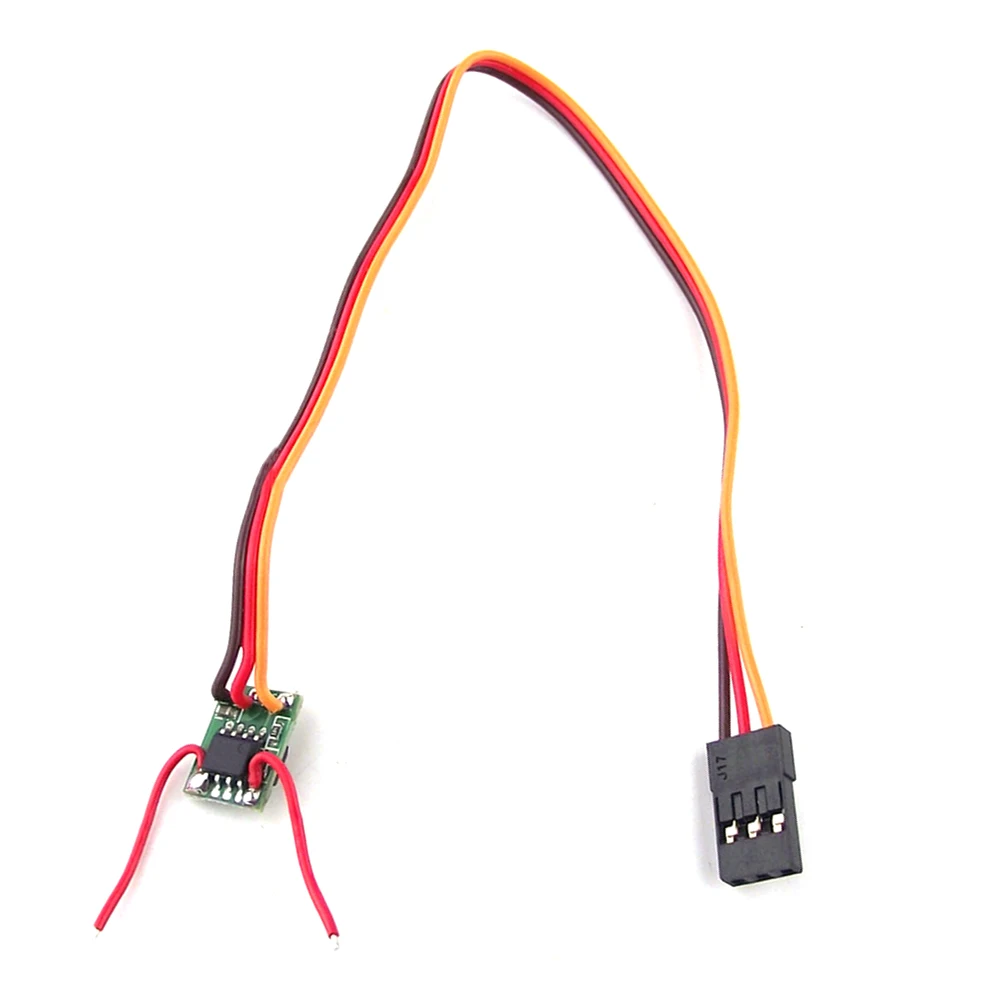

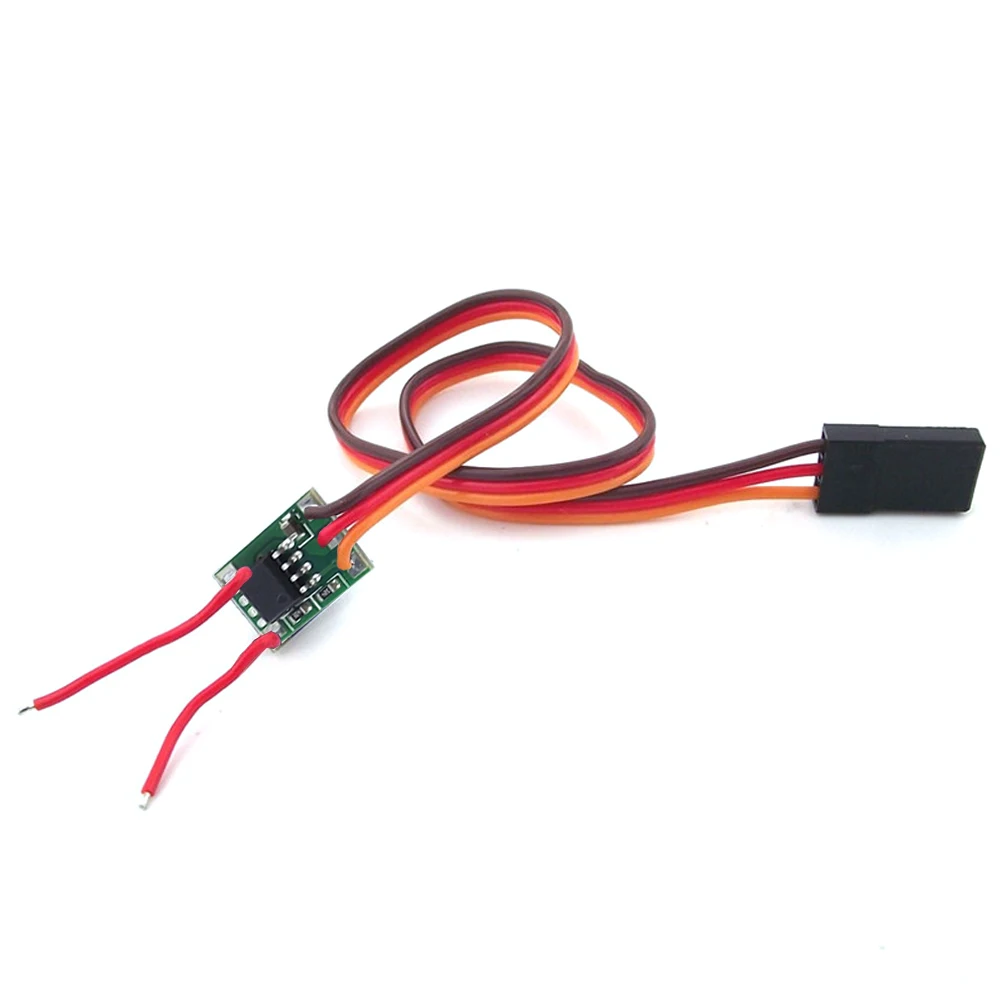

Wire length: 200mm
Motor wire length: 20mm
Specification: optional with or without cable
BEC output: None
Operating direction: bidirectional, reversible,
Applicable motor: Brushed motor
Compatible with remote control systems such as Futaba, JR, SANWA, Hitec, etc

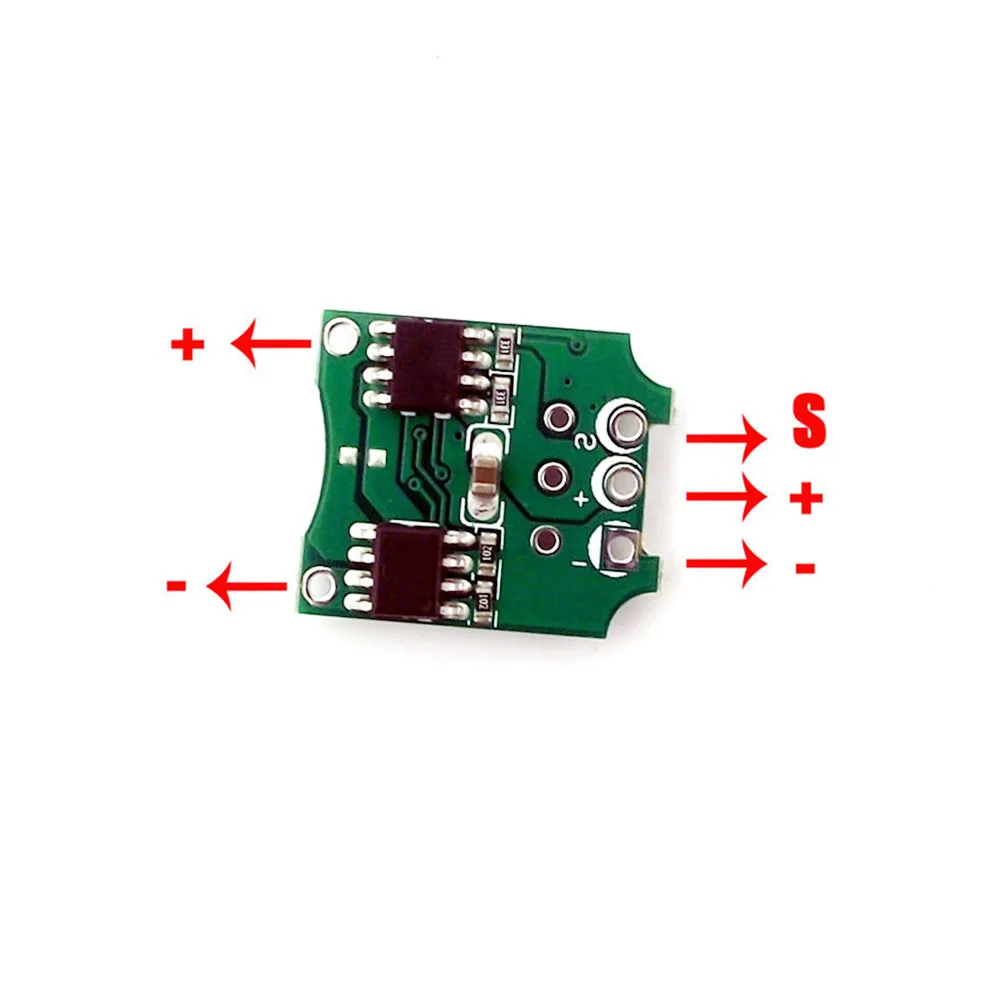

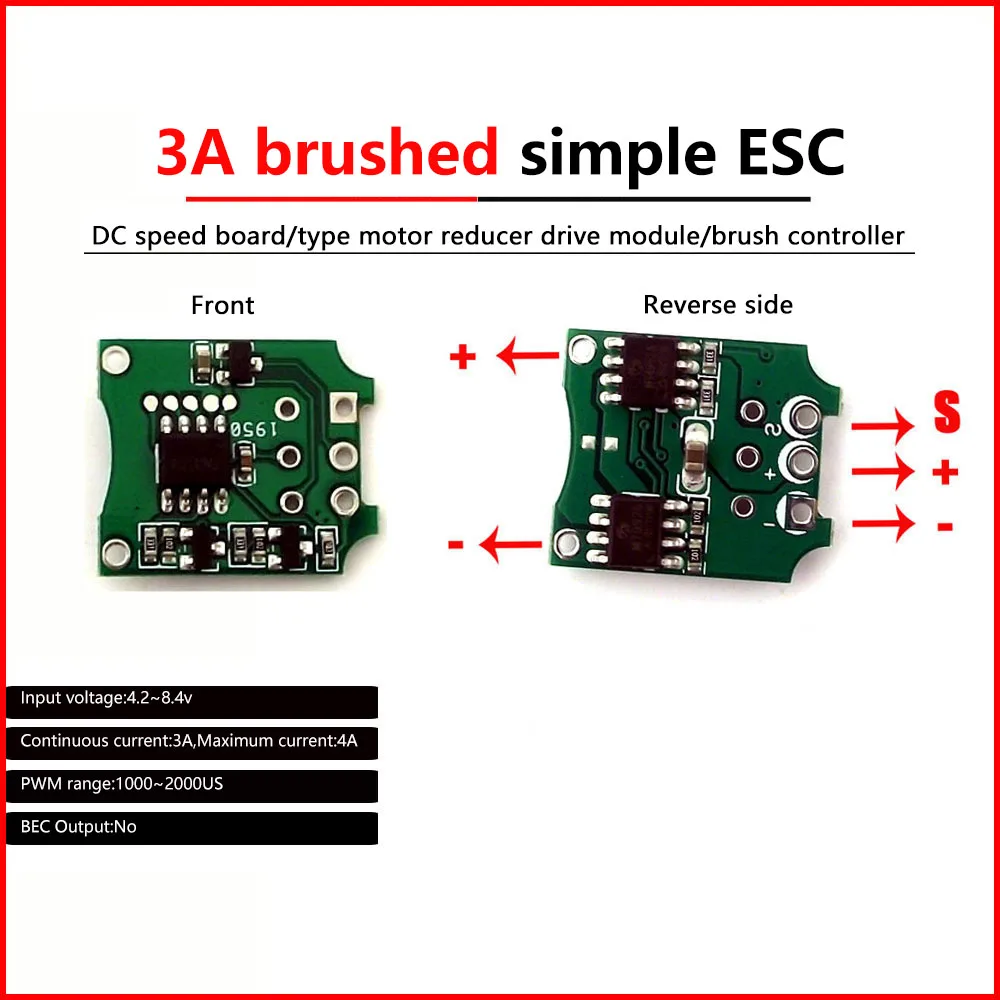

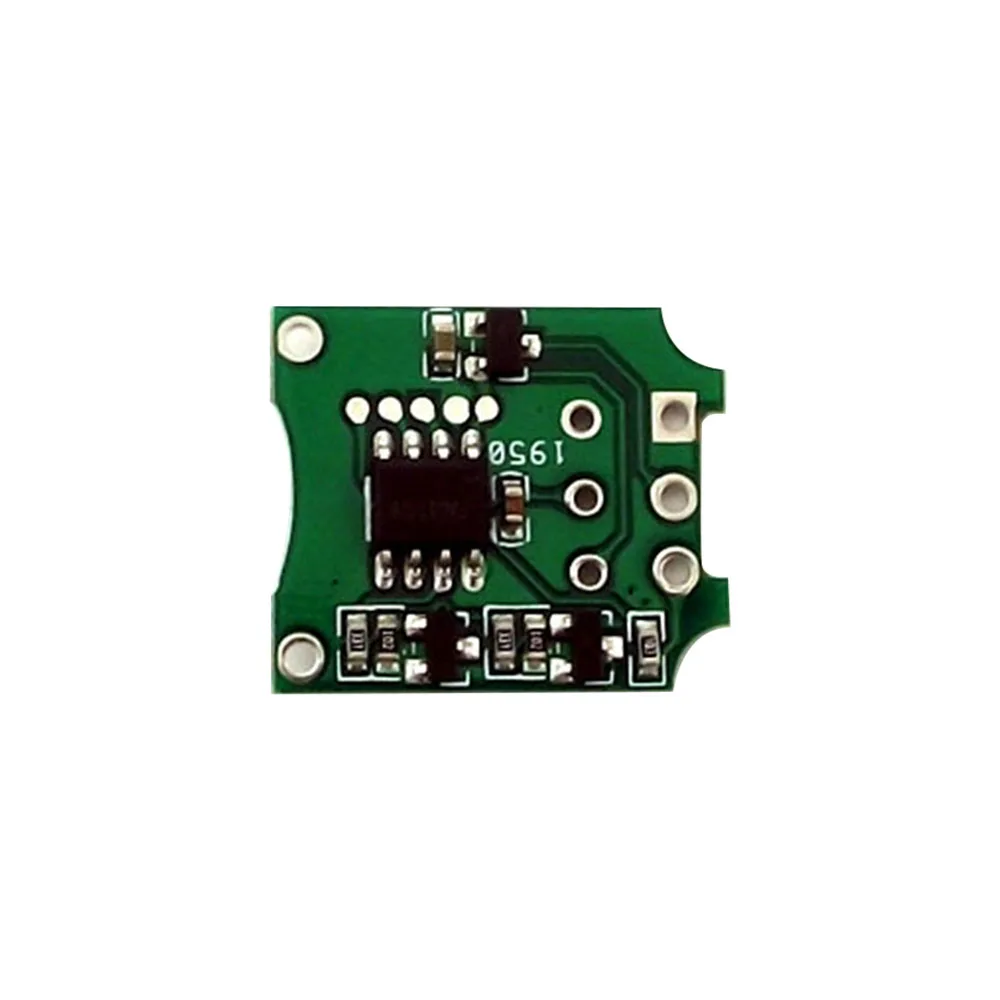

3A Product Parameters:
Size: 20x17mm
Voltage: DC4.2-8.4V
Continuous current: 3A, maximum current 4A
PWM range: 1000~2000US, PWM1500US stop
Specification: without wire
BEC output: None
Running direction: bidirectional, reversible, PWM1500US stop
Applicable motor: Brushed motor
Compatible with remote control systems such as Futaba, JR, SANWA, Hitec, etc


Explanation:
The 360 degree servo is controlled by PWM to control its rotational speed and direction, while the PWM of 500-1500US controls its forward rotation. The smaller the value, the greater the rotational speed; The PWM of 1500-2500US is used to reverse it, and the larger the value, the faster the rotation speed. The PWM of 1500US controls it to stop and can only rotate continuously without positioning. Digital circuit, no need to adjust the stop position with a potentiometer, easy to worry about and effortless!

Reminder:
Before installation and use, it is necessary to carefully read the above parameter content to avoid unnecessary damage
Please choose the appropriate specification and do not overload it, otherwise it may damage the mechanism or parts
Choose the correct power supply voltage and ensure sufficient current supply to avoid affecting the normal operation of the steering gear
Using outside the voltage range may cause abnormal operation or even damage, requiring special attention
Maintain a clean working environment and avoid erosion and pollution from dust, corrosive gases, or humid air


Regarding size:
Due to manual measurement, please allow an error of 0-3mm. Please ensure that you do not mind before ordering

Package include:
Electric adjustment X1
