1m 2m USB 3,0 A macho a hembra ultrafino FPV FPC Cable extensor de cinta plana tipo A hembra a USB 3,0 adaptador macho doble ángulo de 90

Brand name: ADT-LINK

Product name: USB 3.0 Type-A male to Type-A female flat cable

Product model: USS3-MF-13P series

Transfer speed: support of increased bandwidth up to Gen1x1 5Gbps

Wire length: 3~300 cm, the length can be customized,

Current capacity: 5V/1.5A (1.5A within 50cm ; 0.9A within 1 meter)

Product application: GPS navigator, ROCK Pi 4 Raspberry Pi microcontroller development board, built-in USB device to extend the use of adapter, convenient for brushless pan/tilt, steering gear pan/tilt, Xiaosi pan/tilt, SLR handheld pan/tilt USB Power supply and AV transmission, etc.

Procurement Tips: Be sure to buy 1~2 samples first and then purchase in bulk after testing and verifying that they are correct.

Purchase restriction: This product is designed to be connected to built-in USB devices. It is not suitable for ordinary external use. It is limited to the designated purchase by the product engineer. It Does not support OTG external use.

ADT USB series Part-Number Description:

S=USB-A ; C=USB-C ; W=USB-B ; F=USB-E

Cable length Description:

The length of the wire refers to the part of the visible wire. It does not include the PCB and the connector. For the wire length, please refer to the 5cm blue arrow in the figure below.

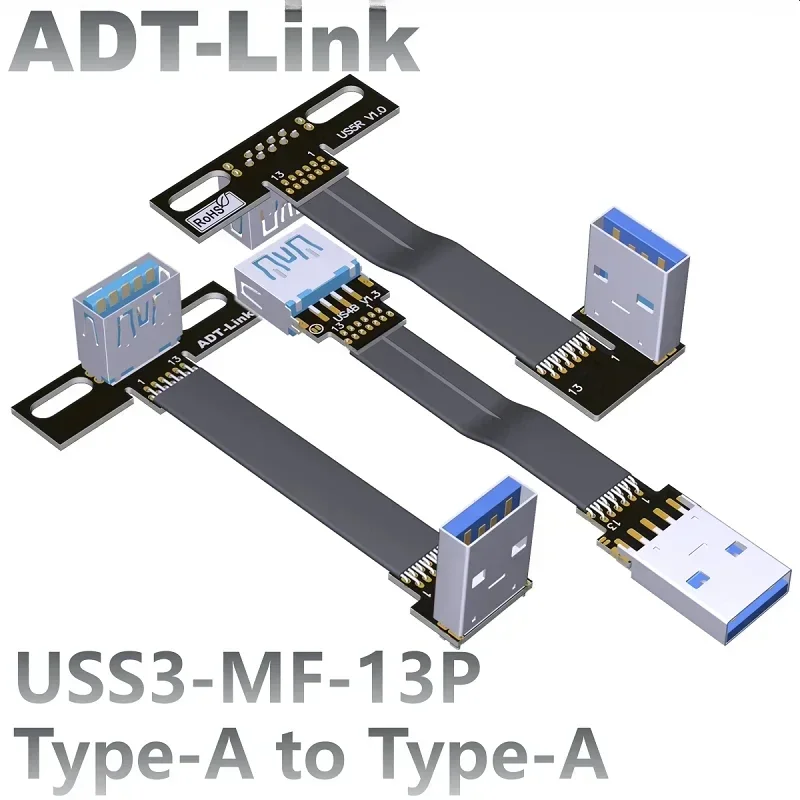

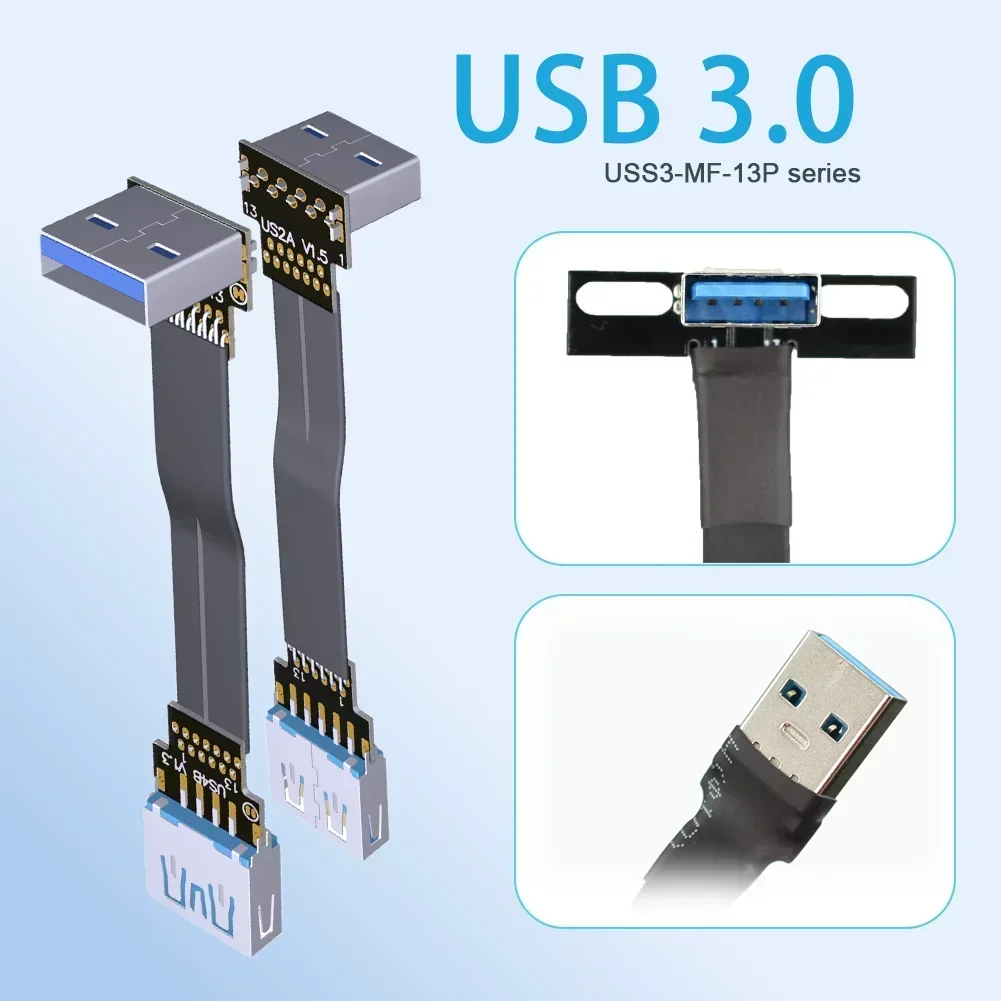

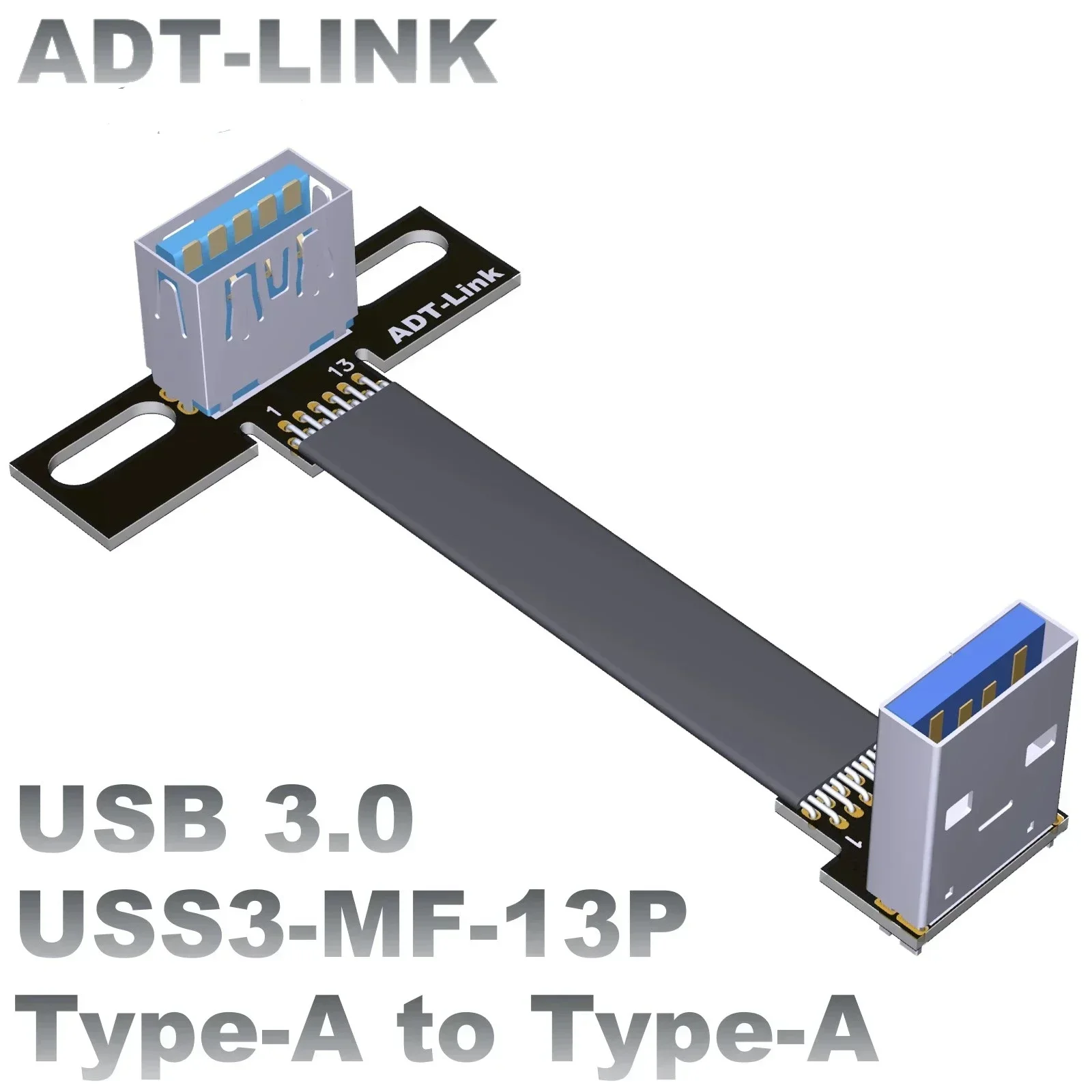

Product Image:

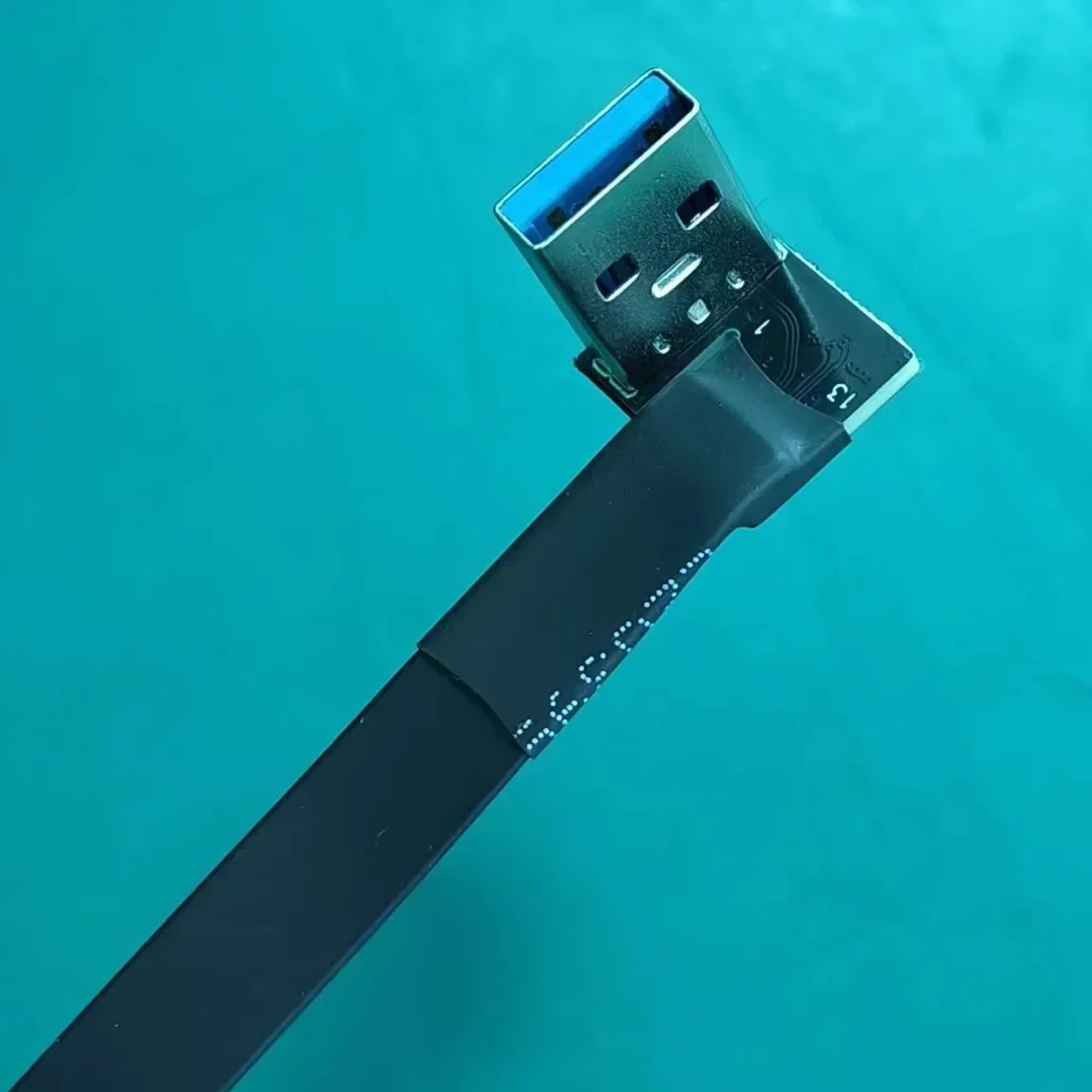

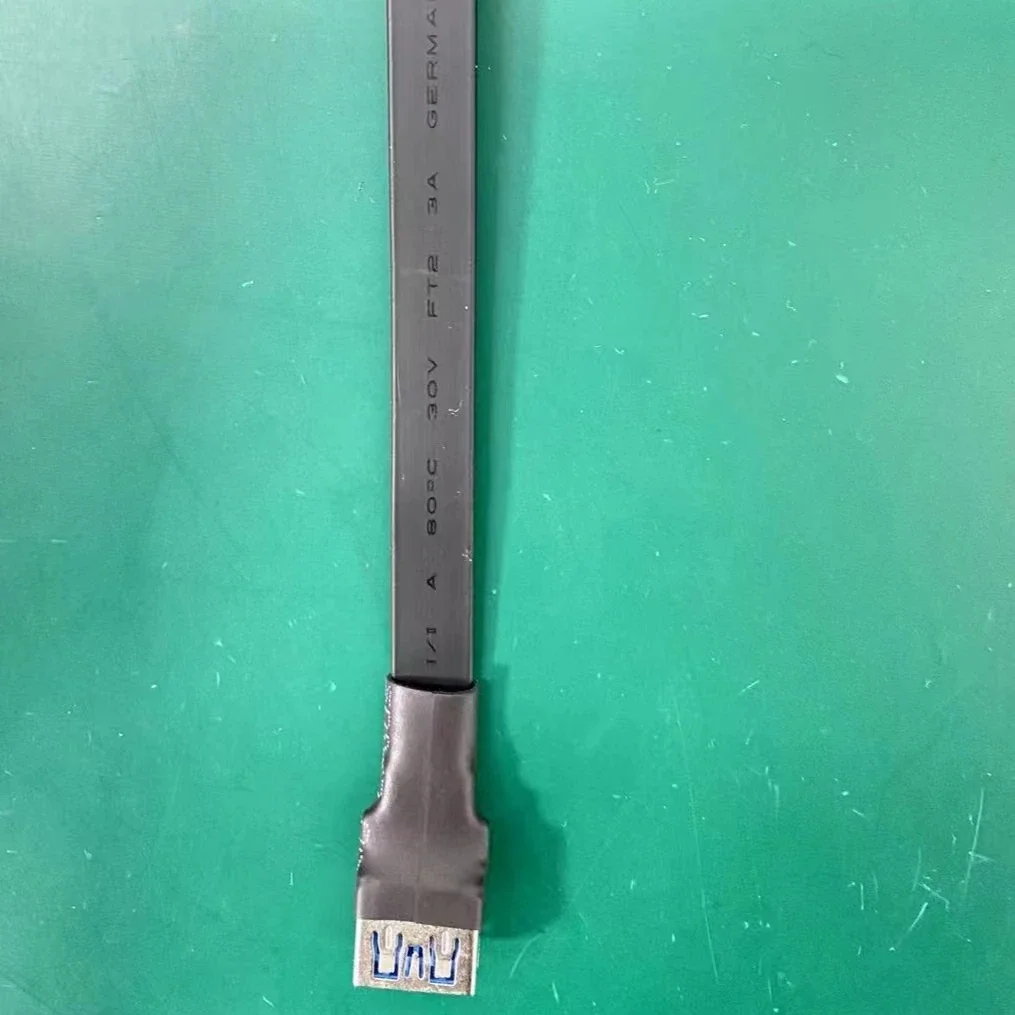

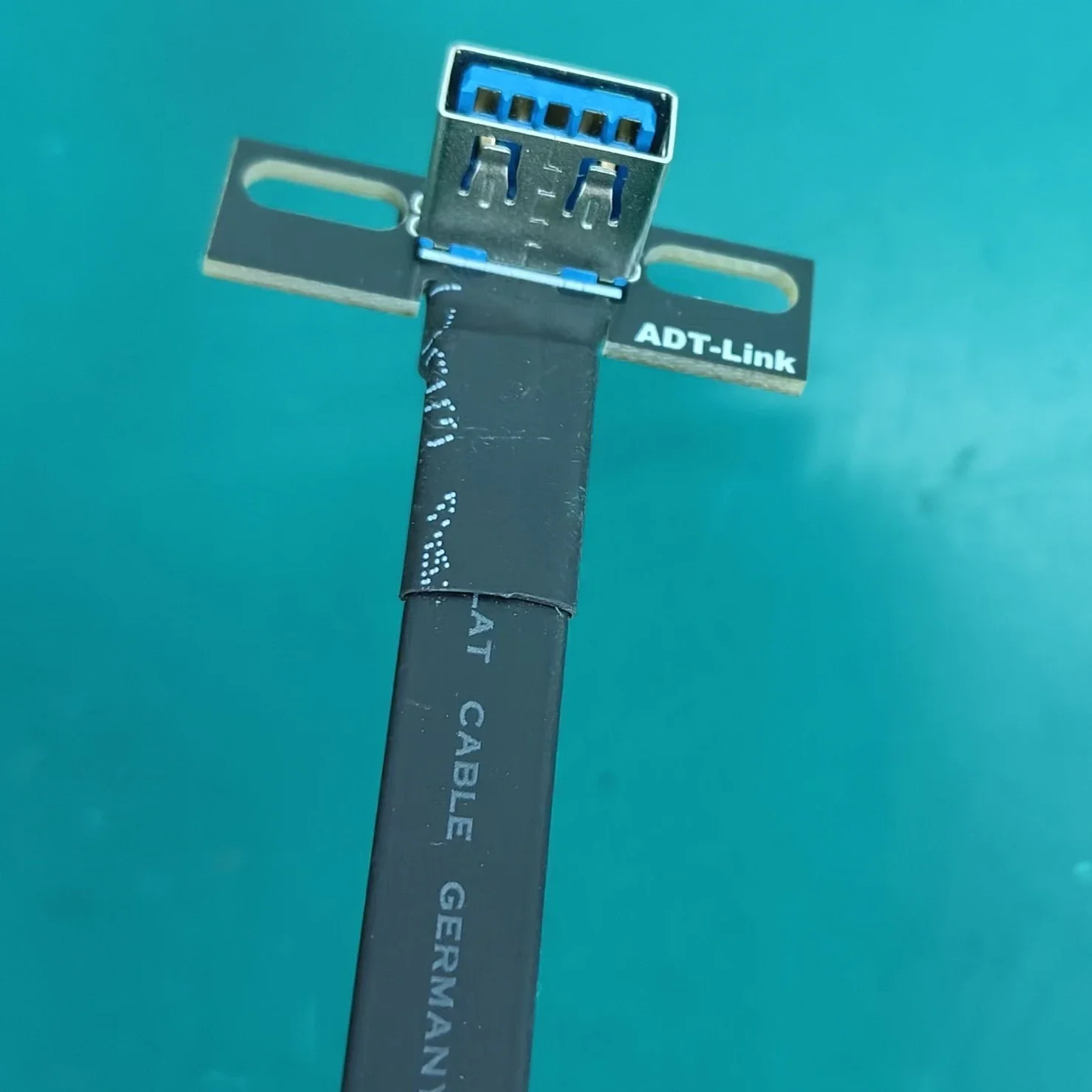

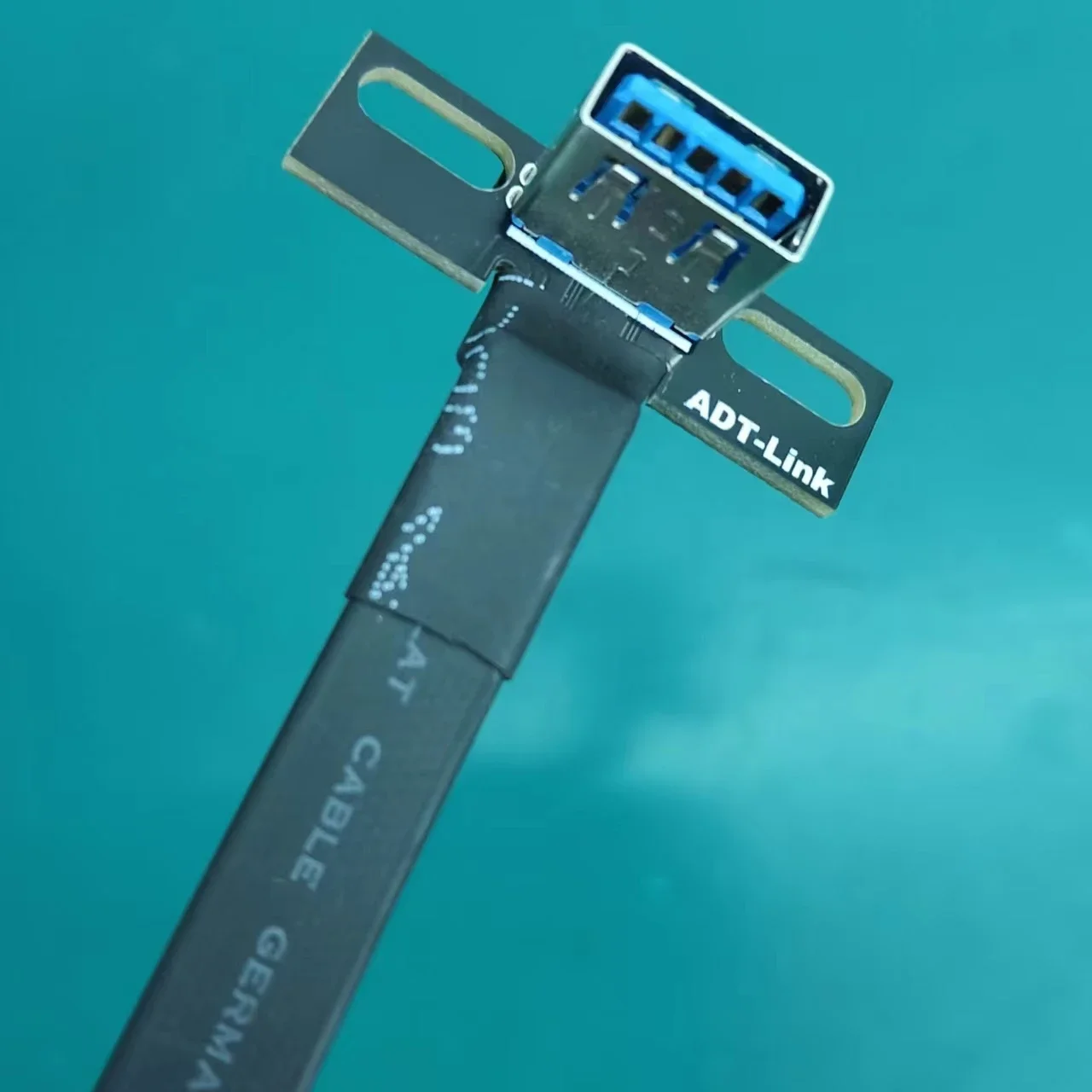

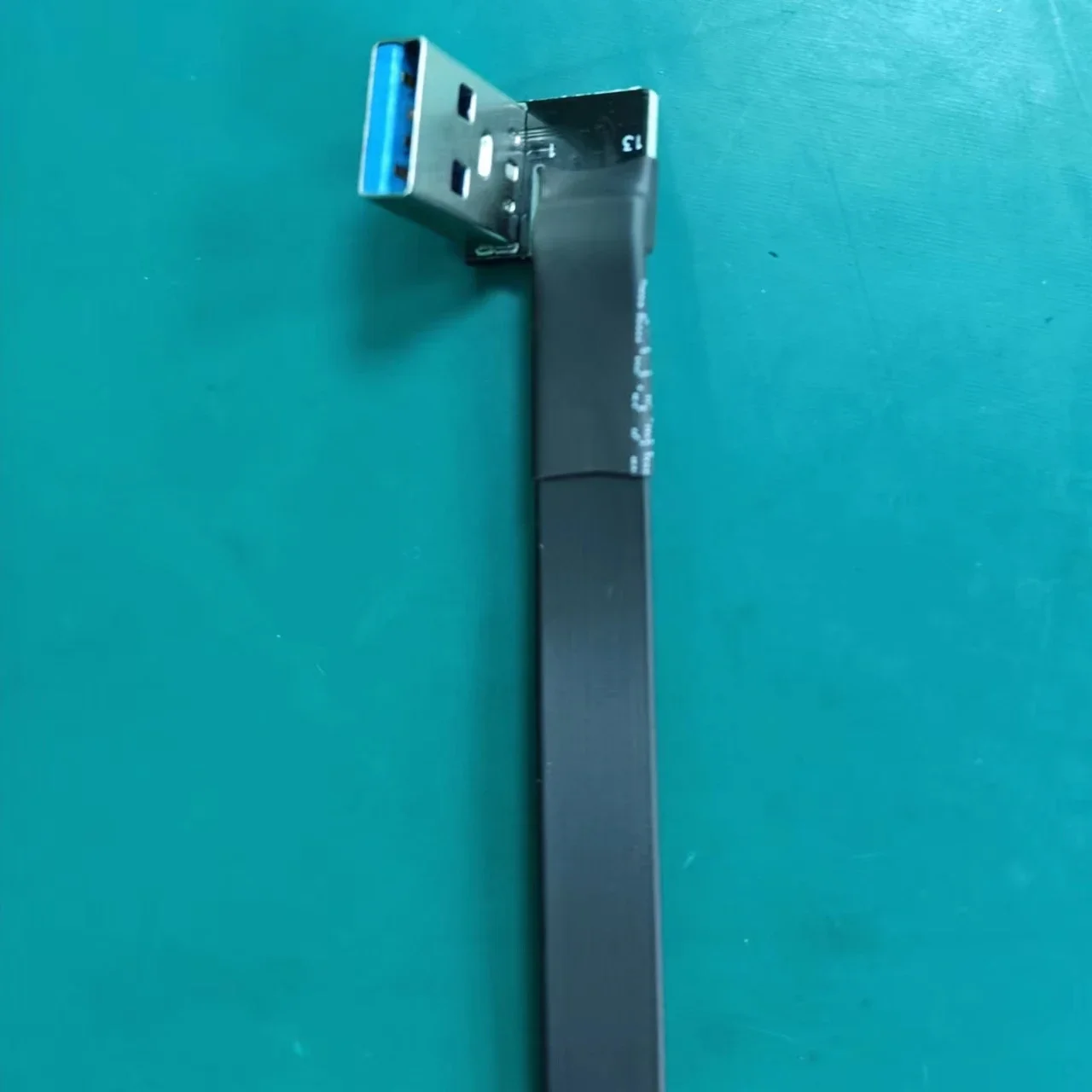

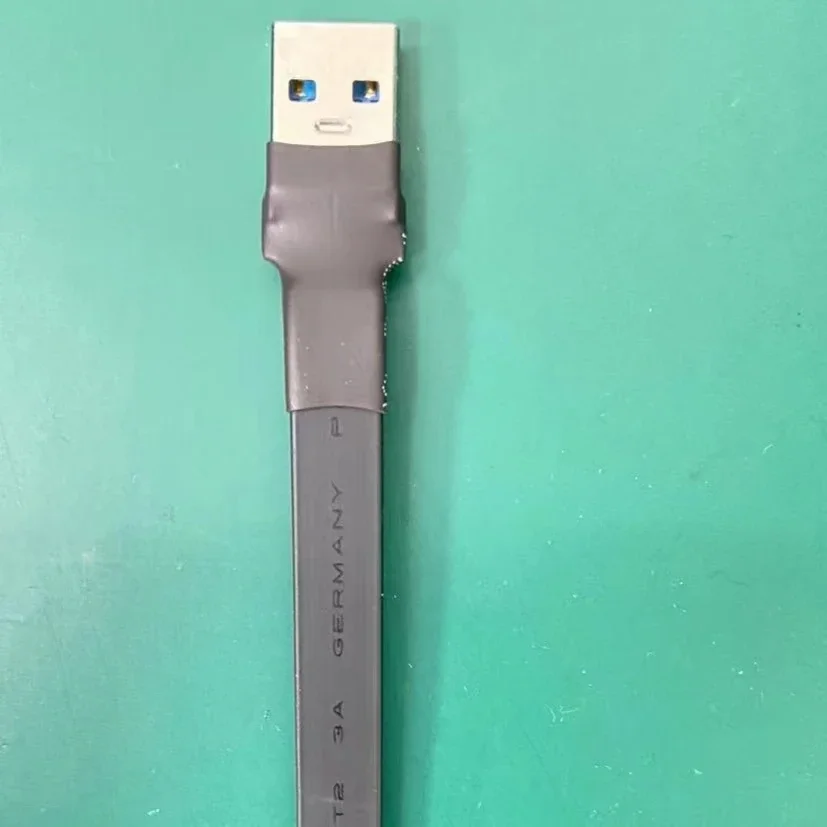

Product real shot:

Summary of technical issues:

1. Can wires and PCB connectors be split?

No, in order to purify the signal transmission and avoid the accident of wire falling off, our wire and PCB connectors is soldering and protected by the heat shrinkable tube sleeve, so the product can not be separated.

2. Cable thickness? Can it be bent?

The thickness of the wire is 1.4mm, and it can be bent and folded without affecting the use.

3. Is there any EMI shielding for Cable?

No metal shield. The extender utilizes the latest materials for EMI shielding with five sole flat cables design. This technique allows each cable to be fully covered by electromagnetic interference shielding with conducting polymer to guard against incoming or outgoing emissions of electromagnetic frequencies, minimize disturbance and degradation on performance, and reduce the weight of the extender.
