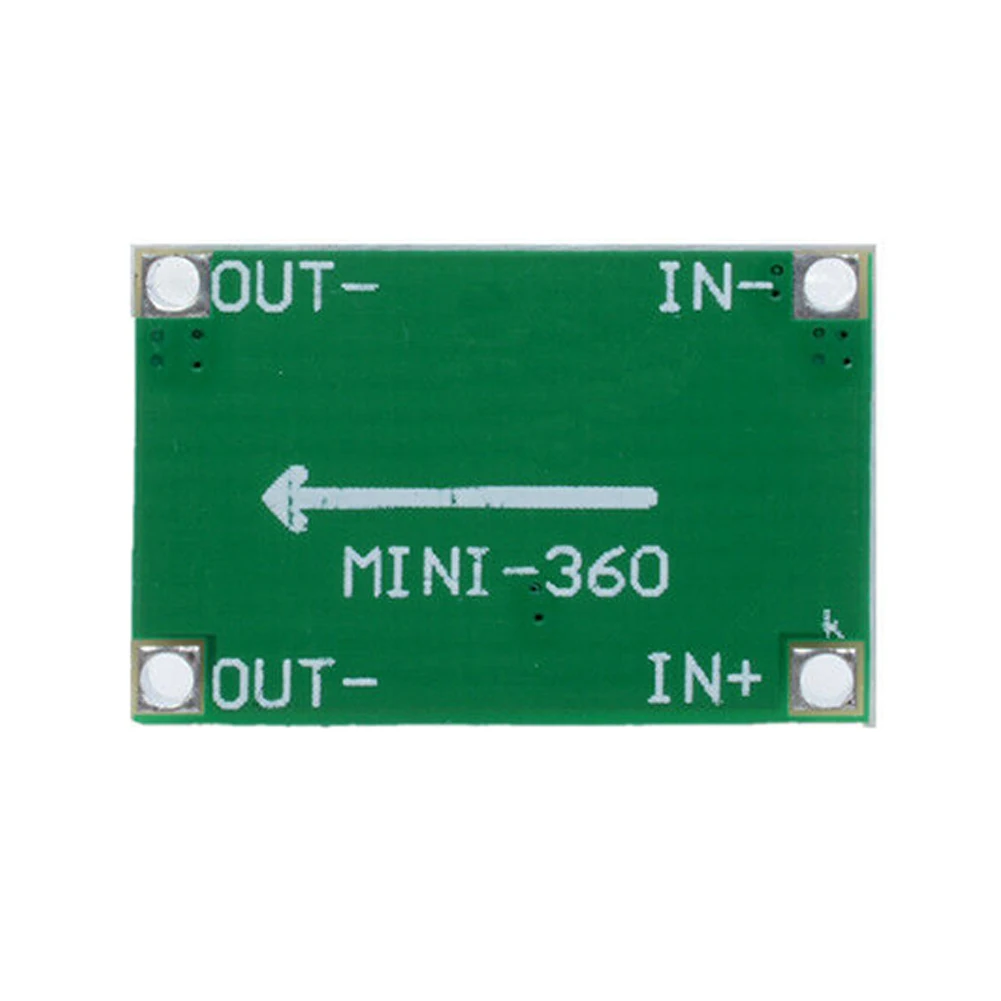

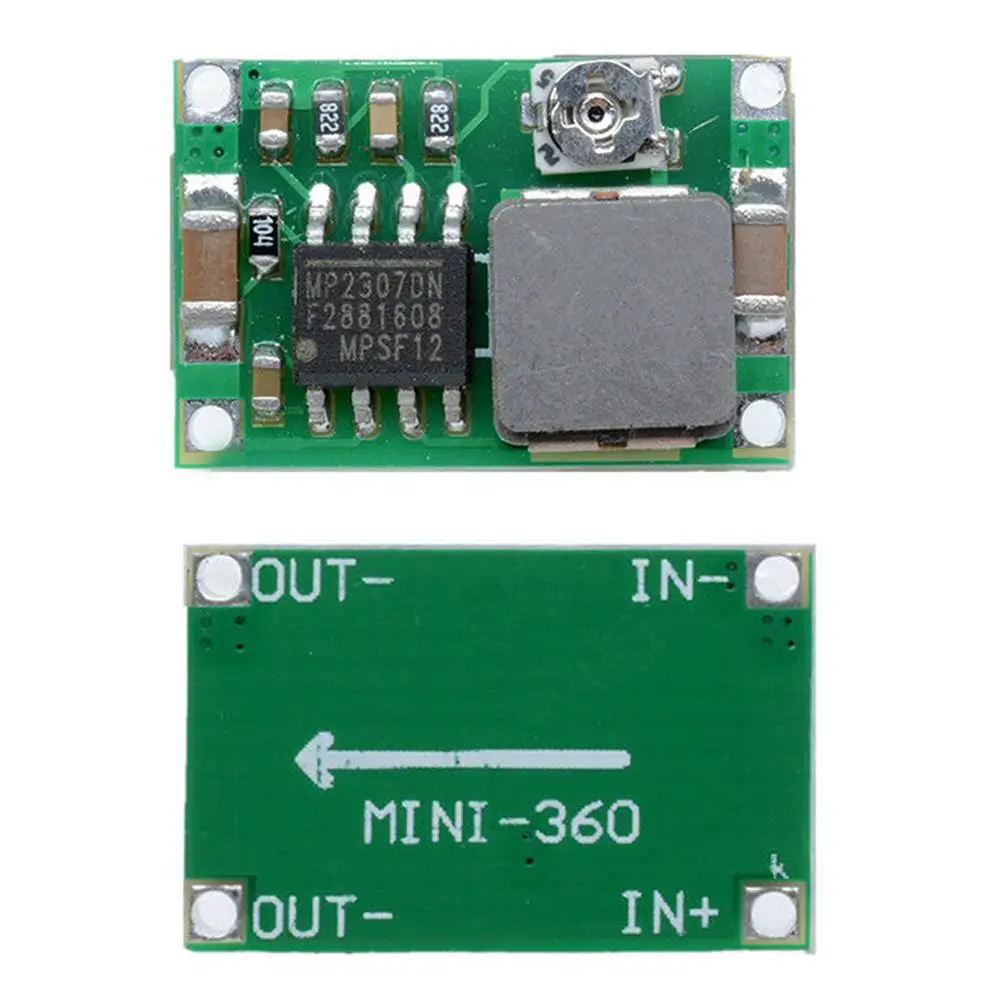

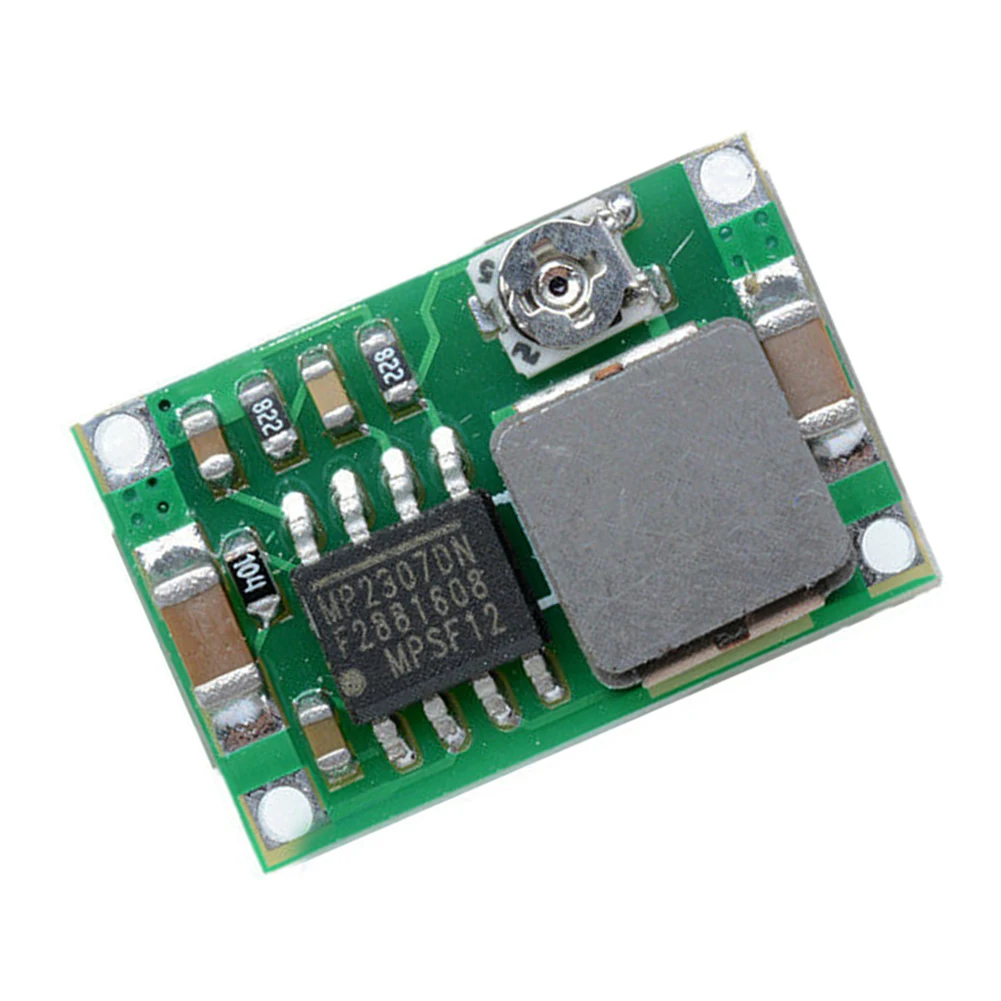

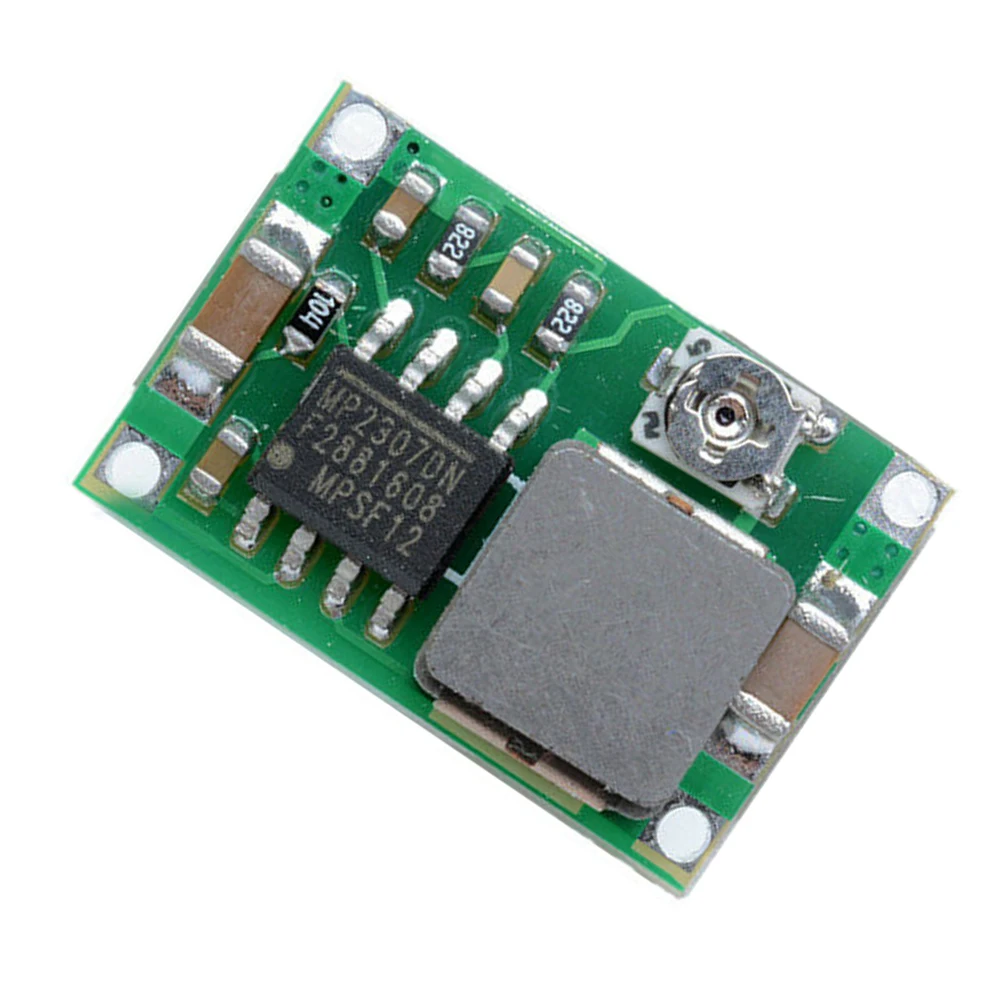

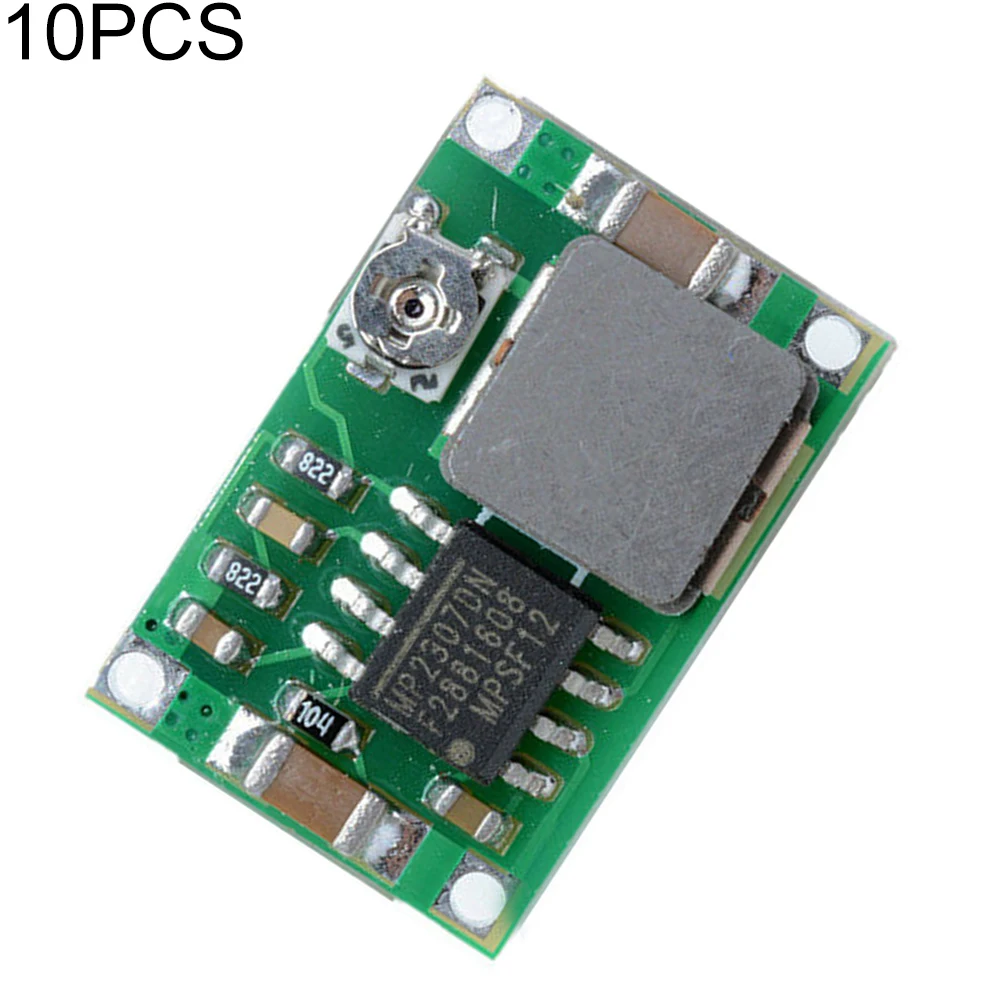

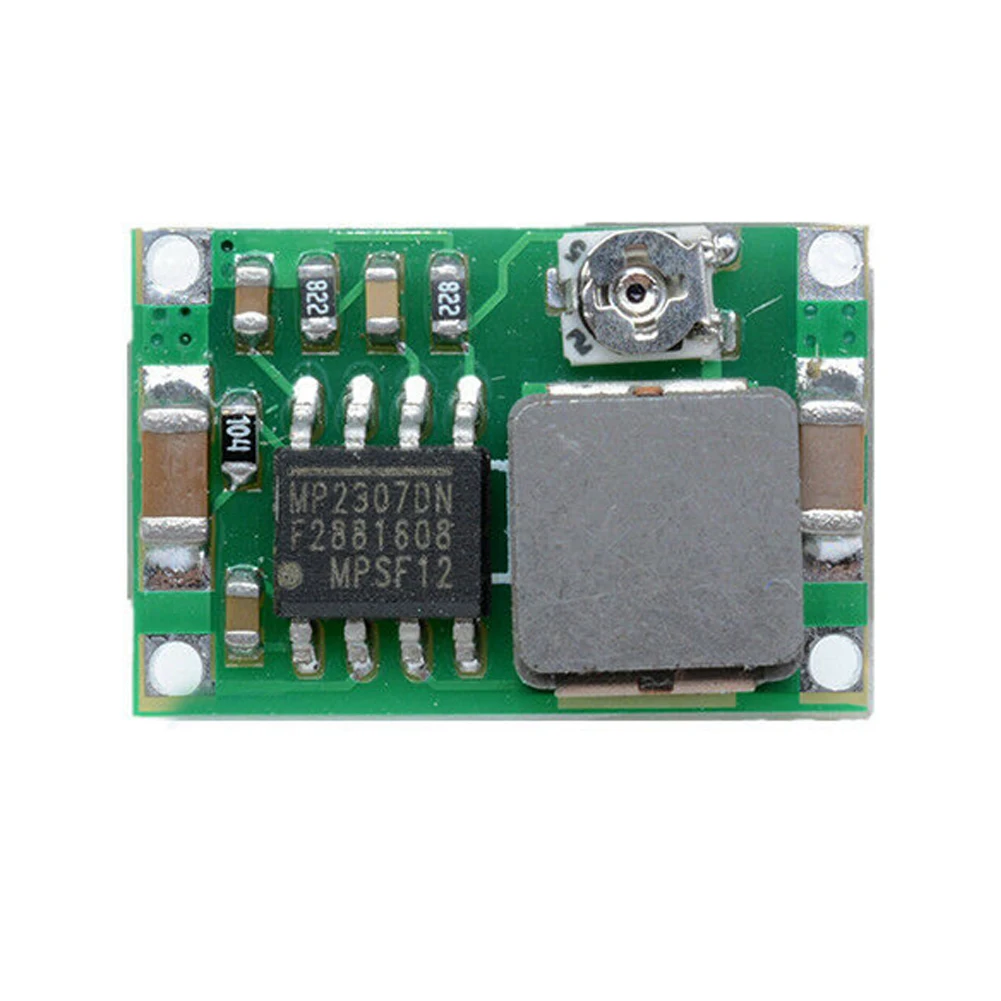

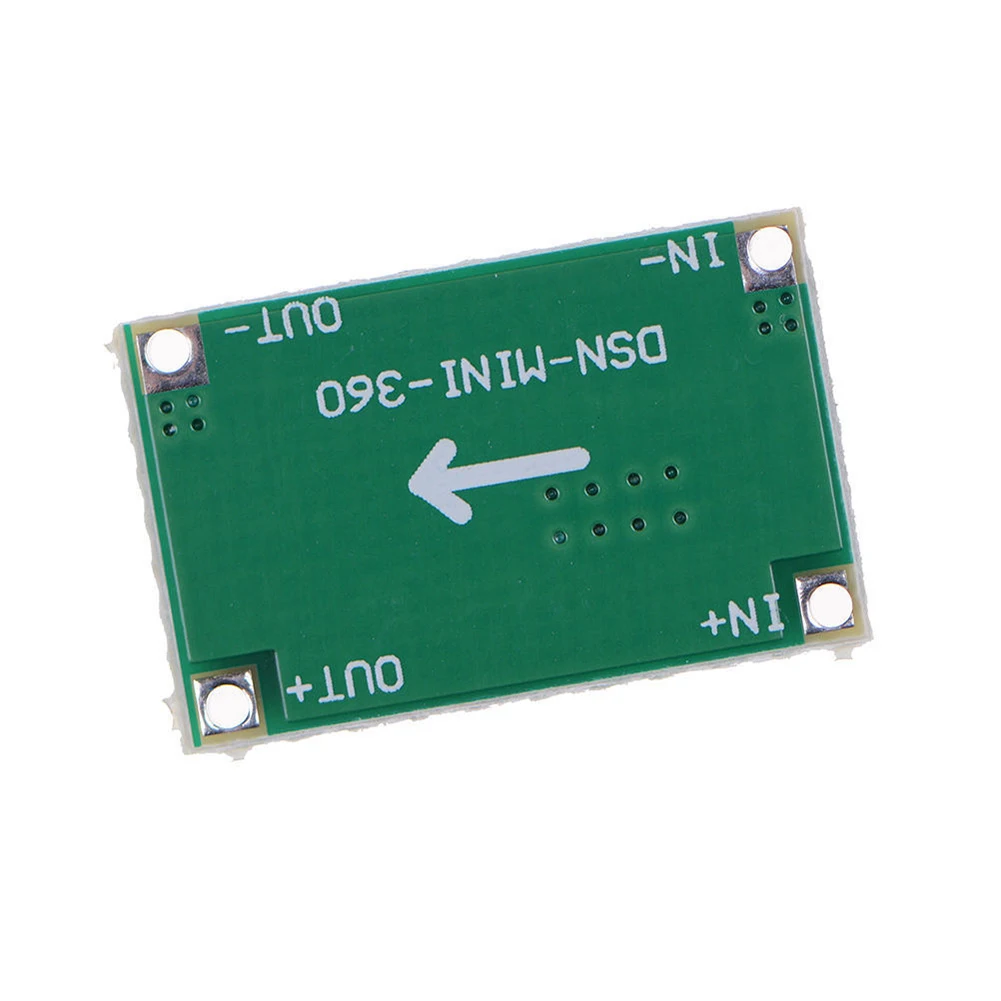

10Pcs MP2307 Super Mini 3A DC-DC Converter Step Down Buck Power Module Chip
Specifications:
Non-isolated step-down module with good performance.
Ideal to replace for the broken or worn-out parts, and make the device work well again.
DC-DC buck module for model airplane, DIY power band, vehicle power supply and so on.
Item Name: Step Down Power Modules
Material: Metal
Quantity: 10Pcs
Input Voltage: DC 4.75V - 23V
Output Voltage: DC 1.0V-17V (Adjustable, Output Input)
Output Current: Rated current 1.8A (3A MAX, Can Not Be Prolonged)
Conversion Efficiency: 96% (Highest)
Switching Frequency: 340KHz
Output Ripple: 30mV (No-load)
Load Regulation: ± 0.5%
Voltage Regulation: ± 2.5%
Operating Temperature: Industrial (-40 to 85 Centigrade)
Short Circuit Protection: No (Please do not short-circuit)
Input Reverse Protection: No (Can not be reversed)
Features: Durable, Replacement, High Performance, Super Mini Size
Size: 17mm x 11mm x 3.8mm/0.67" x 0.43" x 0.15" (Approx.)
Notes:
This can't be used to step up Voltage. Output voltage is always smaller than input!
Due to the light and screen setting difference, the item's color may be slightly different from the pictures.
Please allow slight dimension difference due to different manual measurement.
Package Includes:
10 x Step Down Power Modules
