Descripción
Description:
1.Universal for all s, motorcycles, buses, boats, marine, trailers，kitchen appliance etc.
2.Rocker Switch,3 terminals ON/ON switch, , longer life for use.
3.Product soldering precautions:
Any incorrect soldering operation may result the pin in deformation and poor switch contact. Be sure to pay attention to the following points when wiring:
Select the appropriate soldering iron to speed up the soldering. It is recommended to use 20W soldering iron to complete the soldering within 3 seconds. The flux must be in proper amount. When soldering, try to turn the switch pin down.
Specification:

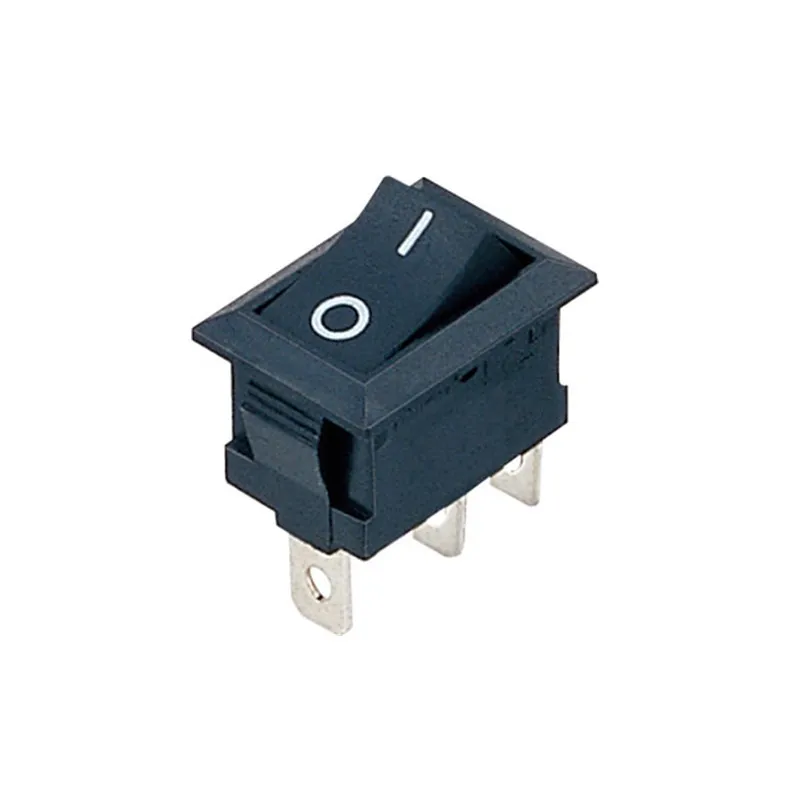

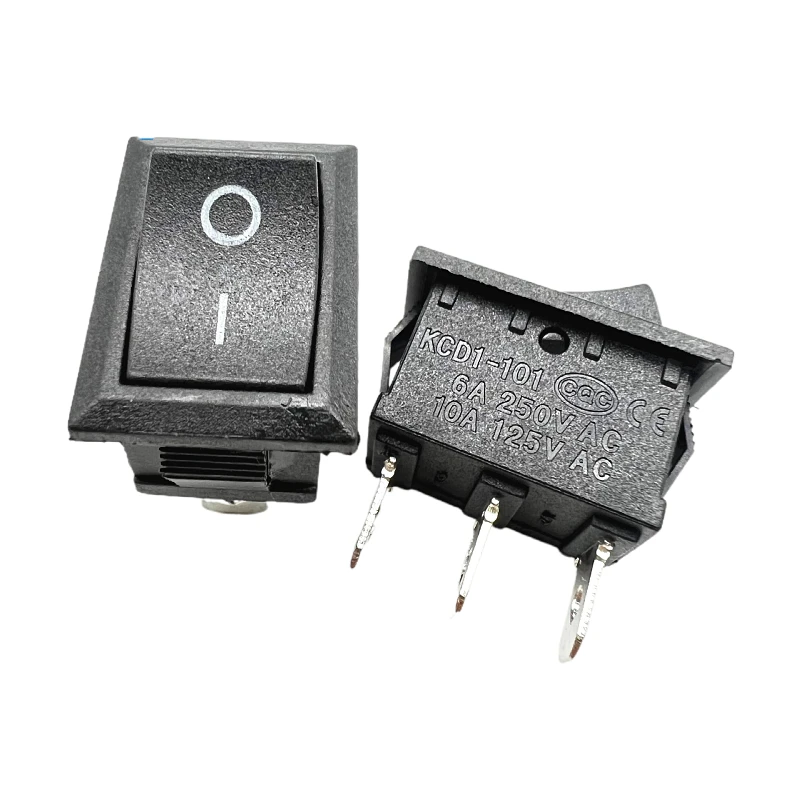

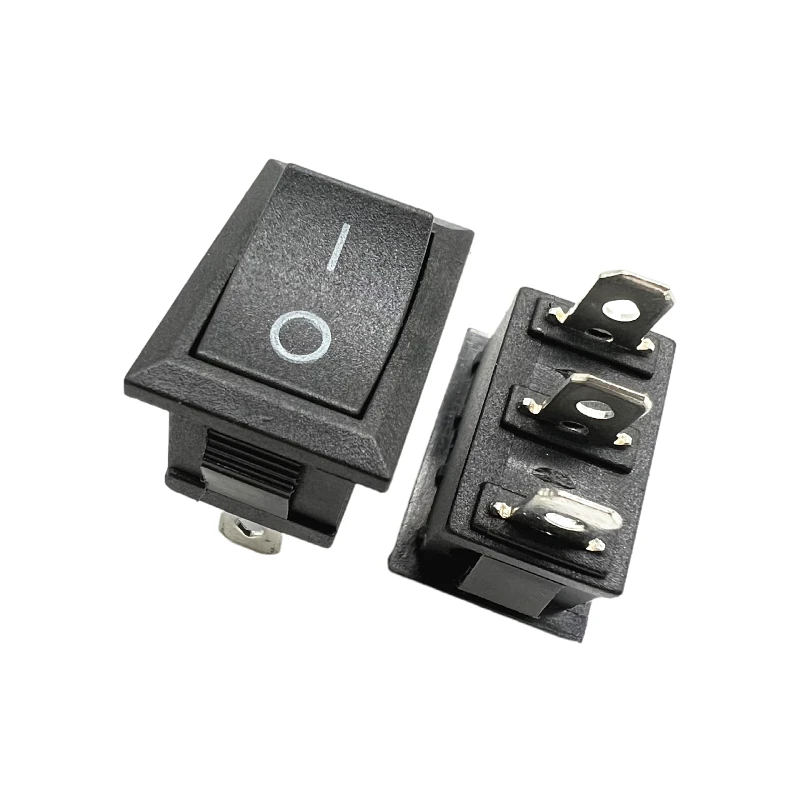

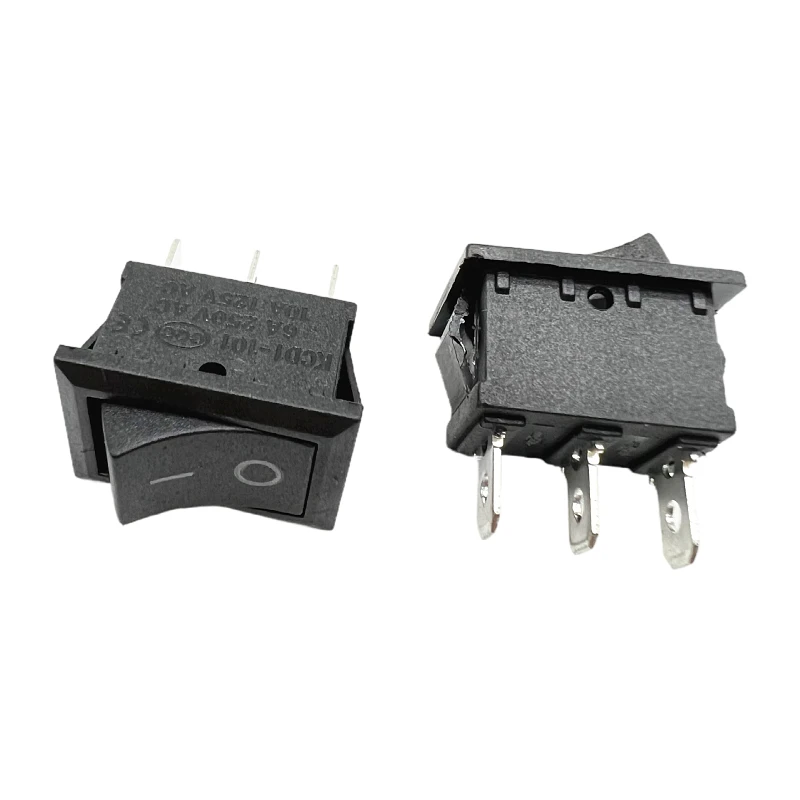

Product Name：Rocker Switch
Terminals: 3
Position: 2-ON/ON
Rating Voltage: AC 250V/15A 125V/20A
Light Voltage: NO light include
Material: Plastic, Metal
Action Type: Latching
Package Content :
1 x Rocker Switch
