Specifications
Maximum working voltage: DC 1000V
Rated Current: 30A
Suitable for: 2.5mm⊃2;( AWG14 ), 4mm⊃2;( AWG12 ), 6mm⊃2;( AWG10 )
Contact resistance: ≤1mmΩ
Pollution degree: 2
Temperature Range: -40 ℃ ~ +125 ℃
Flame class: UL94-V0

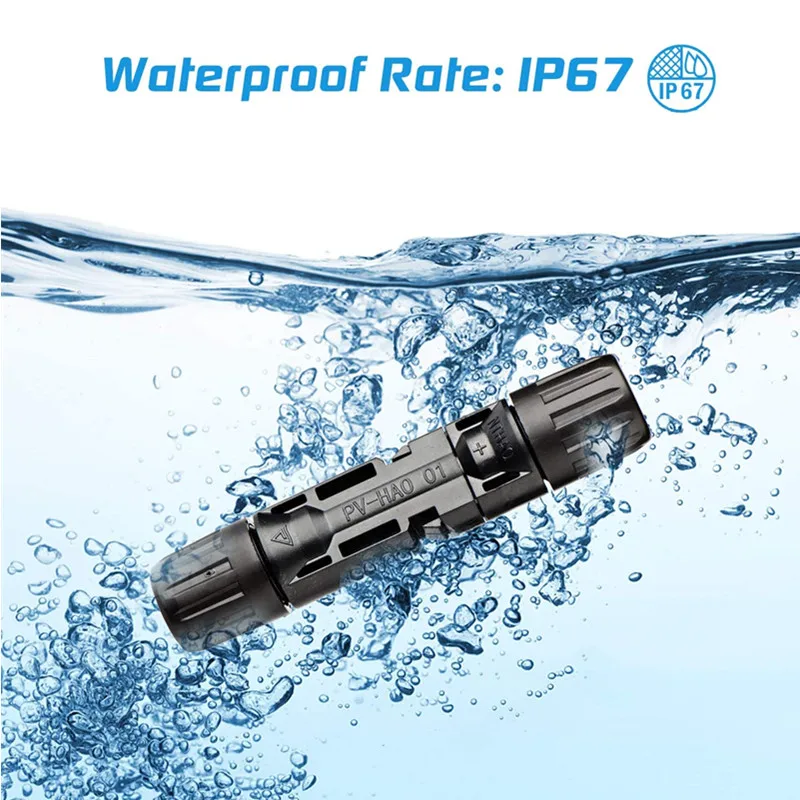

Waterproof Class: IP67
Insertion force: ≤50N
Withdrawal force: ≥50N

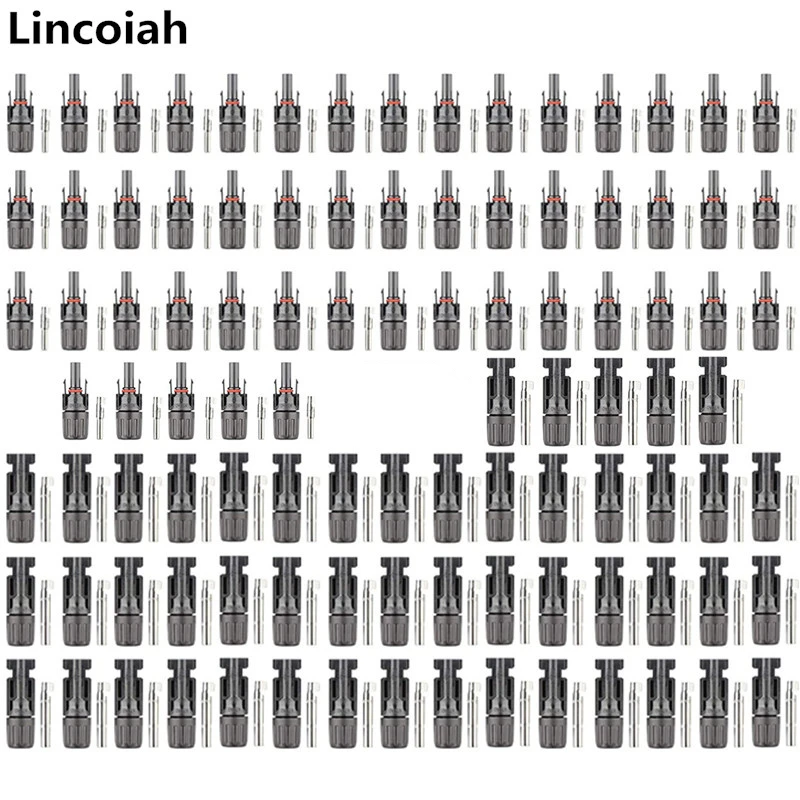

Comprar 100 unidades/50 pares de conectores de Cable de enchufe Solar (macho y hembra) para paneles solares y sistemas fotovoltaicos
