100 Uds FTTH preintegrado FC/APC conector rápido de fibra óptica tipo de montaje en el sitio conector rápido en frío venta al por mayor de fábrica

100pcs FTTH Pre Embedded FC/APC Fiber Optic Quick Connector On-Site Assembly Type Cold Fast Connector Factory Wholesale

Product Name:

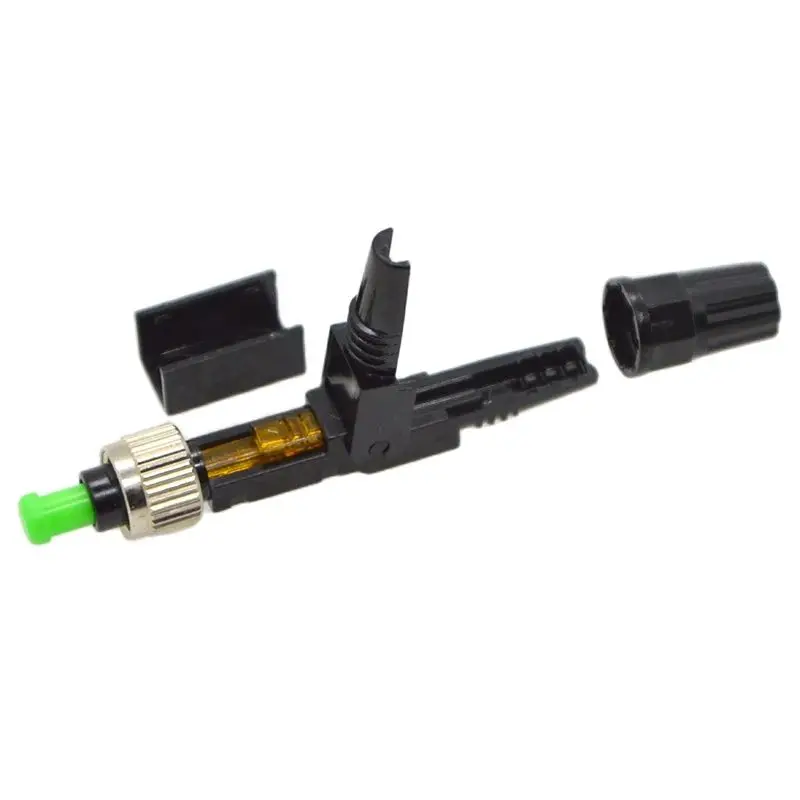

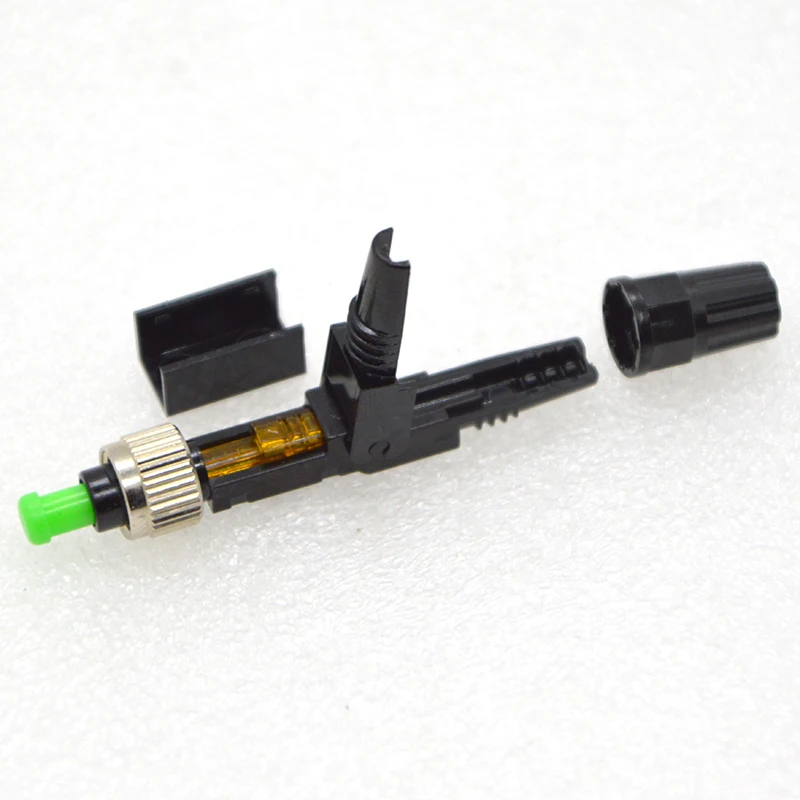

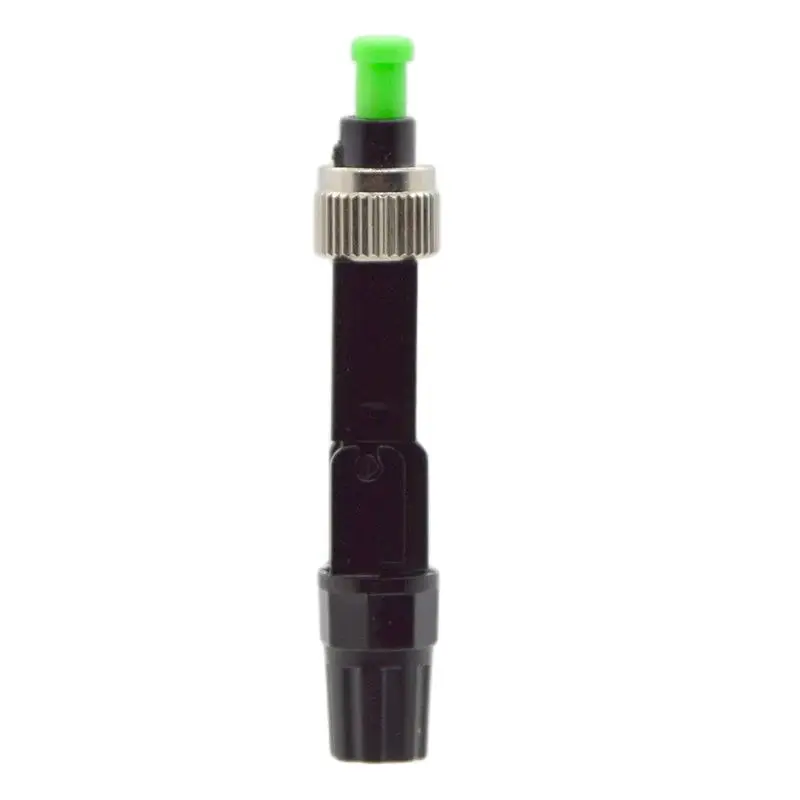

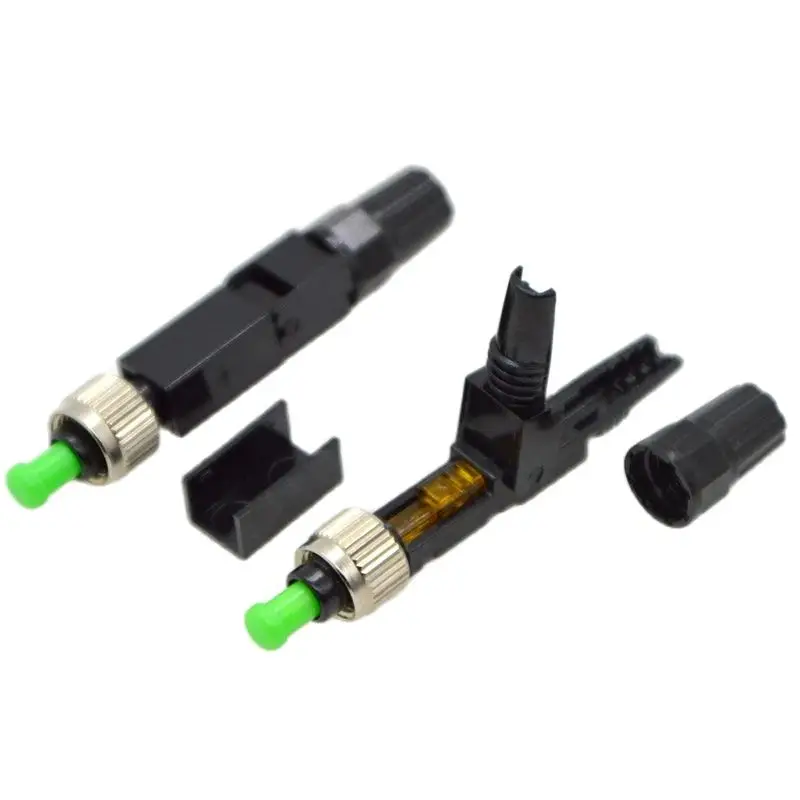

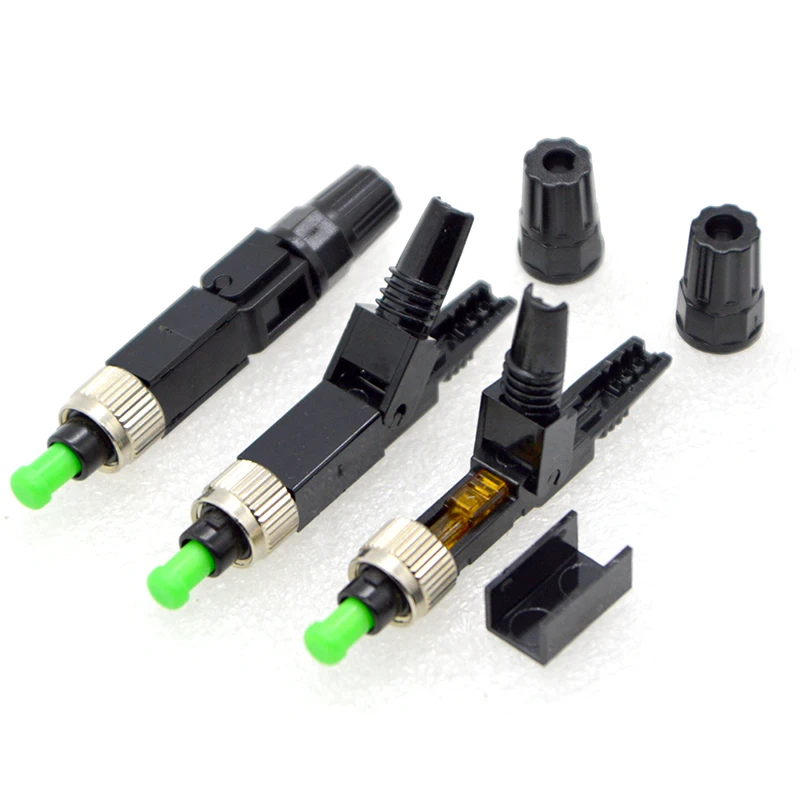

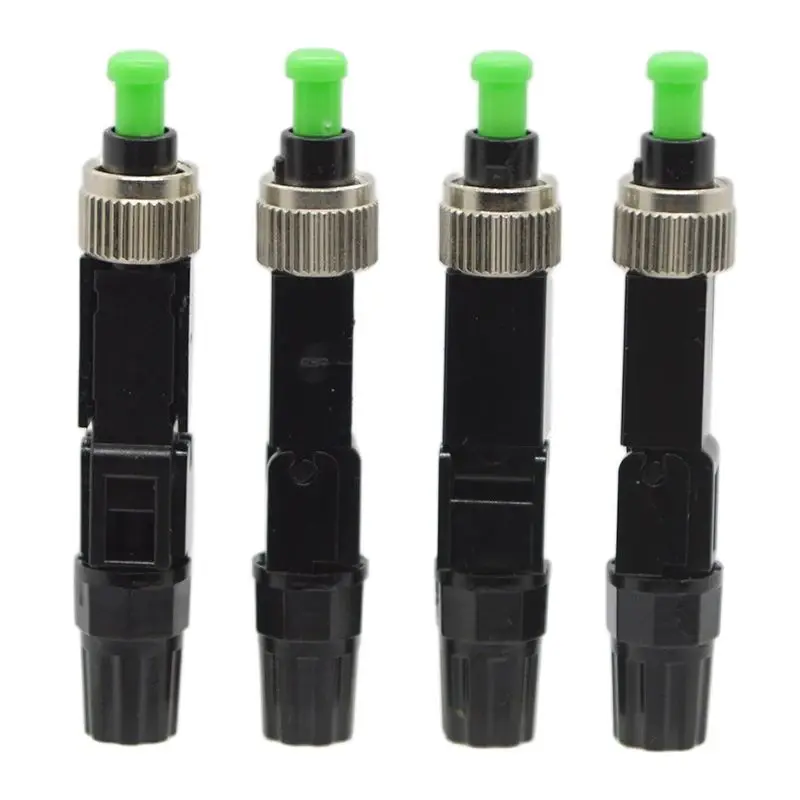

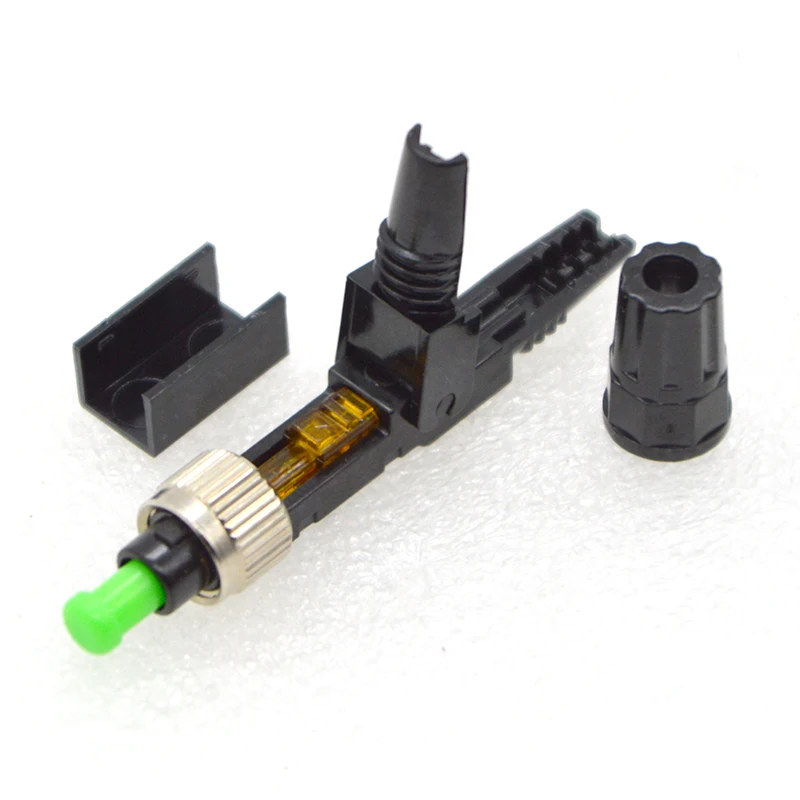

Pre embedded FC/APC fiber optic quick connector

Product specifications:

55mmx8.9mmx7mm

Application scope:

Fiber optic distribution frames, fiber optic network equipment, fiber to the home, cable television networks, etc

Using data:

Average insertion loss=0.3dB

Return loss=50dB

Operation steps:

1. Prefabricated optical fiber (bare fiber 10mm coated layer 20mm)

2. Thread the tail cover into the fiber optic cable.

3. Thread and top the pre fabricated fiber optic cable into the embedded fiber optic cable, and continue to gently push the cable to bend it.

4. Push the fixing ring forward, lock the fiber optic cable, and close the tail cover.

5. Tighten the tail sleeve, install the outer shell, and complete the connection.

Restart method:

1. Hold the dust cap and remove the casing.

2. Push back the fixing ring and loosen the fiber optic cable.

3. Unscrew the tail cover, pull out the rubber wire, and complete the opening work.
