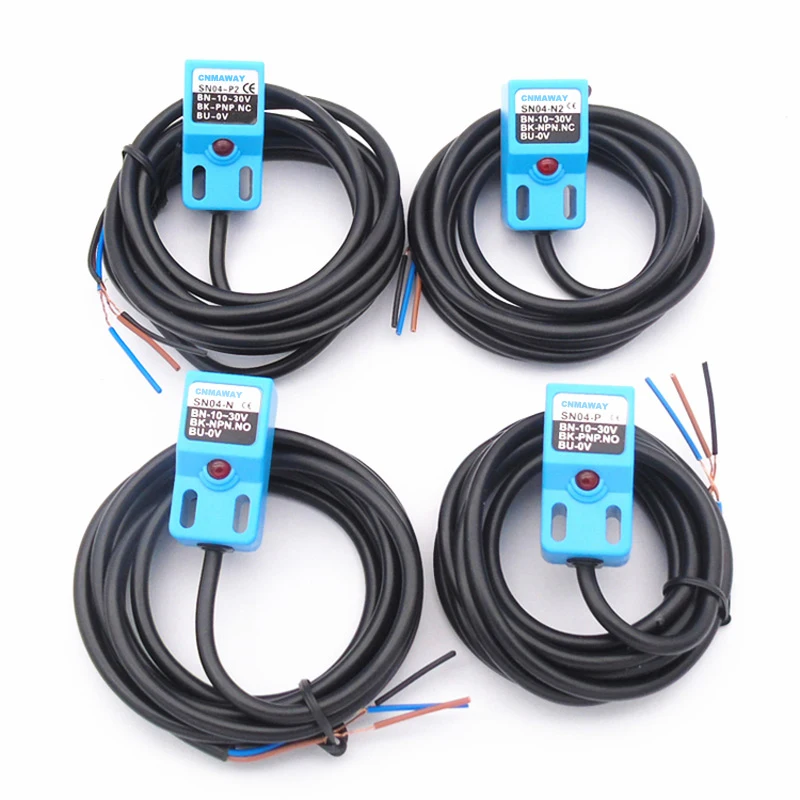

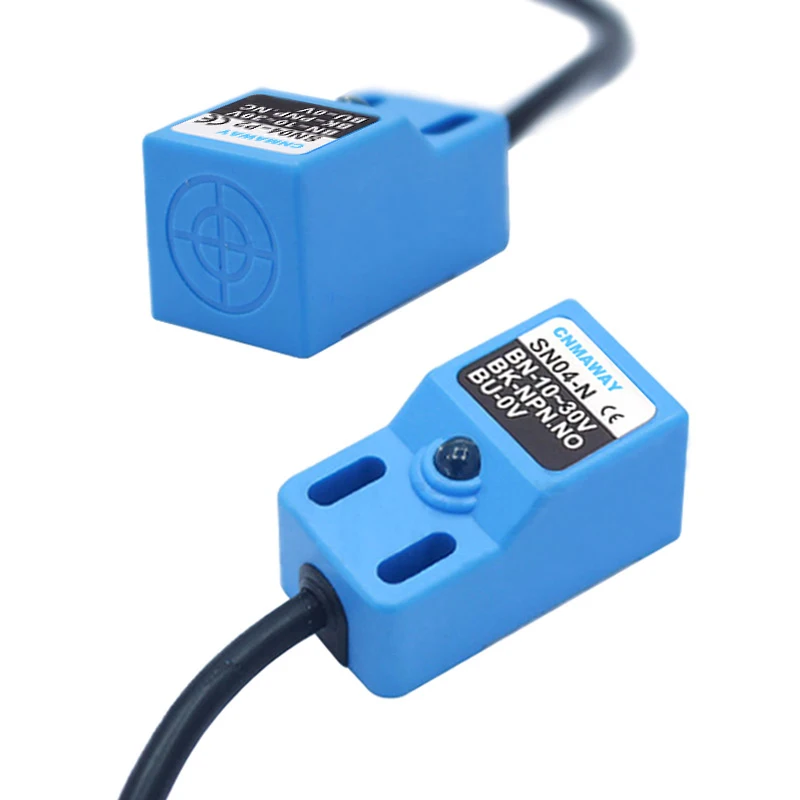

10 Uds SN04-N sensor de detección de metales interruptor de proximidad para inspección de metales SN04-D1 D2 Y1 Y2 SN04-N2 SN04-P SN04-P2 NPN PNP NC NO

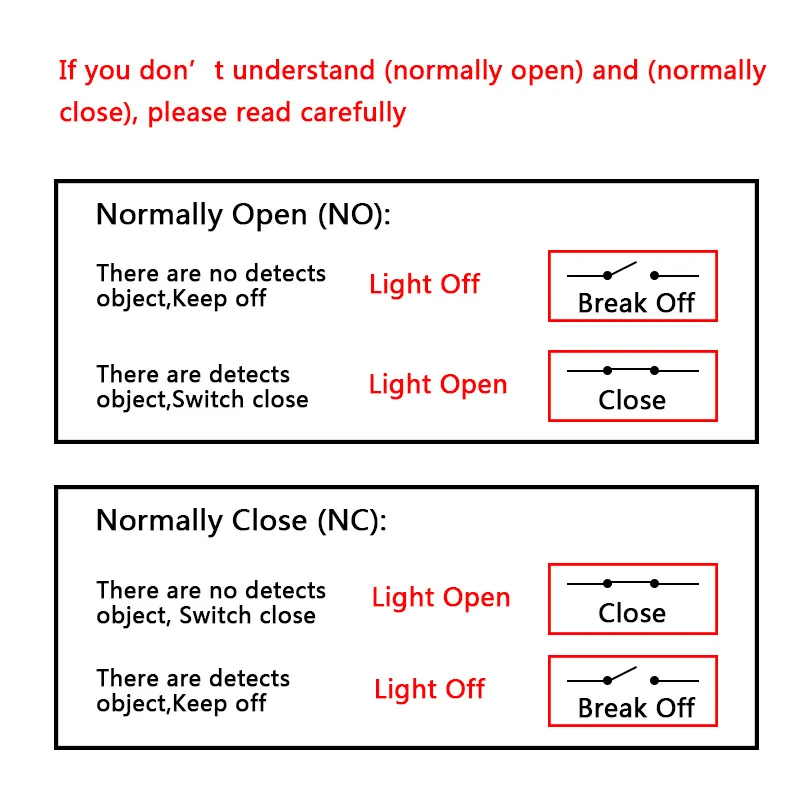

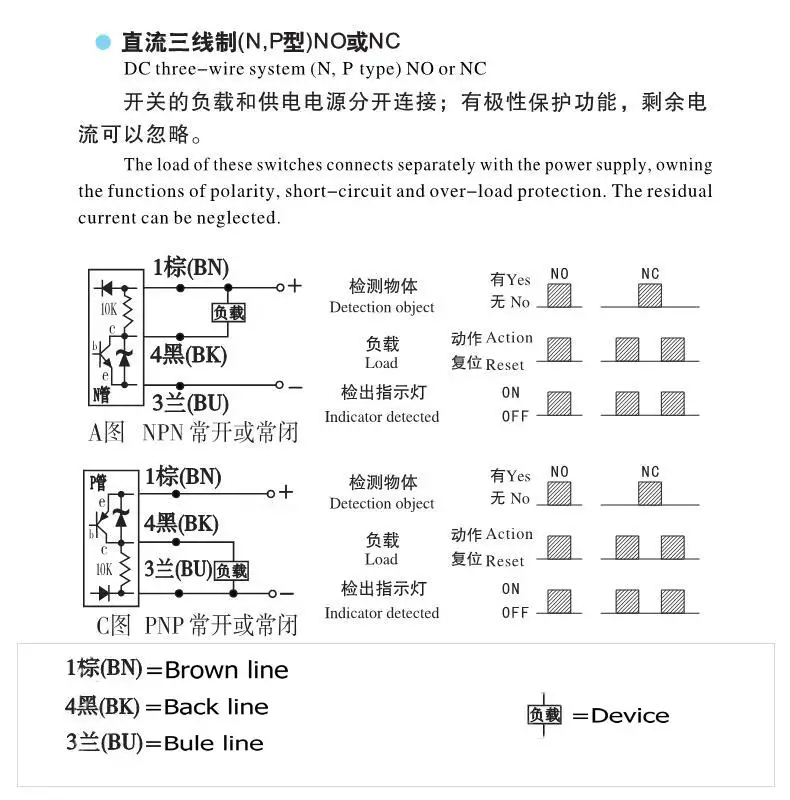

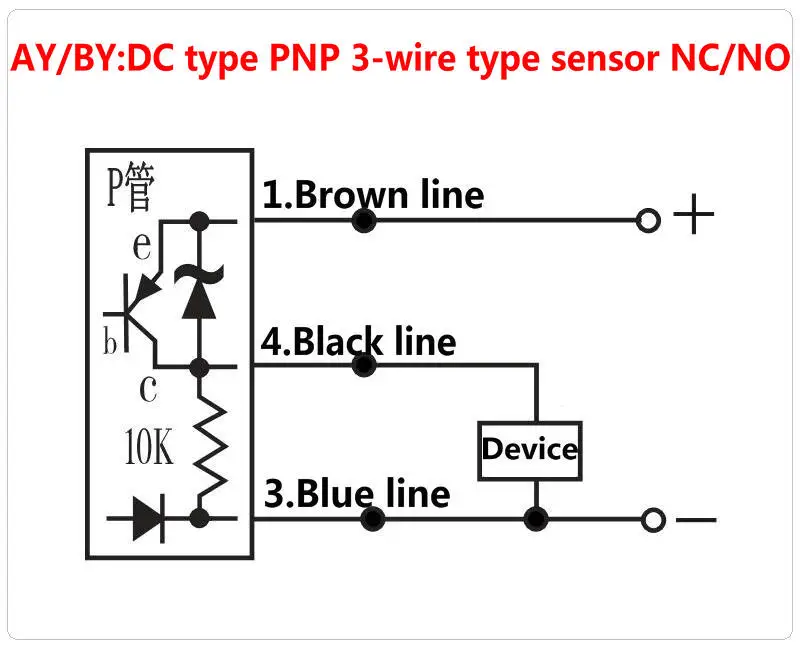

SN04-P1: PNP Normally Open 3-Line type 4mm detection distance

SN04-P2: PNP Normally Close 3-Line type 4mm detection distance

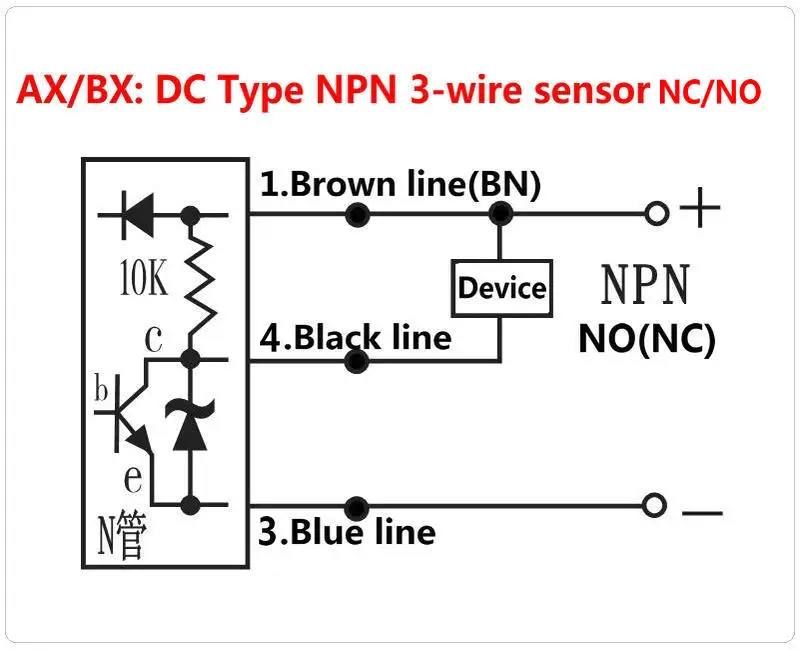

SN04-N1: NPN Normally Open 3-Line type 4mm detection distance

SN04-N2: NPN Normally Close 3-Line type 4mm detection distance

[Main Parameter]

Detection distance :4mm ± 10%

Set distance:0~3.8mm

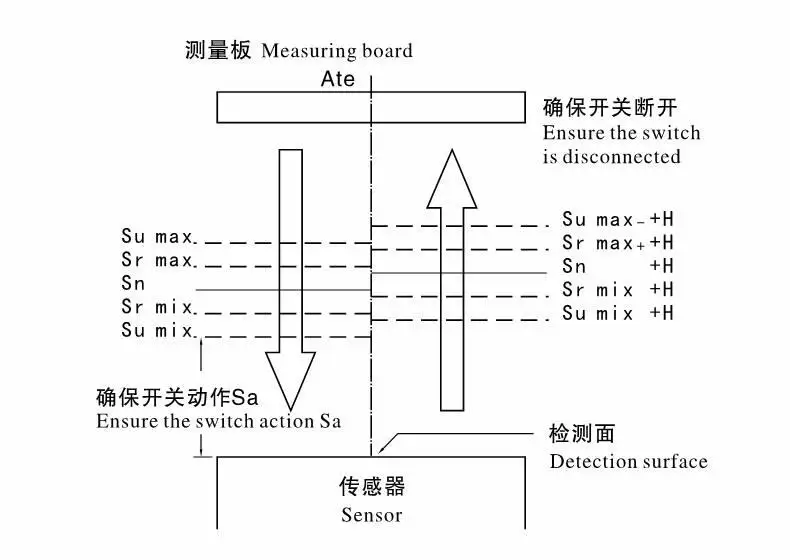

Delay distance:10% below of the detection distance

Detection object:Magnetic metal(the detection distance decreases when it is non-magnetic metal)

Stand detection object:Iron 18*18*1mm

Response frequency:DC:0.5kHz

Supply voltage:DC type:DC12V DC24V DC36V(DC6~36V)impulse(p-p)10% below

Withstand voltage:AC1000V 50/60Hz 1min between charging part and housing

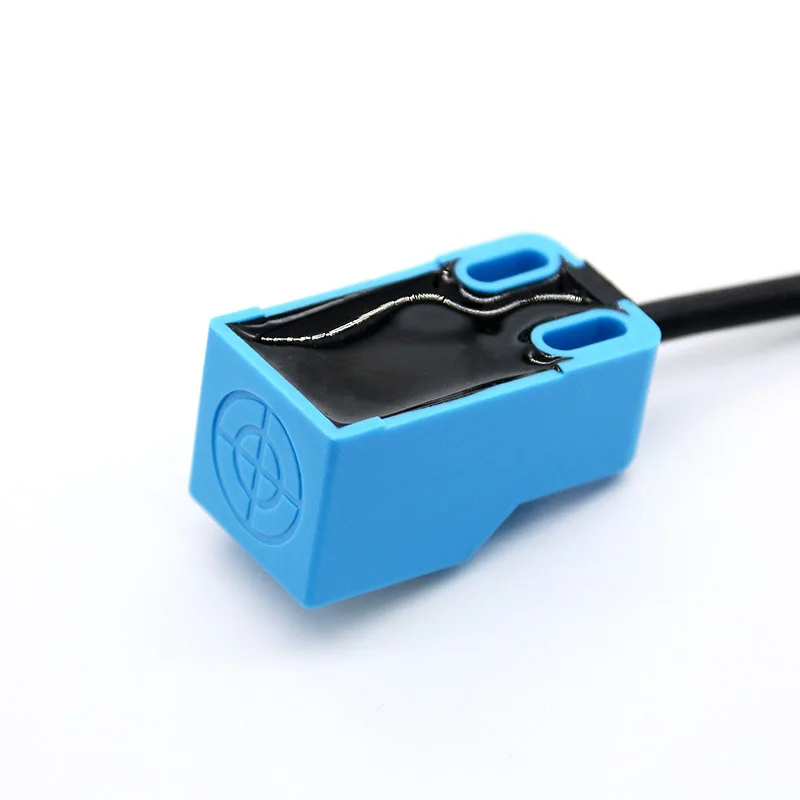

Meterial:(Housing:Nickel plated brass) (Detection surface:ABS)

Protection influence:IP67(IEC specification)

This product can be applied to control relays, counters,PLC, etc.!
