10 Uds FTTH CATV Mini nudo receptor óptico pasivo red transmisión integrada WDM longitud de onda División multiplexor al por mayor

10PCS FTTH CATV Mini Node Passive Optical Receiver Network Integrated Transmission WDM Wavelength Division Multiplexer Wholesale

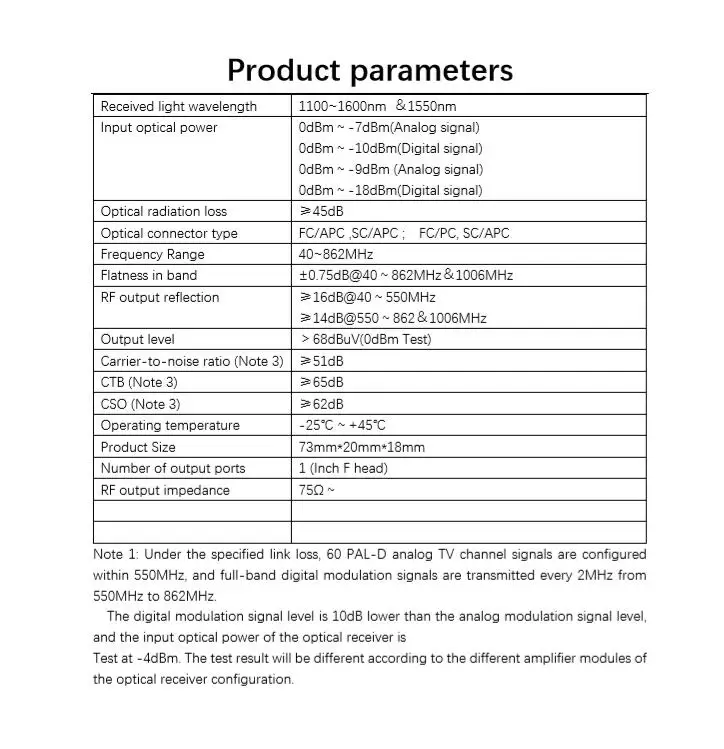

Product parameters
Received light wavelength:1100~1600nm ＆1550nm

Input optical power:

0dBm～-7dBm(Analog signal)
0dBm～-10dBm(Digital signal)
0dBm～-9dBm (Analog signal)
0dBm～-18dBm(Digital signal)

Optical radiation loss:≥45dB

Optical connector type:
FC/APC ,SC/APC ; FC/PC, SC/APC

Frequency Range:40~862MHz

RF output reflection:
≥16dB@40～550MHz
≥14dB@550～862＆1006MHz
Output level:＞68dBuV(0dBm Test)

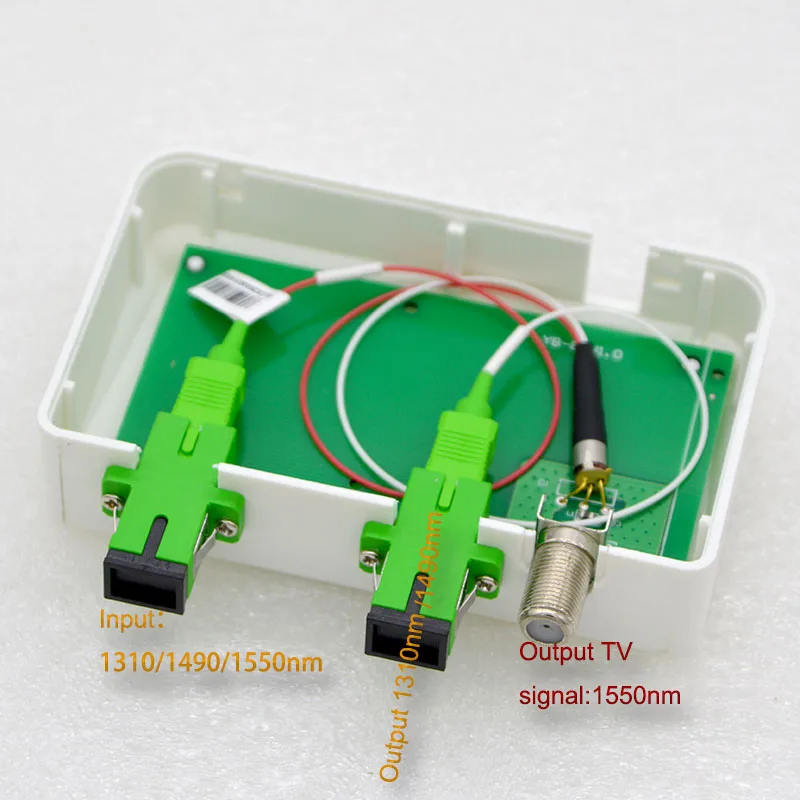

APC: 1310/1490 / 550nm multiplexed signal input
F head: 1550nm TV signal output
UPC: 1310 / 1490nm broadband network signal output
