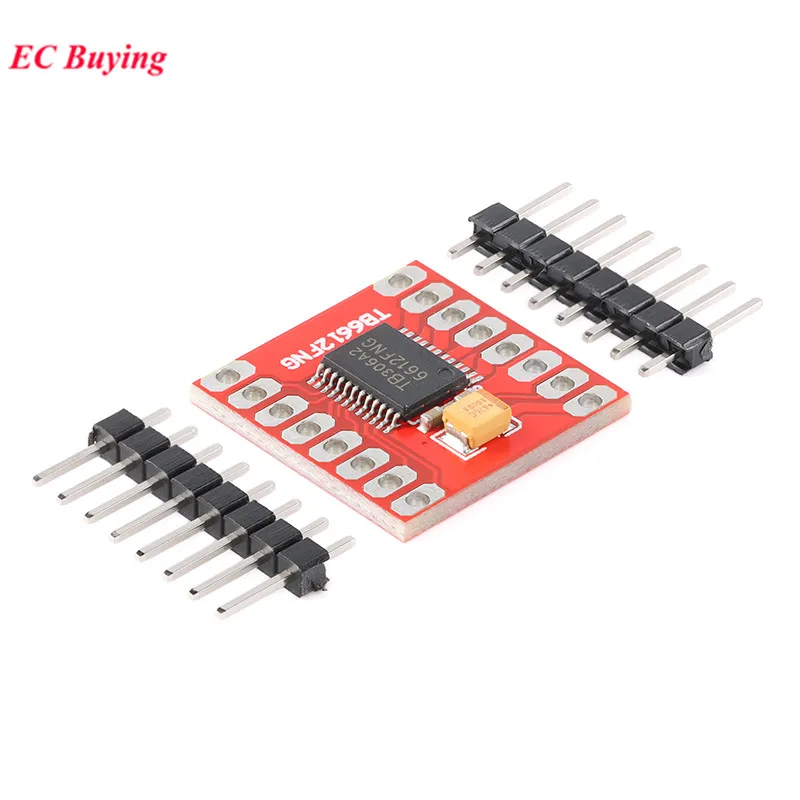

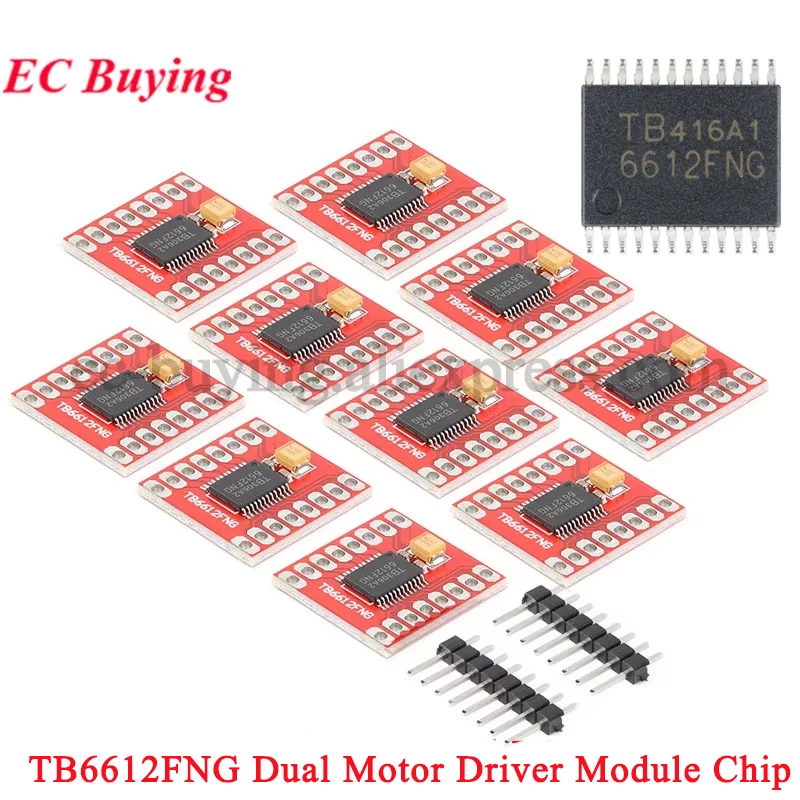

10 uds/1 unidad TB6612 módulo controlador de Motor Dual 1A TB6612FNG placa PCB para microcontrolador Arduino mejor que L298N electrónica DIY

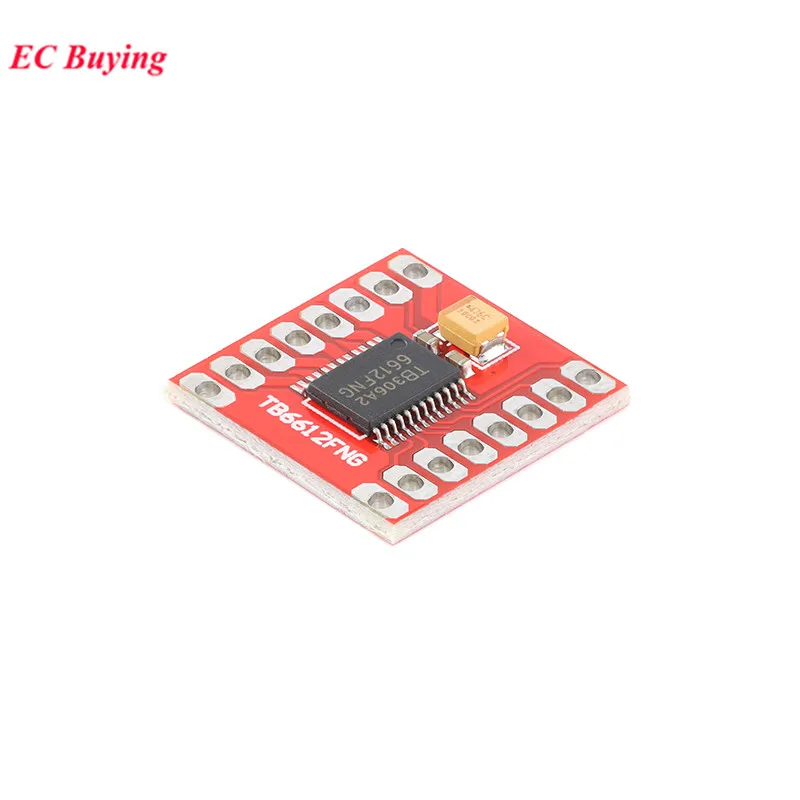

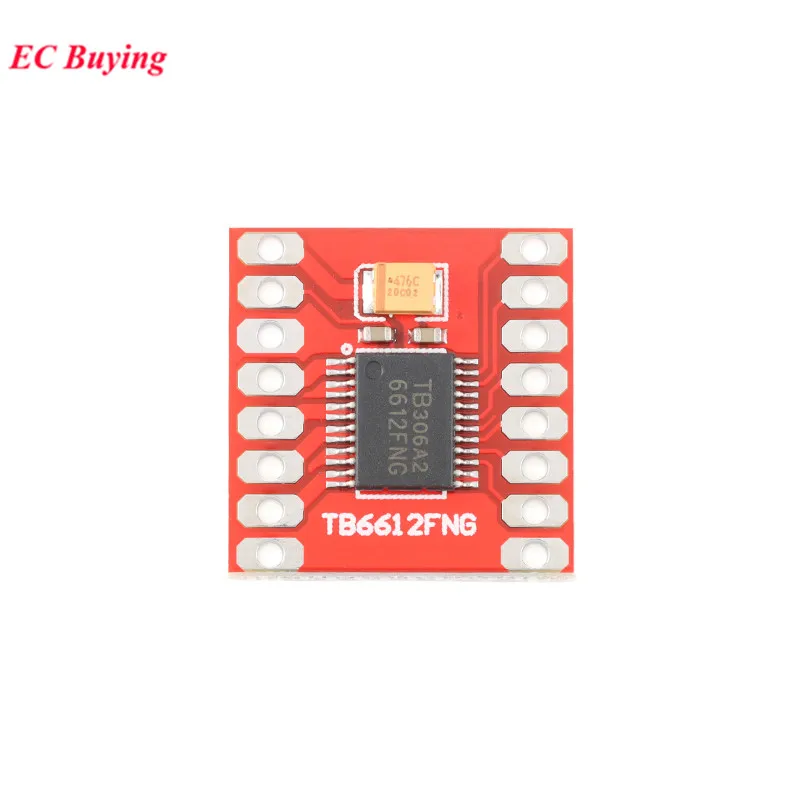

TB6612FNG Dual Motor Drive Module

high efficiency/high performance/Small size

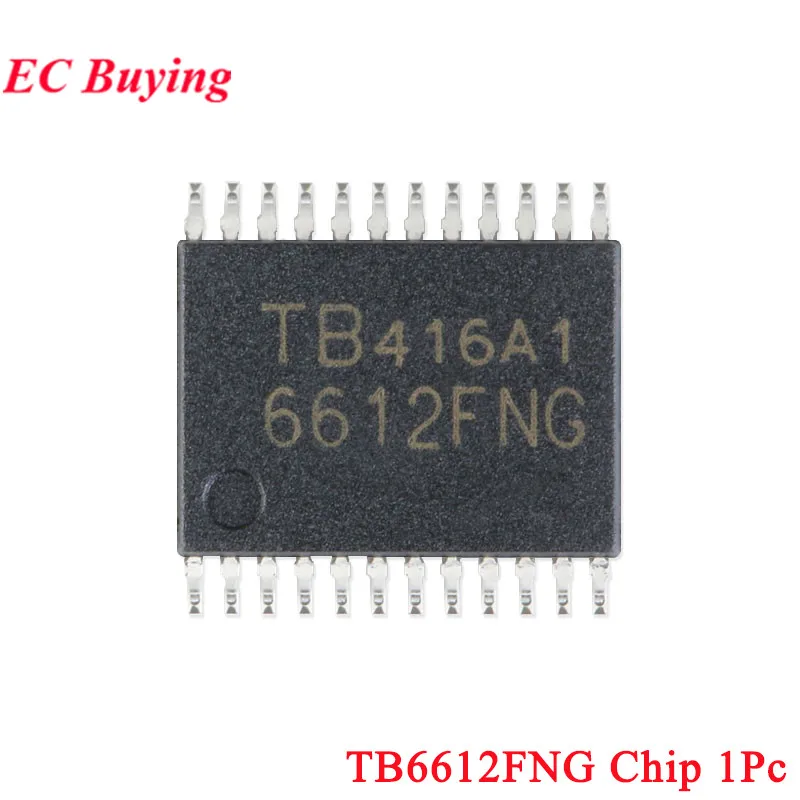

The TB6612FNG is a new driver that can independently control two DC motors in two directions. It has a high degree of integration while providing sufficient output capability, as well as an operational advantage and energy consumption. Therefore, the TB6612FNG is an integrated, Of the motor control system, it can be used as an ideal motor drive device.

Working current: 1.2A

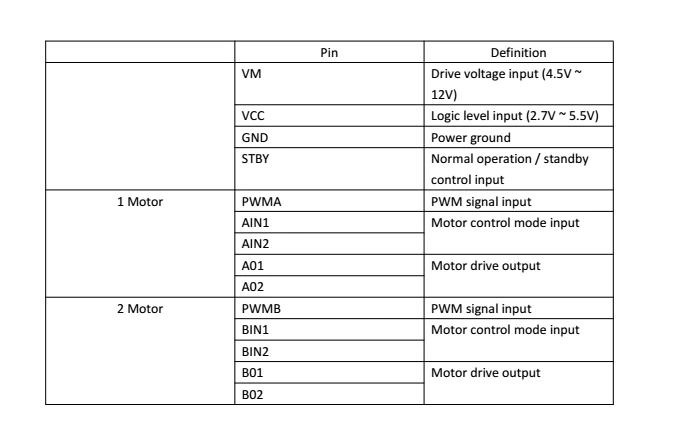

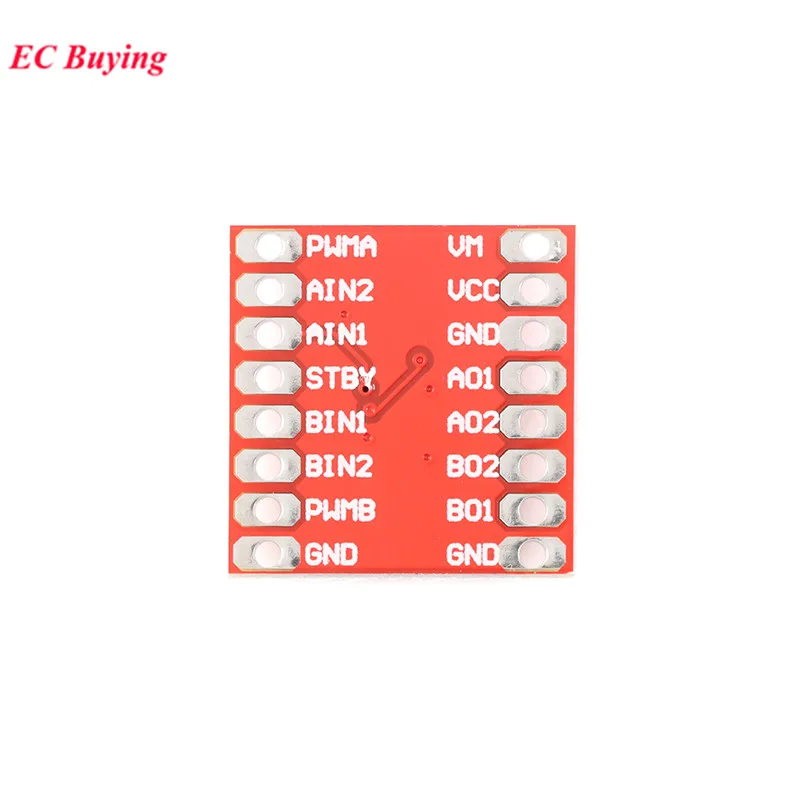

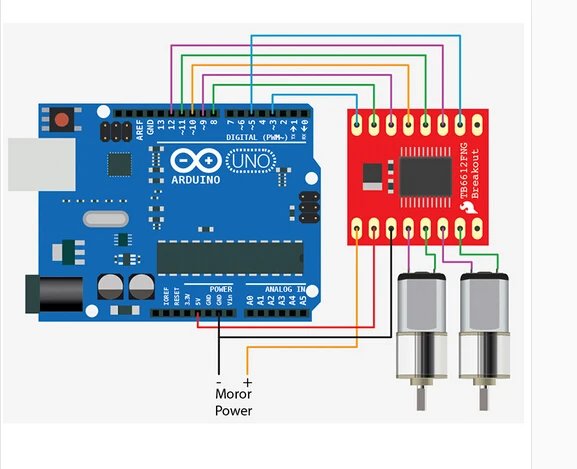

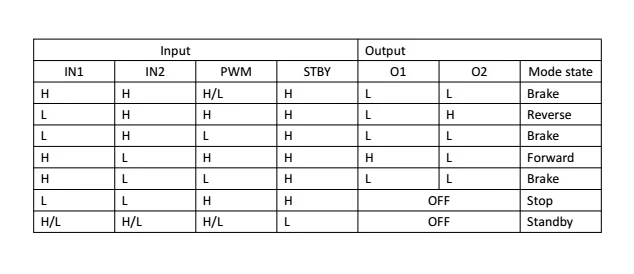

AIN1 / AIN2, BIN1 / BIN2, PWMA / PWMB as the control signal input;AO1 / AO2, BO1 / BO2 for the two motor control output;STBY is the normal operation / standby state control pin;VM ( 12V) and VCC (2.7 ~ 5.5V) are motor drive voltage input and logic level input, respectively.
