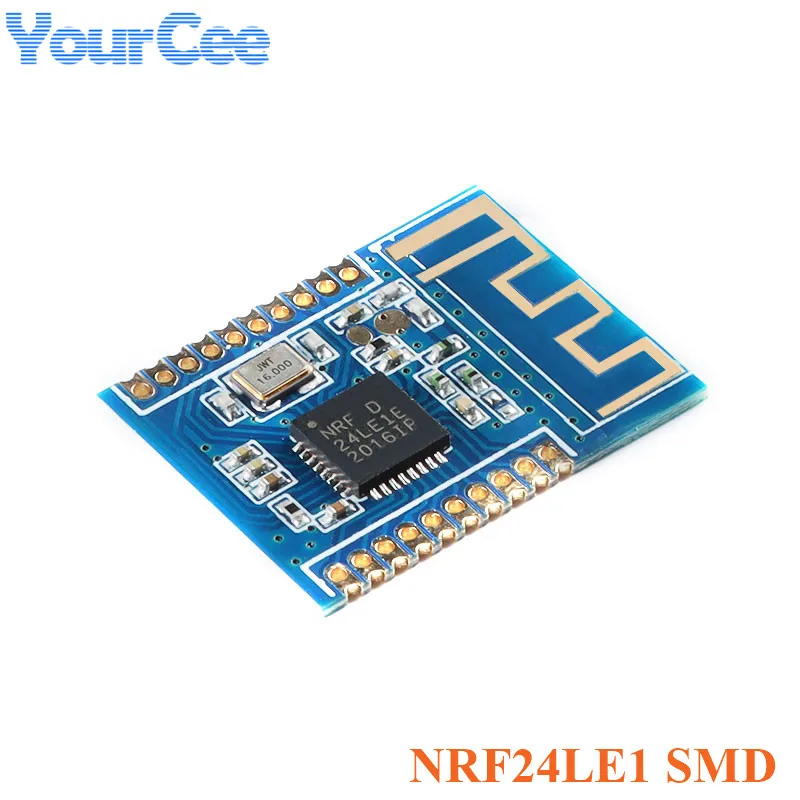

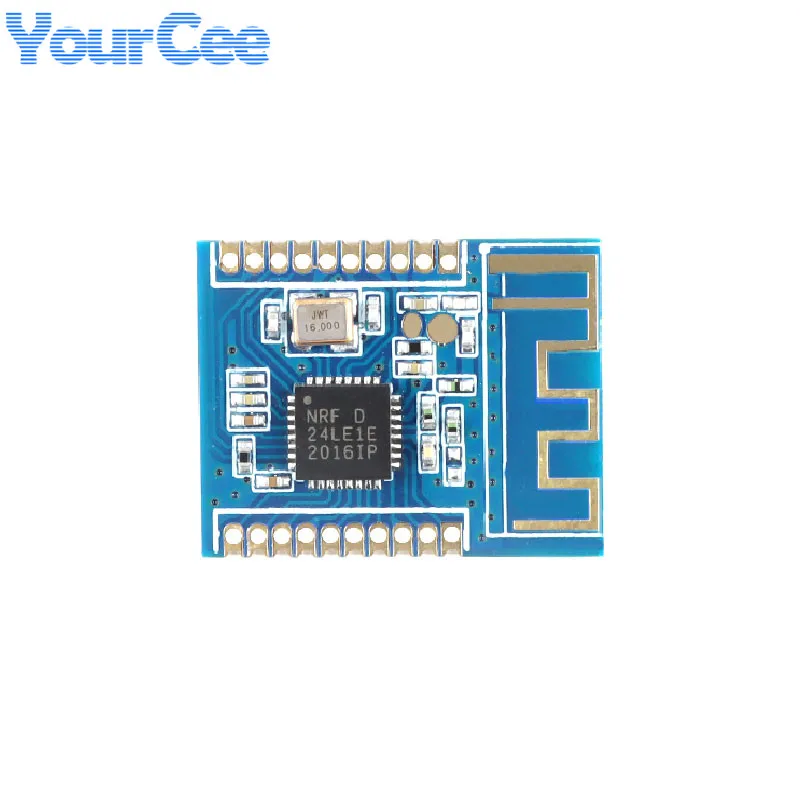

Each module can send and receive, at least 2 can be used. nRF24LE1 is NORDIC's latest 1 low-cost and high-performance RF transceiver single chip embedded with microprocessors. NRF24LE1 is a single-chip wireless transceiver system designed for ultra-low power wireless applications. The chip integrates high-performance microprocessors (compatible with 8051 instructions),16KB Flash memory, 1KB data space (on-chip RAM),1KB NV nonvolatile memory space, 512 bytes NV nonvolatile data storage, low power oscillator, real-time counter, AES hardware encryption and other module functions, as well as a variety of power modes designed for low power consumption, support for hardware debugging, NRF24LE1 provide an ideal wireless protocol platform, with seamless connection protocol, high security, low power consumption and excellent performance of anti-interference.
high speed 8 bit processor:
The chip is embedded with a high-speed 8-bit processor that is compatible with Intel 805 instructions. It uses CCB's quality cycle, which is 12 times faster than traditional 8051.
Memory:
16KB Flash memory for treatment encryption function; 1KB on-chip RAM; 1KB non-volatile data memory; 512 bytes of rewritable non-volatile data memory
Multi-function I/O pin

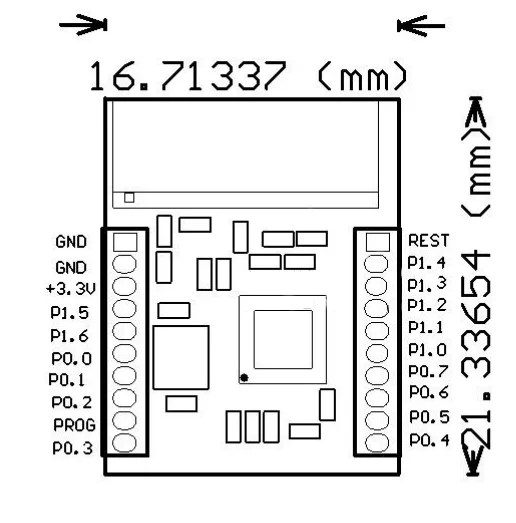

With 15 IO pin ports, many on-chip hardware resources can be realized through programmable multi-function I/O, such as GPIO.SPI master, SPI slave, master-slave 2-wire interface, full duplex serial interface, PWM,ADC, strong analog, external interrupt, timer interrupt input
2. 4G GFSK RF transceiver
With high-performance 2.4G GFSK radio frequency transceiver receiving sensitivity -82 ~ -94dBm, transmit power 0 ~ 4dBm, operating frequency range 2.4~2.525G, wireless transceiver characteristics compatible with NRF24L01
ADC has 6-bit 8-bit 10-bit 12-bit resolution, 14 input channels, single-ended or differential input, can have internal reference, external reference or Vdd set full-scale range,
However, the conversion time of the non-mode is 3uS. The continuous mode has a sampling rate of 2KBPS,8KBPS and 16KBPS.
Analog comparators can be differential or single-ended input, with rail-to-rail input range, 14-input multiplexer.
Support Keil development tools, can be used in the shop downloader online download.
2.4 GHz wireless, enhanced 51, multi-channel 10bit ADC, PIMM, I2C, UART, SPI, WDT, RTC, comparator, programmable I/O,
Open transmission distance: about 10-50M
Working voltage: 1.9~3.6V
RF transmit current: about 11 mA @ 0dBm output
RF receive current: about 13mA @ 2Mbps
MCU Current: 3.8mA @ 8MHzclock
Flexible and efficient development means, support KeilC, ISP download, is the development of wireless peripherals, RFID, wireless data transmission and other powerful tools and platforms
Deep sleep: 0.5uA
