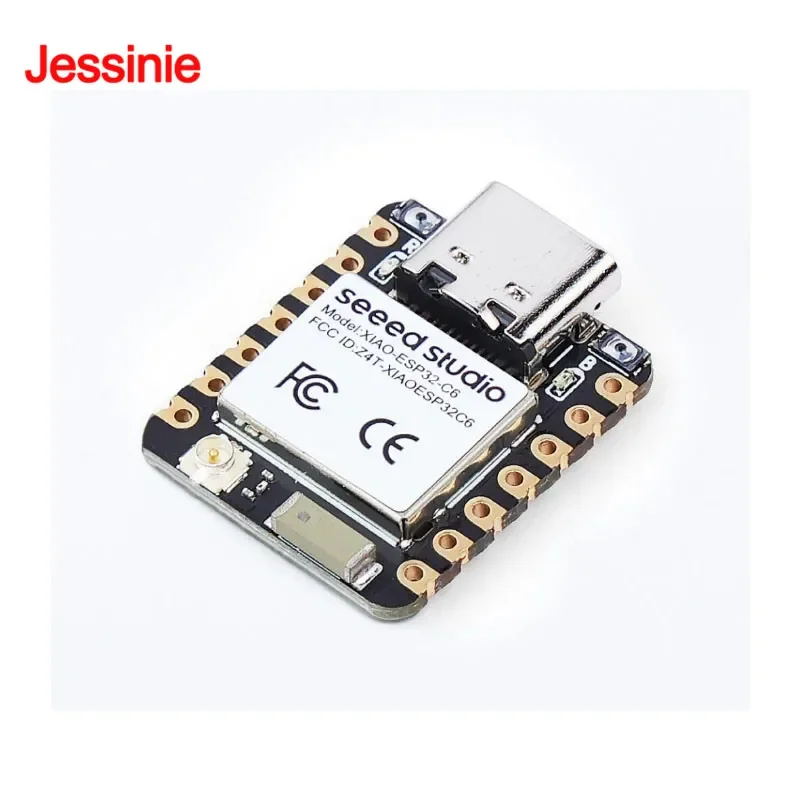

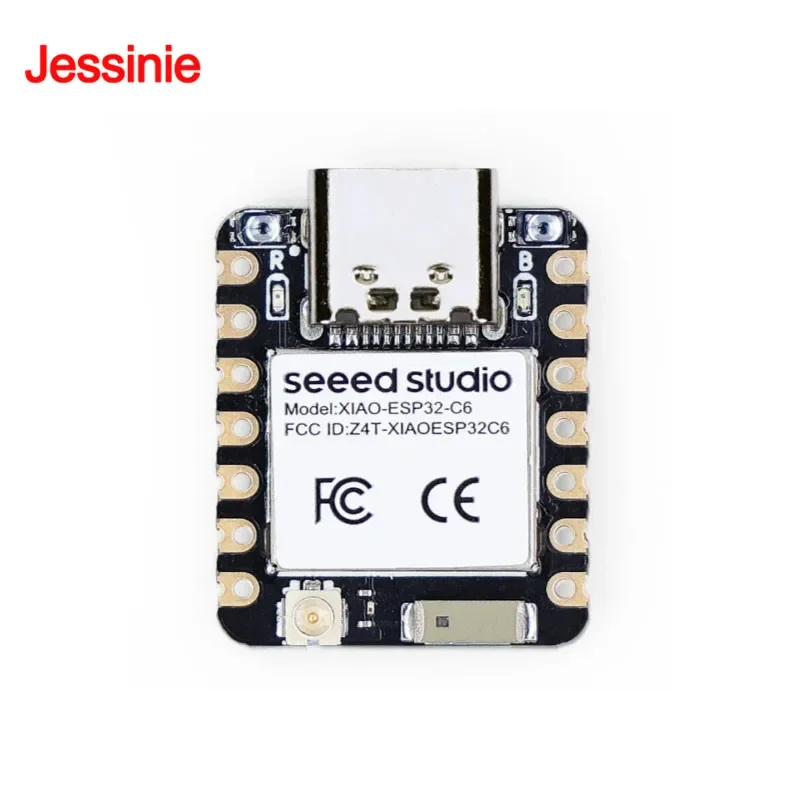

Seeed Studio XIAO ESP32C6 is powered bythe highly-integrated , built on two 32-bit RISC-V processors, with ahigh-performance (HP) processor with running up to 160 MHz, and a low-power (LP) 32-bit RISC-V processor, which can be clocked up to 20 MHz. There are512KB SRAM and 4 MB Flash on the chip, allowing for more programming space, and bringing more possibilities to the IoT control scenarios.
XIAO ESP32C6 is Matter native thanks to its enhanced wireless connectivity. The wireless stack supports 2.4 GHz WiFi 6, Bluetooth® 5.3, Zigbee, and Thread (802.15.4). As the first XIAO member compatible with Thread, it's a perfect fit for building Matter-compliant projects, thus achieving interoperability in smart-home.
To better support your IoT projects, XIAO ESP32C6 not only provides seamless integration with mainstream cloud platforms like ESP Rain Maker, AWS IoT, Microsoft Azure, and Google Cloud, but also leverages security for your IoT applications. With its on-chip secure boot, flash encryption, identity protection, and Trusted Execution Environment (TEE), this tiny board ensuresthe desired level of securityfor developers looking to build smart, secure, and connected solutions.

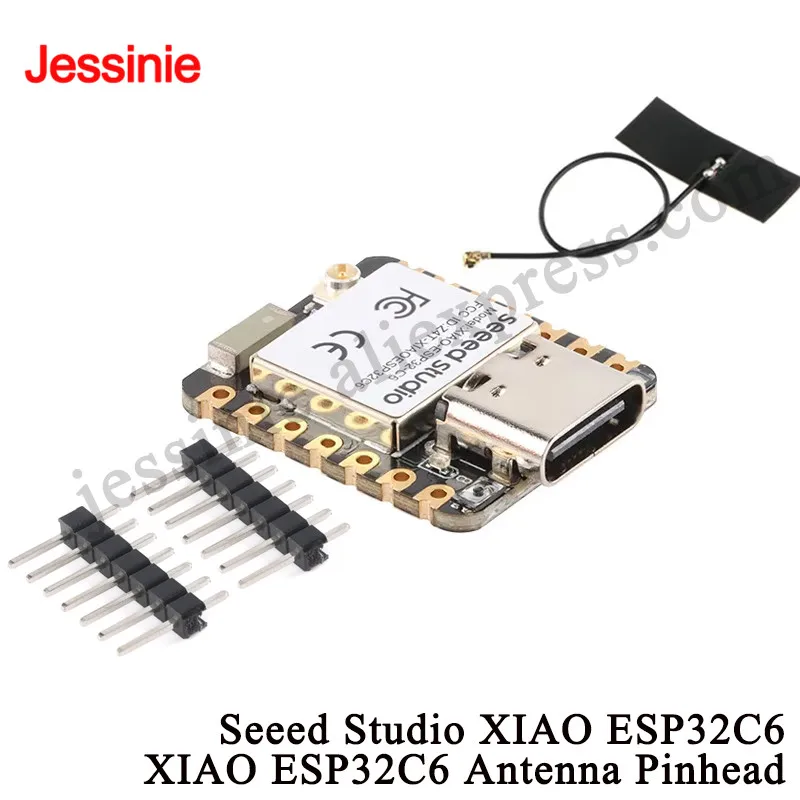

This new XIAO is equipped with a high-performanceonboard ceramic antenna with up to 80m BLE/Wi-Fi range, while it also reserves an interface for an external UFL antenna. At the same time, it also comes with an optimized power consumption management. Featuring four power modes and an onboard lithium battery charging management circuit, it works in the Deep Sleep mode with a current as low as 15 µA, making it an excellent fit for remote, battery-powered applications.

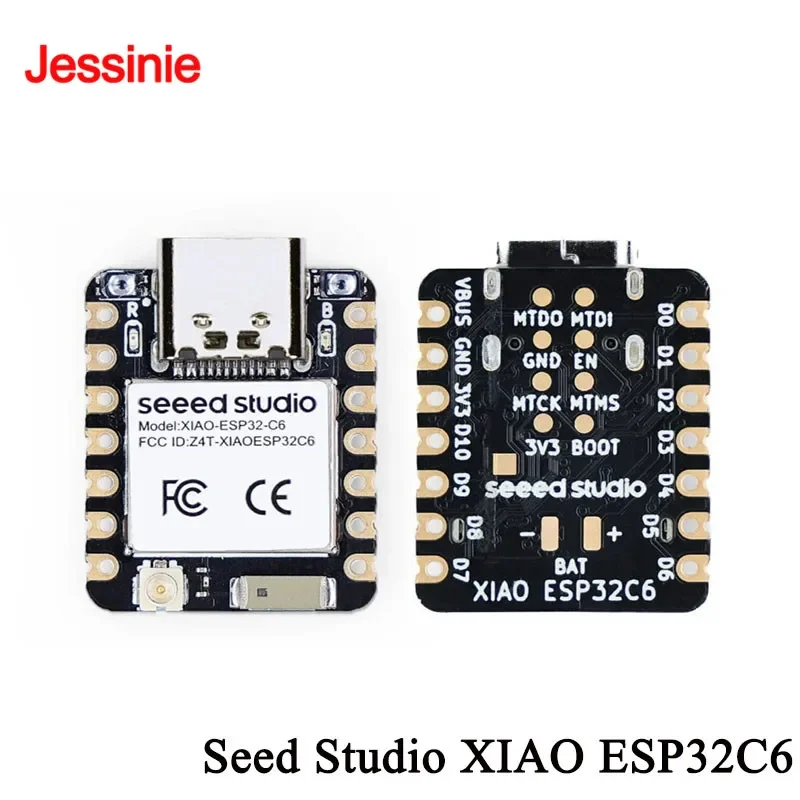

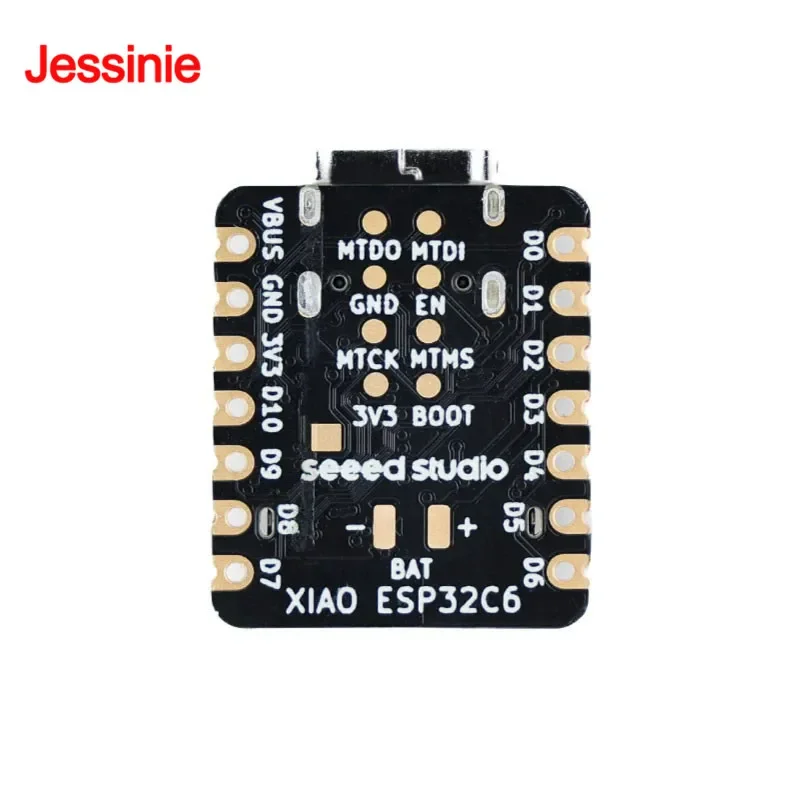

Being the 8th member of the , XIAO ESP32C6 remains the classic XIAO design. It is designed to fit the 21 x 17.5mm, XIAO Standard Size, while remains its classic single-sided components mounting. Even being thumb-sized, it amazingly breaks out15 totalGPIO pins, including 11 digital I/Os for PWM pins and 4 analog I/Os for ADC pins. It supports UART, IIC, and SPI serial communication ports. All these features make it a perfect fit for either space-limited projects such as wearables, or a production-ready unit for your PCBA designs. (check out our to explore what support you can get!).
Note
Please note that the classic pin heads for XIAO are not included in this product as we want to avoid component wastes (we got this input from the community and we want to contribute a bit to a greener earth). If you want to equip your XIAO ESP32C6 with the pinheads, you can to add it to your cart with ease.
It's super developer-friendly to get started with XIAO ESP32C6 too. Compatible with both Arduino and ESP-IDF, it offers developers the way you prefer to tinker around. Moreover, we also provide the along with for beginners to quickly tap into the world of electronics.
Application
Secure and Connected Smart Home, enhancing everyday life through automation, remote control, and more
Space-limited and Battery-Powered Wearables,thanks to their thumb-size and low-power consumption
Wireless IoT Scenarios, enabling rapid, reliable data transmission
Specification Comparison
Product
XIAO ESP32C6
Processor
Espressif ESP32-C6 SoC
Espressif ESP32-C3 SoC
Espressif ESP32-S3R8
two 32-bit RISC-Vprocessors, with the high-performance one running up to 160 MHz, and the low-power one clocking up to 20 MHz
RISC-V single-core 32-bit chip processor with a four-stage pipeline that operates at up to 160 MHz
Xtensa LX7 dual-core, 32-bit processor running up to 240 MHz
Wireless
Complete 2.4GHz Wi-Fi 6 subsystem
Complete 2.4GHz Wi-Fi subsystem
Complete 2.4GHz Wi-Fi subsystem
BLE: Bluetooth 5.0, Bluetooth mesh
BLE: Bluetooth 5.0, Bluetooth mesh
BLE: Bluetooth 5.0, Bluetooth mesh
Zigbee,Thread,IEEE 802.15.4
/
/
On-chip Memory
512KB SRAM & 4MB Flash
400KB SRAM & 4MB Flash
8M PSRAM & 8MB Flash
Interface
1x UART,1x LP_UART, 1x IIC, 1x LP_IIC, 1x SPI,11x GPIO(PWM), 7x ADC, 1xSDIO
1x UART, 1x IIC, 1x SPI,11x GPIO(PWM), 4x ADC
1x UART, 1x IIC, 1x IIS, 1x SPI,11x GPIO(PWM), 9x ADC, 1x User LED, 1x Charge LED
1x Reset button, 1x Boot button
1x Reset button, 1x Boot button
1x Reset button, 1x Boot button
Dimensions
21 x 17.5mm
21 x 17.5mm
21 x 17.5mm
Power
Input voltage (Type-C): 5V
Input voltage (BAT): 4.2V
Input voltage (Type-C): 5V
Input voltage (BAT): 4.2V
Input voltage (Type-C): 5V
Input voltage (BAT): 4.2V
Circuit operating Voltage (ready to operate):
- USB:5V@9mA
- BAT:3.8V@9mA
Circuit operating Voltage (ready to operate):
- USB:5V@9mA
- BAT:3.8V@9mA
Circuit operating Voltage (ready to operate):
- Type-C: 5V@19mA
- BAT: 3.8V@22mA
Charging battery current:100mA
Charging battery current: 350mA
Charging battery current: 100mA
Power Consumption Model
(Supply Power: 3.8V)
Modem-sleep Model: ~ 30 mA
Light-sleep Model: ~ 2.5 mA
Deep Sleep Model: ~15 μA
Modem-sleep Model: ~ 24 mA
Light-sleep Model: ~ 3 mA
Deep Sleep Model: ~44 μA
Modem-sleep Model: ~ 25 mA
Light-sleep Model: ~ 2mA
Deep Sleep Model: ~ 14 μA
Working Temperature
-40°C ~ 85°C
-40°C ~ 85°C
-40°C ~ 65°C
