1 Uds. Transceptor SC/SFP monomodo eléctrico Gigabit 1 óptico 4 de grado Industrial, transceptor de extremo A

1 PCS Industrial-grade Gigabit 1 Optical 4 Electrical Single-fiber Single-mode SC/SFP Transceiver A end Transceiver

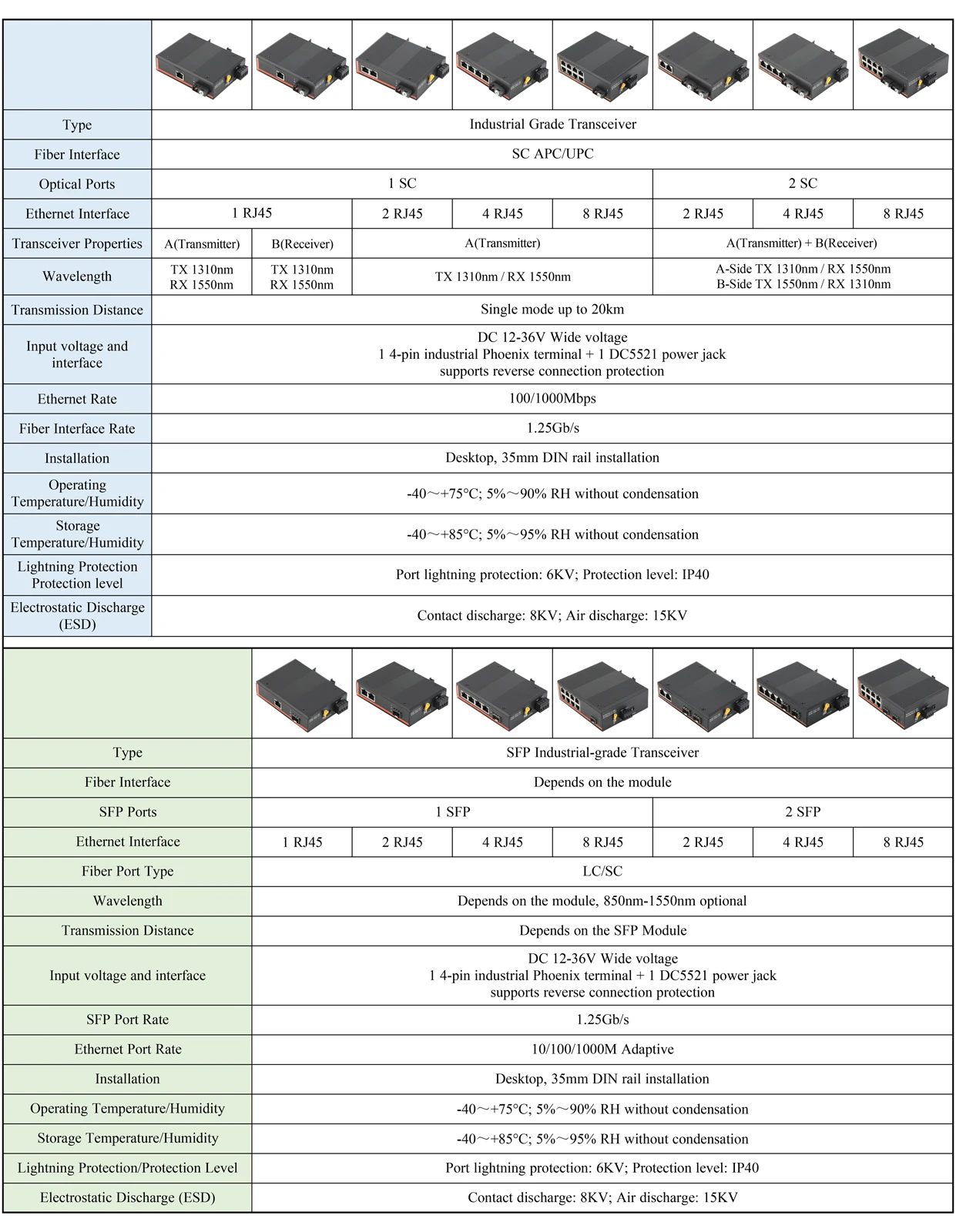

Type: Industrial-grade Photoelectric Ponverter

Fiber Type: Single-mode Single Fiber

Fiber Interface: 1 SC APC/UPC

Transmission Distance: 20 KM

Ethernet Interface: 4 RJ45 Interface

Ethernet Rate: 100/1000Mbps

Fiber Interface Rate: 1.25Gb/s

Wavelength: A-Side TX 1310nm / RX 1550nm

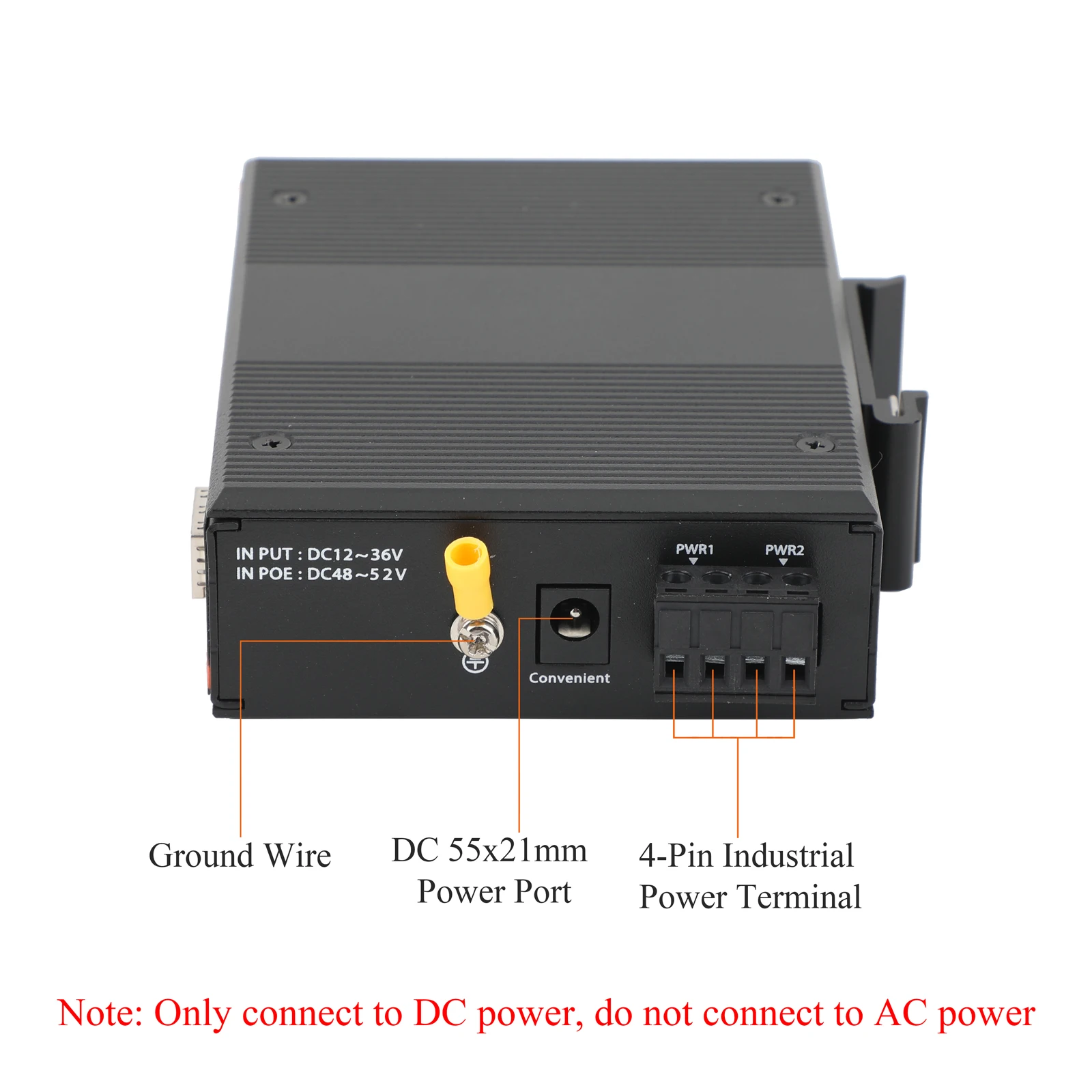

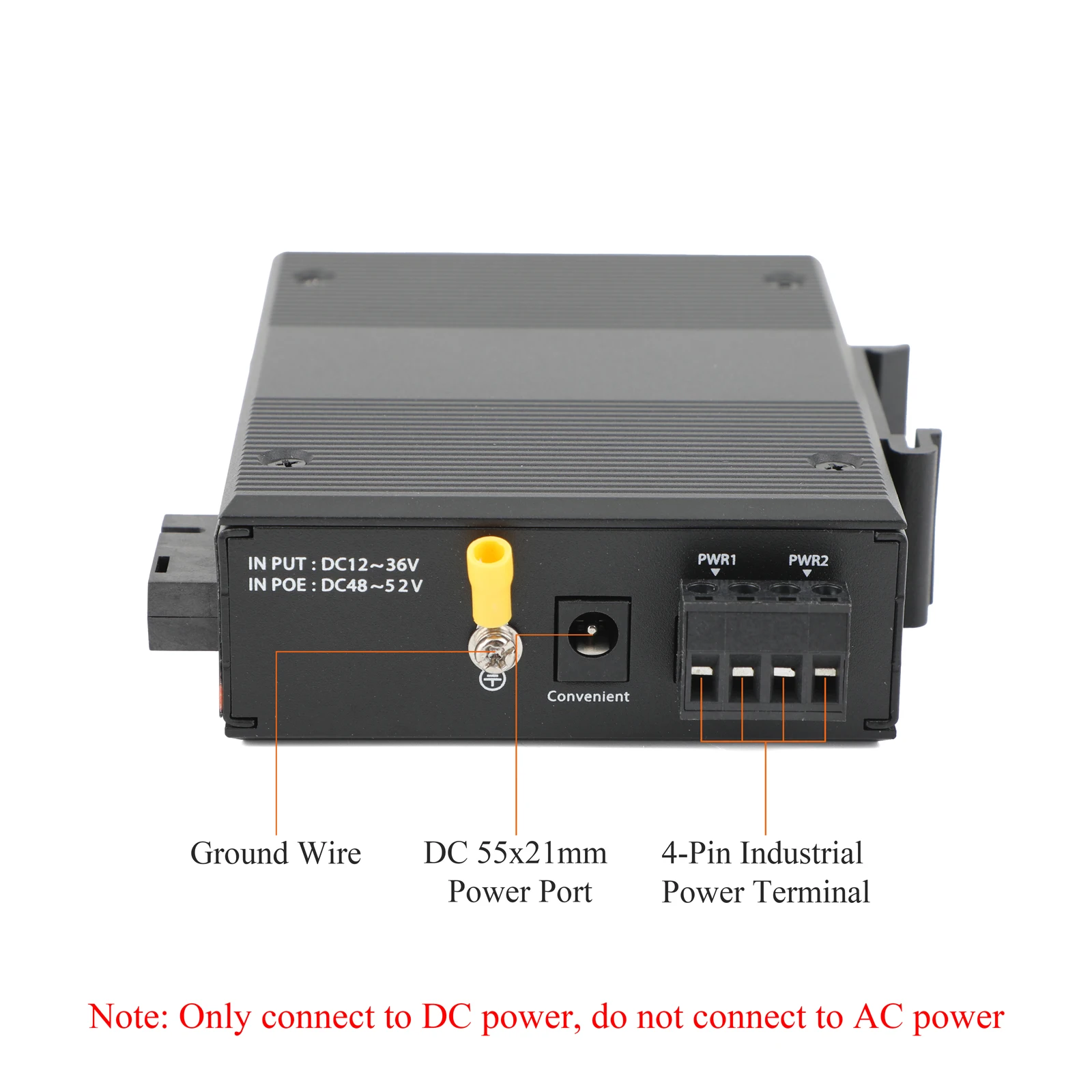

Power Specification: DC 12-36V

Type: SFP Industrial-grade Transceiver

Connector A: 1 SFP Port

Connector B: 4 RJ45 Port

Fiber Port Type: LC/SC

Ethernet Port Rate: 10/100/1000M Adaptive

SFP Port Rate: 1Gbps

Transmission Distance: Depends on the SFP Module

Power Specification: 12-48V DC

Feature

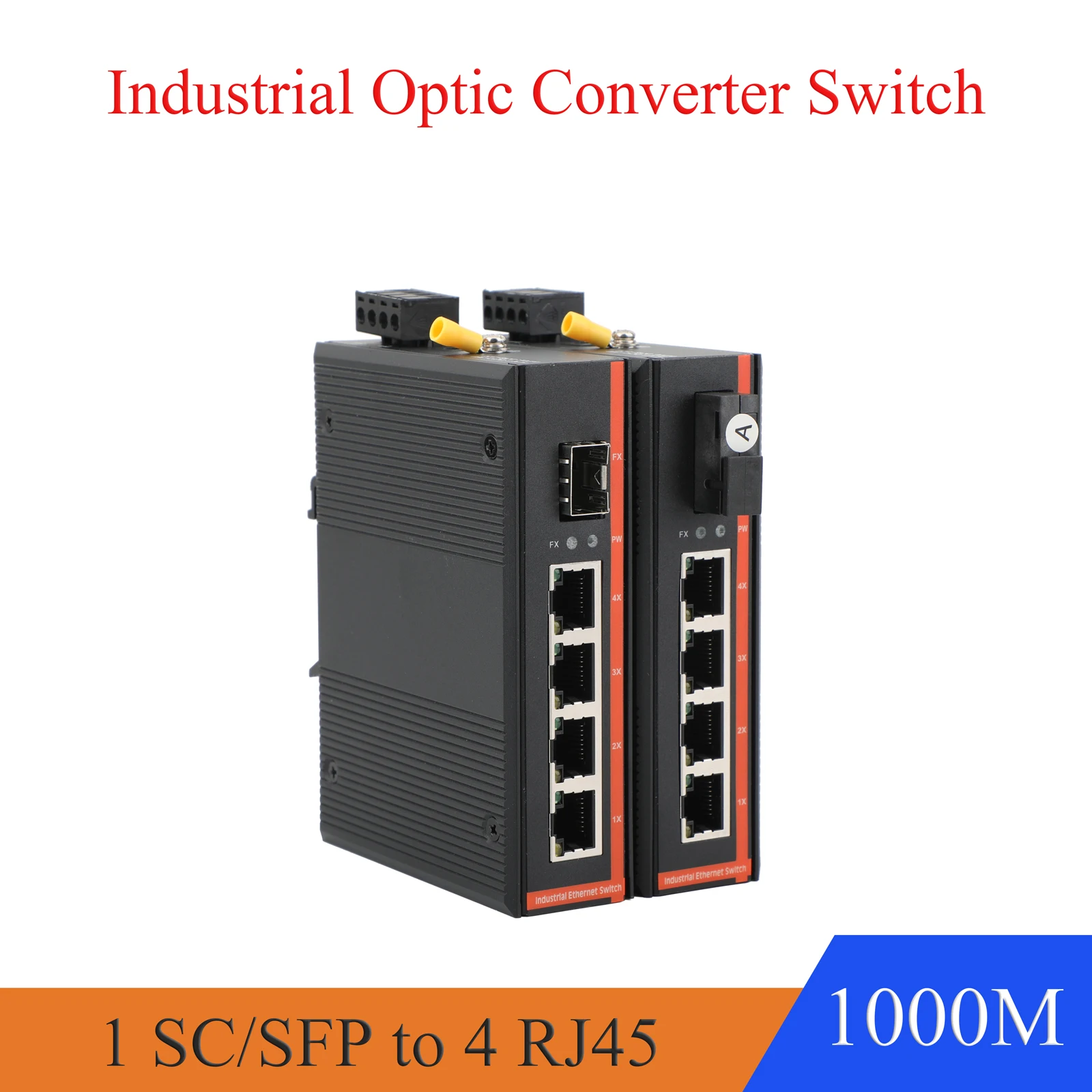

Full series of industrial-grade Gigabit single-fiber SC/SFP optical transceivers, Gigabit optical fiber transmission solutions designed for industrial scenarios, including two series: single-fiber SC fixed optical port (A end) and SFP modular optical port (flexibly adaptable to a variety of optical modules), supporting high-density expansion of 1 electrical port, meeting the diverse needs from basic point-to-point transmission to complex long-distance networking.

Core advantages

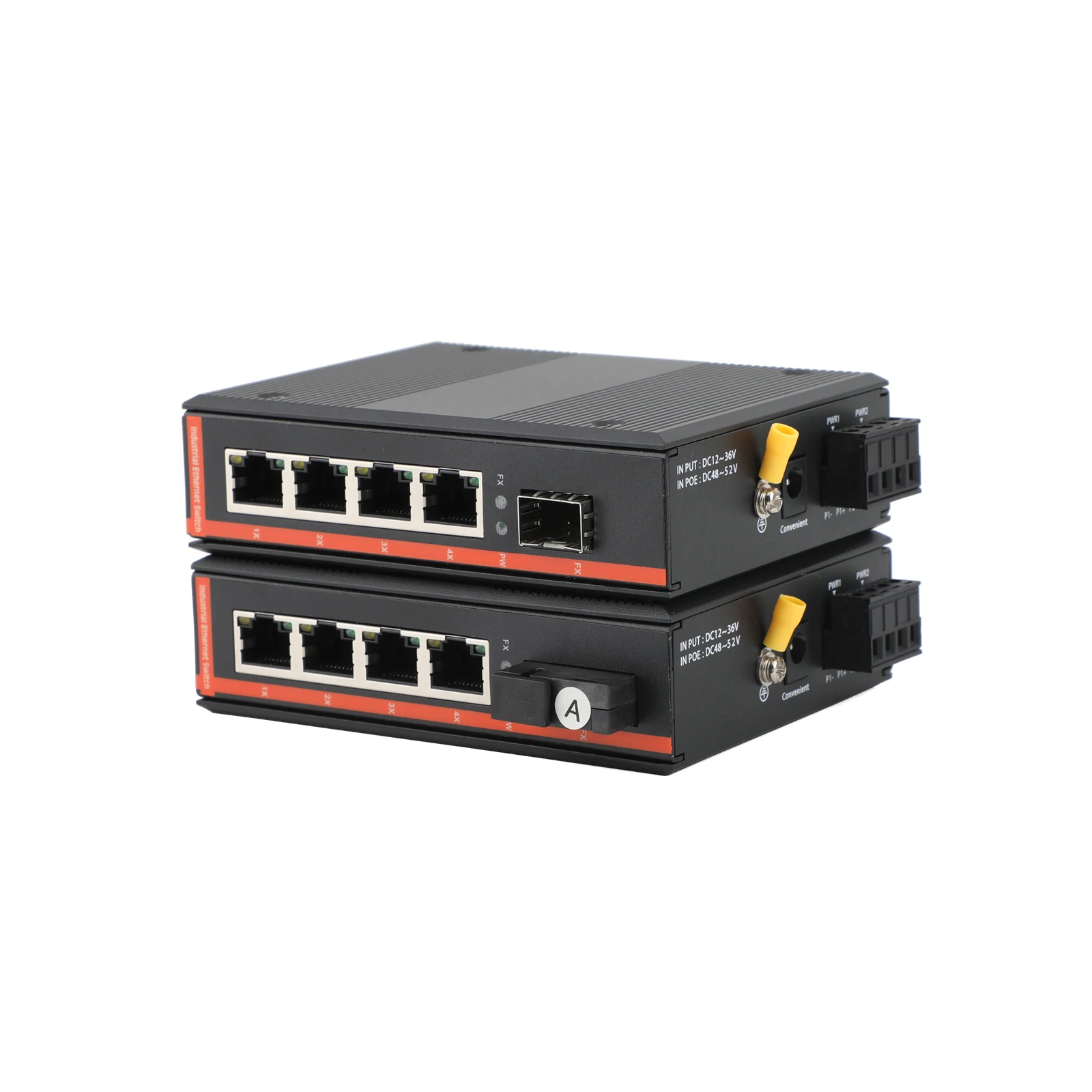

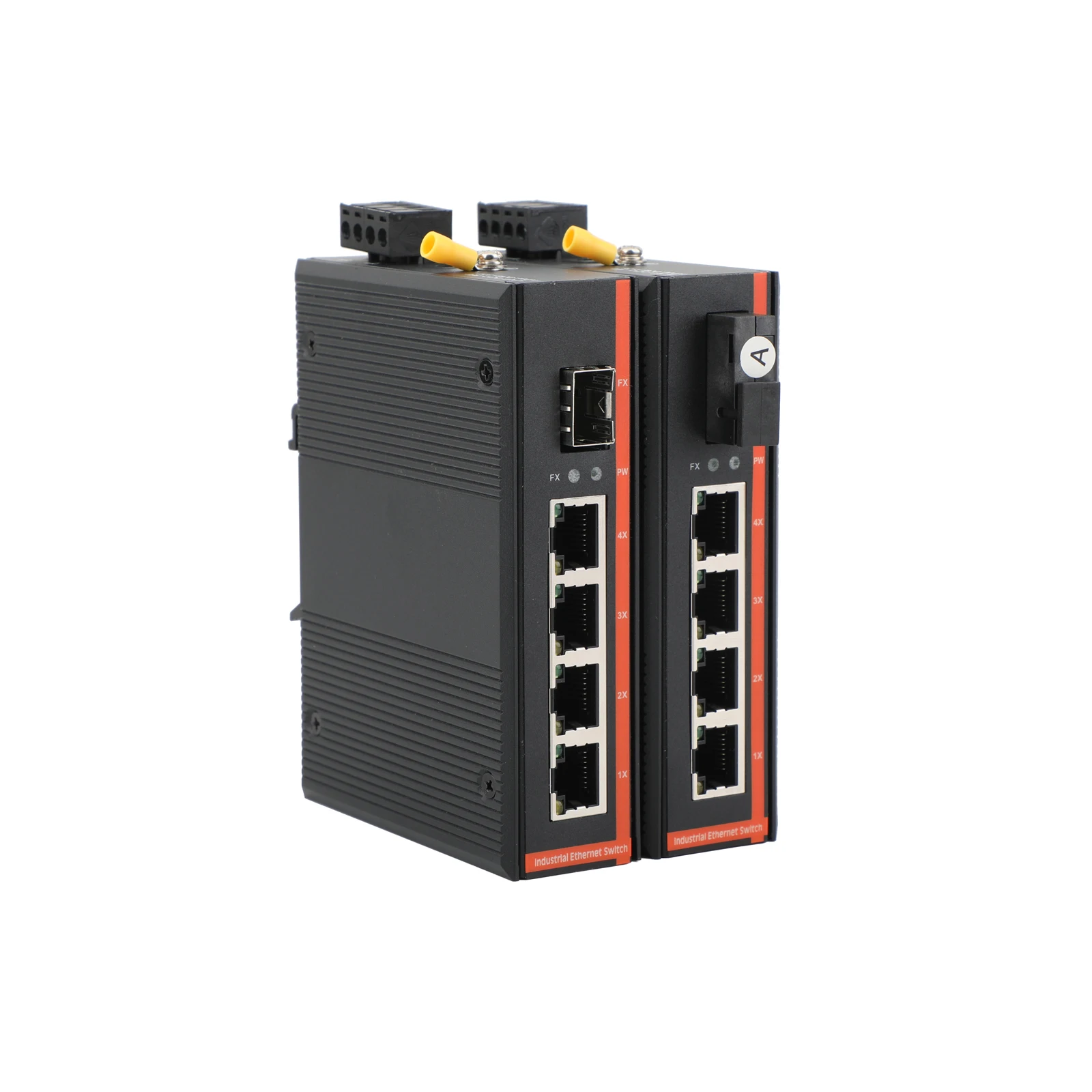

1. Dual series differentiated design

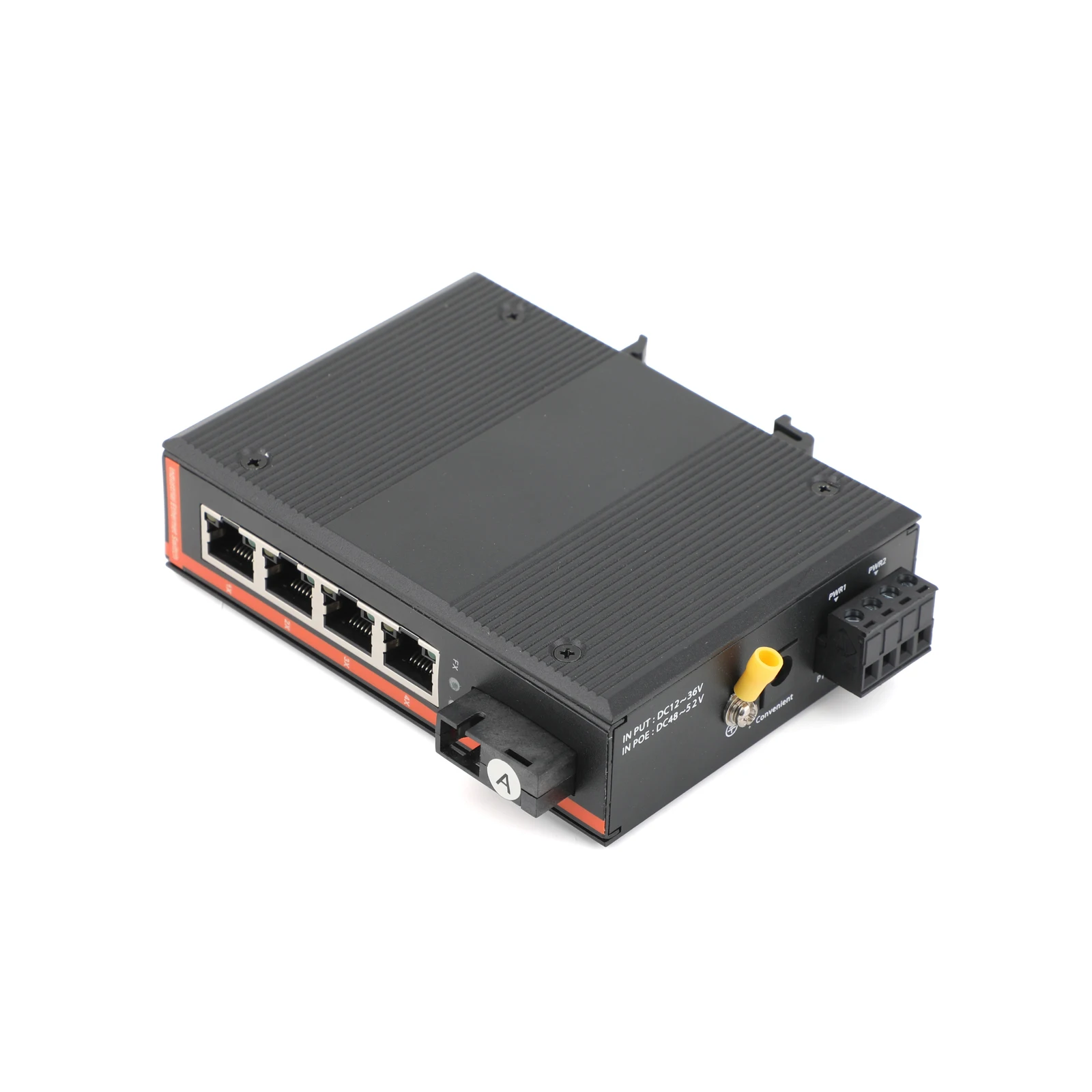

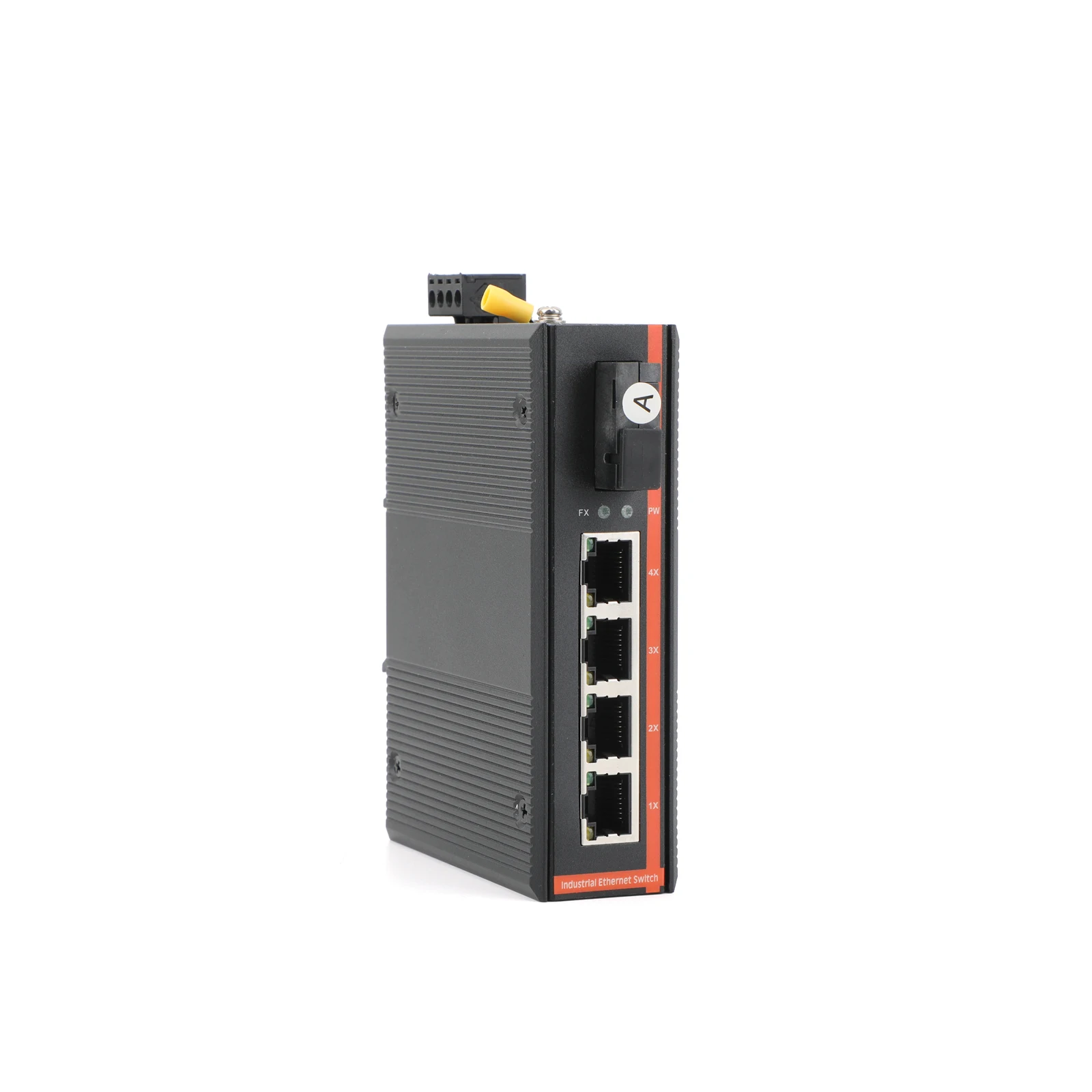

Single-fiber SC series:

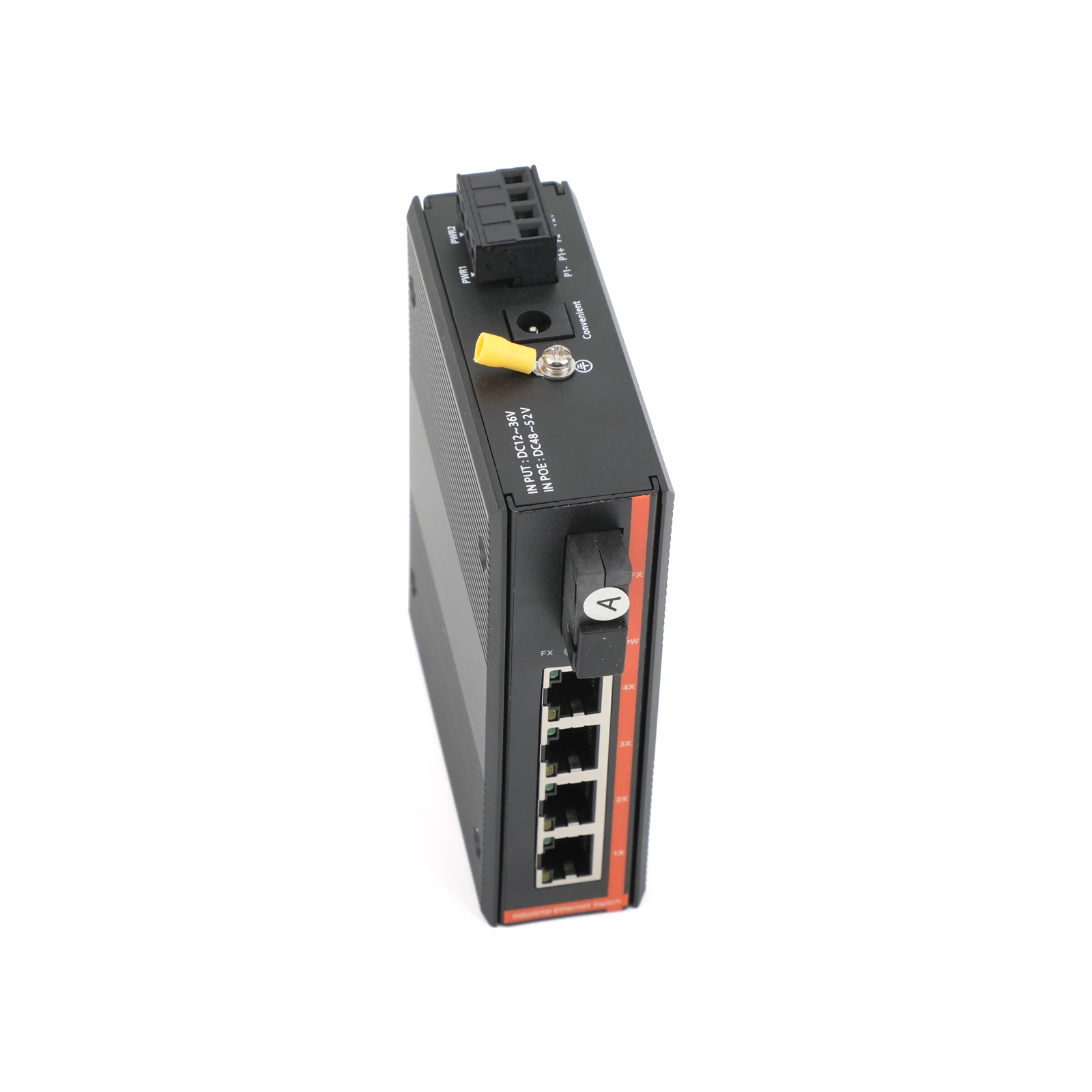

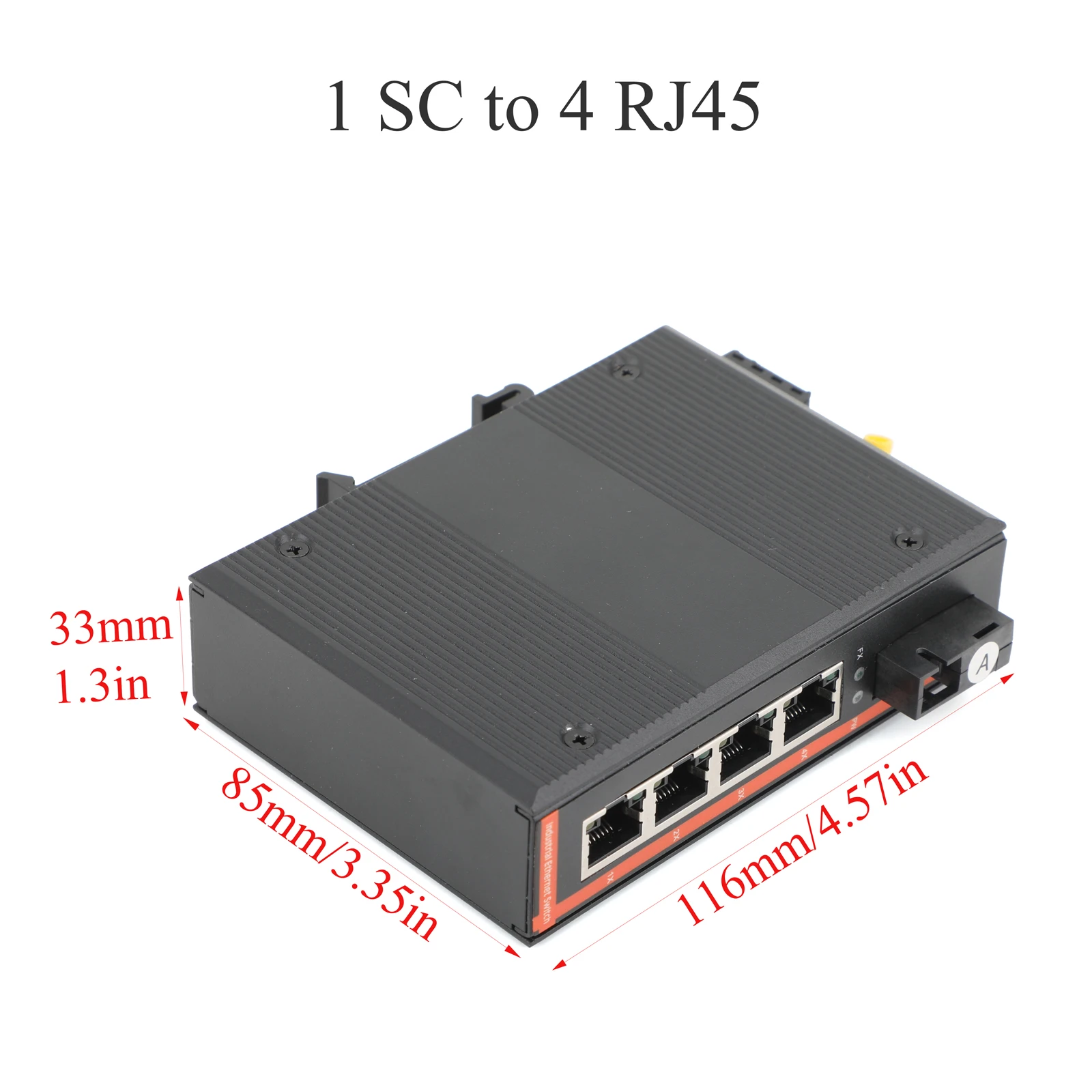

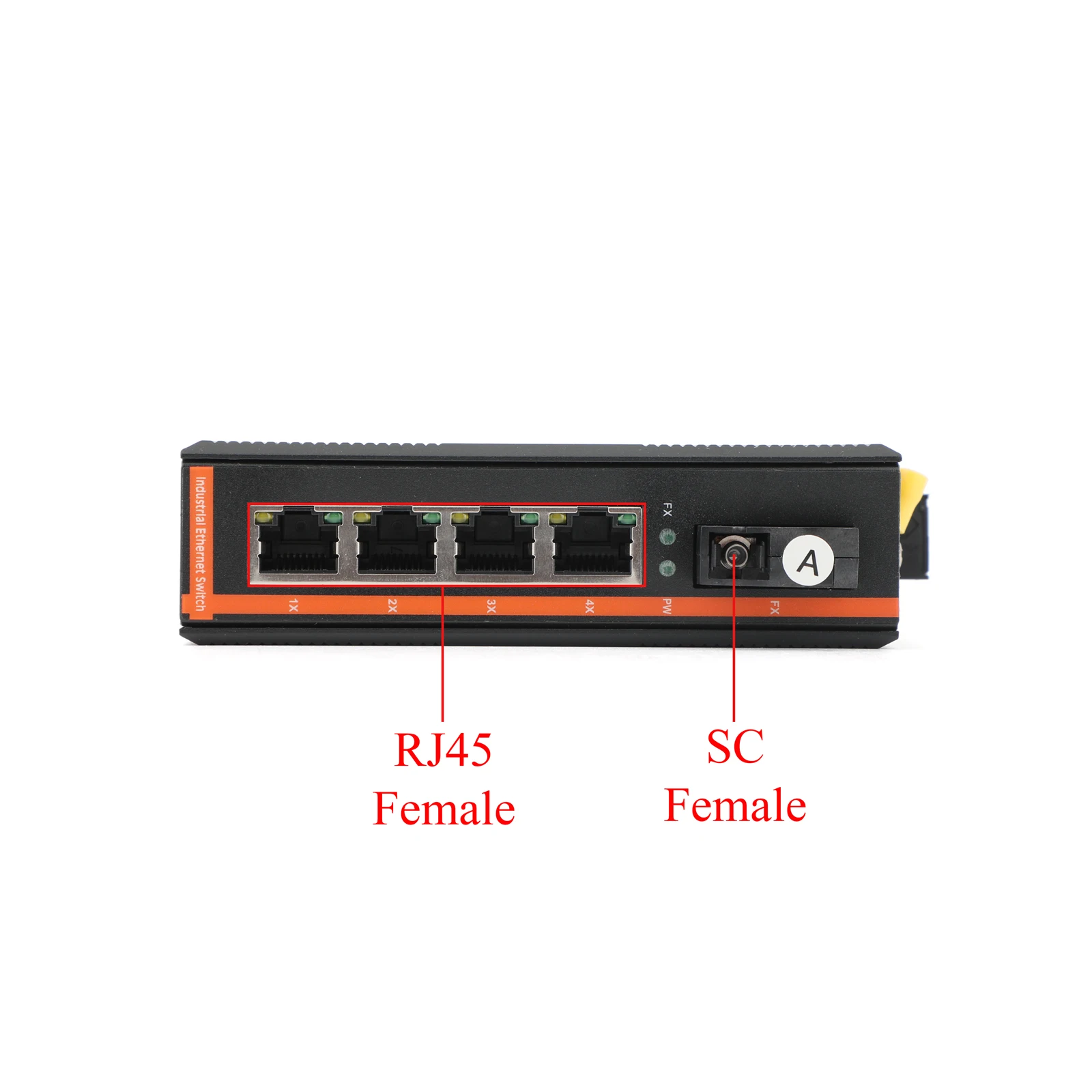

A end (transmitter): 1×SC optical port (1310nm transmit/1550nm receive) + 4×RJ45 electrical port, sold separately, need to be paired with B end.

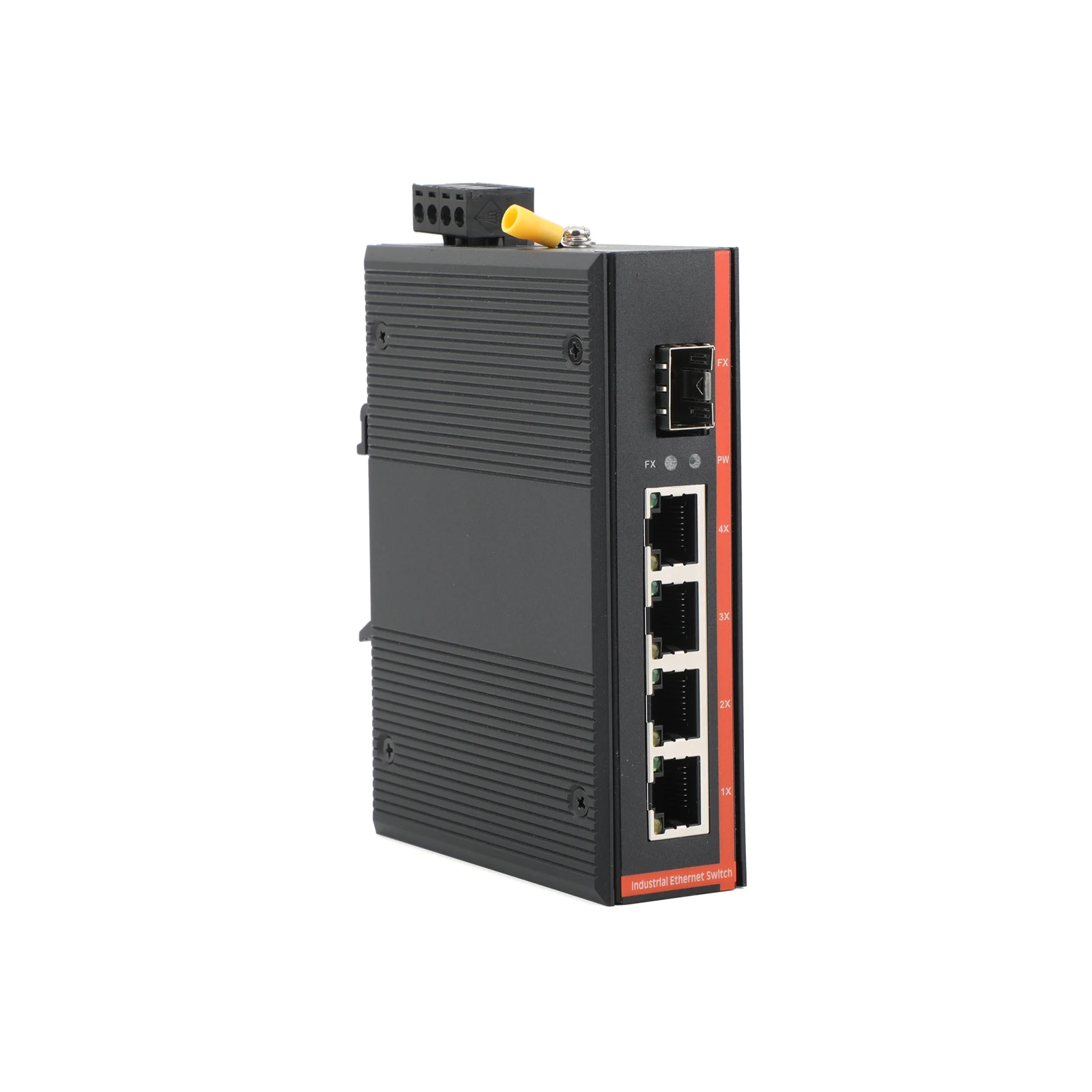

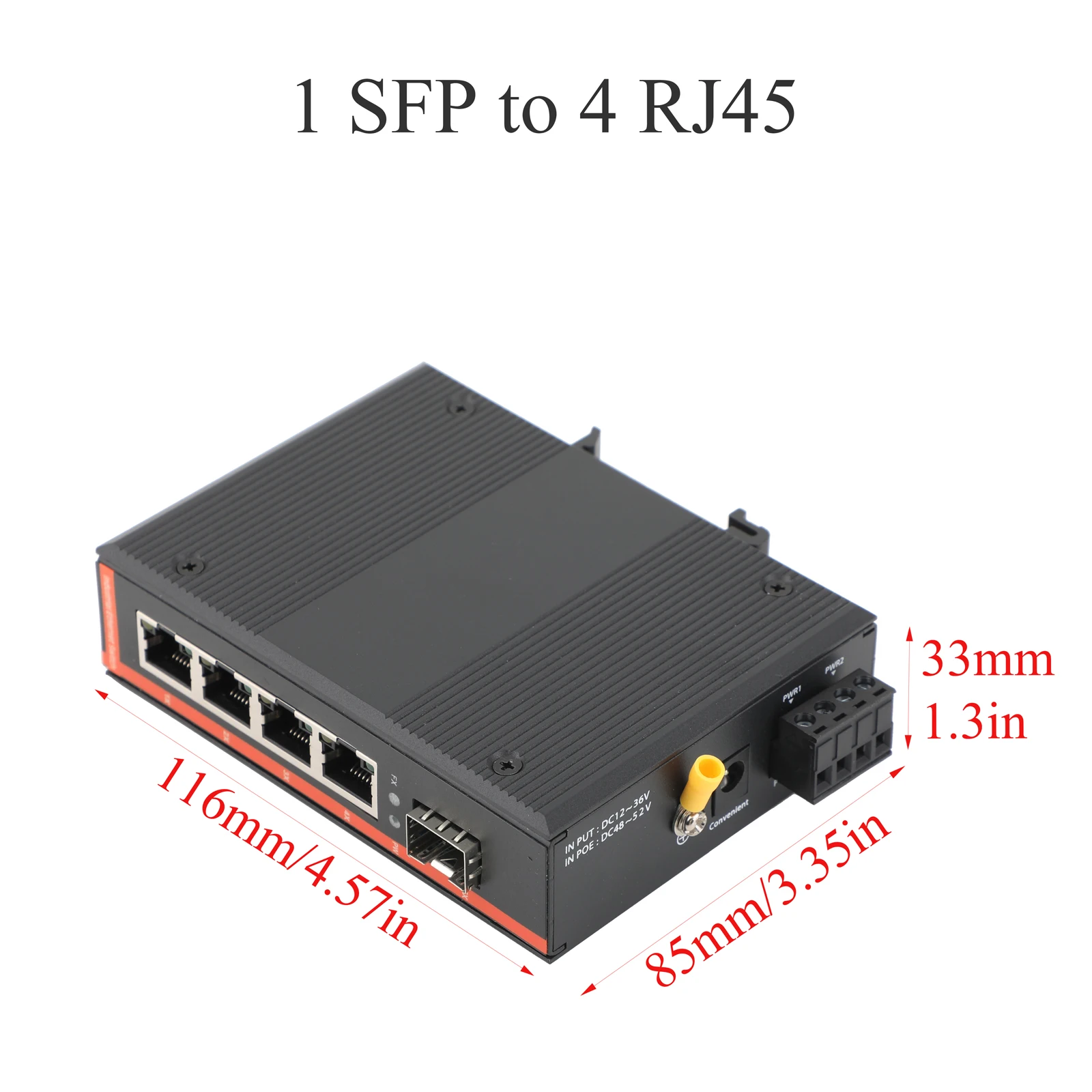

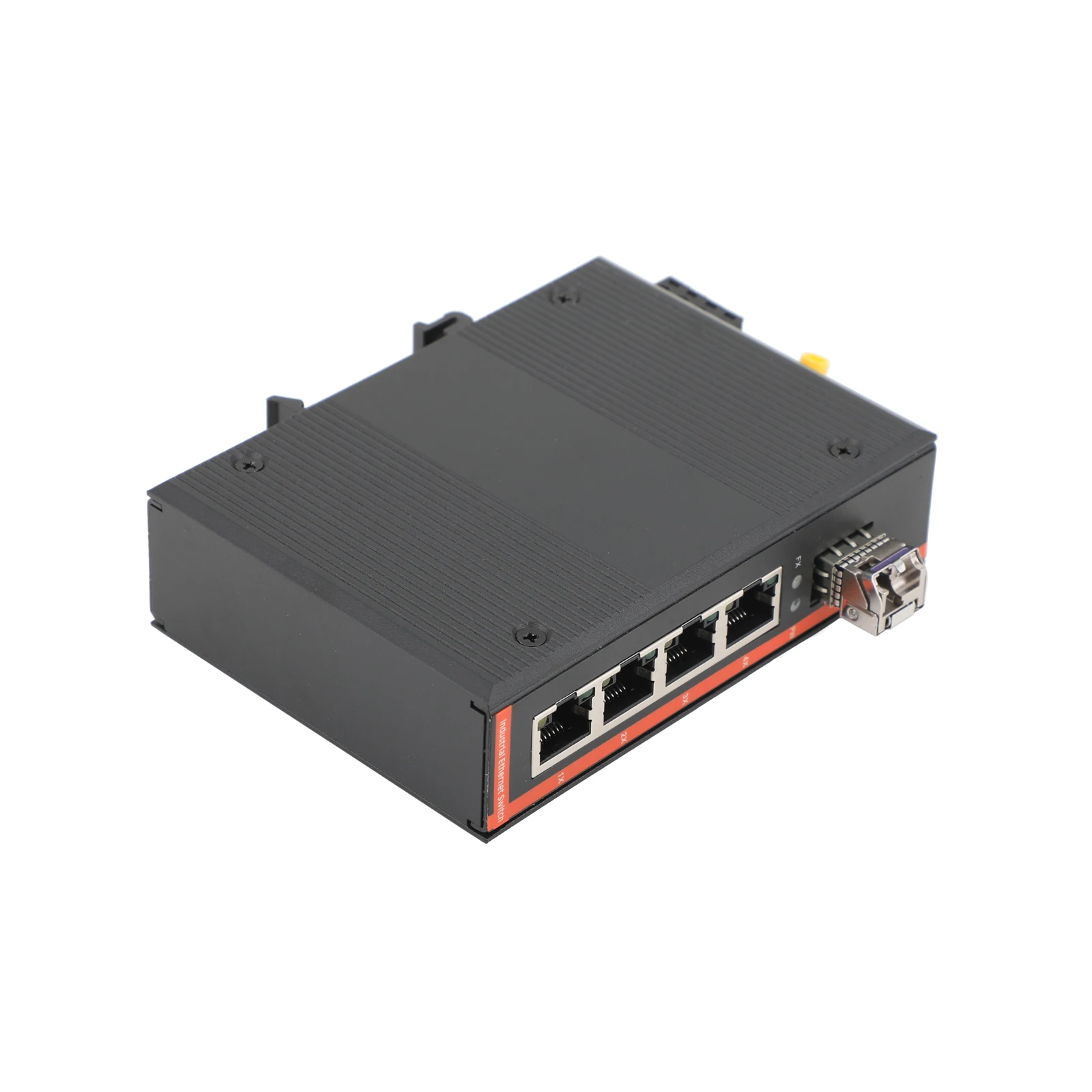

SFP series:

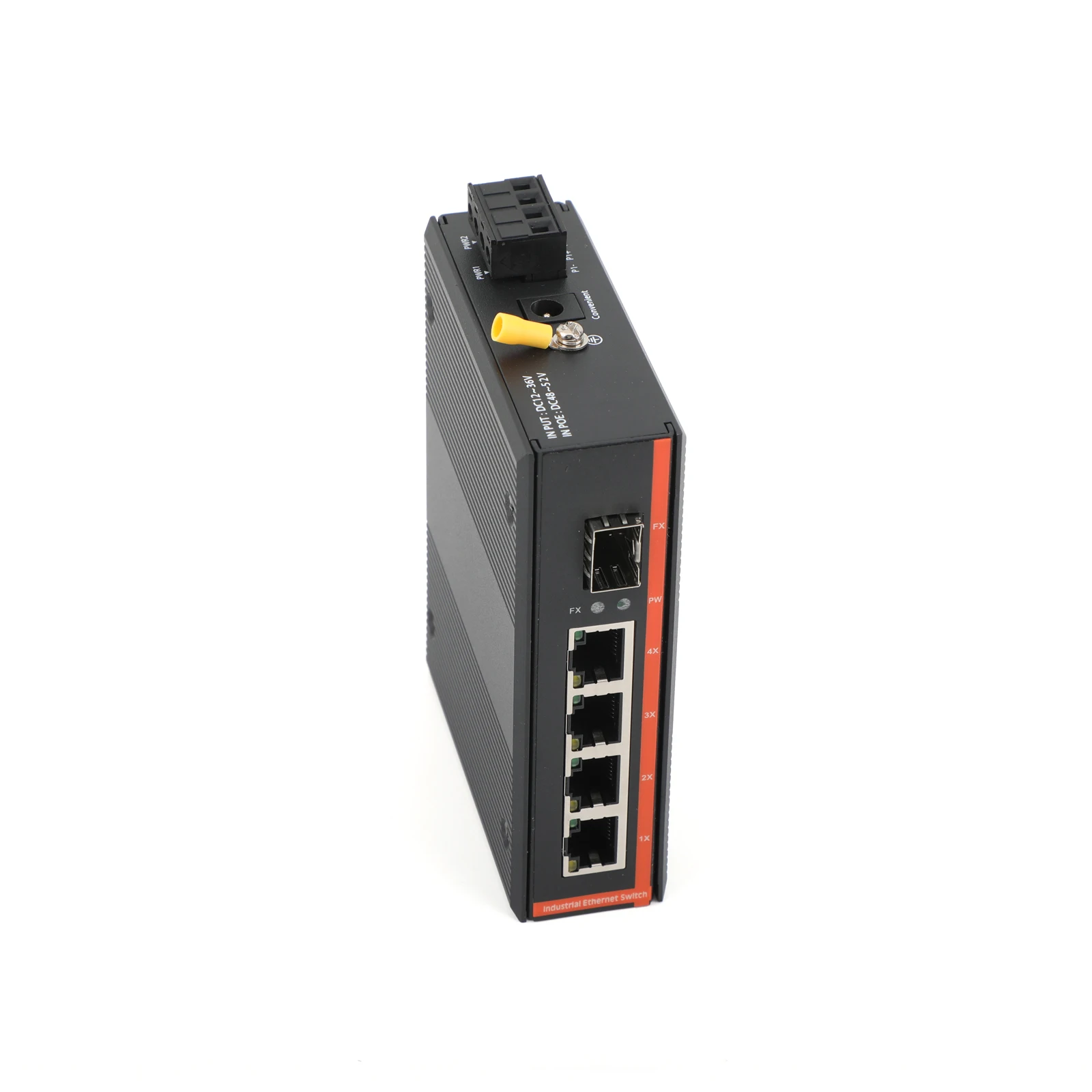

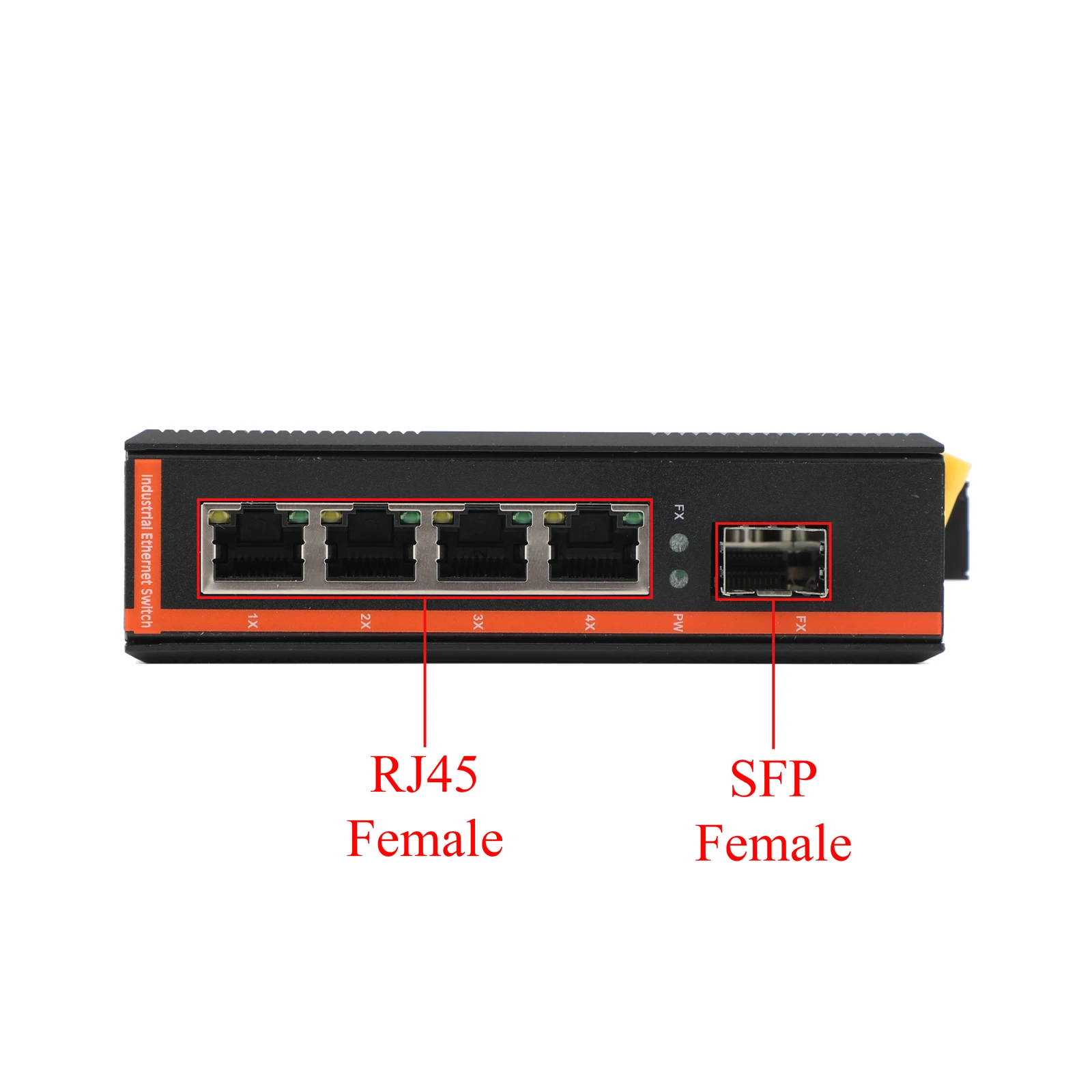

1×SFP optical port + 4×RJ45 electrical port, different types of SFP modules (such as single mode/multi-mode, transmission distance) can be flexibly replaced to adapt to complex fiber environments.

2. Industrial-grade hardcore performance

Wide temperature and anti-interference: -40℃~85℃ operating temperature, IP40 metal shell dustproof and impact-resistant, built-in surge protection, suitable for industrial automation, smart grid and other scenarios.

3. Plug and play easy to deploy

Single-fiber SC series:

Pre-configured wavelength: A end automatic matching at the factory (A end 1310nm), direct connection out of the box.

Electrical port adaptation: supports 10/100/1000Mbps rate adaptation.

SFP series:

Hot-swappable module: SFP module can be replaced without powering off, supports single mode/multi-mode, and meets different fiber link requirements.

Flexible expansion: Can be used with third-party SFP modules but attention should be paid to compatibility.

Purchase instructions

This product does not include a power adapter. If you need a power adapter, please purchase it yourself.

100% Brand New and High Quality.

Shape & Color: Same as the picture show

The Type As Your Choice!!

The Quantity As Your Choice!!

Thanks for your visit & Happy cooperation!!

Note: Due to the nature and measurement tools, coupled with the purely manual measurement and cutting of the cable, it may cause a length error of 1%-5%.
