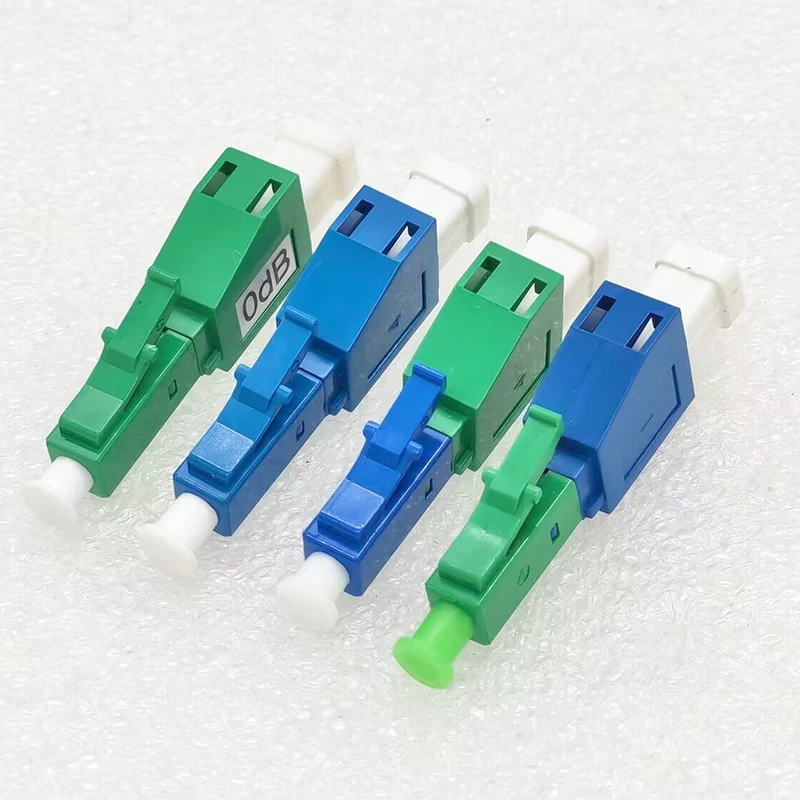

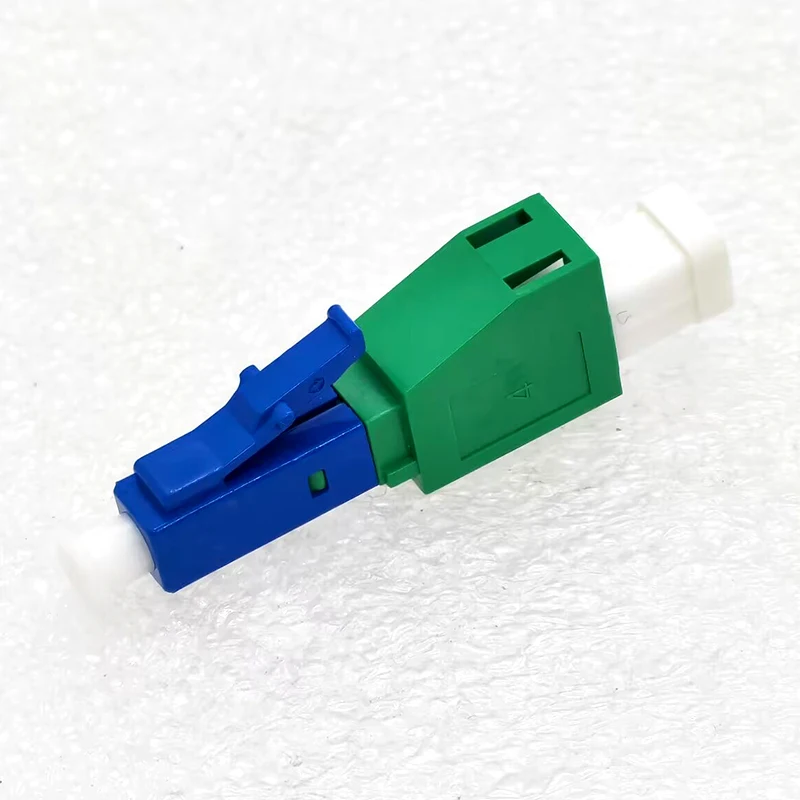

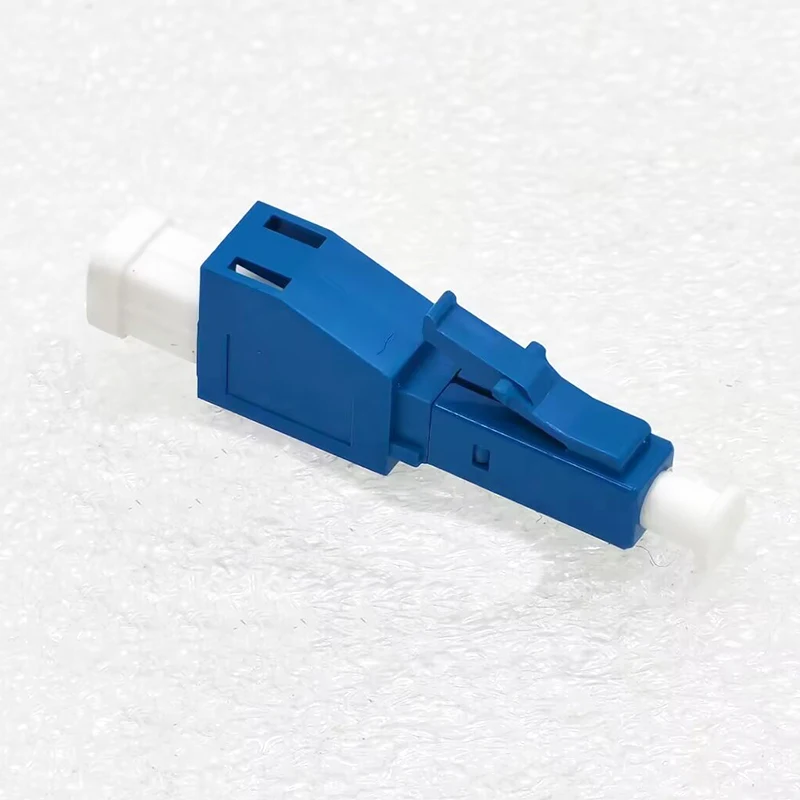

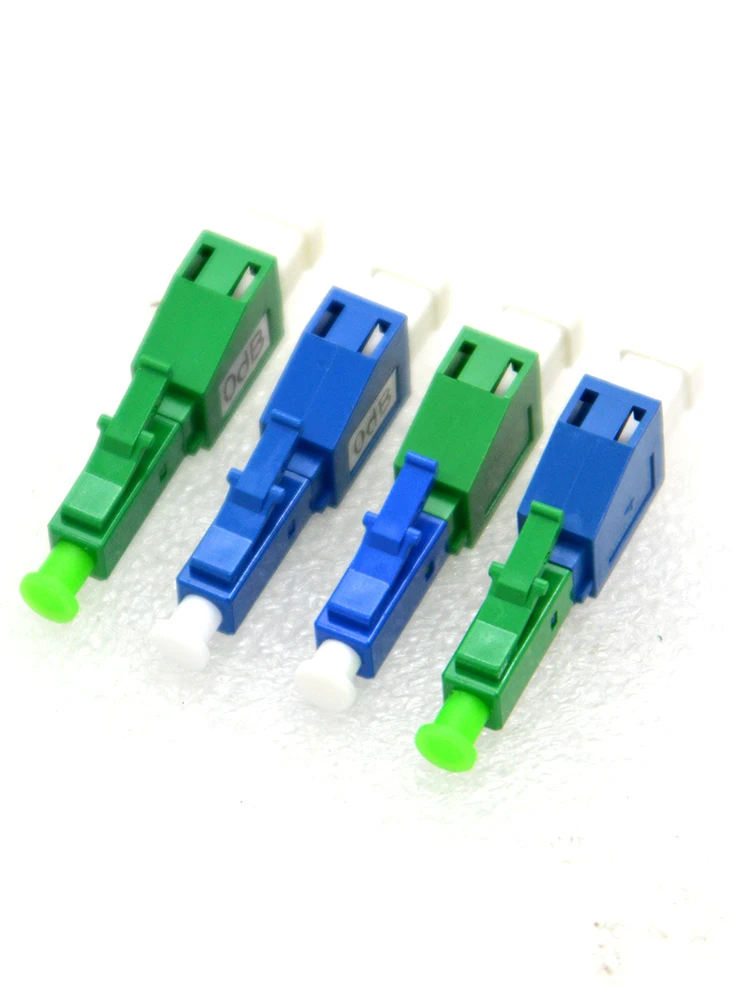

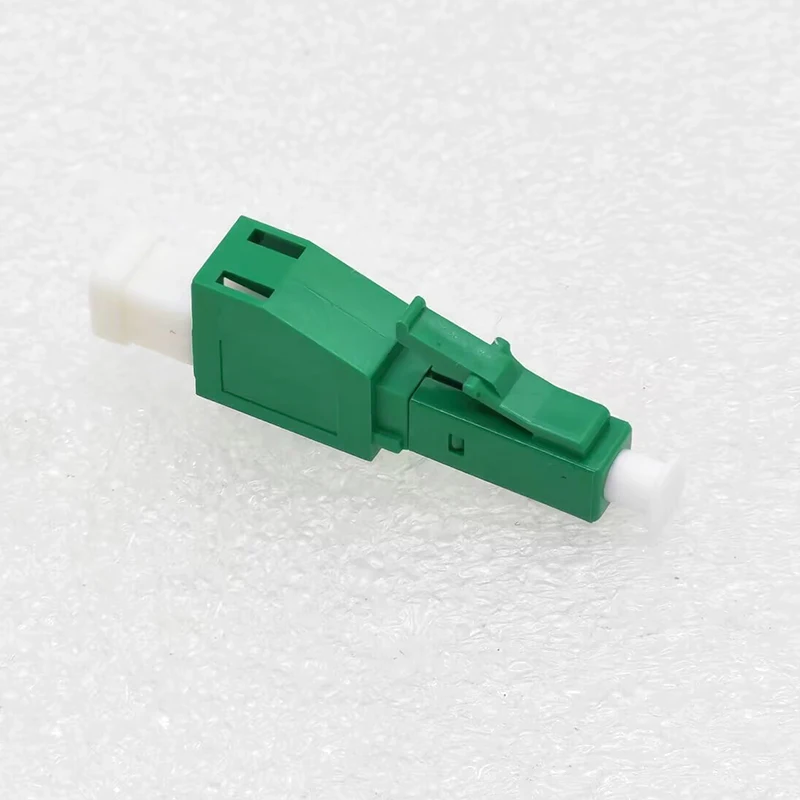

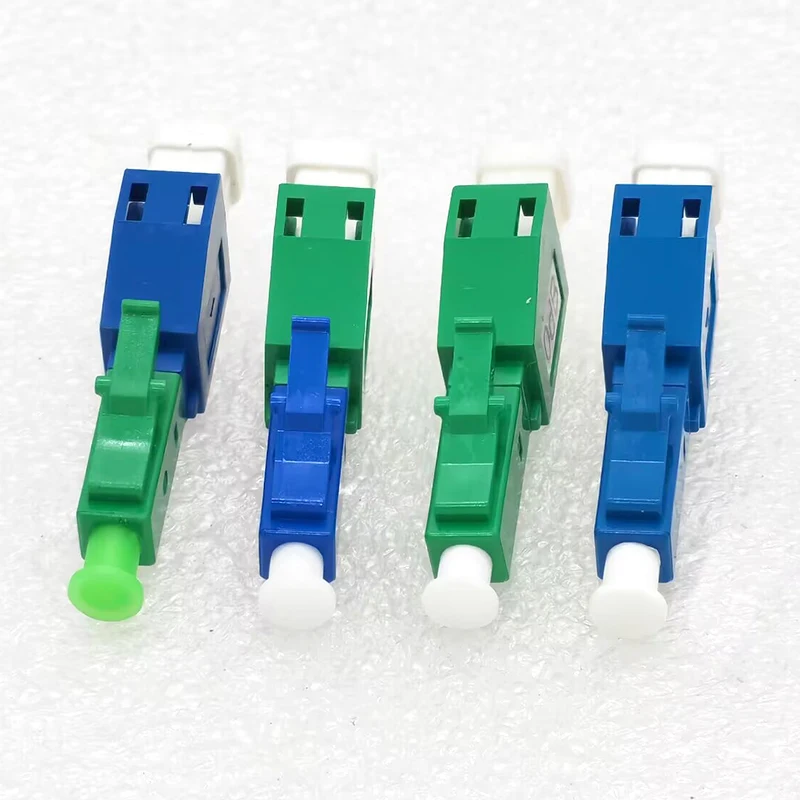

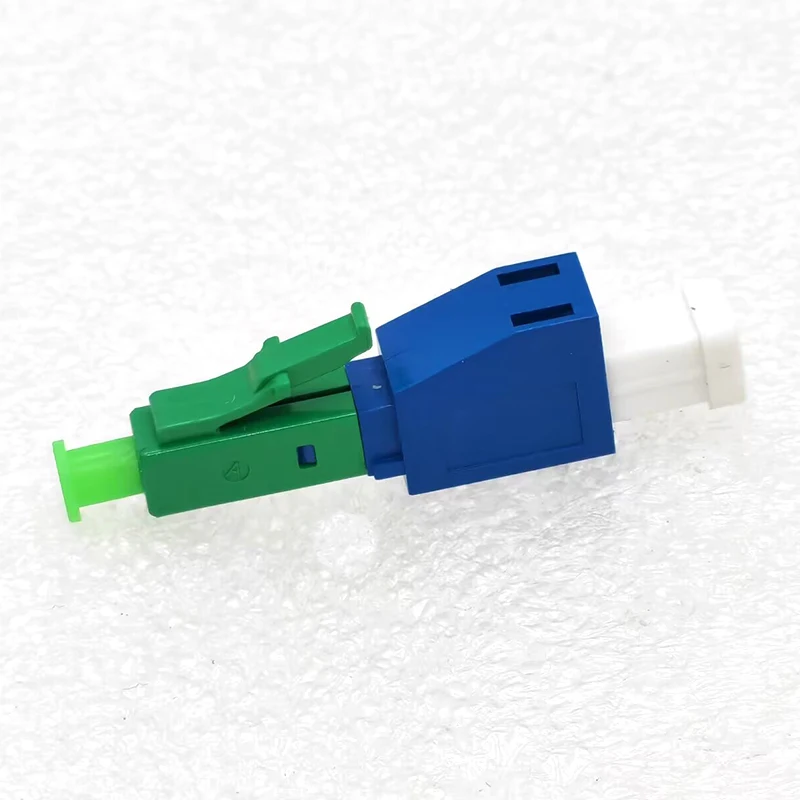

1pcs New Fiber Optical Connector Adapter LC Female-LC Male Single-Multi Mode Communication Equipment Flange Coupler Wholesale
Widely used in red pen fault pen, optical power meter, optical instrument test interface conversion
Male and female type adapter with embedded optical fiber and optical fiber ferrule matching tube joint technology, can be a type of fiber optic connectors (male) into another type of optical fiber connector (male) or a type of optical fiber connector (female) into a fiber optic connector interface type (female), has the advantages of small volume, light, easy to use, stable performance characteristics, widely used in optical fiber equipment instrument testing and rescue project construction field.
Insertion loss 1310nm,loss than 0.3db
Insertion loss 1550nm,loss than 0.3db
Return lose 1310nm, more than 50db
Return lose 1550nm, more than 50db
1 Characteristics
Low insertion loss and high return loss
Good consistency and good repeatability.
Small size, less space
The use of simple and convenient, easy to operate
2 Application
Telecommunications, network, radio and television
Optical data transmission connection
Optical fiber equipment testing and engineering rescue construction
Remarks:
Male and female type adapter with embedded optical fiber and optical fiber ferrule matching tube joint technology, you can according to the requirements of the male head UPC or APC, the female head only accept UPC, choose the SM-9/125um fiber single-mode fiber or MM-62.5/125um or OM2-50/125um multimode fiber etc..
The default send: Single mode SM - 9/125 um
MM: need multimode - 62.5/125 um
or OM2-50/125 um
Please note that, thank you very much for your understanding and support!
