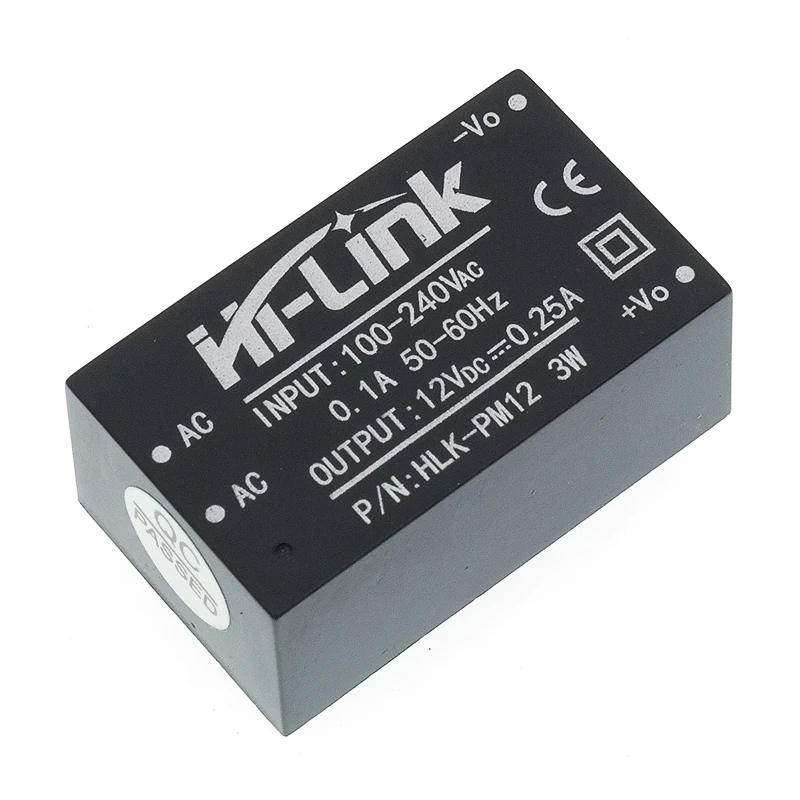

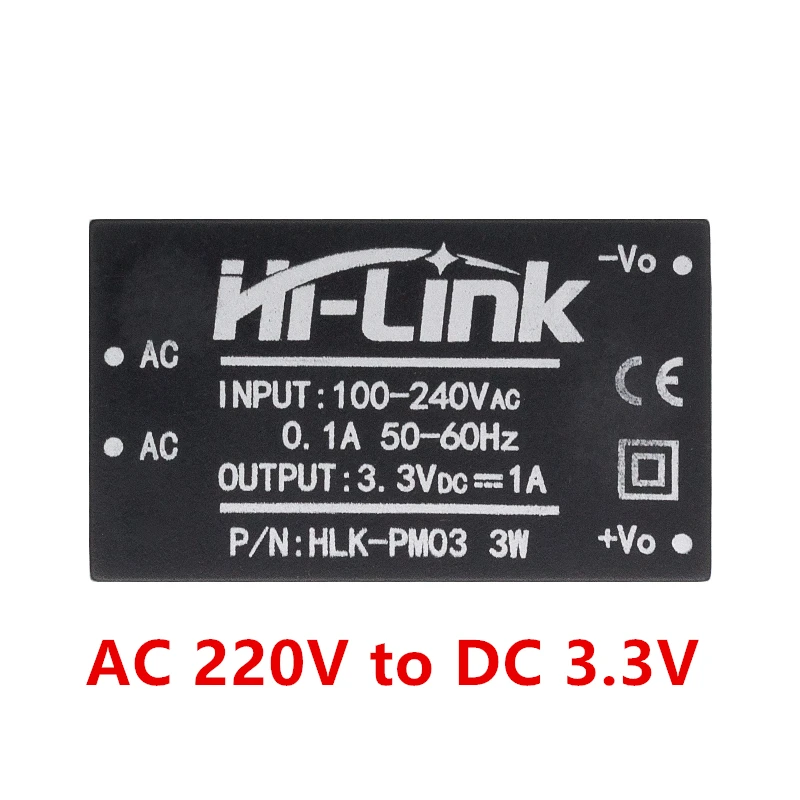

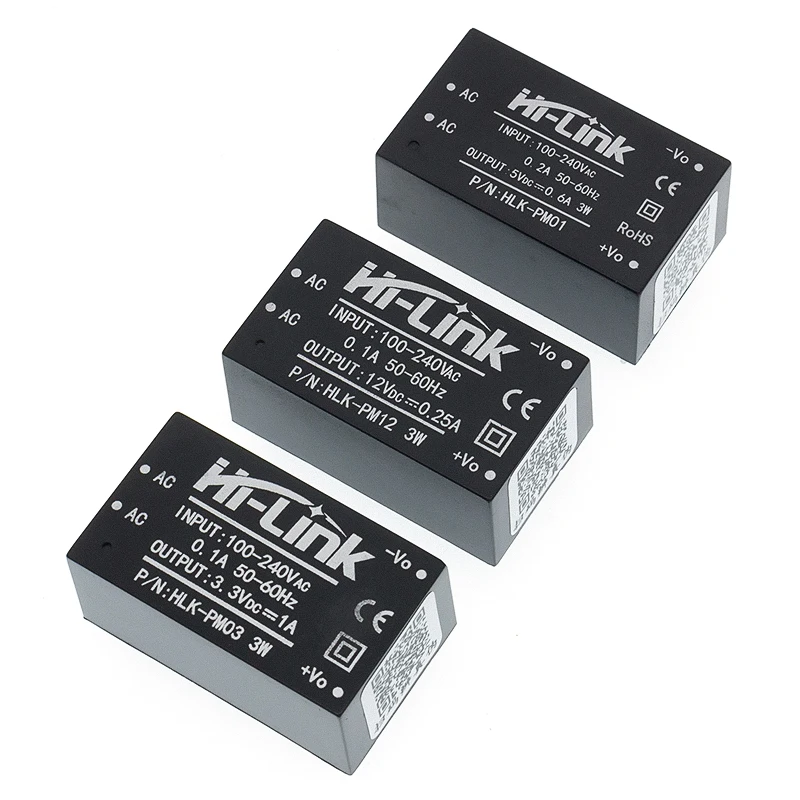

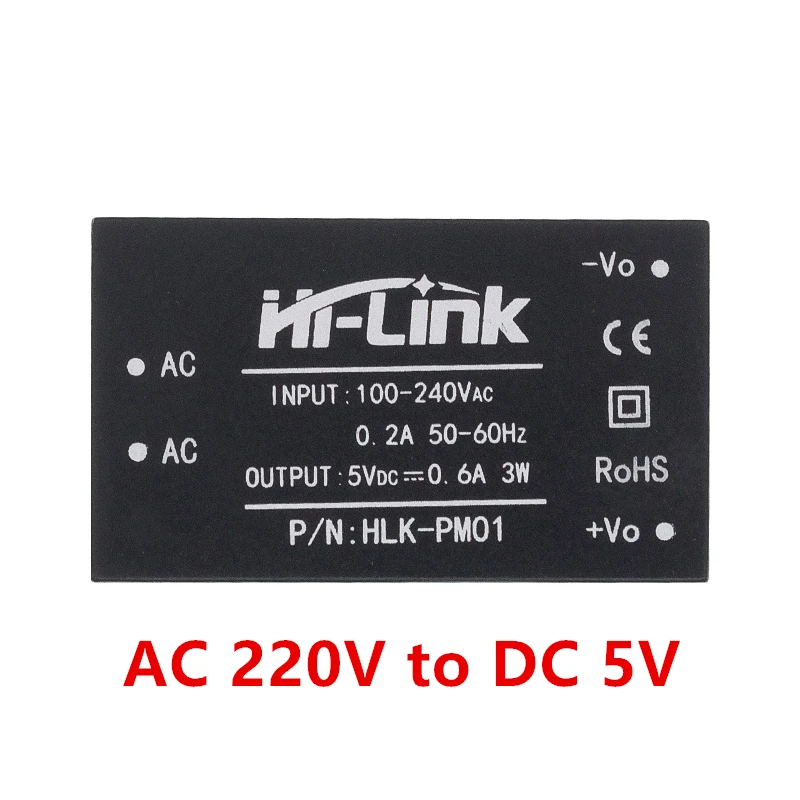

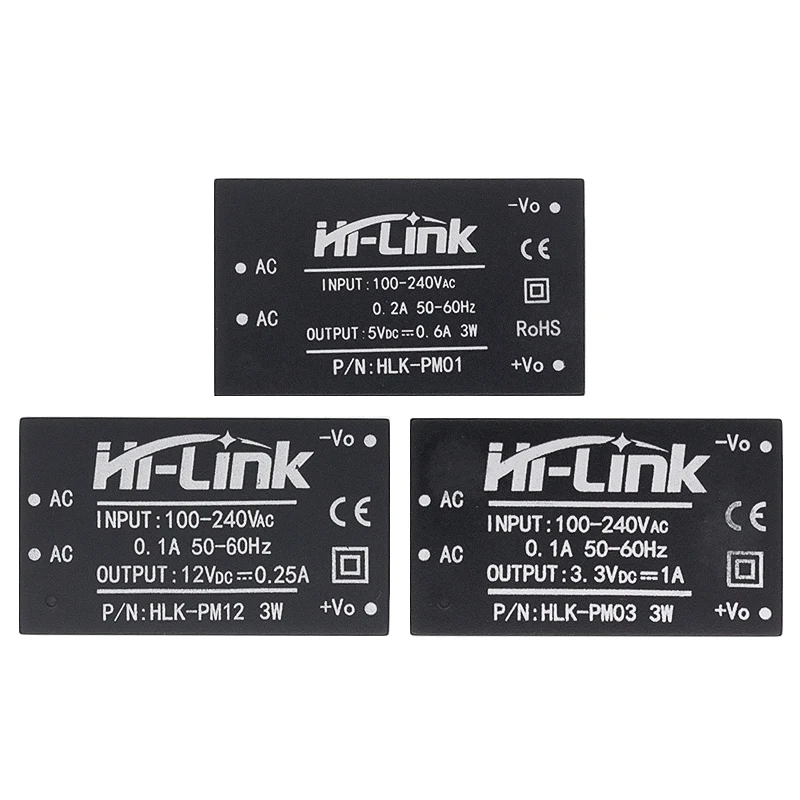

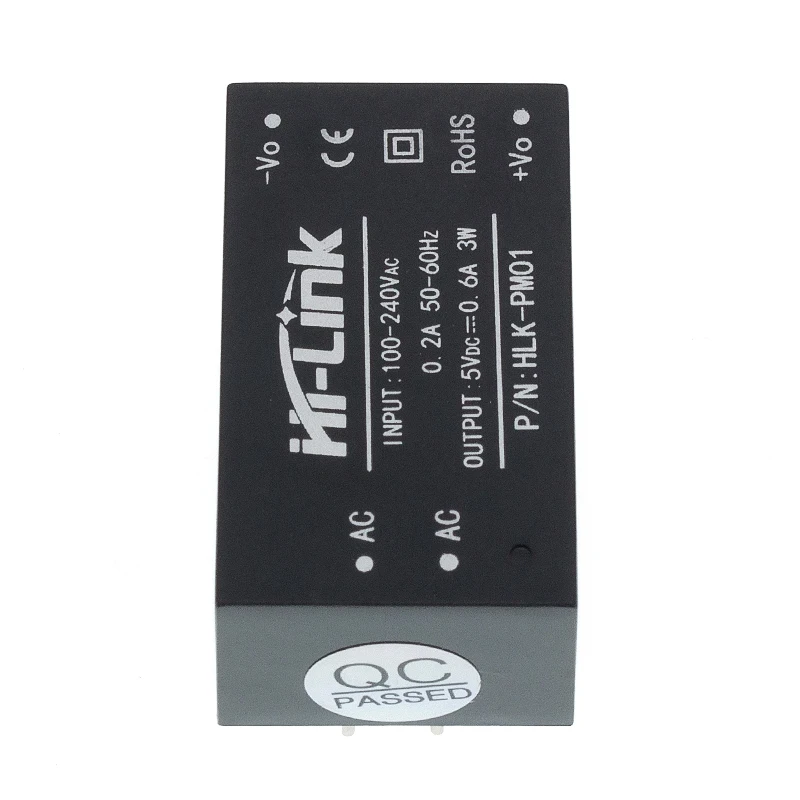

1 Uds HLK-PM01 HLK-PM03 HLK-PM12 AC-DC 220V mini módulo de fuente de alimentación, módulo de fuente de alimentación de interruptor inteligente para el hogar

Name: 1 Uds HLK-PM01 HLK-PM03 HLK-PM12 AC-DC 220V mini módulo de fuente de alimentación, módulo de fuente de alimentación de interruptor inteligente para el
Brand: AITEWIN ROBOT
SKU: 426203
Price: 2.52 EUR
Availability: InStock
Rating: 4.9 (16 reviews)

1 Uds HLK-PM01 HLK-PM03 HLK-PM12 AC-DC 220V mini módulo de fuente de alimentación, módulo de fuente de alimentación de interruptor inteligente para el hogar

16 opiniones

En Stock

2,52 €

~~7,69 €~~ -32.77%

Comprar ahora

Con la garantía de

Color

7 unidades vendidas

Última actualización: 2026-01-03T00:16:21.716Z

Descripción

Hi-Link latest power supply module, suitable for smart home switch control device, small volume, low current, input voltage range, is the best choice of smart home.Product features:1. The ultra-thin, subminiature2. The full voltage input (90 ~ 264 vac)3. Low ripple and low noise4. Output overload short circuit protection function5. High efficiency and power density6. Product design to meet the EMC and safety testing requirements7. Low power consumption, green environmental protection, no-load loss 0.1 WAging and8.100% load test9. Meet the requirements of UL, CE,The quality guarantee period of 10.1 years2. Environmental conditionsThe name of the projectTechnical indicators:Single bitWorking temperature: - 20-60 +degreeStorage temperature: + 80-40 -degreeRelative humidity: 5-95.%The cooling way: Natural coolingThe atmospheric pressure: 80-106KpaThe altitude :2000M or lessvibrationVibration coefficient of 10 ~ 500 hz, 2 g10min. / 1 cycle, 60 min. Each along the X, Y, Z axes3. The electrical characteristics1. The input features (test) at room temperature.The name of the projectThe technical requirements:Single bitThe rated input voltage:100-100.VAcThe input voltage range:90-90.VAcMaximum input current:0.2 or less a.Input surge current;10 or less a.Maximum input voltage:270 or less VAcInput soft start: 50 or less MSEfficiency of low input voltage: Vin=110 vac, output with 69 or more %High input voltage: Vin=220 vac, output with 70 or more %Long-term reliability:MTBF 100000 or more H.No load rated output voltage: + 5 + / - 0.1 VDcFull rated output voltage: + 5 + / - 0.2 VDc Ashort time maximum output current: P 1000 maThe maximum output current for a long time: P 600 maVoltage regulation: + / - 0.2 %Load regulation: + / - 0.5 %The output ripple and noise: (mVp - p) 50 or lessThe rated input voltage and output load.With 20 MHZ bandwidth oscilloscope,Load and 10 uF and 0.1 uF capacitance test. The MVSwitch machine overshoot(rated input voltage, output and 10% load) 5 or less % VOOutput over-current protectionOutput the maximum load of 150-200%a.Output short circuit protectionDirectly to the output of the normal short circuit, short circuit automatically resume normal work after removal4. Safety features:4.1 the product design as to meet the requirements of UL, CE safety certification.4.2 safety and electromagnetic compatibilityThe input design USES UL 0.5 A insurance;PCB board made of double-sided copper-clad boards material is 94 - where V0 fire rating level;Safety standards in accordance with UL1012 EN60950, UL60950Insulation voltage I/P - O/P: 2500 vacInsulation resistance I/P - O/P 100 m Ohms / 500 VDC 25 degree 70% RHConduction and radiation in line with the EN55011, EN55022 (CISPR22)Electrostatic discharge IEC/EN 61000-4-2 level 4 8 kv / 15 kvRadiofrequency radiation immunity IEC/EN 61000-4-3 can be found in the application4.3 safety design temperatureAt normal temperature on our power capacitor, main converter so on surface temperature does not exceed 90 degree; the largestThe shell surface maximum temperature does not exceed 60 degree;

Visto en: Electronic Components & Supplies , Active Components , Sin categoría

Opiniones de clientes

16 opiniones

A***n Compra verificada

30 de marzo de 2025

5 de 5

Compré 4 para fabricar fuentes de alimentación para cámaras interiores Bink. Cableado de modo que el cableado estaba en la parte inferior para mantener un voltaje peligroso ⚡ lejos de los usuarios

Variante: Color:HLK-PM01
