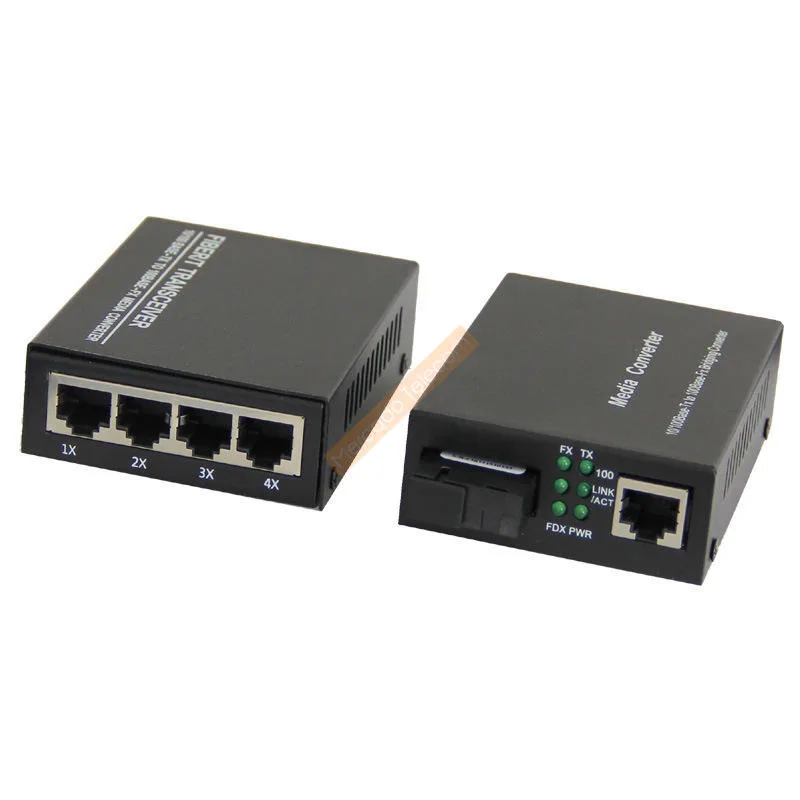

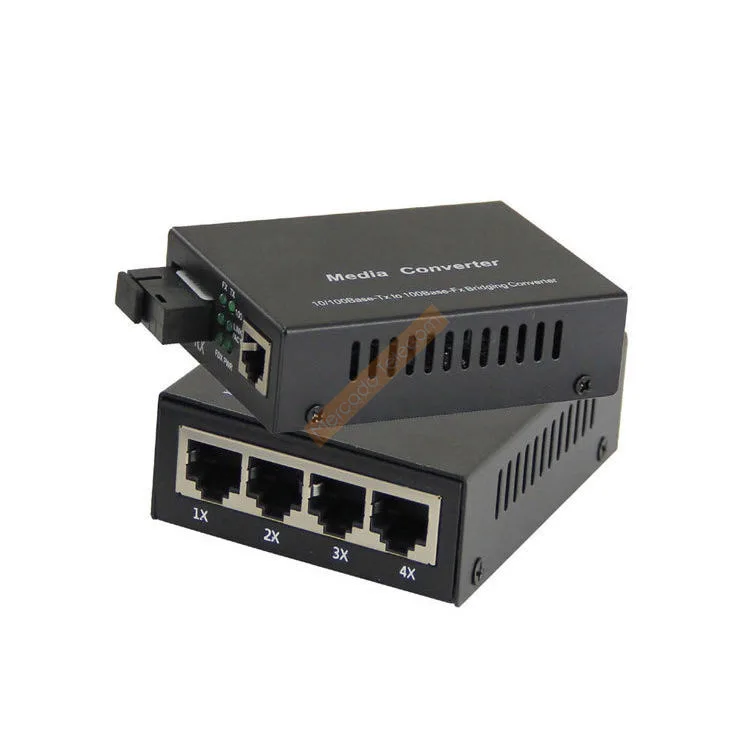

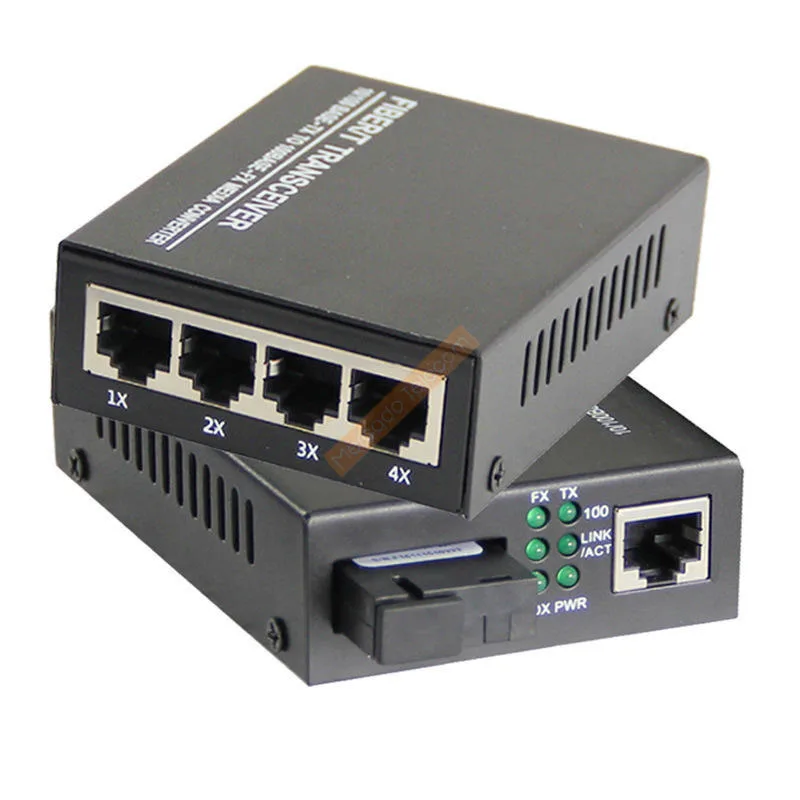

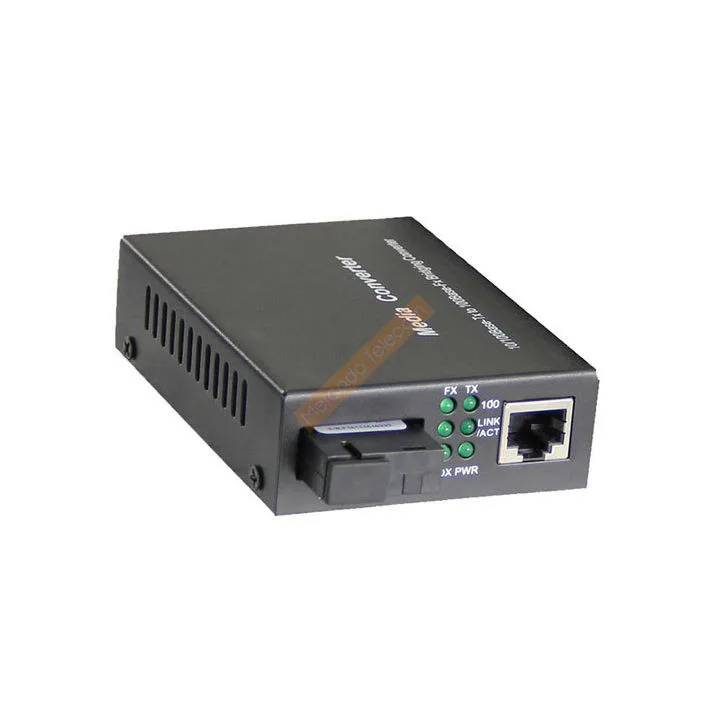

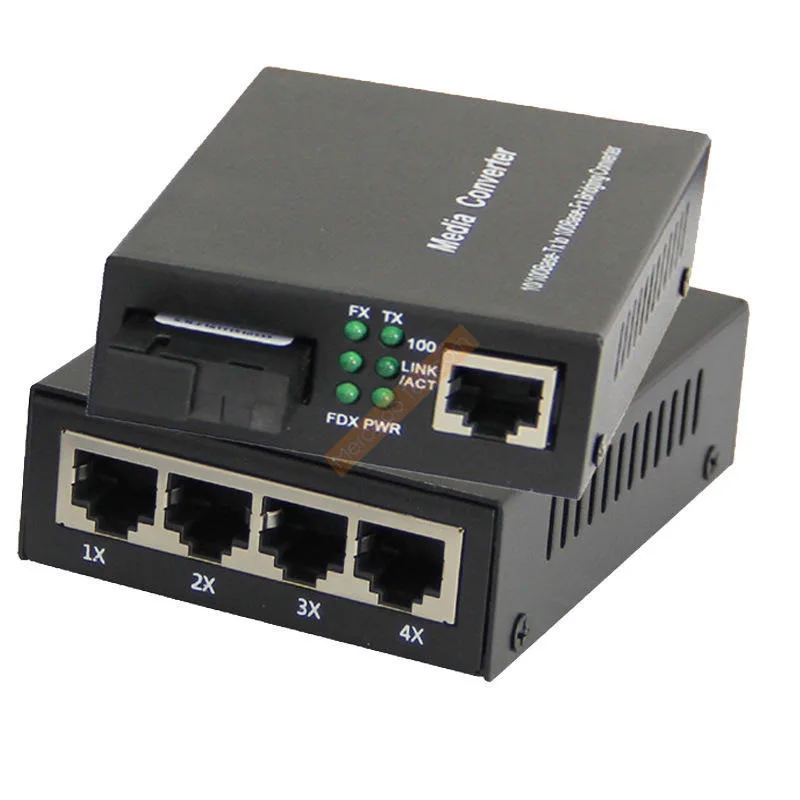

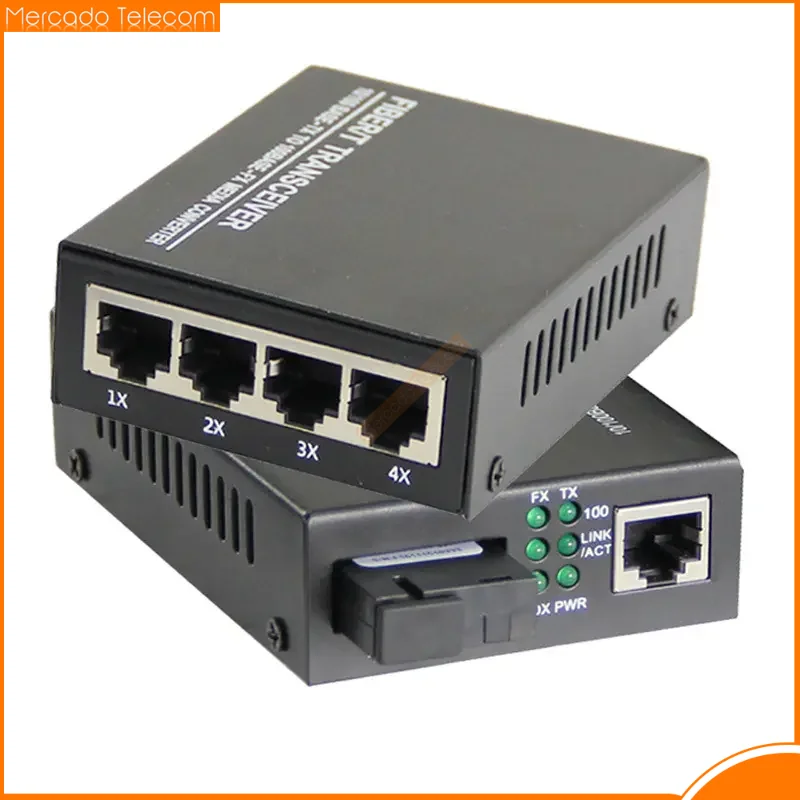

1 Pair Fast Ethernet Fiber Optical Media Converter Single Mode 20KM 4 RJ45 and 1 SC fiber Port 10/100M
The Media Converter is use to expanding existing Gigabit Ethernet networks. The easy implementation and expansion of 1000Base-TX/FX networks can be further assured with this converter.
The converter is completely transparent when connected so the network performs exactly the way it did before - only now, it allows the co-existence of both copper and fiber mediums.
Main Features:
Complies with IEEE 802.3 10 base-T standard, IEEE 802.3u, IEEE802.3d, IEEE802.3ab, IEEE 802.3x
Auto negotiation function allows UTP port to auto select 10M, 100M or 1000M
Ethernet port supports MDI/MDI-X auto crossover
Extends distances up to 20km (single mode fiber)
Auto MDI/MDI-X support on RJ-45 port
Support Full Duplex and Half Duplex
Status LED's for Power, FRL, 10/100, FRX and FDX to easily monitor network status
1Mbit RAM for data buffer
Supports jumbo frame size 9K bytes
Optical Port:
1310nm Single mode
Connectors: SC connector
Ethernet Port:
Connectors: RJ-45 Connector
LED Indicators:
FX, TX, Link/Act(Left/Right), FDX, PWR
FX: Light on when fiber speed is 100Mbps, else light off
TX: Light on when TP speed is 100Mbps,else light off
Link/ACT: Left side is indicate for fiber port link/act and right side for TP,light flashing when data transmitting and receiving
FDX: Light on when TP full-duplex mode is active,light off when TP half-duplex mode is active
PWR: Light on when DC power on, else light off
Specifications:
Output voltage: DC 5V/2A
Power dissipation: ≤3 watts
Operating Temperature: 0°C to 60°C
Storage Temperature: -20°C to 70°C
Housing: Metal enclosure
Checklist:
Before you installing the Converter,verify that the package contains the following:
1.The 10/100M Ethernet Media Converters 1 RJ45 1 SC + AC/DC Power Adapter+User's Manual
2.The 10/100M Ethernet Media Converters 4 RJ45 1 SC + AC/DC Power Adapter+User's Manual
Specifications:
Standards
IEEE802.3 10Base-T
IEEE802.3u 100Base-TX/FX
IEEE802.3z 1000Base-SX/LX
IEEE802.3x Flow control
IEEE802.1p QoS
IEEE802.1d Spanning Tree
Ethernet Port
Connector: RJ45
Data Rate:10/100M
Distance: 100m
UTP Type: UTP-5E or higher level
Fiber Port
Connector: SC/FC/ST/SFP slot
Data Rate: 155M
Optical Wavelength: 850nm/1310nm/1490nm/1550nm
Distance: 550m～120km
Performance
Processing Type: Store and Forward
MAC Table Size:4K/6K/8K
Buffer Space: 500kbs/1Mbit/2Mbit
Jumbo Packet: 1518 bytes
Back bandwidth: 3.8G/5.6G/7.2G
Time Delay: ＜150μs
Power
Power type: external power supply
Input Voltage: AC100V～240V 50/60Hz
Connector: DC Socket
Working Voltage: 5V
Power Consumption: 2.2W～3.5W
Transmissin Distance
Twisted Pair: 100m (CAT5e, CAT6 cables)
Muti-mode: 2km
Single-mode: 3/20/40/60/80/100km
MTBF
100, 000 hours
Warranty
1 year
Environment
Storage Temperature: -40～70℃
Operating Temperature: -10～55℃
Relative Humidity: 5-90% ( no condensation)
Mechanical Structures
Dimension: 215×107×26mm
Weight: 0.15
PCB main board
OEM&ODM
Supportive
