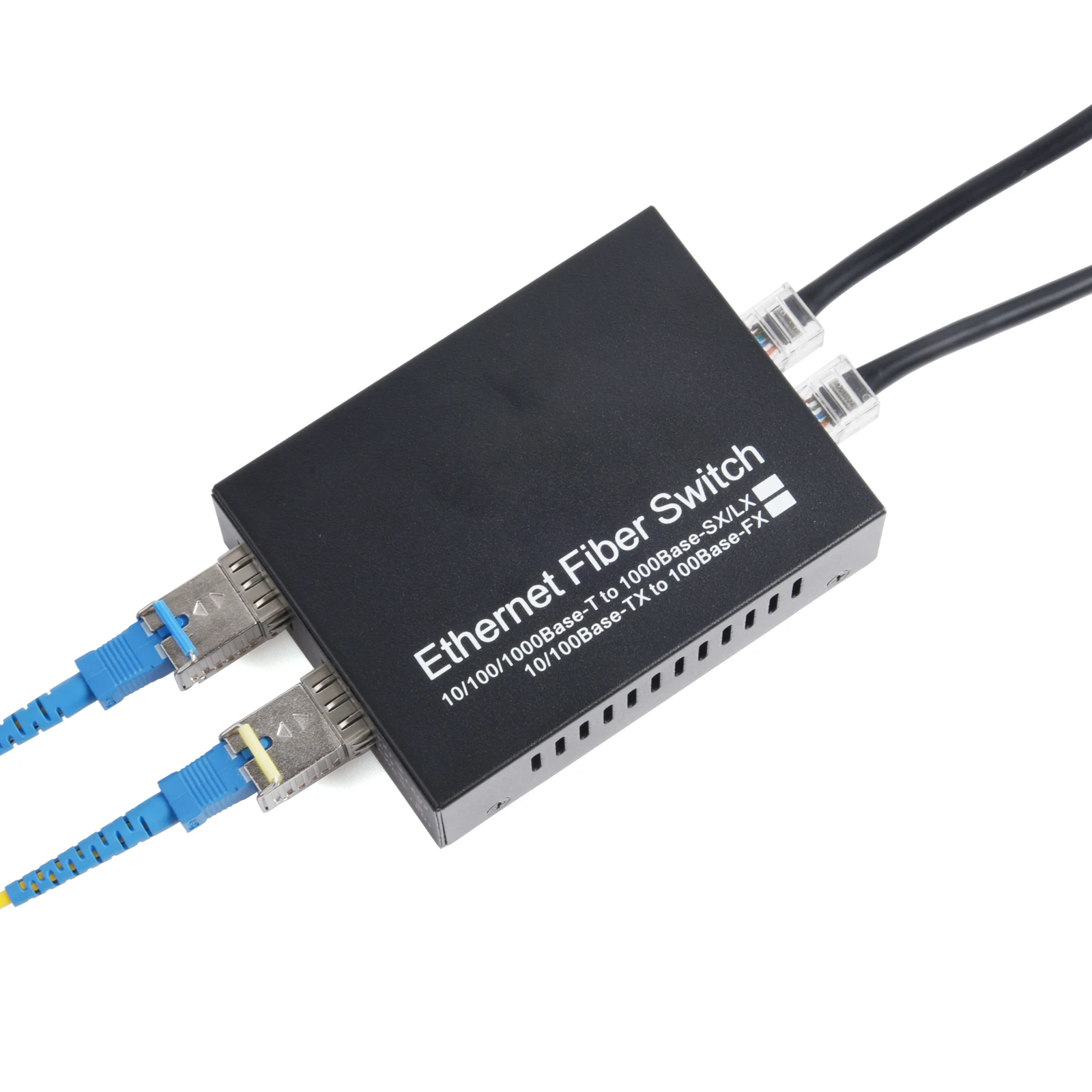

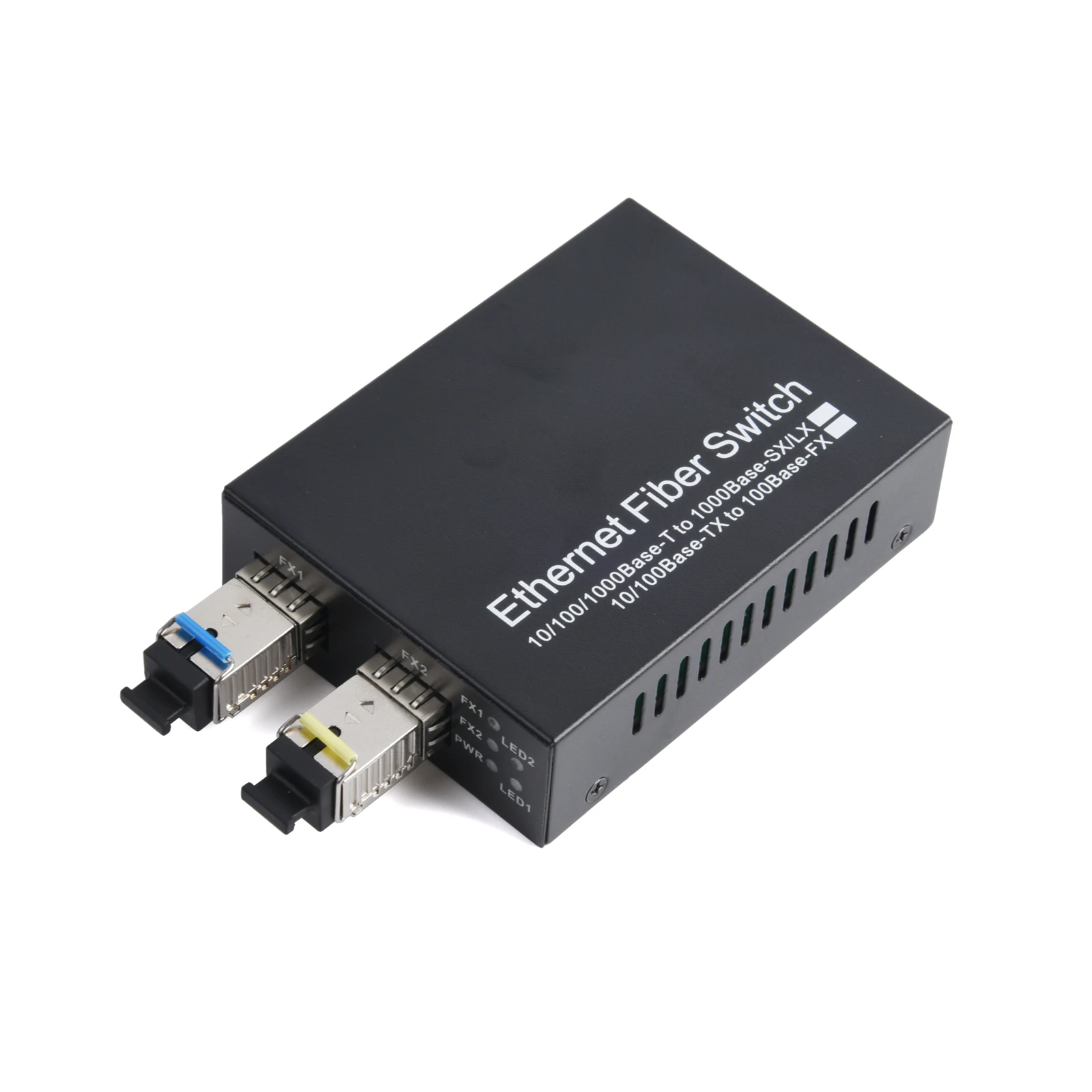

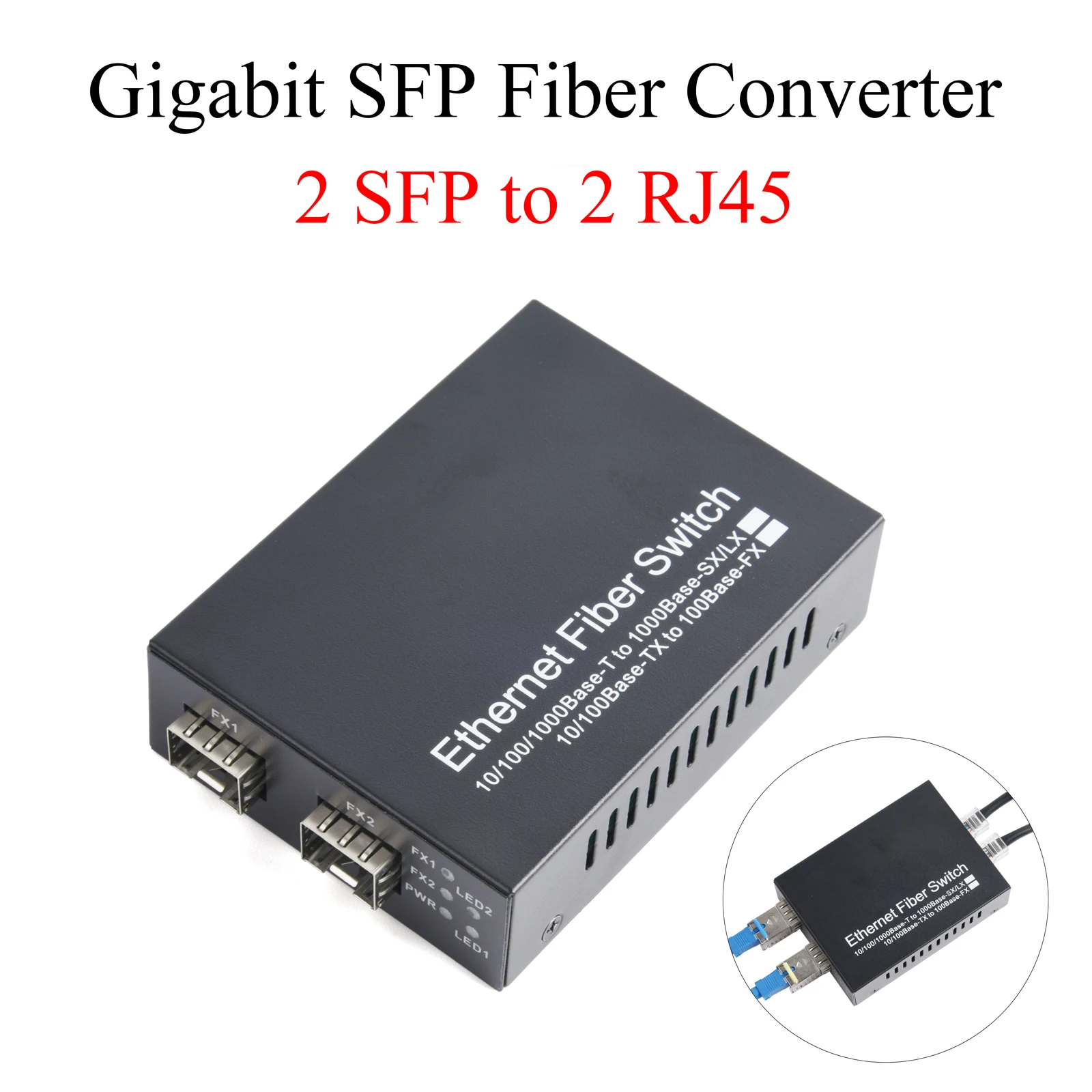

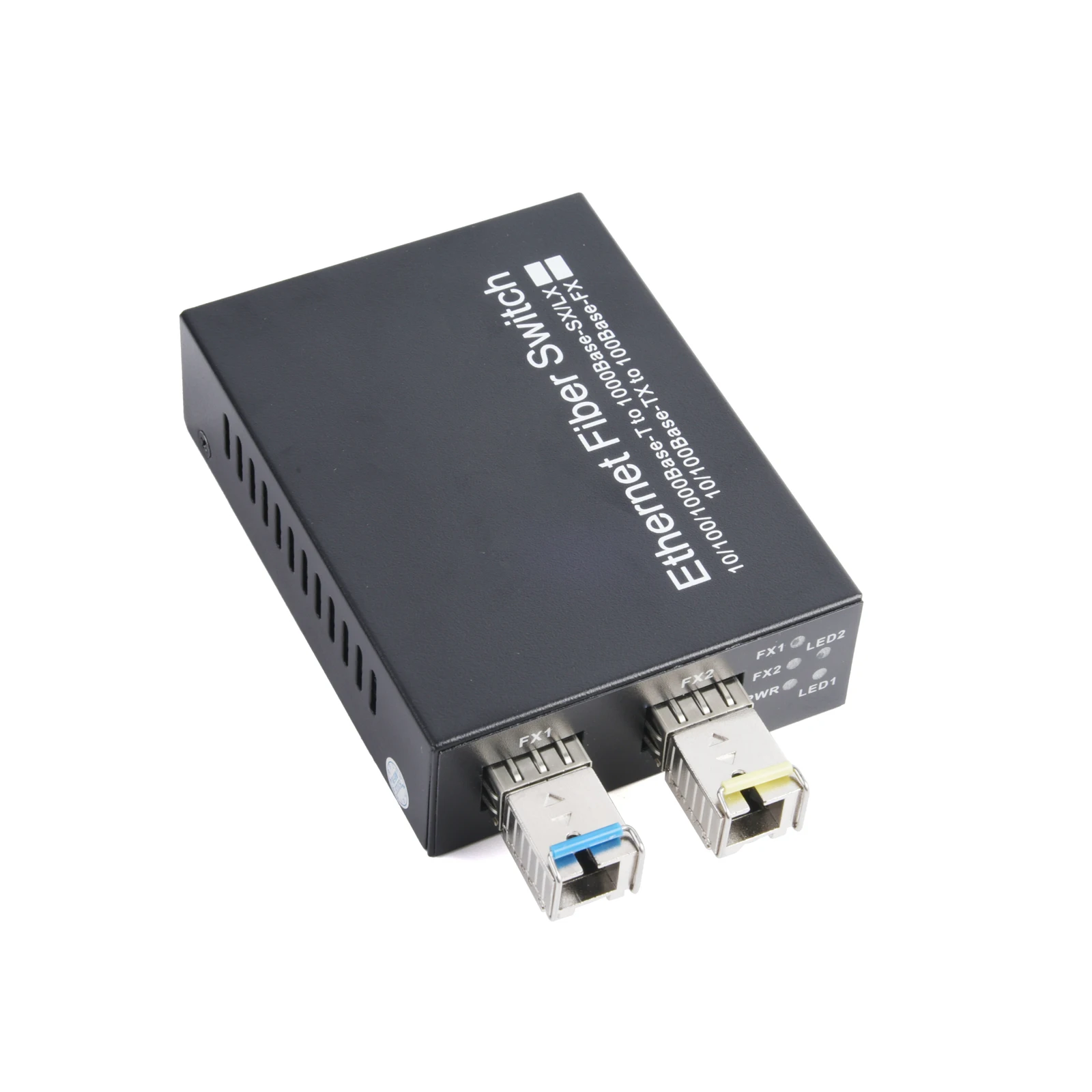

1PCS Gigabit SFP Media Converter 2 SFP to 2 RJ45 Transceiver 10/100/1000M Fiber Optic Switch With 3KM/20KM LC/SC SFP Module
Type: SFP Optic Media Converter
Power: DC 5V
Power Adapter: US Plug
Connector A: 2 TX/RX SFP Port
Connector B: 2 RJ45 Port
Fiber Port Type: SC/FC/ST/LC Optional
Ethernet Port Rate: 10/100/1000Mbps adaptive
SFP Port Rate: 1000Mbps
Wavelength: 1310nm / 1550nm
Distance: 3KM / 20Km (Depends on SFP Module)
Instruction
The Gigabit Ethernet Media Converters with an external power supply are designed to transmit and receive 100/1000Mbps data over optical fiber.
The electrical interface will Auto-Negotiate to a 100Mbps or 1000Mbps Ethernet rate without any adjustments.
The SFP optical interface operates at a 1000Mbps Ethernet rate.
Both are environmentally hardened to operate in extreme temperatures.
Feature
2*1.25Gbps full-duplex fiber port and 2*1000M Ethernet port.

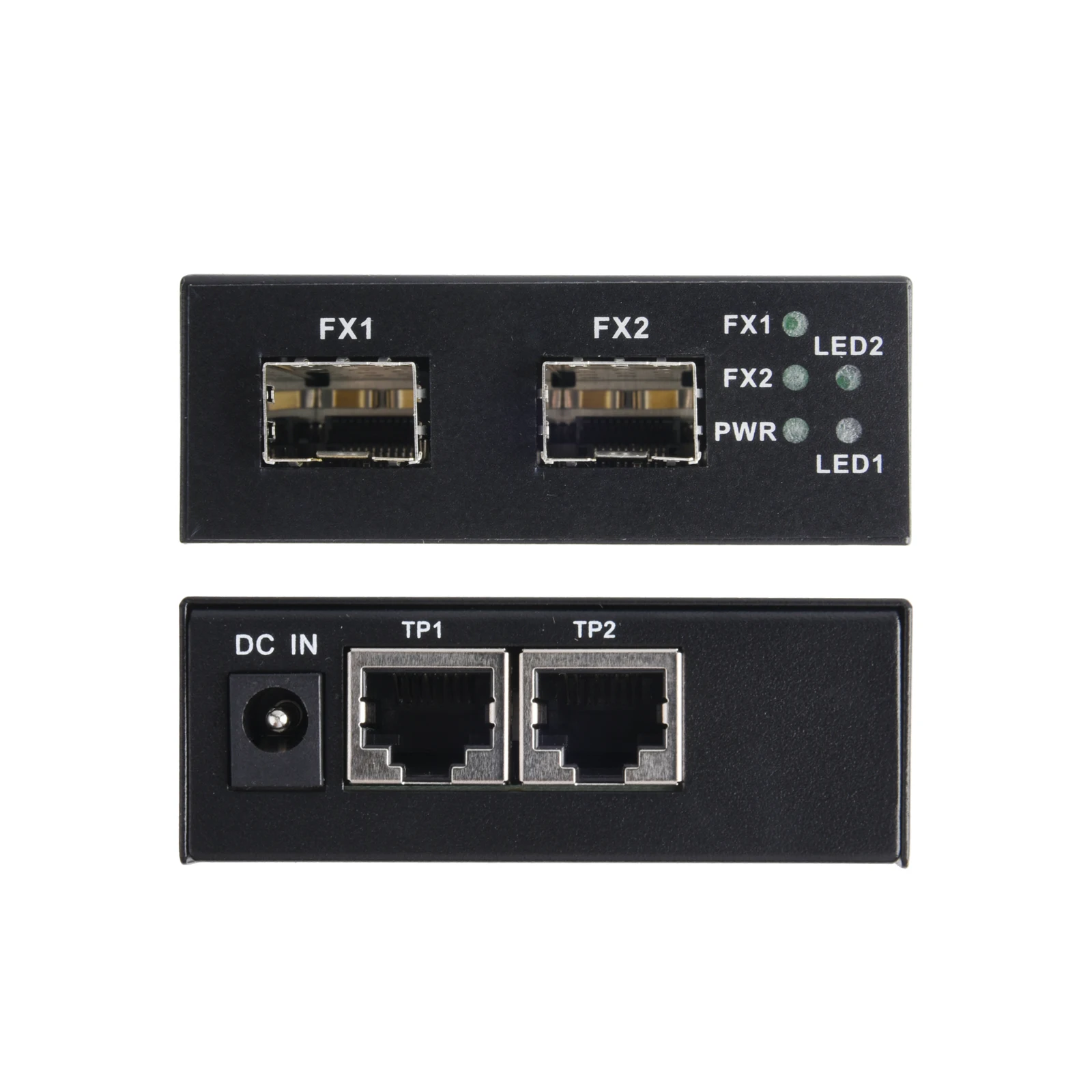

Each port has a complete LED Indicator light for installation, commissioning, and maintenance.
Support 9K Jumbo Packet.
Support direct forwarding mode, which supports less time delay.
Low power consumption, only 1.5W in full load condition.
Support isolation protection function, and good data security.
The optical fiber transmission distance depends on the performance of the SFP module, please choose according to your needs.

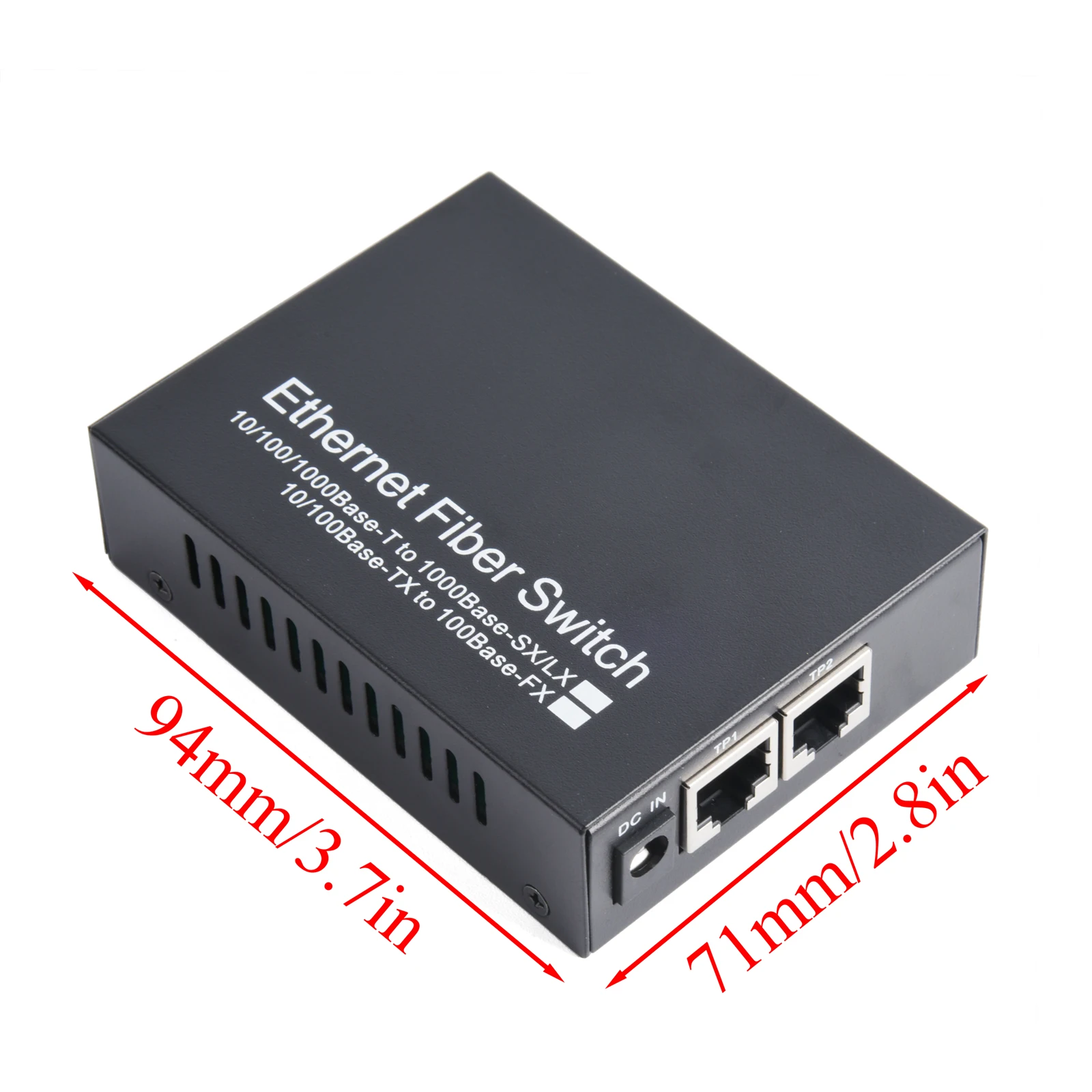

Small size, suitable for installation in various places.
Auto-negotiation low power consumption chips to ensure a very long time and stable operation.
The Type As Your Choice.
The Quantity As Your Choice.
Note: Due to the nature and measurement tools, coupled with the purely manual measurement and cutting of the cable, it may cause a length error of 1%-3%.
