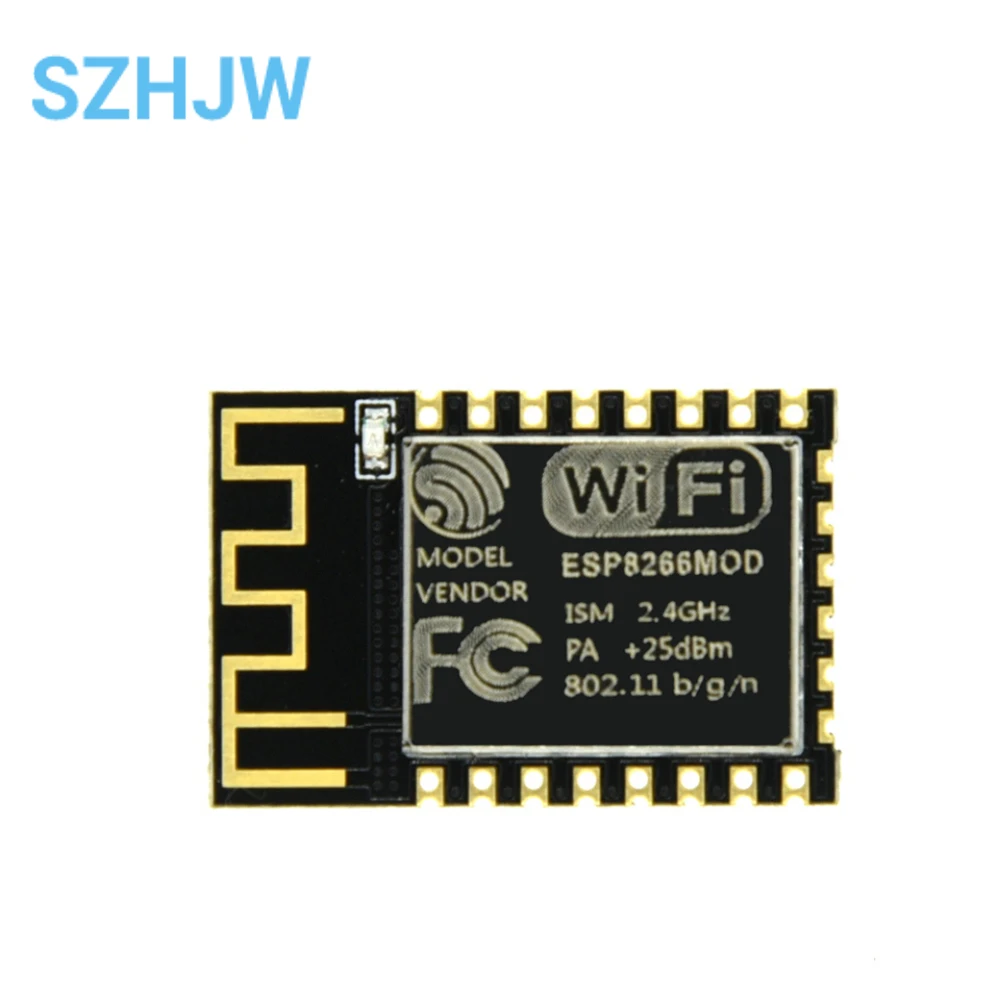

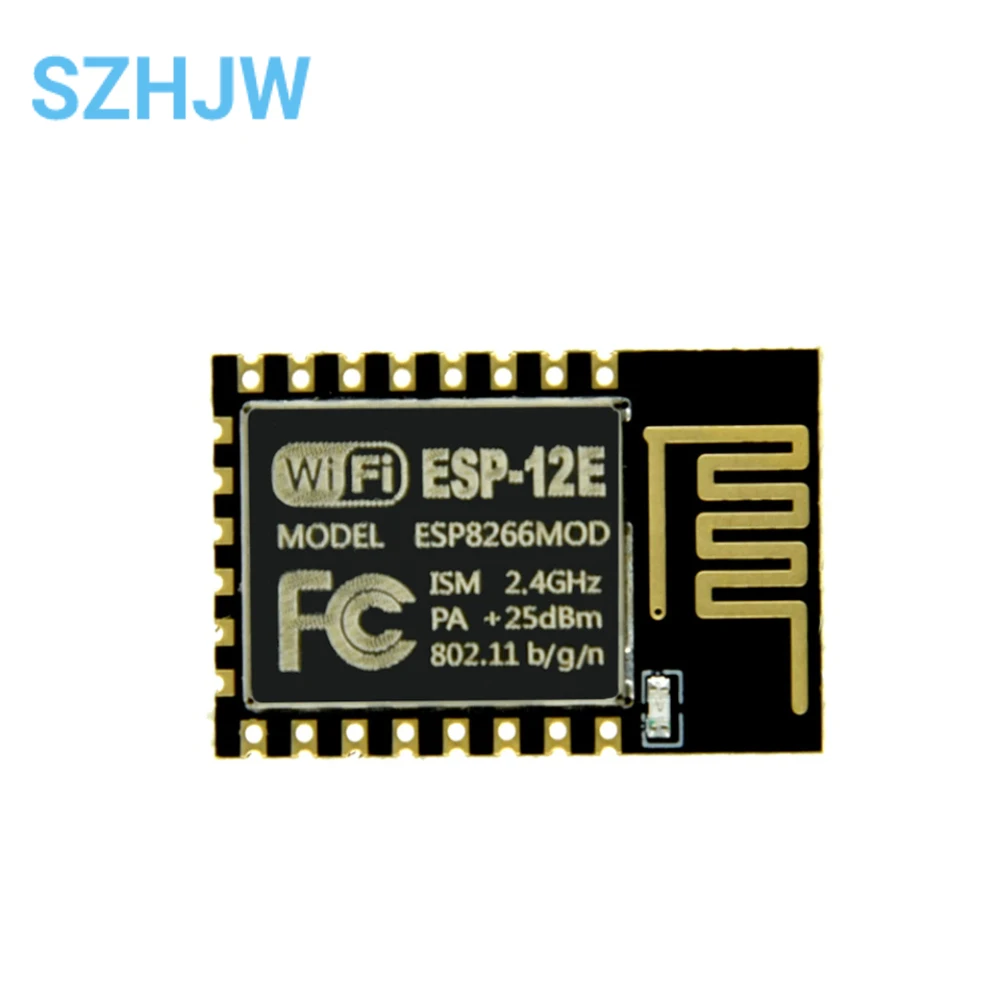

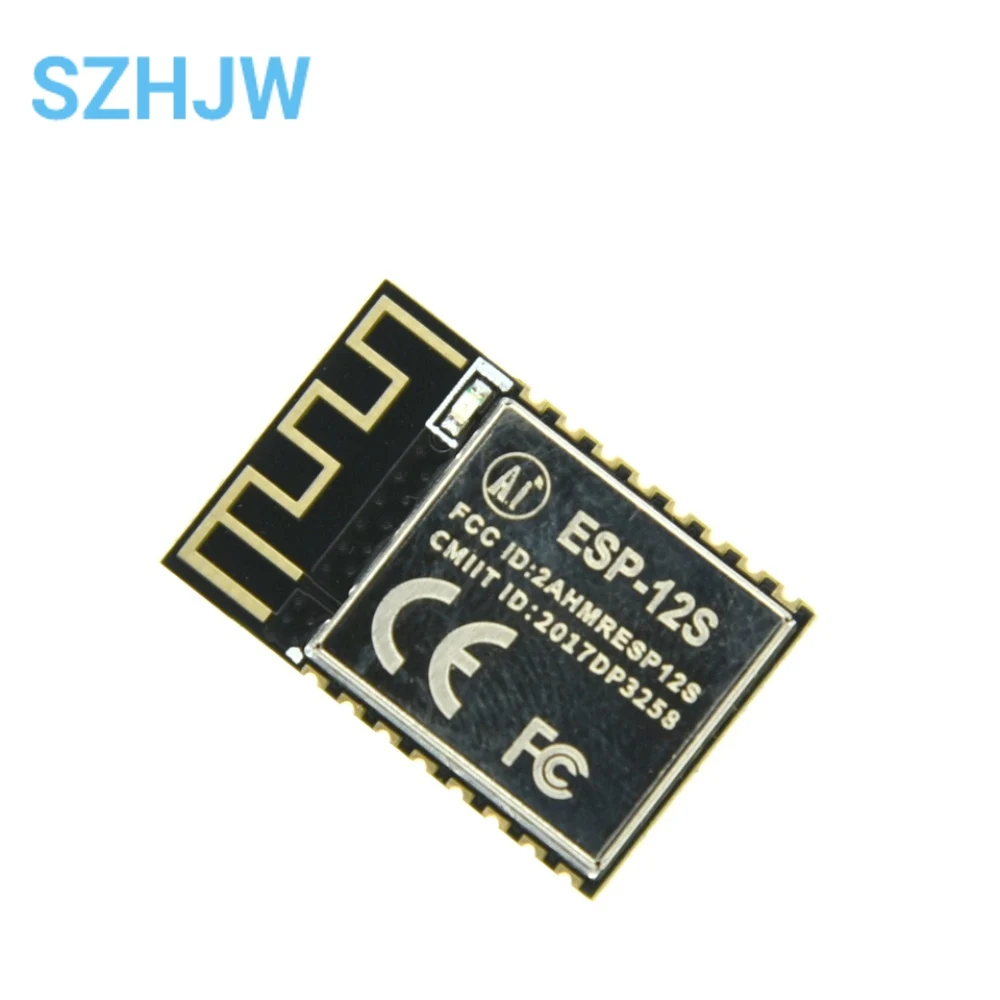

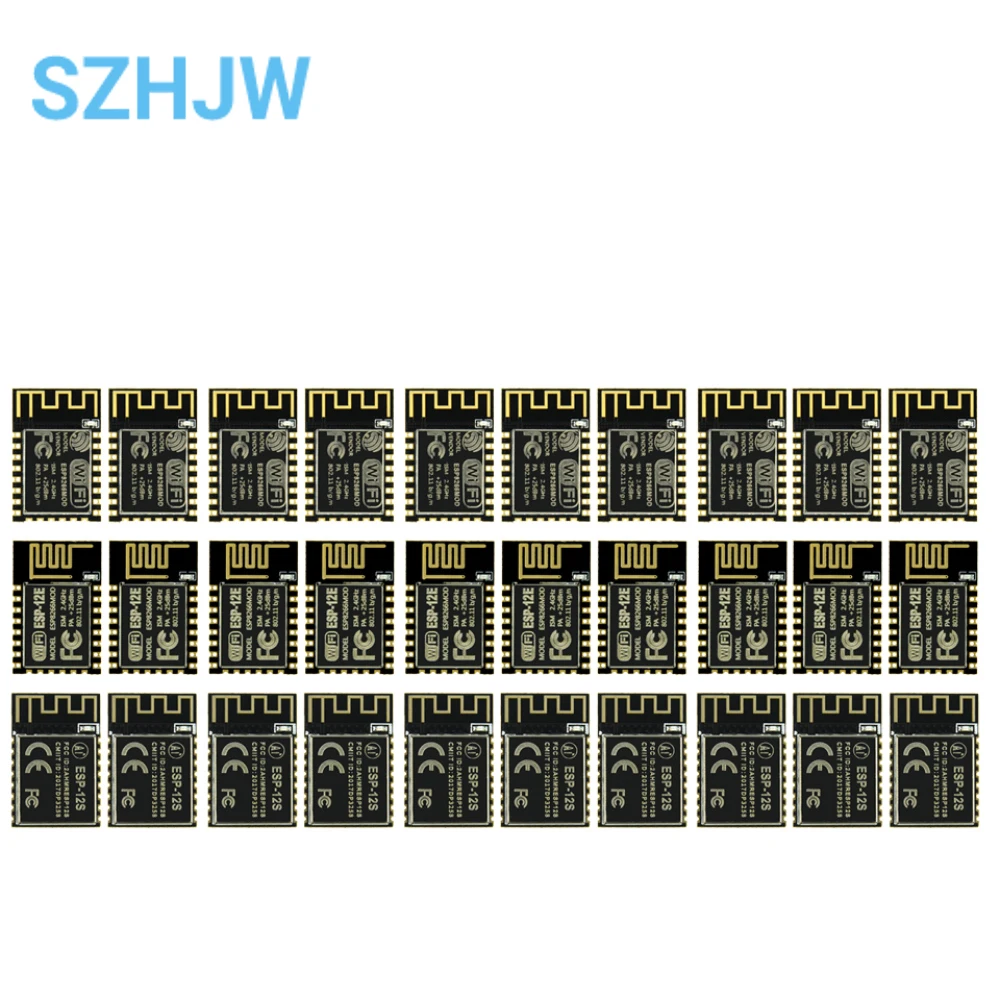

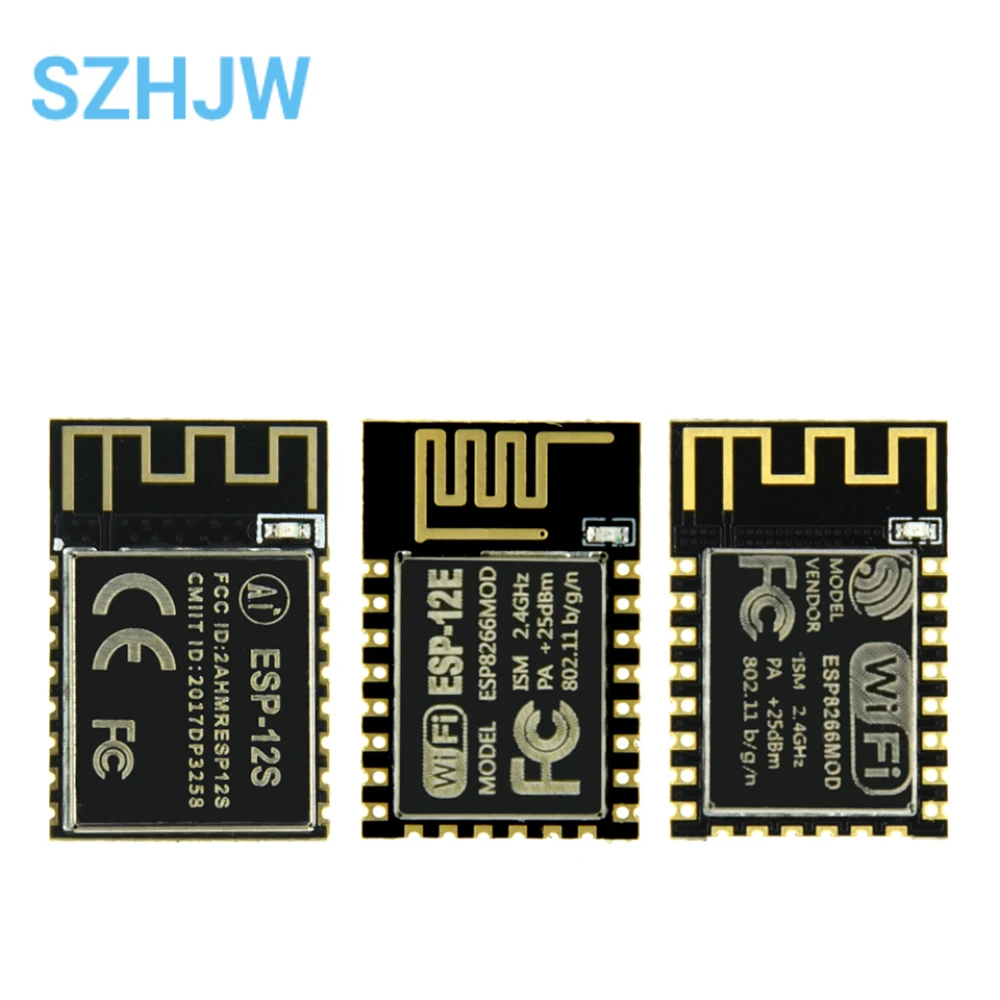

1/5/10 Uds. ESP8266 serie a módulo WIFI ESP-12S ESP-12F módulo inalámbrico de grado ESP-12EIndustrial ESP-12 ESP 8266 IOT
0,99 € 1,71 €
Con la garantía de
Selección del modelo
Color
comprobando cupones disponibles...
Some placeholder content for the collapse component. This panel is hidden by default but revealed when the user activates the relevant trigger.
The Main Parameters:1. Standard certification: FCC / CE / TELEC2. Wireless standard: 802.11 b / g / n3. Frequency range: 2.4GHz-2.5GHz (2400M-2483.5M)4. Data interface: UART / HSPI / I2C / I2S / IR Remote Contorl / GPIO / PWM5. Operating voltage: 3.0 ~ 3.6v (Suggest 3.3v)6. Working current: average 80mA7. Operating temperature: - 40 degrees to 125 degrees8. Storage temperature: room temperature9. Package size: 16mm * 24mm * 3mm10. External interface: N / A11. Wireless network mode: station / softAP / SoftAP + station12. Security mechanisms: WPA / WPA213. Encryption type: WEP / TKIP / AES14. Upgrade firmware: local serial port burn, cloud upgrade, host download burn15. Software development: support customer custom server, provide SDK to customer secondary development16. Network protocols: IPV4, TCP / UDP / HTTP / FTP17. User Configuration: AT + instruction set, cloud server, Android / IOS APPItem Size:

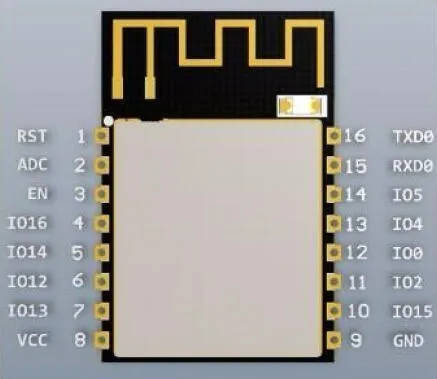

Interface Definition:
1.RST: Reset the module2.ADC: A / D conversion result, input voltage range 0 ~ 1V, value range: 0 ~ 10243.EN: Chip enable, high active4.IO16: GPIO16, can do deep sleep wake-up when receiving RST pin5. IO14: GPIO14, HSPI_CLK6. IO12: GPIO12, HSPI_MISO7. IO13: GPIO13, HSPI_MOSI, UARTO_CTS8.VCC: 3.3V power supply9. GND: GND10. IO15: GPIO1611.IO2: GPIO2,UART1_TXD12.IO0: GPIO013.IO4: GPIO414.IO5: GPIO515.RXD:UARTO_RXD,GPIO316.tXD:UARTO_tXD,GPIO1
Interface Definition:1.RST: Reset the module2.ADC: A / D conversion result, input voltage range 0 ~ 1V, value range: 0 ~ 10243.EN: Chip enable, high active4.IO16: GPIO16, can do deep sleep wake-up when receiving RST pin5. IO14: GPIO14, HSPI_CLK6. IO12: GPIO12, HSPI_MISO7. IO13: GPIO13, HSPI_MOSI, UARTO_CTS8.VCC: 3.3V power supply9. GND: GND10. IO15: GPIO1611.IO2: GPIO2,UART1_TXD12.IO0: GPIO013.IO4: GPIO414.IO5: GPIO515.RXD:UARTO_RXD,GPIO316.tXD:UARTO_tXD,GPIO1
