En Stock
0,24 €
Con la garantía de
Color
Model Number
22 unidades vendidas
Última actualización: 2026-01-29T23:53:25.862Z
Descripción

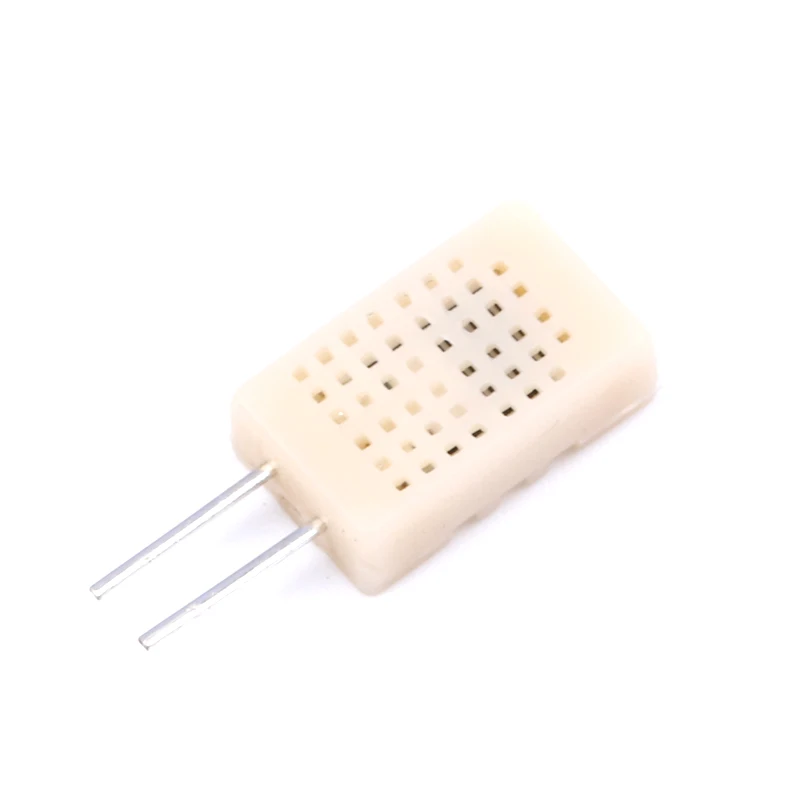

HR202 Humidity Sensitive Resistor:HR202 humidity sensitive resistor is a new type of humidity sensitive component using organic polymer material. It has wide moisture absorption range and stable long-term performance. It can be used in storage, compartment, indoor air quality control, building automation, medical, industrial control system. And a wide range of applications in the field of scientific research.Technical Parameters:Characteristic parameters: (at 1kHz) Unit: ohmSupply voltage: 1.5V AC (Max sine wave)Working frequency: 500Hz...2kHzRated power: 0.2mW (Max sine wave)Center value: (at25°C 1kHz 1V AC 60%RH sine wave) 31.0kΩImpedance range: (at25°C 1kHz 1V AC 60%RH sine wave) 19.8...50.2kΩHumidity detection accuracy : ±5%RHApplication areas:For temperature and humidity display, temperature and humidity gift table, atmospheric environmental monitoring, industrial process control, agriculture, measuring instruments and other applications.
HDS10 Condensation Sensor:HDS10 reveals that the sensor is a positive-switching type component, which is insensitive to low humidity, and sensitive to high humidity only. It can work under DC voltage, with stable quality and high reliability.Supply voltage: 0.8v dc (safety voltage)Operating temperature range: 1-80 degreesOperating humidity range: 1-100% RHCondensation test range: 94-100% RH
HDS10 Condensation Sensor:HDS10 reveals that the sensor is a positive-switching type component, which is insensitive to low humidity, and sensitive to high humidity only. It can work under DC voltage, with stable quality and high reliability.Supply voltage: 0.8v dc (safety voltage)Operating temperature range: 1-80 degreesOperating humidity range: 1-100% RHCondensation test range: 94-100% RHFeature:
Rated voltage: 1.5V AC (Max is Xuanbo)
Fixed power: 0.2mW (Max is Xuanbo)
Operating frequency: 500Hz-2kHz
Use temperature: 0-60 ℃
Use humidity: 95% RH
Wet lag hysteresis: ≤2% RH
Response time: moisture, ≤ 20S; dehumidification, ≤ 40S
Stability: ≤1% RH / year
Humidity detection accuracy: ≤ ± 5% RH
Condition: at25 ℃ 1kHz 1V AC is Xuanbo
Humidity: 60% RH
Center value: 31k ohm
Impedance range: 19.8-50.2 k ohm
Humidity detection accuracy: ± 5% RH
