This adapter only provides interface conversion and does not involve chips, which does not affect the transmission speed. The transmission speed is affected by the SSD model and computer interface type, and usually cannot reach the theoretical transmission speed. Please do not submit disputes based on transmission speed.

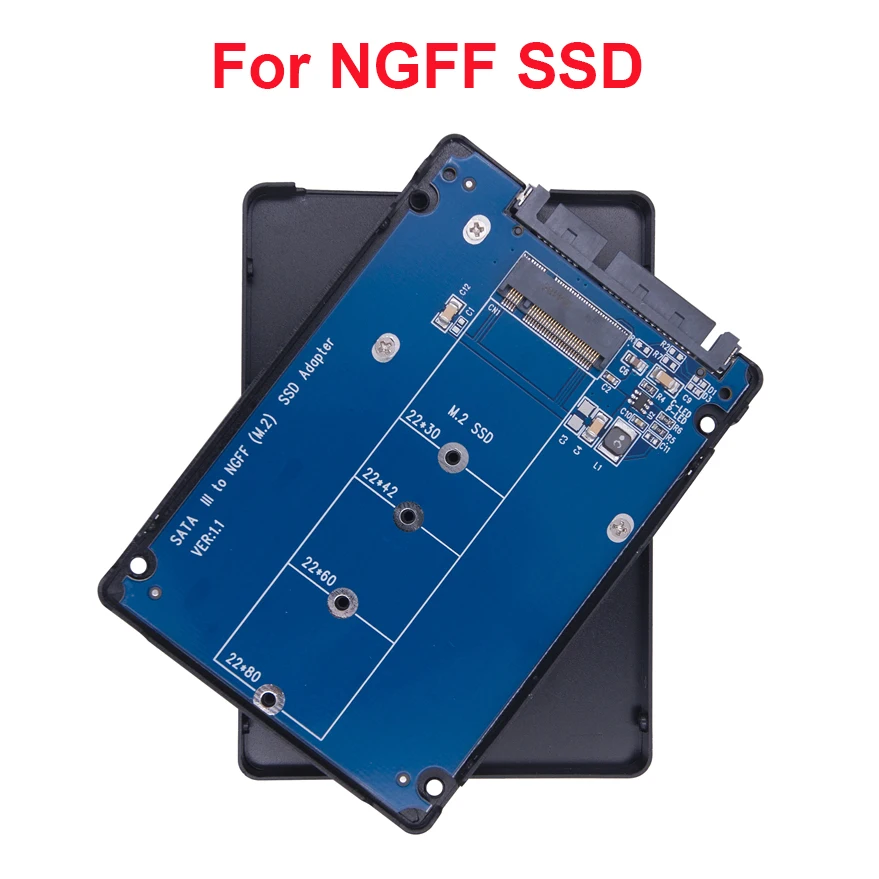

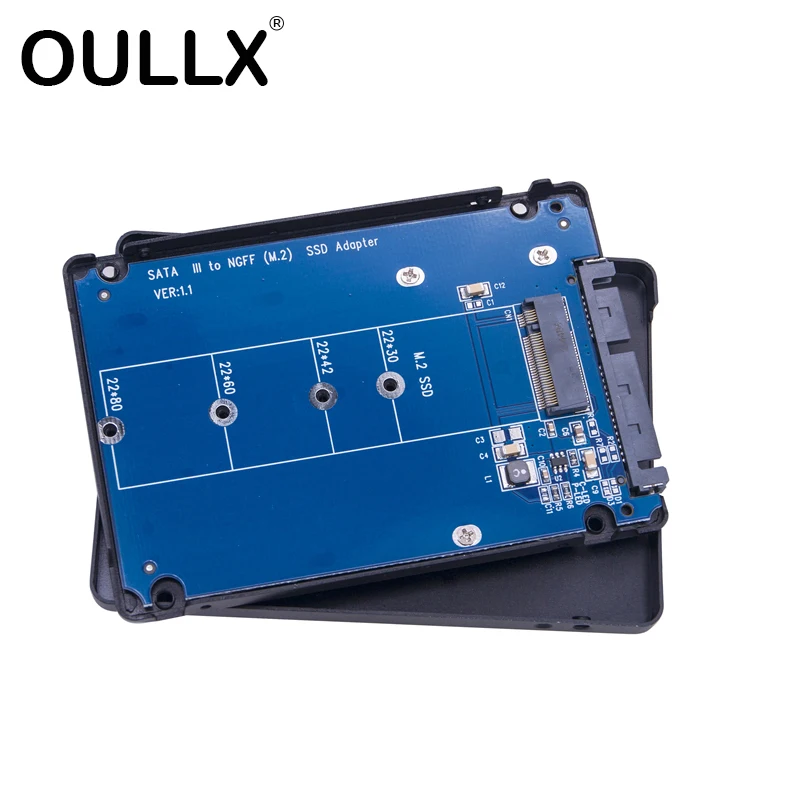

NGFF (M.2) interface solid-state drive to 2.5-inch SATA interface hard drive conversion box

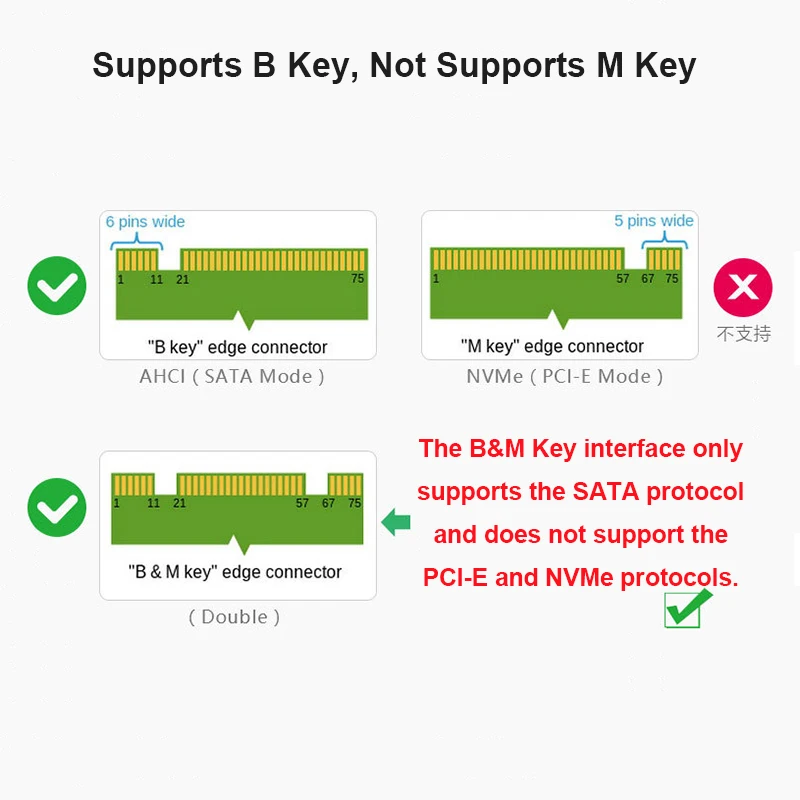

For NGFF, this adapter card is only applicable to B-key or B/M-key interfaces, not M-key interfaces. Hard disk usage thatDoes not support AHCI and NVME protocols

Only M2 Hard Disk Supporting SATA protocol (NGFF)

This product is a solid-state drive adapter box with a new M.2 specification interface. It can convert an M.2 (NGFF) SSD into a standard SATA interface through this board box, and then connect it to the computer host for data transmission. It supports the system startup function.

Product characteristics:

Allow users to use standard SATA-IO M.2 SATA SSDs to connect to desktop or laptop computers as SATA hard drives;

Supports a high-speed SATA3/6Gbps high capacity storage interface.

Installation is simple and does not require any software drivers.

System requirements:

The host requires a standard SATA 7pin port and SATA POWER 15P.

Product specifications:

M.2 SSD to SATA adapter card

Revision 0.9 of M.2 specification

■Serial ATA Spec. Reversion 3.2

Support M.2 card size: 2230224222602280

■ Supports M.2 Key B Card Type

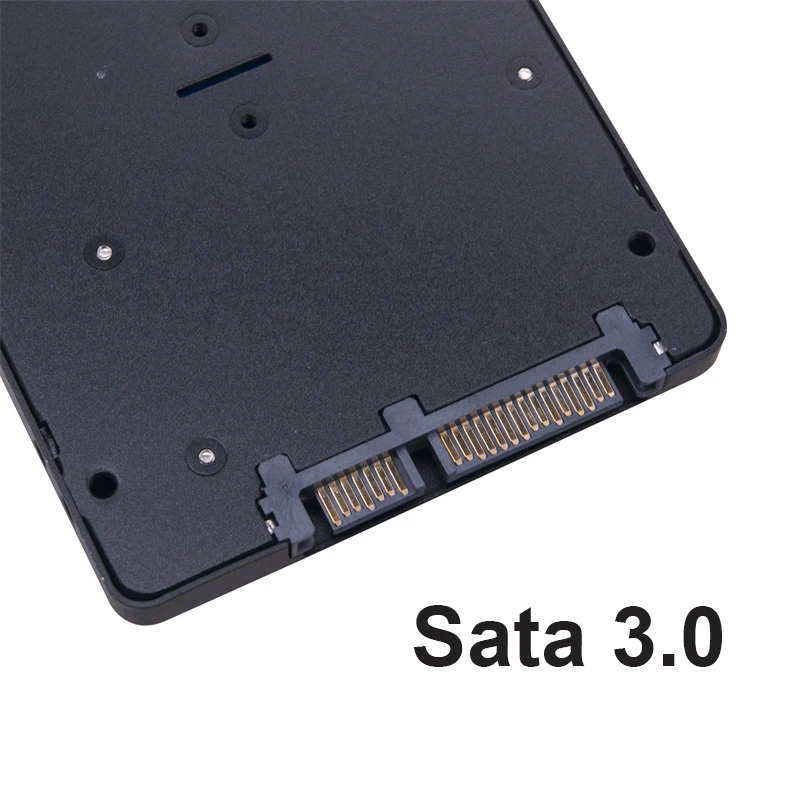

Port: Standard SATA 22pin connector

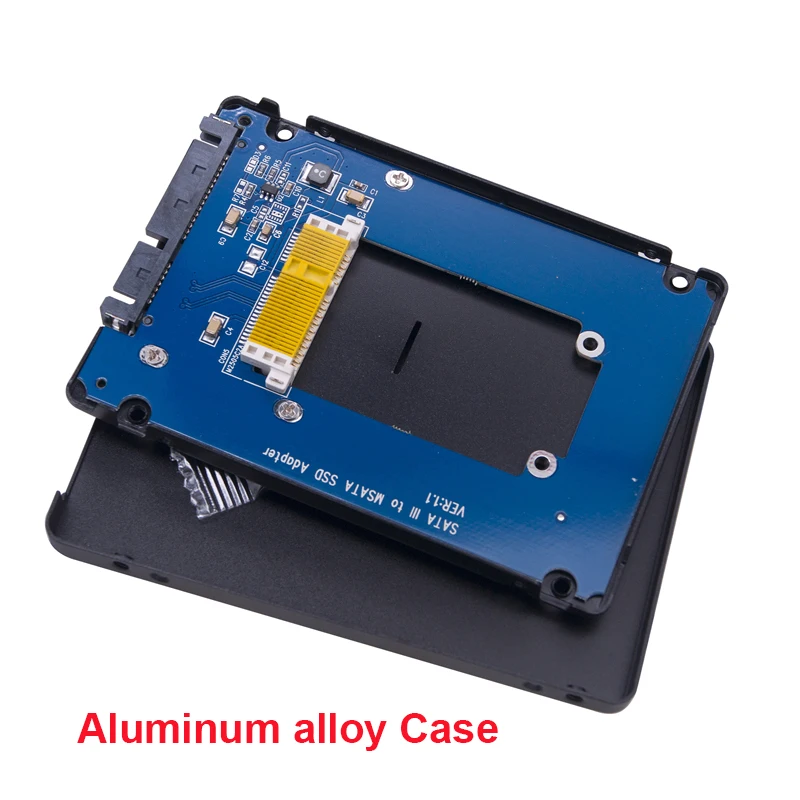

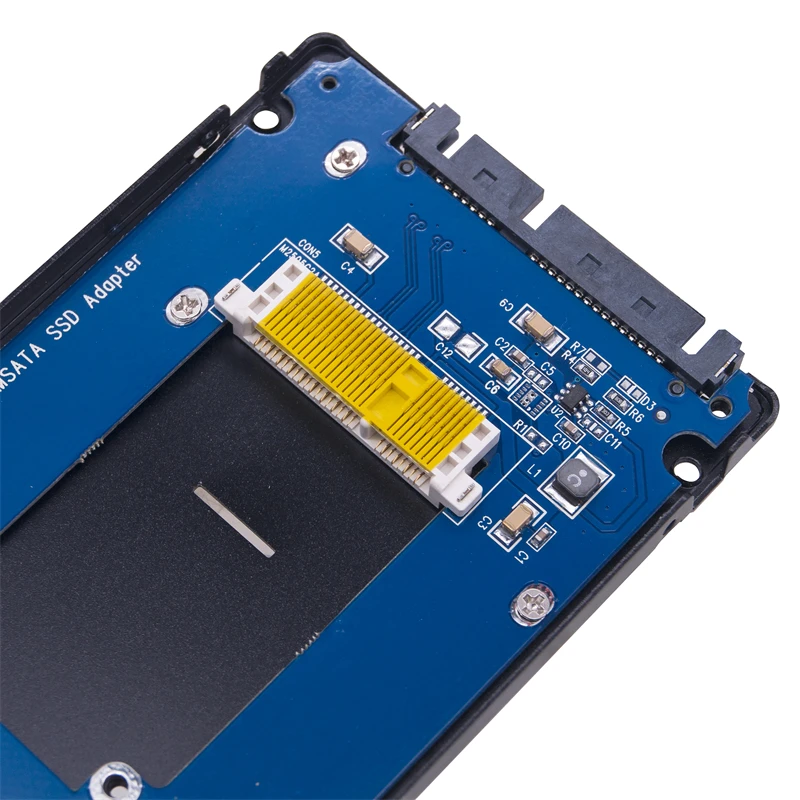

MSATA interface solid-state drive to 2.5-inch SATA interface hard drive conversion box

Convenient for converting MSATA SSD solid-state drives into 2.5sata hard drives

After conversion, it can be used as a 2.5-inch hard drive, which can be installed and used on laptops with 2.5-inch hard drives, or on desktop computers. A good choice for upgrading your computer's solid-state drive.

Color: Black

Function: Convert to a 2.5-inch hard drive for use

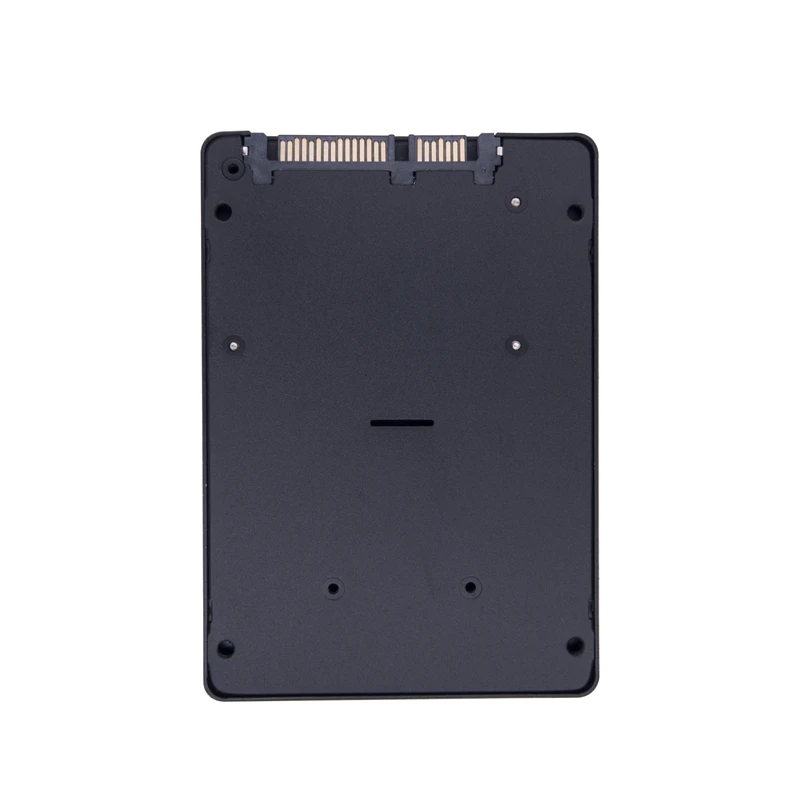

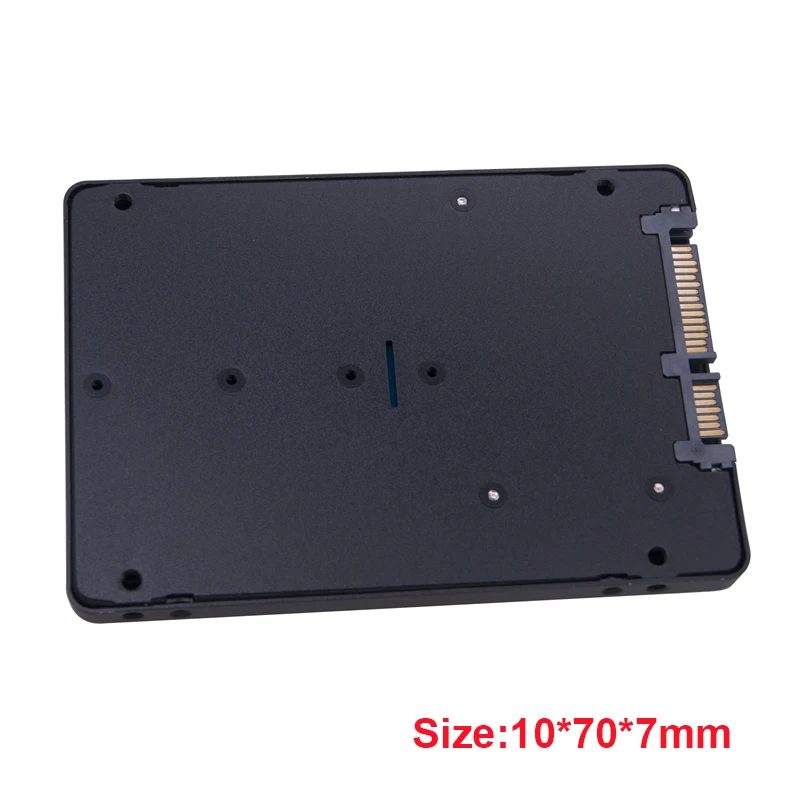

2.5 inch hard drive case size: 100MM * 70MM * 7MM

Reminder: The product does not include SSD hard drives

This product only supports solid-state drives defined by the MSATA SATA SSD interface

Not supported: 1.8 inch MICRO, M.2 NGFF SSD

【 Product Usage 】 It allows you to easily convert an mSATA SSD into a standard 2.5-inch laptop hard drive, but the speed will not be reduced due to switching. It is several times faster than a regular hard drive, allowing you to experience flying speeds in an instant. It can be installed into a laptop or desktop computer as a system disk, or it can be added as a mobile hard drive with a shell. Super shockproof, silent, and fast reading and writing speed.

【 Product Advantages 】 DC 5V working voltage, 7mm ultra-thin metal shell, lightweight and sturdy, precise workmanship, SATA interface and power interface with gold plating oxidation resistance, durable and durable. Easy to install, all installation can be completed with just a

small screwdriver, with high practicality and performance, and easy disassembly.
