M.2 para NVMe a PCI Express 4.0 X4 Cable elevador de extensión PCIE 4.0 x4 Gen4 Extensor de velocidad completa 90 ° Adaptador SSD Socket GPU M2 2280
27,39 €
Enlace proporcionado por:
Longitud del Cable:
Color:

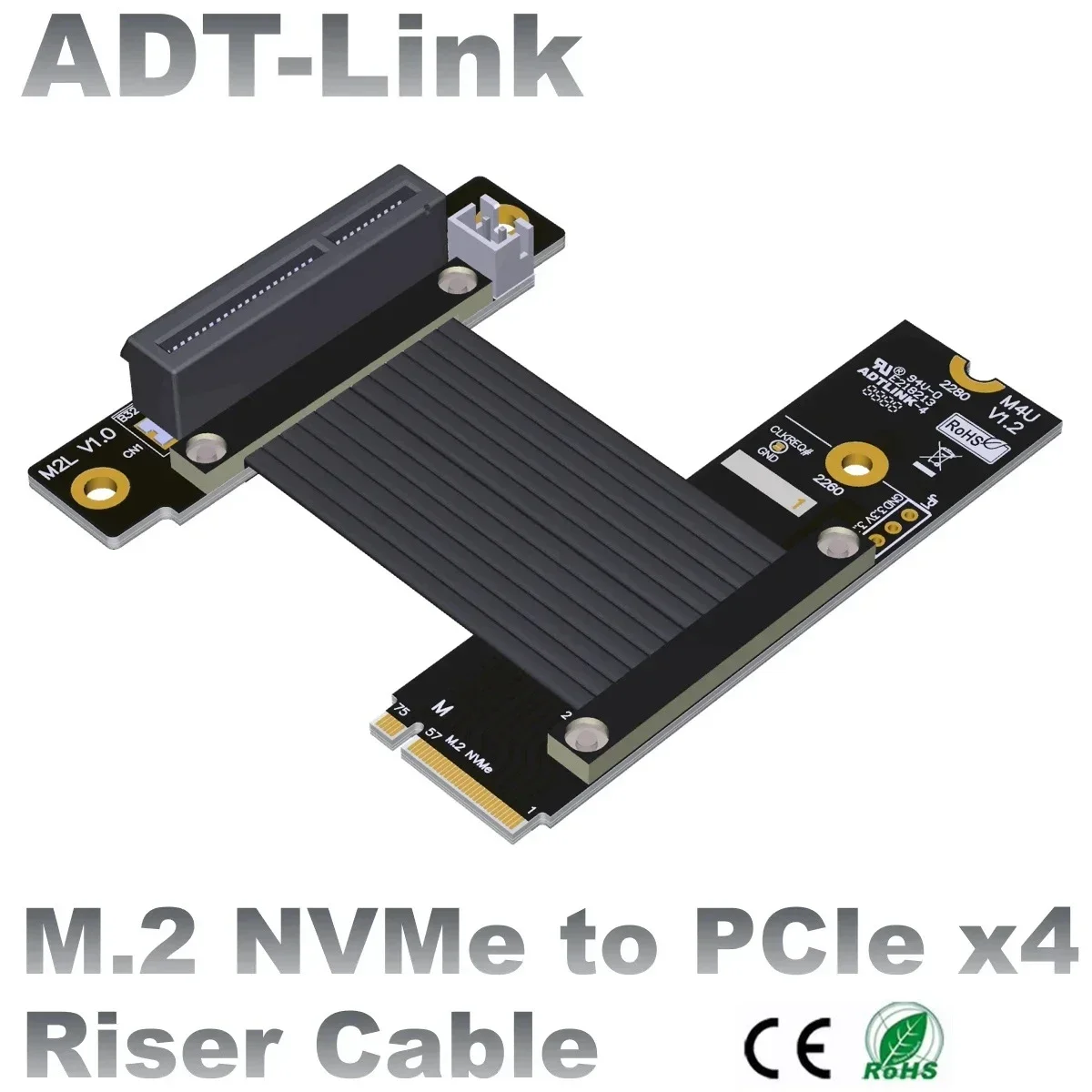

ADT-Link M.2 NVMe to PCI Express x4 Extension Cable
Brand name: ADT-LINK
Product name:M.2 NVMe to PCIe extension cable
Product model:M42UF, M42UL,M42UR
Transferspeed:PCIe4.0 x4, gen4, 64G/bps (Max.)
Wire length:5 ~ 100 cm, the length can be customized
Application: PCIe x4 USB, wireless LAN, SSD, Capture cards to M.2(ultra SSD, M-key)extension

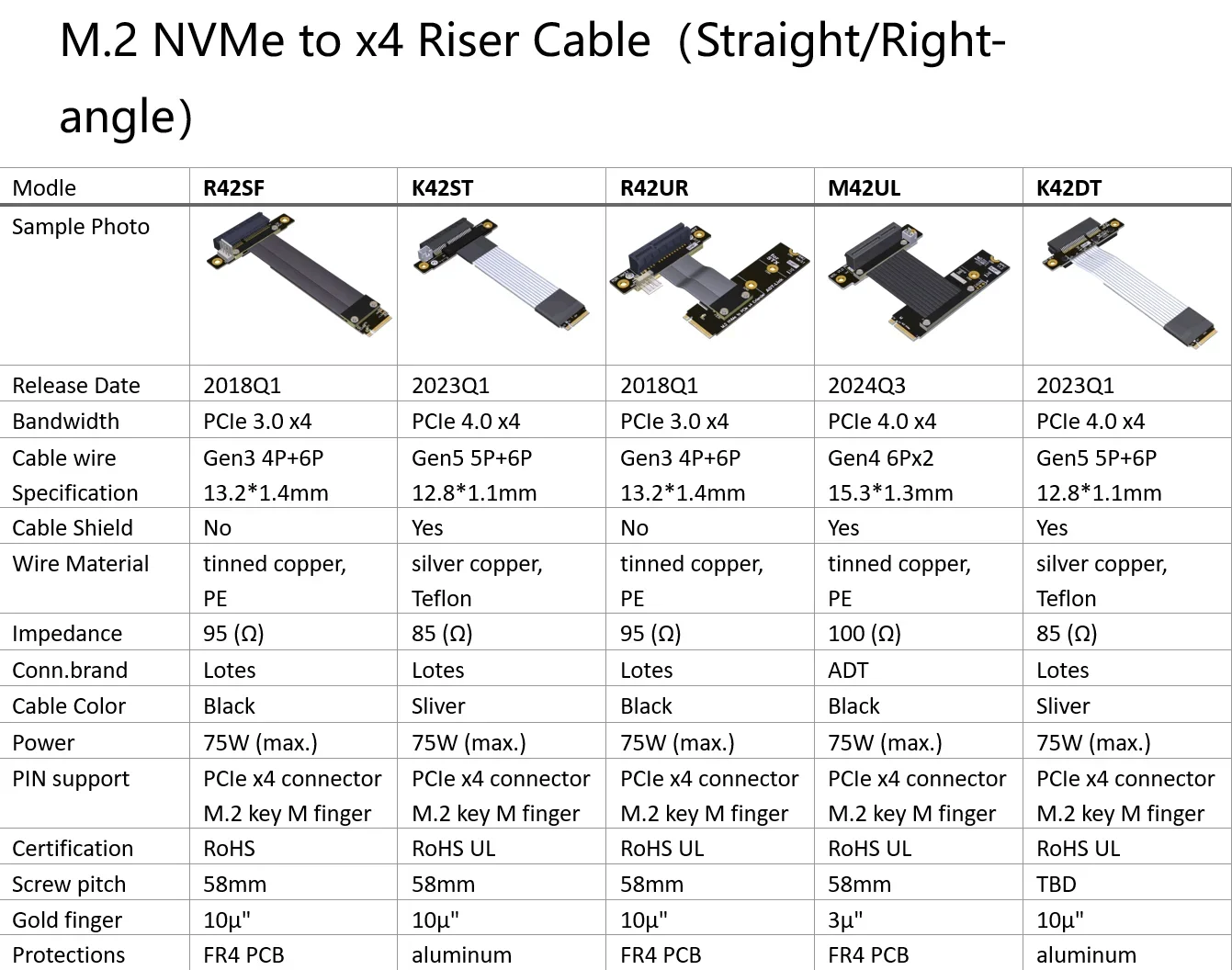

Part-Number Description:
Part-Number Description Bandwidth (Max.) M42UF M.2 key-M NVMe to PCIe x4 turn 180 degree splint vertical extension cables PCIe 4.0 x4 (64G/bps) M42UL M.2 key-M NVMe to PCIe x4turn 90 degree extension cables PCIe 4.0 x4 (64G/bps) M42UL M.2 key-M NVMe to PCIe x4turn 270 degree extension cables PCIe 4.0 x4 (64G/bps)M42: M.2 NVMe to x4
UL: turn 90 degree upright right angle ; UF: turn 180 degree splint vertical
Cable length Description:
The length of the wire refers to the part of the visible wire. It does not include the PCB and the connector. For the wire length, please refer to the 5cm blue arrow in the figure below.
Q&A:
Is there any EMI shielding for Cable?
With metal shield. The extender utilizes the latest materials for EMI shielding with five sole flat cables design. This technique allows each cable to be fully covered by electromagnetic interference shielding with conducting polymer to guard against incoming or outgoing emissions of electromagnetic frequencies, minimize disturbance and degradation on performance, and reduce the weight of the extender.
What is the thickness of the cable? Is it soft? Can it be bent?
The thickness of the cable wire is 1.4mm, so the wire is softer. The wire can be bent or folded, but do not pull it.

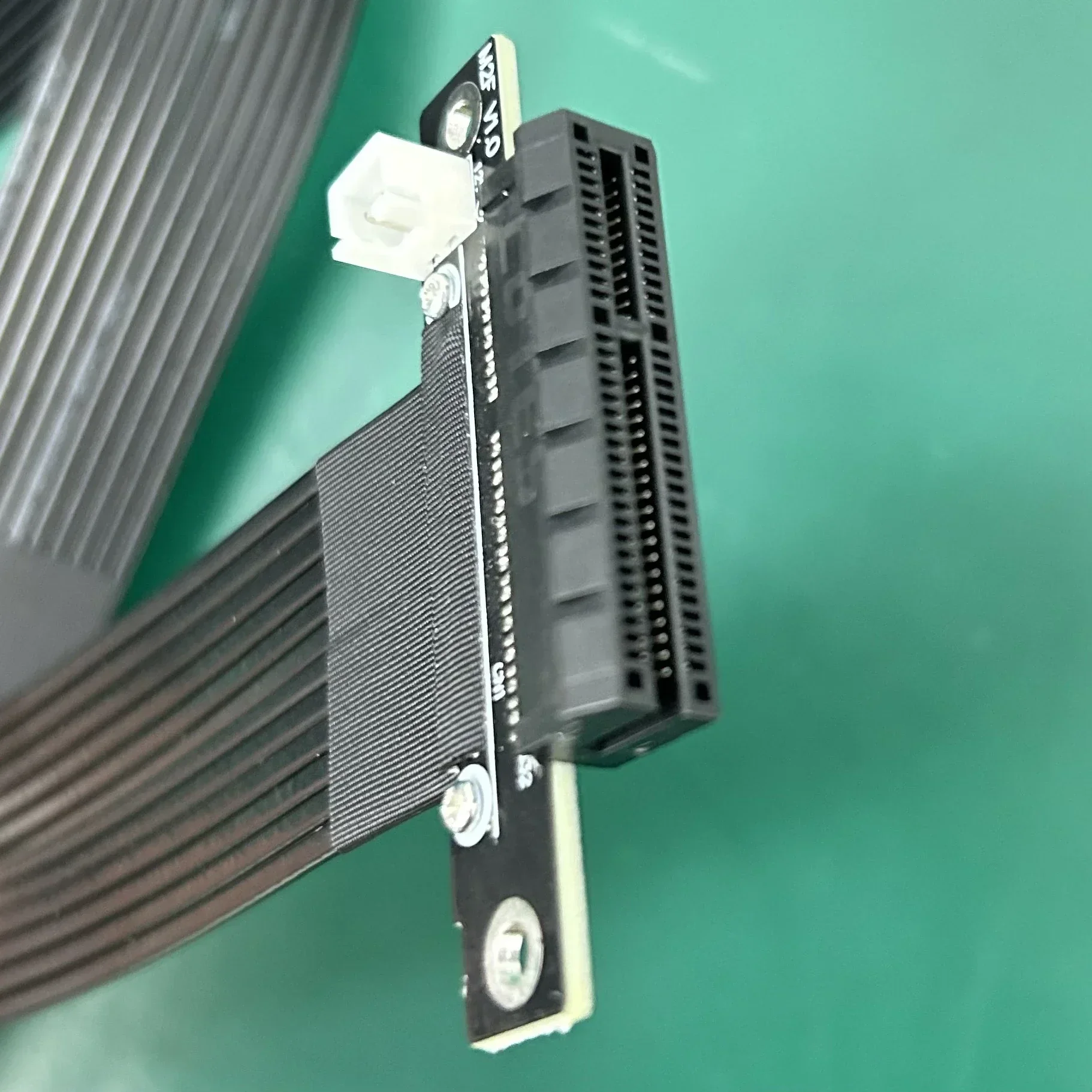

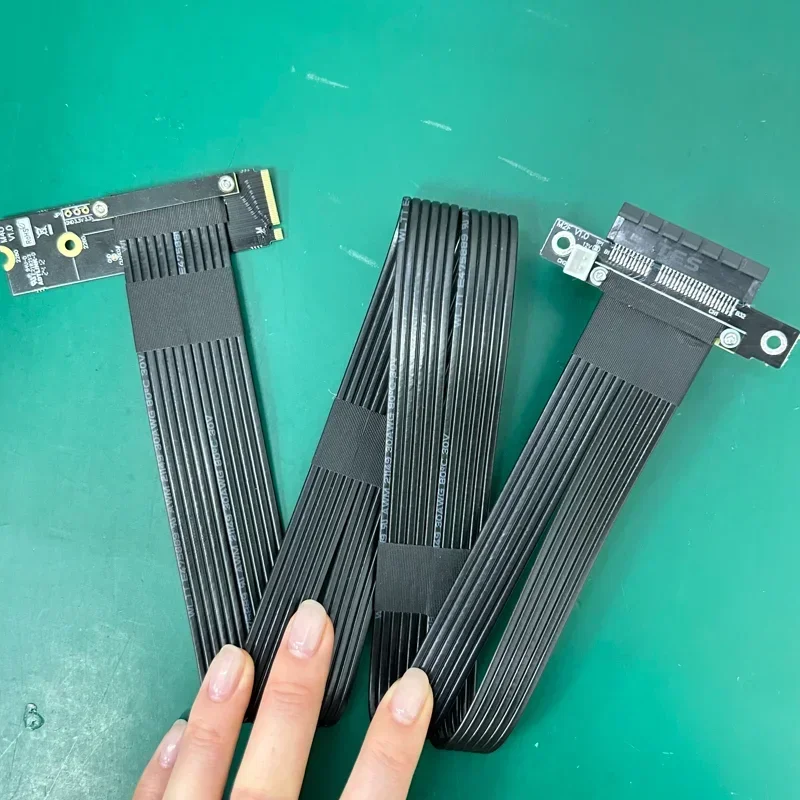

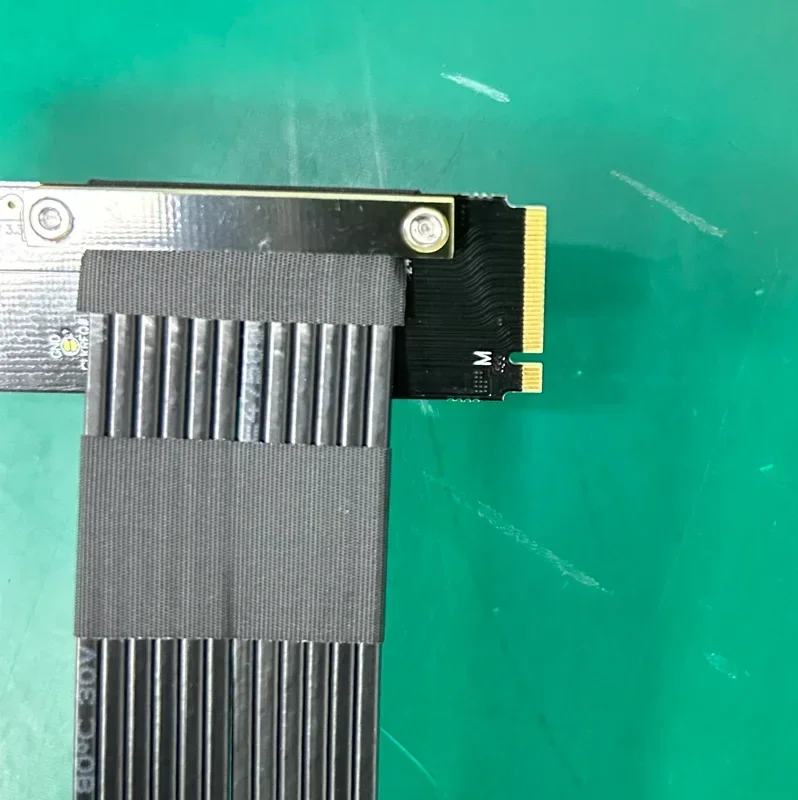

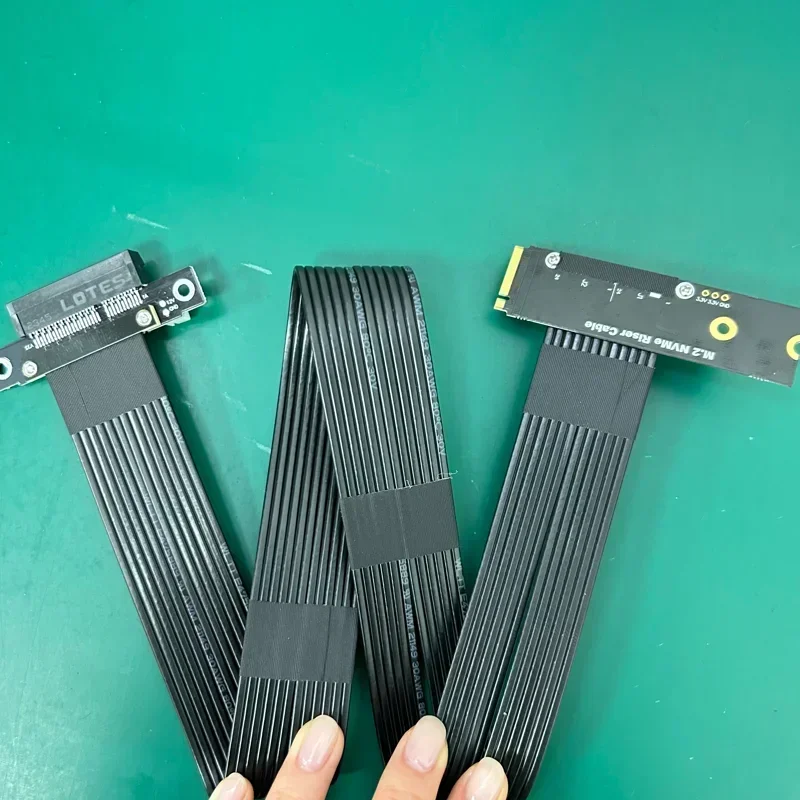

Photo:
Download:
To open 3D PDF files. Please usesoftware.
FTP: Los Angeles
3D files download
FTP: Hong Kong
3D files download
Comprar M.2 para NVMe a PCI Express 4.0 X4 Cable elevador de extensión PCIE 4.0 x4 Gen4 Extensor de velocidad completa 90 ° Adaptador SSD Socket GPU M2 2280
