VisionFive 2 Placa de desarrollo de RISC-V de cuatro núcleos StarFive JH7110 computadora de placa única de RISC-V de cuatro núcleos (SBC) GPU 3D integrado, 4G/8G

Notice:

WIFI 6 Dongle and WIFI 6 Dongle upgrade models are shipped randomly!

Note：Please note the type what you want:

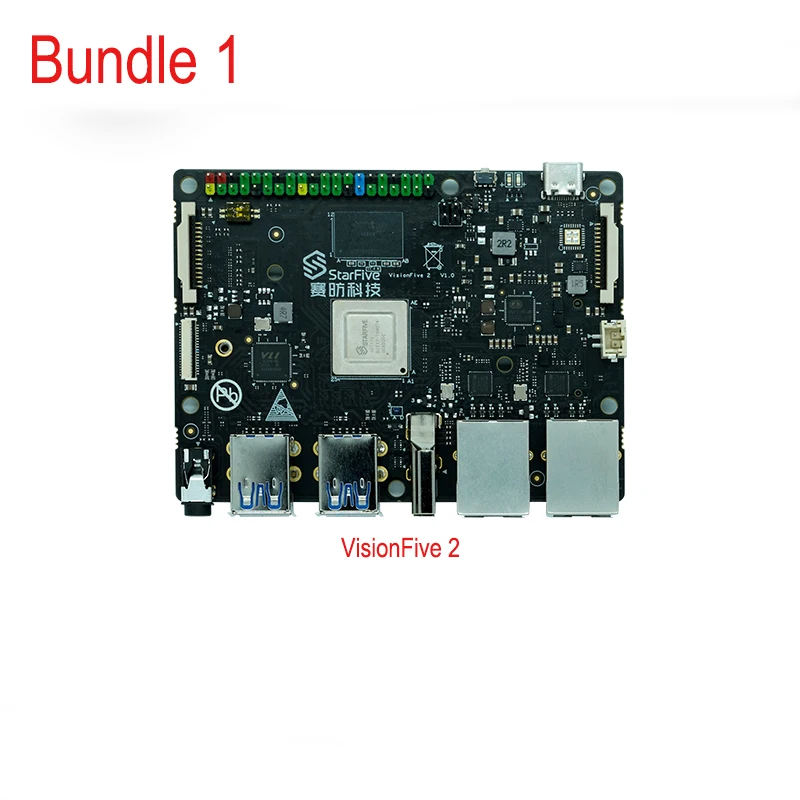

Bundle 1：VisionFive 2

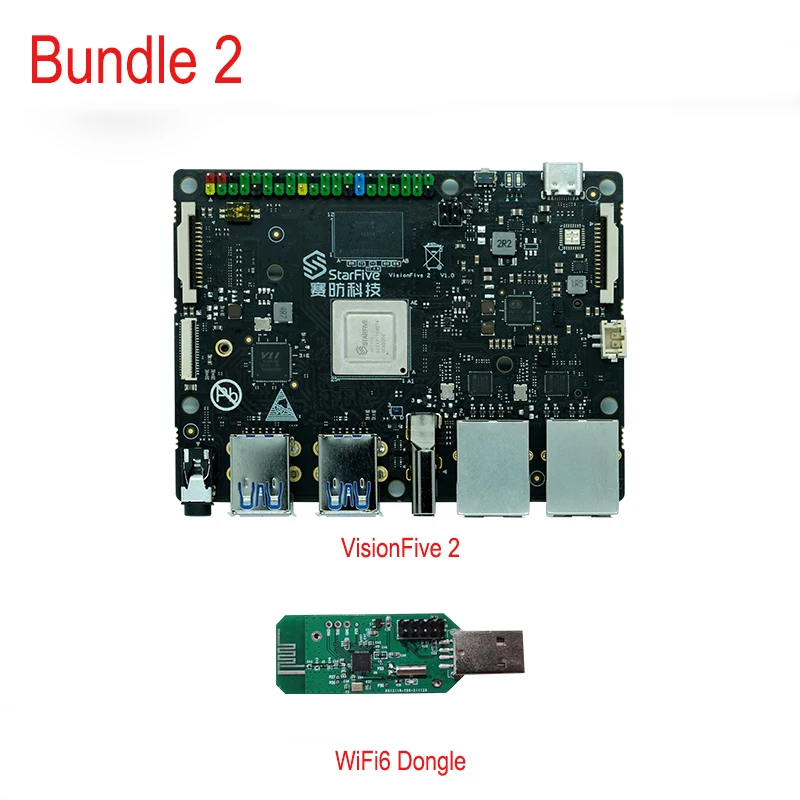

Bundle 2：VisionFive 2 + WIFI6 Dongle

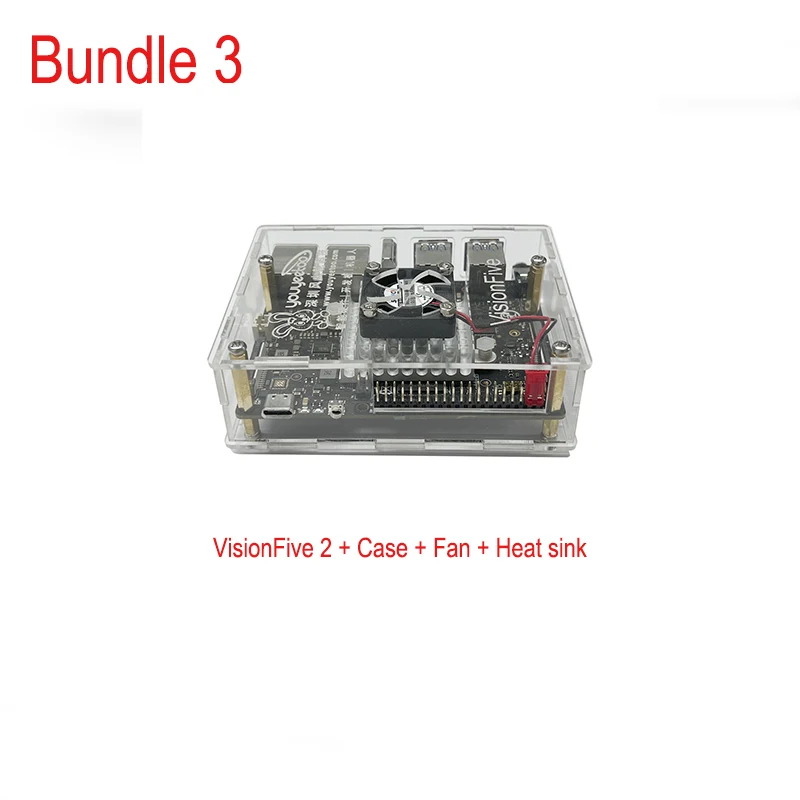

Bundle 3：VisionFive 2 + Case + Fan + Heat sink

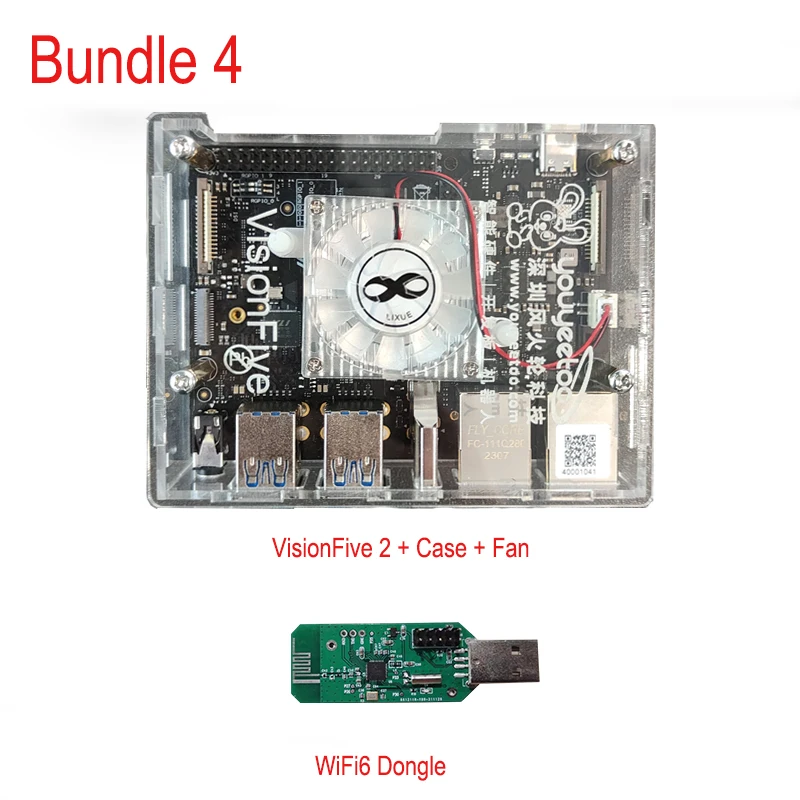

Bundle 4：VisionFive 2 + Case + Fan + Heat sink + WIFI6 Dongle

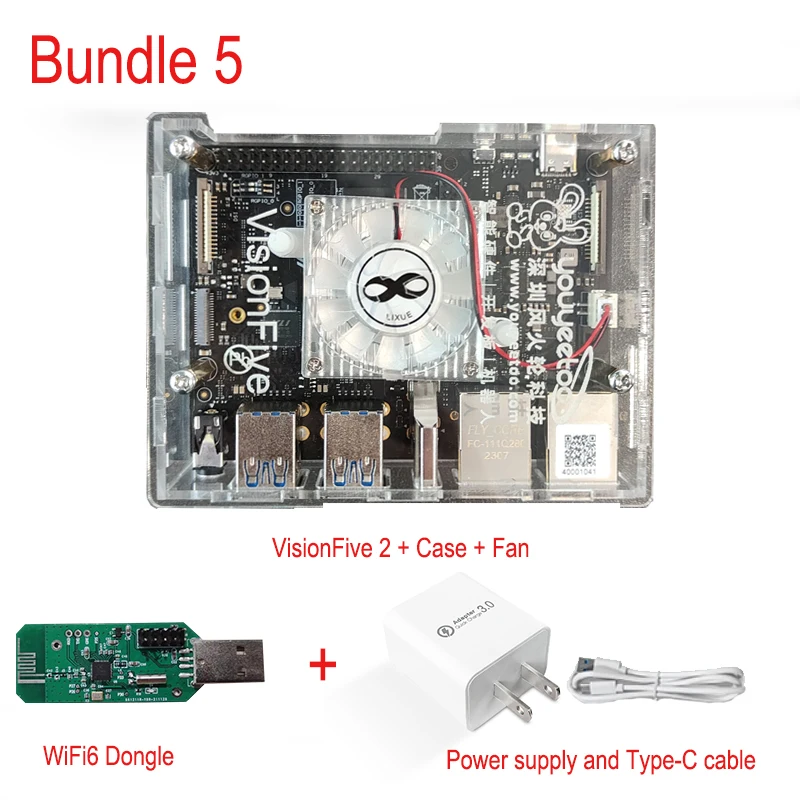

Bundle 5：VisionFive 2 + Case + Fan + Heat sink + WIFI6 Dongle + Power supply and Type-C cable

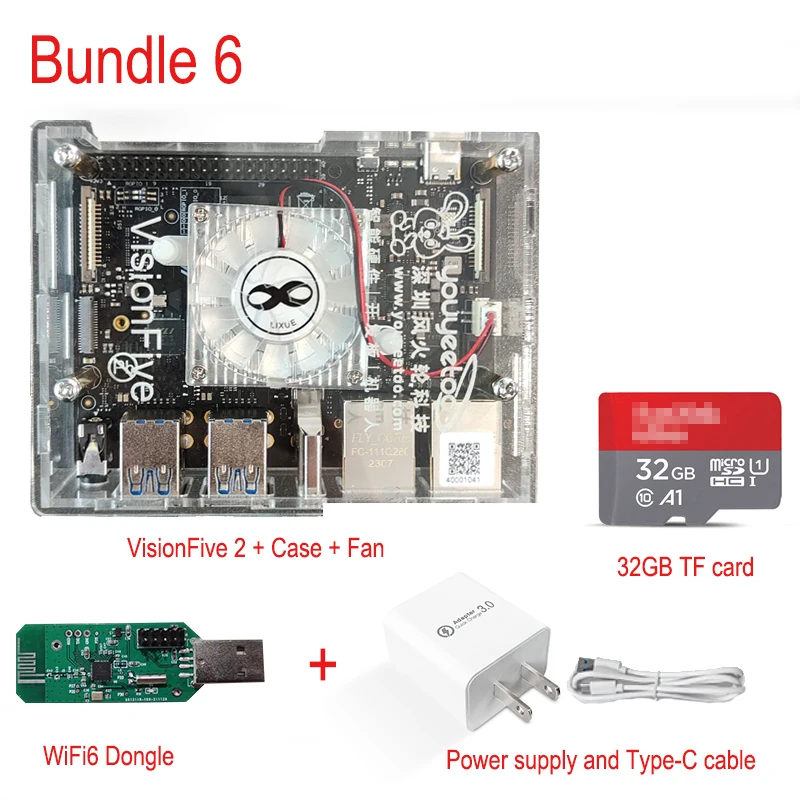

Bundle 6：VisionFive 2 + Case + Fan + Heat sink + WIFI6 Dongle + Power supply and Type-C cable + 32GB TF card

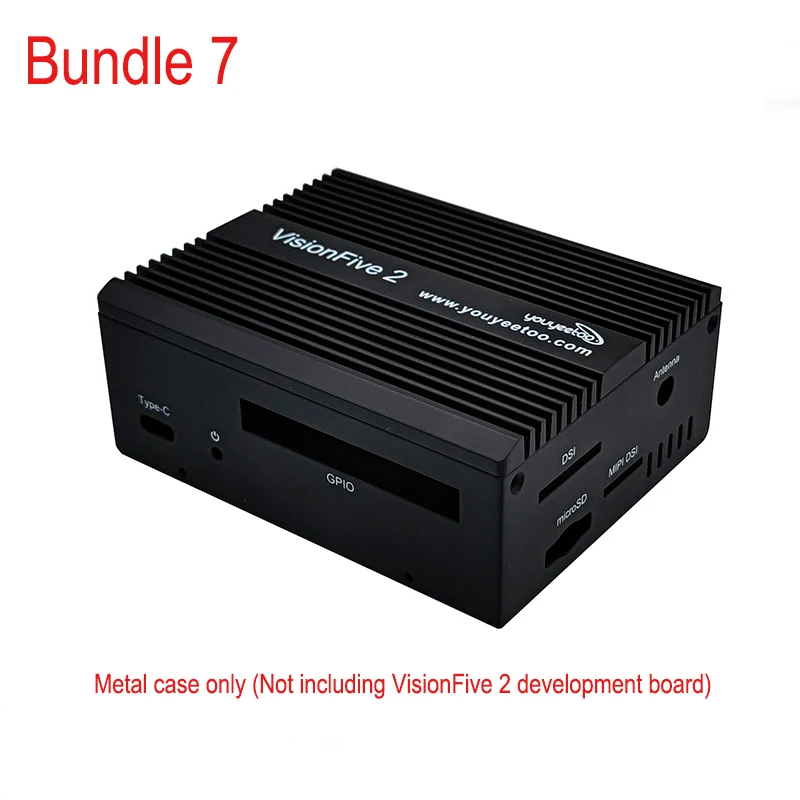

Bundle 7：Metal case (Not including VisionFive 2 development board)

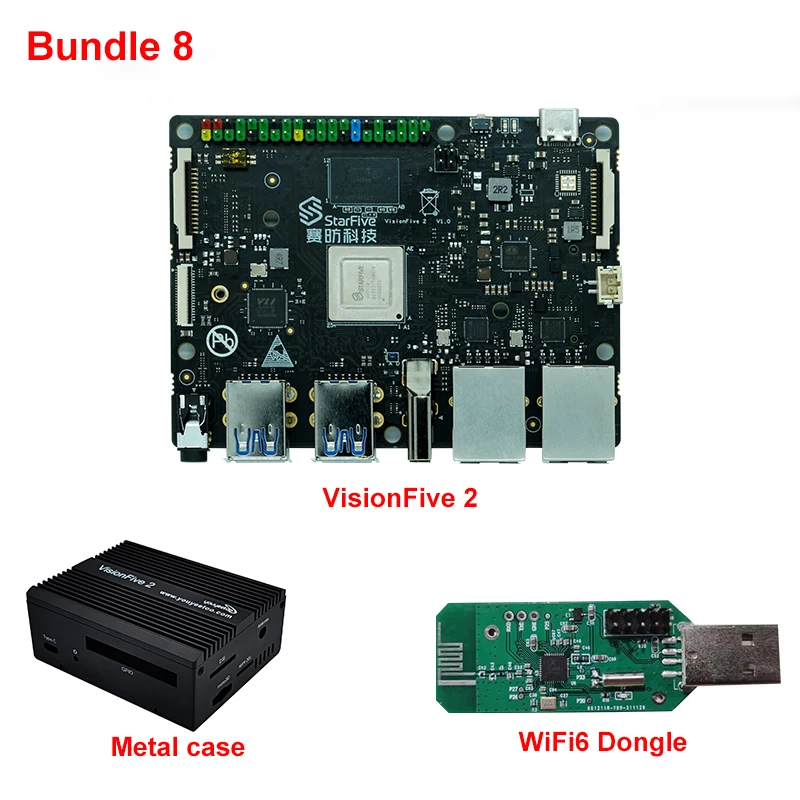

Bundle 8: VisionFive 2 + WIFI6 Dongle + Metal case

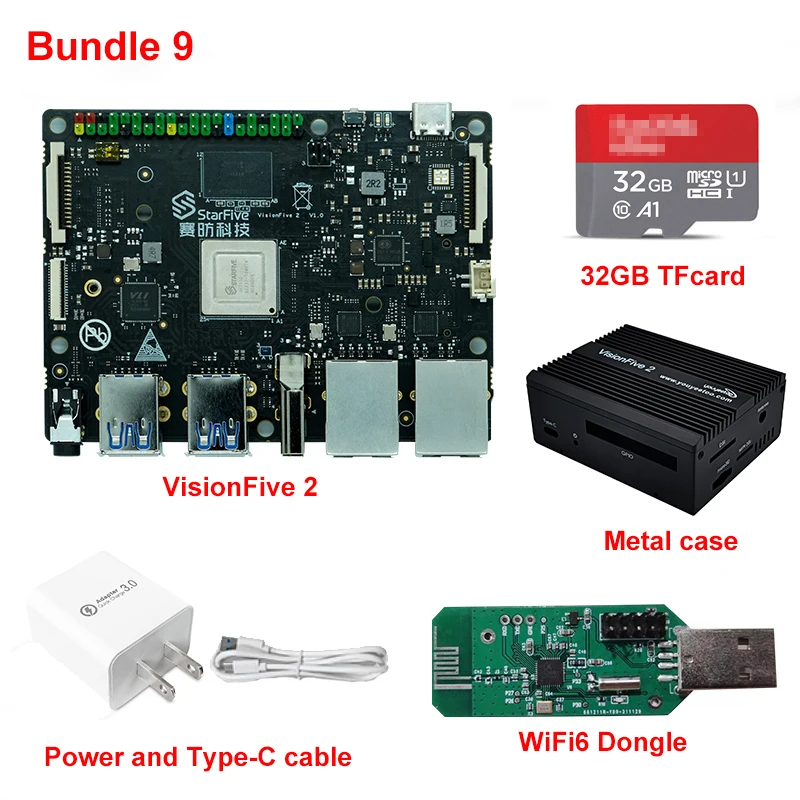

Bundle 9: VisionFive 2 + WIFI6 Dongle + Metal case + Power supply and Type-C cable + 32GB TF card

VisionFive 2 is the world’s first high-performance RISC-V single board computer (SBC) with an integrated GPU.Compared with its last generation, VisionFive 2 has been fully upgraded with significant improvements in the processor work frequency, multimedia processing capabilities, scalability, etc. Its superior performance and reasonable price make VisionFive 2 the best affordable RISC-V development board ever.

Interface

WiFi 6 Dongle

VisionFive 2 is Expandable

VisionFive 2 supports a wide range of peripherals designed for all the other mainstream SBCs, enabling users to complete their DIY projects effectively.

Operating Systems

As an open-source development board, VisionFive 2 supports mainstream Linux distributions.

The following is the release plan:

 Debian will be released in mid-October.

 Fedora will be released in mid-October.

 Ubuntu will be released later.

 openSUSE will be released later.

Technical Specifications

Processor

• StarFive JH7110 with RISC-V U74 quad-core with 2 MB L2 cache and S7 monitor core, supporting RV64GC ISA, working up to 1.5 GHz

• IMG BXE-4-32 MC1 with work frequency up to 600 MHz (400 MHz by default)

Memory

• 2GB, 4GB, 8GB LPDDR4 (up to 2800Mbps)

Storage

• Onboard TF card slot

• Flash

Wireless Connectivity

• WiFi dongle (only for WiFi board variants)

Video Output

• 1 × 2-lane MIPI DSI display port, supporting up to 1080p@30fps

• 1 × 4-lane MIPI DSI display port, supporting up to 2K@30fps in both single display and dual display modes

• 1 × HDMI 2.0, supporting up to 4K@30fps or 2K@60fps

Camera

• 1x 2-lane MIPI CSI camera port, supporting up to 4K (3840 x 2160) pixels @30fps

Encoder/Decoder

• Video Decoder supports up to 4K@60fps; Support multi stream for H264/H265

• Video encoder supports up to 1080p@30fps and multi-stream for H265

• JPEG encoder/decoder

Peripherals

• 2 x USB 3.0 ports

• 2 x USB 2.0 ports

• 40 Pin GPIO Header (28 x GPIO, I2C, I2S, SPI, UART)

• 2x RJ45 Ethernet Connector

• 3.5 mm Audio jack (4-pole stereo audio output)

• M.2 Connector

• eMMC Socket

• 2 pin fan header

• Micro-SD card slot for system boot and data storage

• Reset and Power Button

Power Supply

• Power 5V DC with PD, up to 30W

Power Connector

• USB Type-C port or 40-pin GPIO header

Dimension

• 100mm x 72 mm

Compliance

• RoHS, FCC, CE

Demos

We’ve setup everything you need to get started on the VisionFive2. Follow our documentation to installed Debian or Fedora, we’ve already got notes on how to run GPIO applications, as well as IIC, UART, and NodeJs applications. Don’t just make it all about work though, install Doom and Quake to sharpen your FPS skills at high frame rates!

Curious to see what it can do? We’ve run OpenGL, Vulkan and FFMpeg demos simultaneously to show you just how powerful the VisionFive 2 is.

Curious to see what it can do? We’ve run OpenGL, Vulkan and FFMpeg demos simultaneously to show you just how powerful the VisionFive 2 is.

Still not convinced? Check out the demo below where we run multiple GPU intensive programs simultaneously.
