UNISHEEN 4K60 equipo de transmisión de juegos transmisión en vivo 2160p OBS vMix Loopout PS5 Grabber Dongle caja de tarjeta de captura de vídeo

Q&A 1 What is this device for?

A video capture box is a device that collects video sources from PS5,Xbox,Switch,cameras,

computers, set-top boxes, etc., and connects to a computer. You can

play, broadcast, and record videos on the computer.

Q&A 2 What is the primary function of this box

A video capture box can capture HDMI, Loopout monitor, transmitting them to the computer system through lossless

capture technology. It is compatible with Windows 11, Mac, and Linux

systems and can be used without the need for drivers. Compatible

software includes Zoom, OBS, VJ, vMix, and so on.

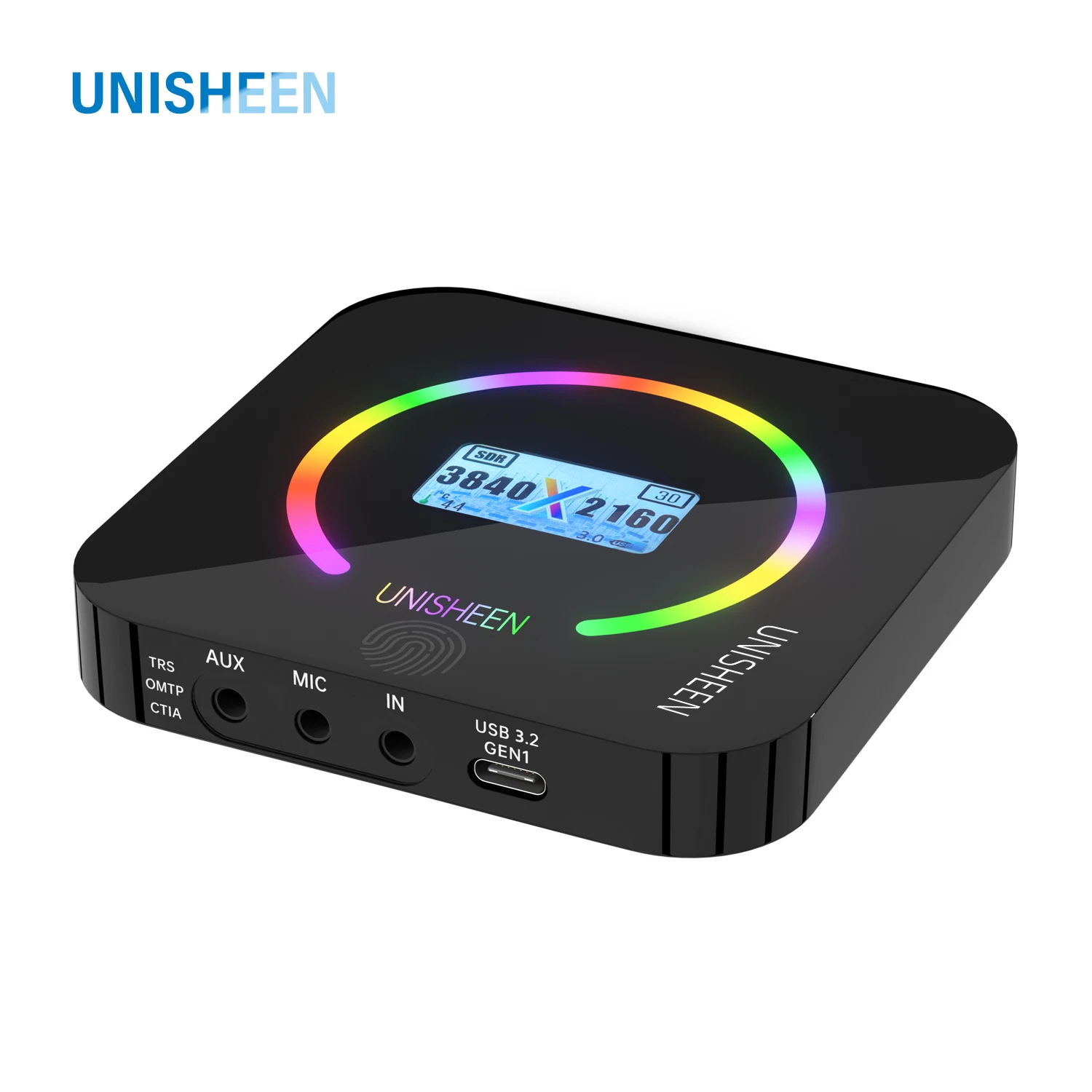

Q&A 3 What are the features of the UC2700H?

UC2700H supports 2160p60 capture, recording, live streaming,

and loop-through to a 4K60 monitor, supporting HDR10 and VRR features,

allowing you to experience the best video effects in games.

Q&A 4 Is this product difficult to use?

Our product is plug-and-play and driver-free, compatible with Mac,

Windows 11, and Linux systems. It can work by simply connecting to a USB

3.0 port.

Our Capture Product is compatible with a variety of software, such as

Resolume Arena, OBS, vMix, Zoom, VJ, Potplayer, VLC, Wirecast, and AMCAP etc.

Compatible with Windows10/11, Mac, and Linux operating systems

Feature

*4K60 Input/Recording

*Support HDR/VRR

*Free Driver*Win11 Mac Linux

Interface

USB interface

TYPE-C(Compatiable USB3.0)

Input interface

1xHDMI/1xloopout

Output interface

1xHDMI Loop(2160p60 1080p240 1440p120)

Video input

4KP60/30,1080P240/144/50/60,1080I50/60,720P50/60,576P,576I,480P,480I

HDR

HDR Pass-Through Resolution: 2160p60 HDR, 1440p120, 1080p240

VRR

VRR Pass-Through Resolution: 3840 x 2160 - VRR(48 - 60 Hz), 1920 x 1080 - VRR(48 - 120 Hz)

Audio input

HDMI embedded/1xLine In/1xMic In

Standard

Record

2160p60,1080P50/60,1080I50/60,720P50/60,576P,576I,480P,480I

Video capture

UVC (USB video class) compliance

Audio capture

UAC (USB audio class) compliance

Output color space

YUV,NV12

HDR10 Capture

2160p60 SDR/1080p60 HDR

OLED Screen

256 Color

General

Operation system

Supportversion x86 & x64 from Windows 7、8.1、10，Windows Server 2008 R2,macOS 10.10 or above,Andriod

Compatible software

VLC, Wirecast,Vmix,OBS,XSplit AMCAP etc.…

Compatible development interface

DirectShow (Windows), DirectSound (Windows)

Dimension

95x95x18mm

Box Dimension

164x115x42mm

Net/Gross Weight

0.15/0.35kg

Consumption

5 W

Working Temperature

0-50 degree

Storage temperature

-20-70 degree

Storage humidity

5%-90%
