Thermalright ODYSSEY II almohadilla de silicona de disipación de calor de segunda generación CPU/GPU tarjeta gráfica almohadilla térmica placa base almohadilla de silicona

Remind:

Please choose the size you need to buy carefully, because the best cooling effect can only be achieved when the thermal pads are tightly fitted on both sides and are not damaged by extrusion, so we recommend measuring the required size before purchasing

Parameter

Brand Name: Thermalright
Color：gray
Density (g/cc)：3.1+0.2
Hardness (sc)：30~55
Thermal Conductivity：14.8w/mk *
Specifications：85*45* 0.5mm/1.0/1.5/2.0/2.5/3.0/4.0
Breakdown voltage：9.8kv (1mm)

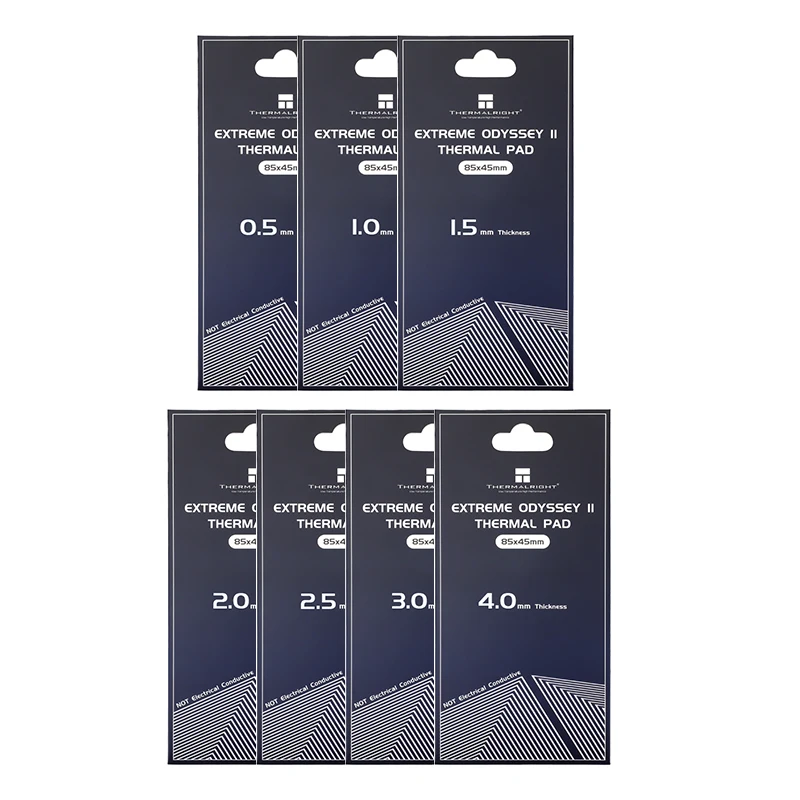

Size

85(long)x45(width)x0.5mm(thickness)
85x45x1.0mm
85x45x1.5mm
85x45x2.0mm
85x45x2.5mm
85x45x3.0mm
85x45x4.0mm

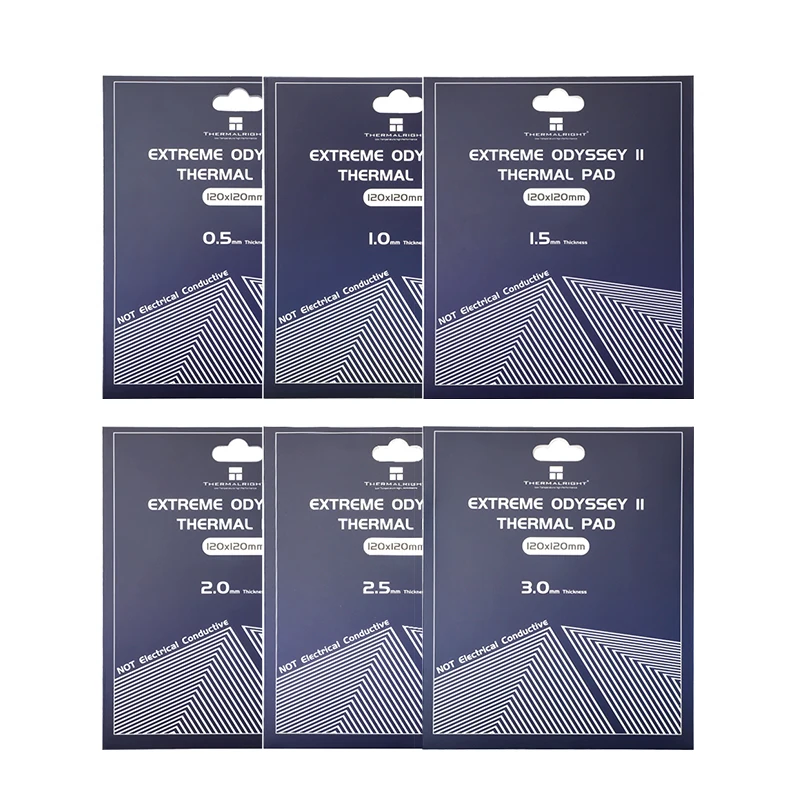

size

120(long)x120(width)x0.5mm(thickness)
120x120x1.0mm
120x120x1.5mm
120x120x2.0mm
120x120x2.5mm
120x120x3.0mm

Parameter

Brand Name: Thermalright
Color：gray
Density (g/cc)：3.1+0.2
Hardness (sc)：30~55
Thermal Conductivity：14.8w/mk *
Specifications：120*120* 0.5mm/1.0/1.5/2.0/2.5/3.0
Breakdown voltage：9.8kv (1mm)

High thermal conductivity and non-conductive

Thermal Conductivity：14.8w/mk *

FAQ:

How to choose the size you need
1: Calculate the area of your GPU/CPU/circuit board
2: Calculate the thickness of the thermal pad according to the gap between the circuit boards


Reminder: The thermal conductivity of each thickness of the thermal conductive silicone pad is the same, and it can be cut at will

Instructions For Use

Thermal pads are much simpler in their installation than thermal paste because they can be easily and precisely applied, so that even newcomers have no difficulties. However, the thermal output is usually lower than that of the paste and so they can only be used to a limited extent on CPUs.

REMOVING THERMAL PADS
When using thermal pads, it should always be borne in mind that these are intended for single use only. If heat sinks are moved or replaced, the pad must be replaced completely. All adhesive residue should also be removed, otherwise there will be new bumps and gaps on the surface.

THERMAL PADS IN VARIOUS STRENGTHS AND DIMENSIONS
Thermal pads can be purchased from in various thicknesses and sizes. They can also be cut to the necessary dimensions by the user.
