DESCRIPTION


PoE Ethernet / USB HUB HAT For Raspberry Pi Zero, 3x USB 2.0 Ports, 802.3af-Compliant



PoE Ethernet / USB HUB HAT

Suitable For Raspberry Pi Zero / Zero W / Zero WH, 802.3af-Compliant

Features At A Glance

ThePoE/ETH/USB HUB HATis a PoE (Power over Ethernet) USB HUB HAT designed forRaspberry Pi Zero. By using this small HAT and some proper 802.3af-compliant power sourcing equipments, it is possible to provide both network connection and power supply for your Raspberry Pi in only one Ethernet cable, along with3x extended USB ports.

  • Designed for Raspberry Pi Zero, compatible with Zero series boards

  • Incorporates RTL8152B Ethernet chip, with 10M / 100M auto-negotiation RJ45 port

  • PoE (Power over Ethernet) feature, 802.3af-compliant

  • Fully isolated SMPS (Switch Mode Power Supply)

  • 3x extended USB ports, compatible with USB 2.0 / 1.1

Specifications

POE POWER INPUT

37V ~ 57V DC in

POWER OUTPUT

5V 2.5A DC out

NETWORK STANDARD

IEEE 802.3af-compliant PoE

DIMENSIONS

23.10 × 65.00 mm

Compatible With Raspberry Pi Zero Series

Designed For Raspberry Pi Zero, Compatible With Zero / Zero W / Zero WH

3x Extended USB 2.0 Ports

USB1 ~ USB3, Compatible With USB 2.0 / 1.1

Extended Ethernet Port

USB To Ethernet Conversion By The RTL8152B Chip, 10M / 100M Auto-Negotiation

Application ExampleFor reference ONLY, the Raspberry Pi Zero, LCD display, and MicroSD card are NOT included.
Resources & ServicesWiki:www.waveshare.com/wiki/PoE/ETH/USB_HUB_HAT

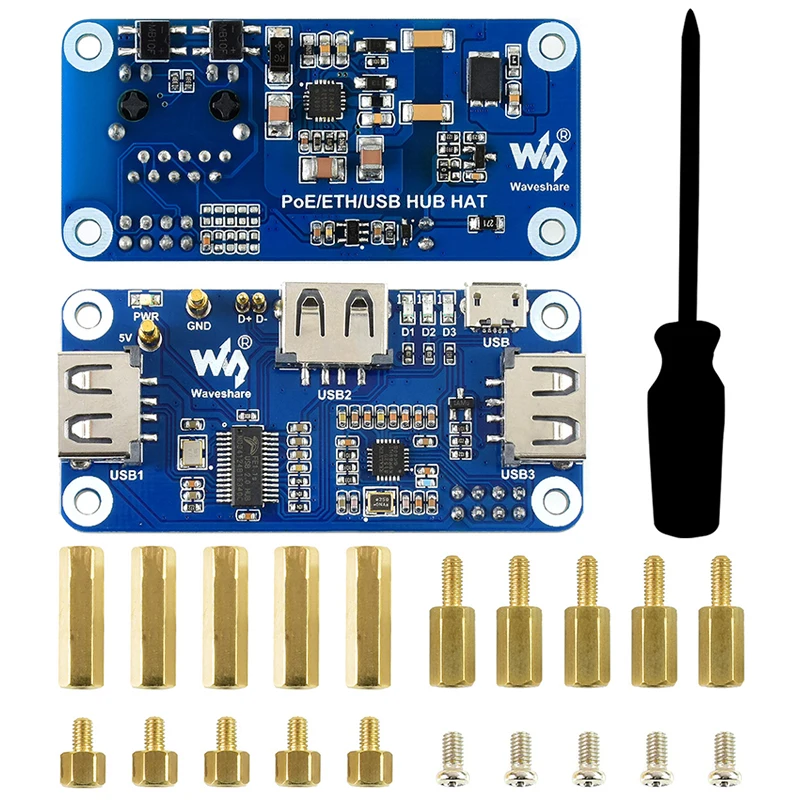

PACKAGE CONTENT



Weight:0.063 kg

  1. 1 × PoE/ETH/USB HUB HAT

  2. 1 × USB HUB Board

  3. 1 × Screws pack

  4. 1 × Screwdriver
