Raspberry Pi Pico 2 RP2350 ETH RP2350A chip CH9120 TCP/UDP red Ethernet sensor de temperatura incorporado 4MB Flash/520KB SRAM

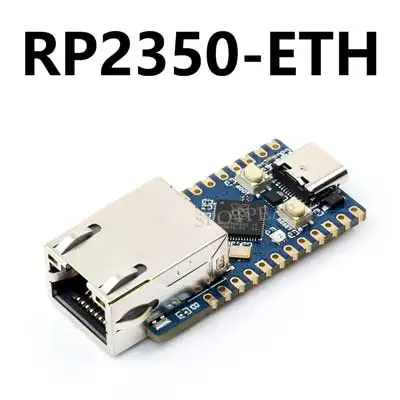

RP2350-ETH

Based On RP2350, Onboard ETH Port

• RP2350 microcontroller chip designed by Raspberry Pi in the United Kingdom

• Adopts unique dual-core and dual-architecture design: dual-core Arm Cortex-M33 processor and dual-core Hazard 3 RISC-V processor, flexible clock running up to 150 MHz

• 520KB of SRAM, and 4MB of onboard Flash memory

• Onboard CH9120 with integrated TCP/IP protocol stack

• 14 × multi-function GPIO pins, compatible with some Pico HATs

• Castellated module allows soldering direct to carrier boards

• Drag-and-drop programming using mass storage over USB

• Temperature sensor

• 12 × Programmable I/O (PIO) state machines for custom peripheral support

Castellated Holes With Immersion Gold Design, Highly Integrated Packaging
Supports Multiple Ways To Be Embedded Into Various Product Applications

Supports TCP Server / TCP Client / UDP Server / UDP

1.
   for program downloading, supports USB1.1 hosts and slave devices

2.
   Press it when resetting to enter download mode

3. RESET button

4.
   Dual-core and dual-architecture design, up to 150 MHz operating frequency

1. RJ45 Ethernet port

2.
   Low dropout regulator, 800mA output (Max.)

3.
   4MB NOR-Flash

4.



Outline Dimensions

PACKAGE CONTENT

[] RP2350-ETH
